Article-No.:
70409

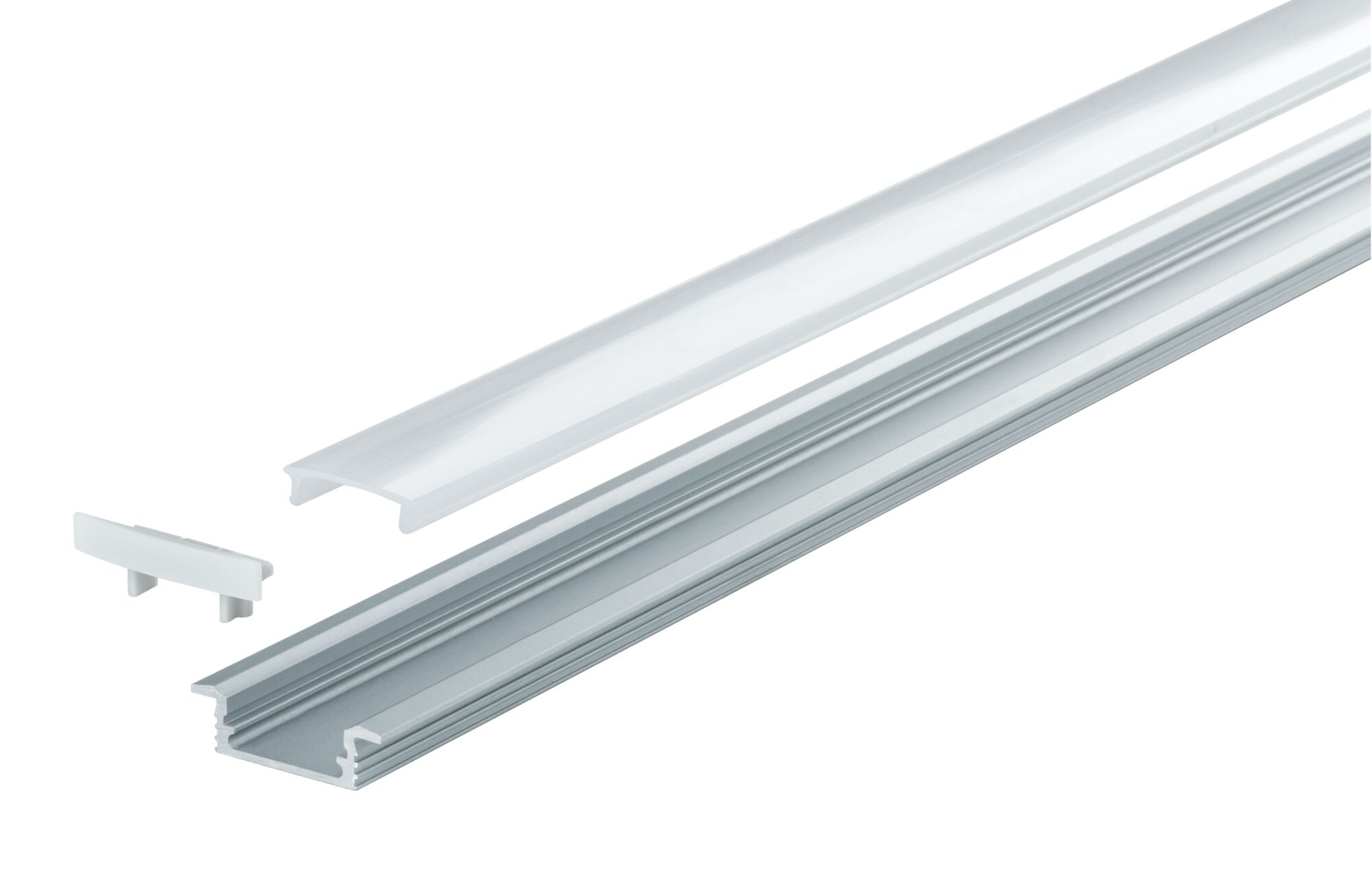

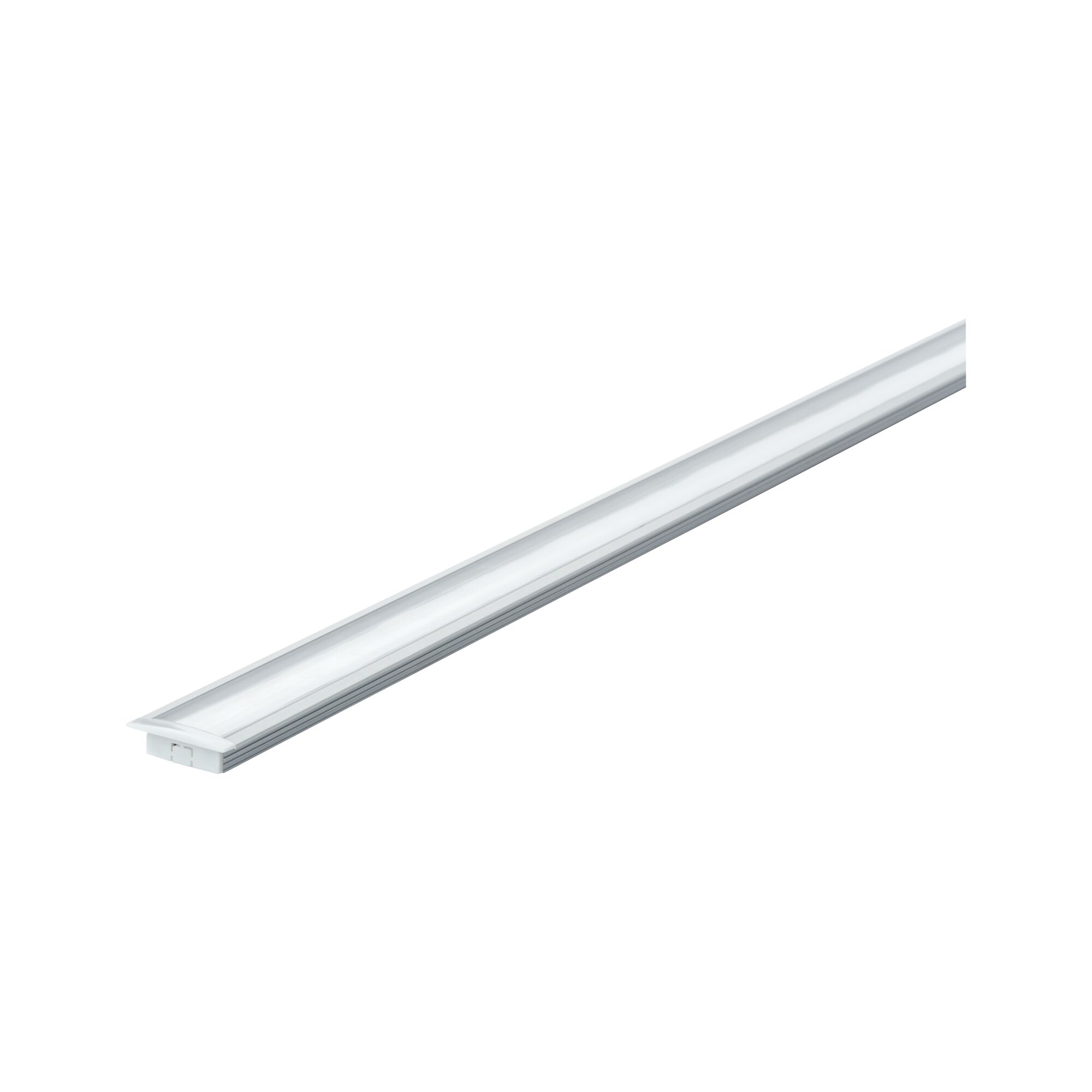

LED Strip recessed profile
Floor 2m
Aluminium/Satin
Aluminium/Satin
- Including cable guides
- Profile can be shortened according to required length
- Max. load up to 130 kg
LED Strip recessed profile Floor 2m Aluminium/Satin

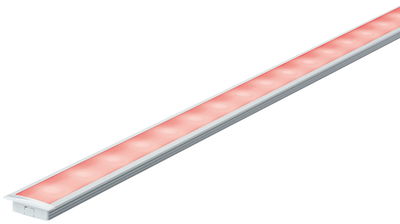

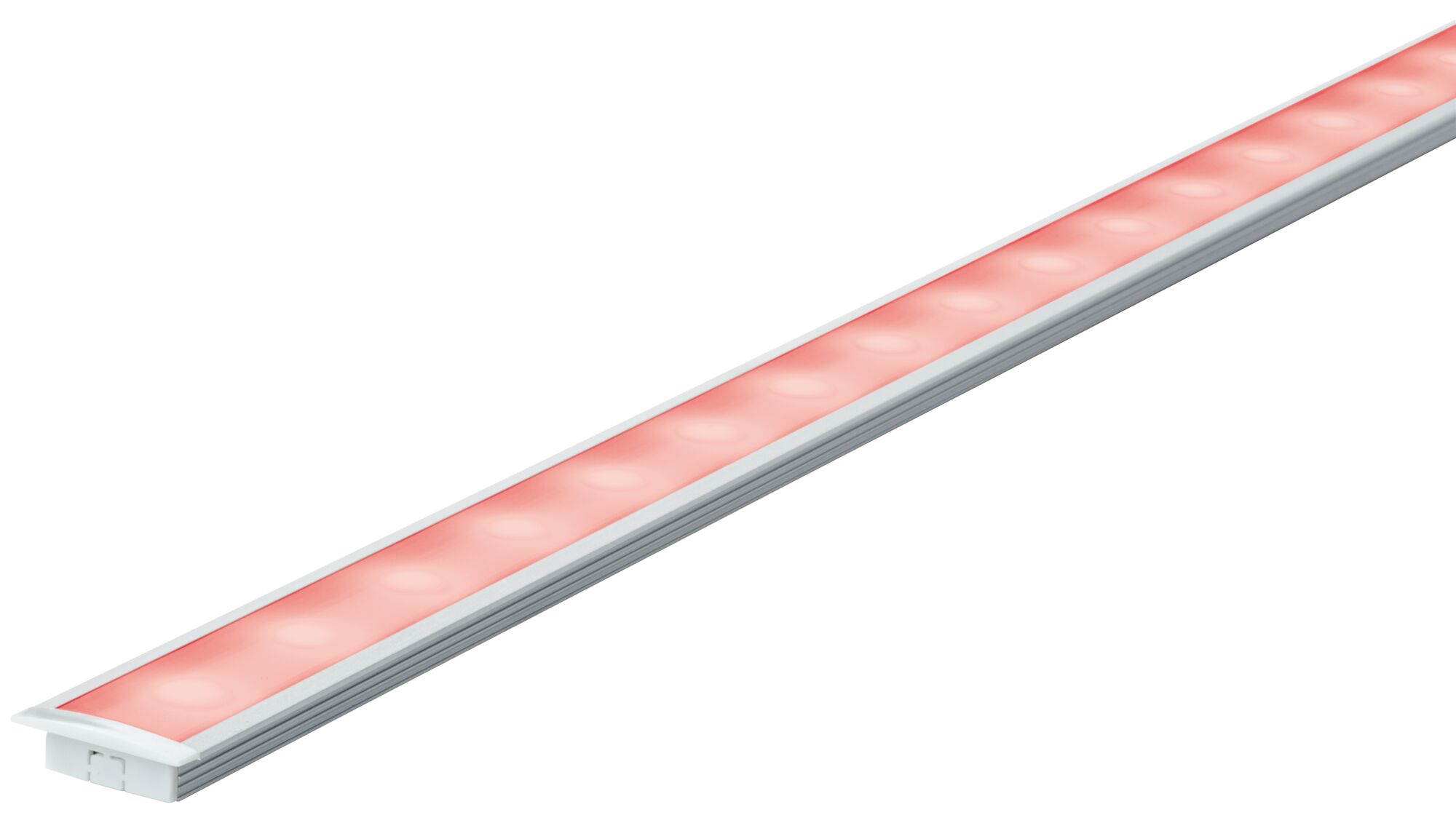

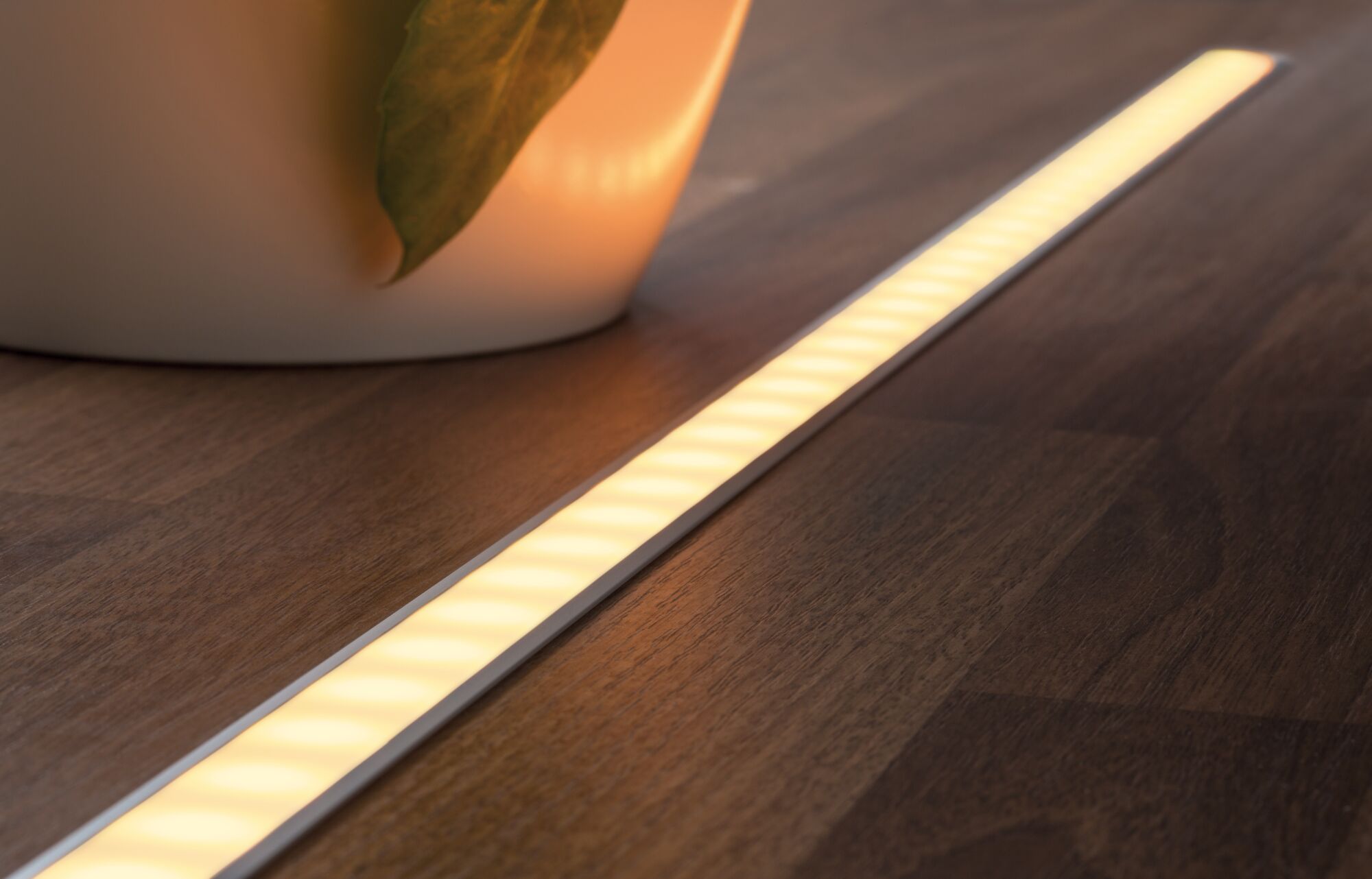

The Floor Profile can be fitted out with LED strips in the light colour of your choice, thus providing decorative effects for skirting boards and closing edges. It can also be used for orientation or guiding purposes in shady and hazardous areas. Continuous light with efficient LED placement. Can also be used as decorative edging or optical partition lines if required. The profile can stand loads of up to 130 kg, can be glued into floor surfaces from 8 mm in thickness or in furniture items with material thickness of at least 12 mm.
- Including cable guides
- Profile can be shortened according to required length
- Max. load up to 130 kg
- With satined diffusor for uniform light distribution
- Aluminium profile with cooling effect for LED Strips
- High-quality U-profile made of aluminium with an anodised finish
- With end caps and a support surface to prevent sinking or cover untidy groove edges
- Can be combined with YourLED and MaxLED strips
- Don't forget to add the matching LED strips to your order!

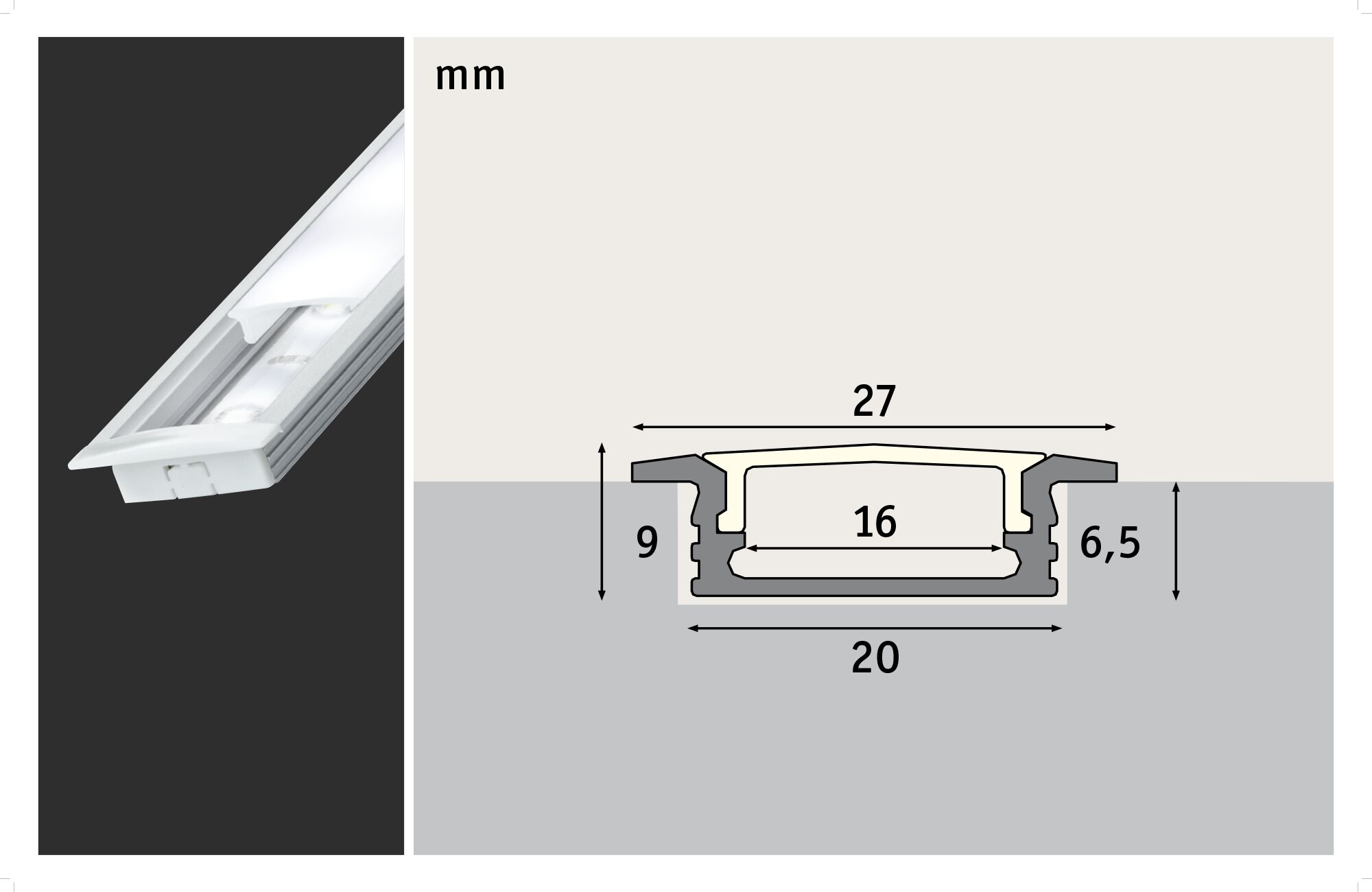

| Dimension | |
|---|---|
| mounting hole 2 | 20 mm |
| Total Mounting depth | 7 mm |
| Dimensions (Height x Width x Depth) | H: 9 T: 27 mm |
| Mounting hole | 2003 mm |
| Length | 2 m |
| Form | square |
| Depth of hollow wall | 7 mm, 7 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Satin, Aluminium |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Maximum load | 130 kg |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
