Article-No.:
93572

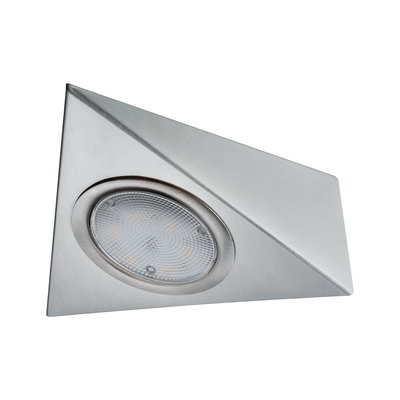

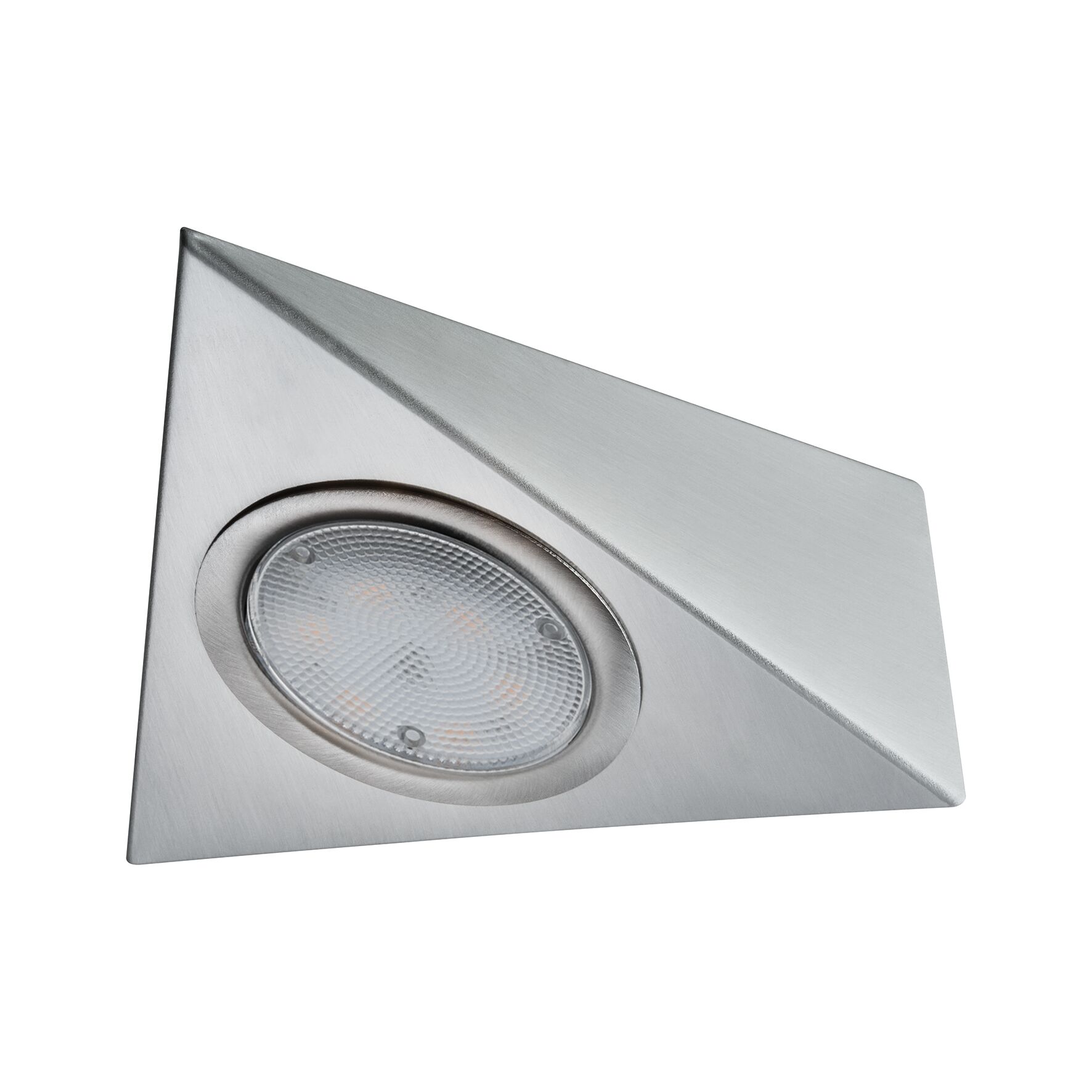

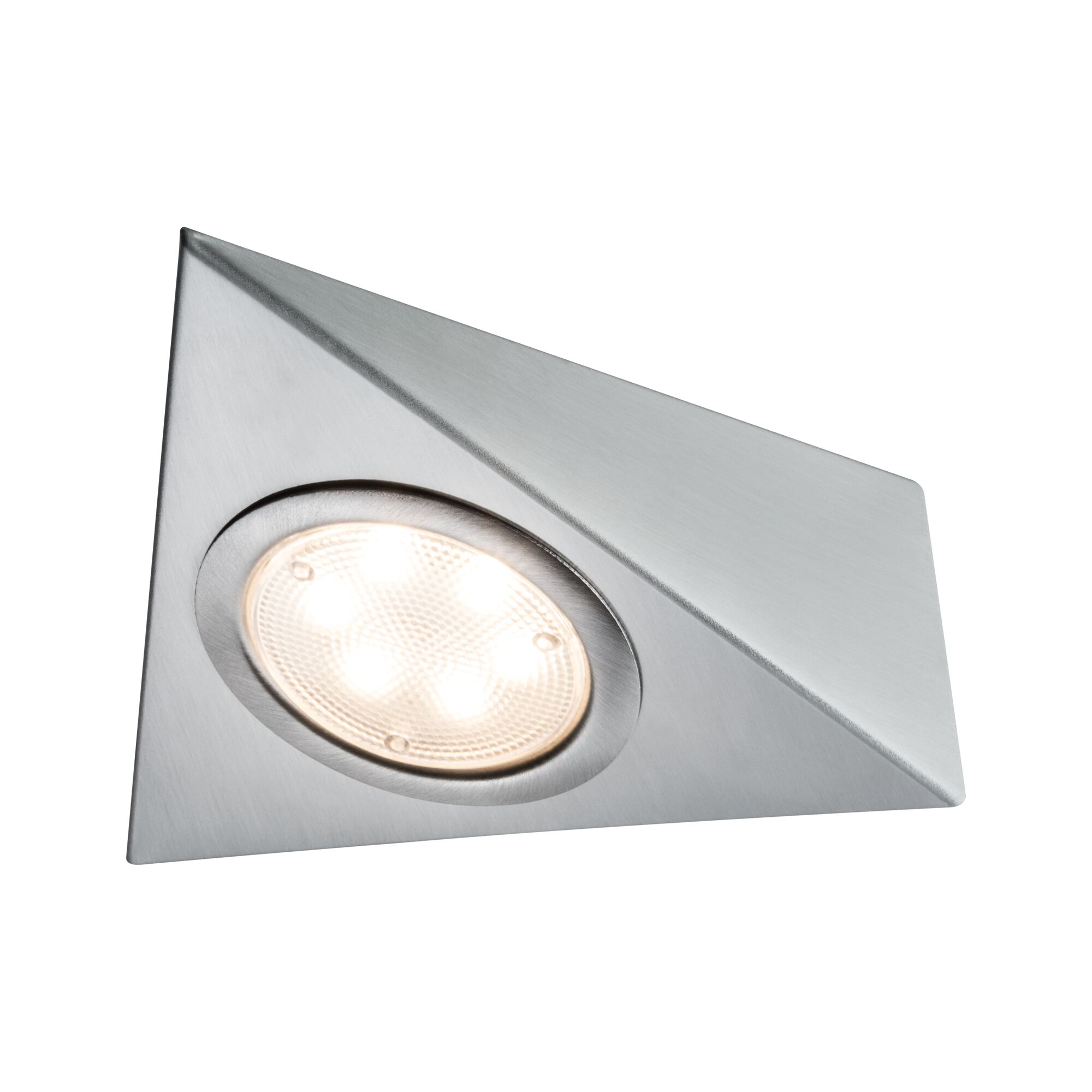

LED Under-cabinet luminaire
Dreieck
3x2,8W 140x110mm 3x170lm 230/12V angular Brushed iron
3x2,8W 140x110mm 3x170lm 230/12V angular Brushed iron
£88.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

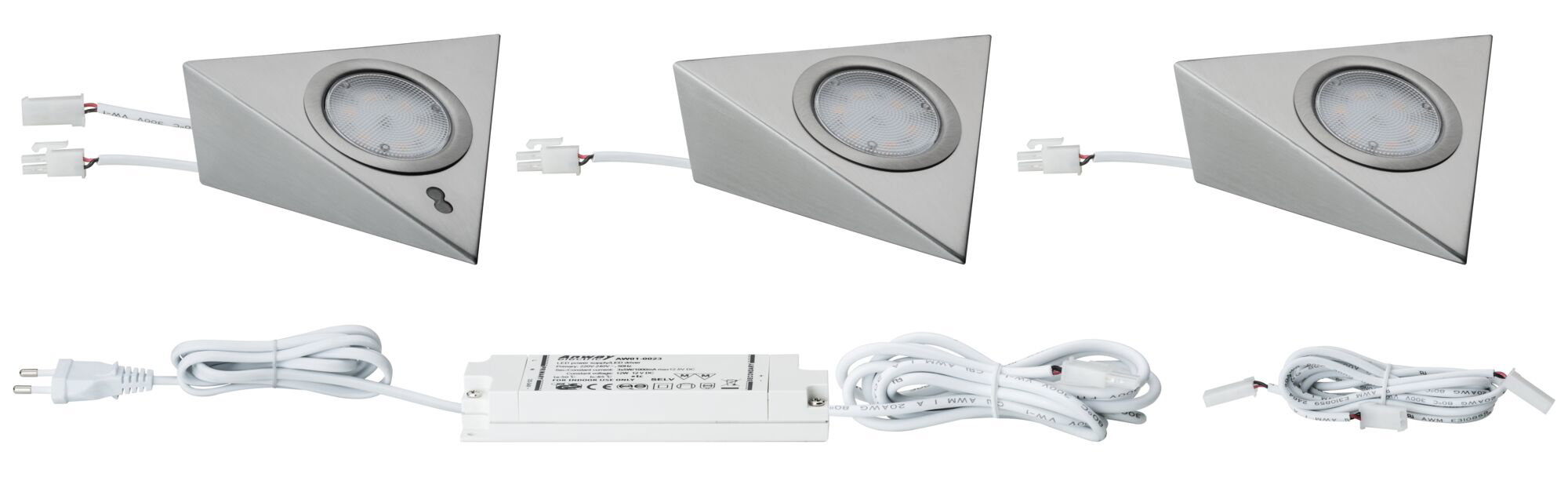

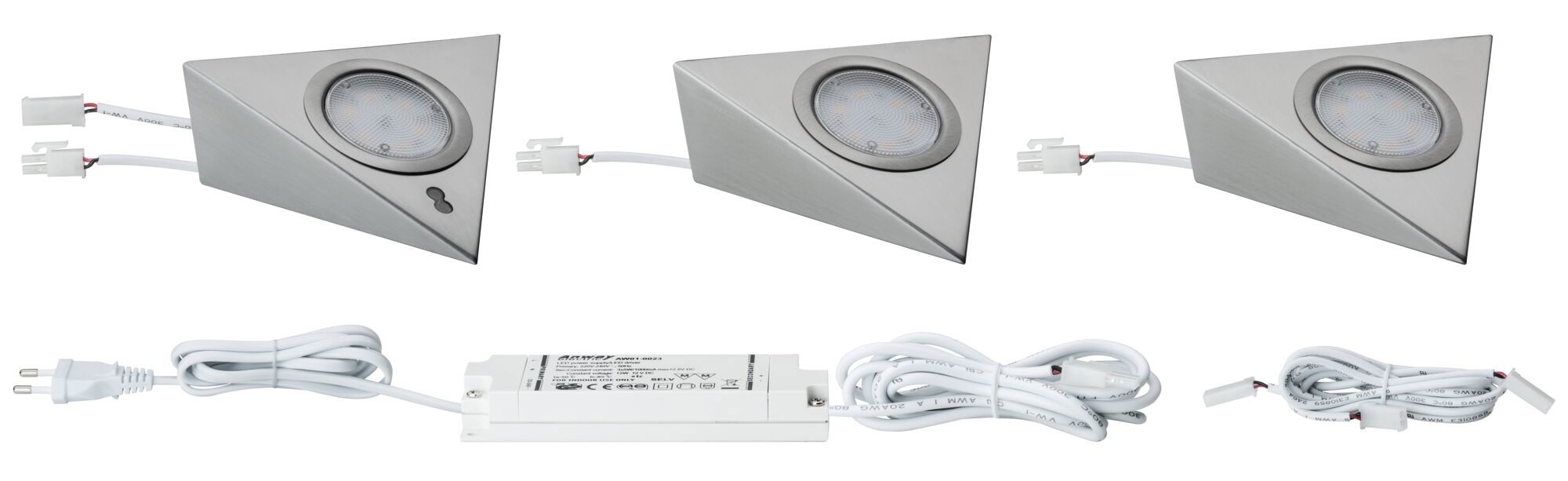

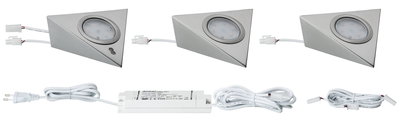

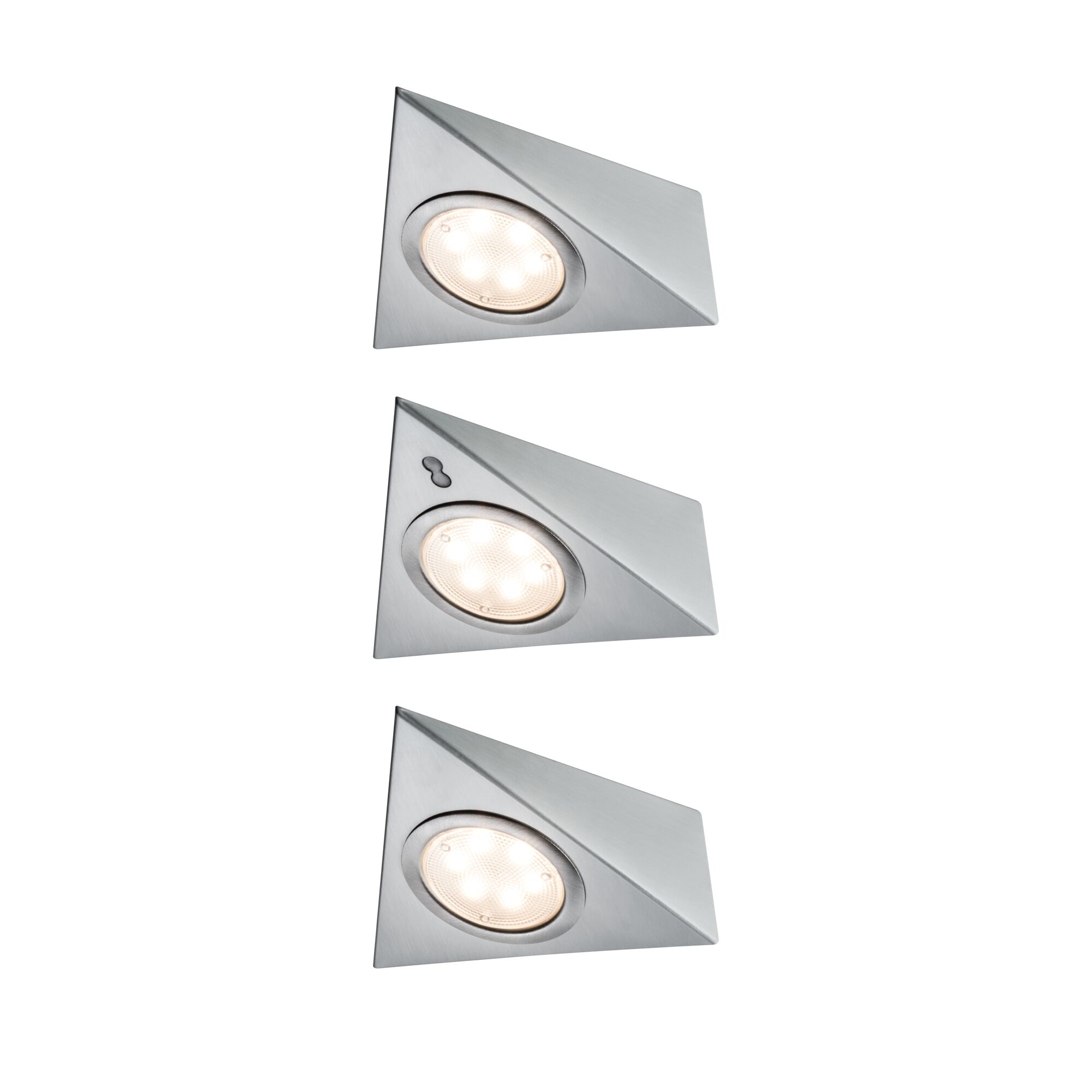

- Set of 3 luminaires incl. LED module and power supply unit
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white
LED Under-cabinet luminaire 3x2,8W 140x110mm 3x170lm 230/12V angular Brushed iron

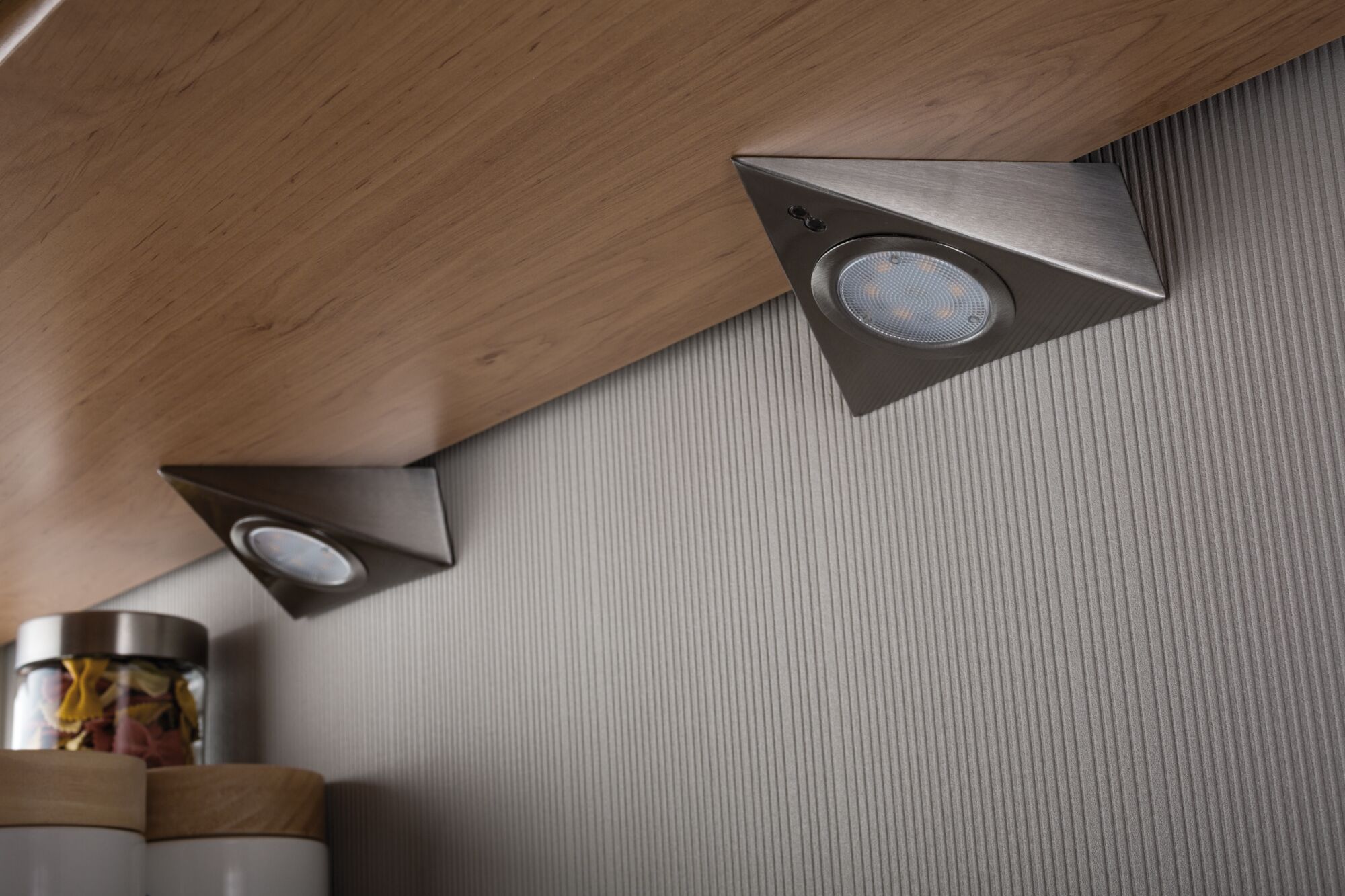

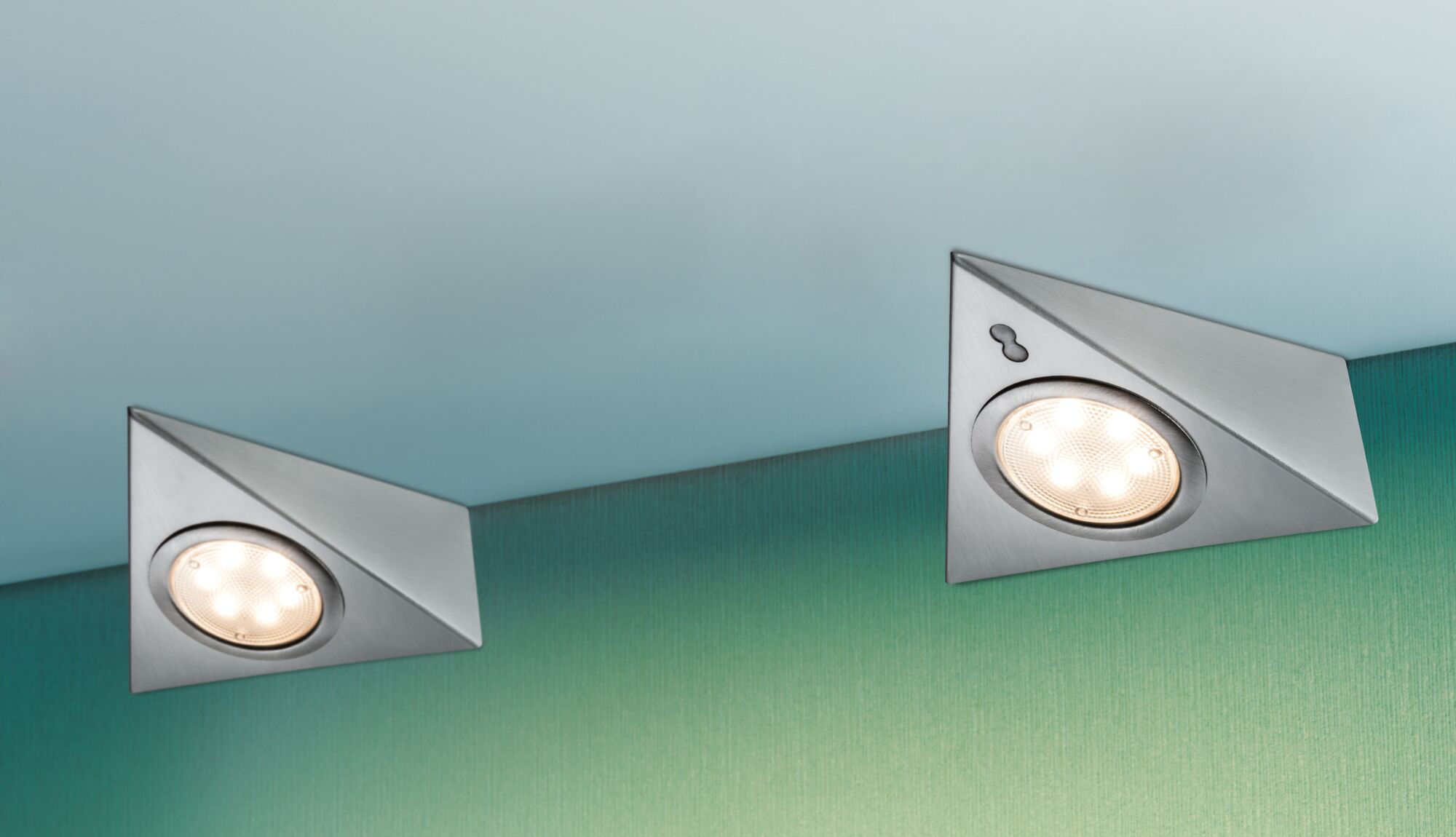

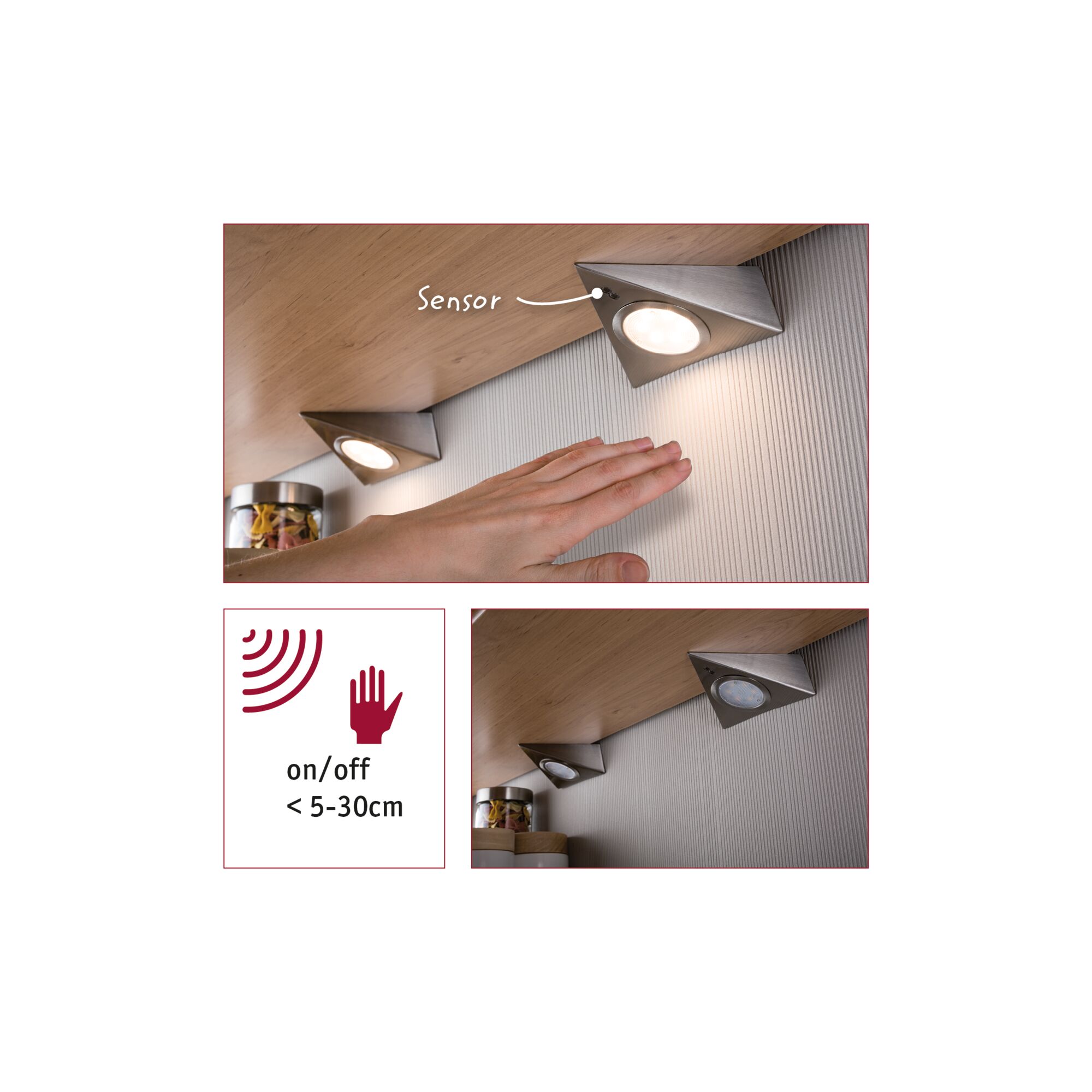

Furniture surface-mounted spotlight illuminate inside and below cabinets, shelves and display cabinets. They provide a good overview and showcase your collection. The practical set with PIR proximity sensor can be switched on and off simply by proximity and without contact. This makes it ideal for use in the kitchen and bathroom, where the hands are often wet or dirty. The luminaires are screwed in the required position, the wiring can be routed concealed behind the furniture and connected to the ballast. Please note that you need a socket near the ballast in order to put the set into operation with the supplied euro plug.
- Set of 3 luminaires incl. LED module and power supply unit
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white

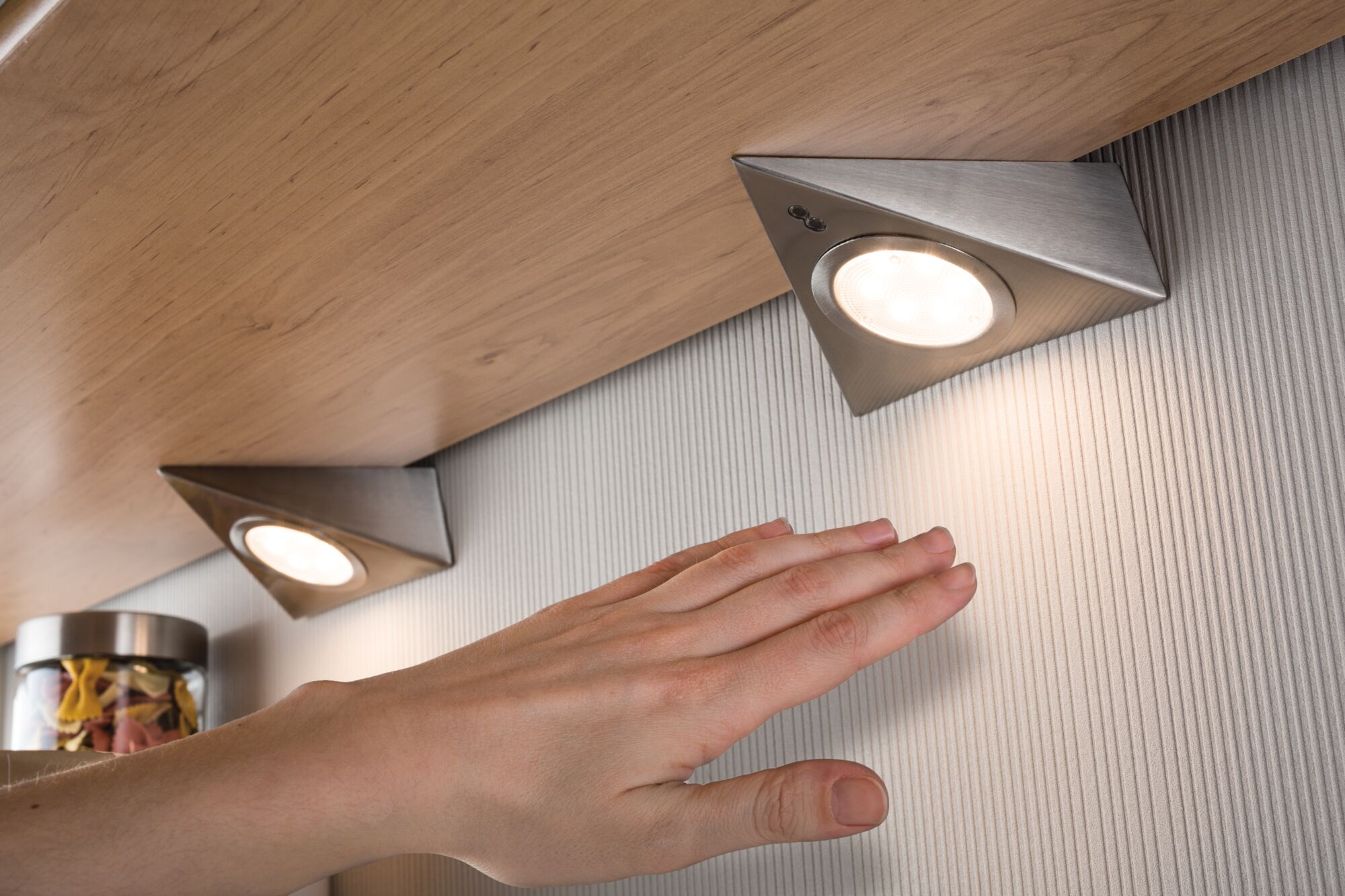

- Incl. PIR switch sensor – switched by proximity to the luminaire
- Can be combined with wireless socket and compatible switch
- Incl. euro plug
- Incl. plug-in connection
| Dimension | |
|---|---|

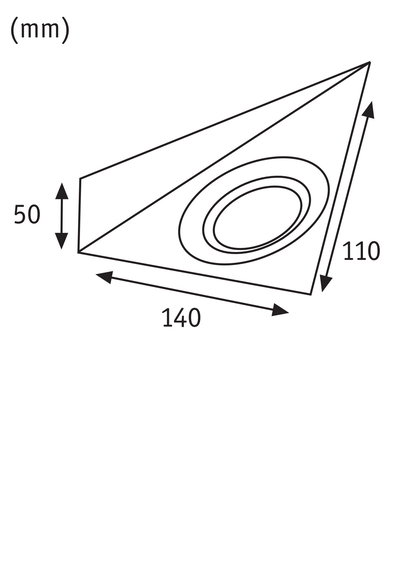

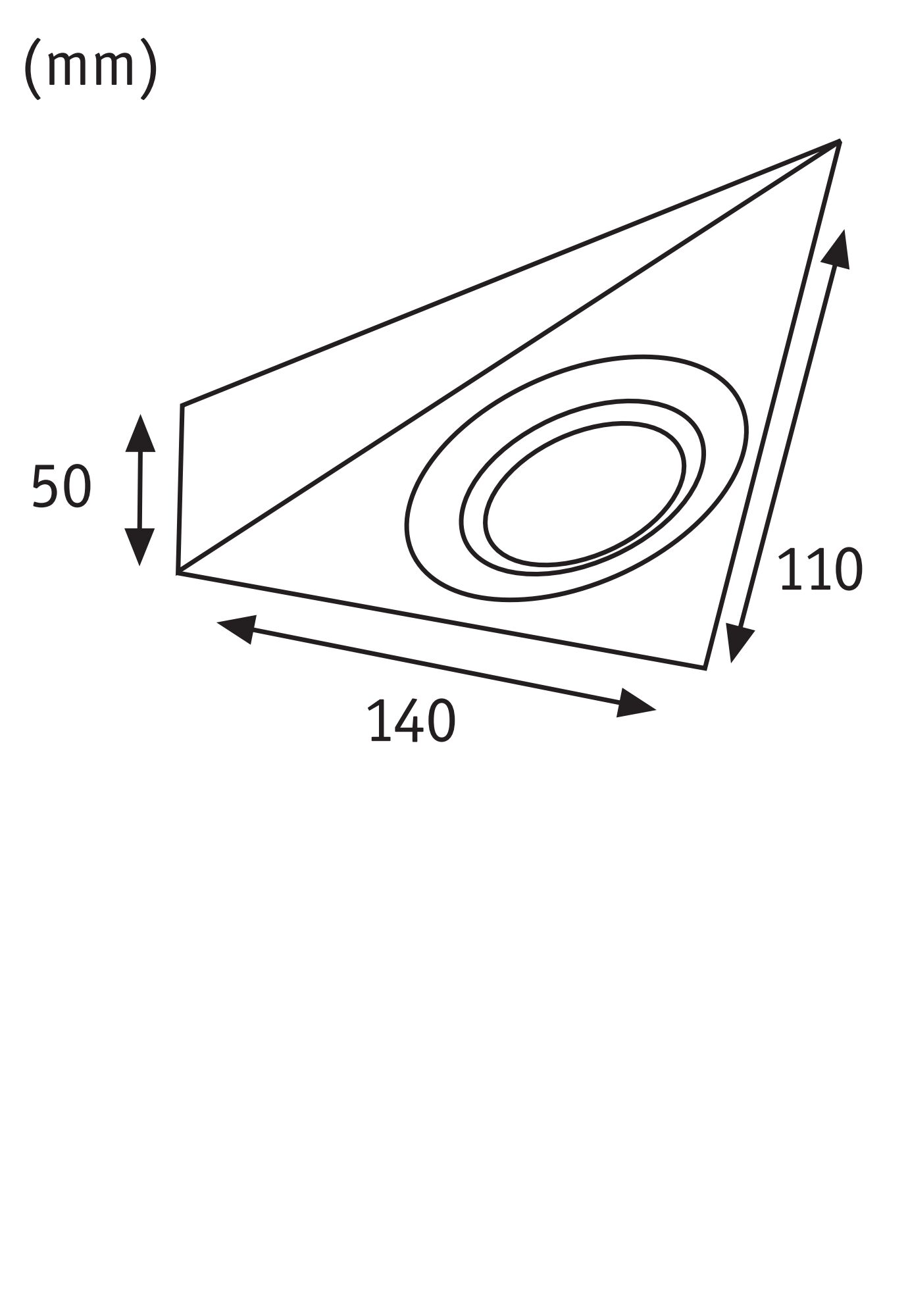

| Dimensions (Height x Width x Depth) | H: 50 x B: 140 x T: 110 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | Brushed iron |
| Material | Metal, Glass |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Features | |
|---|---|
| Sensors | Proximity switch |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 170 lm |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 2,8 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 10,9 W |
| Adjustability | fixed |
| Voltage | 230/12 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 12 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
