Article-No.: 93583

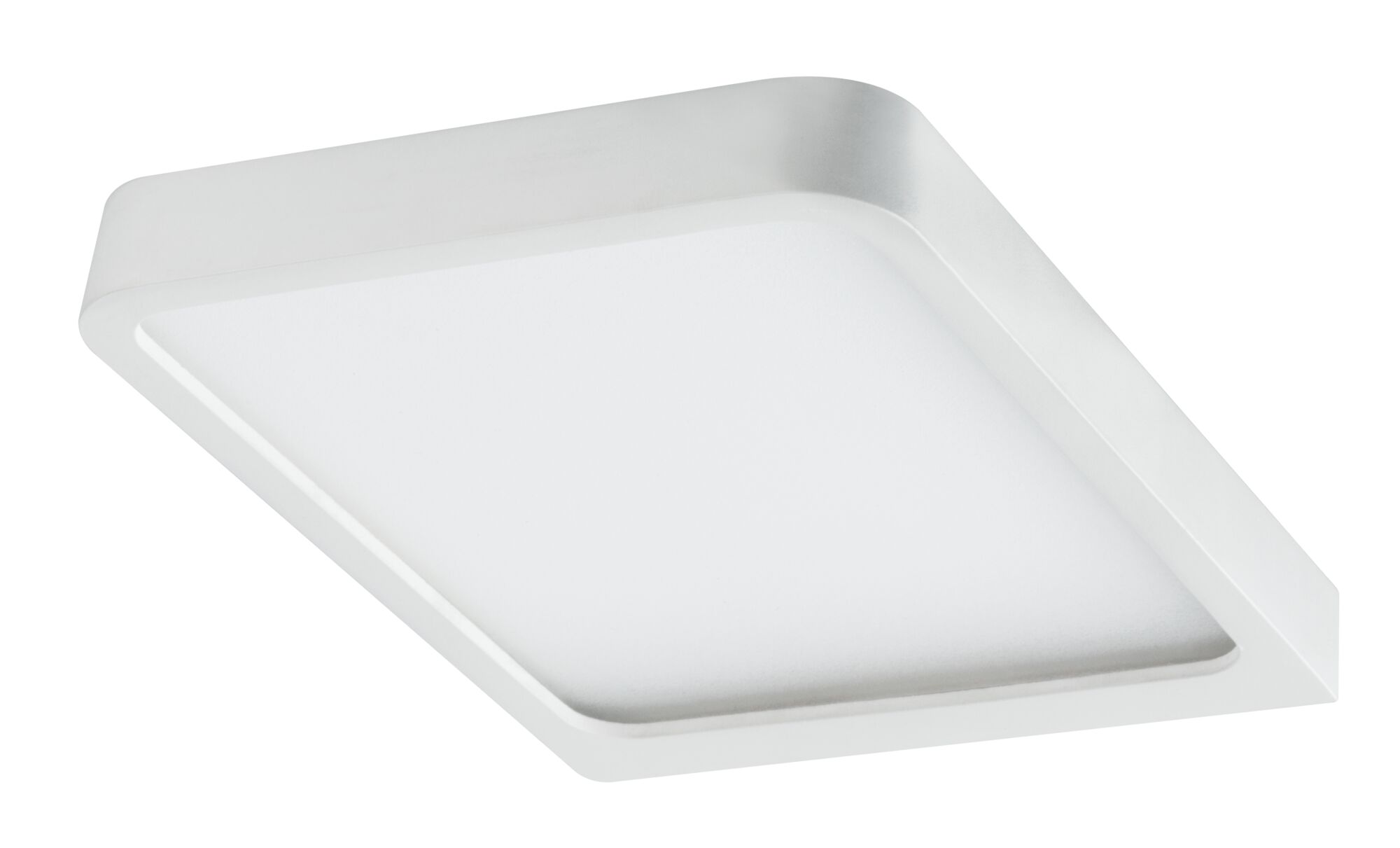

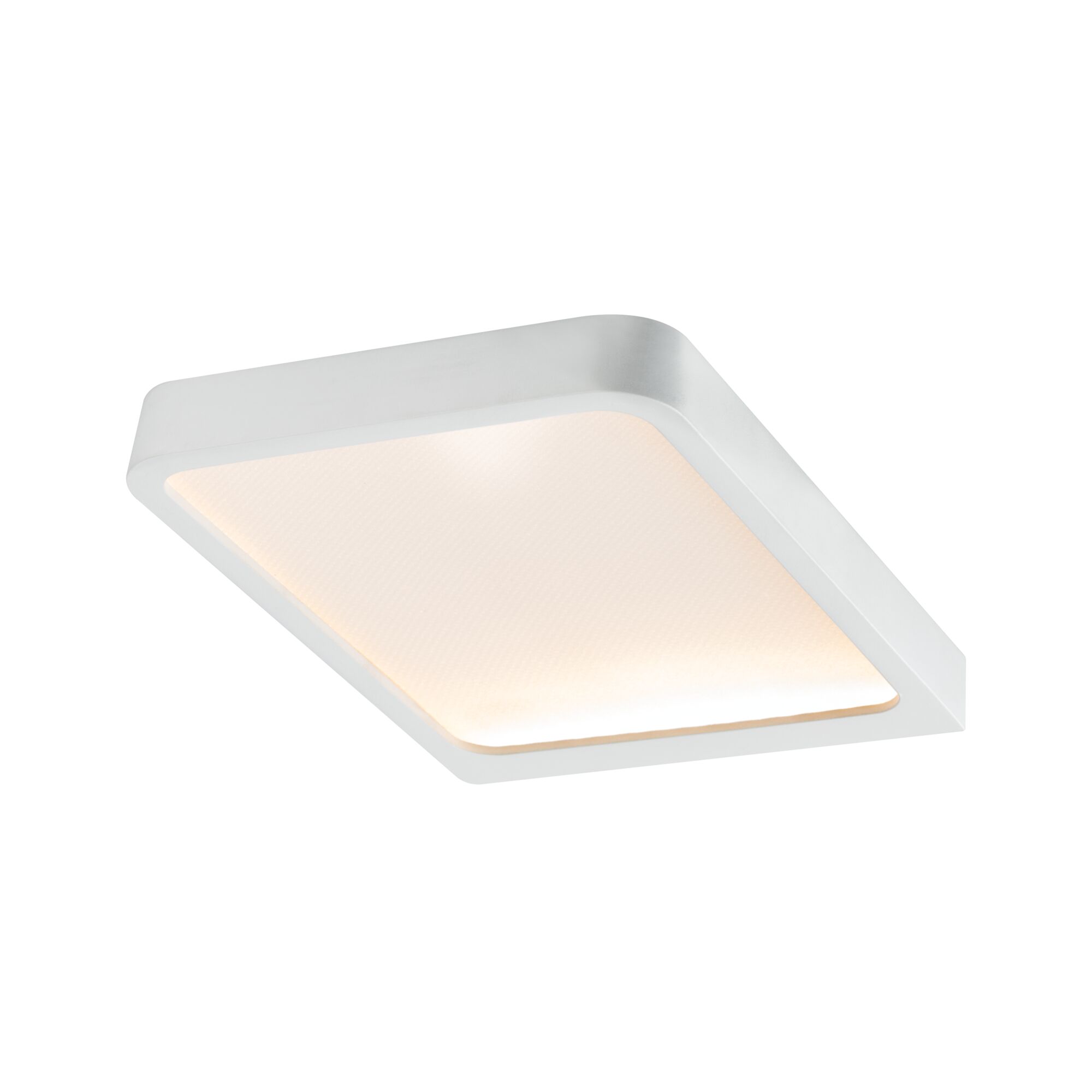

LED Under-cabinet luminaire Vane

2x6,7W 105x140mm 2x450lm 230/12V square Matt white

Version: 2-piece set

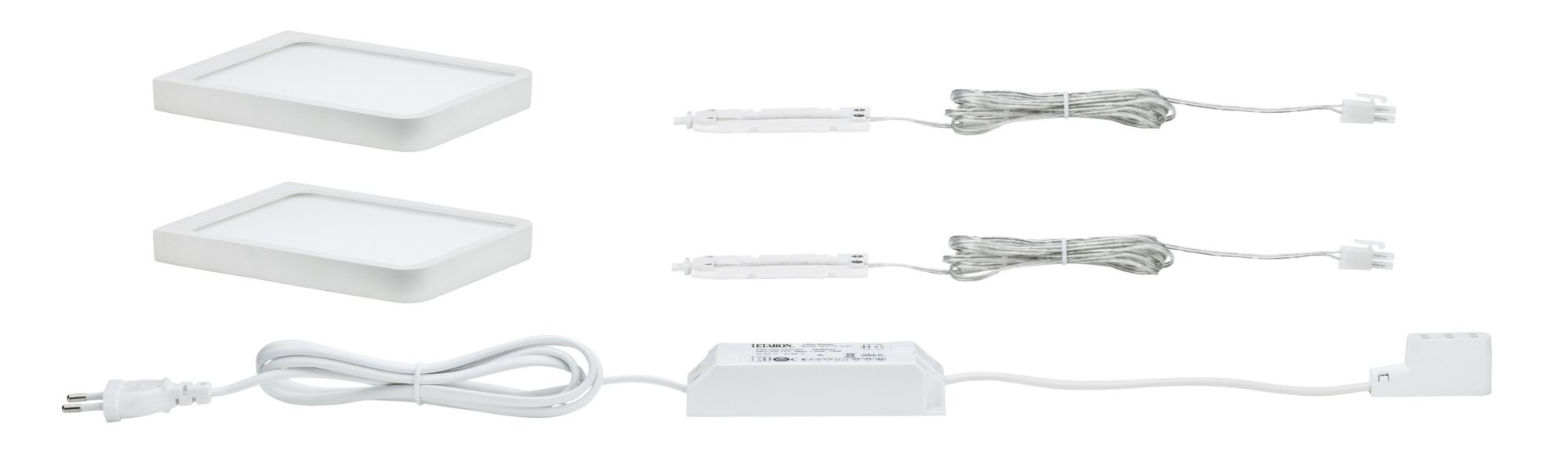

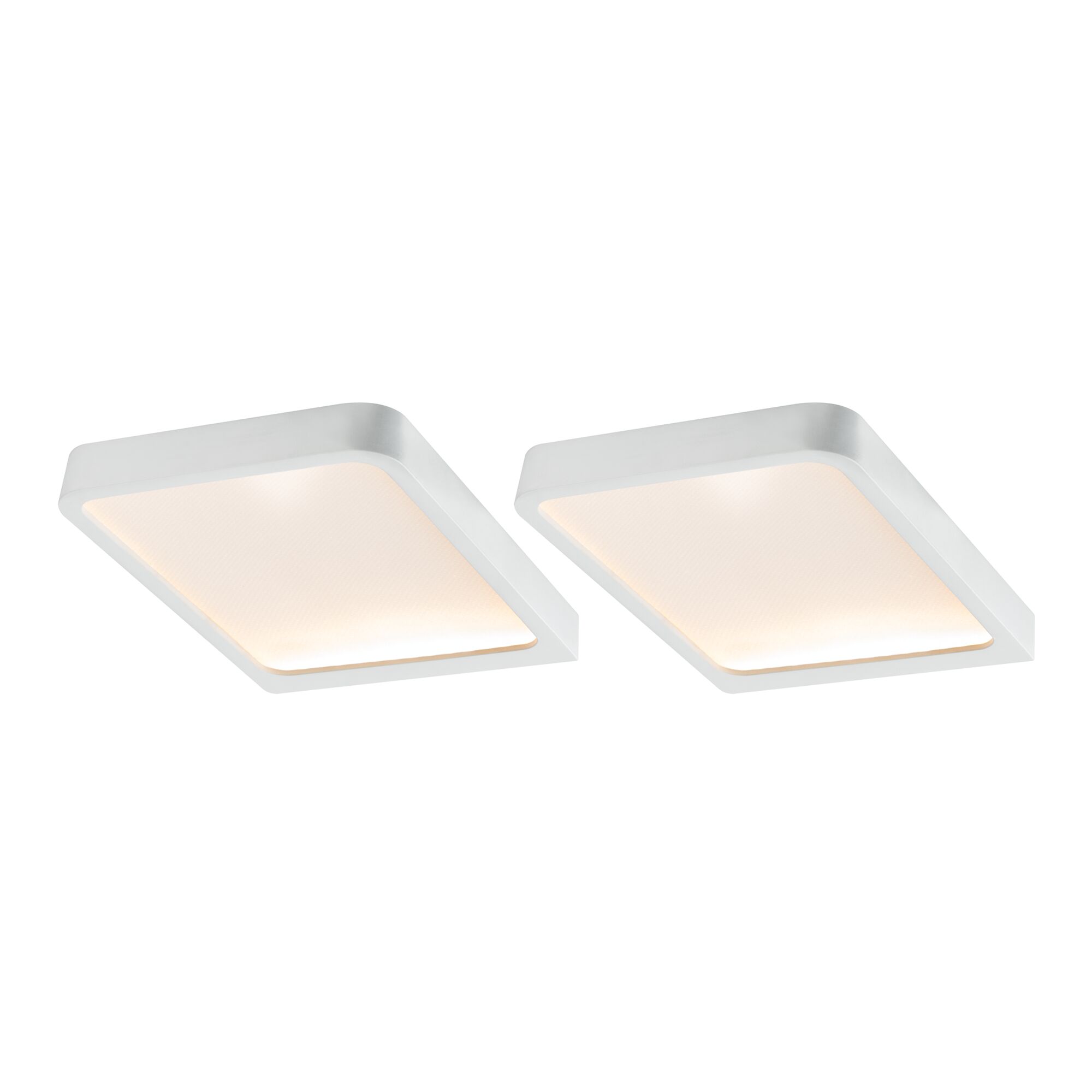

  • Set of 2 luminaires incl. LED module and power supply unit

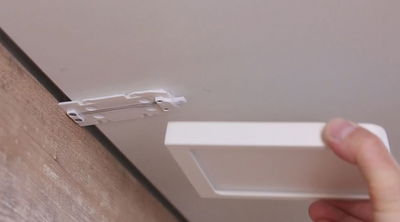

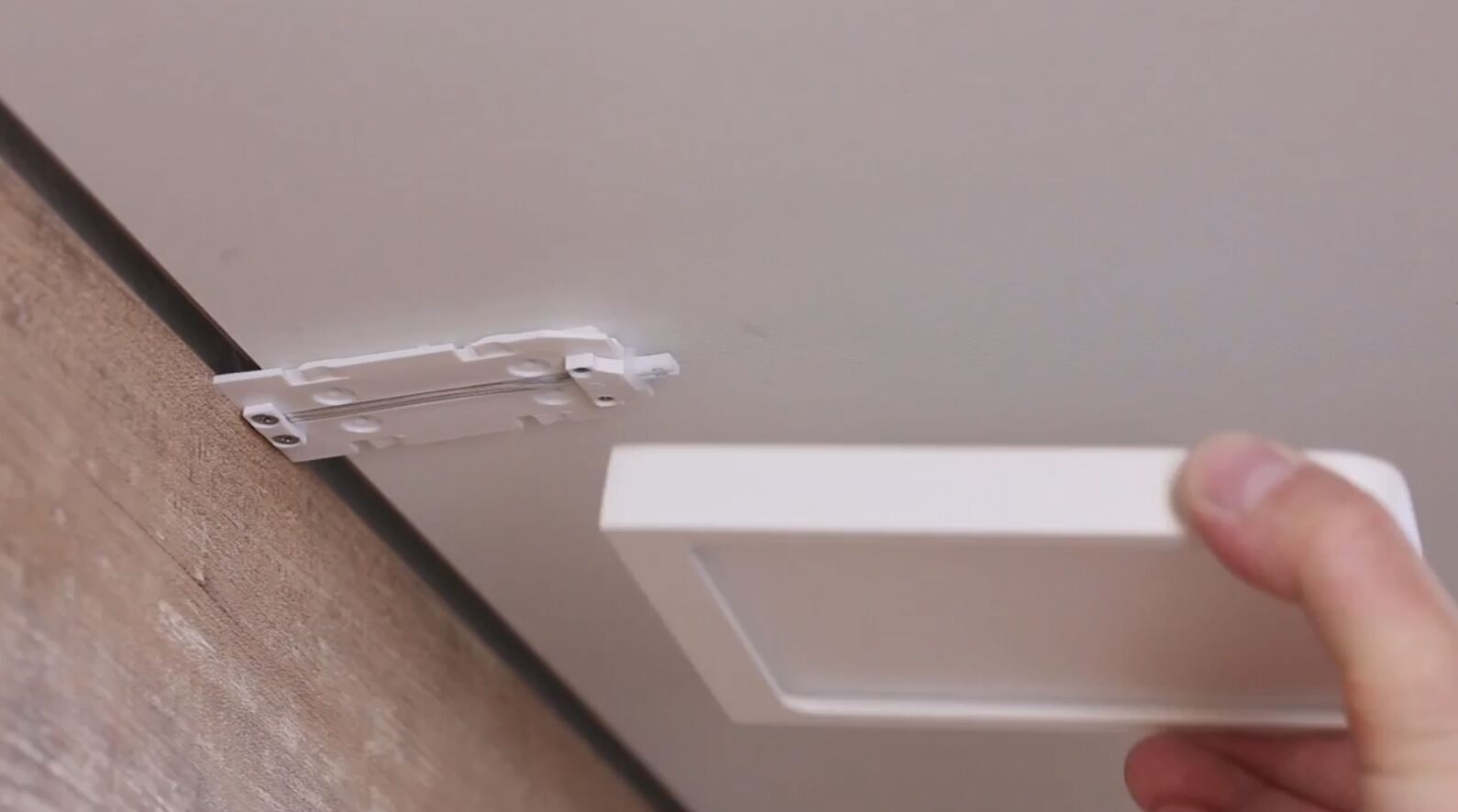

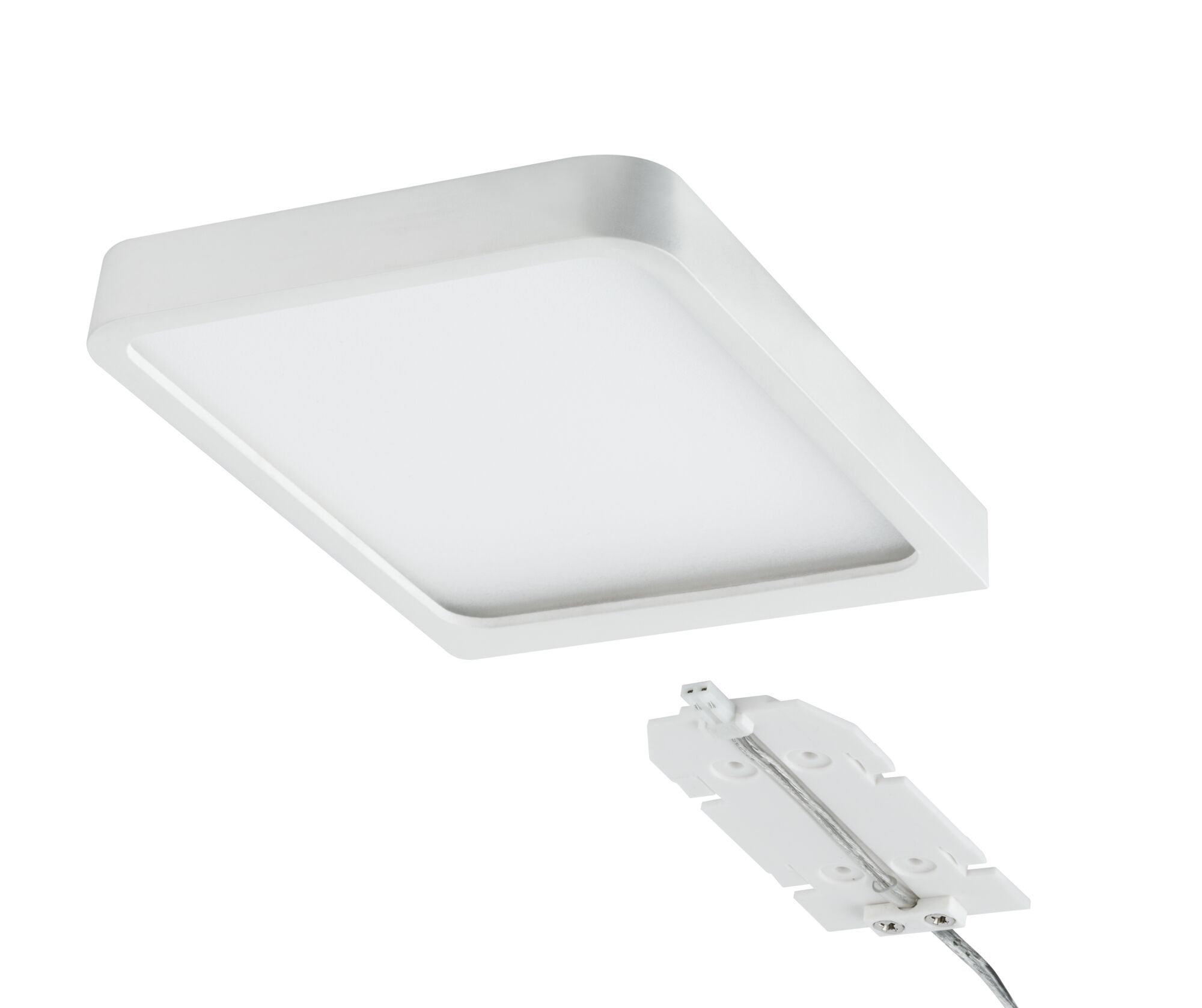

  • Luminaires can be pulled off the holder for cleaning
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps

LED Under-cabinet luminaire Vane 2x6,7W 105x140mm 2x450lm 230/12V square Matt white

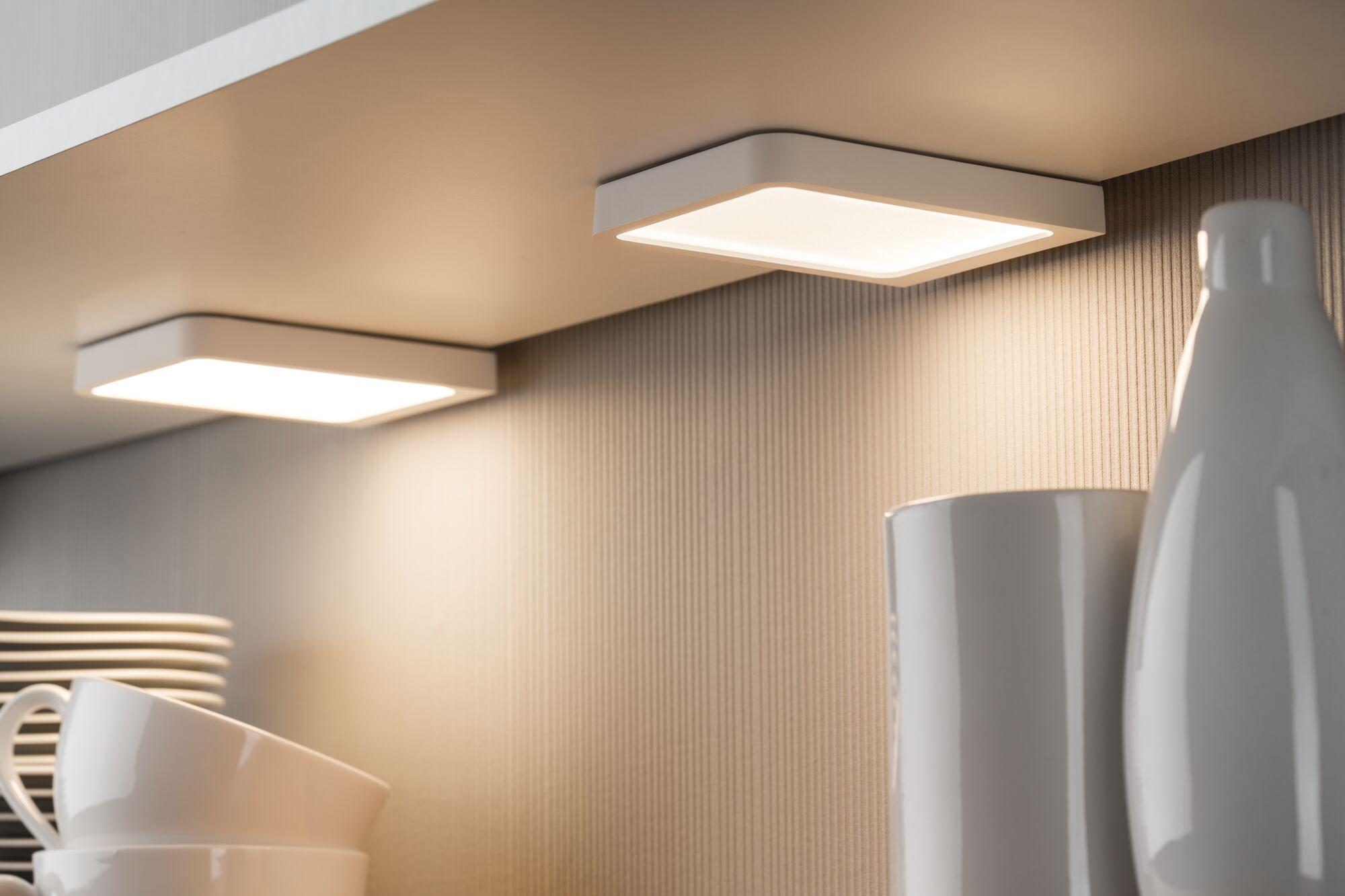

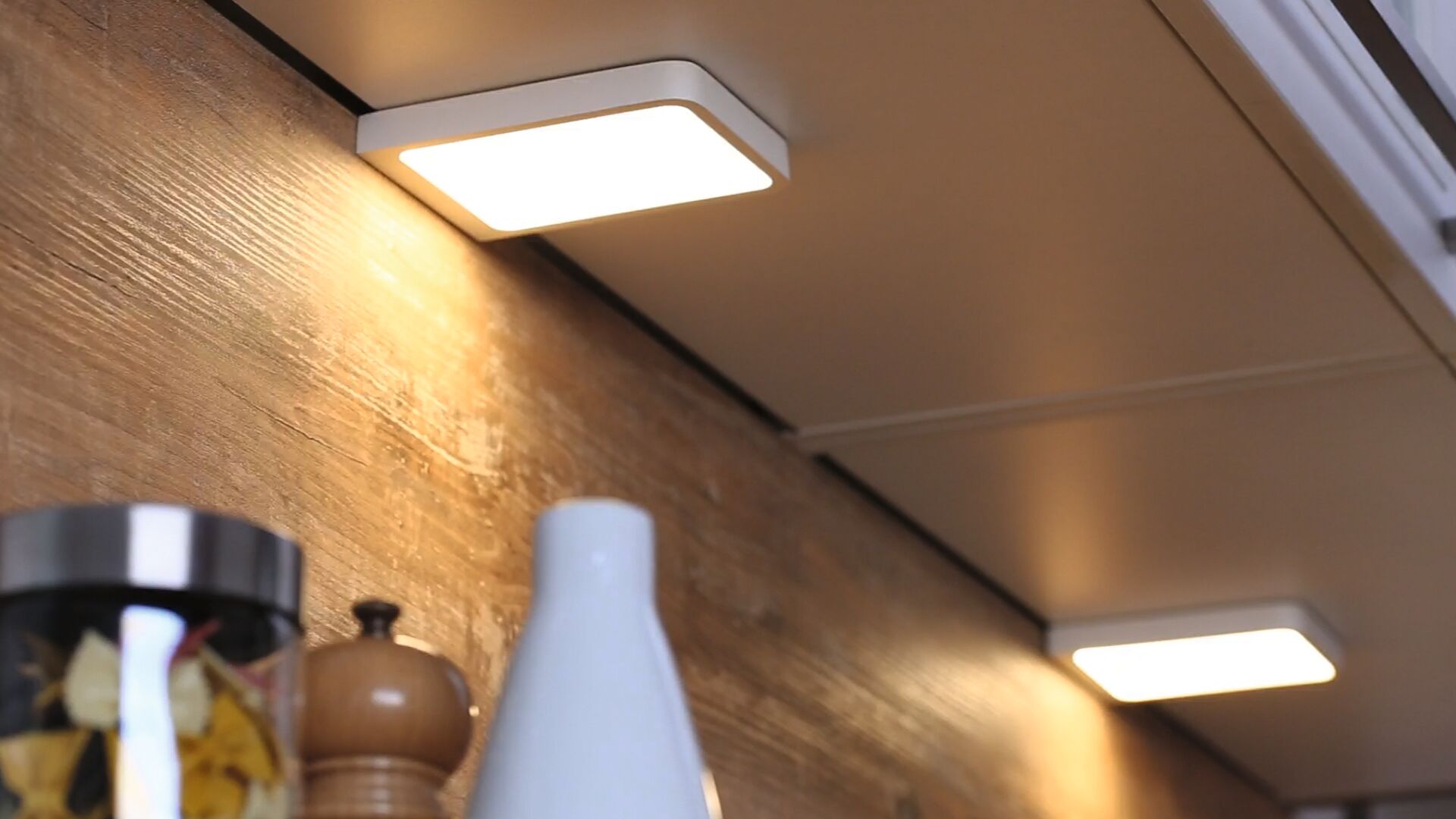

Furniture surface-mounted spotlight illuminate inside and below cabinets, shelves and display cabinets. They provide a good overview and showcase your collection. The rectangular set Vane with its satined surface provides for glare-free and generous light in a cosy warm white. Thanks to its splash protection, it can also be used trouble-free in the sink area or above the washbasin. The luminaires are fixed in the required position with screws; the wiring can be routed behind the item of furniture and connected there to the ballast. Please note that a socket is needed near the power supply unit in order to start the luminaire.
  • Set of 2 luminaires incl. LED module and power supply unit
  • Luminaires can be pulled off the holder for cleaning
  • Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
  • Color temperatur: 2700K - Warm white
  • Optionally combinable with wireless socket and suitable switch or infrared switch sensor
  • Incl. euro plug
  • incl. plug-in connection
Dimension

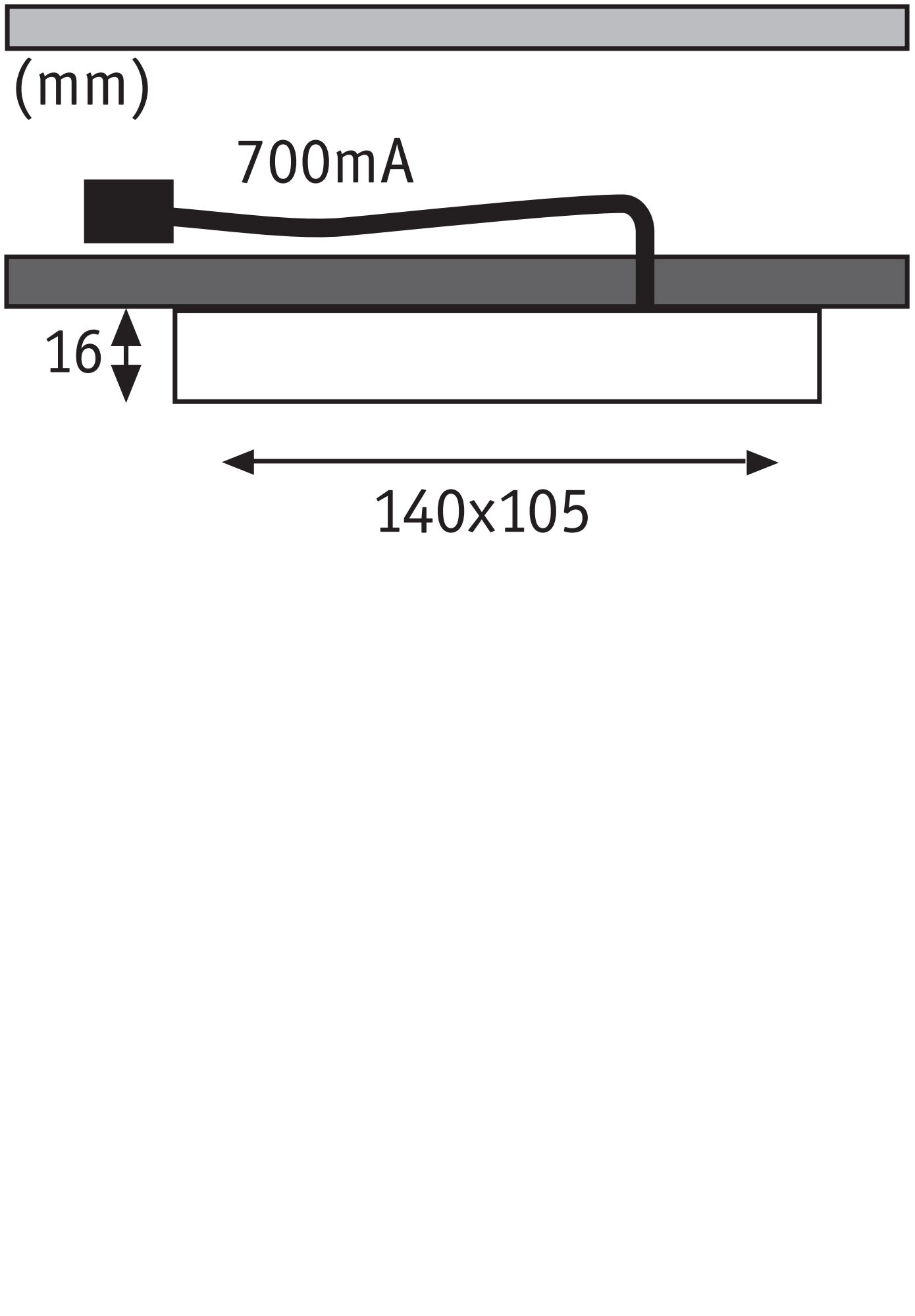

Dimensions (Height x Width x Depth) H: 16 x B: 105 x T: 140mm
Form square
Design and Material
Colour Matt white
Material Aluminium
Installation
Installation site (recommendation) Installation on cabinet
Connections
plug-and-socket connector plug-and-socket connector
Plug Euro flat plug (type C-CEE 7/16)
Energy consumption
energy efficiency (A to G) F
Service life
lifetime 20.000h
Rated life time 20000h
Light Characteristics
Color temp. 2700K
Useful luminous flux 450lm
color temp 2.700K
Rated luminous flux (Lumen) 2x450lm
Lamp Features
Component parts 6,7W
Dimmable No
Technique LED
IP protection IP44 ceiling mounting
Inclusive lamp
Number of component parts 2x
protection class protection class II
Replacable 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser.
Transformer
Transformer power 15VA
Transformer height 24mm
Transformer width 40mm
Transformer depth 114mm
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
