Article-No.:
78424
LumiTilesLED Strip
Full-Line COB Slim
1m IP44 3W 230lm/m 280 LEDs/m 2700K 7VA
1m IP44 3W 230lm/m 280 LEDs/m 2700K 7VA
£26.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Super narrow LED strip, only 8 mm wide
- Suitable for any installation: Strips can be shortened every 25 mm
- New innovative COB strip technology with 544 LEDs per metre

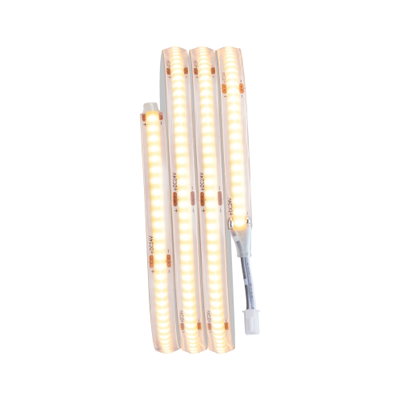

LumiTiles LED Strip Full-Line COB Slim 1m IP44 3W 230lm/m 280 LEDs/m 2700K 7VA

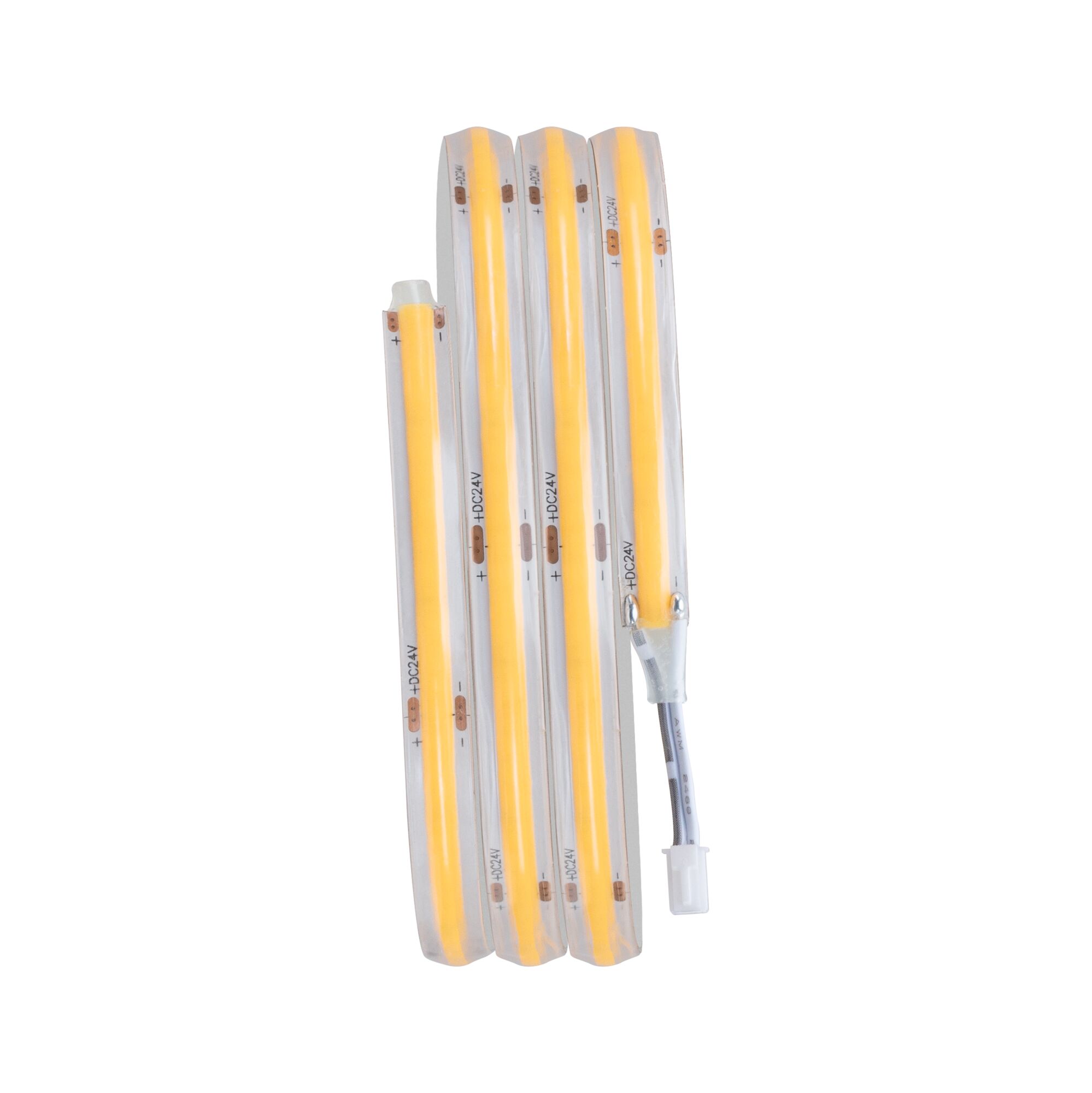

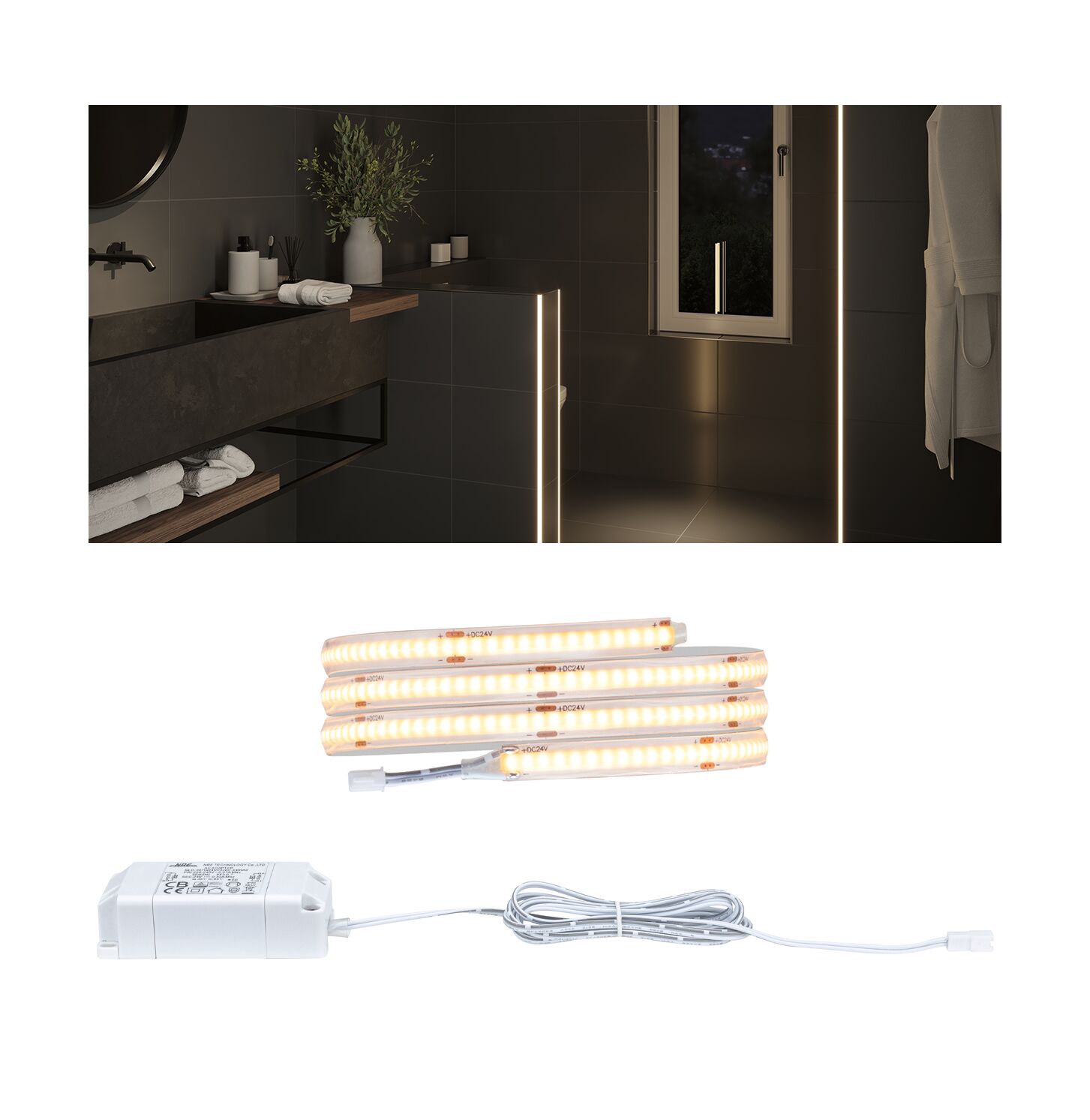

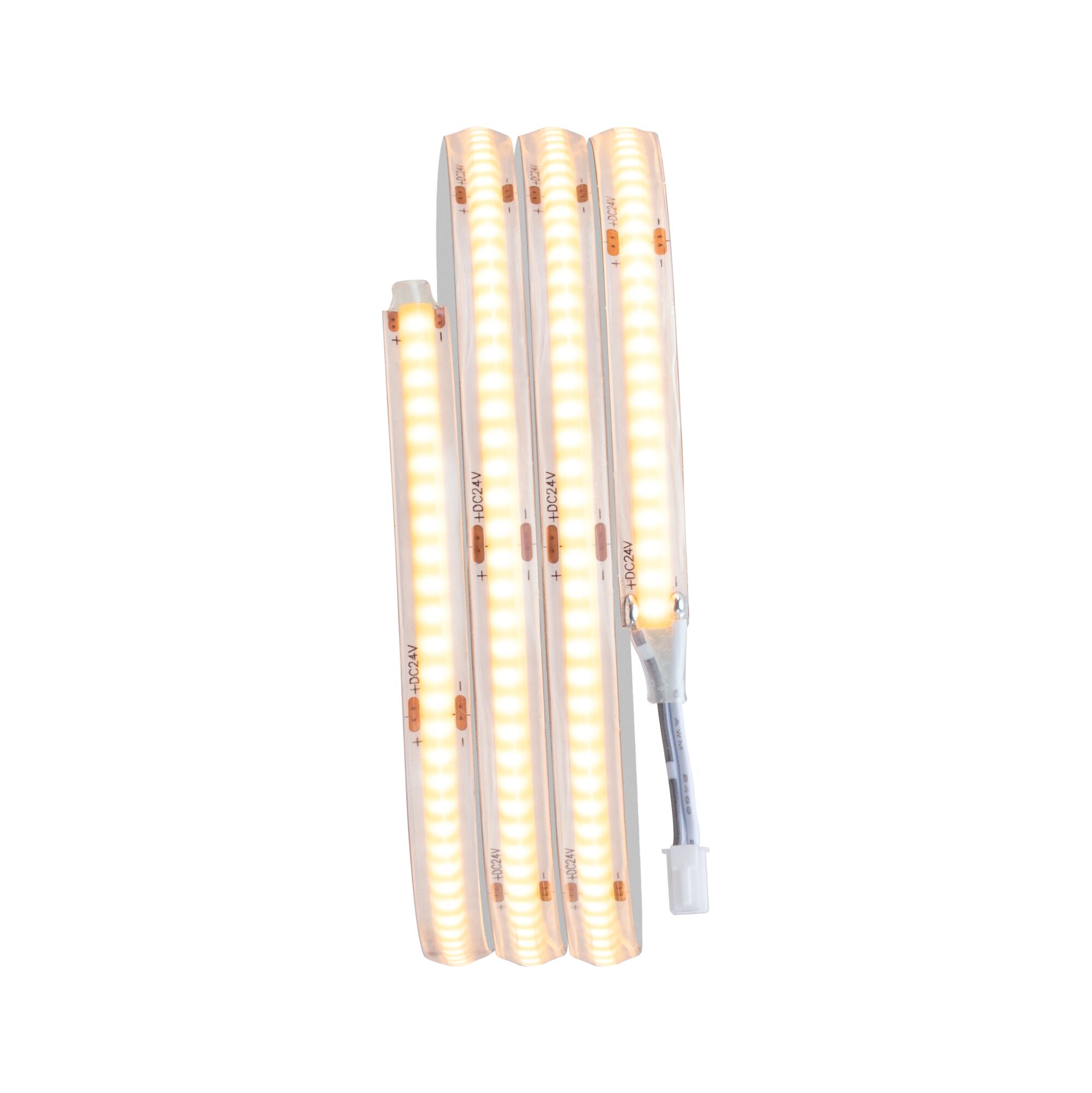

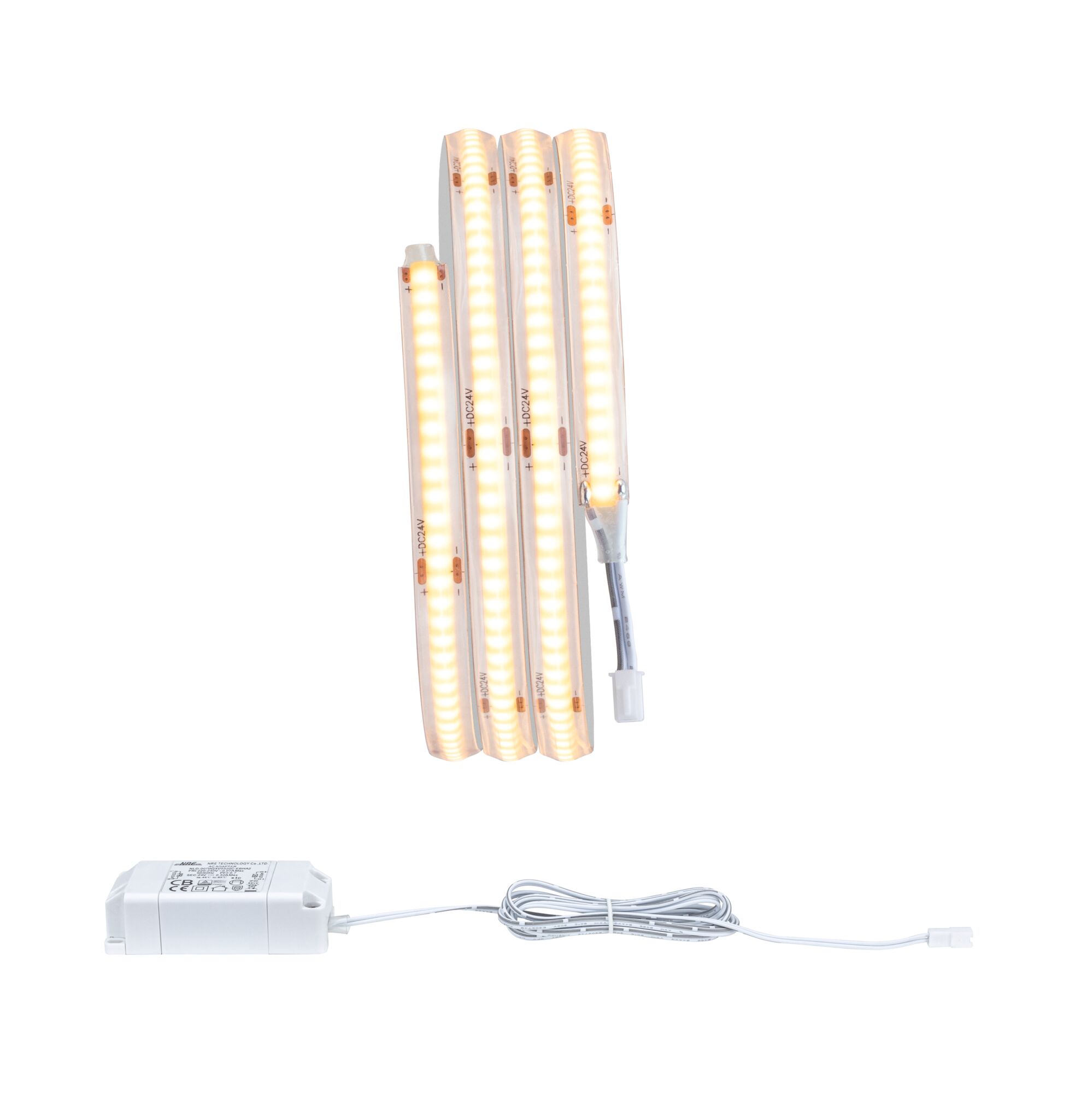

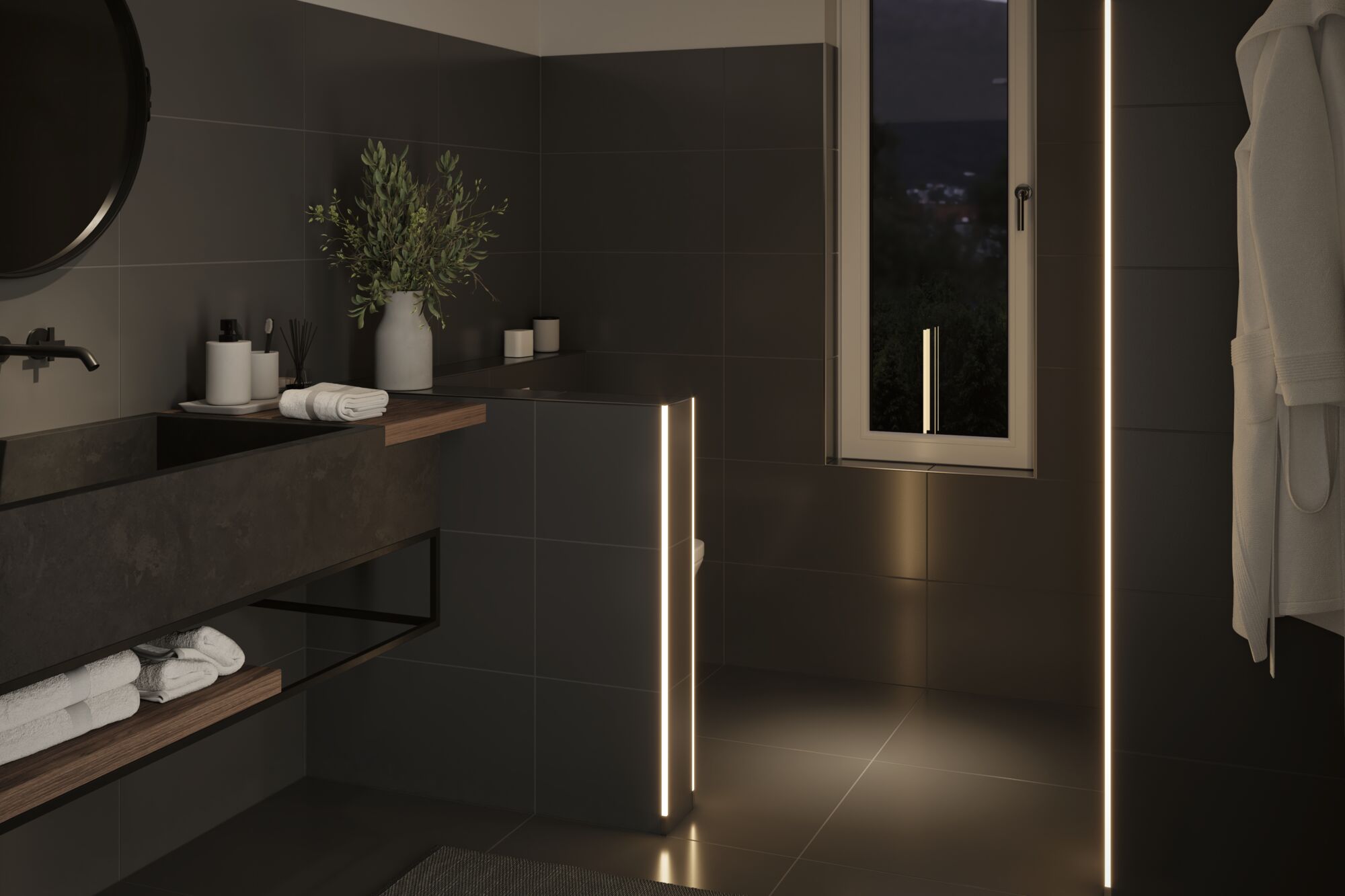

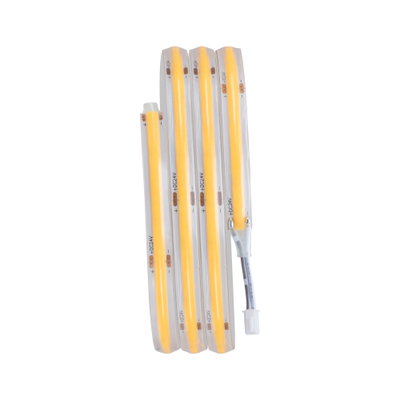

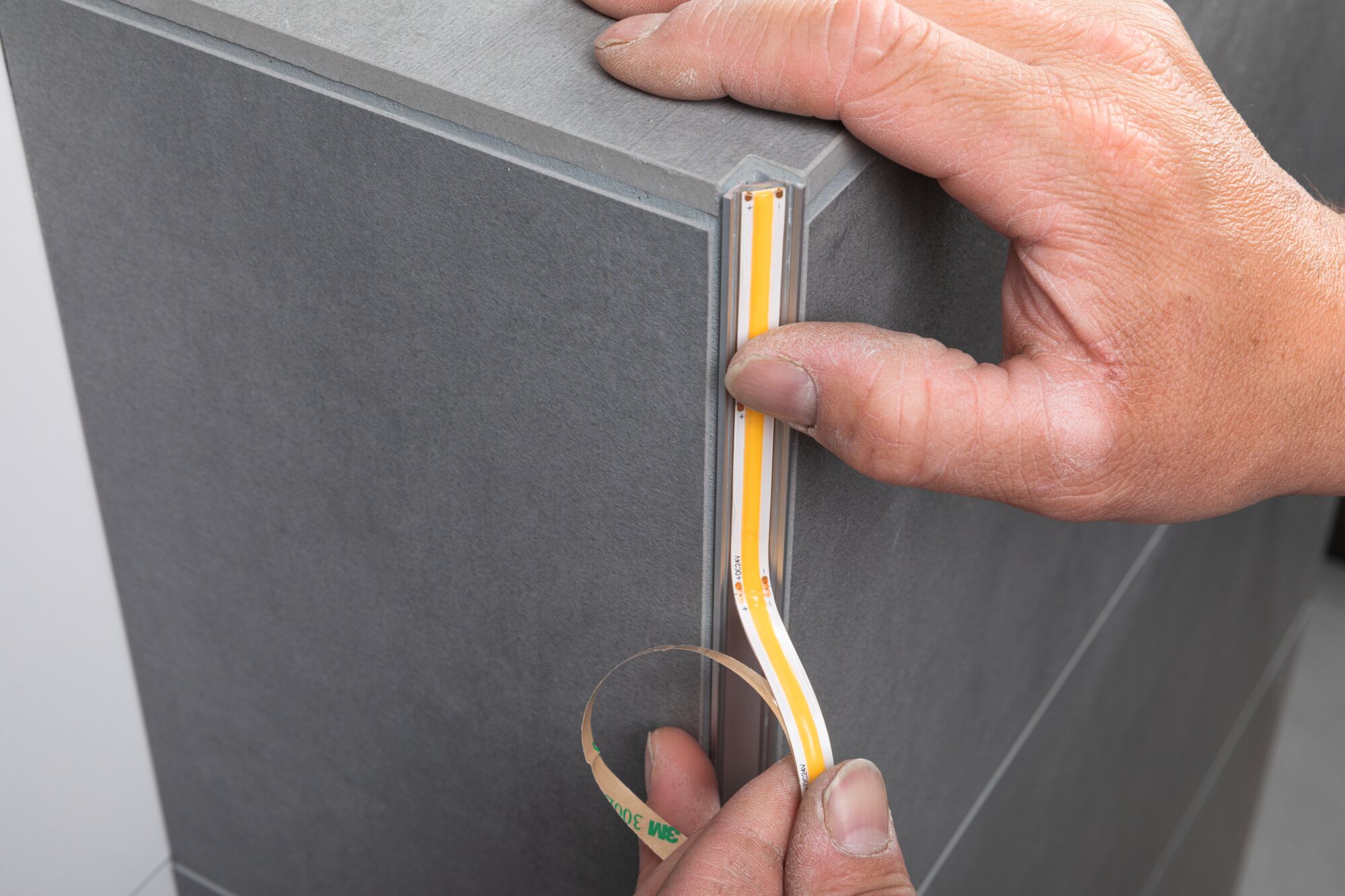

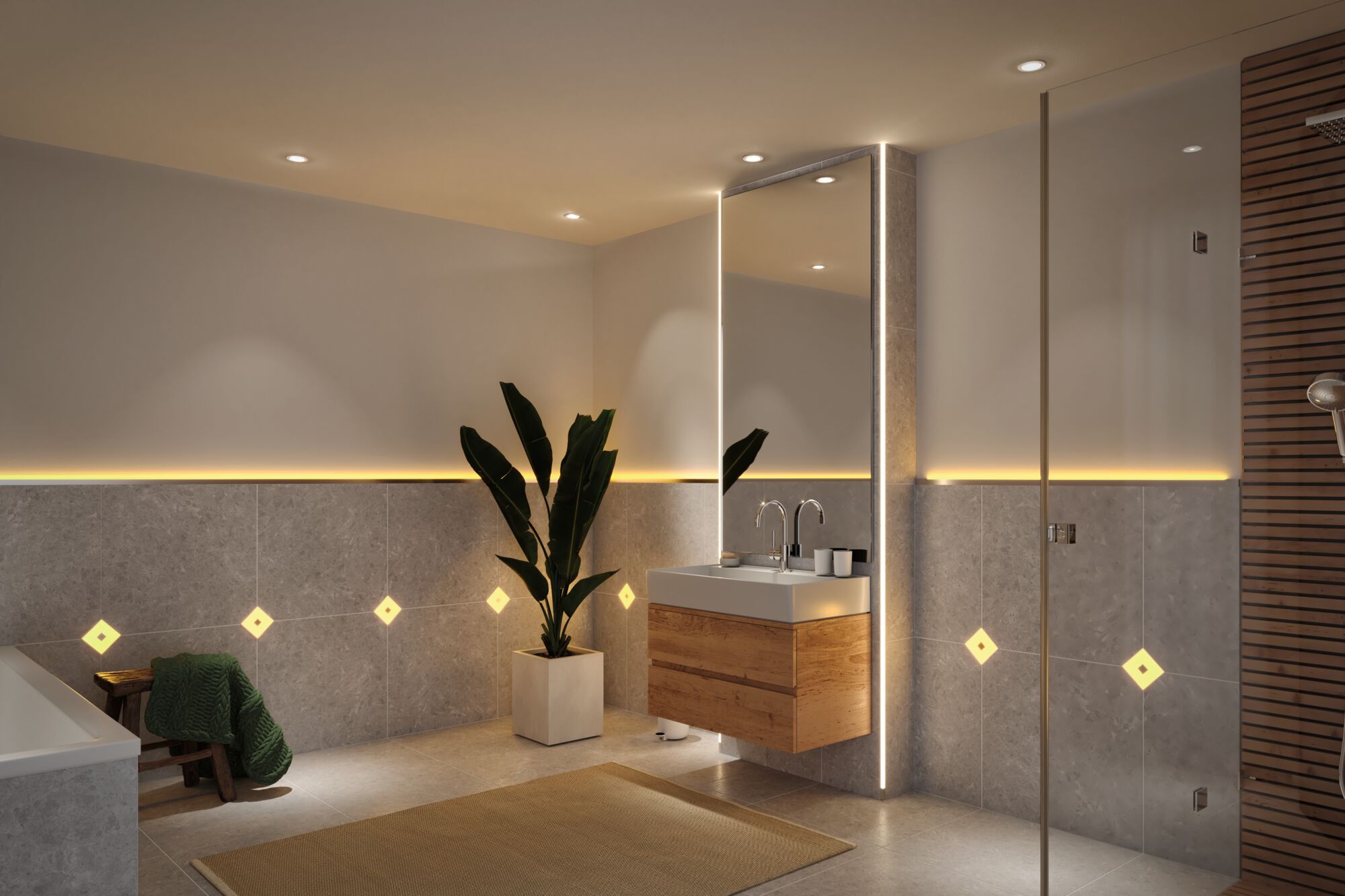

The COB slim strip, which is 1m long and 8 mm wide, has been developed specially for the Frame profile. It creates an impressive linear lighting effect on the diffuser. When switched off, the strip is invisible. The strip, with a warm white light colour, is switched on/off via the connection on the light switch. The strip can be trimmed every 25 mm. Incremental shortening of the strip enables a precise fit of the profile without shadows.
- Super narrow LED strip, only 8 mm wide
- Suitable for any installation: Strips can be shortened every 25 mm
- New innovative COB strip technology with 544 LEDs per metre
- IP44 protective coating against splashing water
- Uniform lighting effect along the entire length, no light points in combination with the profile
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 8 mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 230 lm |
| Luminous flux LED module | 230 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP44 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 3 W |
| Number of component parts | 1x |
| Number of LED's per meter | 280 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |

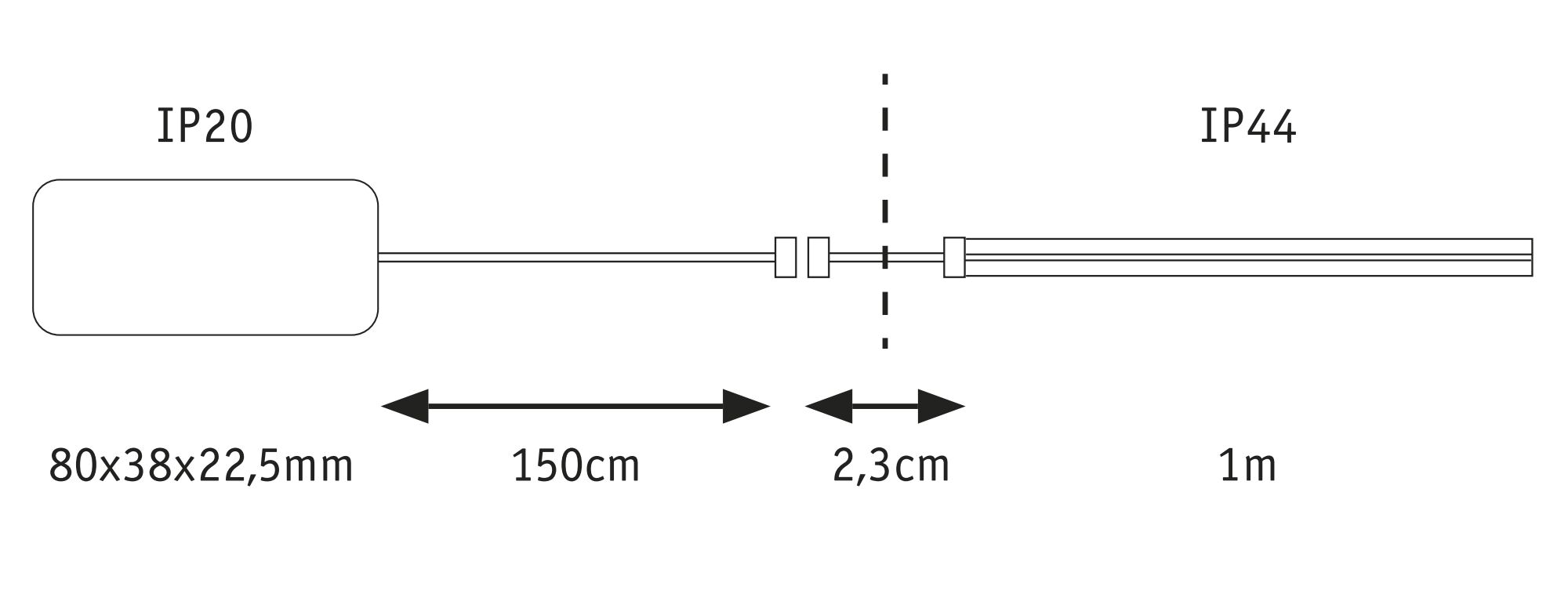

| Transformer | |
|---|---|
| Transformer power range | 7 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
