Article-No.:
71200
MaxLED 1000LED Strip
COB
17W 1038lm/m RGBW+ 48VA
17W 1038lm/m RGBW+ 48VA
£94.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- RGBW offers a fluid colour selection, plus the tunable white function
- Complete set incl. strip and power supply
- Can be shortened as required

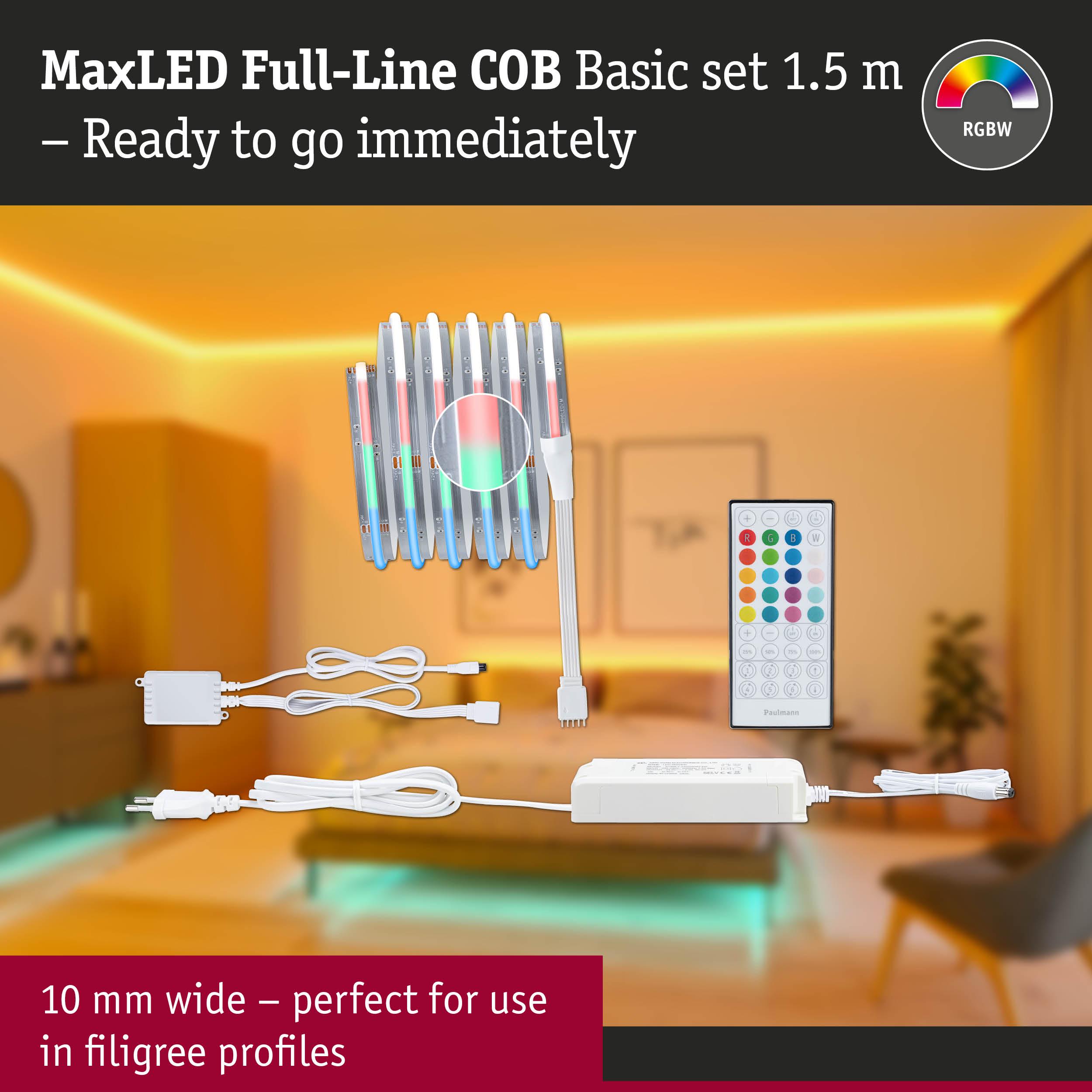

MaxLED 1000 LED Strip Basic set COB 1,5m RGBW 17W 1038lm/m RGBW+ 48VA

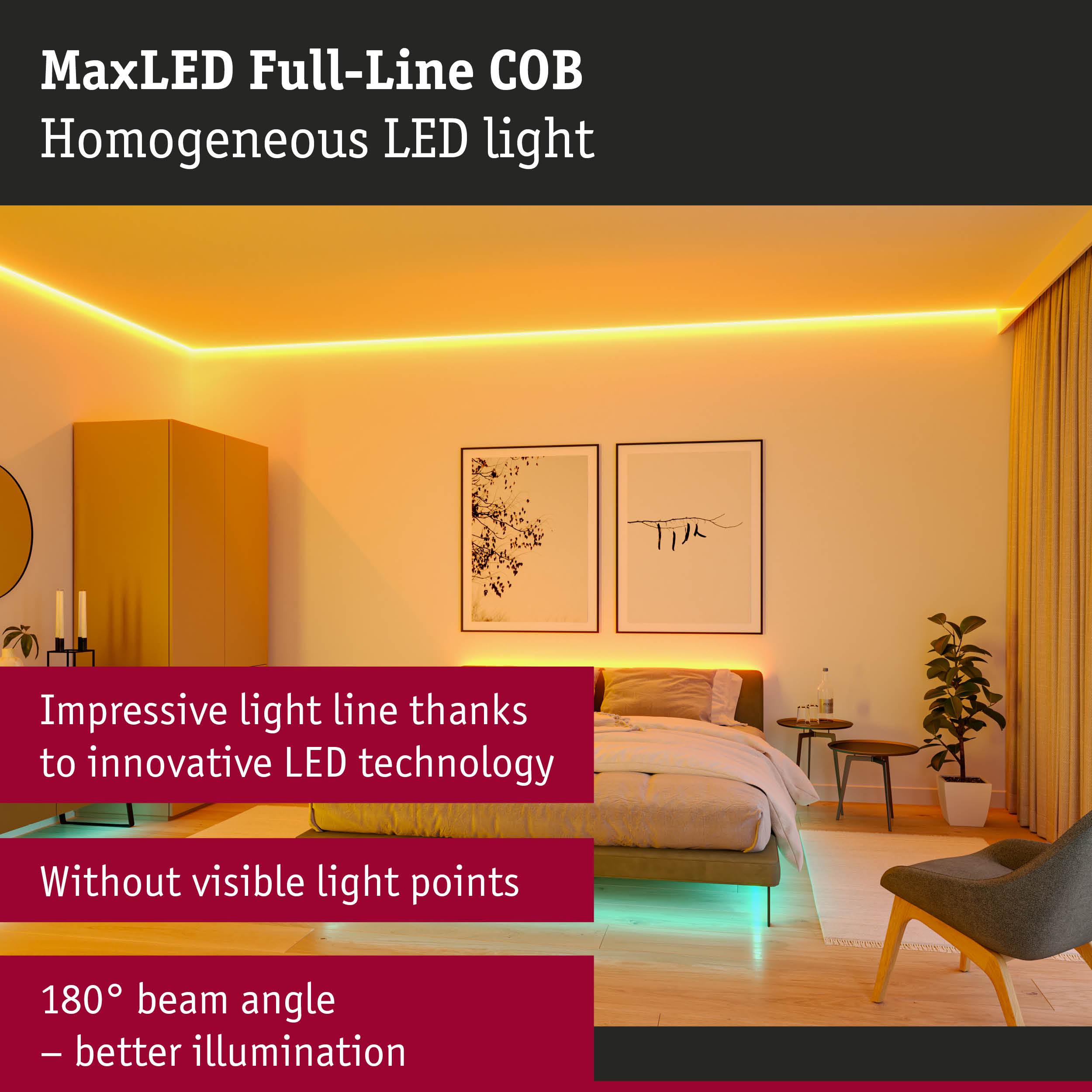

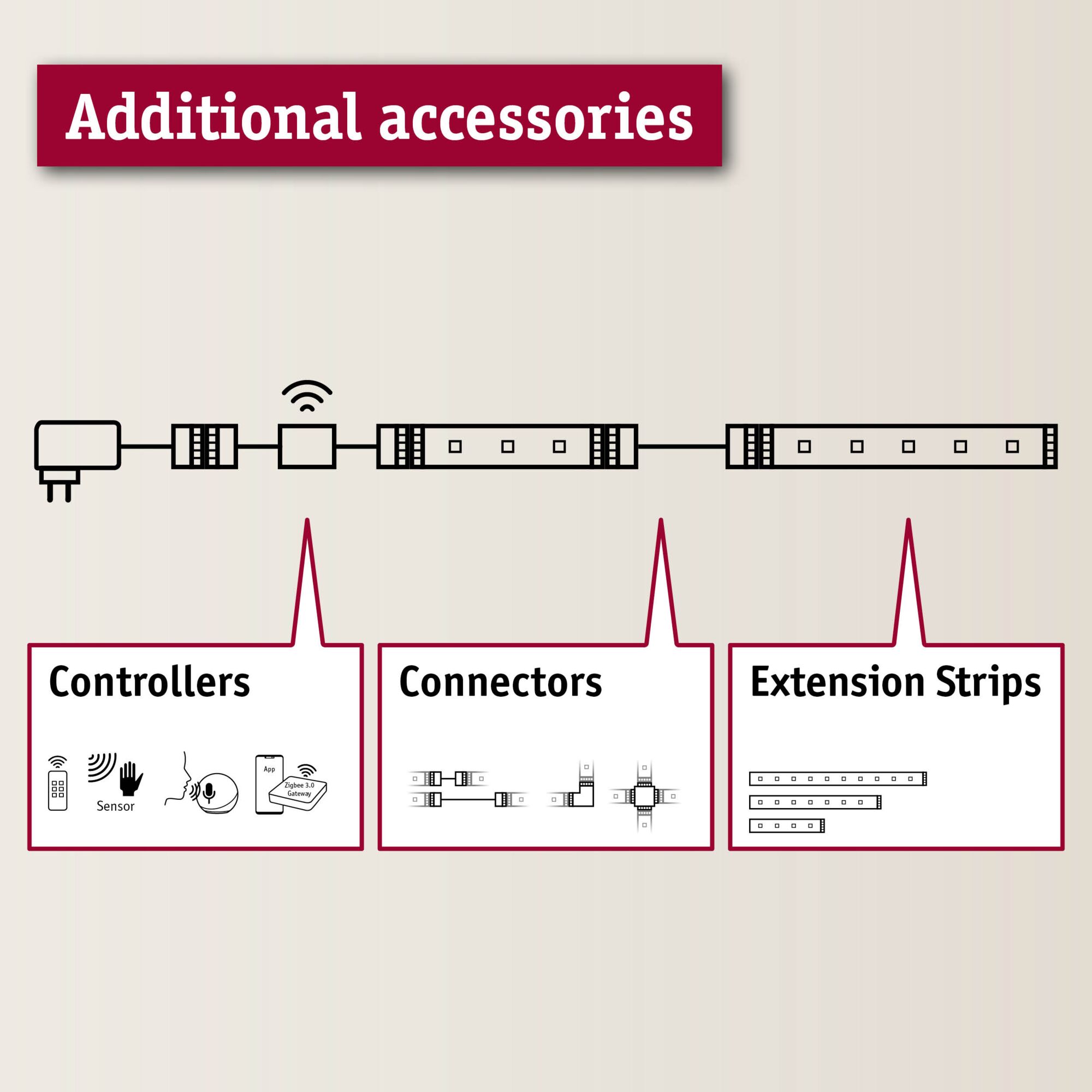

The MaxLED 1000 full-line COB basic set offers all the necessary components for impressive lighting. It includes a light strip with a length of 1,5m and a suitable ballast. The basic set can be expanded as needed with additional strips, connectors and control units with remote control. When planning, care should be taken not to exceed the specified maximum length. With RGBW technology, you can select flowing colour tones and use the Tunable White function. This allows you to create the right atmosphere, whether it's a relaxing warm white or a lively colour.
- RGBW offers a fluid colour selection, plus the tunable white function
- Complete set incl. strip and power supply

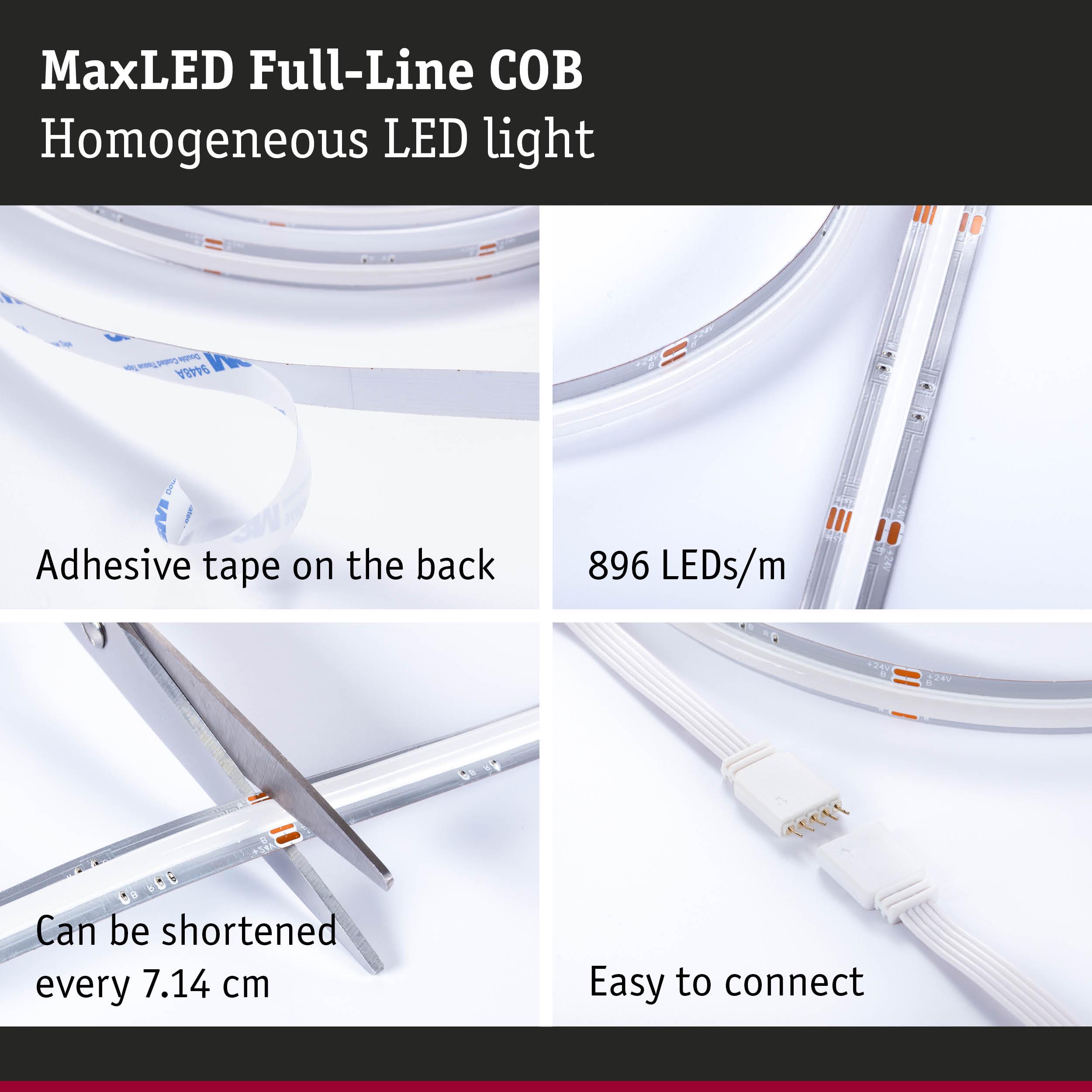

- Can be shortened as required
- Rear self-adhesive for simple installation
- Flexible material for mounting on flat or curved surfaces
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4,5 x B: 12 mm |
| Length | 1,5 m |
| Shortenability Strips | 71.4 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 1557 lm |
| Luminous flux LED module | 1557 lm |
| Color rendering index | > 80 Ra |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lumens per metre | 1038 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 17 W |
| Number of component parts | 1x |
| Number of LED's per meter | 896 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 25 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 29 VA |
| Transformer power range | 48 VA |
| Transformer height | 155 mm |
| Transformer width | 53 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
