Article-No.:
70669

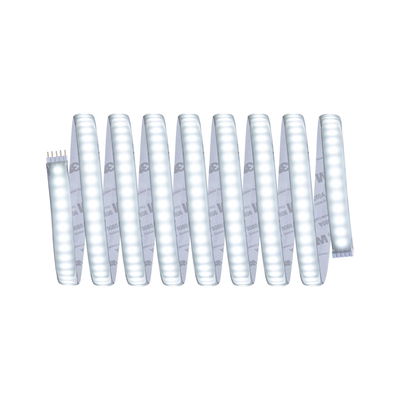

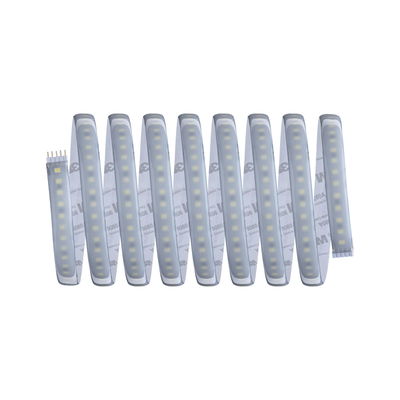

MaxLED 1000
LED Strip
Daylight white Basic Set
3m protect cover IP44 35W 880lm/m 144 LEDs/m 6500K 60VA
3m protect cover IP44 35W 880lm/m 144 LEDs/m 6500K 60VA
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

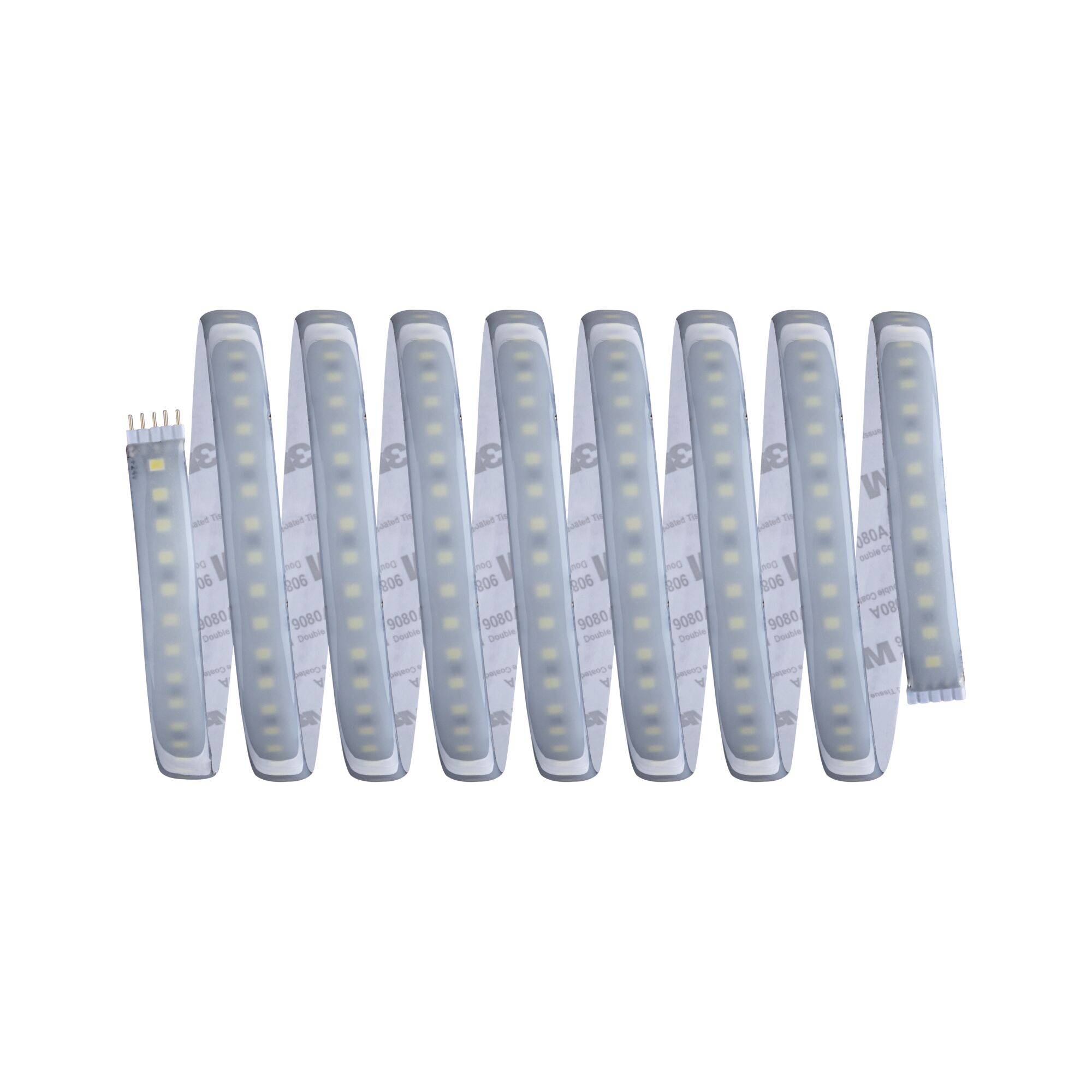

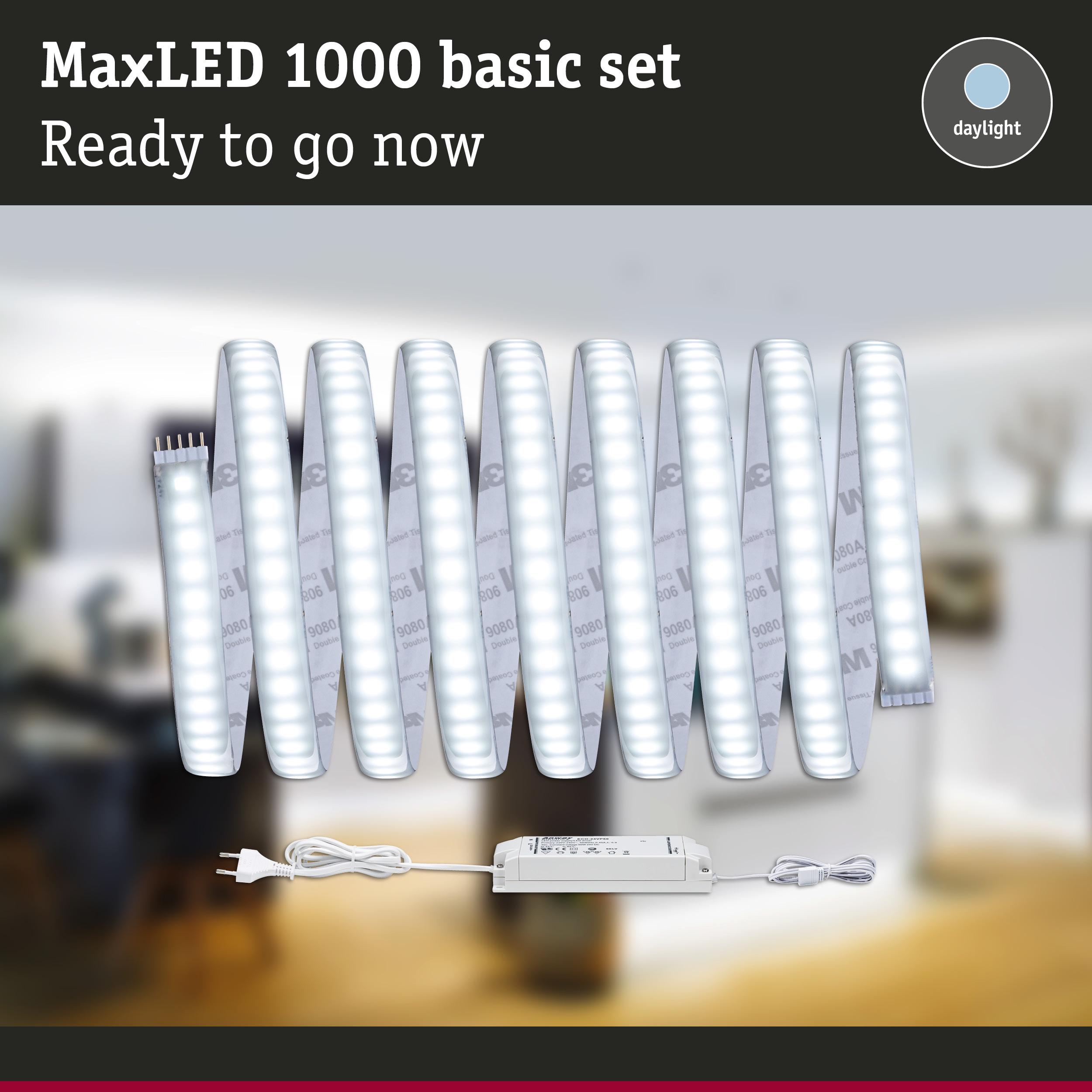

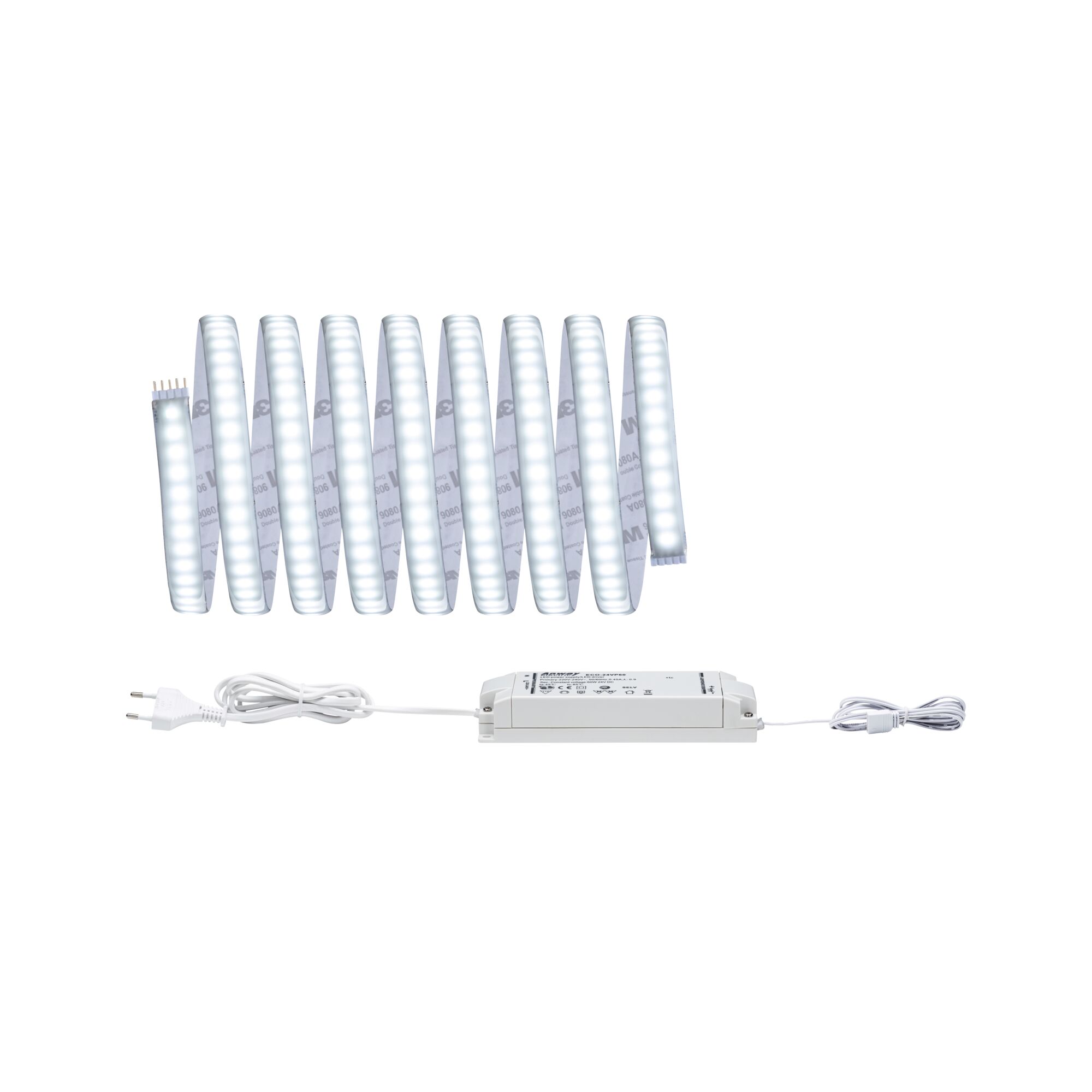

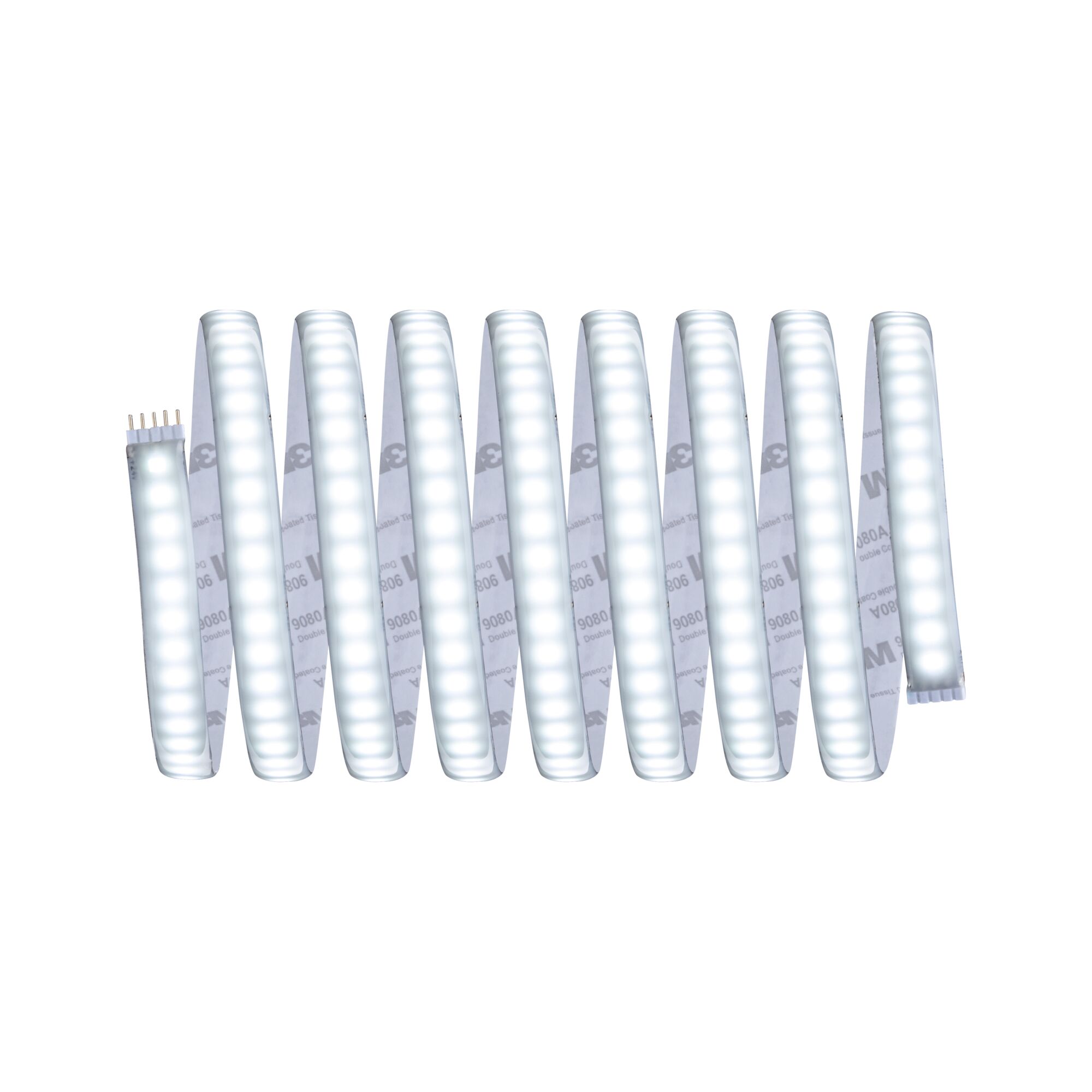

MaxLED 1000 LED Strip Daylight white Basic Set 3m protect cover IP44 35W 880lm/m 144 LEDs/m 6500K 60VA

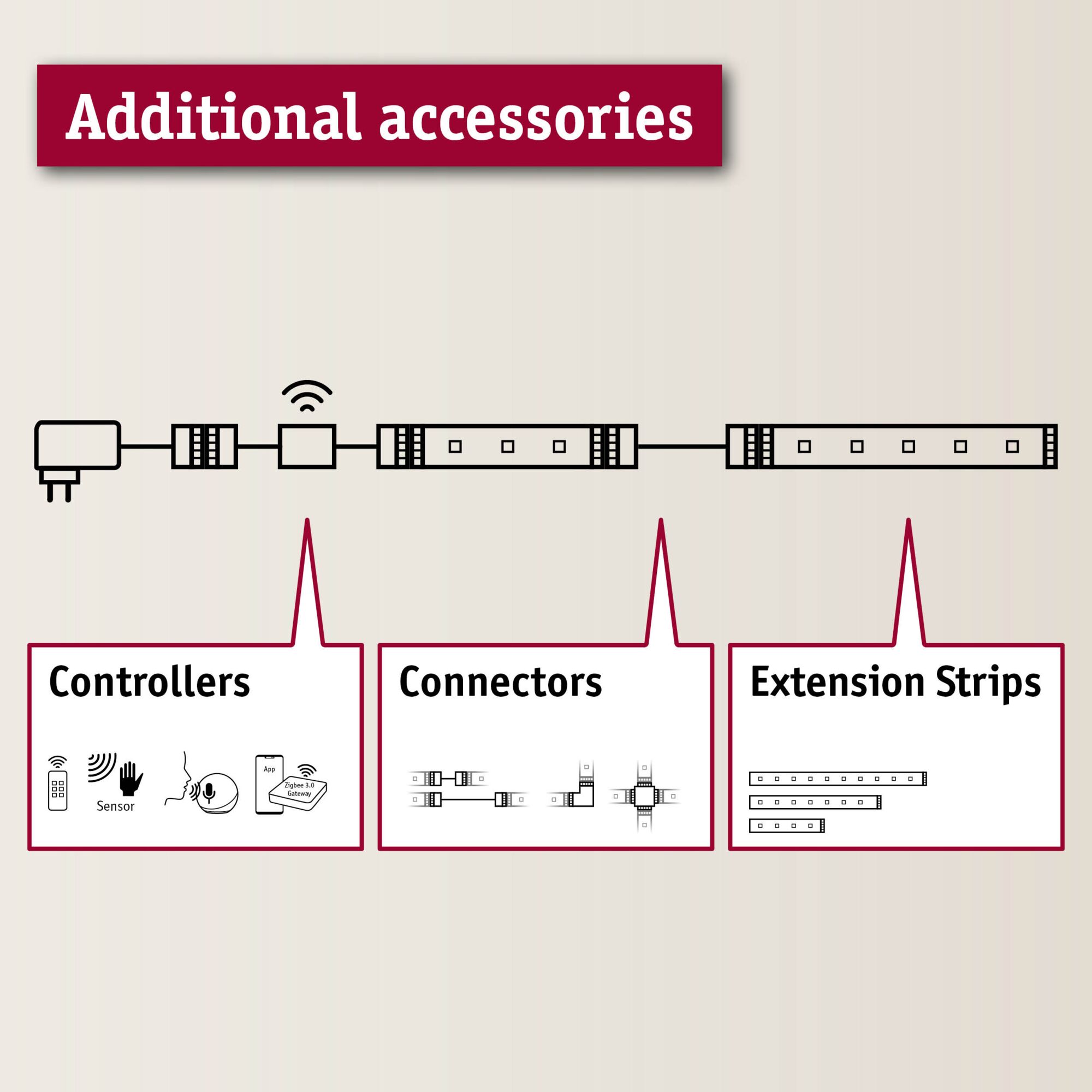

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. Warm white strips provide a cosy and relaxed room and workplace light. The basic set contain a suitable ballast in addition to the strip. Where required, it can be extended with additional strips, connectors and control units with remote control. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip and power supply
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

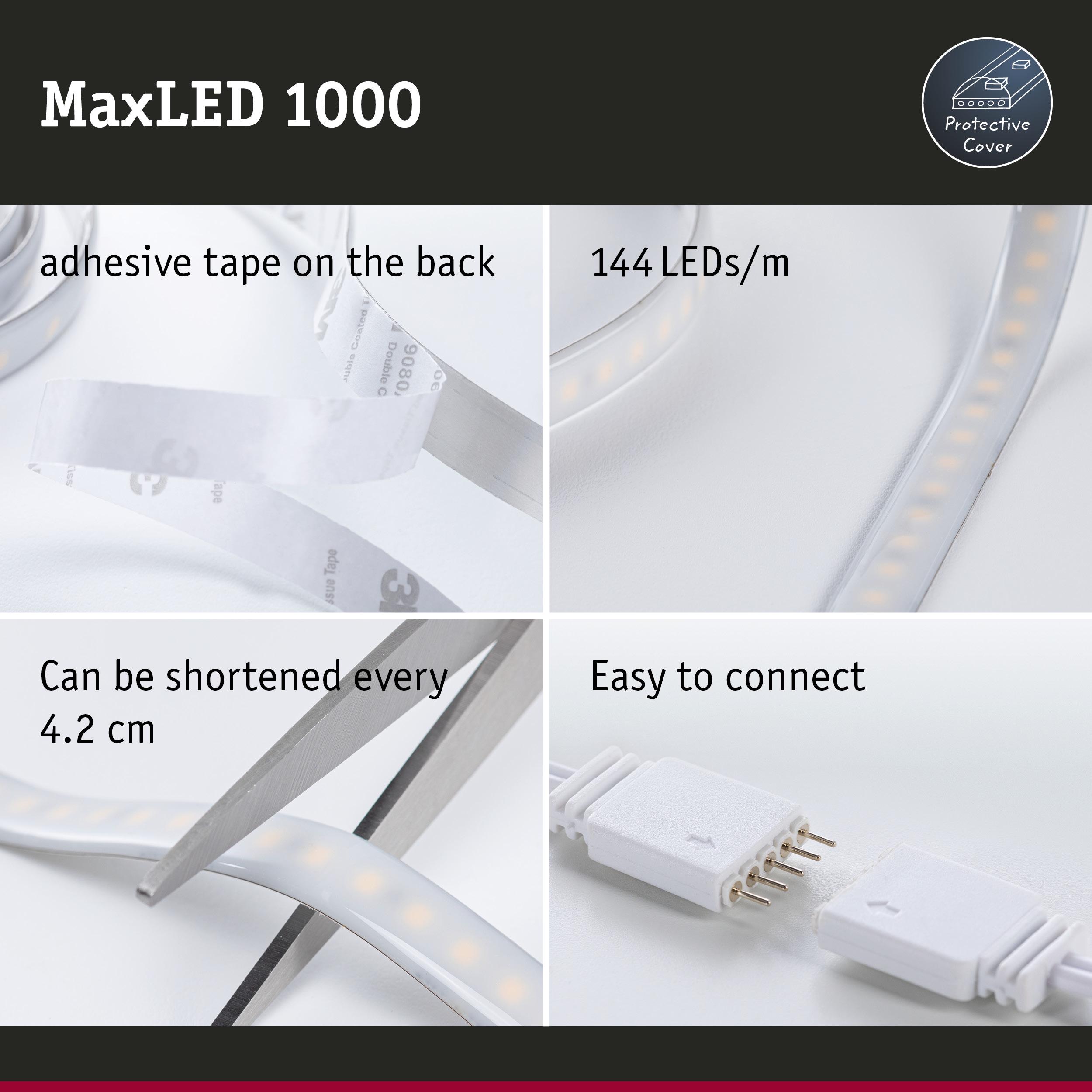

- Can be shortened as required
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- Color temperatur: 6500K - Daylight white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Dimmable with MaxLED dim/switch controller
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 4 T: 12,5 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 5,5 m |
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 6500 K |
| Usable luminous flux | 2640 lm |
| Luminous flux LED module | 3300 lm |
| color temp | 6500 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 3300 lm |
| Lamp Features | |
|---|---|
| Component parts | 35 W |
| Technique | LED |
| IP protection | IP44 |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 190 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 144 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Transformer height | 32 mm |
| Transformer width | 50 mm |
| Transformer depth | 166 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
