Article-No.:
70623
MaxLED 500LED Strip
Basic set 1,5m Tunable White
coated 10W 550lm/m Tunable White 20VA
coated 10W 550lm/m Tunable White 20VA
£64.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

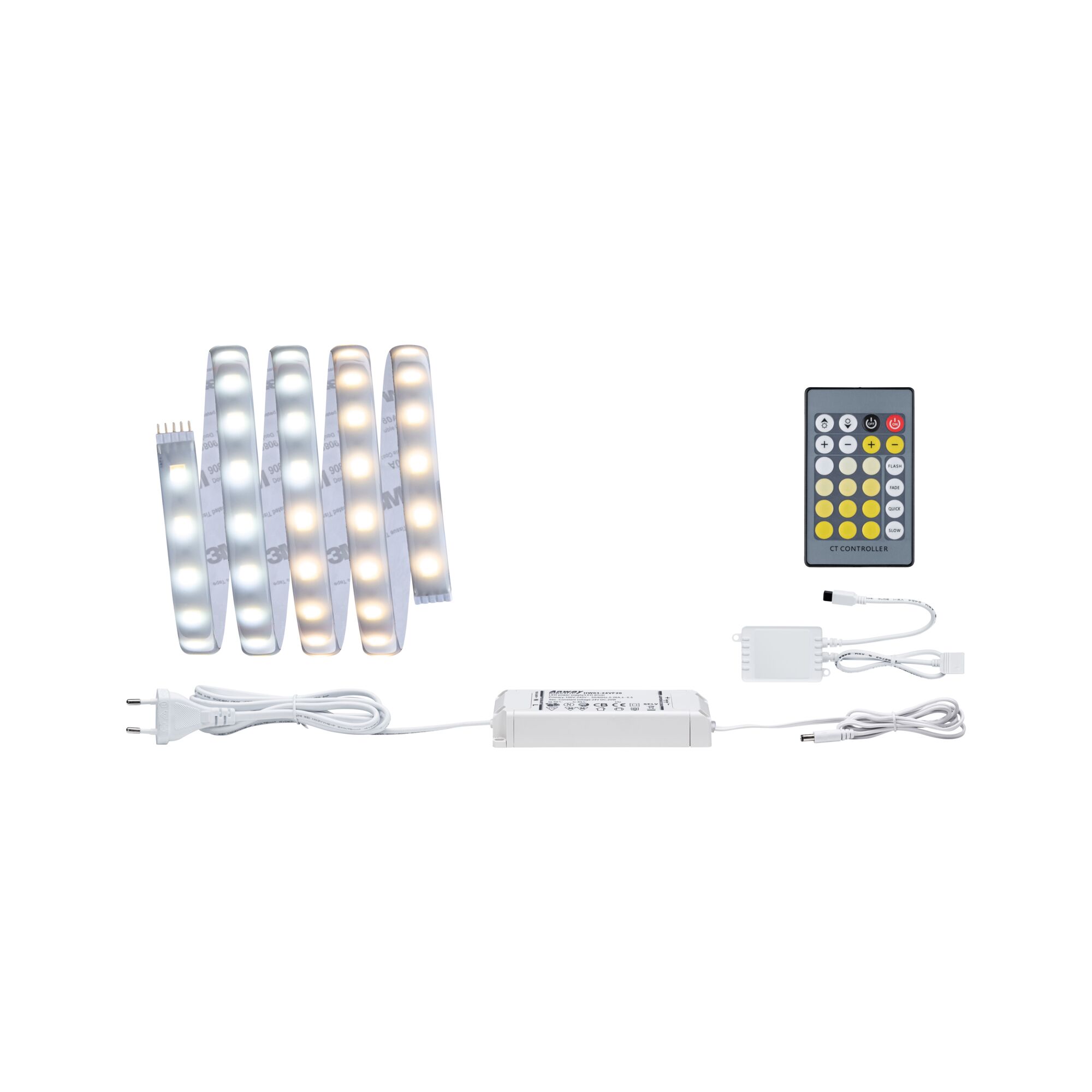

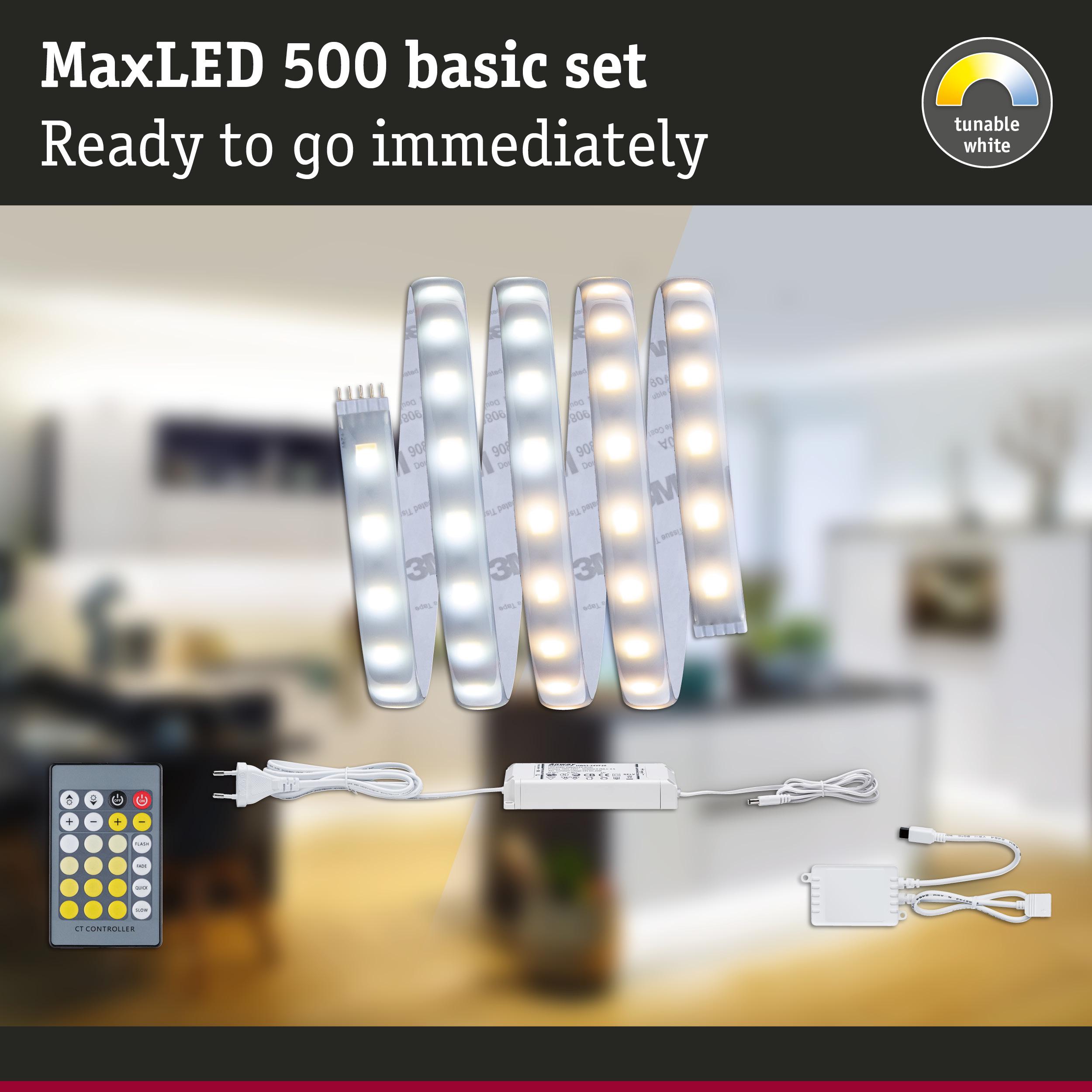

- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

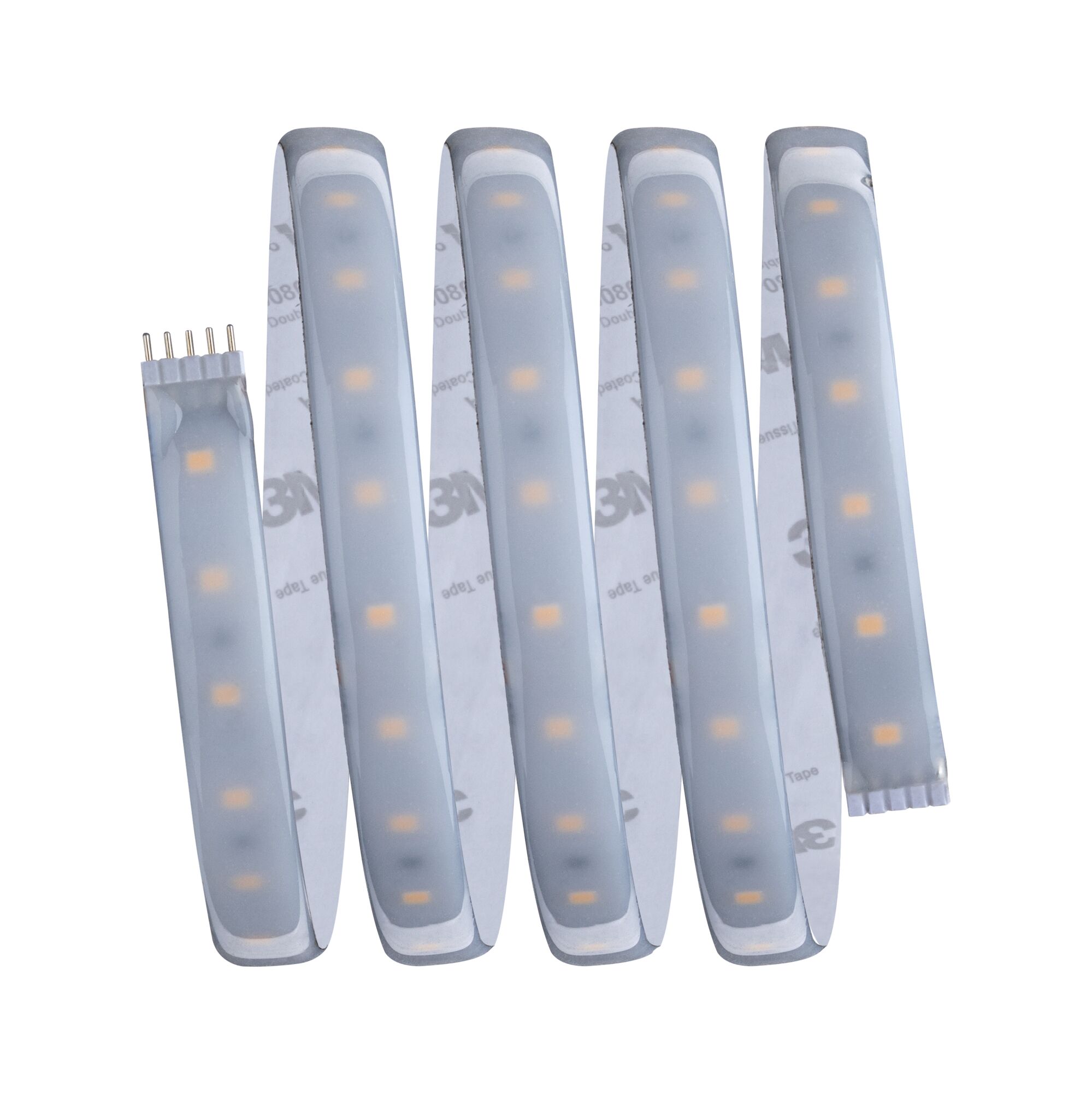

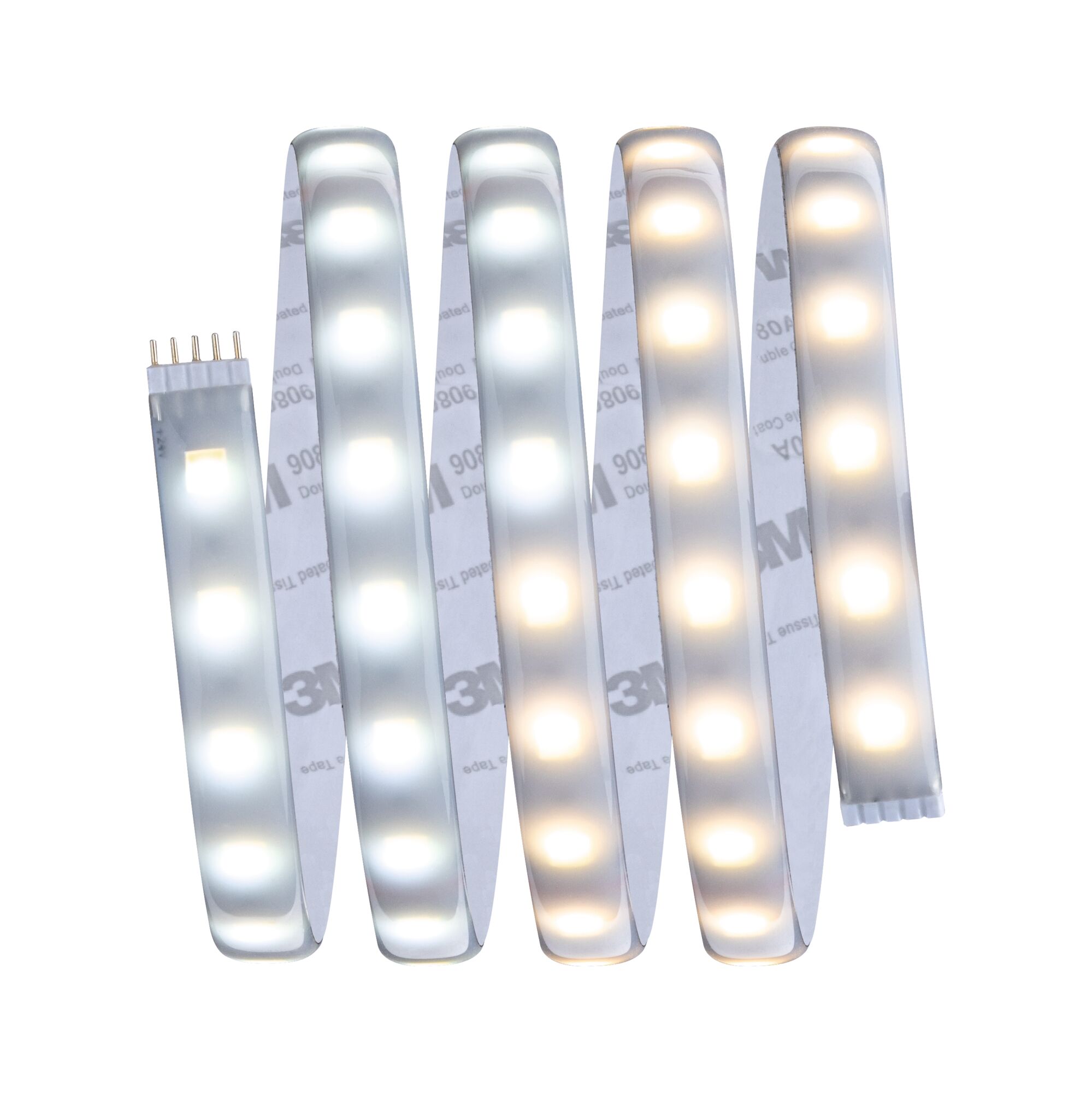

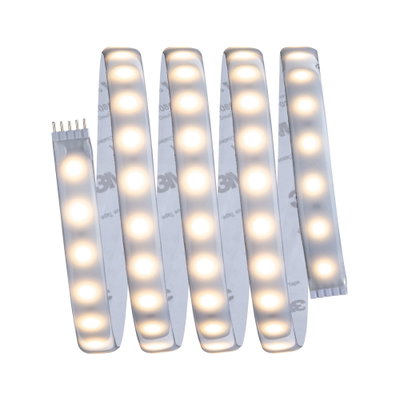

MaxLED 500 LED Strip Basic set 1,5m Tunable White coated 10W 550lm/m Tunable White 20VA

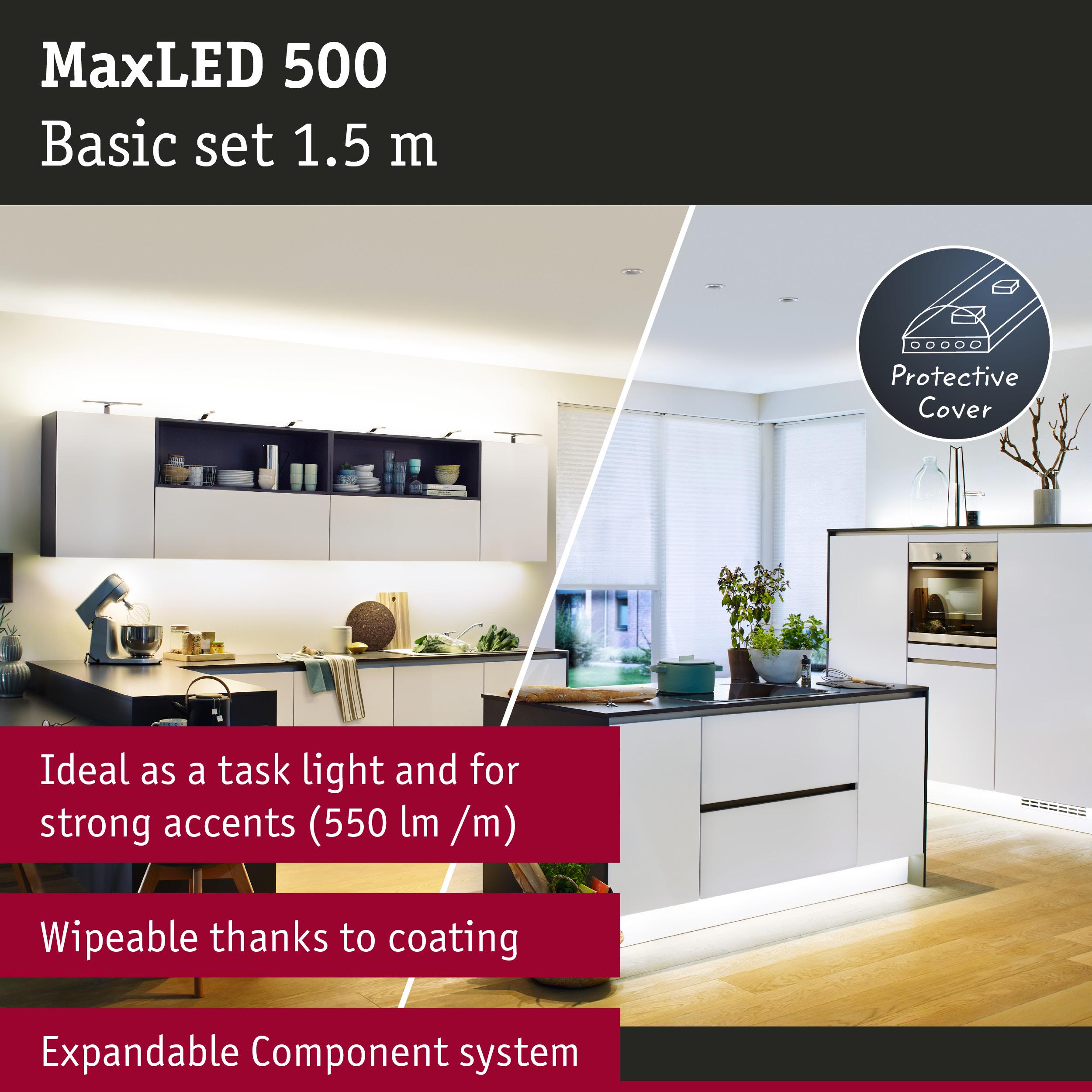

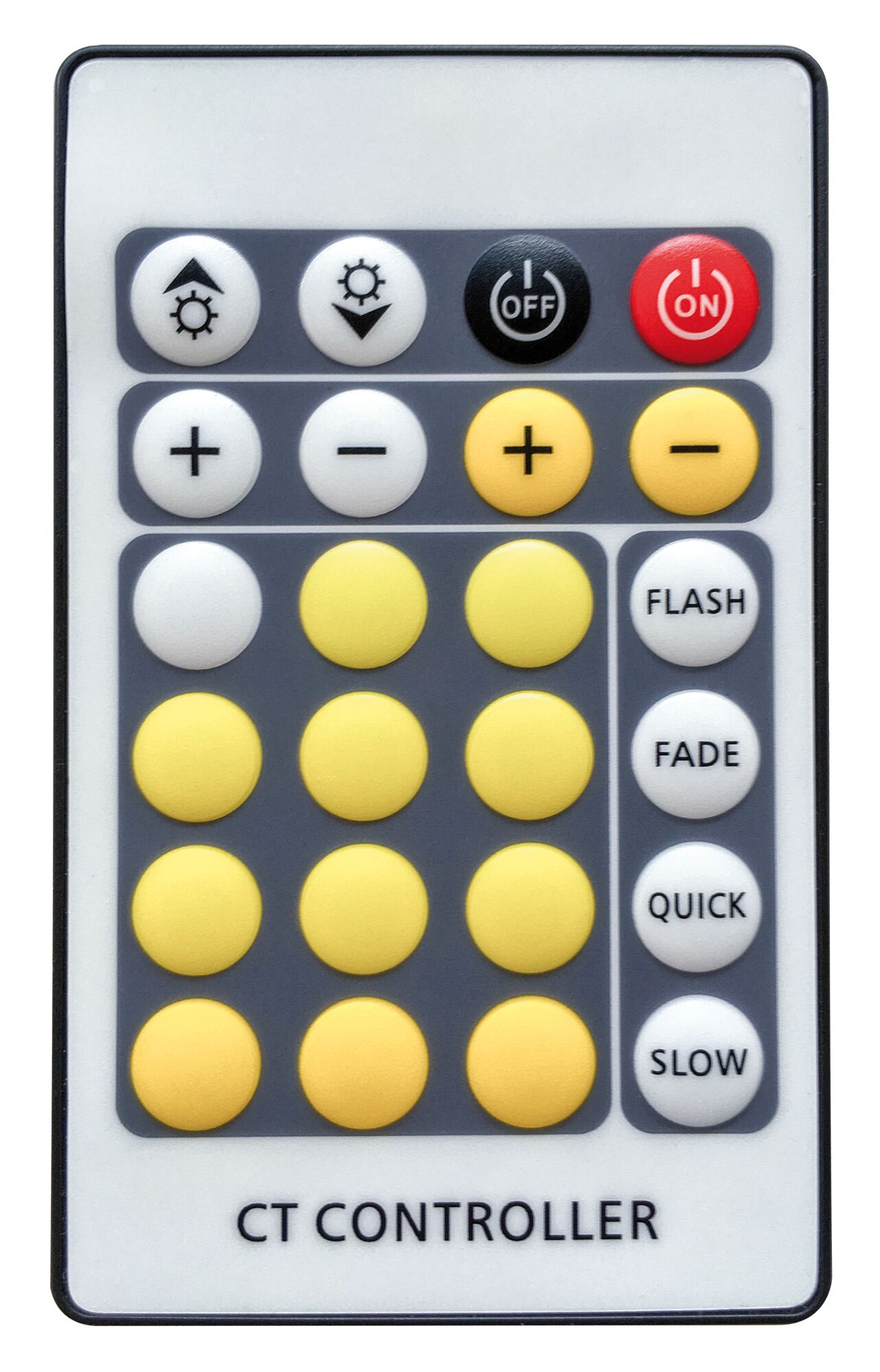

MaxLED strips are so powerful that they can easily be used as room lighting. They are real highlights especially in profiles. The light colour of the strips can be individually varied - from daylight white workplace light to a warm white relaxing light – using the intelligent white light control, Tunable White. In addition to the strip, the basic set contains a suitable ballast and a control unit with infrared remote control. Where required, it can be extended with additional strips and connectors. When planning, please keep in mind the maximum length specified for the basic set, which must not be exceeded.
- Complete set incl. strip, power supply and remote control
- Coating protects against splashing water and dust
- In conjunction with a shrink-on sleeve, can also be used in wet rooms

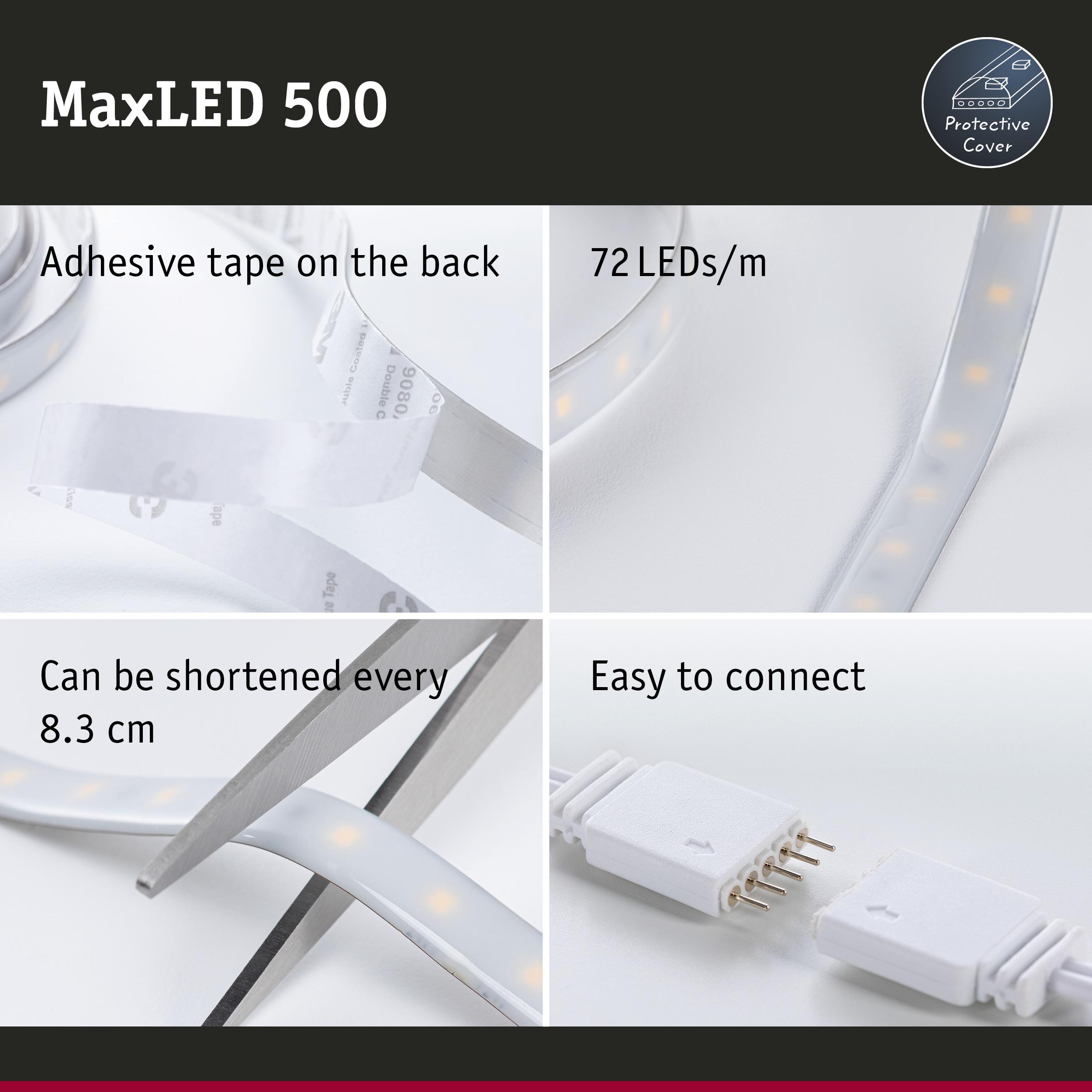

- Can be shortened as required

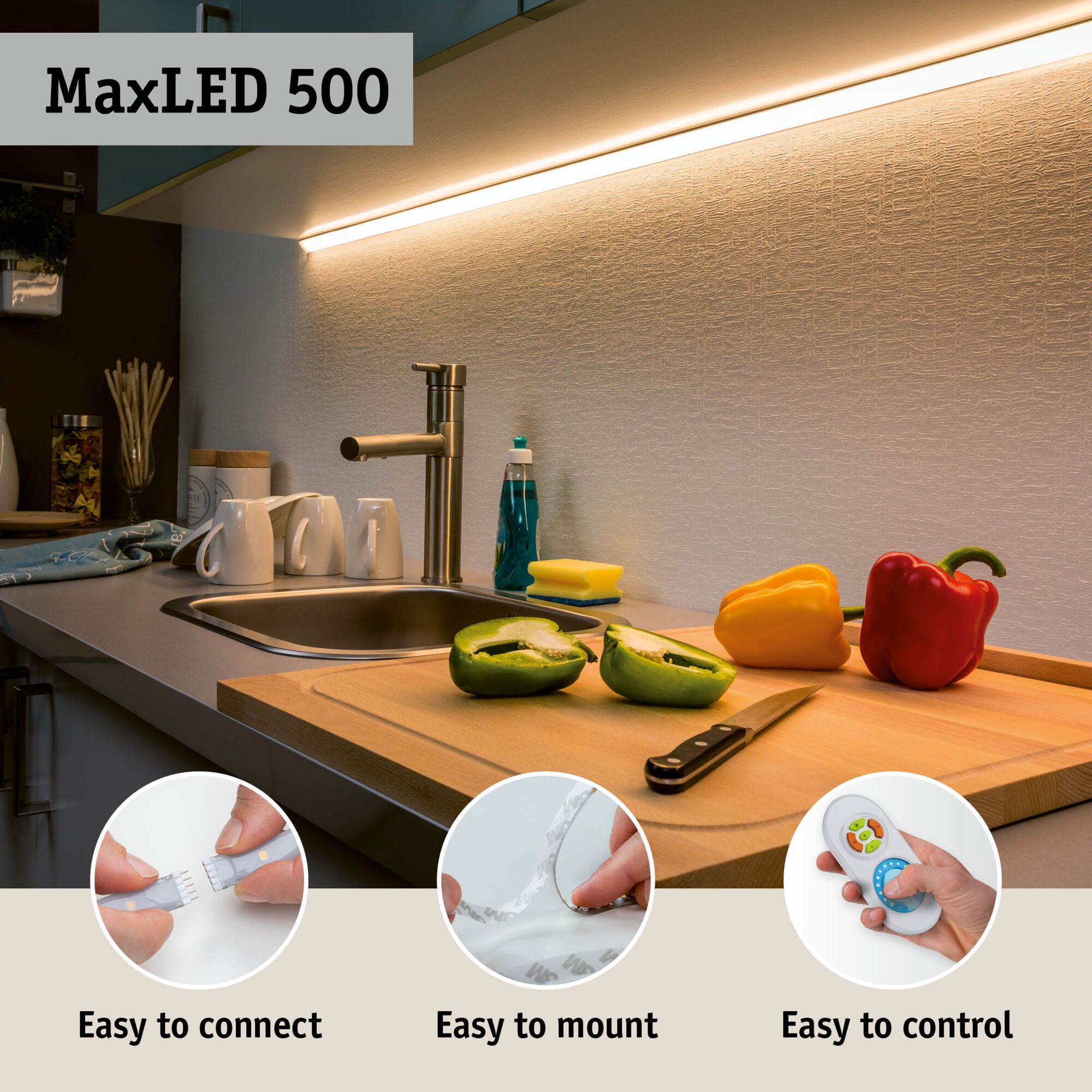

- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces
- With white-light control (Tunable White)

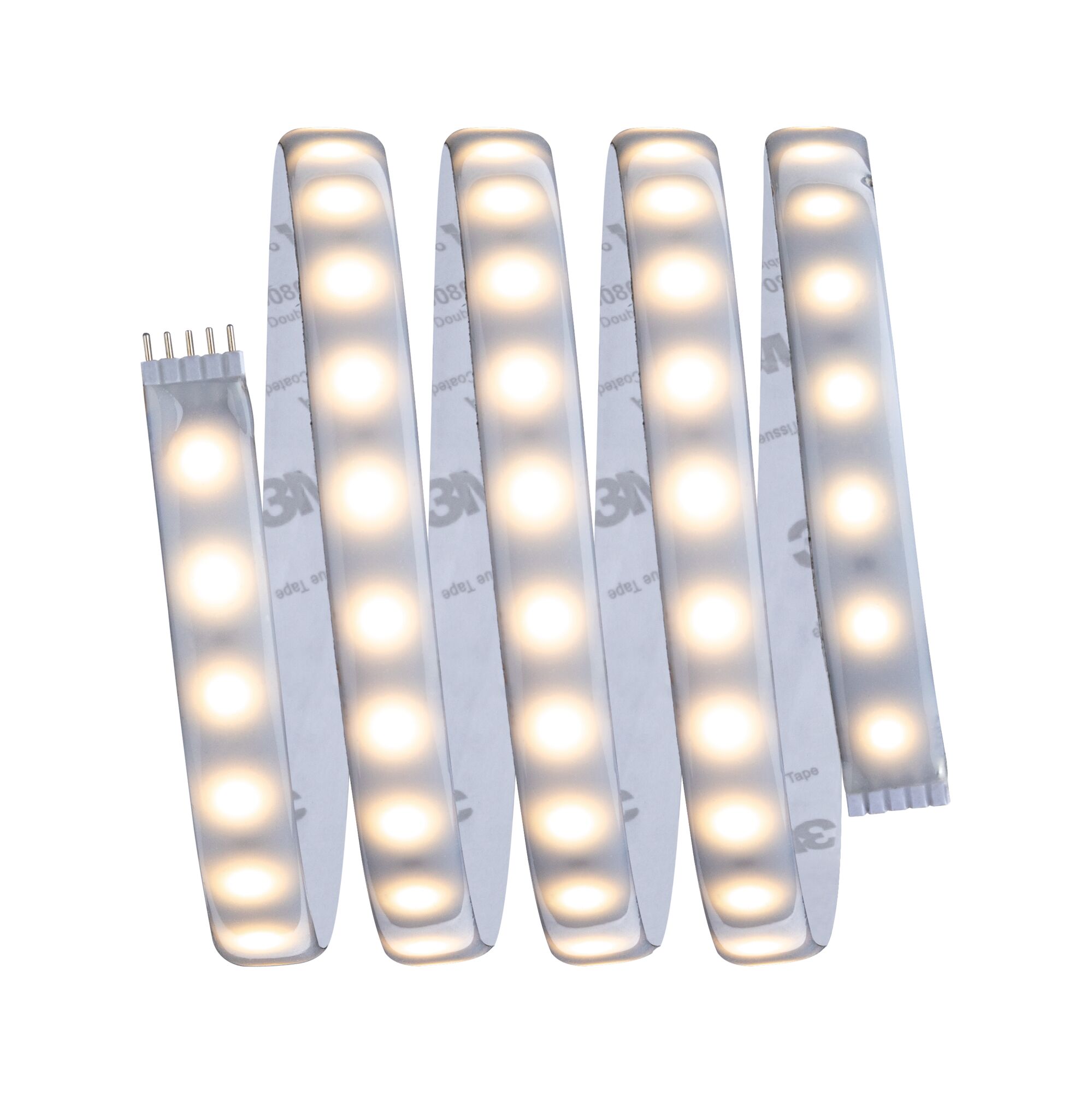

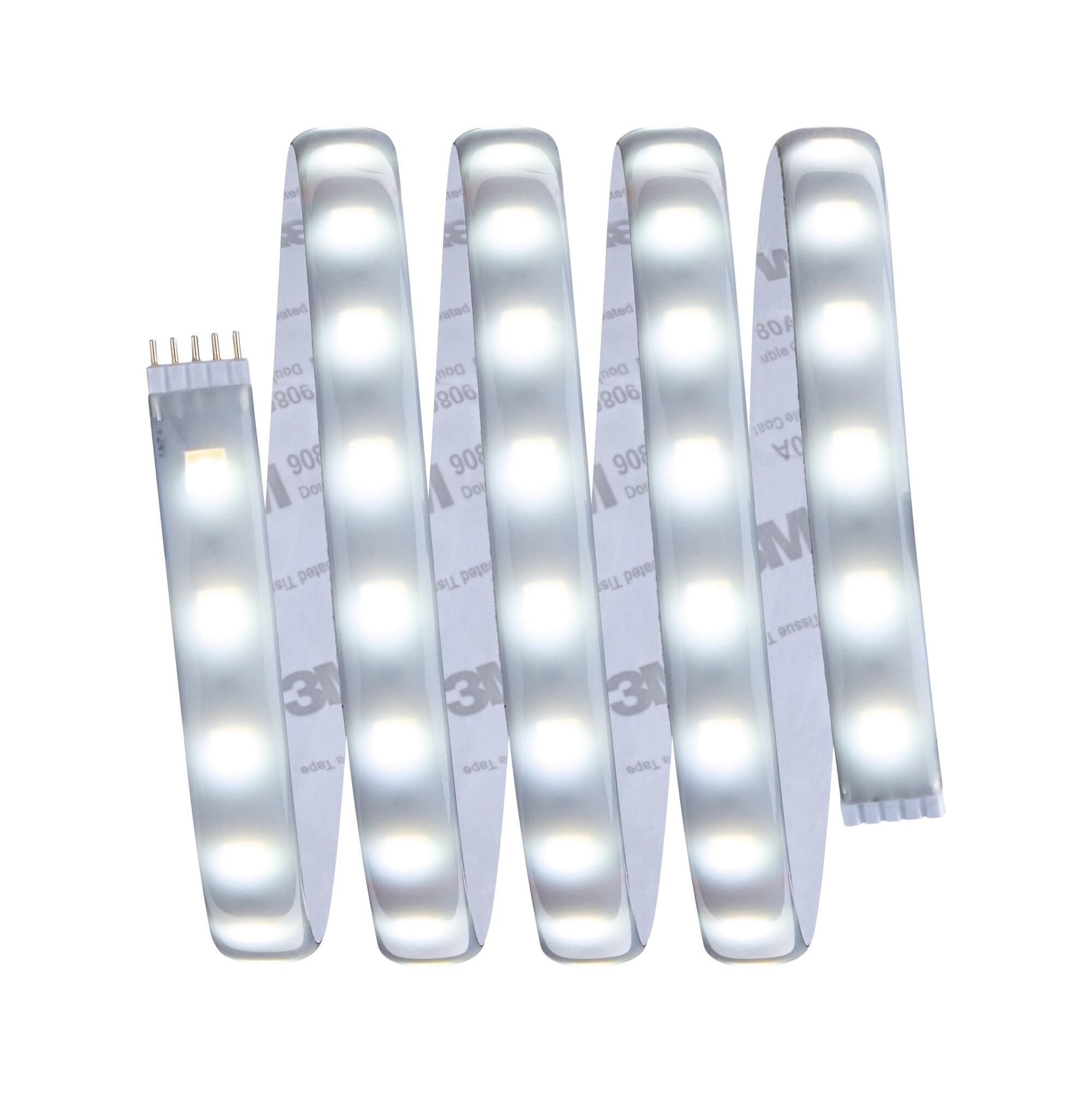

- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 1,5 m |
| Shortenability Strips | 100 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 3 m |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 2700 K |
| Nominal luminous flux | 705 lm |
| Luminous flux LED module | 825 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 120 ° |
| Colour change | Tunable White |
| Lumens per metre | 550 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |

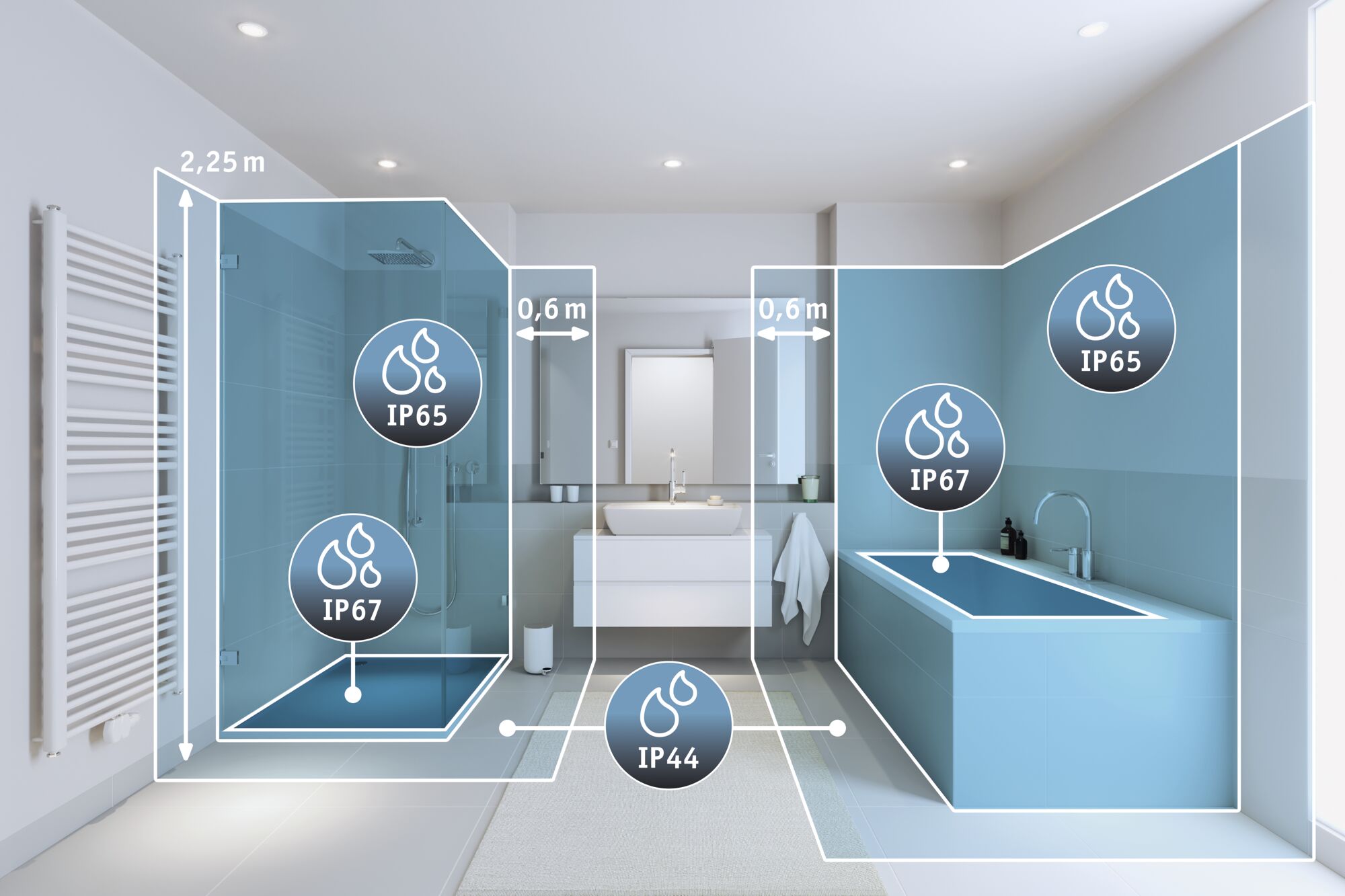

| IP protection | IP44 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 10 W |
| Number of component parts | 1x |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 12 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 20 VA |
| Transformer height | 22 mm |
| Transformer width | 43 mm |
| Transformer depth | 126 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
