Article-No.:
71124
MaxLED 500LED Strip
Full-Line COB Basic Set
3m 19W 600lm/m 480 LEDs/m 6500K 36VA
3m 19W 600lm/m 480 LEDs/m 6500K 36VA
£70.95*
Prices incl. Standard rate VAT
- Color temperatur: 6500K - Daylight white

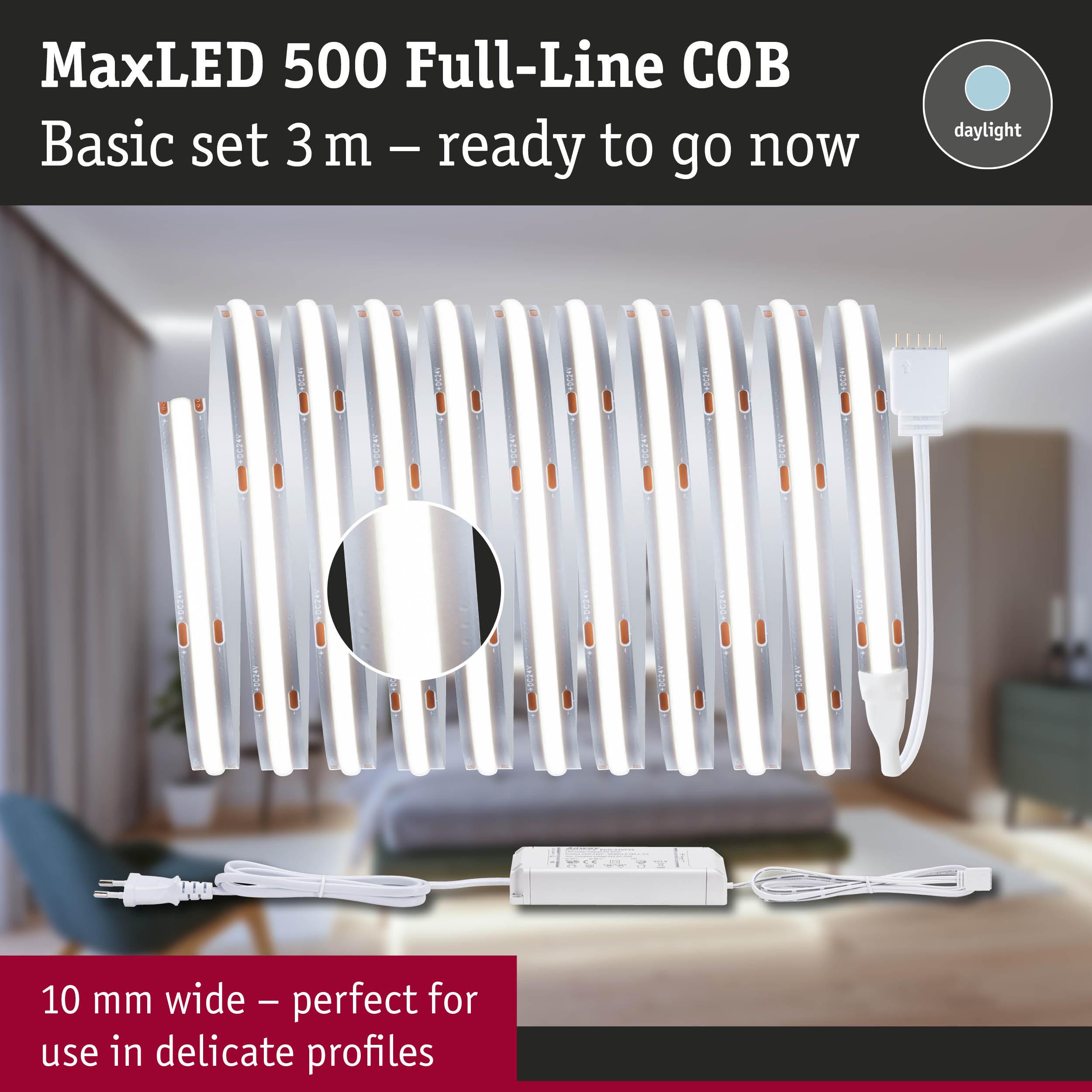

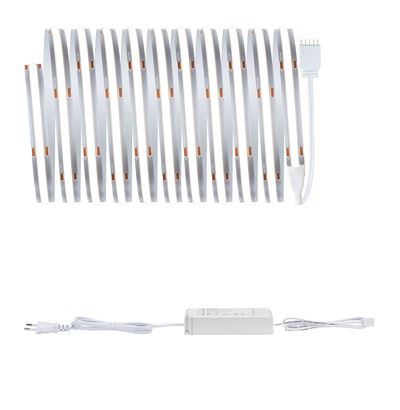

- Complete set incl. strip and power supply
- Can be shortened as required
MaxLED 500 LED Strip Full-Line COB Basic Set 3m 19W 600lm/m 480 LEDs/m 6500K 36VA

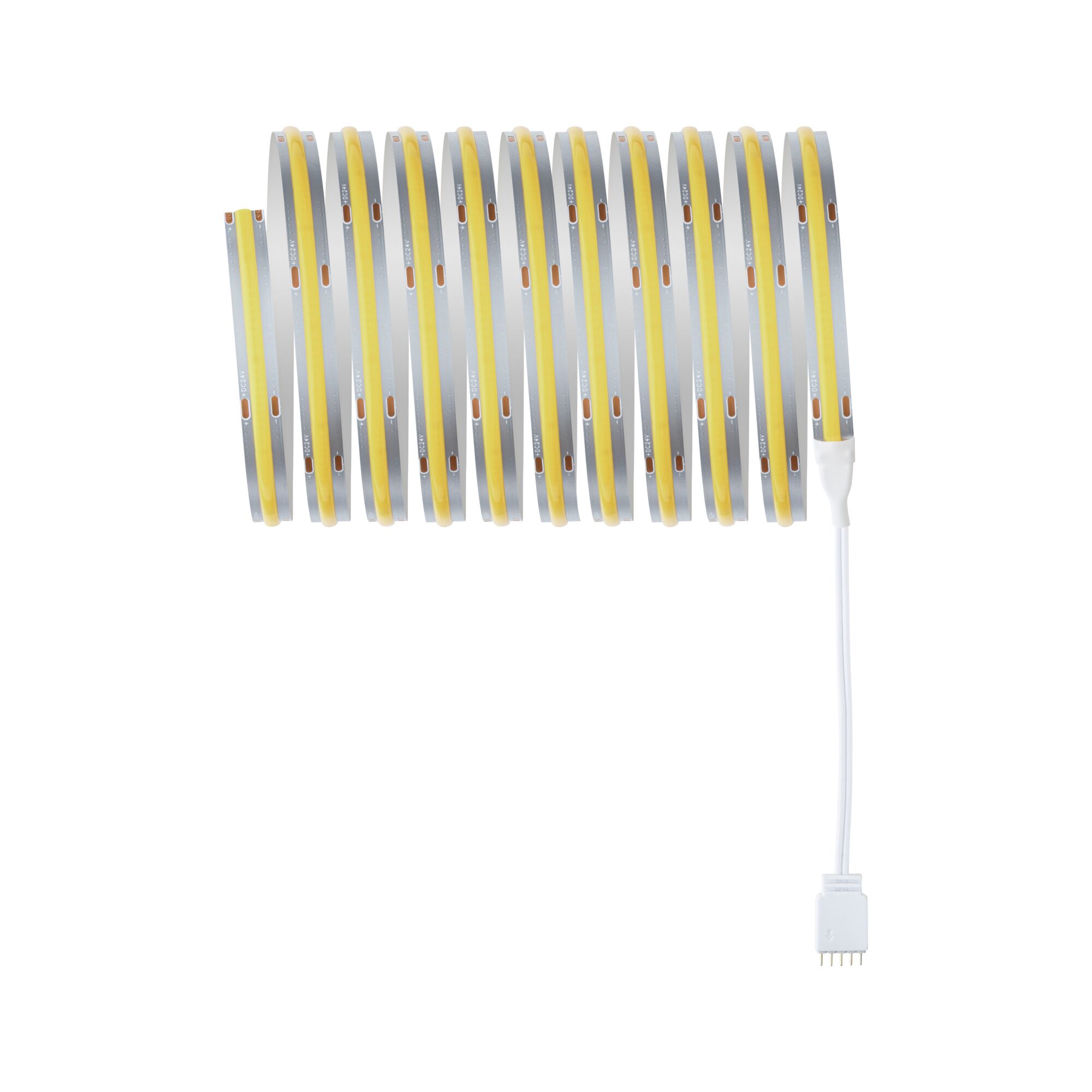

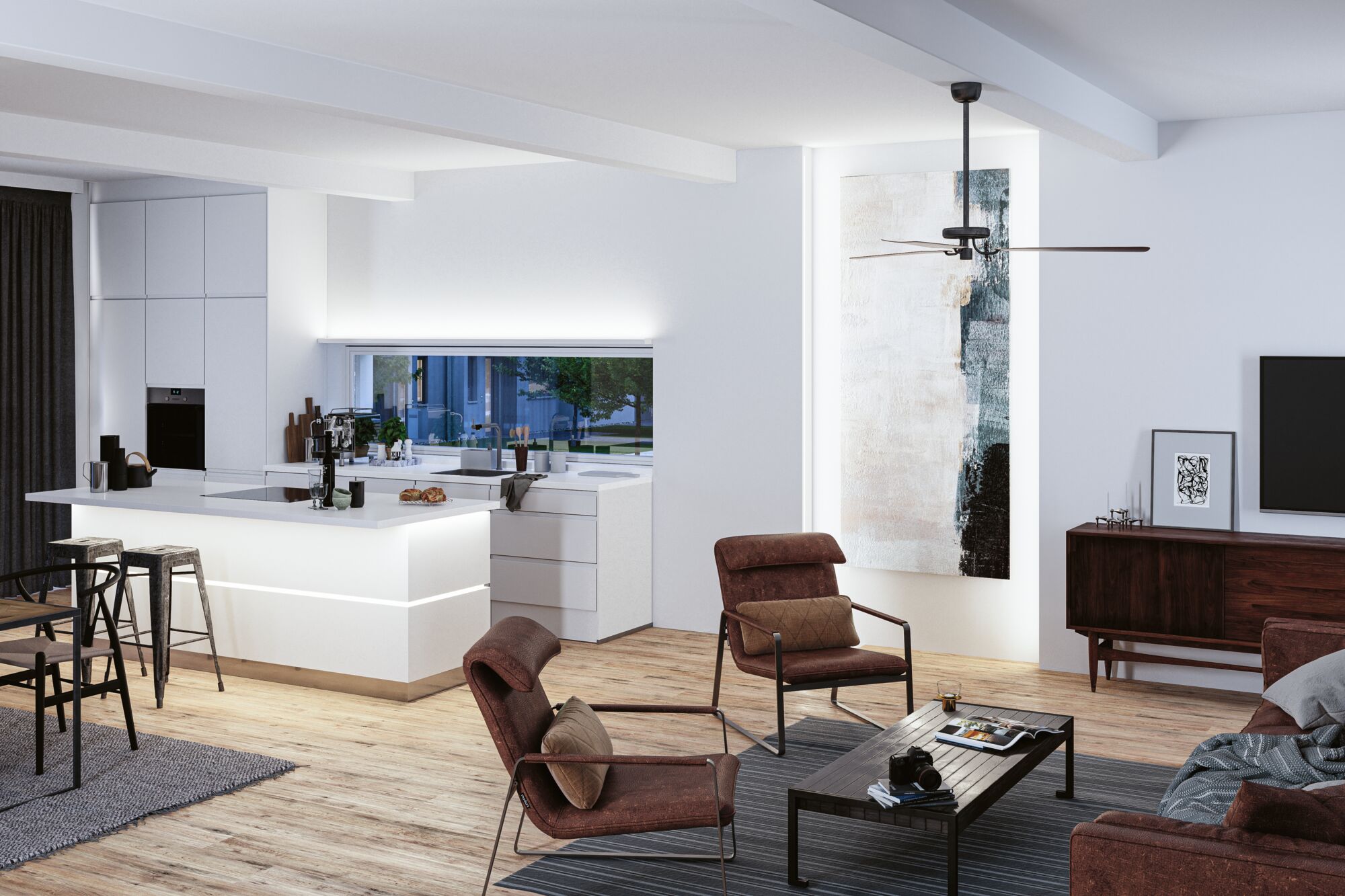

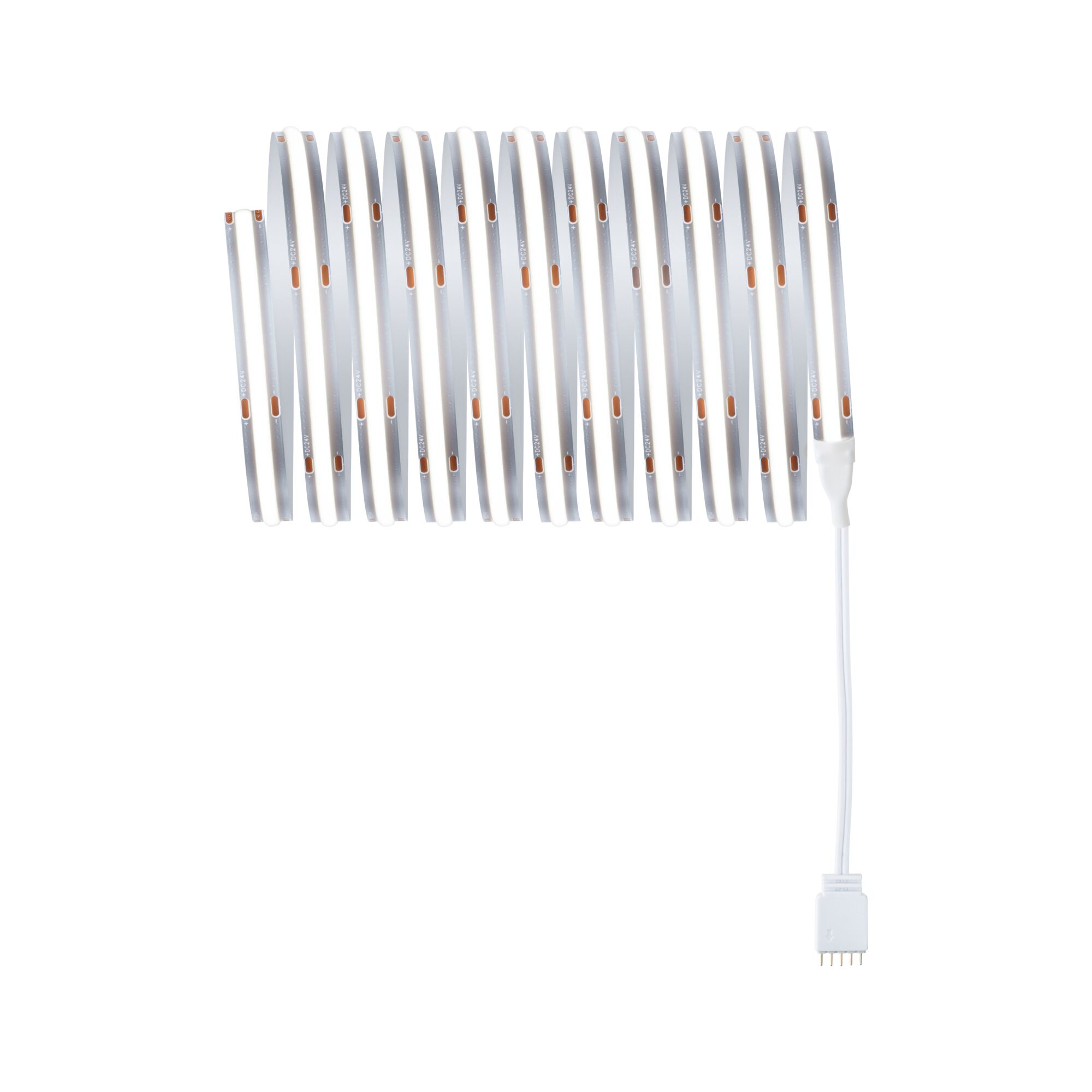

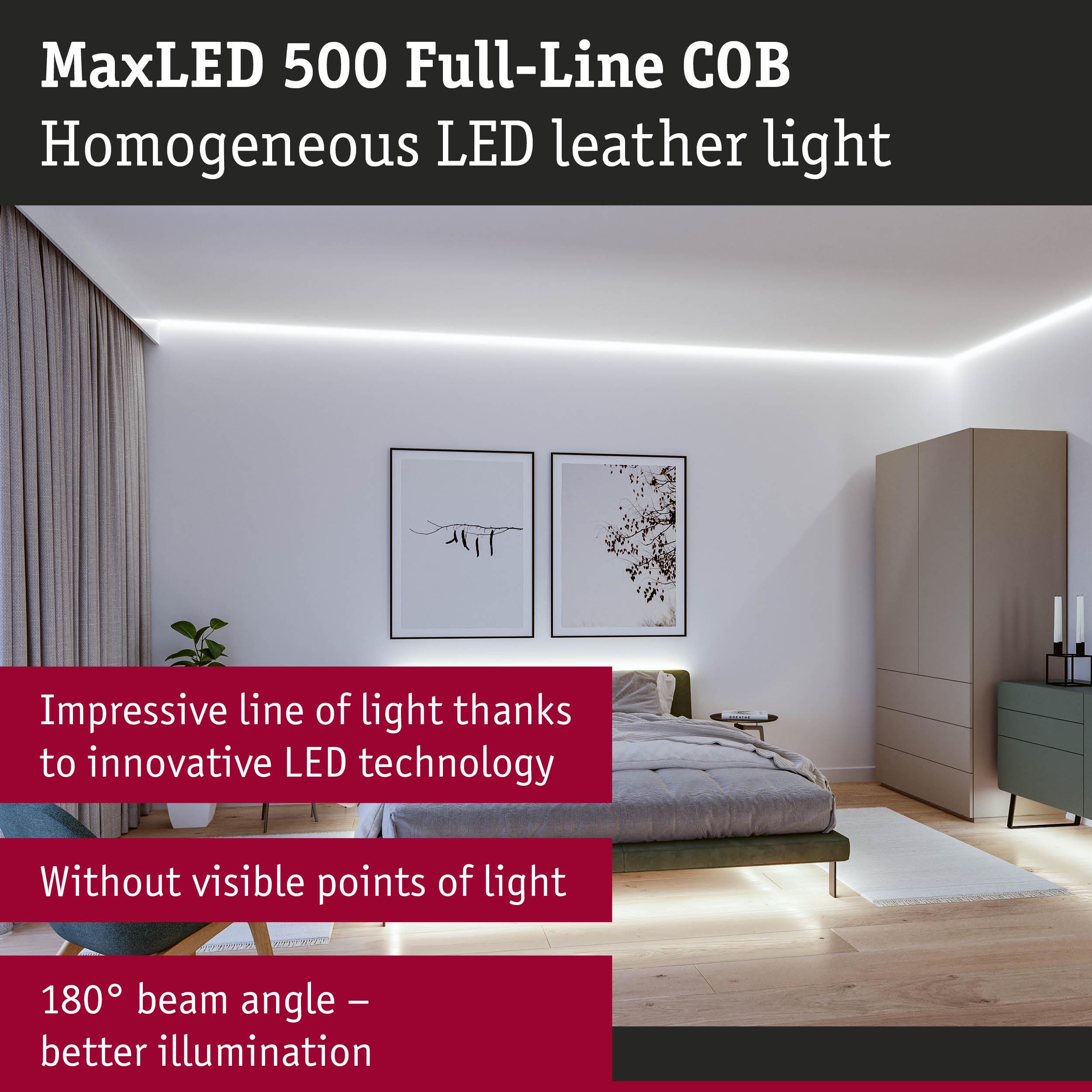

The MaxLED 500 Full-Line COB Strips emit perfect, glare-free working light for the worktop in the kitchen or garage, or any other work area. The MaxLED 500 COB basic set with 19 W, a length of 3 m and 480 LED/m generates a completely uniform light image without visible light points. The light connector continues the linear light seamlessly and without interruption. At 10 mm, the strip is extra narrow to fit into the most slimline LED profiles. The wide, 180° beam angle optimally distributes the light without shadow formation. A coating throughout protects the LEDs against dust and moisture, and the contact points have an IP20 protection. The daylight white basic set can be easily extended with suitable individual strips.
- Color temperatur: 6500K - Daylight white
- Complete set incl. strip and power supply

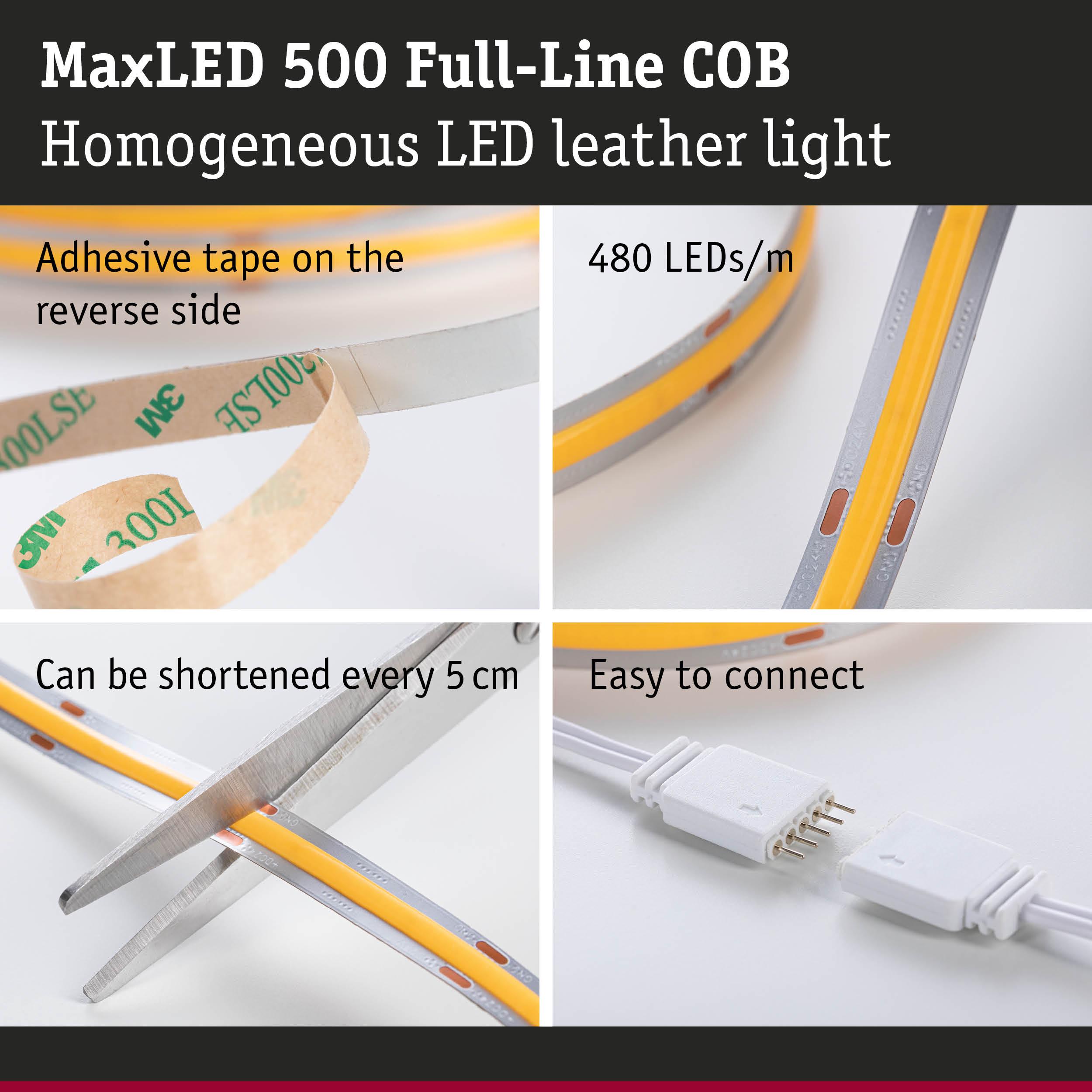

- Can be shortened as required
- Coating protects against splashing water and dust
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 1,6 x B: 10 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 5,5 m |
| can be used with the following dimmers | Paulmann SmartHome BLE LED-Stripes 500.02, Paulmann SmartHome ZigBee LED-Stripes 500.45 |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 6500 K |
| color temp | 6500 K |
| Farbtemperatur_Text | Tageslichtweiß |
| Usable luminous flux | 1800 lm |
| Lumens per metre | 600 lm/m |
| Luminous flux LED module | 1800 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 19 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Adjustability | fixed |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 480 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 21 W |
| Transformer | |
|---|---|
| Transformer power | 36 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
