Article-No.:
50047
MaxLED
Controller
Smart Home Zigbee 3.0
RGBW
DC 24V max. 144W White/Grey
DC 24V max. 144W White/Grey
£44.95*
Prices incl. Standard rate VAT
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Bidirectional data transfer

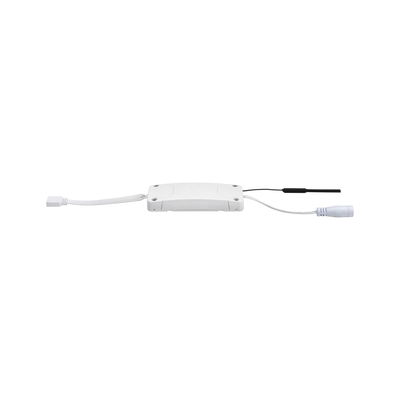

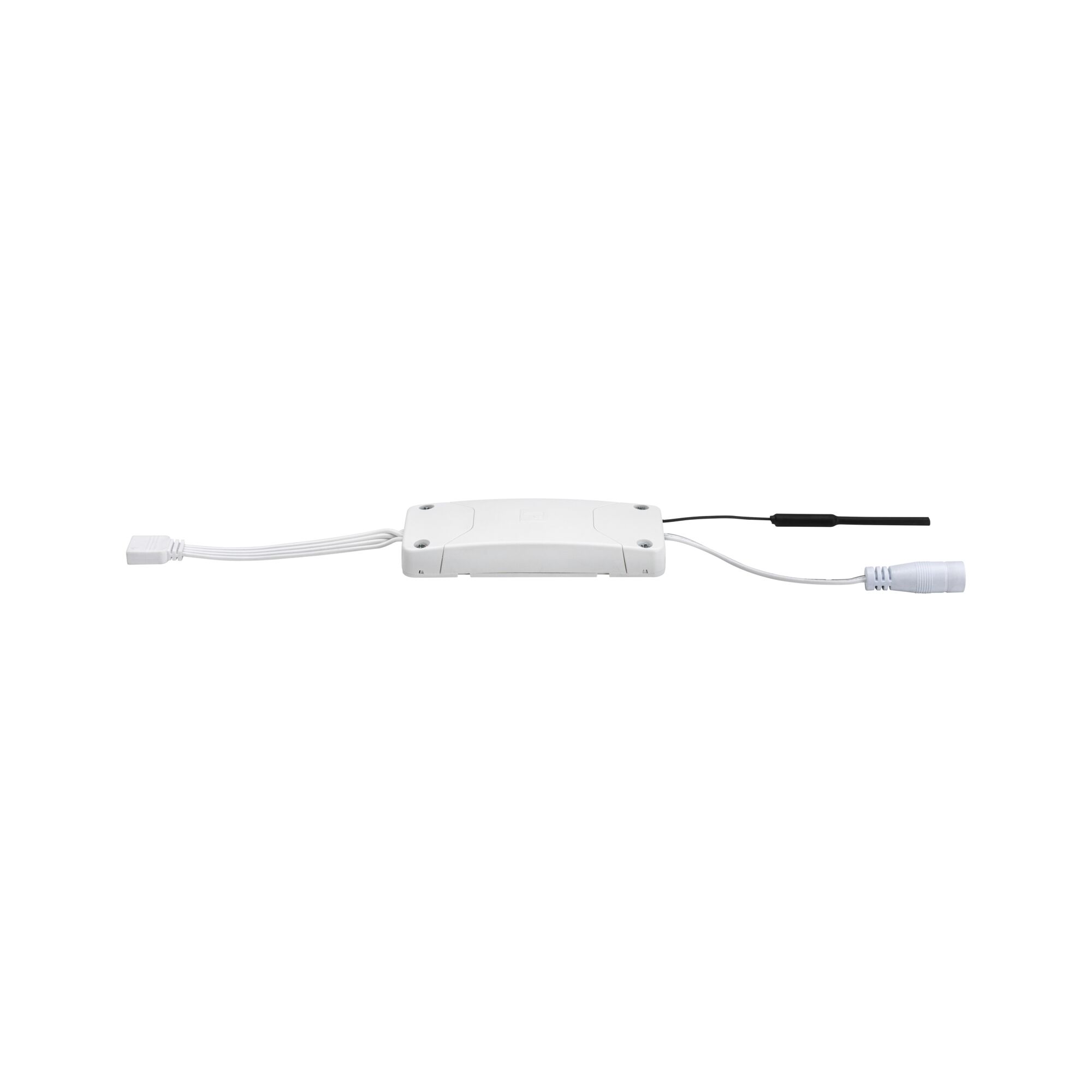

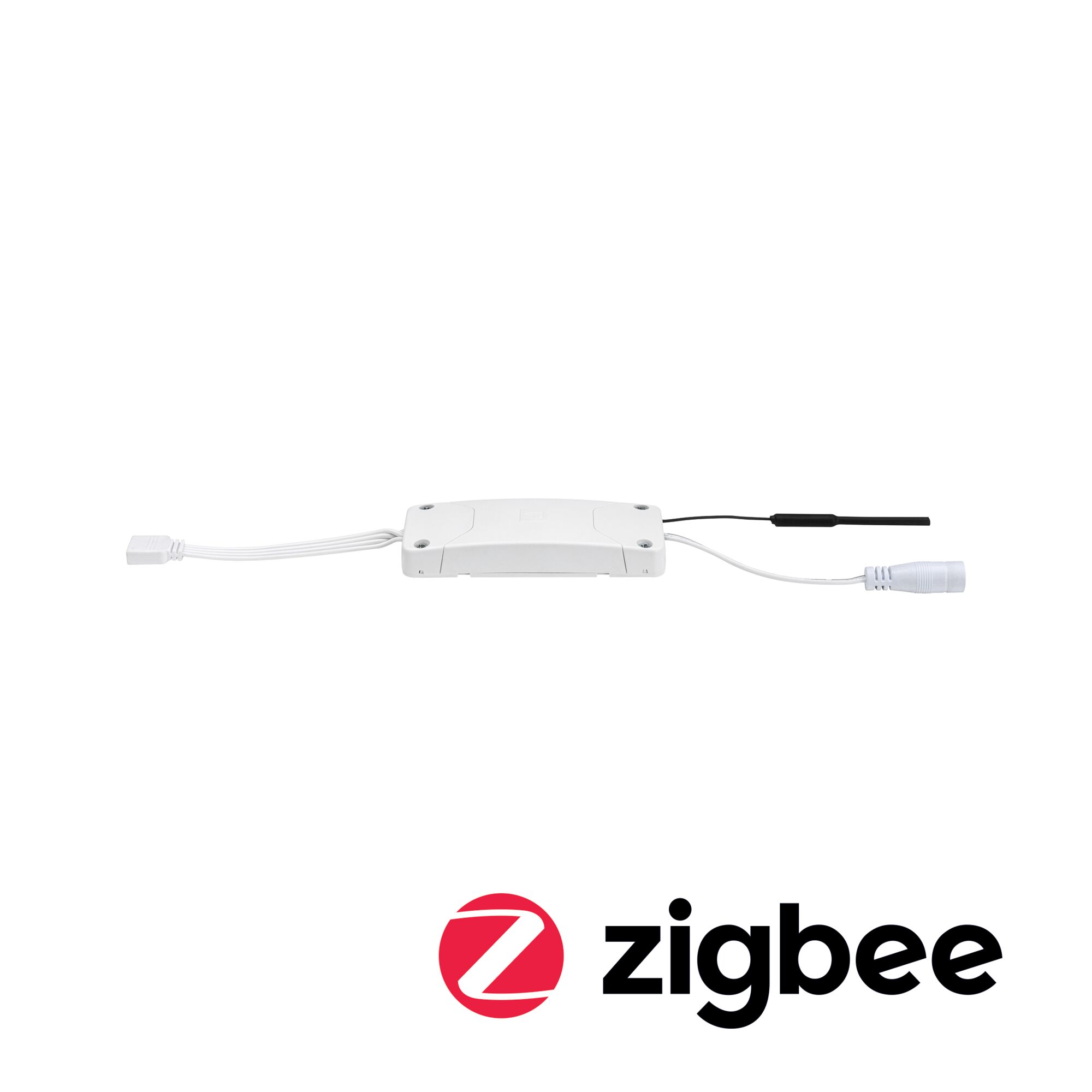

MaxLED Controller Smart Home Zigbee 3.0 RGBW DC 24V max. 144W White/Grey
With the MaxLED RGBW controller from the Smart Home Zigbee 3.0 series, MaxLED strips with RGBW coloured light control can be switched and dimmed. The controller is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Controls MaxLED strips with RGBW colour change
- Simple plug-in system for easy installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 38 x T: 95 mm |
| Design and Material | |
|---|---|
| Colour | White, Grey |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour change | Color change RGBW, Tunable White |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Total Width | 38 mm |
| Maximum wattage range | max. 144 W |
| protection class | protection class III |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
