Article-No.:
70976
MaxLED
Power Supply
Accessories
230/24V 150VA White
230/24V 150VA White
- Energy-efficient electronic ballast with long lifetime
- Includes power cable with Europlug
- Simple plug-in system for easy installation

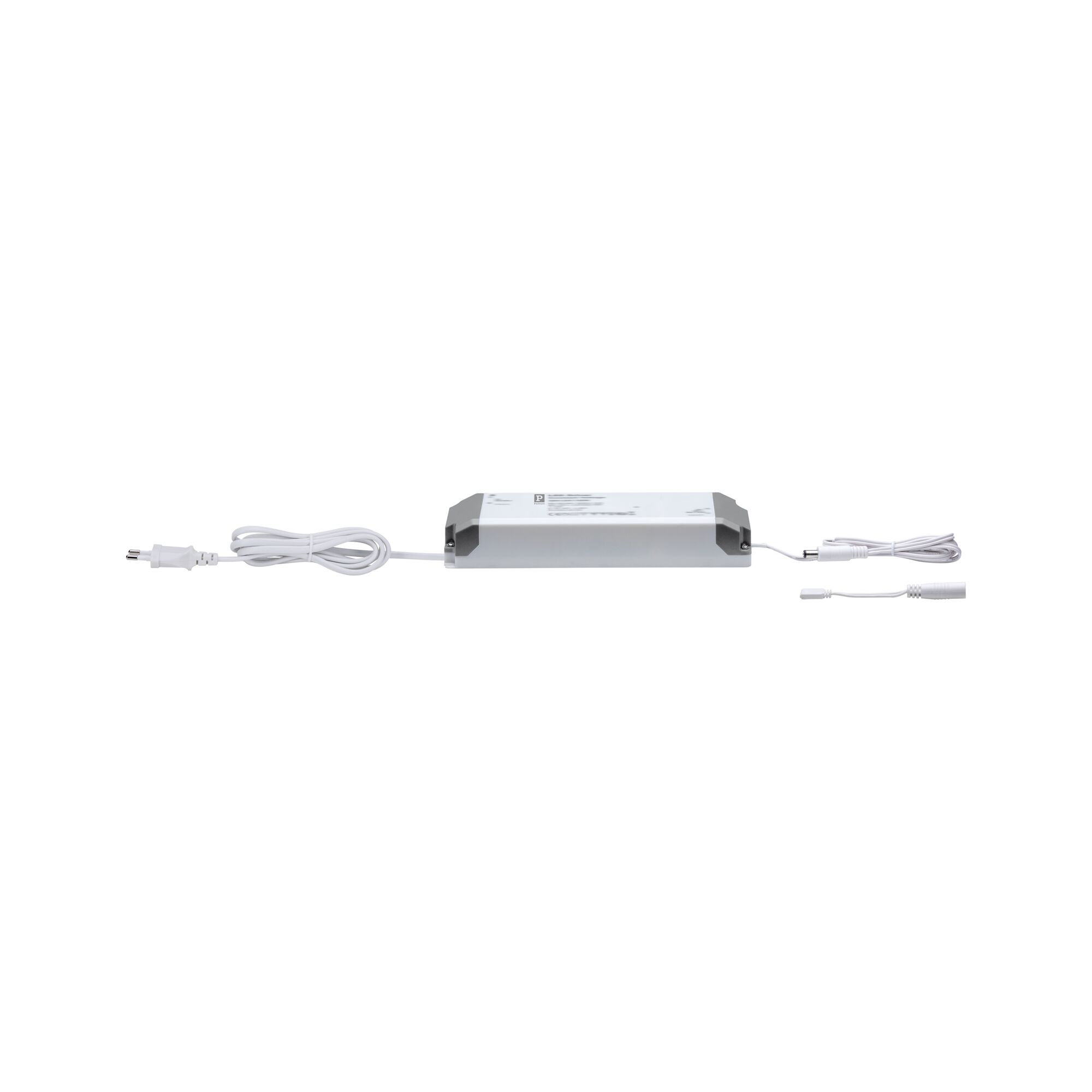

MaxLED Power Supply Accessories 230/24V 150VA White

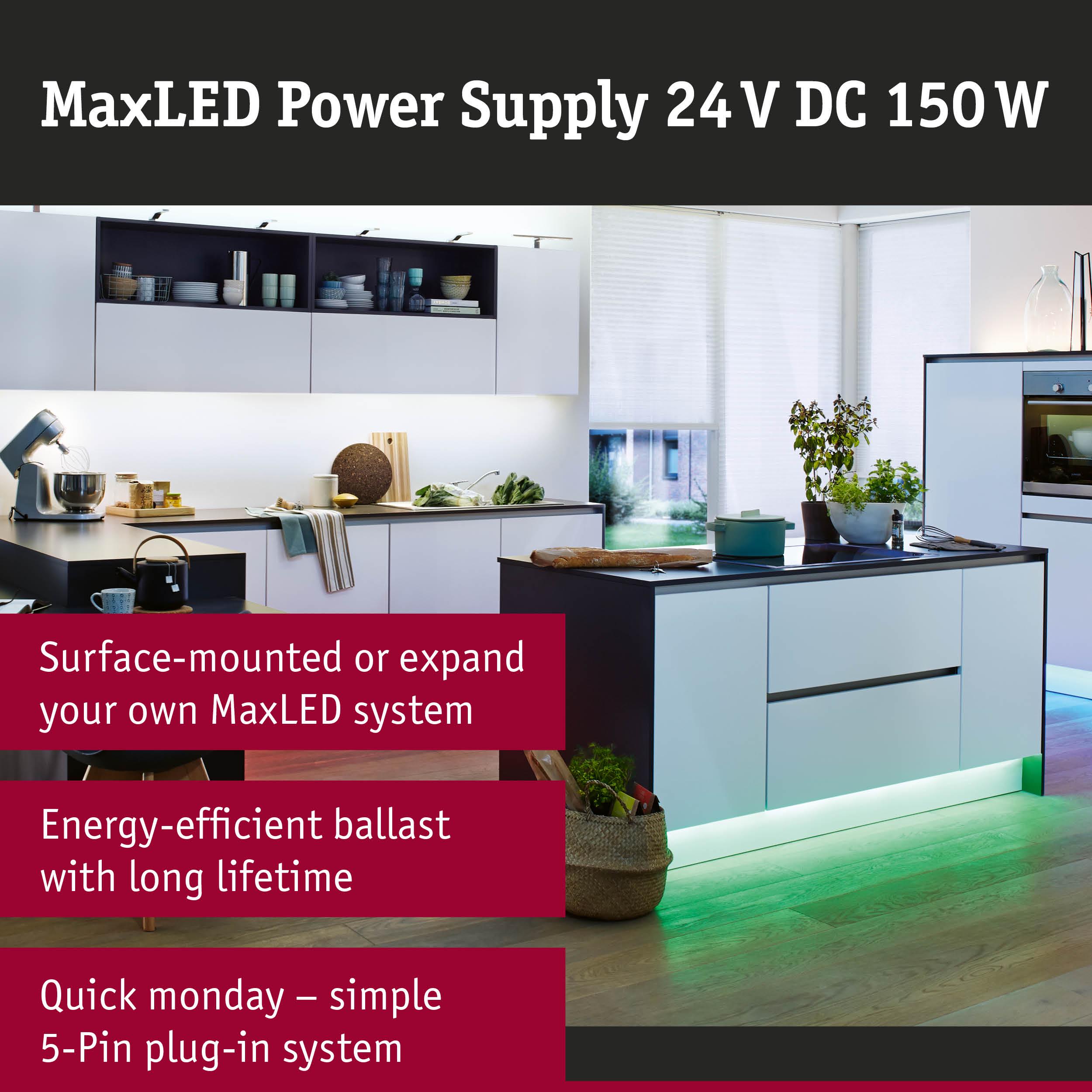

With the ready-to-plug MaxLED power supply, you can create your own MaxLED system with a max. total output of 150 watts, or you can extend existing installations. Plug connections for the direct connection of MaxLED strips or plenty of accessories are ready to go.
- Energy-efficient electronic ballast with long lifetime
- Includes power cable with Europlug
- Simple plug-in system for easy installation
- Incl. 5-pin plug for easy connection of the strips
| Dimension | |
|---|---|

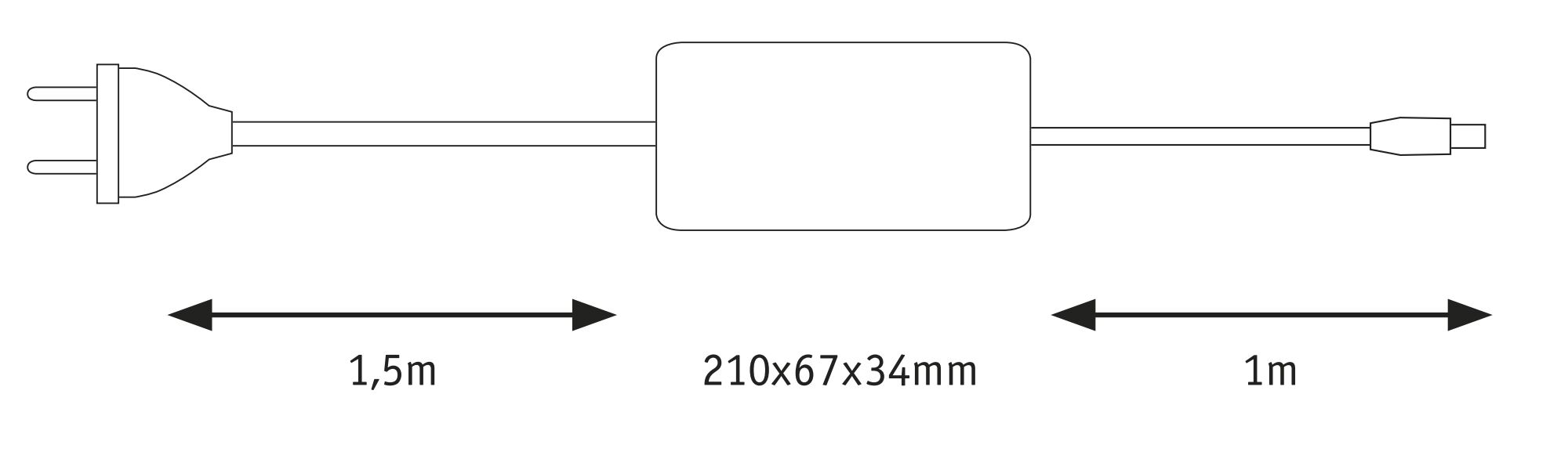

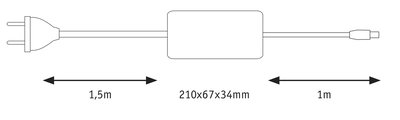

| Dimensions (Height x Width x Depth) | H: 34 x B: 210 x T: 67 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Lamp Features | |
|---|---|
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | no |
| Total Width | 210 mm |
| Maximum wattage range | max. 150 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 150 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
