Article-No.:
93907
Plug & Shine
LED Recessed floor luminaire
Floor Individual Spot
IP67 3000K 6W 20° Silver
IP67 3000K 6W 20° Silver
£94.95*
Prices incl. Standard rate VAT
- IP Protection: IP67 - protected against temporary immersion
- Max. load up to 500 kg
- 24 V floor recessed luminaire

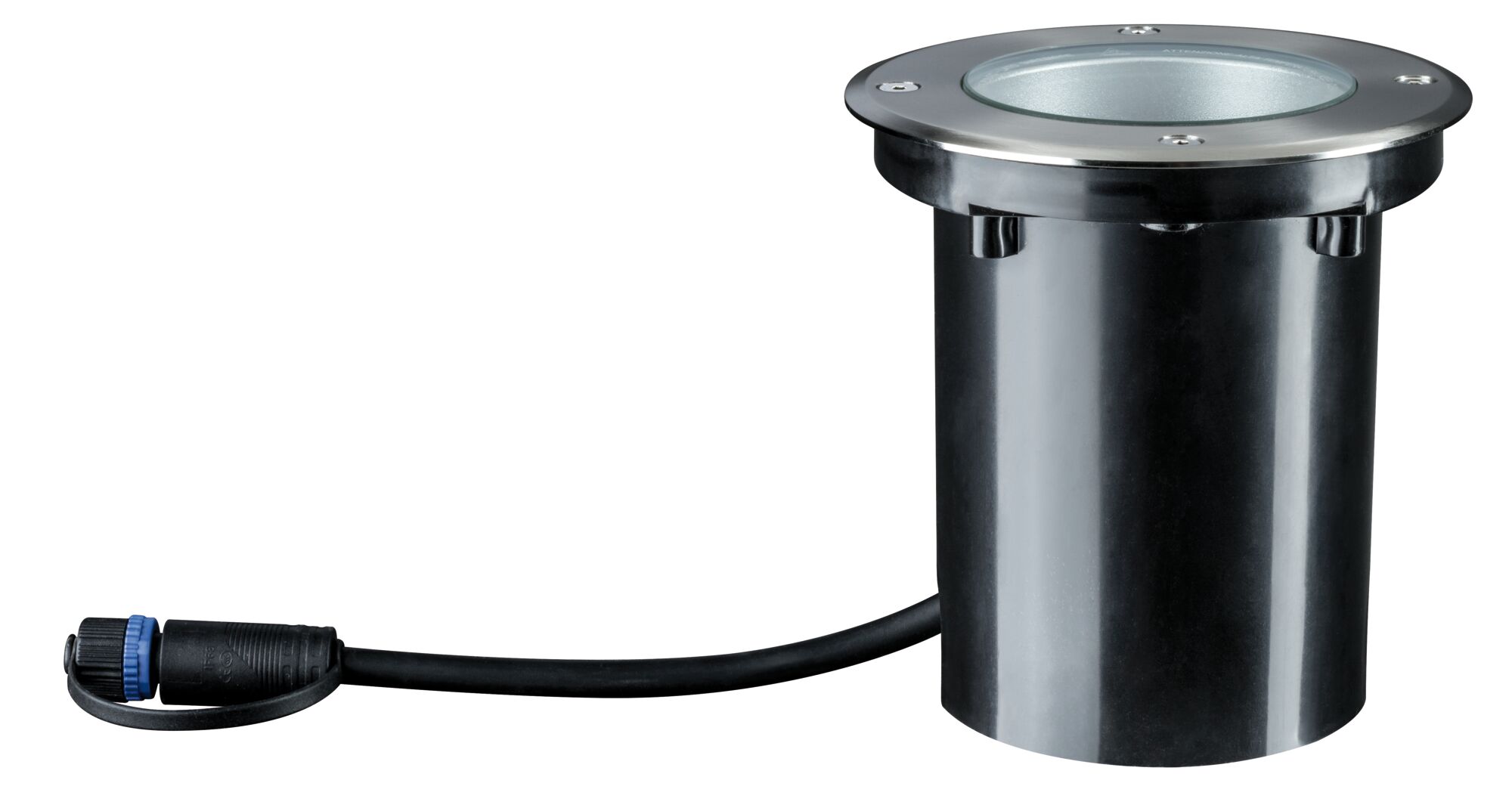

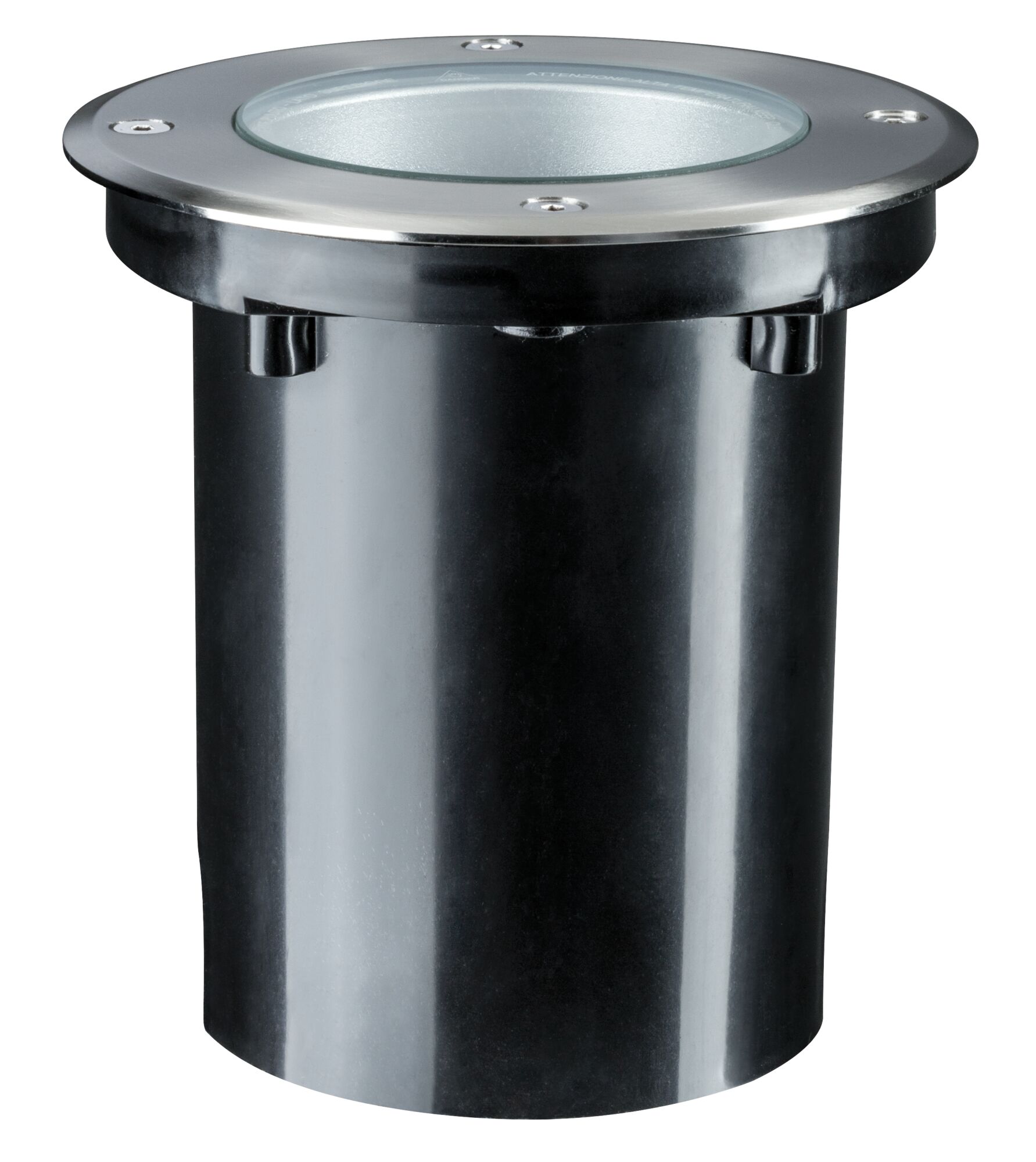

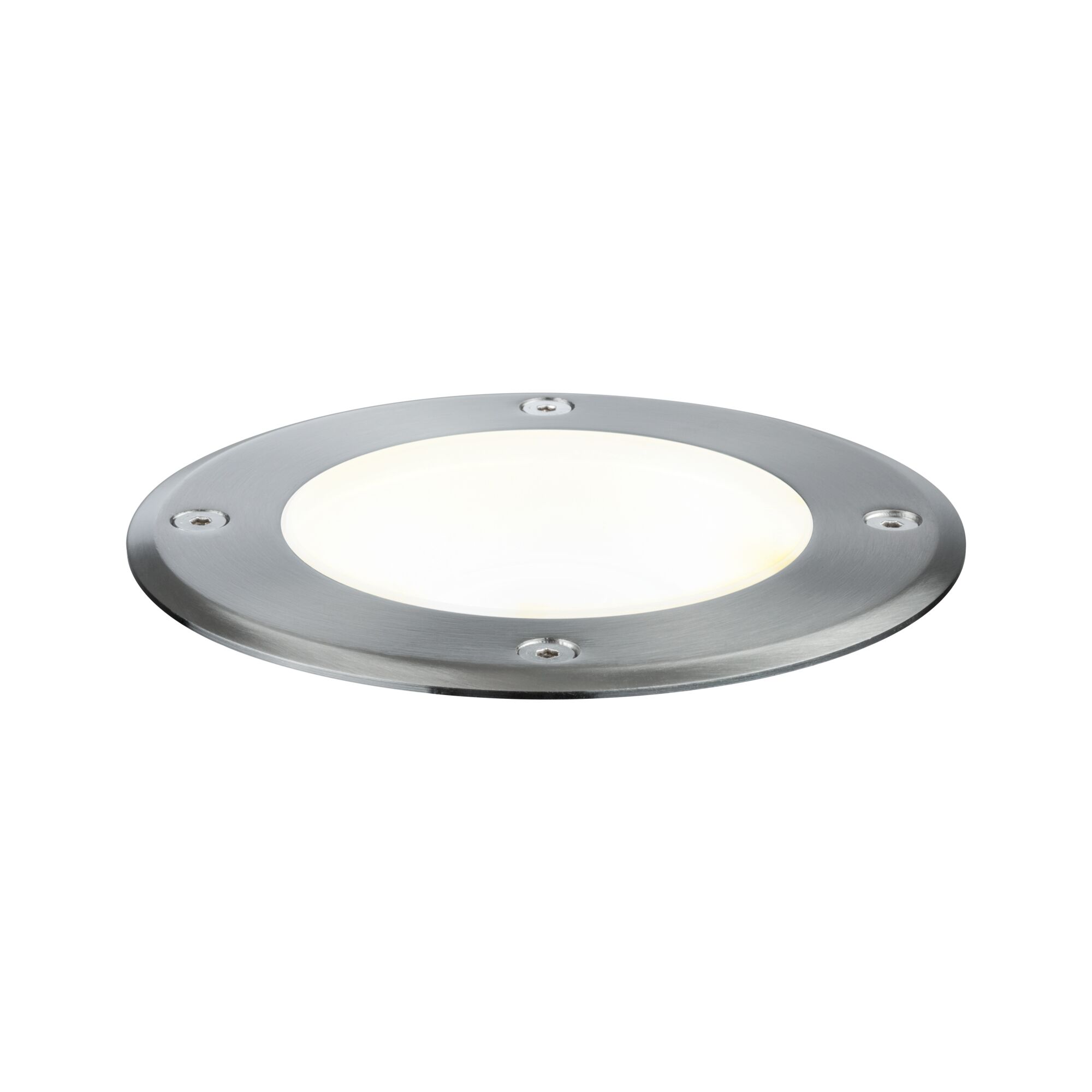

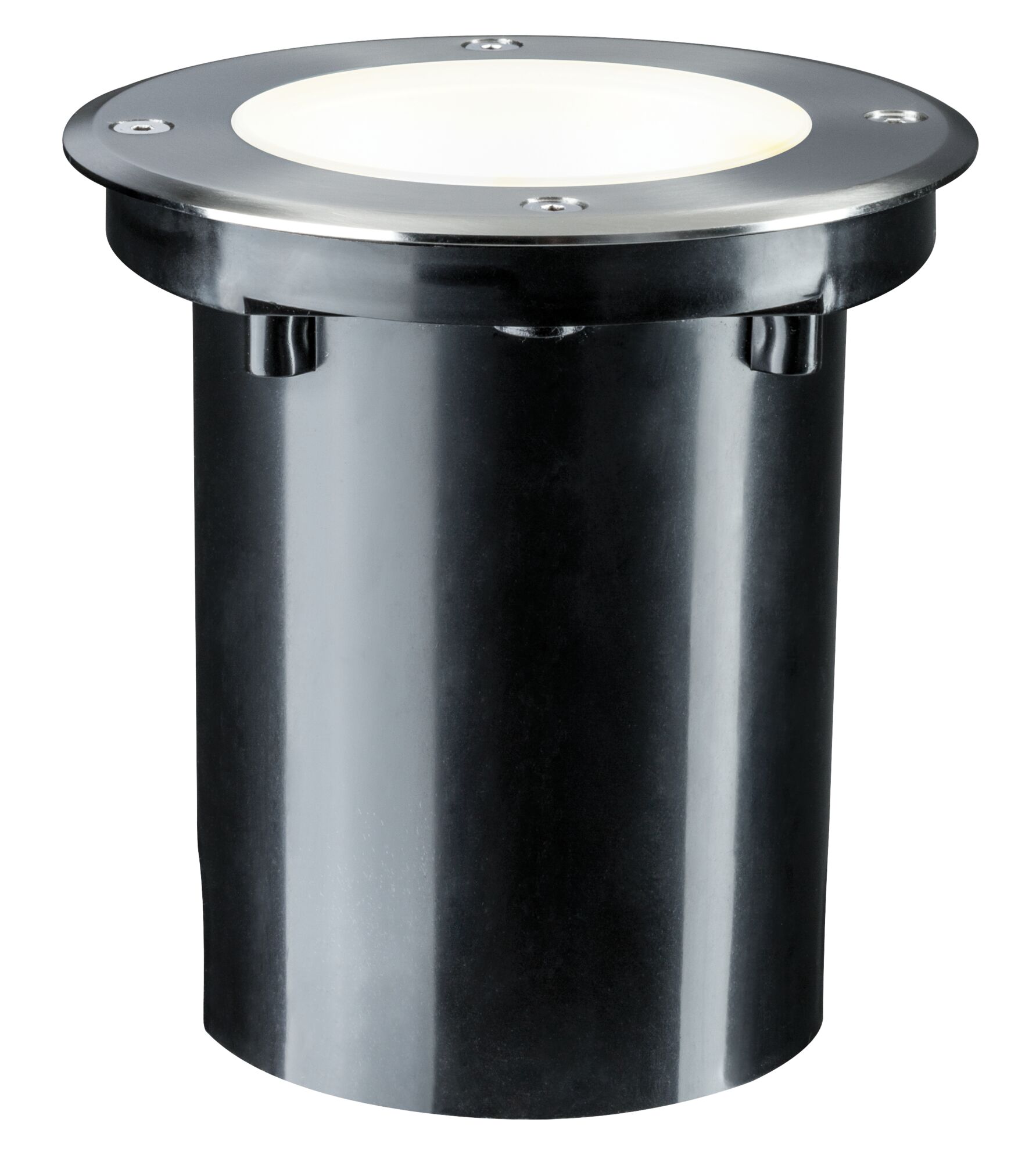

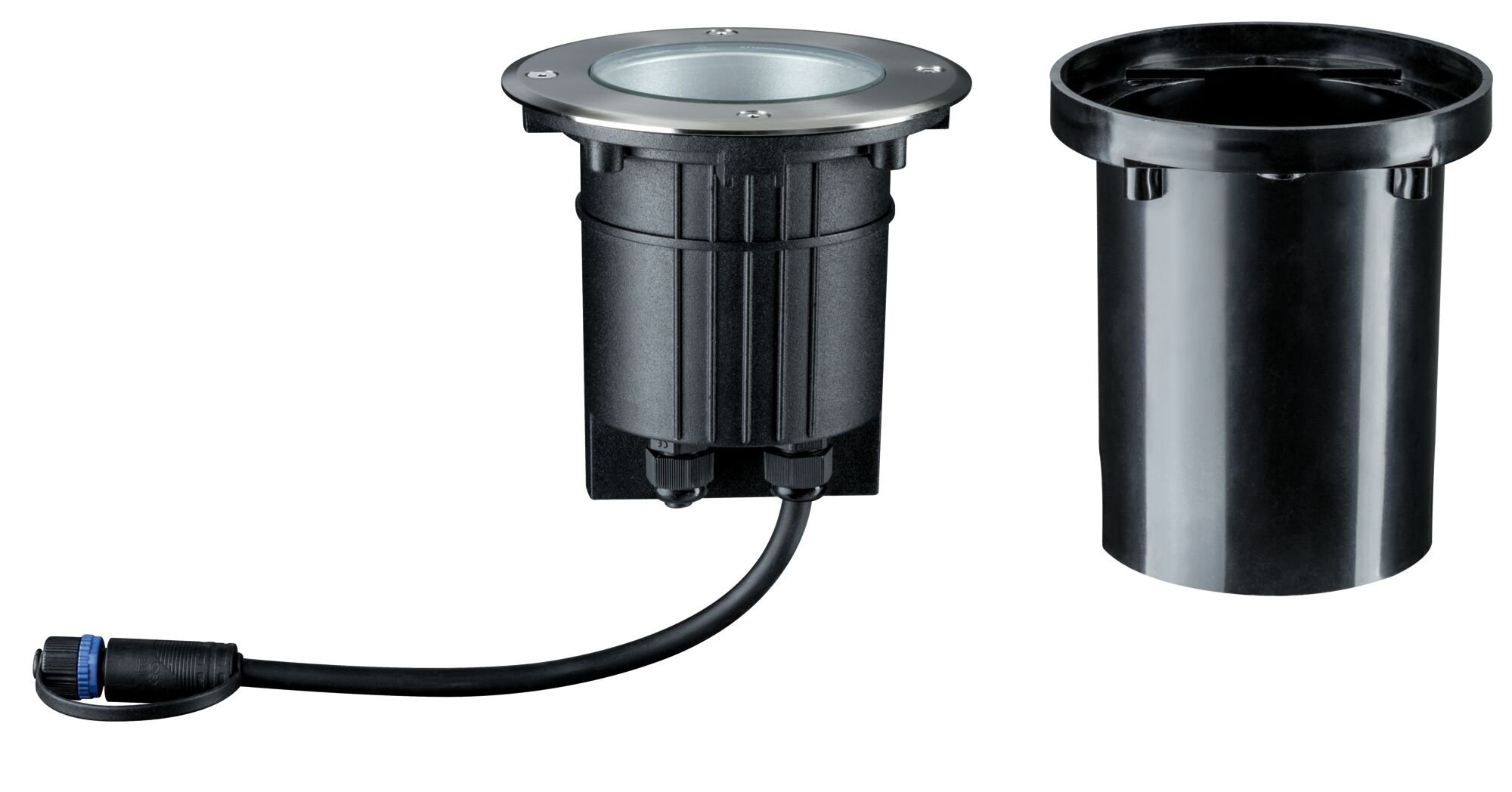

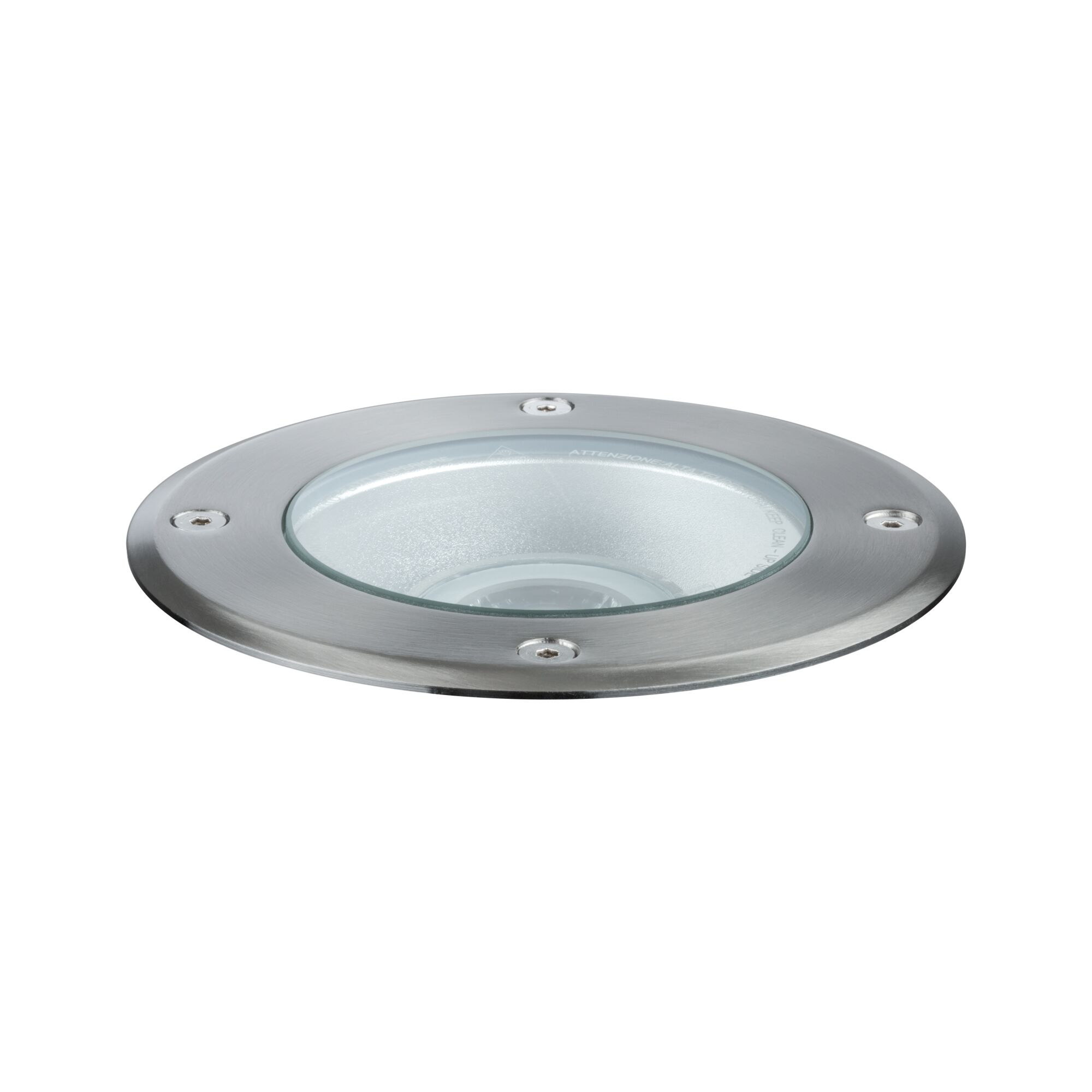

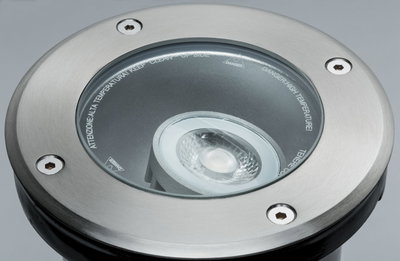

Plug & Shine LED Recessed floor luminaire Floor Individual Spot IP67 3000K 6W 20° Silver

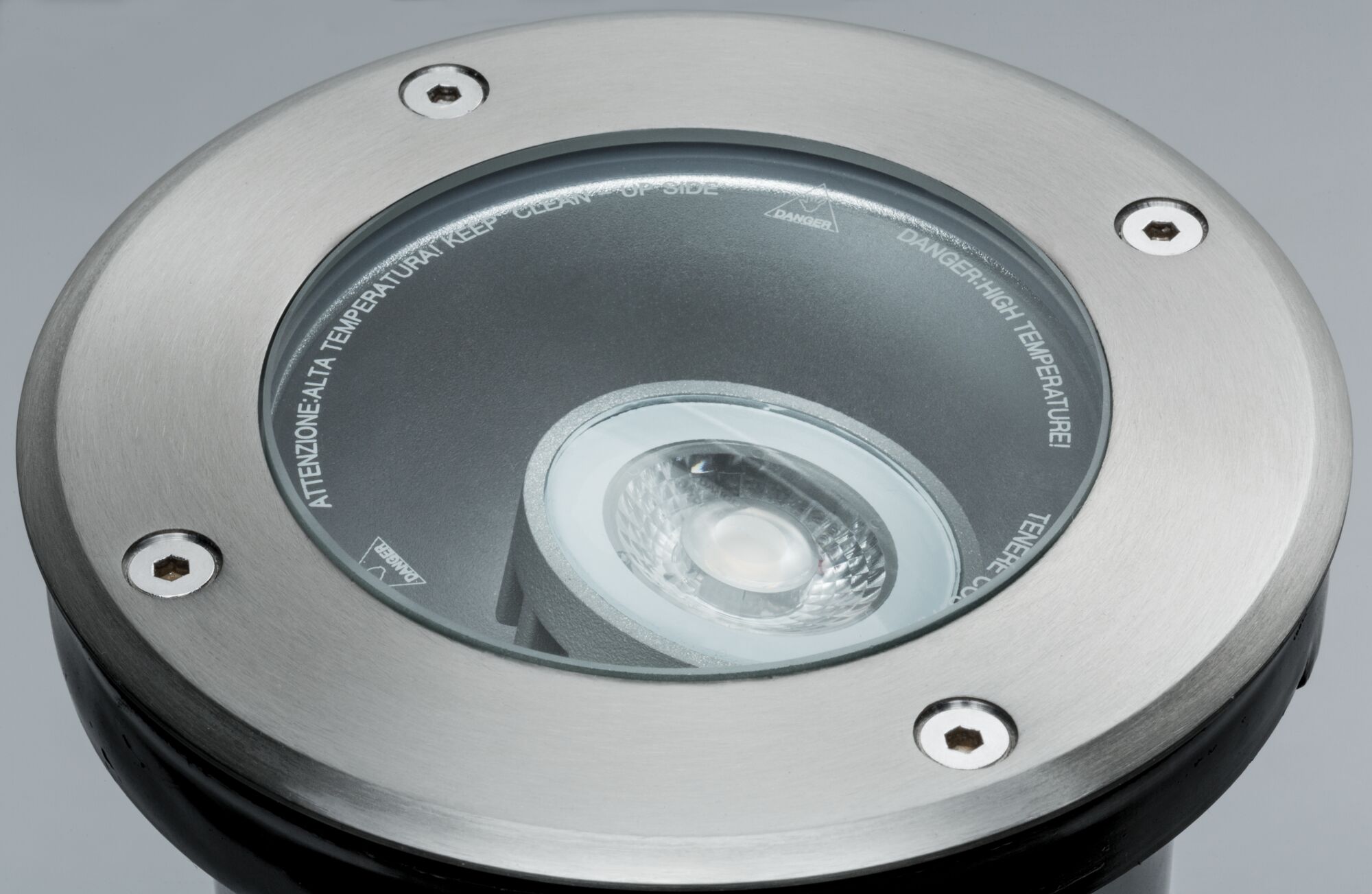

This round Plug & Shine floor recessed spotlight with an output of 6 watts is highly adaptable: the non-replaceable LED module swivels by up to 20 degrees, allowing you to angle the light cone to meet your preferences. The beam angle is 20 degrees. This luminaire can bear loads of up to 500 kilograms, making it suitable for walkable outdoor spaces. Corrosion-resistant, waterproof and dust-proof, it emits warm white light in all weather conditions.
- IP Protection: IP67 - protected against temporary immersion
- Max. load up to 500 kg
- 24 V floor recessed luminaire
- Color temperatur: 3000K - Warm white

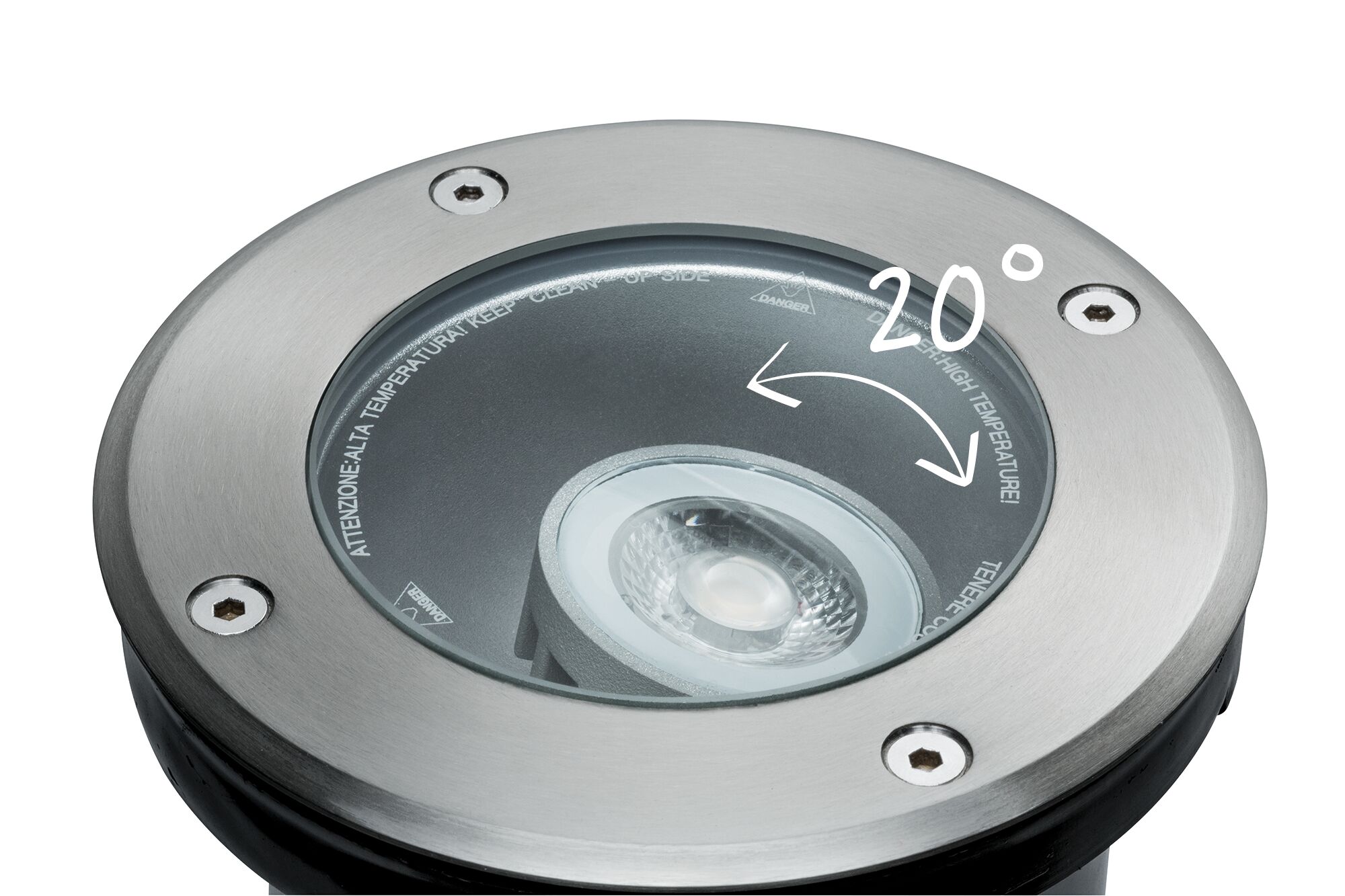

- Can be swivelled up to 20° – put the focus on individual spots.
- LED lamp (fixed) included in scope of delivery

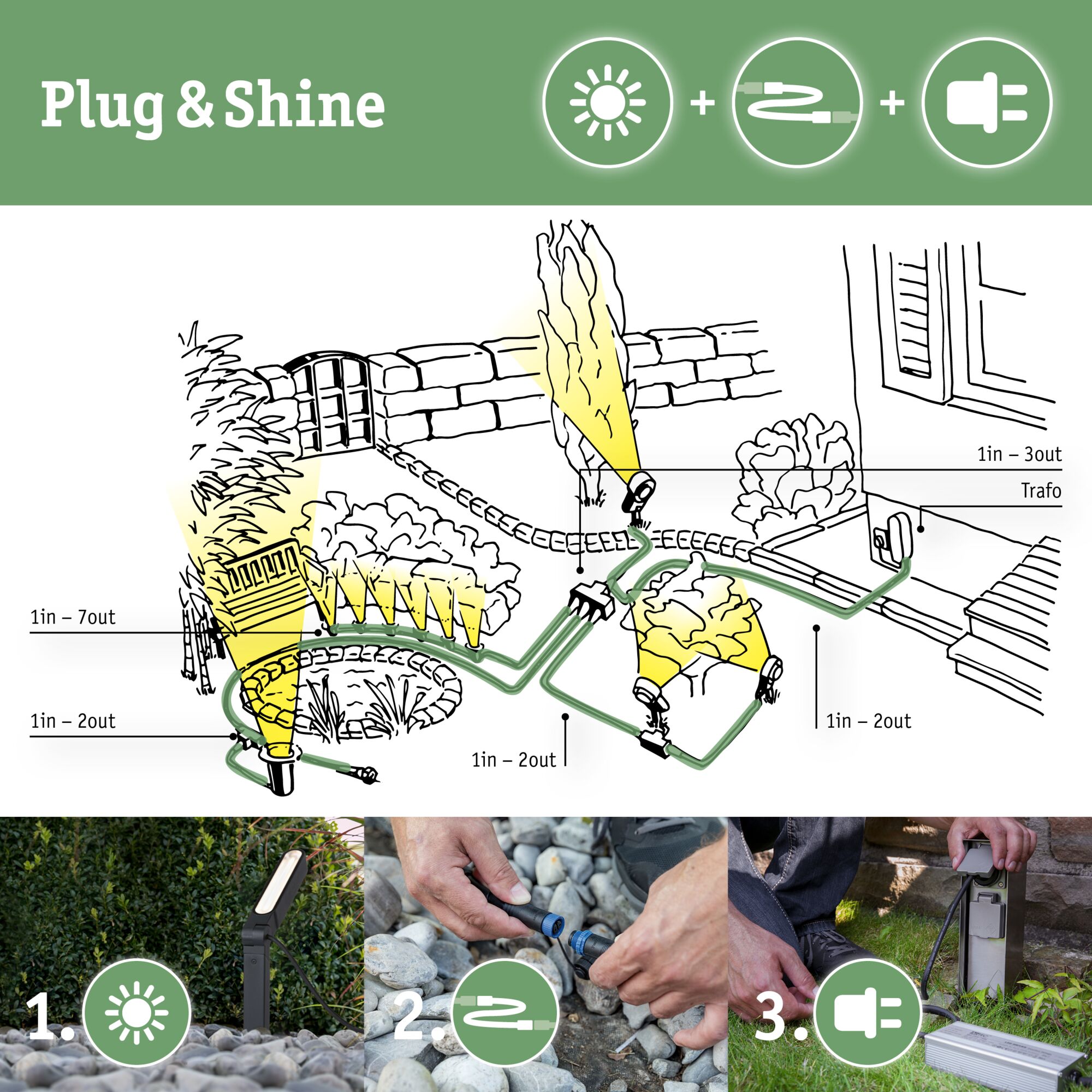

- Compatible with all accessories in the Plug & Shine series
- Sits flush with the floor; can be run over with a lawnmower
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.

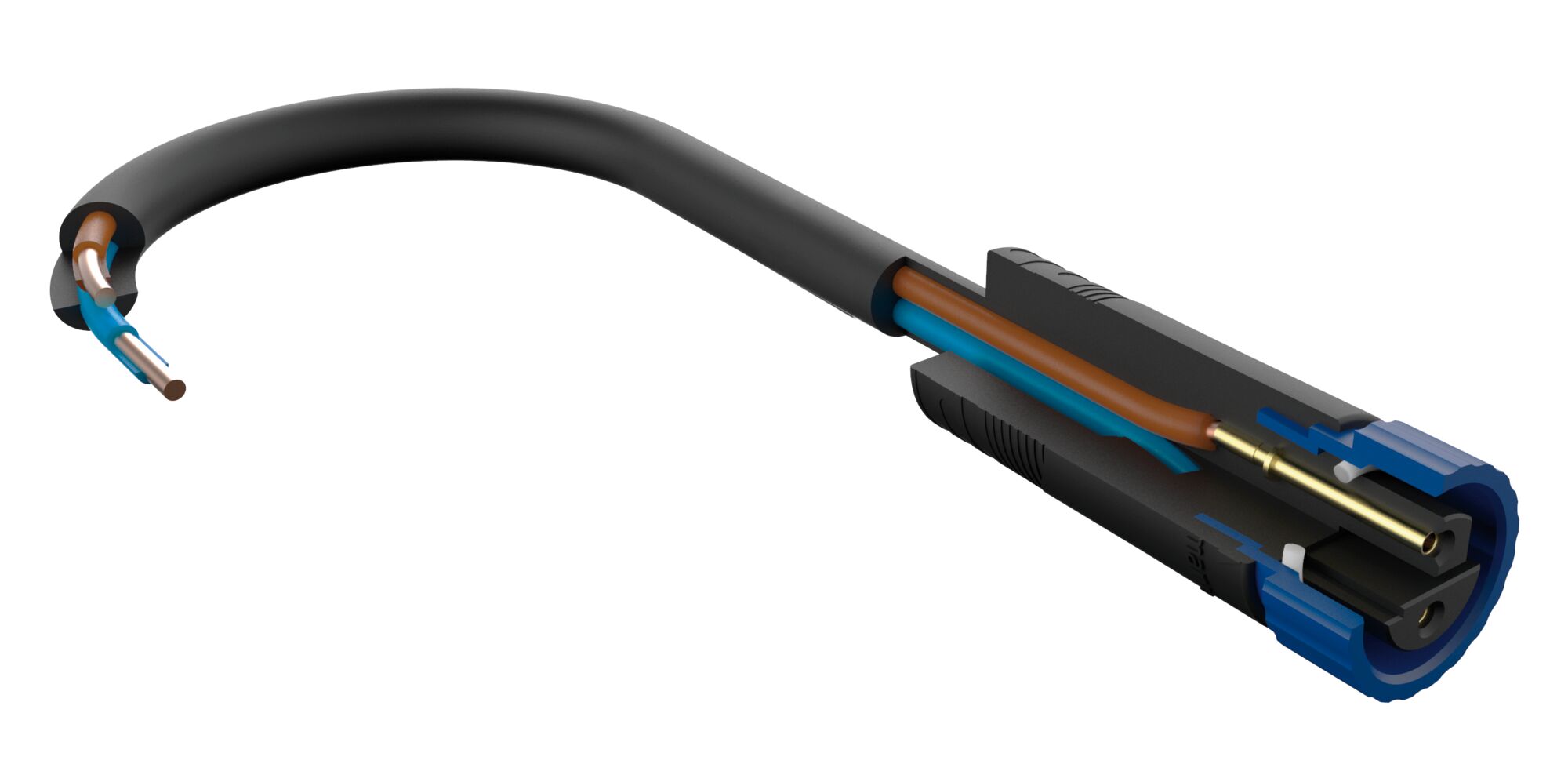

- Remember: Order the cable at the same time!
- Don't forget: Order compatible transformers as well!

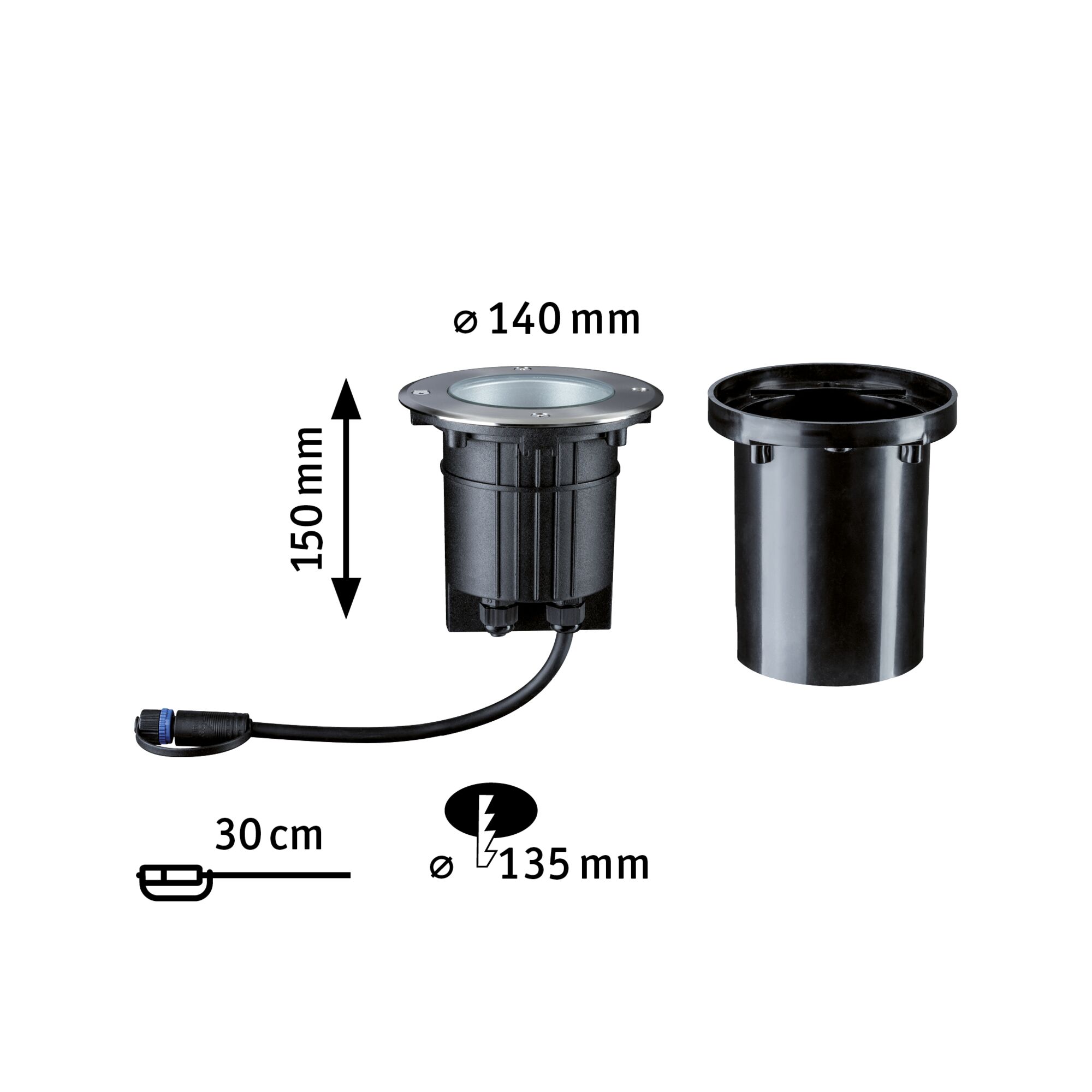

| Dimension | |
|---|---|
| Total Mounting depth | 150 mm |
| Dimensions (Height x Width x Depth) | H: 150 mm |
| Ø | 140 mm |
| Mounting hole | 135 mm |
| Form | round |
| Depth of hollow wall | 135 mm, 135 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For decorative light points on paths, driveways and patios |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 20 ° |
| Usable luminous flux | 428 lm |
| Luminous flux LED module | 540 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 113 ° |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 20 ° |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 48 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
