Article-No.:
93949
Plug & Shine
LED Recessed floor luminaire
Floor Mini Expansion Set
IP67 3000K 3x2,5W Silver
IP67 3000K 3x2,5W Silver

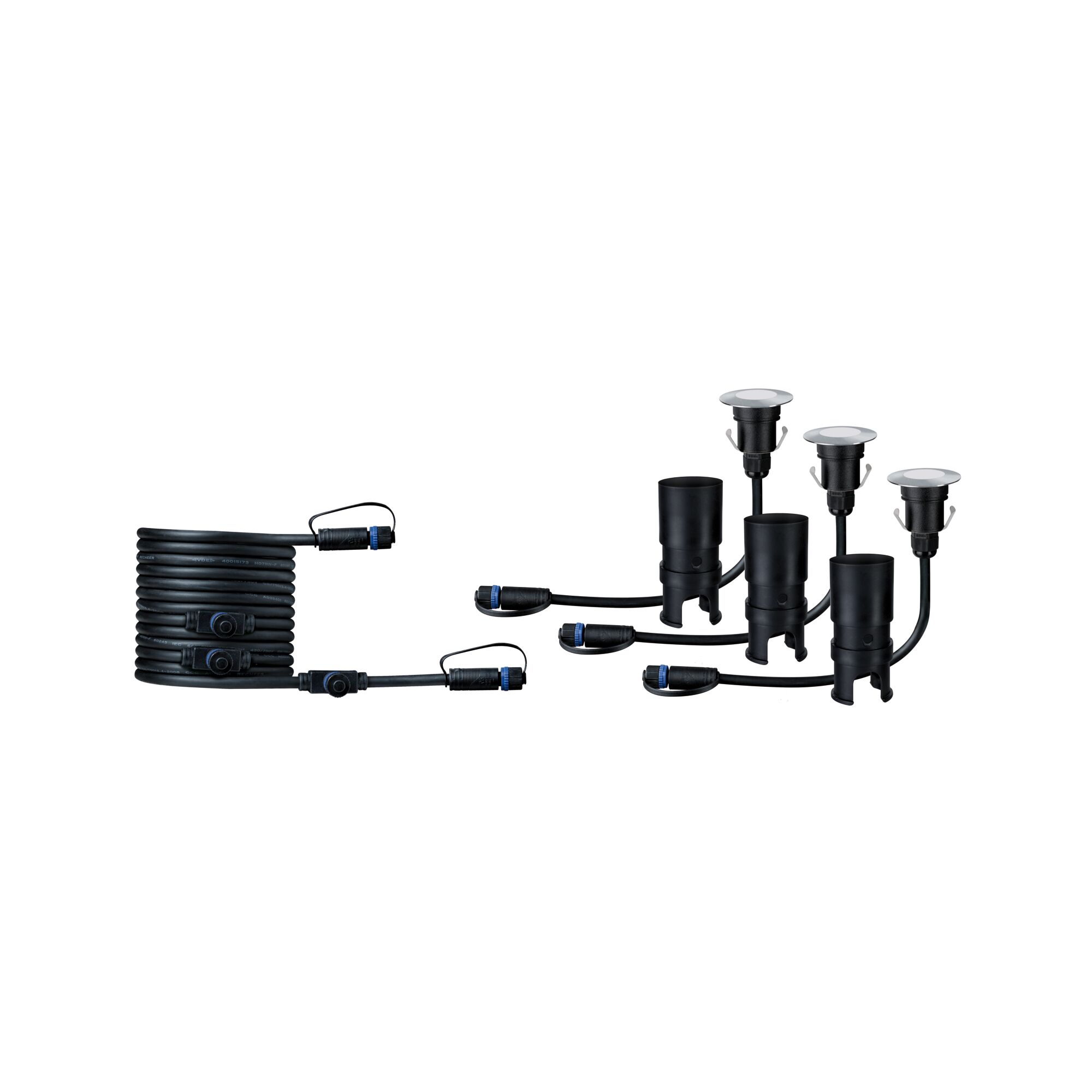

- Plug & Shine extension set consisting of three luminaires and connecting cable
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion

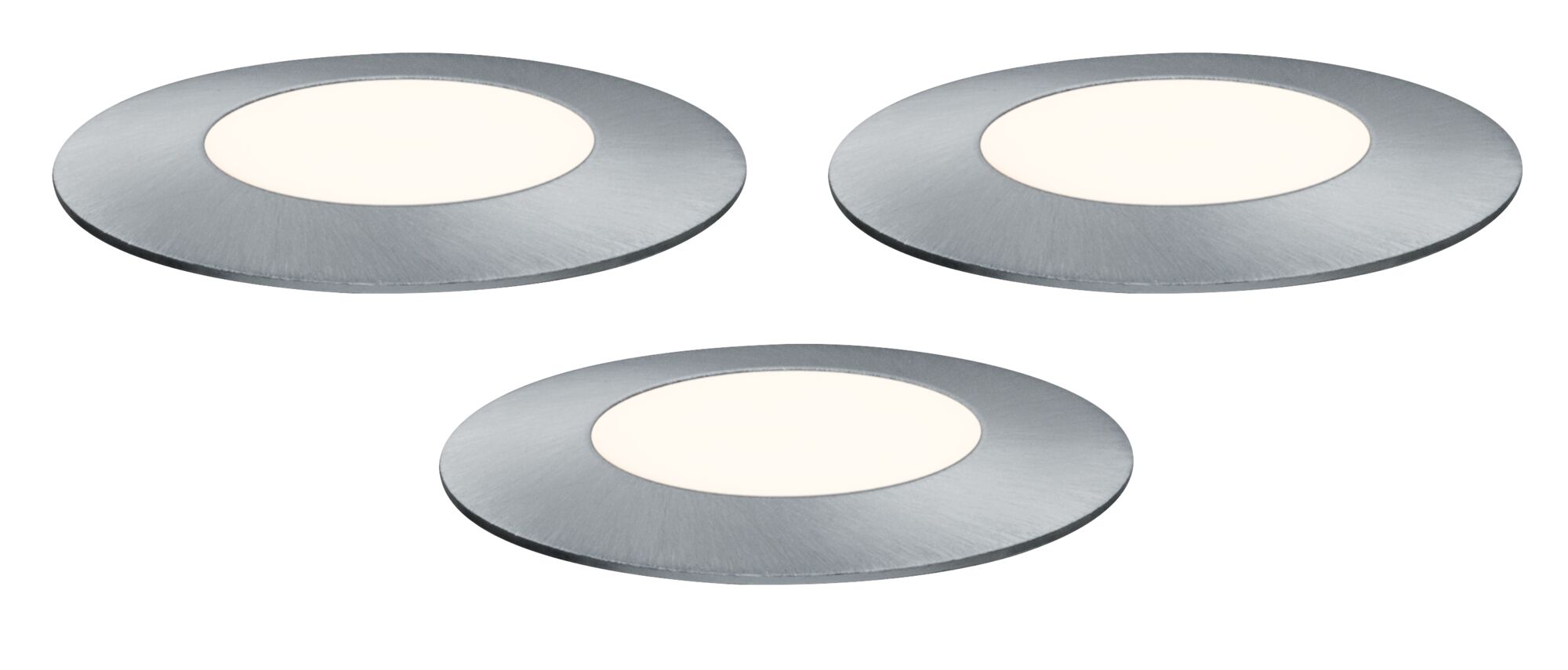

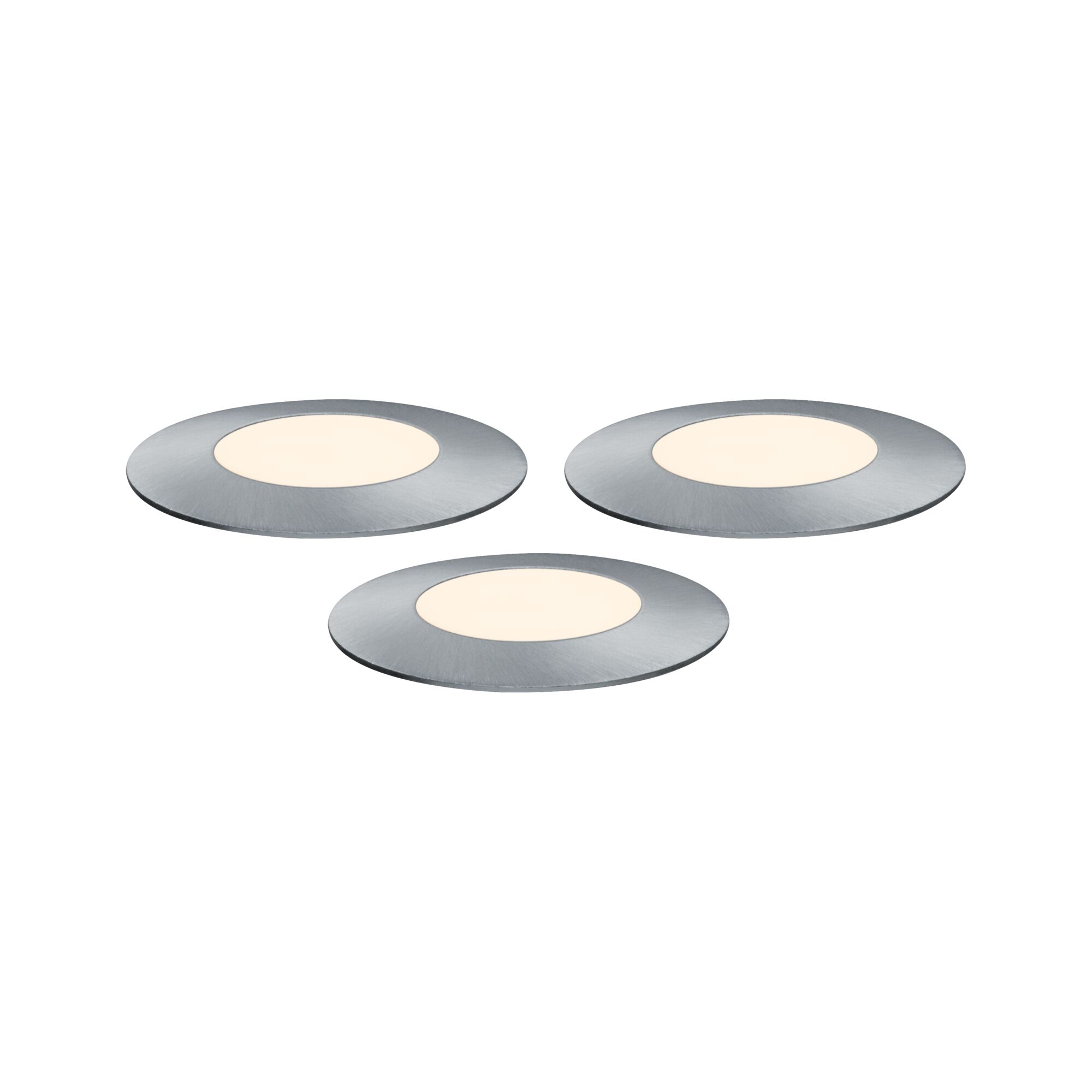

Plug & Shine LED Recessed floor luminaire Floor Mini Expansion Set IP67 3000K 3x2,5W Silver

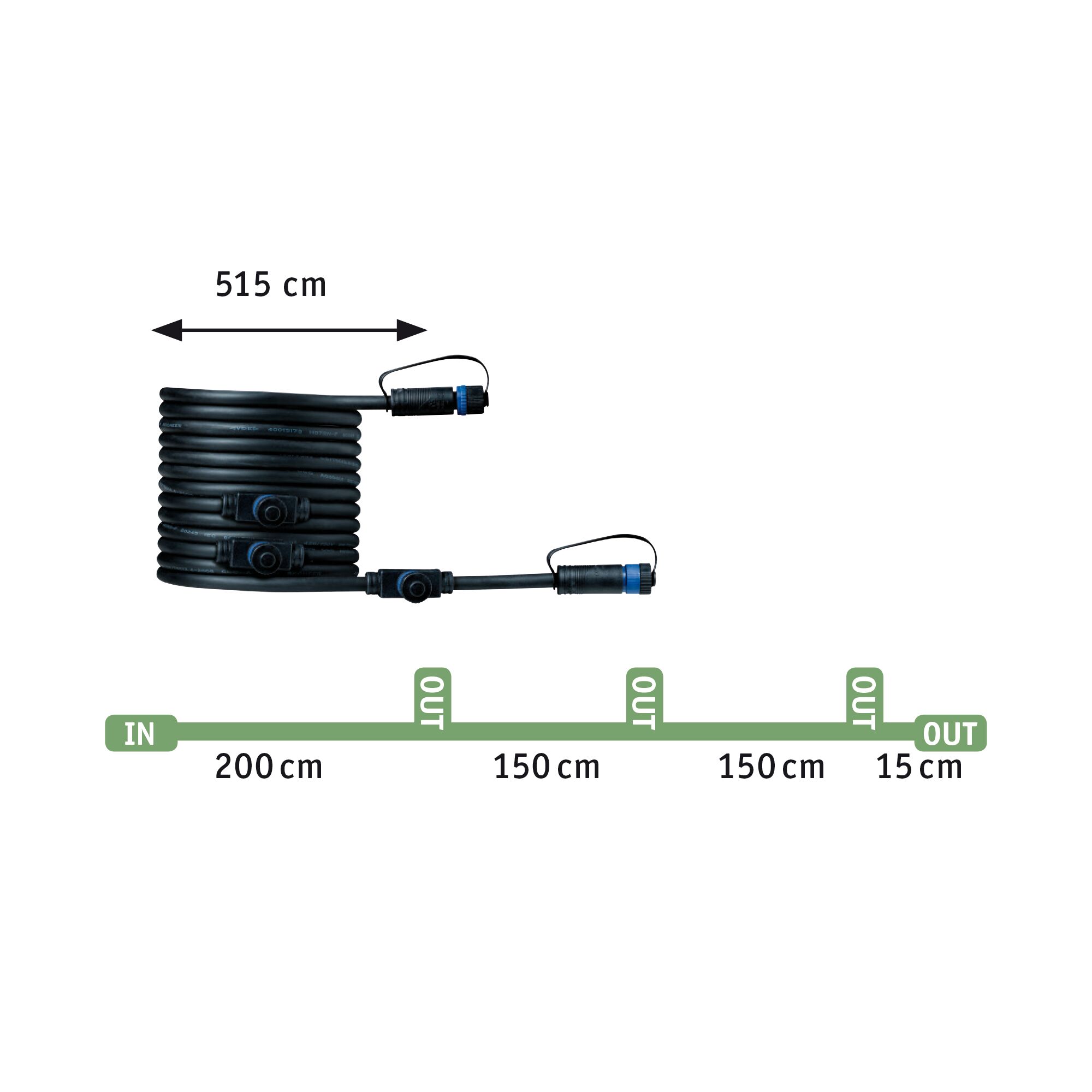

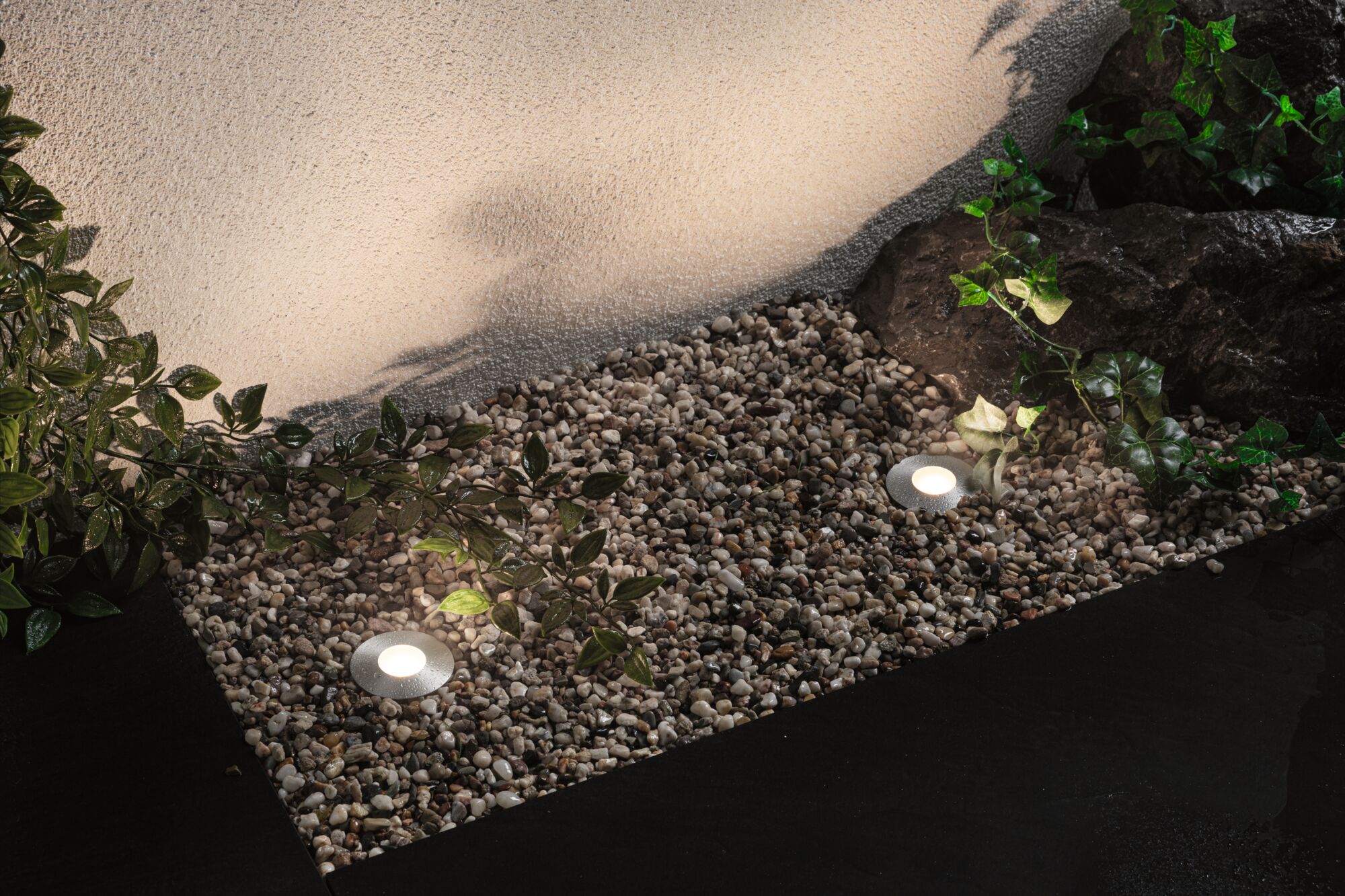

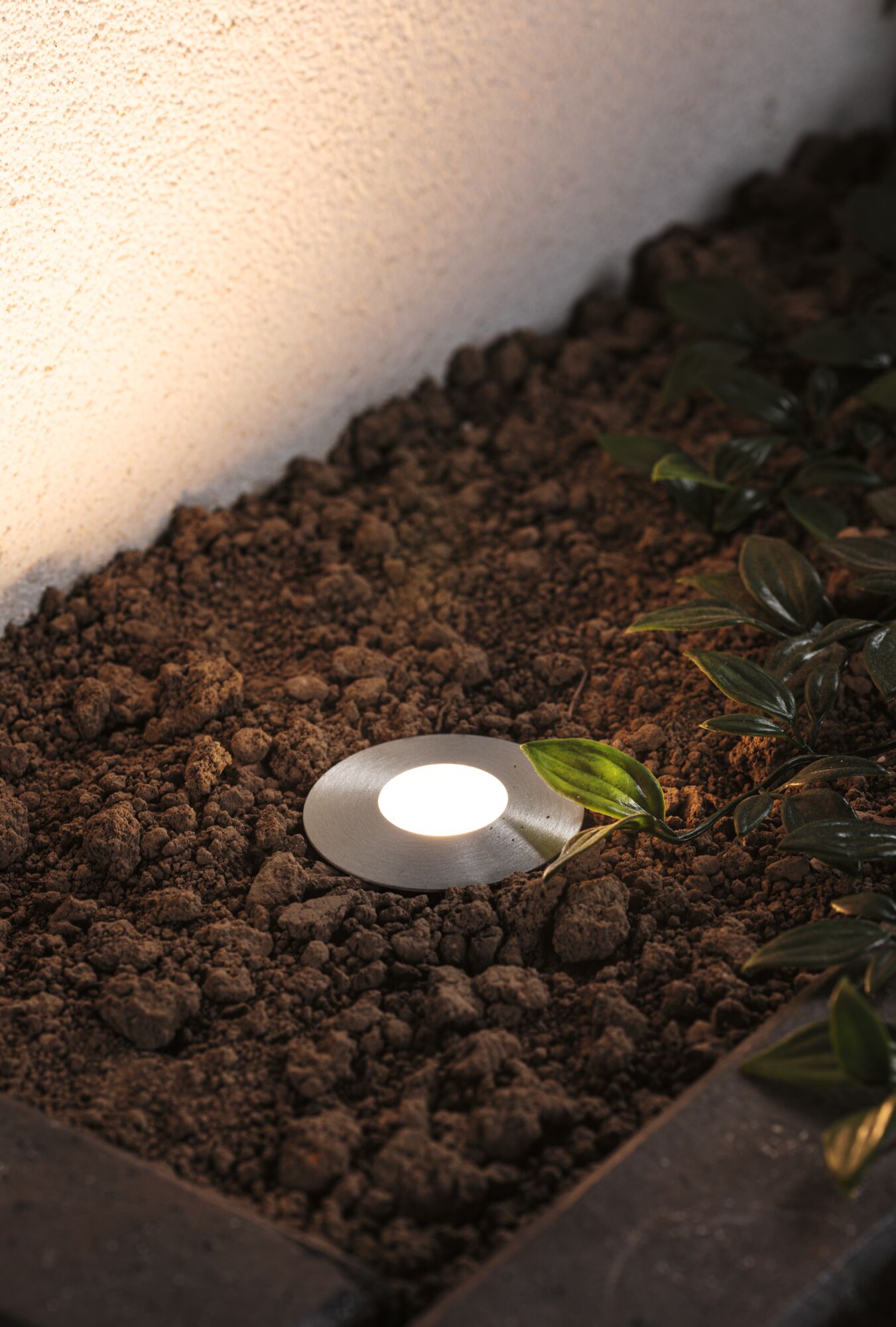

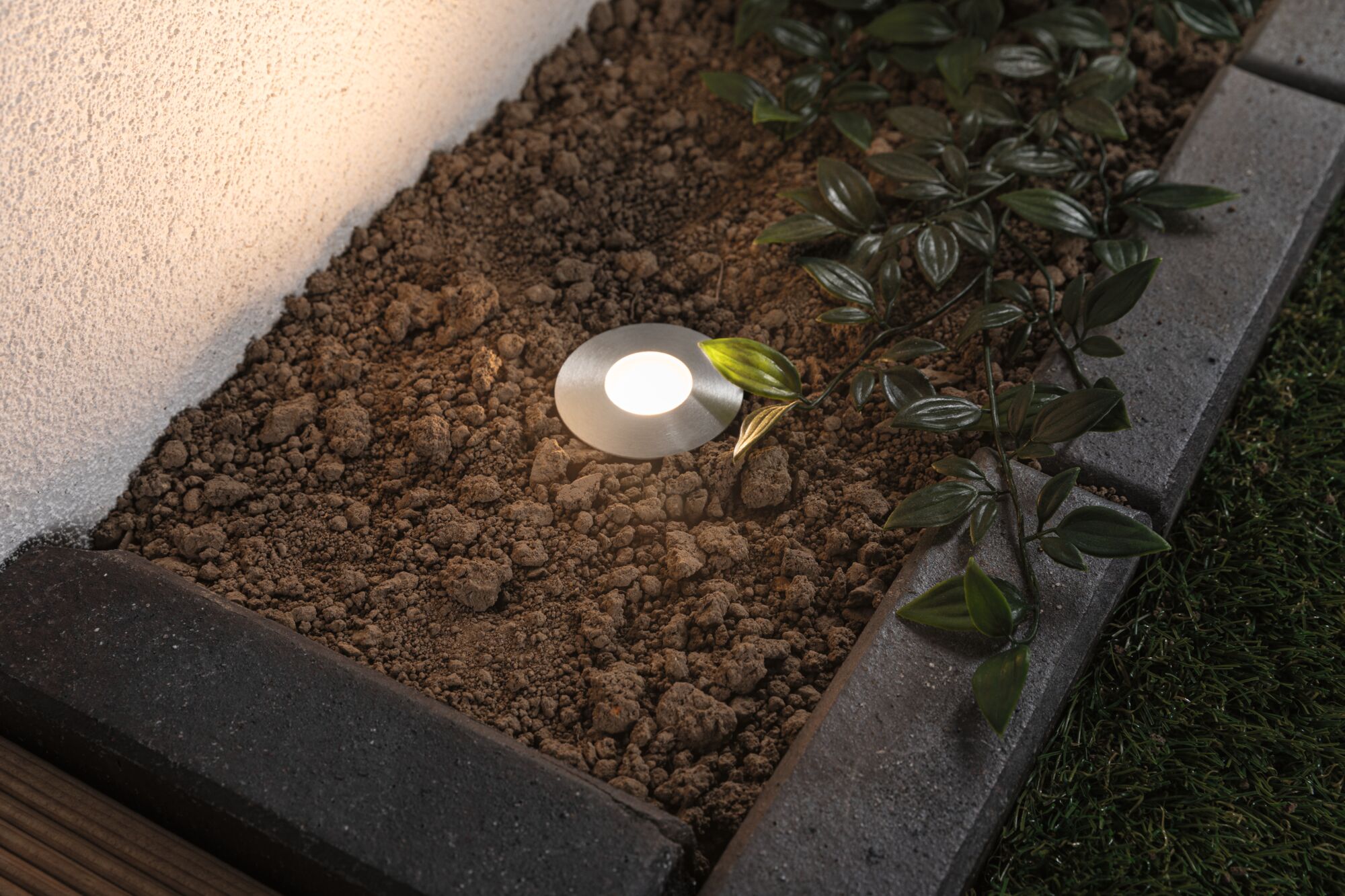

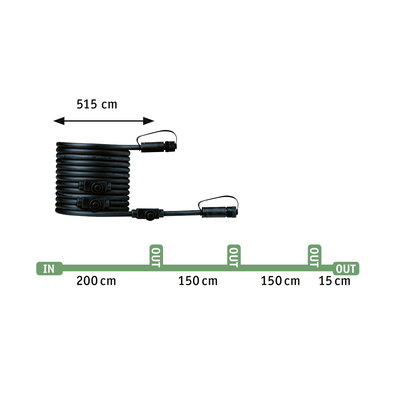

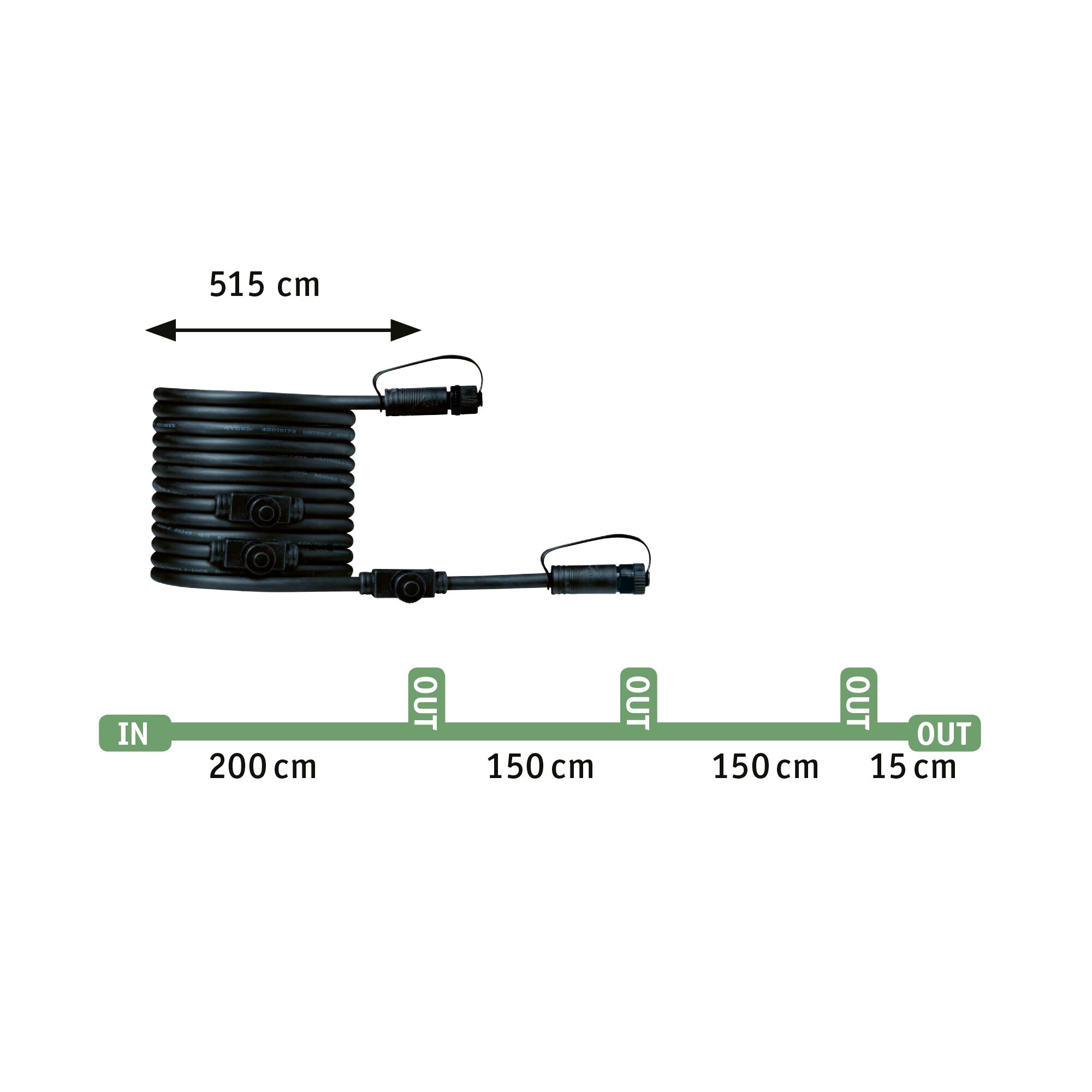

Plug & Shine Floor Mini floor recessed spotlights create decorative light points in warm white on paths, driveways and patios. This extension set gives you the option to connect up to three additional luminaires to your existing 24 V lighting installation. A connecting cable with three sockets is included in the delivery. Unused connection ports can be sealed with the cover caps provided to guarantee IP67 immersion protection of the connector. It can't be walked on or driven over.

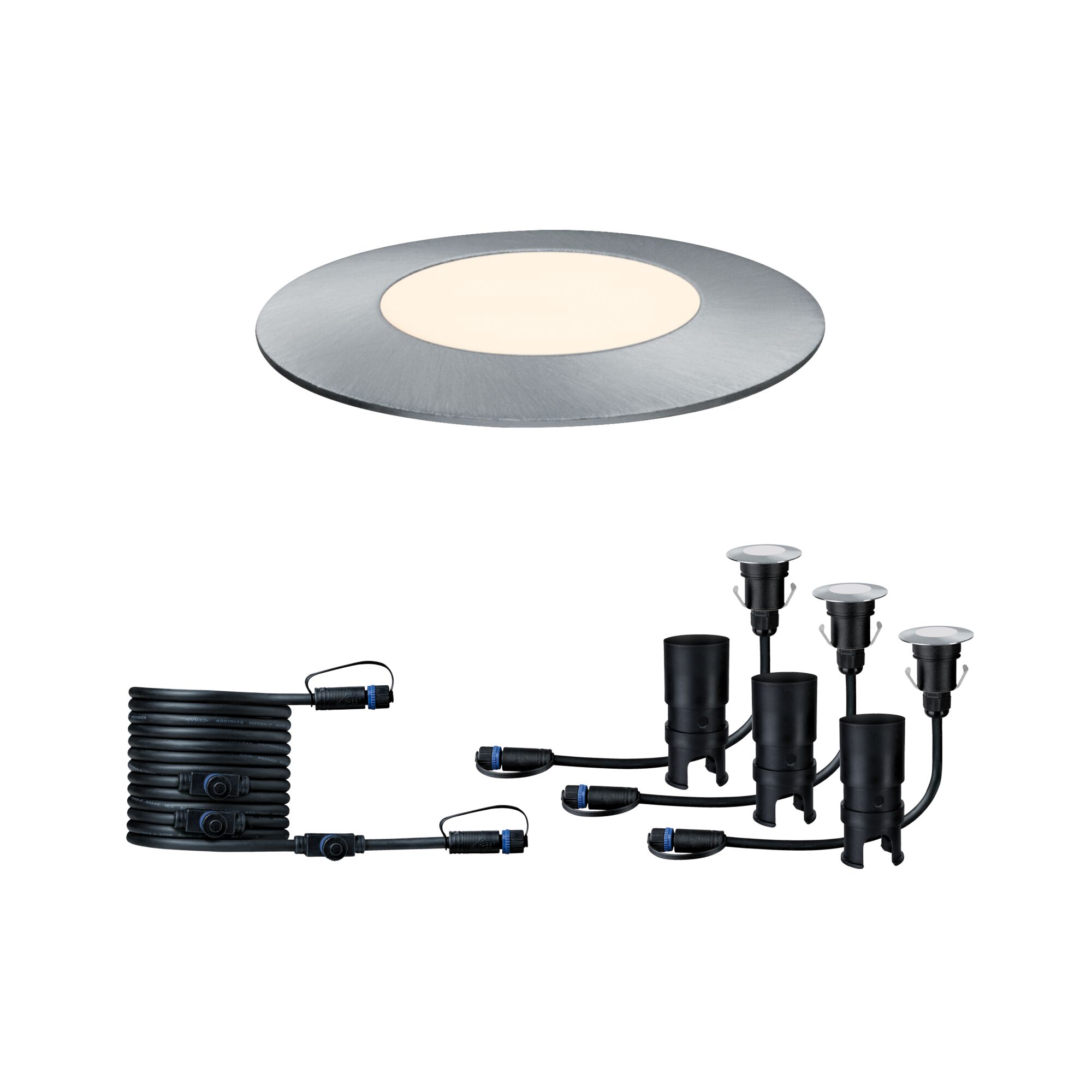

- Plug & Shine extension set consisting of three luminaires and connecting cable
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery

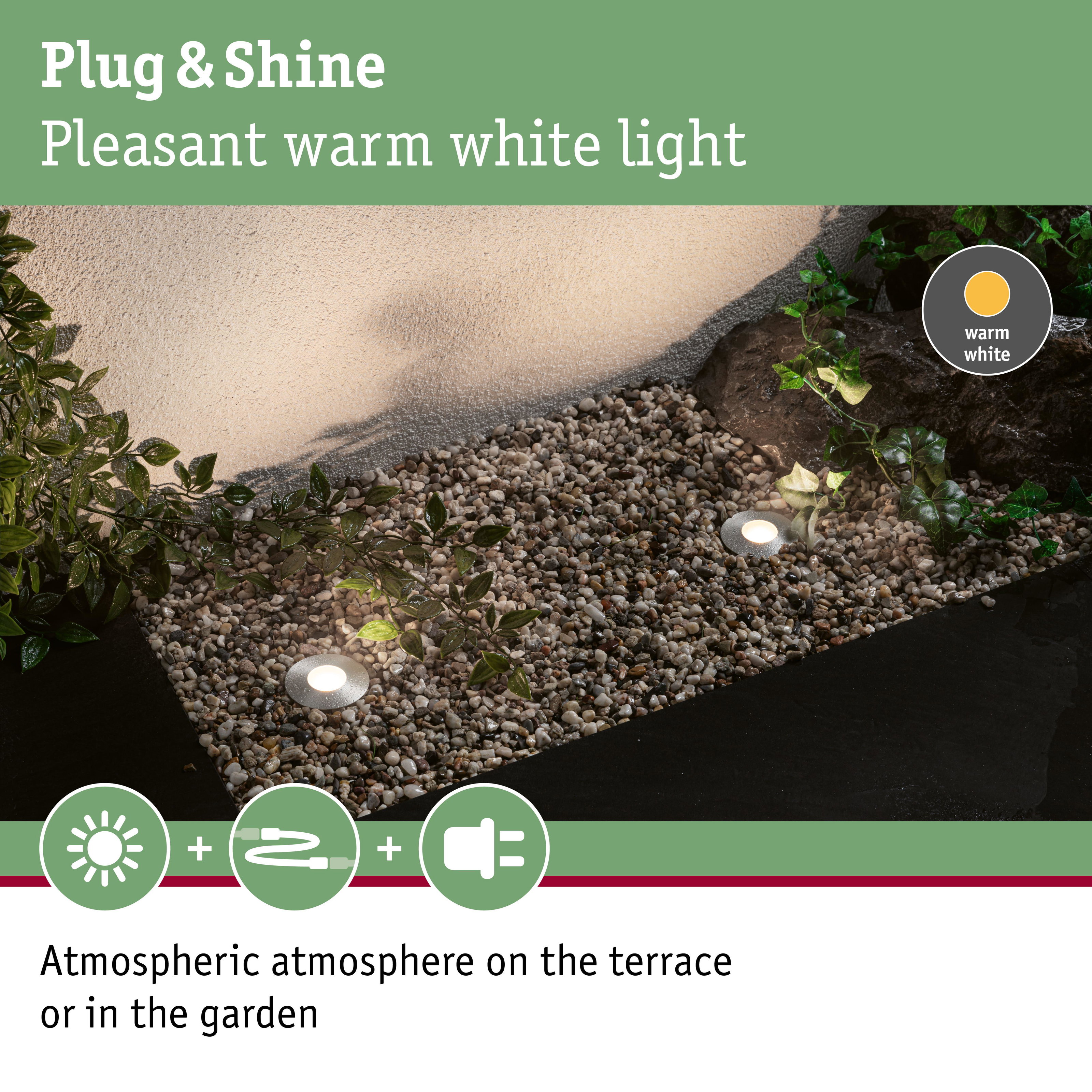

- Color temperatur: 3000K - Warm white
- Sits flush with the floor; can be run over with a lawnmower

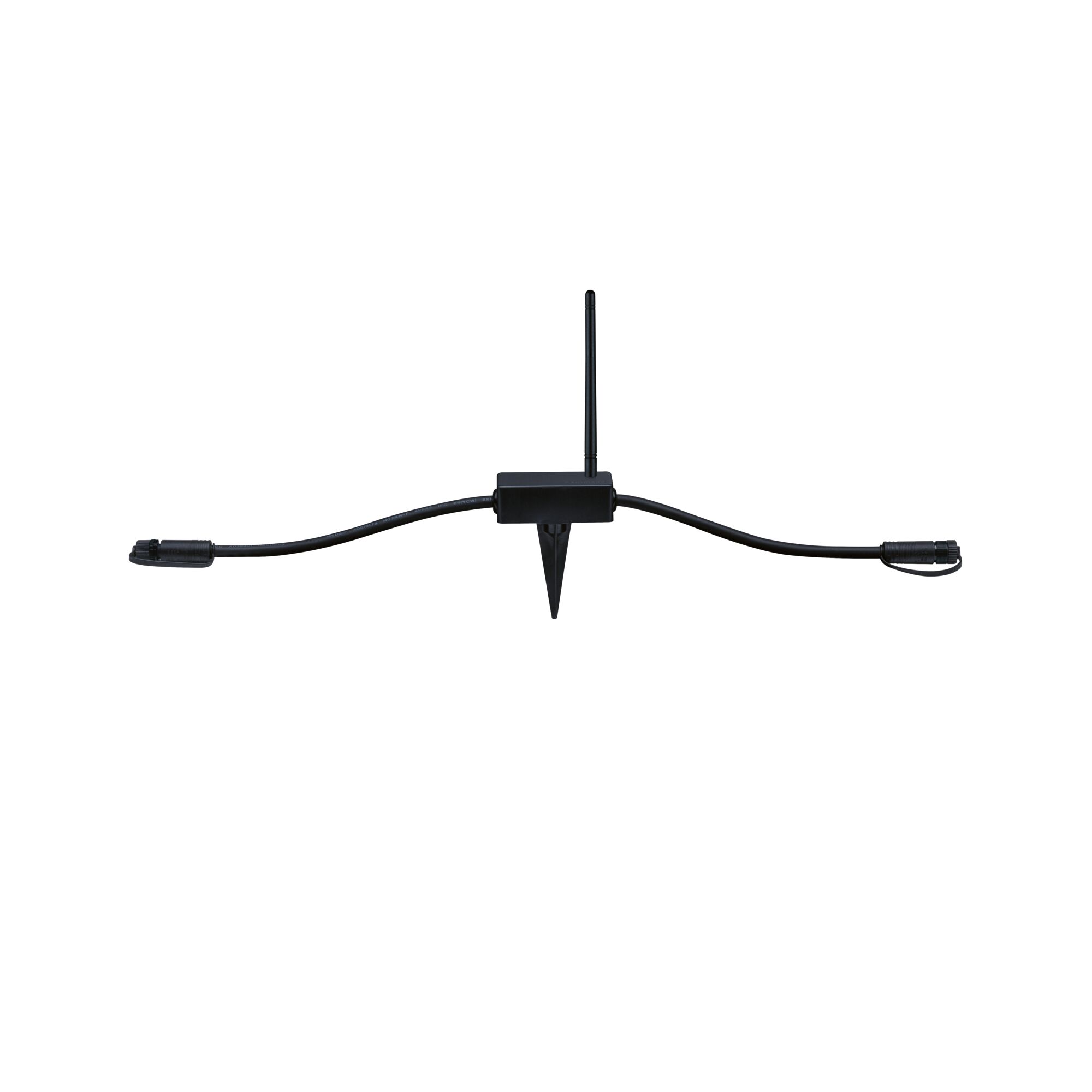

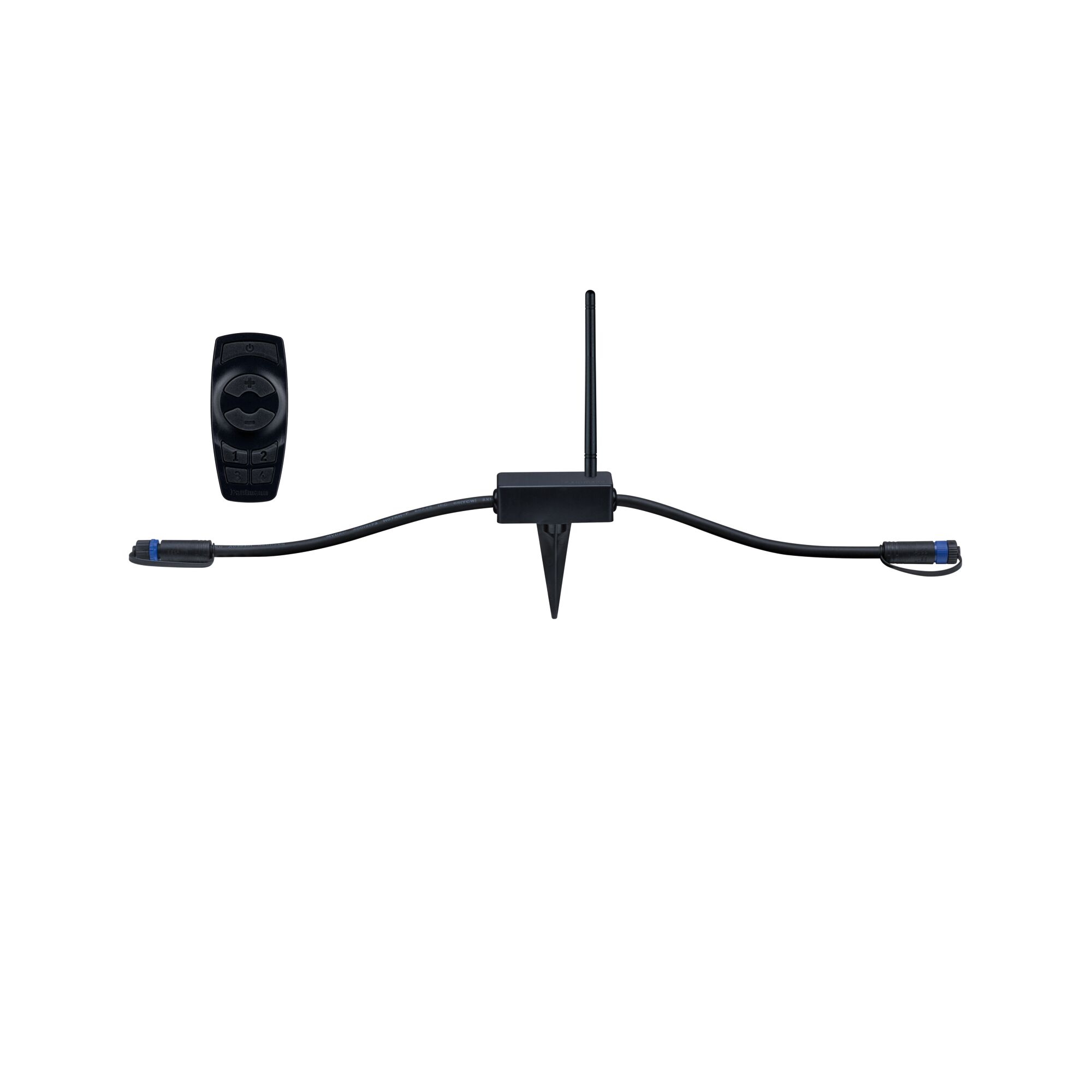

- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Total Mounting depth | 55-105 mm |
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Ø | 55 mm |
| Mounting hole | 40 mm |
| Length | 5 m |
| Form | round |
| Depth of hollow wall | 40 mm, 40-90 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Application | For decorative light points on paths, driveways and patios |
| Installation site (recommendation) | Floor mounting |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 95 ° |
| Usable luminous flux | 50 lm |
| Luminous flux LED module | 250 lm |
| color temp | 3000 K |
| Beam angle LED module | 120 ° |
| Lamp Features | |
|---|---|
| Component parts | 2,5 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 10 W |
| Number of component parts | 3x |
| protection class | protection class III |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 7,5 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
