Article-No.:
93951
Plug & ShineLED Recessed floor luminaire
Floor Mini Individual Spot
IP67 3000K 2,5W Silver
IP67 3000K 2,5W Silver
£34.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion

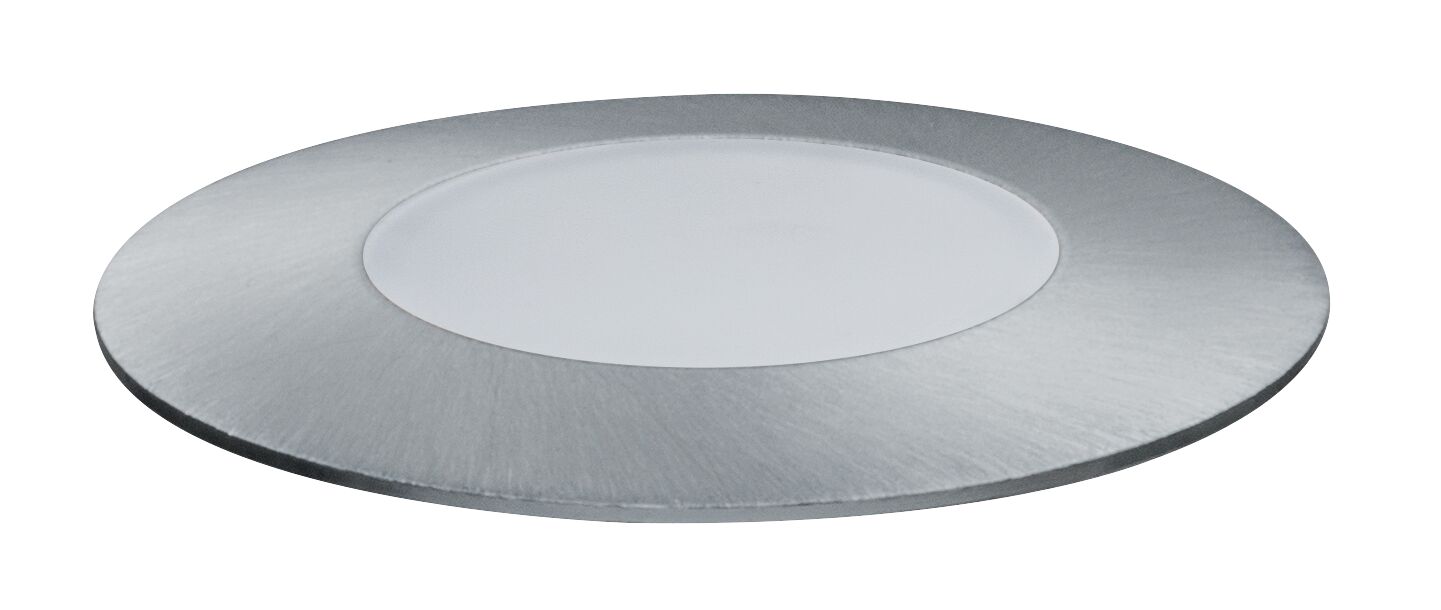

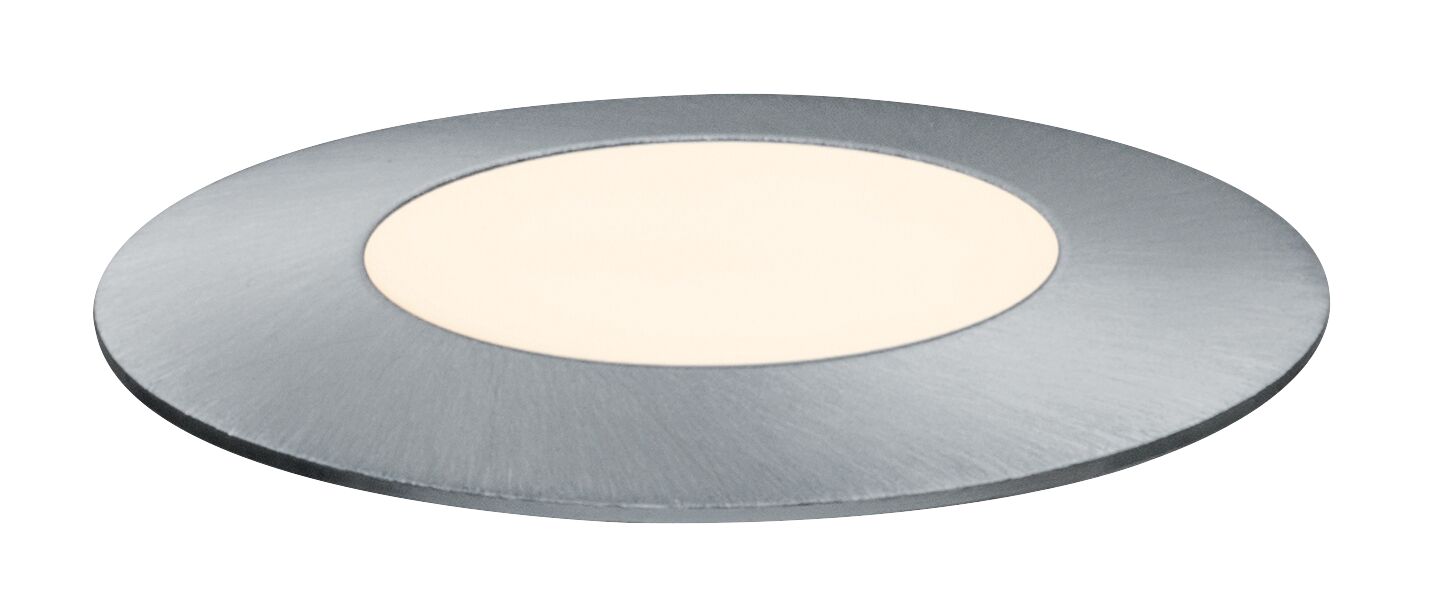

Plug & Shine LED Recessed floor luminaire Floor Mini Individual Spot IP67 3000K 2,5W Silver

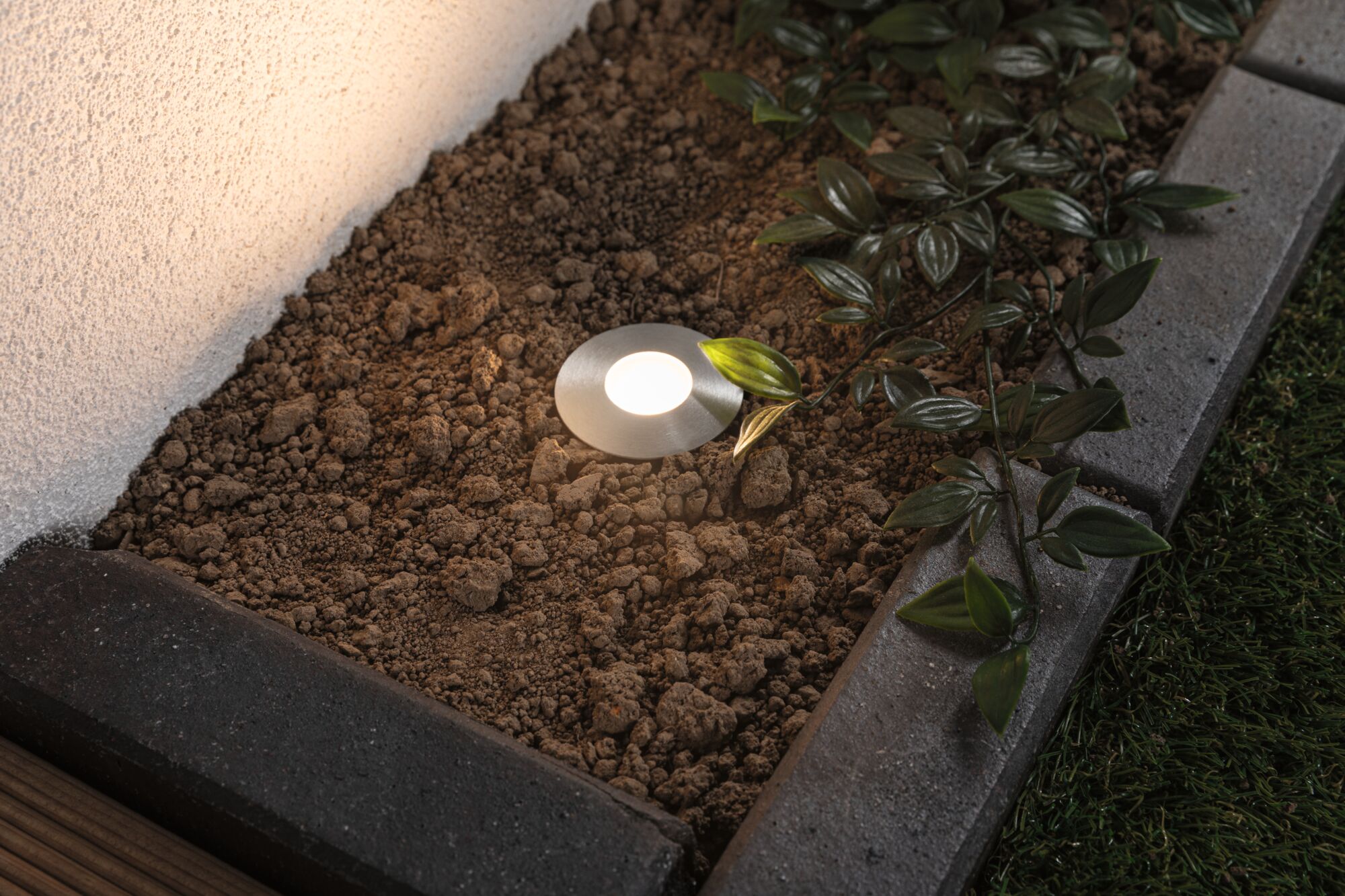

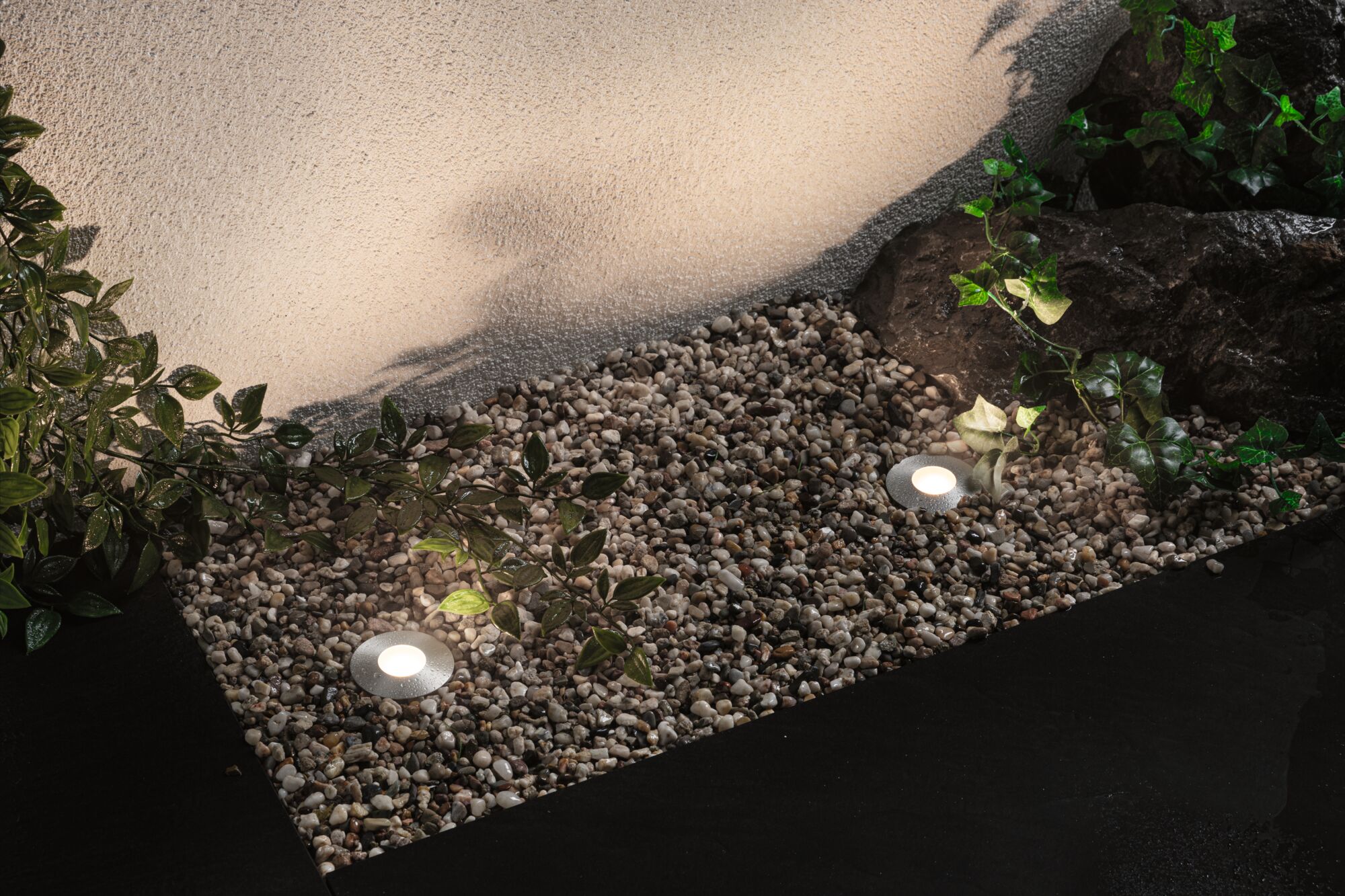

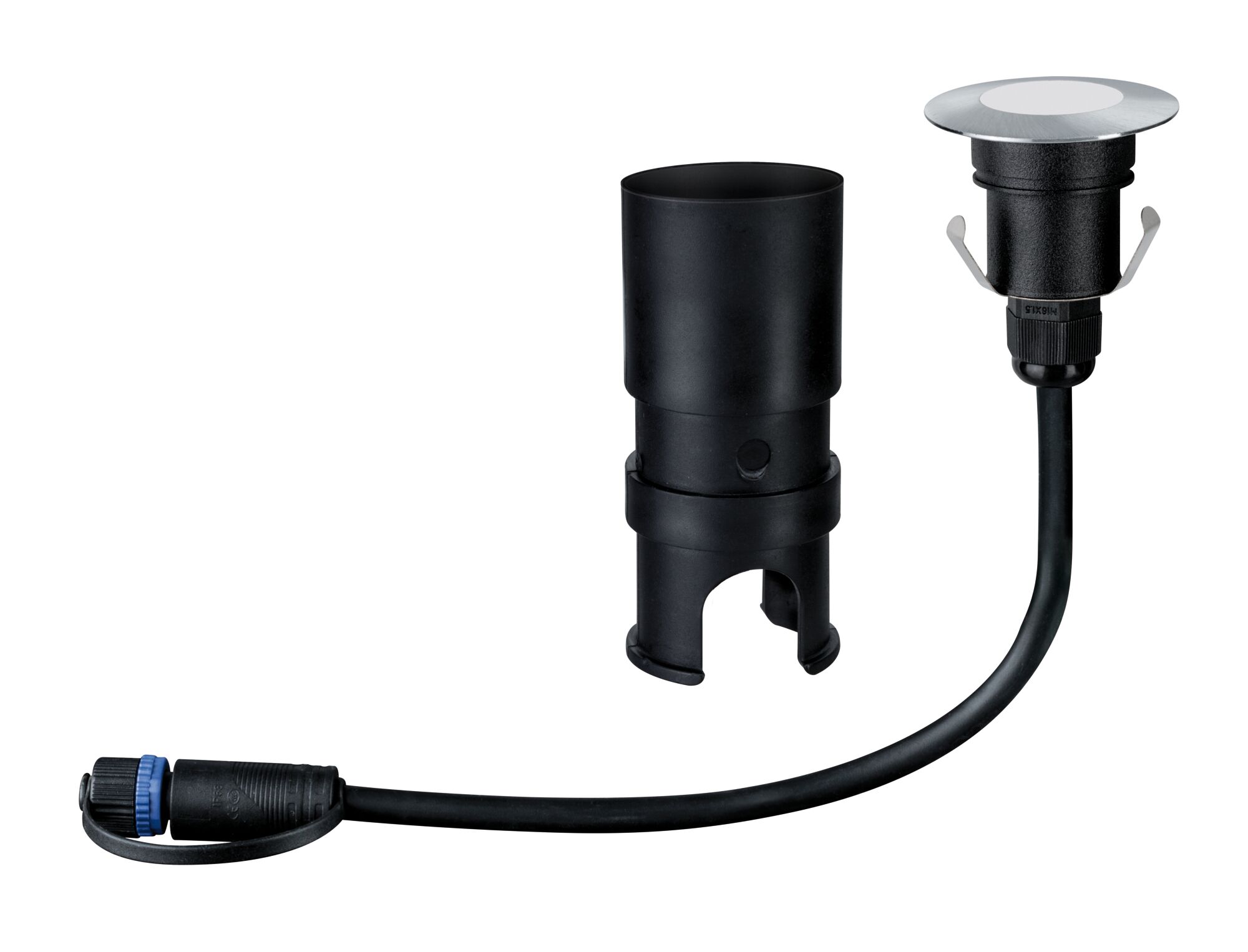

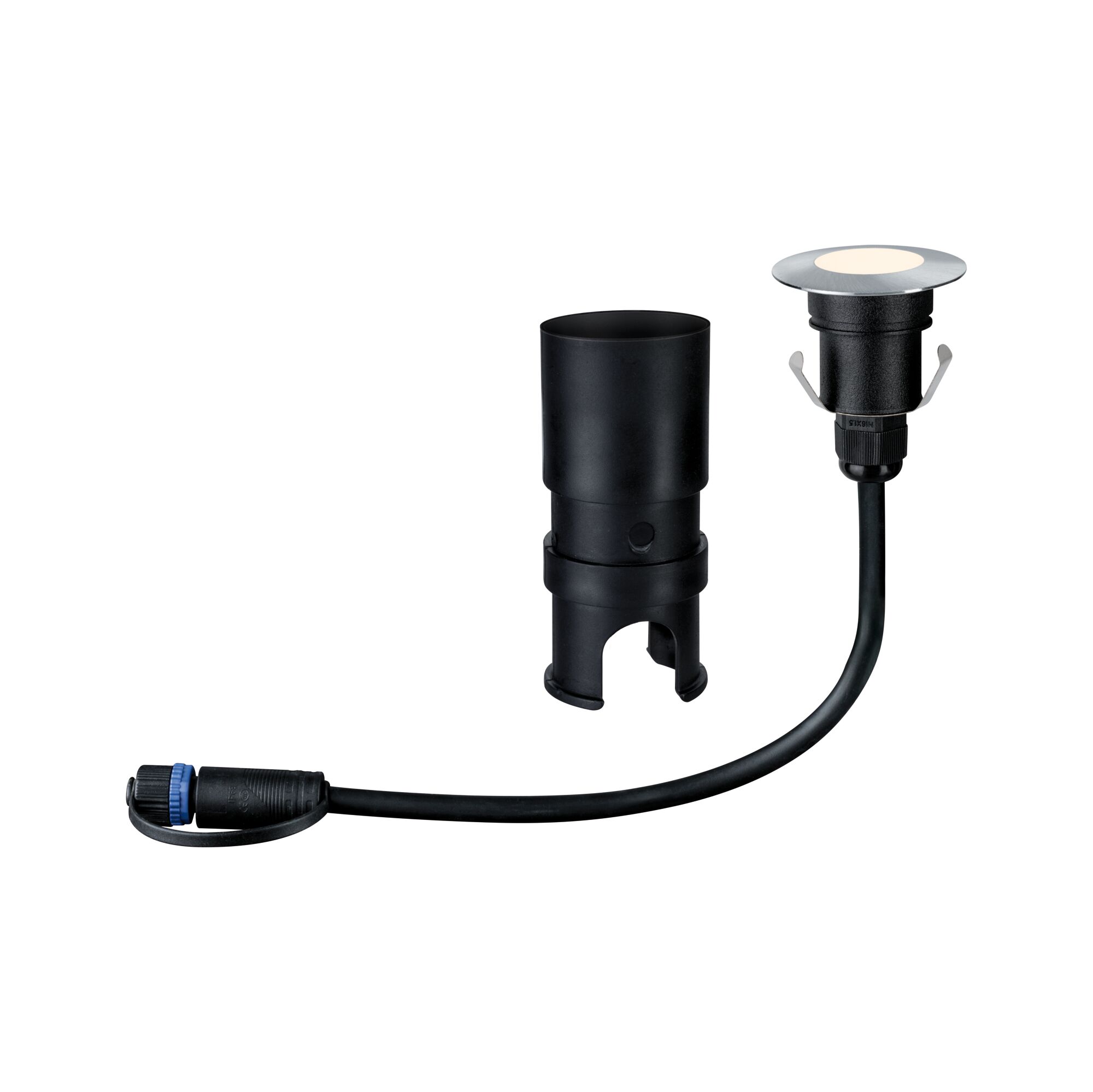

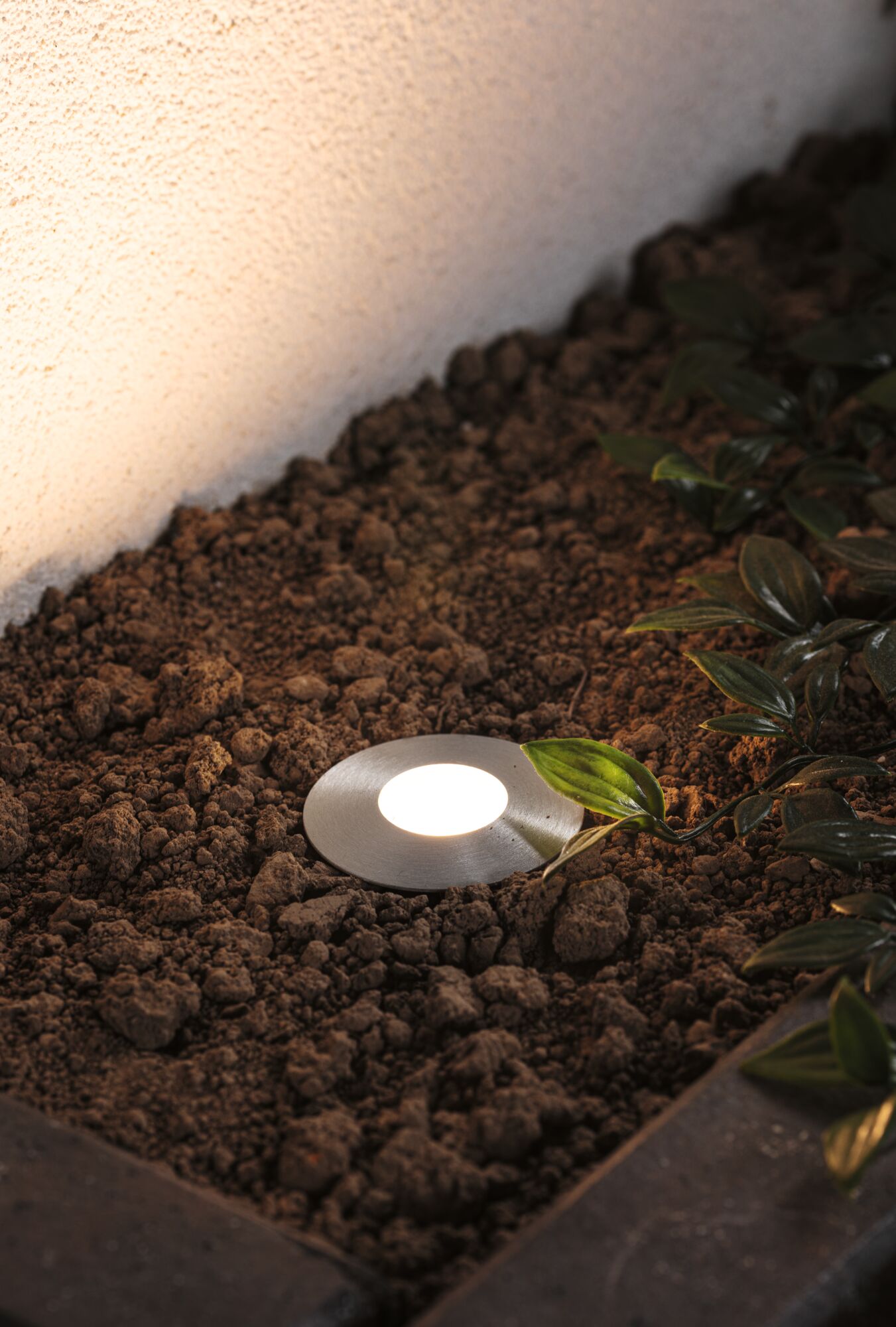

Plug & Shine Floor Mini floor recessed spotlights with water jet protection create decorative light points in warm white on paths, driveways and patios. An installation sleeve is included in the delivery. With transformers, connectors and additional luminaires from the Plug & Shine series, you can compile an individual lighting installation for your outdoor spaces. It can't be walked on or driven over.
- 24 V floor recessed luminaire
- Compatible with all accessories in the Plug & Shine series
- IP Protection: IP67 - protected against temporary immersion
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Sits flush with the floor; can be run over with a lawnmower
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 90 mm |
| Diameter | 55 mm |
| Built-in diameter | 40 mm |
| Mounting depth | 55 mm |
| installation depth to | 105 mm |
| Depth of hollow wall | 40-90 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Silver |
| Material | Plastic, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Application | For decorative light points on paths, driveways and patios |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 250 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 95 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 10 W |
| IP protection | IP67 |
| Protection class | Protection class III |
| Technique | LED |
| Component parts | 2,5 W |
| Number of component parts | 1x |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,5 W |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
