Article-No.:
93694
Plug & Shine

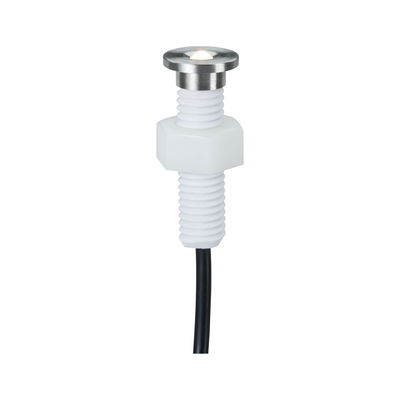

LED Recessed floor luminaire
MicroPen II Expansion Set
IP67 3000K 5x0,2W Silver
IP67 3000K 5x0,2W Silver

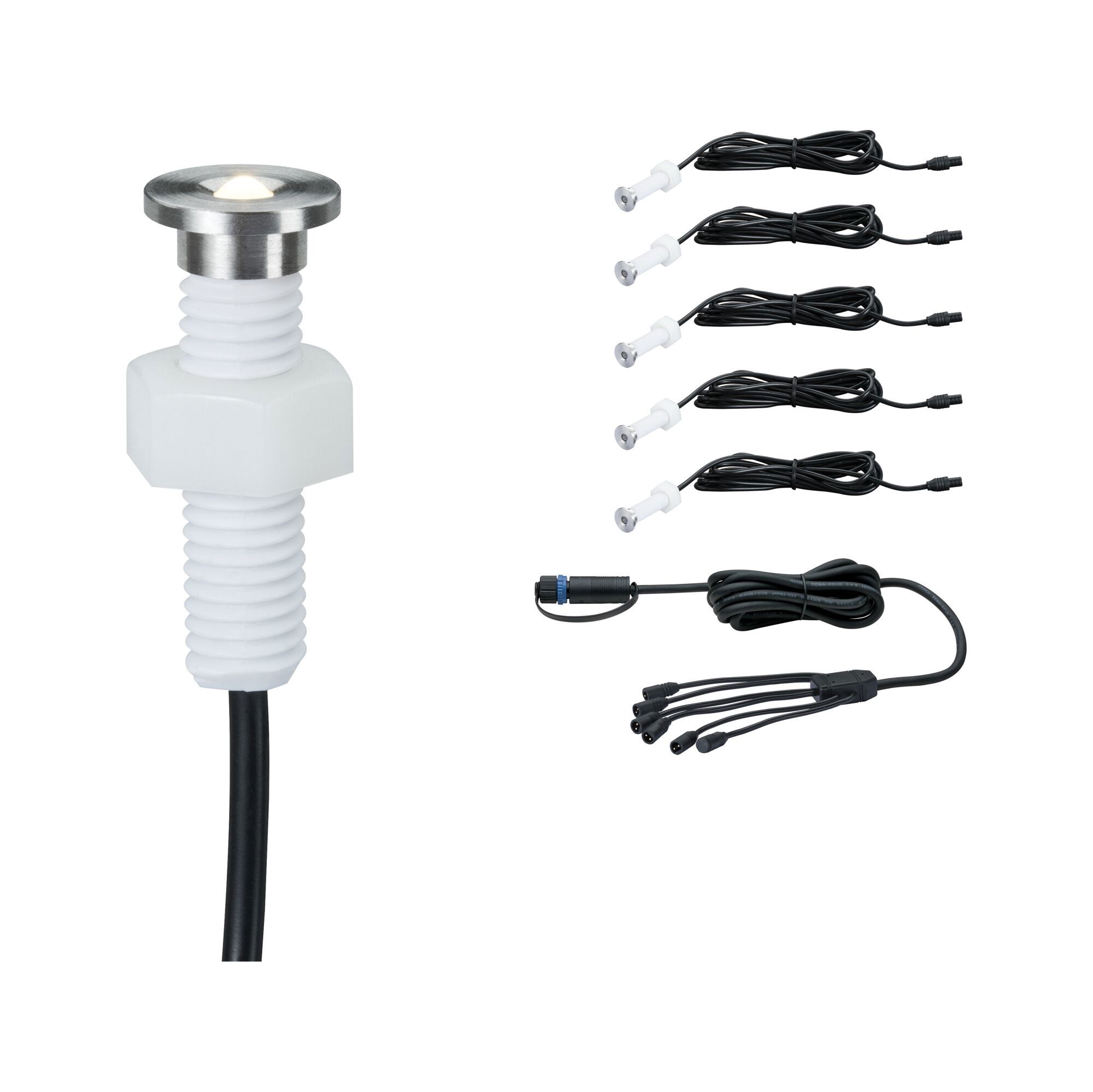

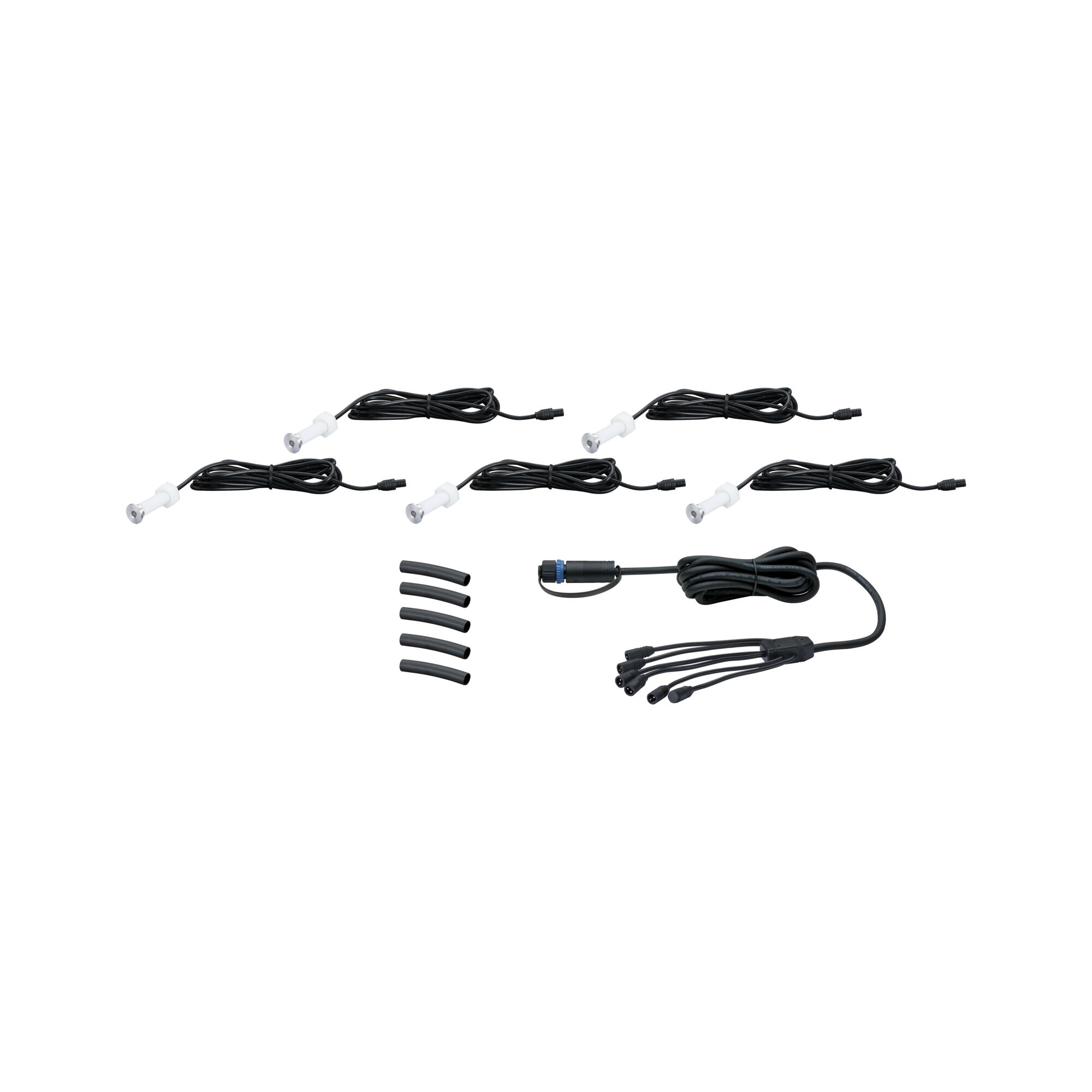

- Plug & Shine extension set consisting of 5 luminaires and connecting cable
- Compatible with all accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery

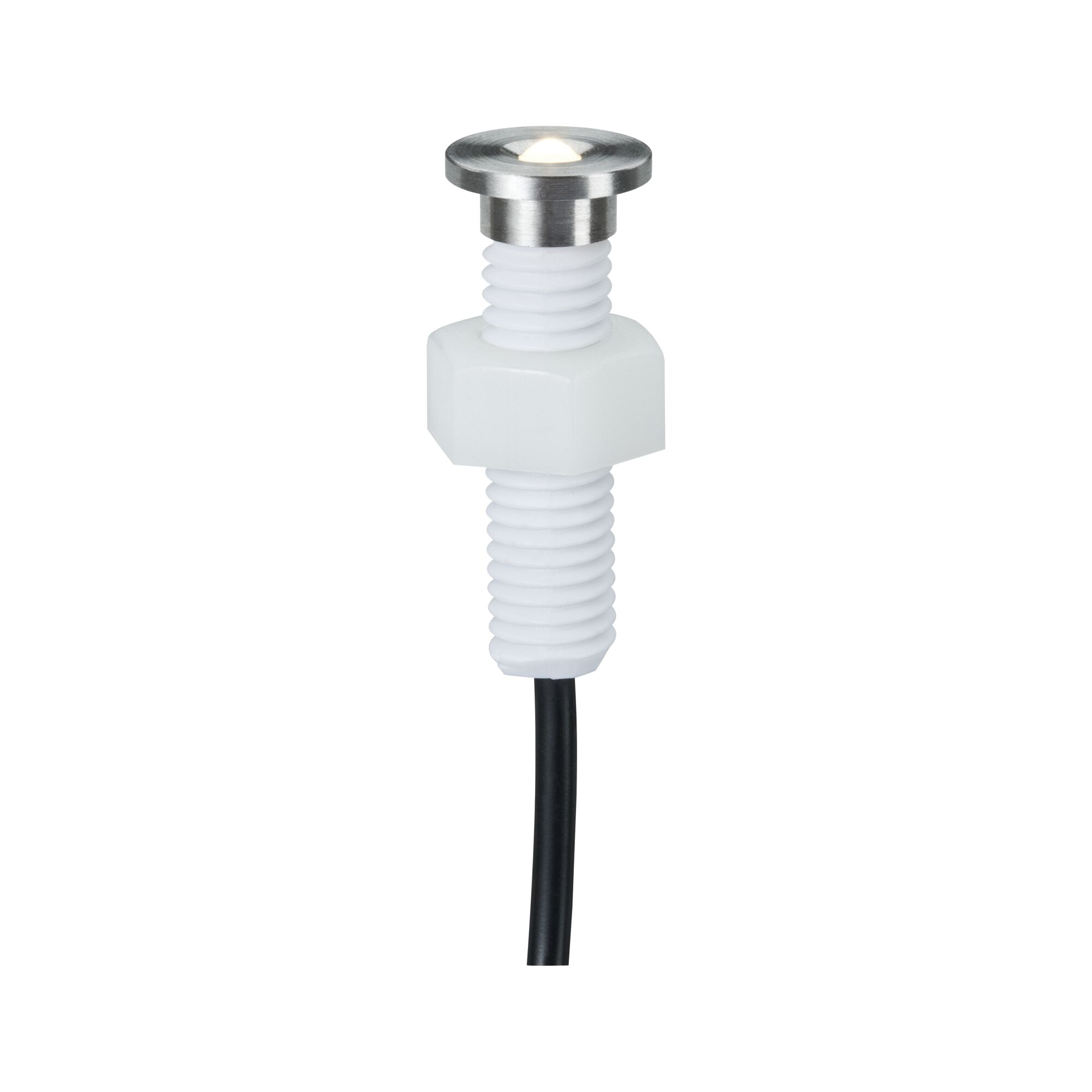

Plug & Shine LED Recessed floor luminaire MicroPen II Expansion Set IP67 3000K 5x0,2W Silver

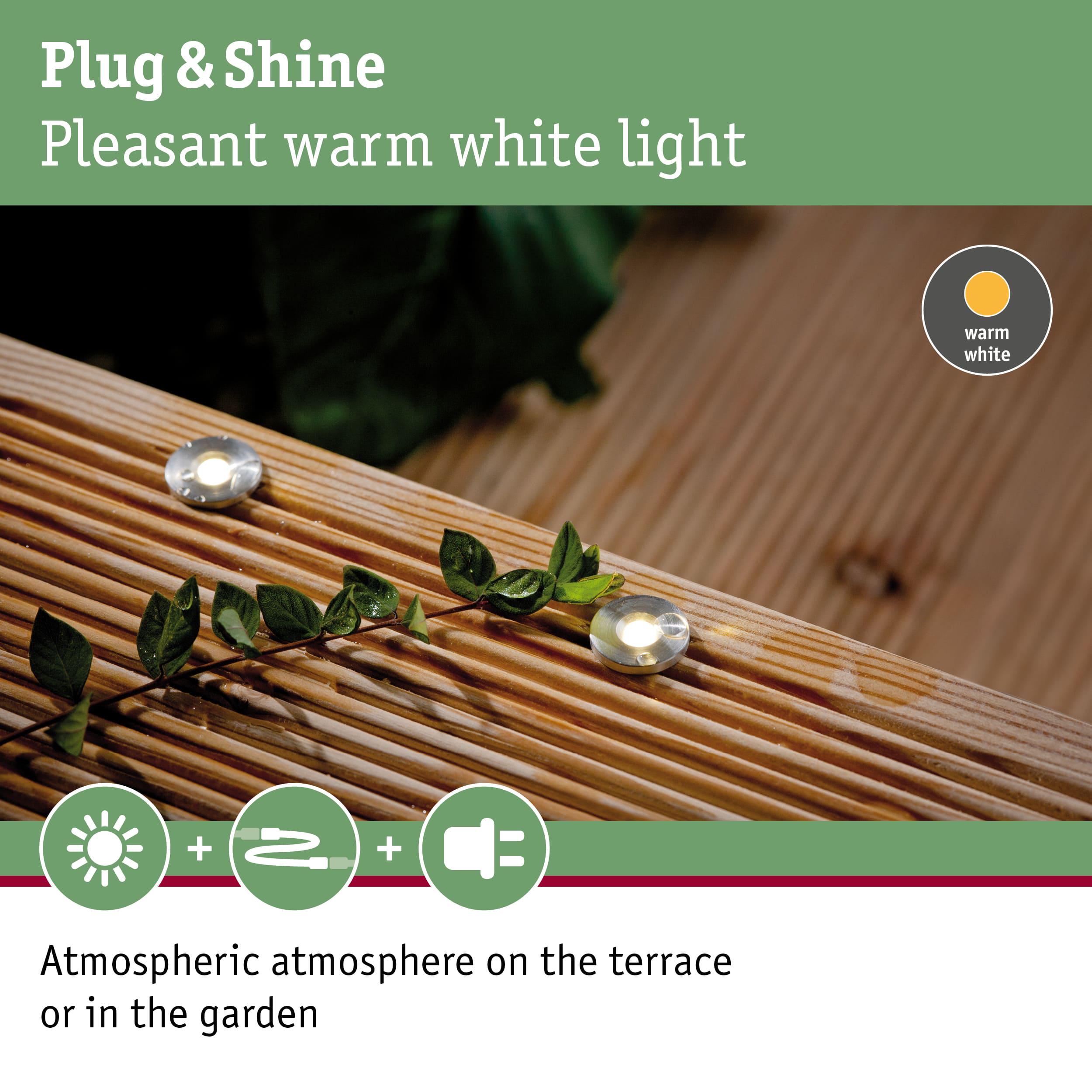

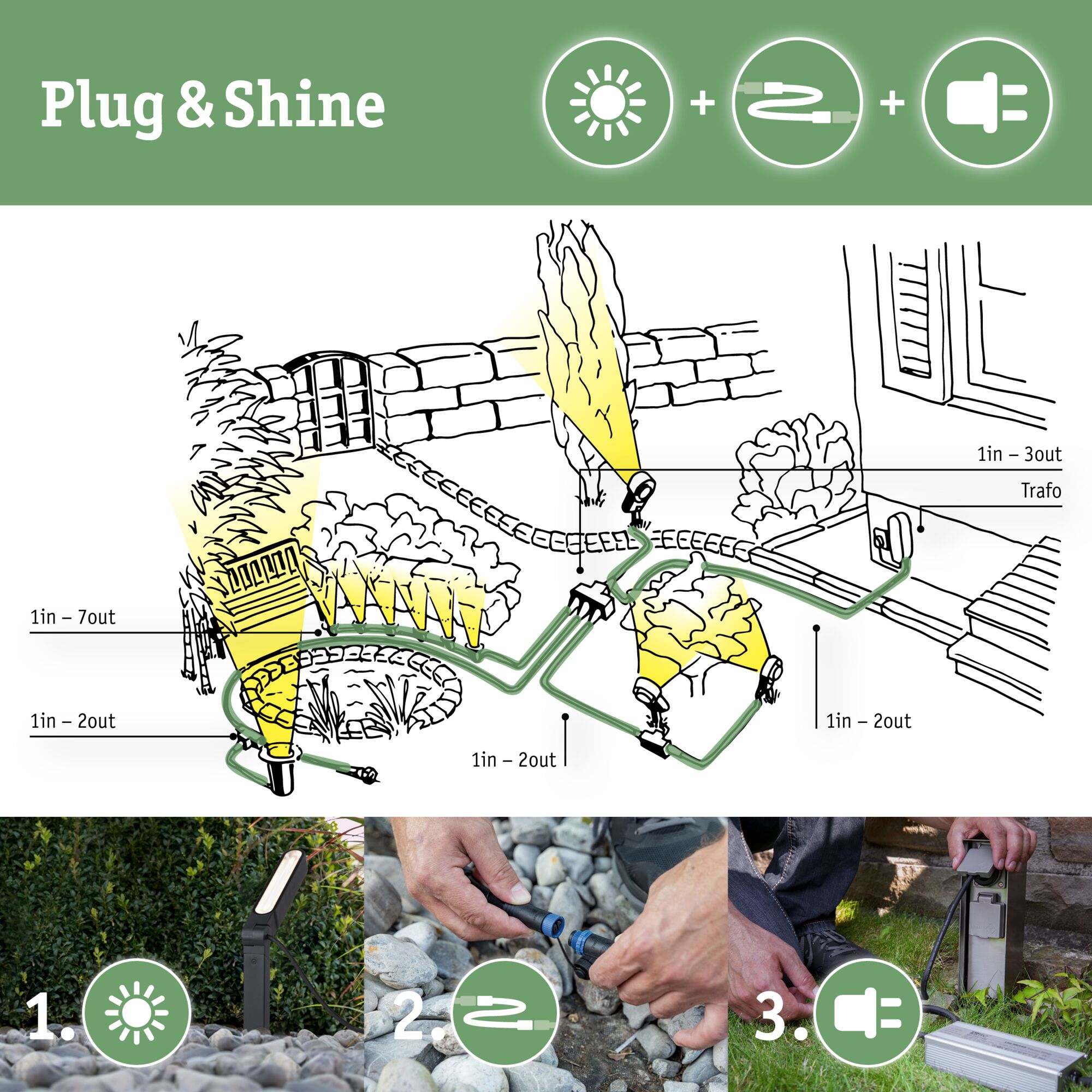

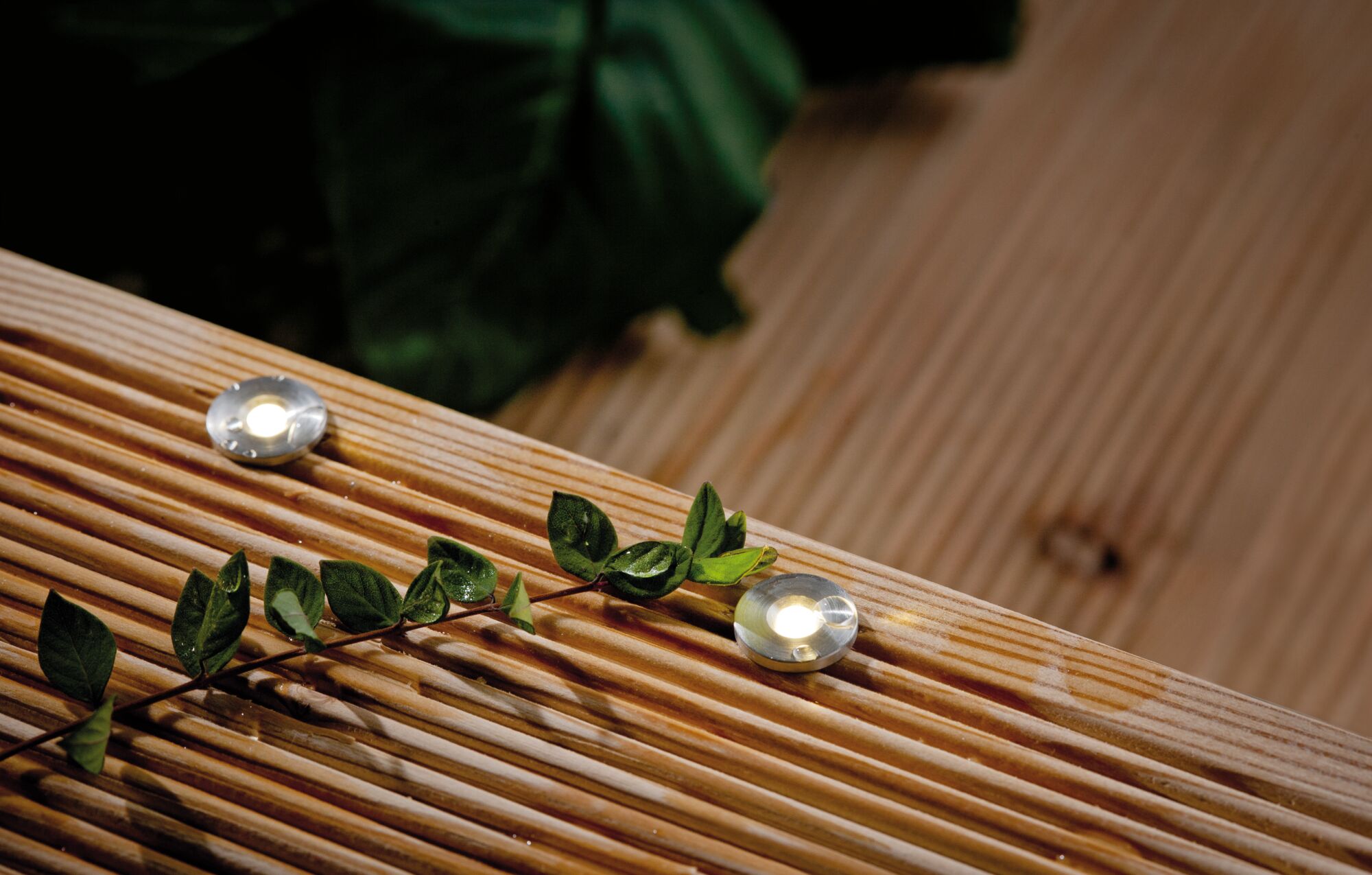

Plug & Shine MicroPen II recessed floor spotlights provide decorative warm white light points on paths, in driveways or on patios. With this extension set, you have the option of connecting up to five additional luminaires to your existing 24 V lighting installation. A connecting cable with six sockets is included. You can close outlets that you do not need with the supplied cap. It can't be walked on or driven over.
- Plug & Shine extension set consisting of 5 luminaires and connecting cable
- Compatible with all accessories in the Plug & Shine series
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Don't forget: Order compatible transformers as well!

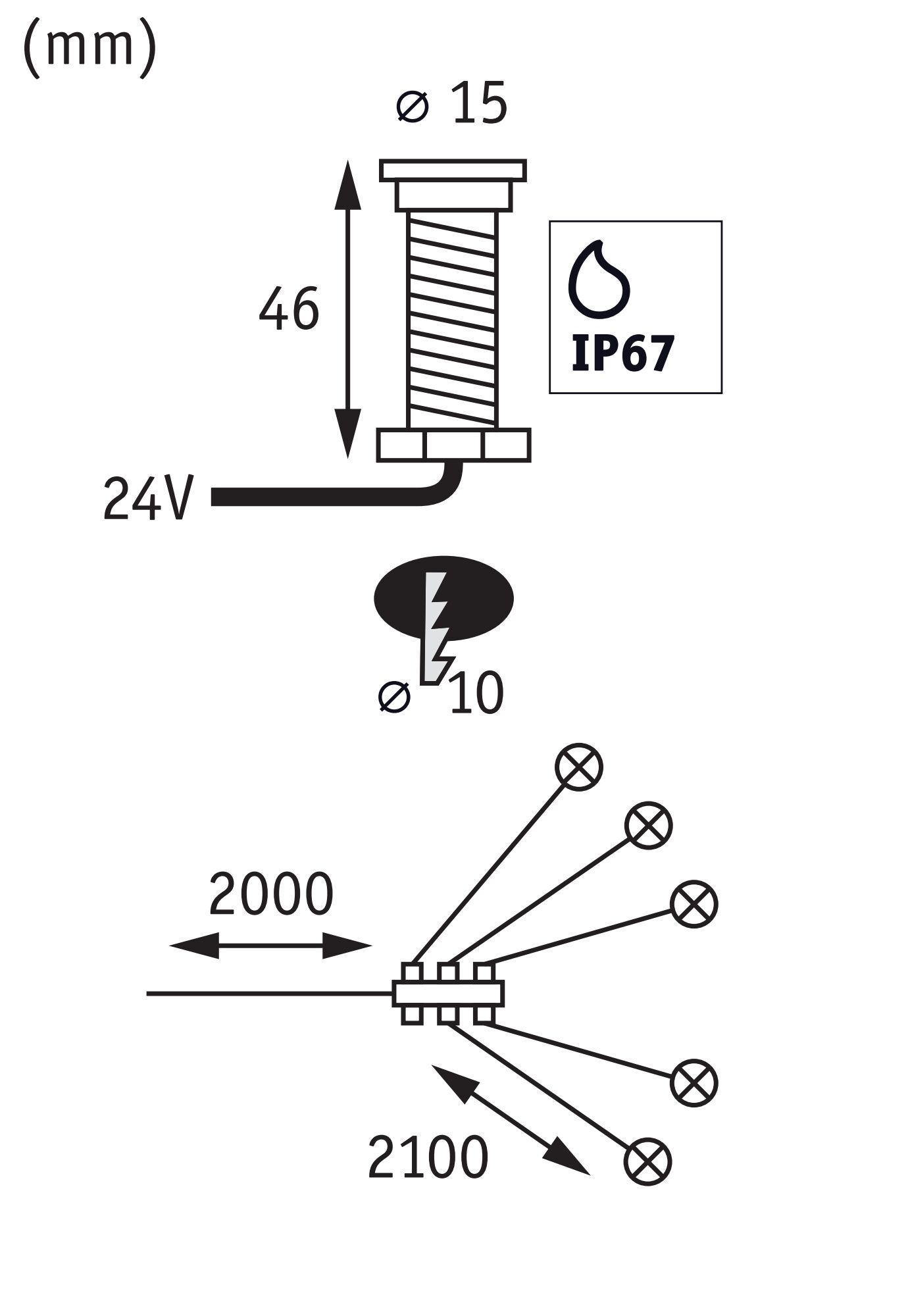

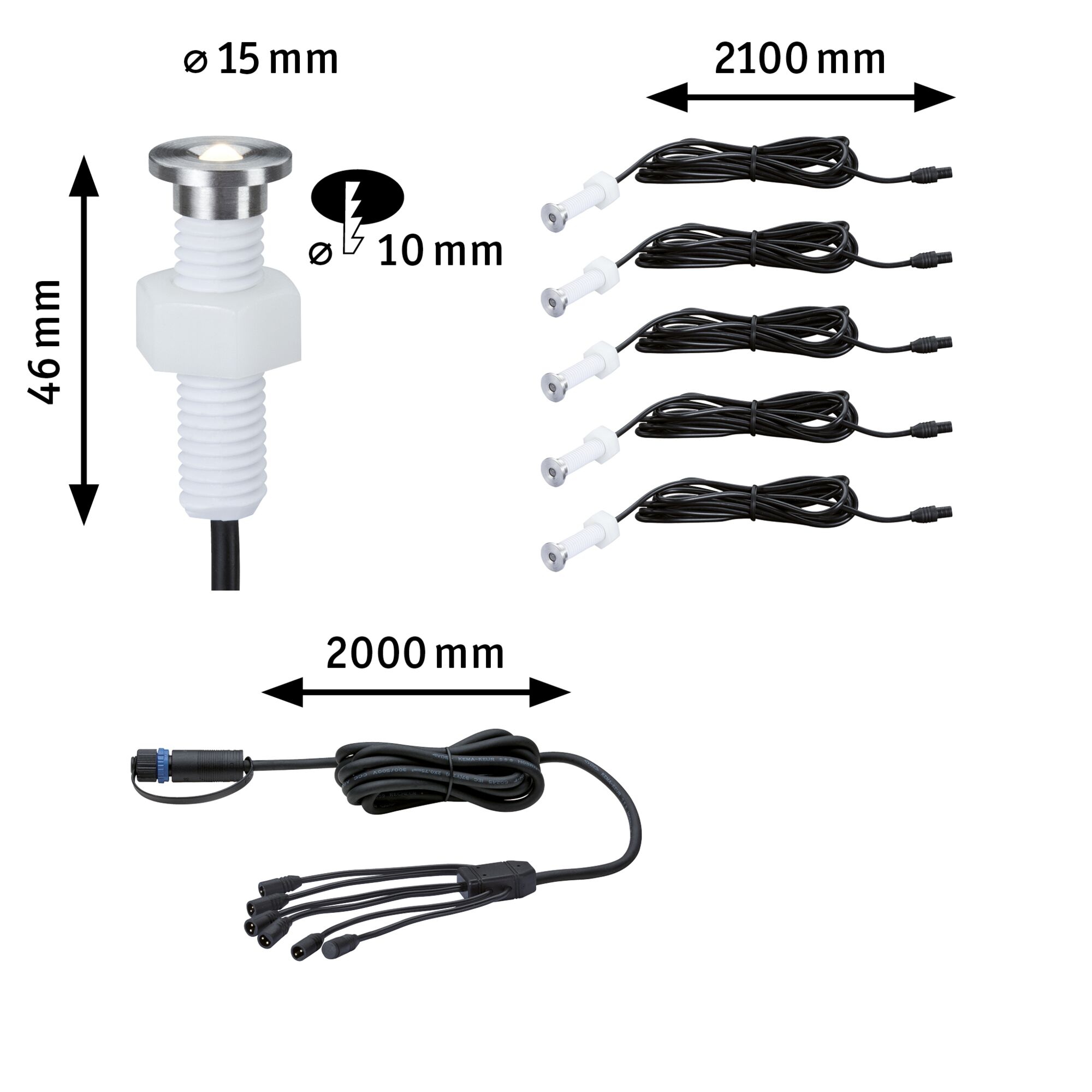

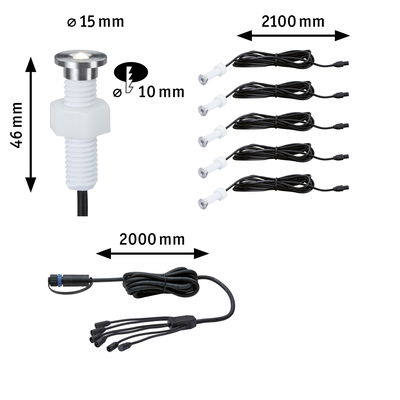

| Dimension | |
|---|---|
| Depth of hollow wall | 31 mm, 31 mm |
| Total Mounting depth | 46 mm |
| Plug depth | 48 mm |
| Ø | 15 mm |

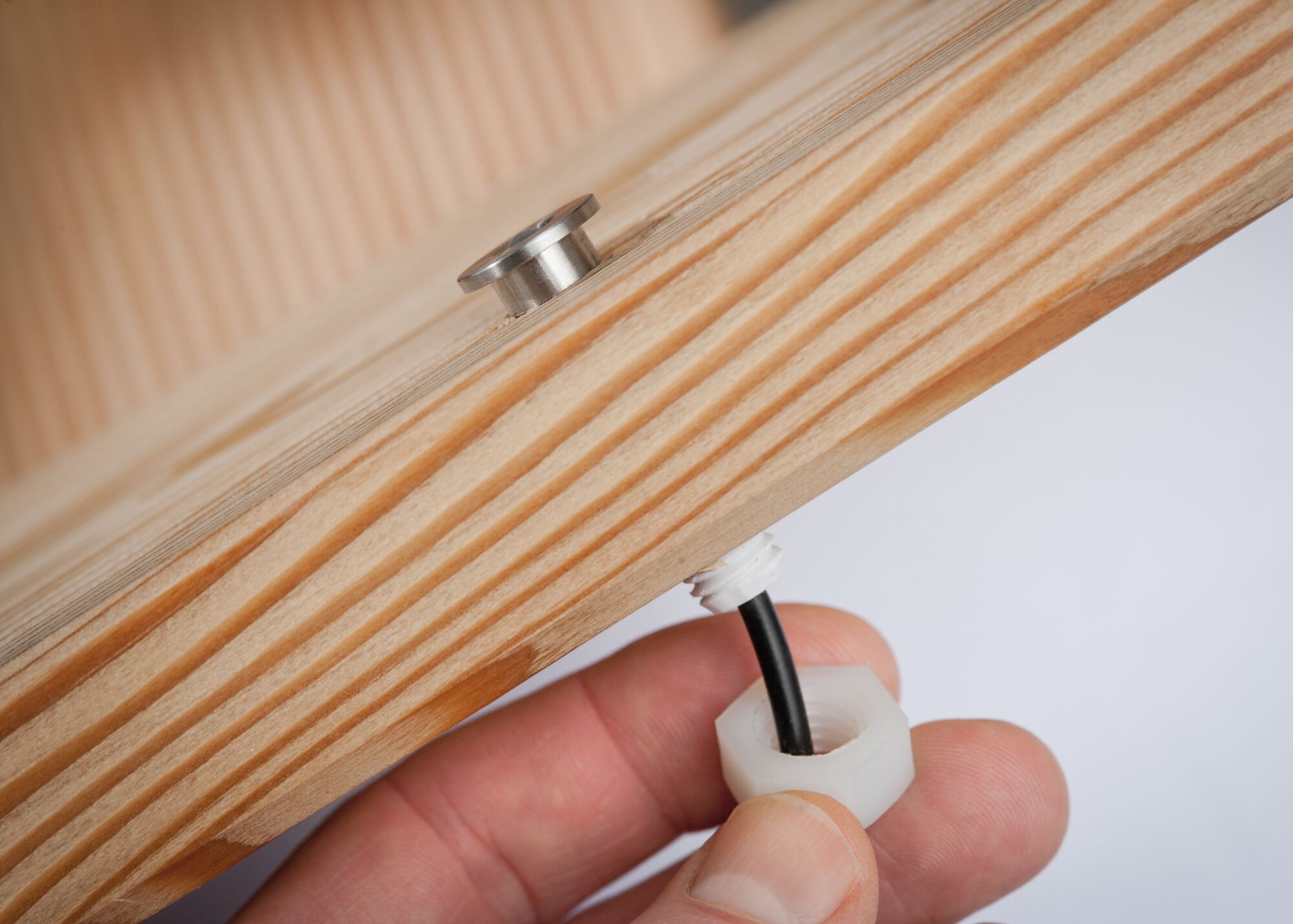

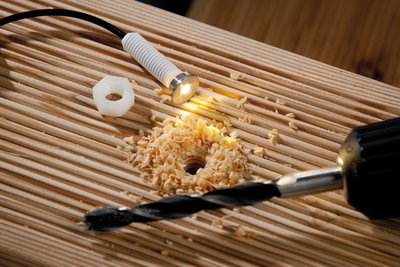

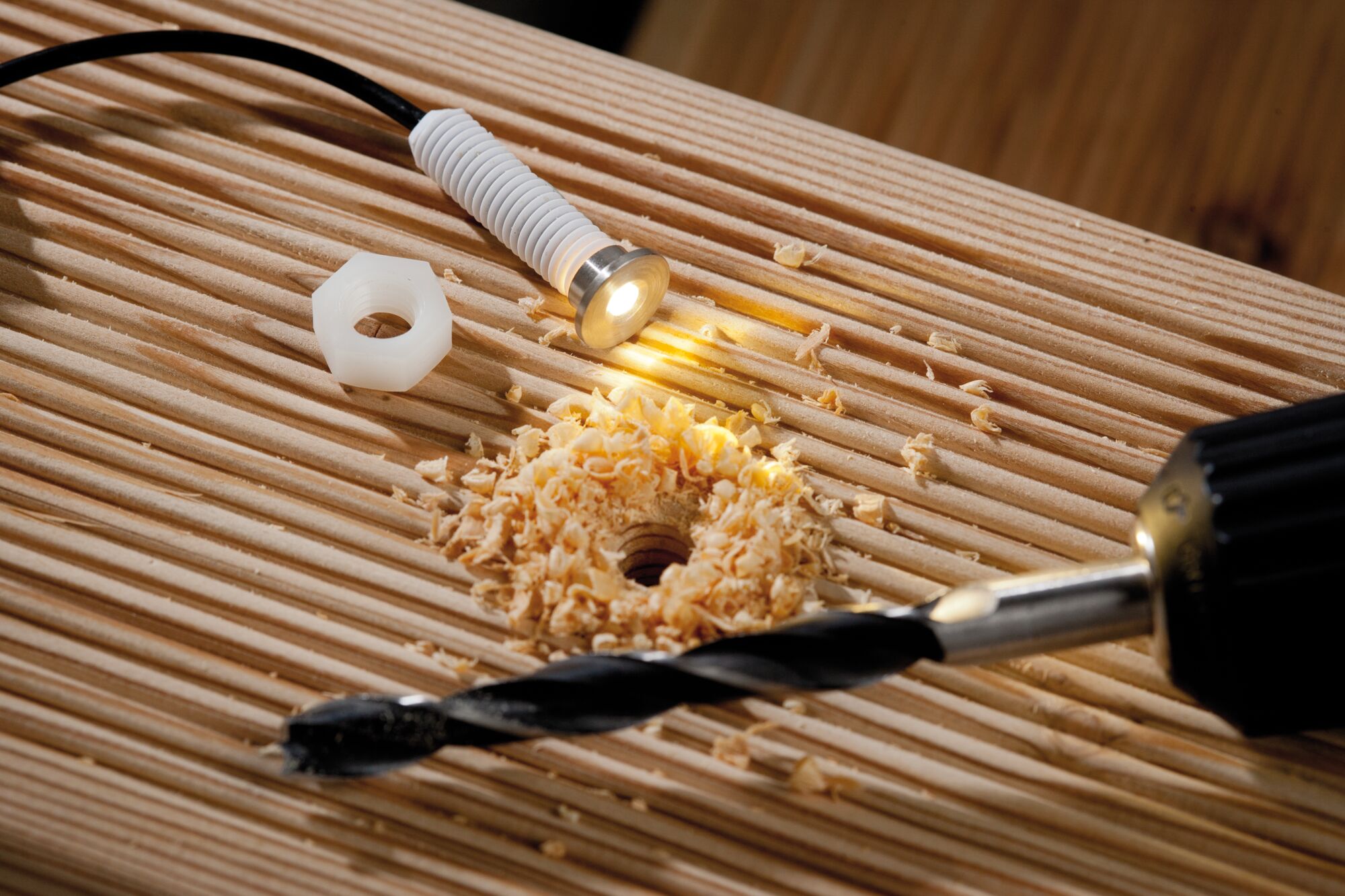

| Mounting hole | 10 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Silver |
| Material | Stainless steel |
| Installation | |
|---|---|
| Application | For decorative light points on paths, driveways and patios |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 22 ° |
| Usable luminous flux | 1,8 lm |
| Luminous flux LED module | 3 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Beam angle LED module | 23 ° |
| Lamp Features | |
|---|---|
| Component parts | 0,22 W |
| Technique | LED |
| IP protection | IP67 |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 2.2 W |
| Number of component parts | 5x |
| protection class | protection class III |
| Maximum load | 130 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,1 W |
| Transformer | |
|---|---|
| Transformer height | 103 mm |
| Transformer width | 50 mm |
| Transformer depth | 30 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
