Article-No.:
98943
Premium
Recessed luminaire

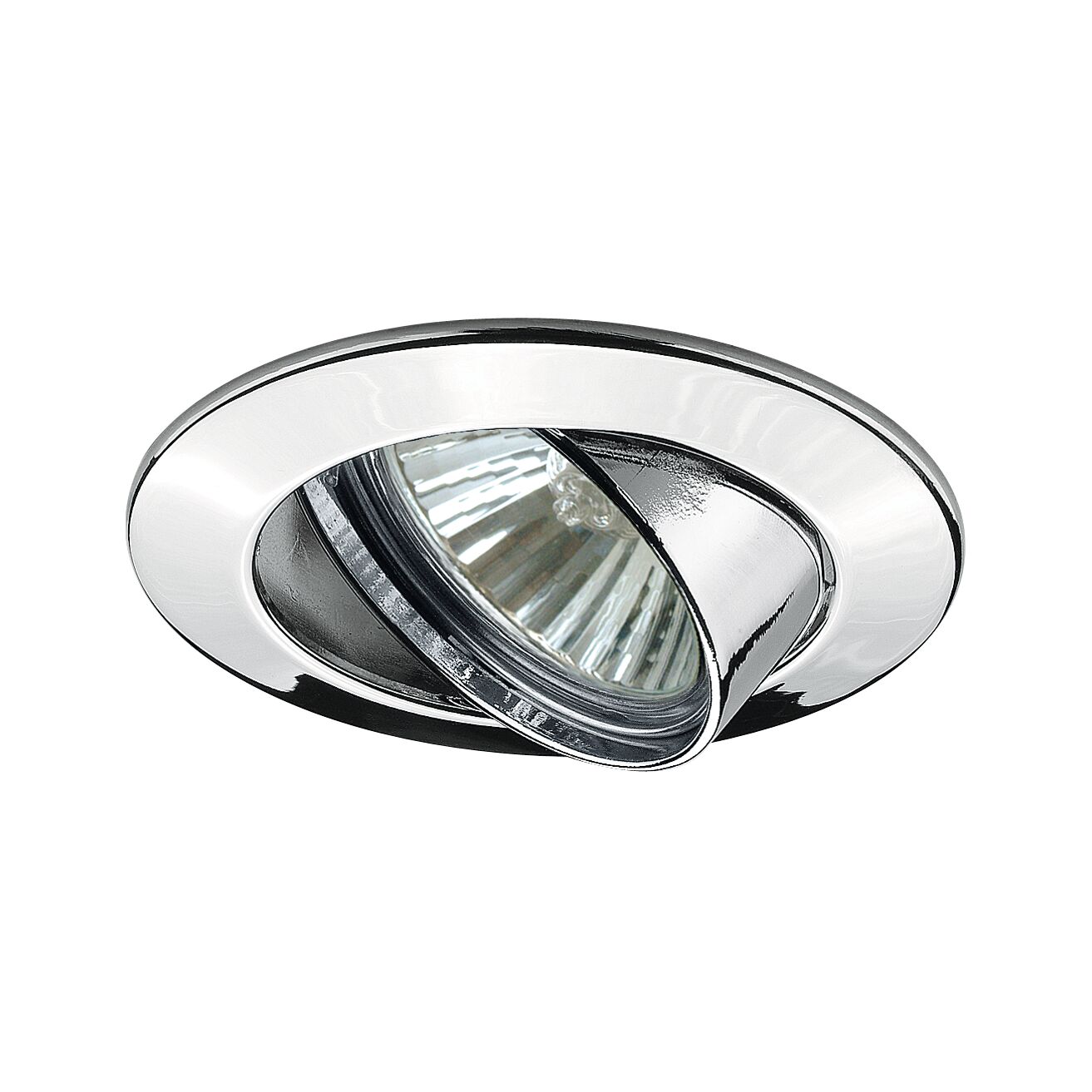

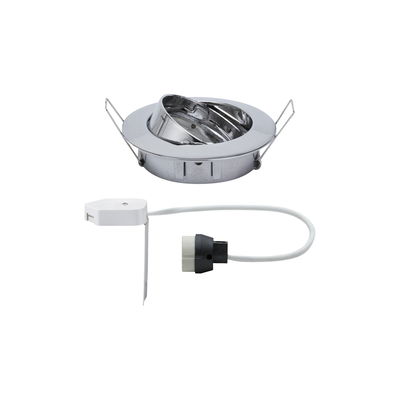

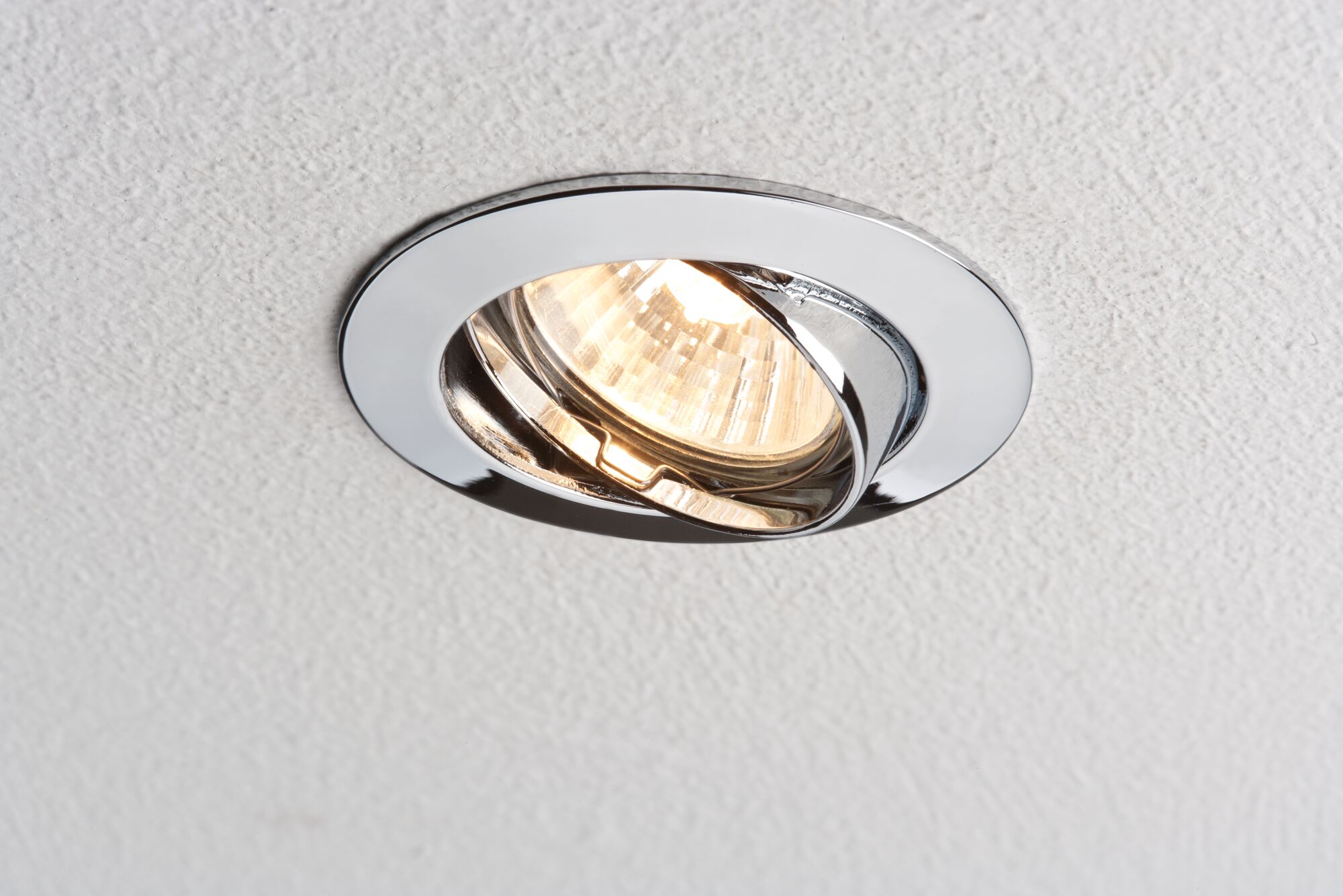

Premium Recessed luminaire round 83mm 30° GU10 max. 50W 230V dimmable Chrome
round 83mm 30° GU10 max. 50W 230V dimmable Chrome
round 83mm 30° GU10 max. 50W 230V dimmable Chrome
- Recessed light, suitable for 230V LED, energy-saving or halogen bulbs (see suitable bulbs)
- Material: Aluminium Zinc
- Color: Chrome
Premium Recessed luminaire round 83mm 30° GU10 max. 50W 230V dimmable Chrome
Elegant material – high-quality finish. The individually swivelling 230 V halogen recessed luminaires of the Premium Line offer a cosy light and fulfil even the highest expectations for material quality and design.
- Recessed light, suitable for 230V LED, energy-saving or halogen bulbs (see suitable bulbs)
- Material: Aluminium Zinc
- Color: Chrome
- LED or energy-saving bulbs and bulbs with brilliant halogen technology fit in this lamp.
- Can be swivelled up to 30° – put the focus on individual spots.
- Type of protection: IP23 (ceiling mounting)
- Mounting depth: 90mm
- Diameter: 83mm
- Operating voltage: 230 V
- Don't forget: Order compatible bulbs as well!
- Extremely quick and easy bulb change thanks to the clever Easy-Click system.
| Dimension | |
|---|---|
| depth of hollow wall | 75 mm |
| Mounting depth | 90 mm |
| Ø | 83 mm |
| Mounting hole | 68 mm |
| Form | round |
| Depth of hollow wall | 75 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Chrome |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Swivel range | 30 ° |
| Technique | Lamp without bulb |
| Socket | GU10 |
| IP protection | IP23 ceiling mounting |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Maximum wattage | max. 50 W |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageFlyer
DownlightsZubehoer

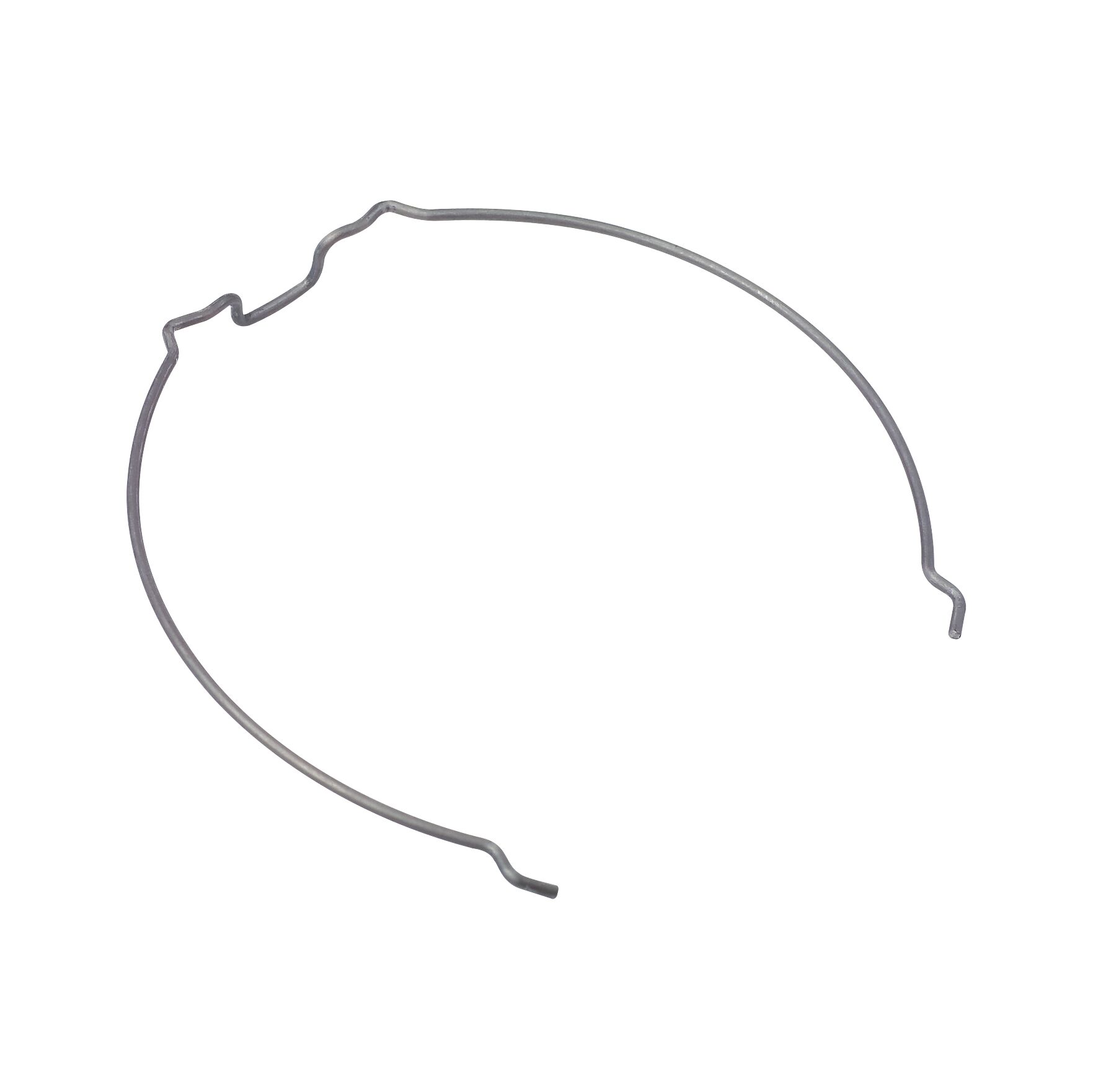

- Recessed luminaires accessories
