Article-No.:
91370
ProRail3
Connector
L-part Exterior
101x101mm max. 3680W Silver
101x101mm max. 3680W Silver
- ProRail3 L-connector incl. installation instructions
- Simple plug-in installation
- Easy-to-clean surface

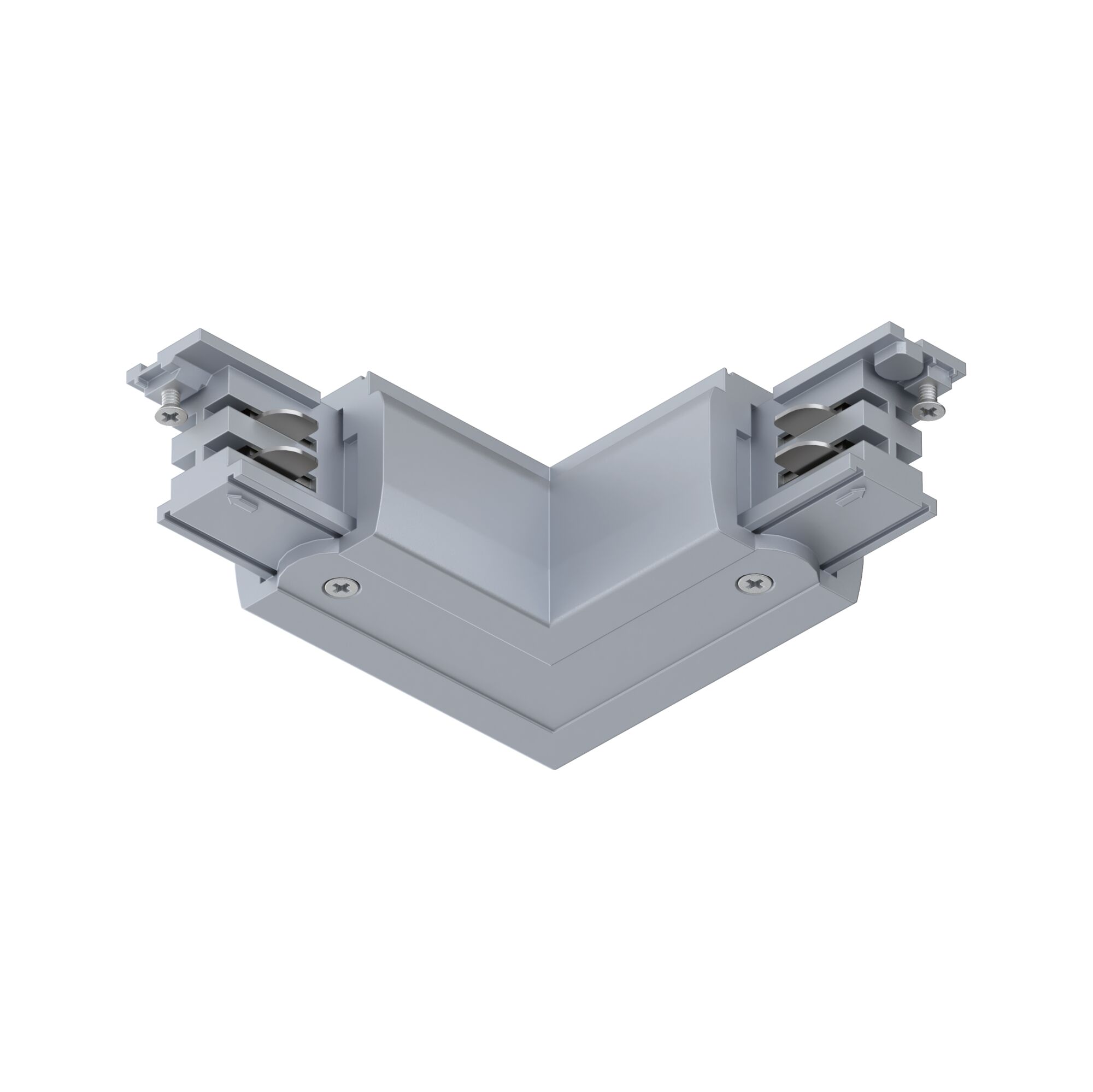

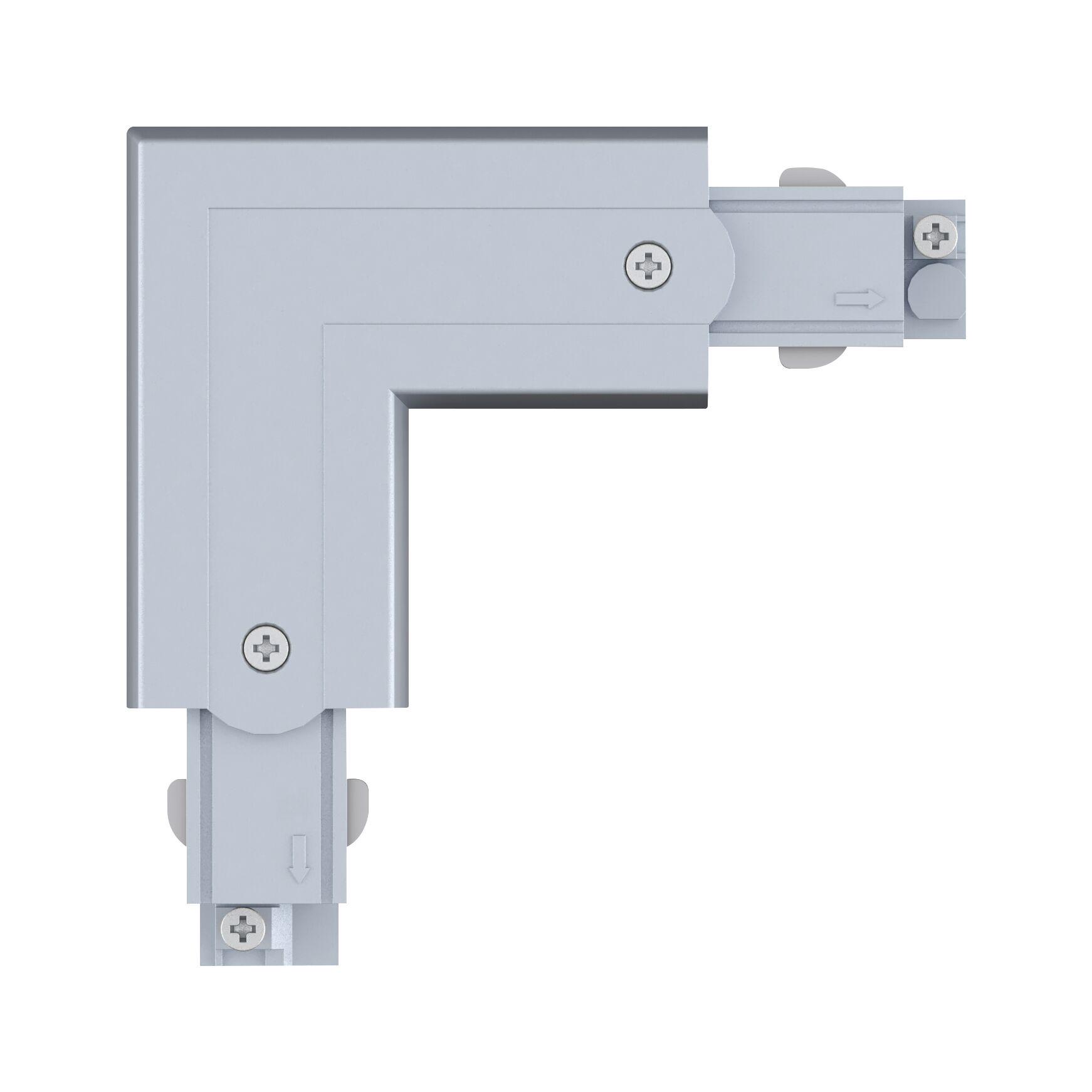

ProRail3 Connector L-part Exterior 101x101mm max. 3680W Silver

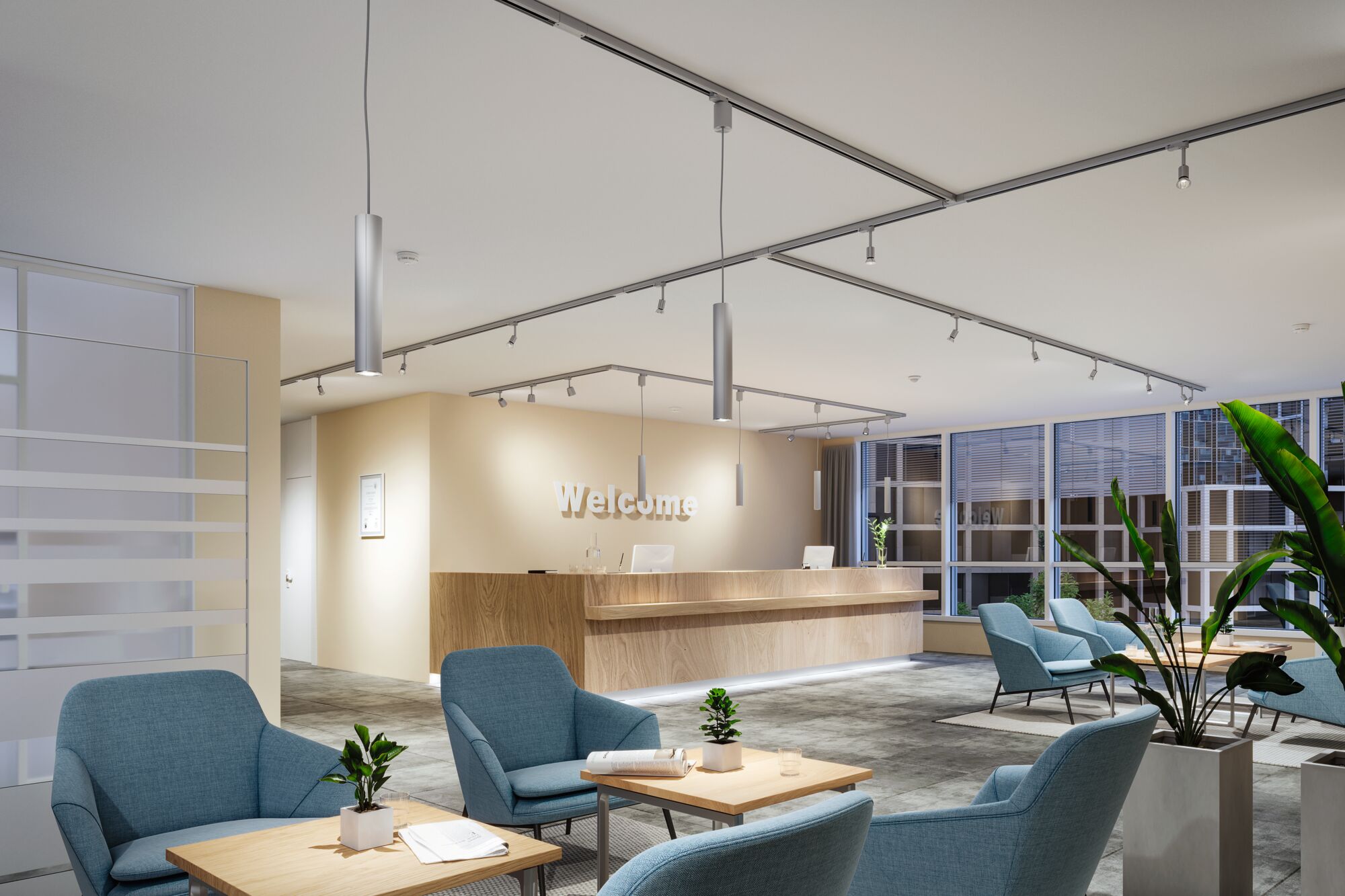

This connector is Silver can be used to create L-shaped installations. It is one of numerous modular parts from the ProRail3 series. Now you can create your very own three-phase rail system in combination with other components. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 L-connector incl. installation instructions
- Simple plug-in installation
- Easy-to-clean surface
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)

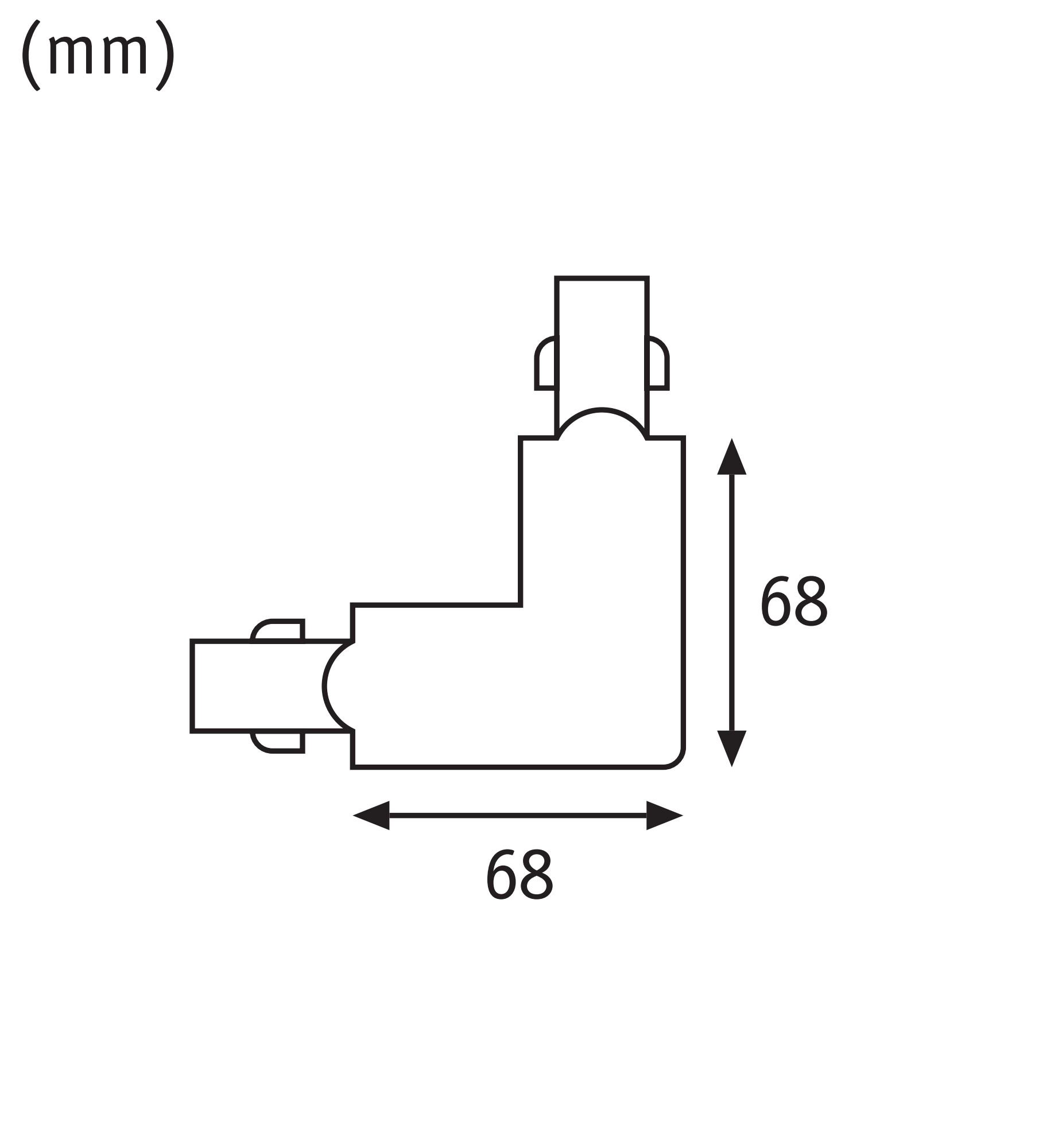

Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 32,5 x B: 101 x T: 101 mm |
Usable length | 68 mm |
Design and Material | |
---|---|
Colour | Silver |
Material | Metal, Plastic |
Lamp Features | |
---|---|
Technique | Accessories without bulbs |
Inclusive lamp | no |
Total Width | 101 mm |
Maximum wattage range | max. 3680 W |
protection class | protection class I |
Replacable | 7 not concerned. |
