Article-No.:
91391
ProRail3
LED Rail spot
Aldan
533,8lm 8W 4000K dimmable 230V Silver/Black
533,8lm 8W 4000K dimmable 230V Silver/Black
- ProRail3 system luminaire incl. installation instructions
- Color temperatur: 4000K - Neutral white
- LED lamp (fixed) included in scope of delivery
ProRail3 LED Rail spot Aldan 533,8lm 8W 4000K dimmable 230V Silver/Black

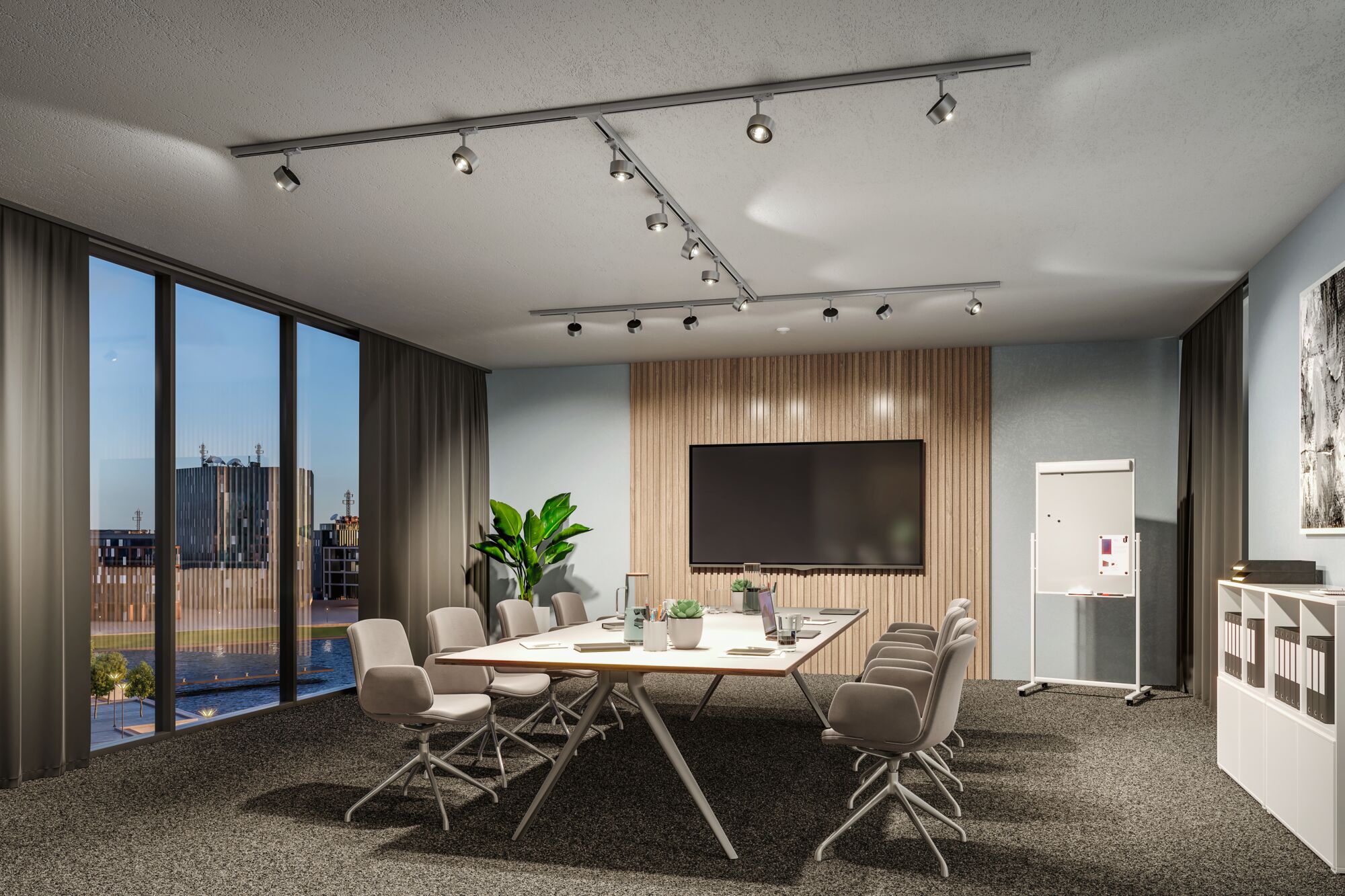

The neutral white, dimmable ProRail3 spot Aldan combines modern technology with elegant design. It can be directed whichever way you like, to get light exactly where it is needed. The hemispherical glass lens with an extremely sharp light/shadow edge produces virtually no rainbow effect. The spot is extremely versatile and casts every application area in the best light. It has a beam angle of 65°. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 system luminaire incl. installation instructions
- Color temperatur: 4000K - Neutral white
- LED lamp (fixed) included in scope of delivery
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|

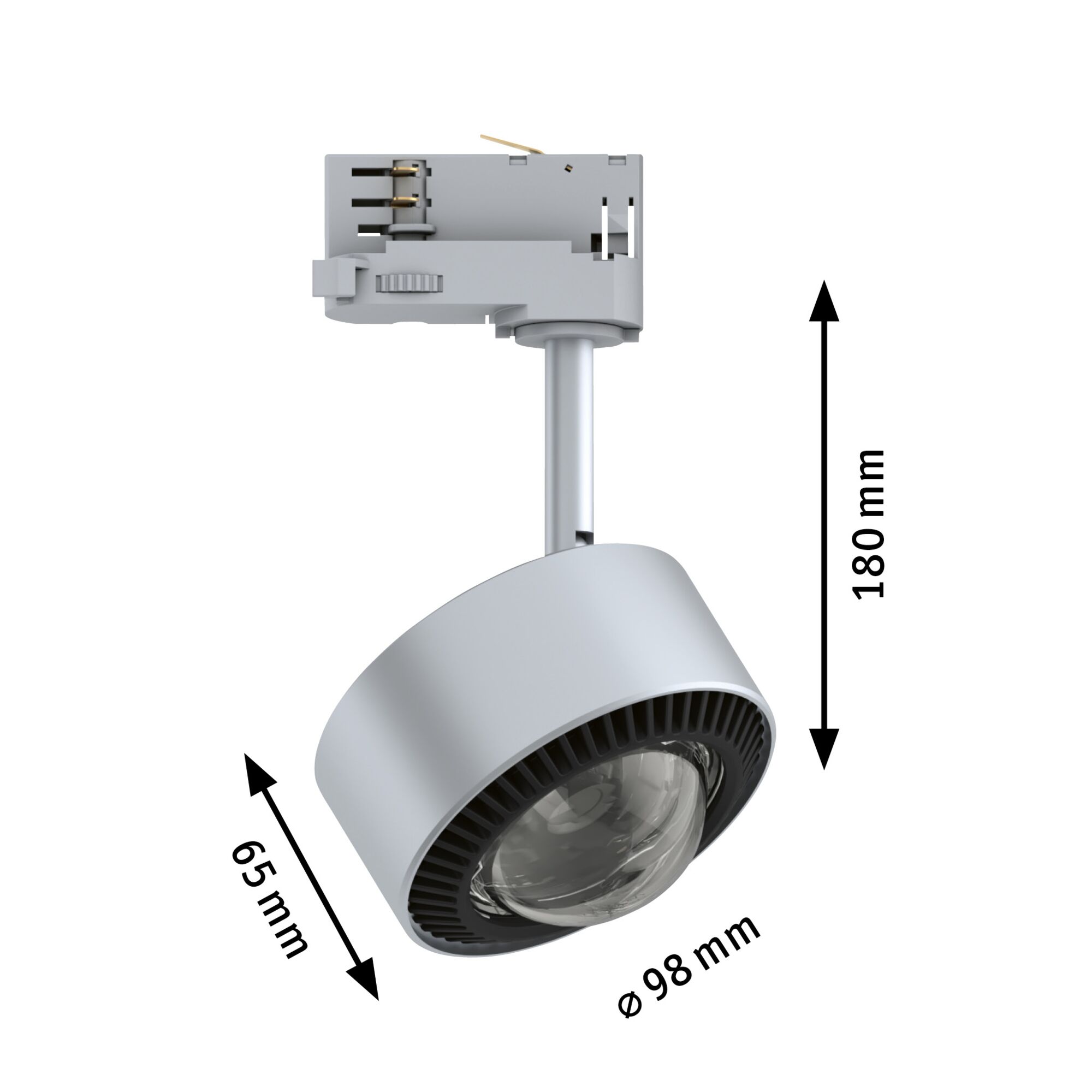

| Dimensions (Height x Width x Depth) | H: 180 x B: 103 x mm |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 80 ° |
| Usable luminous flux | 533,8 lm |
| Luminous flux LED module | 750 lm |
| color temp | 4000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 8 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 103 mm |
| Incandescent Equivalent | 60 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 8,2 W |
