Article-No.:
91365
ProRail3
Power supply
Middle
167x35mm max. 3680W White
167x35mm max. 3680W White
- ProRail3 centre feed incl. installation instructions
- Remember: Order the connectors at the same time!
- Not compatible with URail!

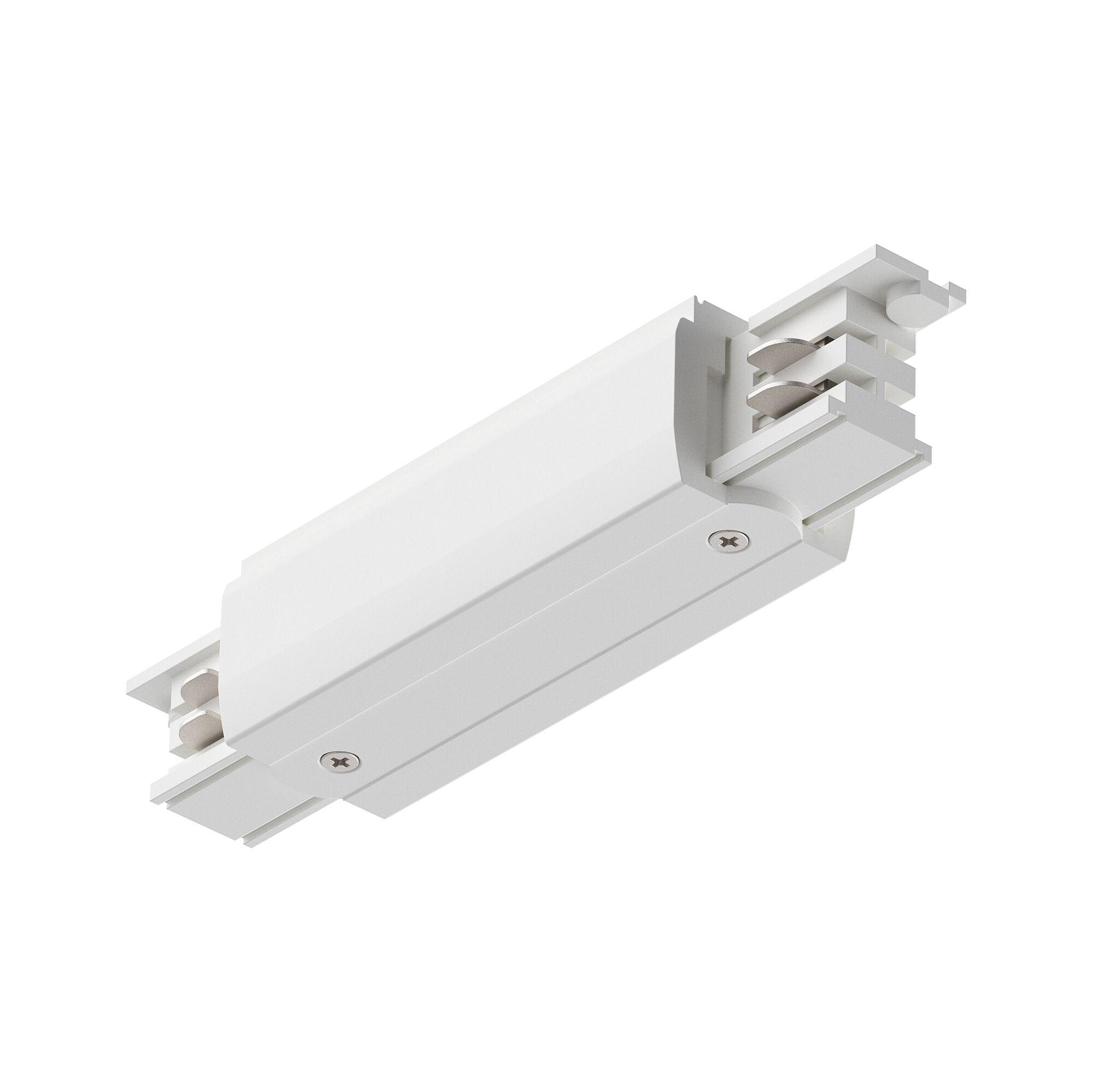

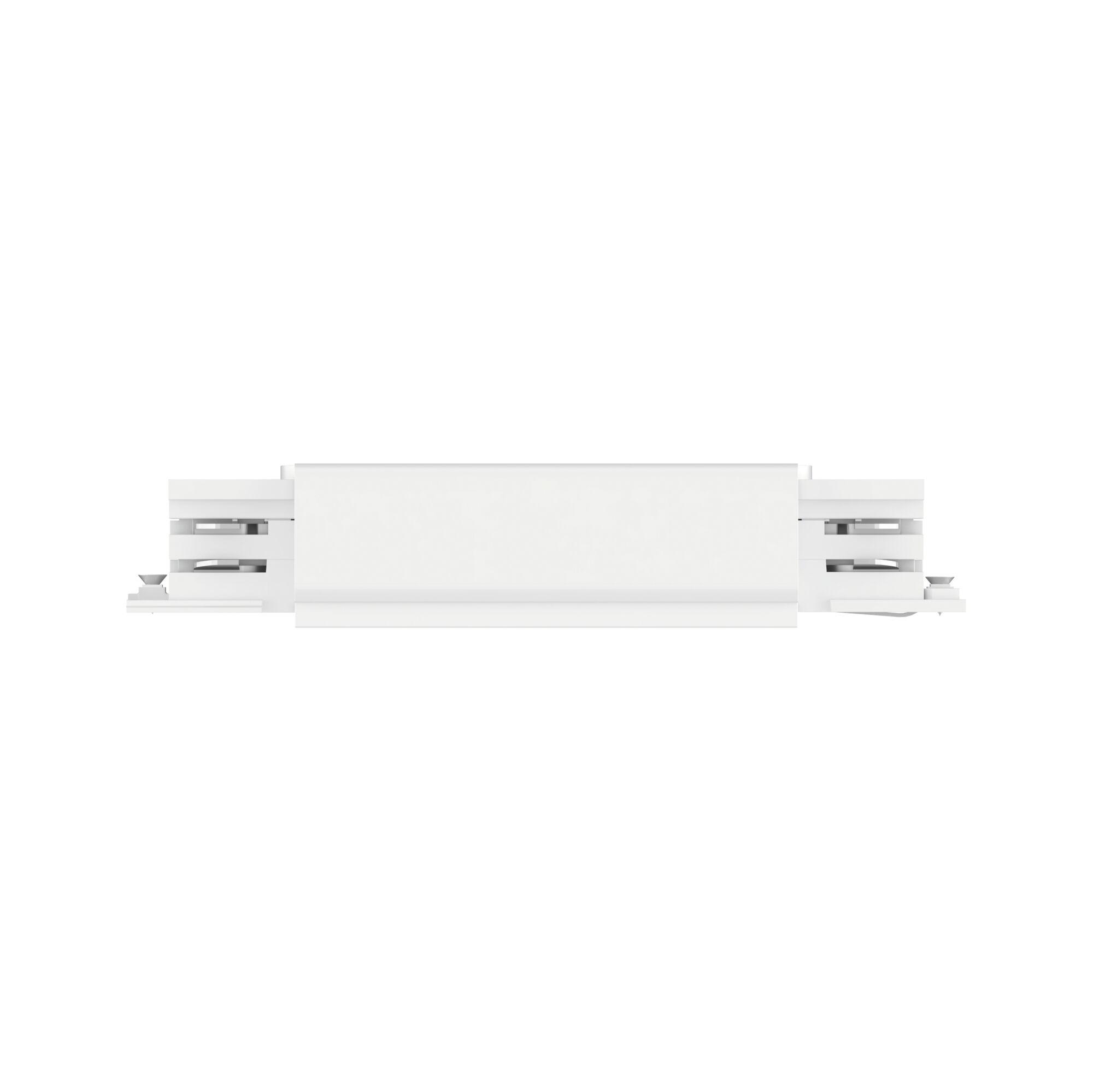

ProRail3 Power supply Middle 167x35mm max. 3680W White
The ProRail centre feed in White is mounted directly above the power connection and aesthetically complements any light installation, thanks to its rail design. It can also be used to connect 5-core ceiling outlets to switch the system separately. One output of the supply is fed by one phase, the other output by the other phase. This allows you to create different lighting scenarios. Now you can create your very own three-phase rail system in combination with other components. The versatile ProRail3 rail system offers flexible and individual lighting for spaces such as showrooms, doctor’s surgeries or restaurants. With only one power outlet, every corner of the room can be brightly illuminated.
- ProRail3 centre feed incl. installation instructions
- Remember: Order the connectors at the same time!
- Not compatible with URail!
- Important: Exclusively designed for commercial applications and professional installation
- Plannable using DIALux (ULD data available)
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 32,5 x B: 167 x T: 35 mm |

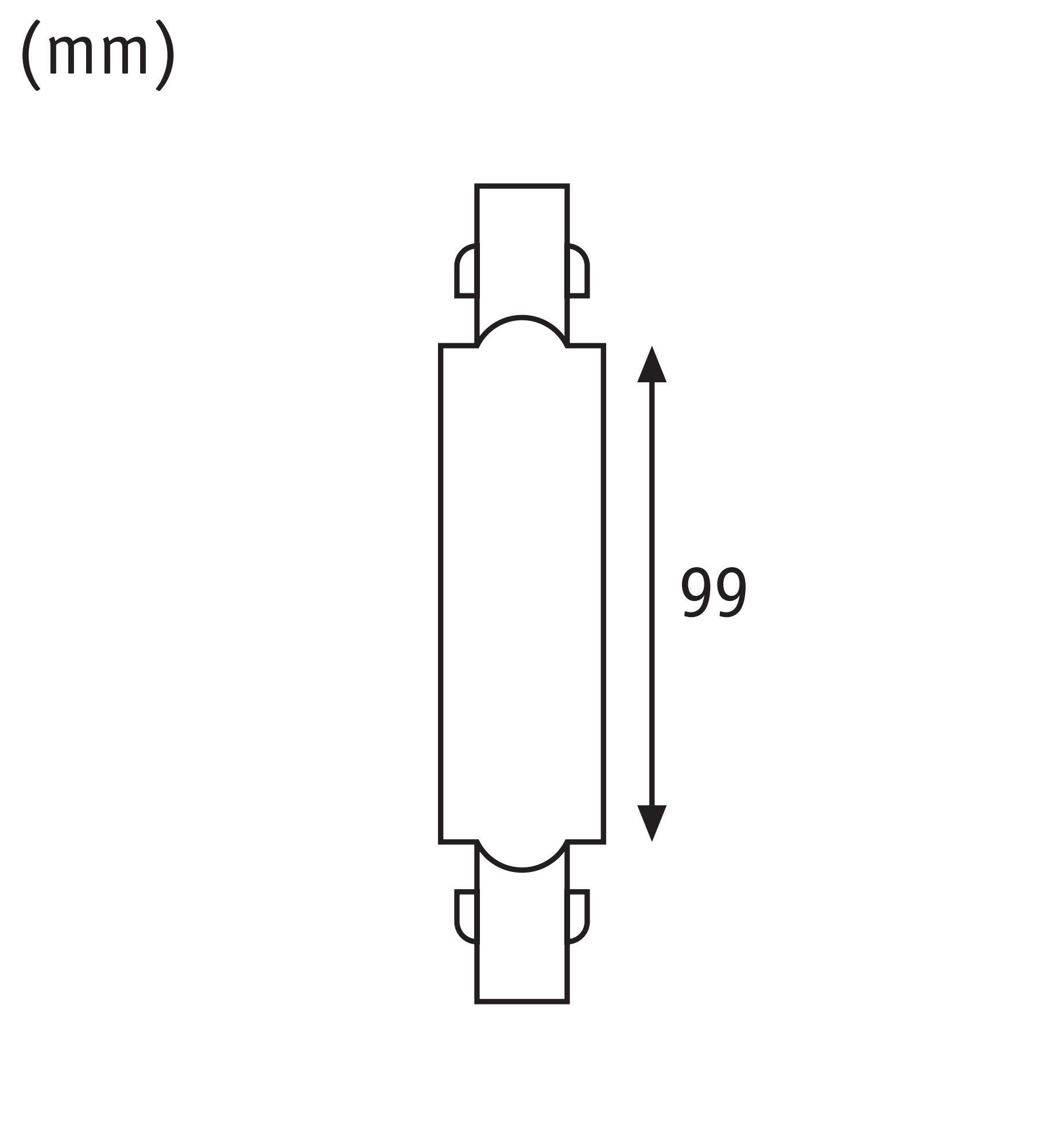

| Usable length | 99 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 167 mm |
| Maximum wattage range | max. 3680 W |
| protection class | protection class I |
| Replacable | 7 not concerned. |
