Article-No.:
92490
Recessed luminaire
Choose Basic Set Swivelling
round 84mm 50° max. 3x10W 230V dimmable Turned aluminium
round 84mm 50° max. 3x10W 230V dimmable Turned aluminium

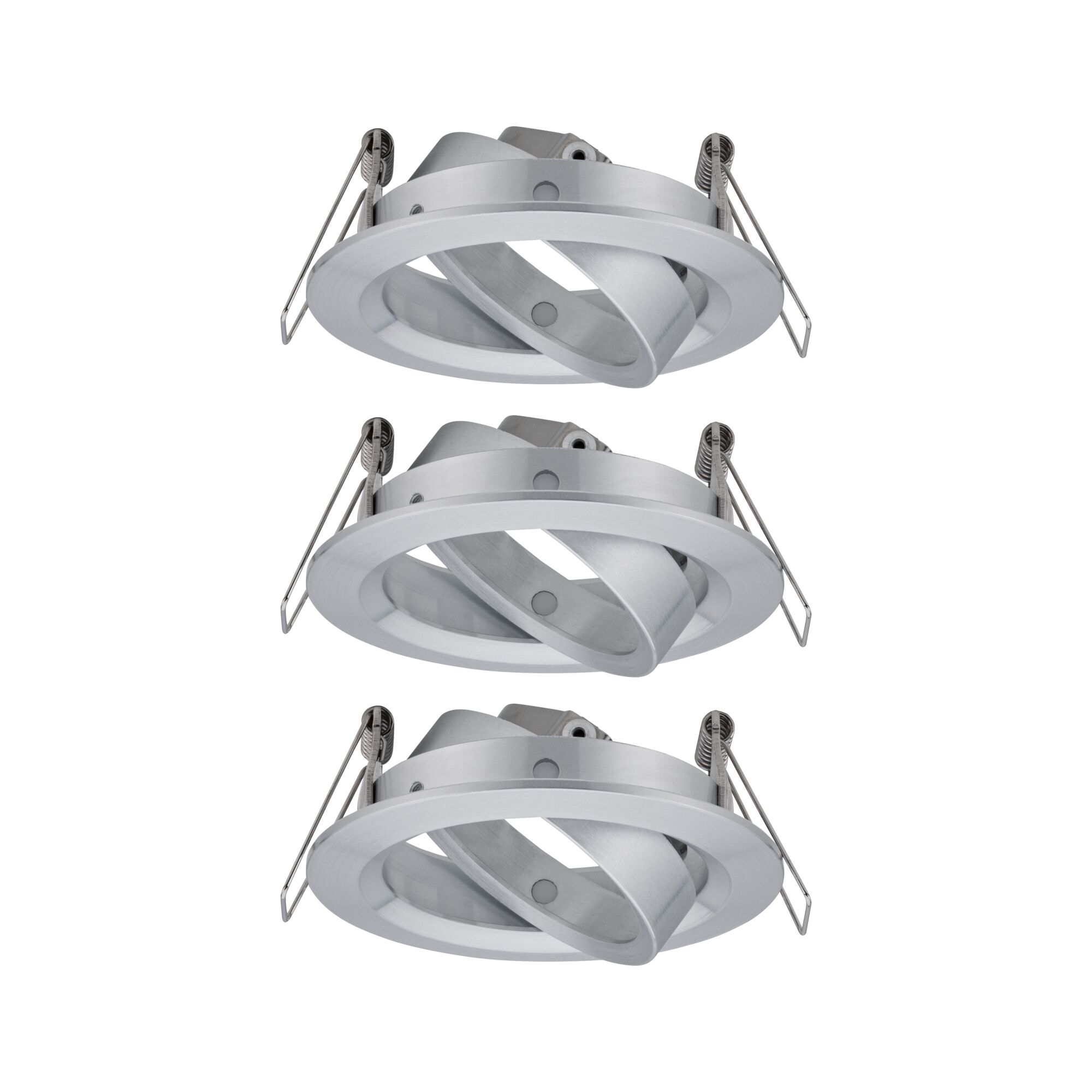

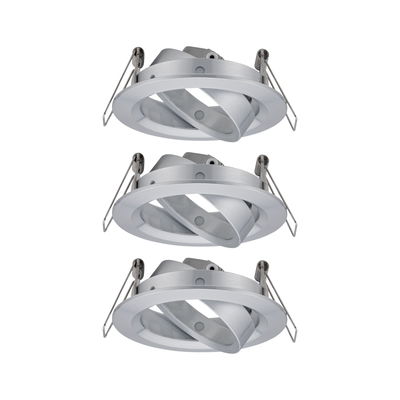

- Set of 3 mounting rings
- For combination with Choose! coin sets

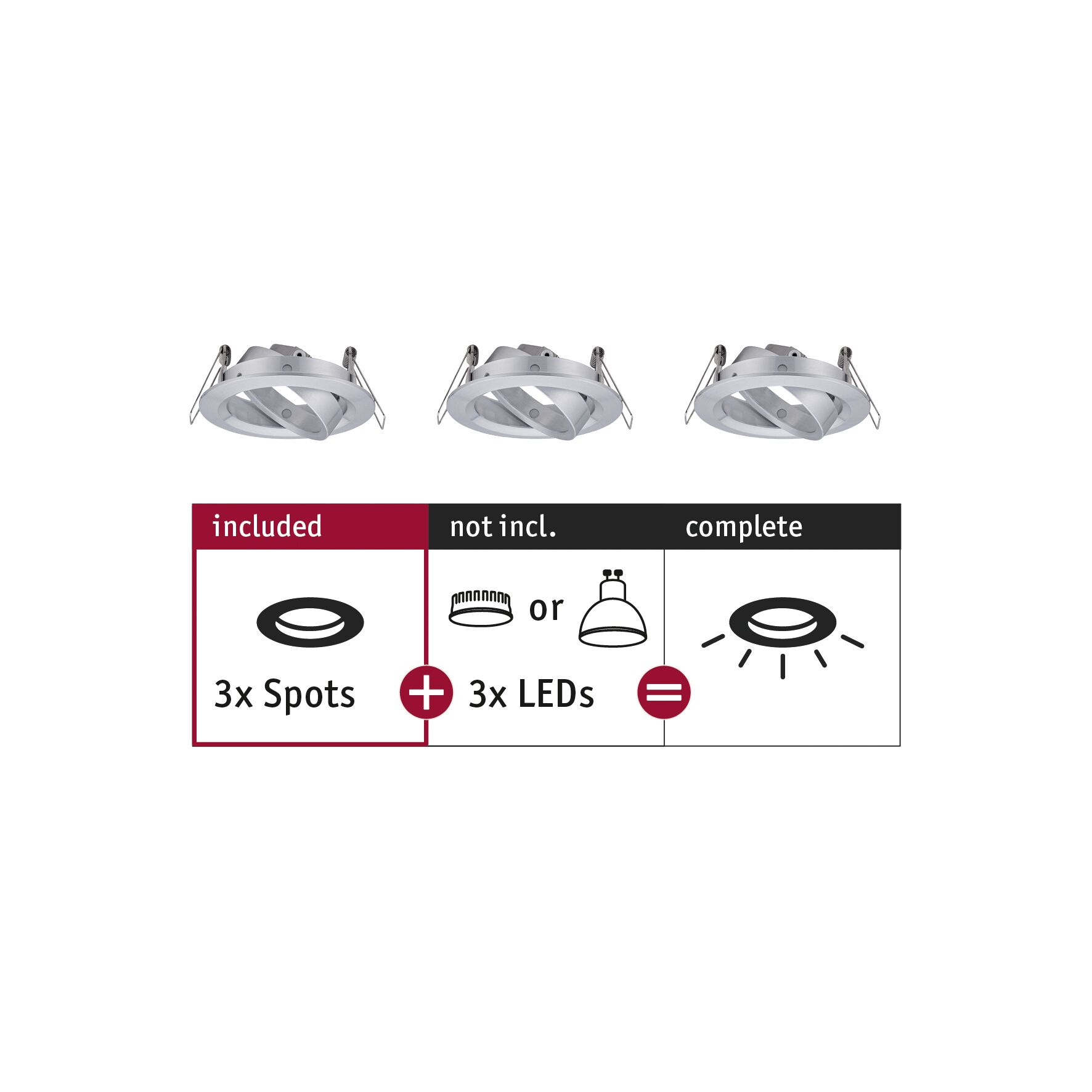

- Don’t forget: Include a suitable lamp in your order!

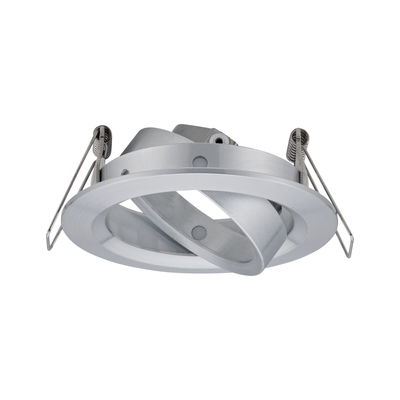

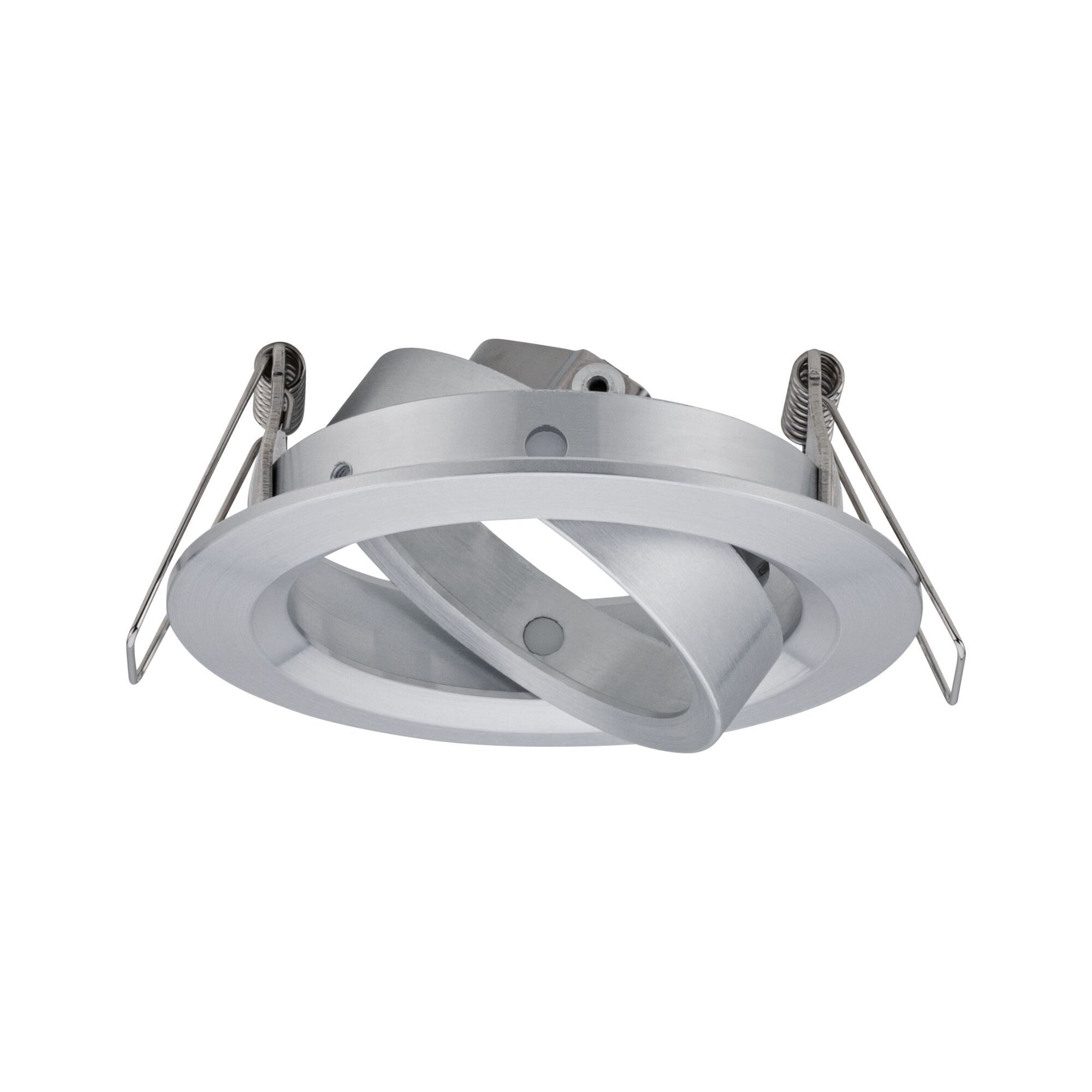

Recessed luminaire Choose Basic Set Swivelling round 84mm 50° max. 3x10W 230V dimmable Turned aluminium
The swivelling mounting rings in the colour Turned aluminium are compatible with all lamps from the Choose series. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 mounting rings
- For combination with Choose! coin sets
- Don’t forget: Include a suitable lamp in your order!
- swivelling
| Dimension | |
|---|---|
| Depth of hollow wall | 15-45 mm, 15 mm |
| Total Mounting depth | 30-60 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium |
| Lamp Features | |
|---|---|
| Swivel range | 50 ° |
| Technique | Lamp without bulb |
| IP protection | IP23 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 3x10 W |
| Number of component parts | 3x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageFlyer and Safety instructions
Safety instructionsEmpfohlene Leuchtmittel
