Article-No.:
28786
230 V Standard
LED Reflector EasyDim

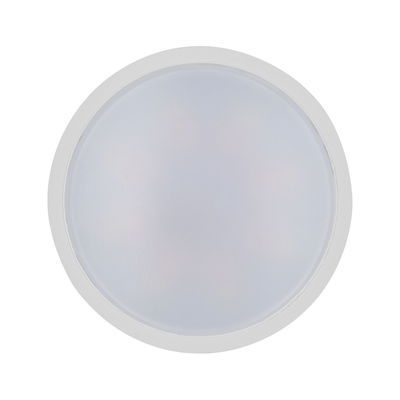

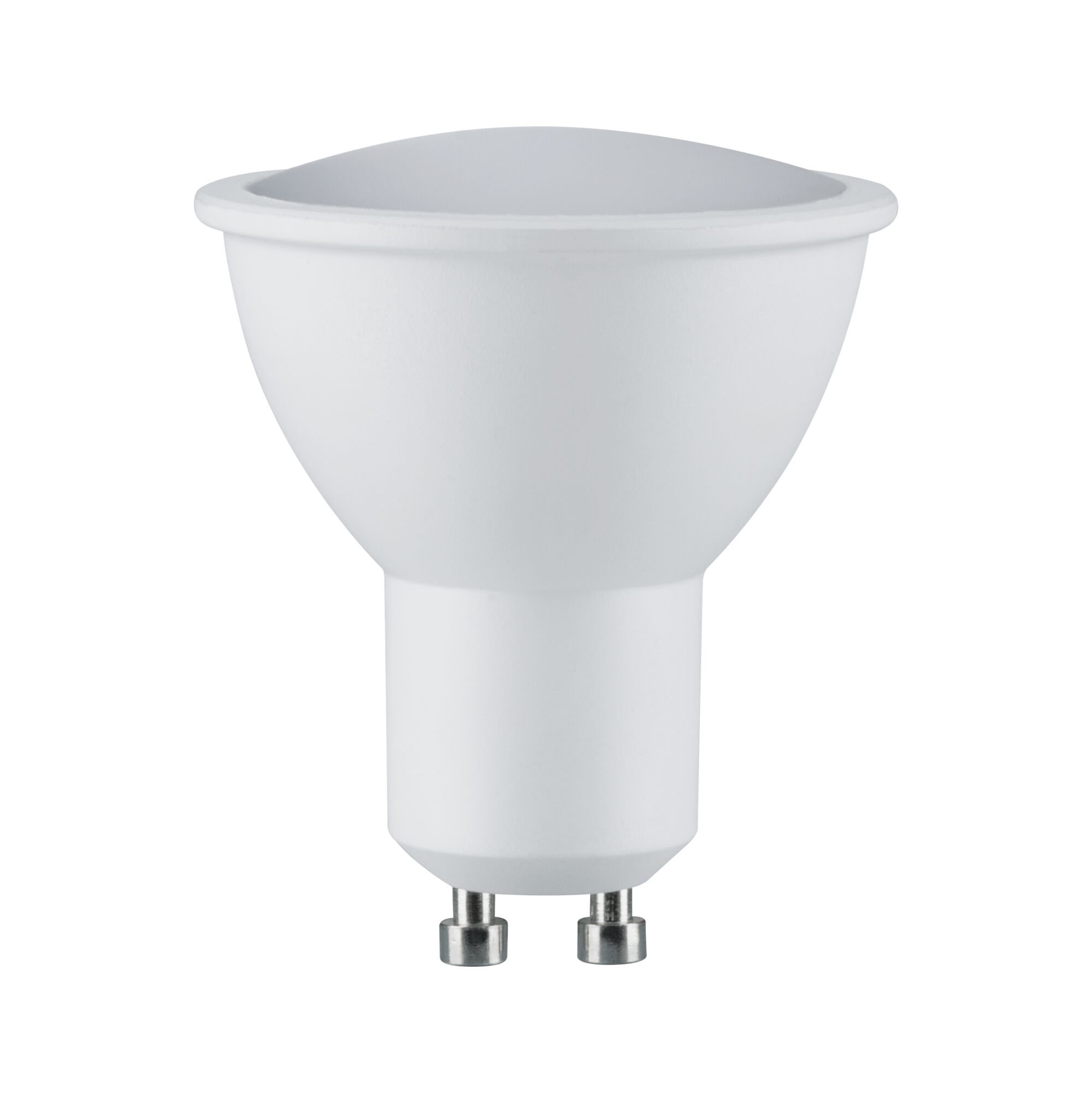

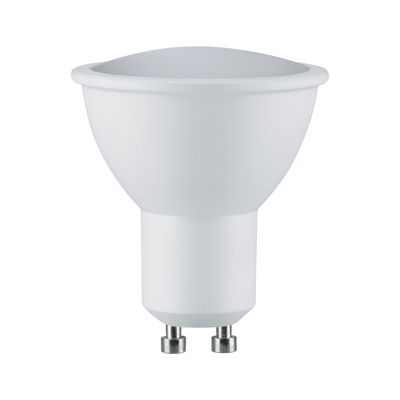

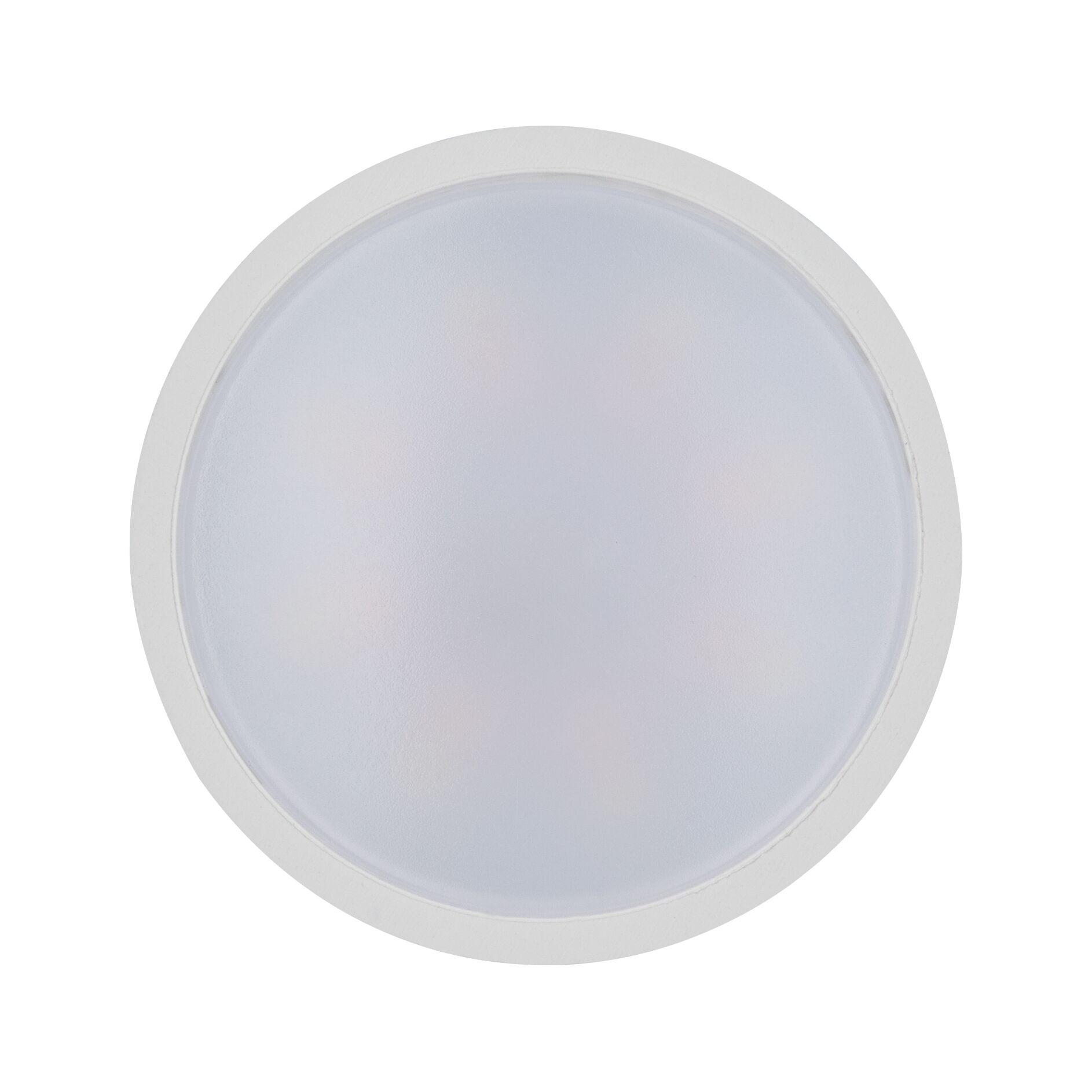

GU10 230V 3x460lm 3x5,5W 2700K dimmable White
GU10 230V 3x460lm 3x5,5W 2700K dimmable White

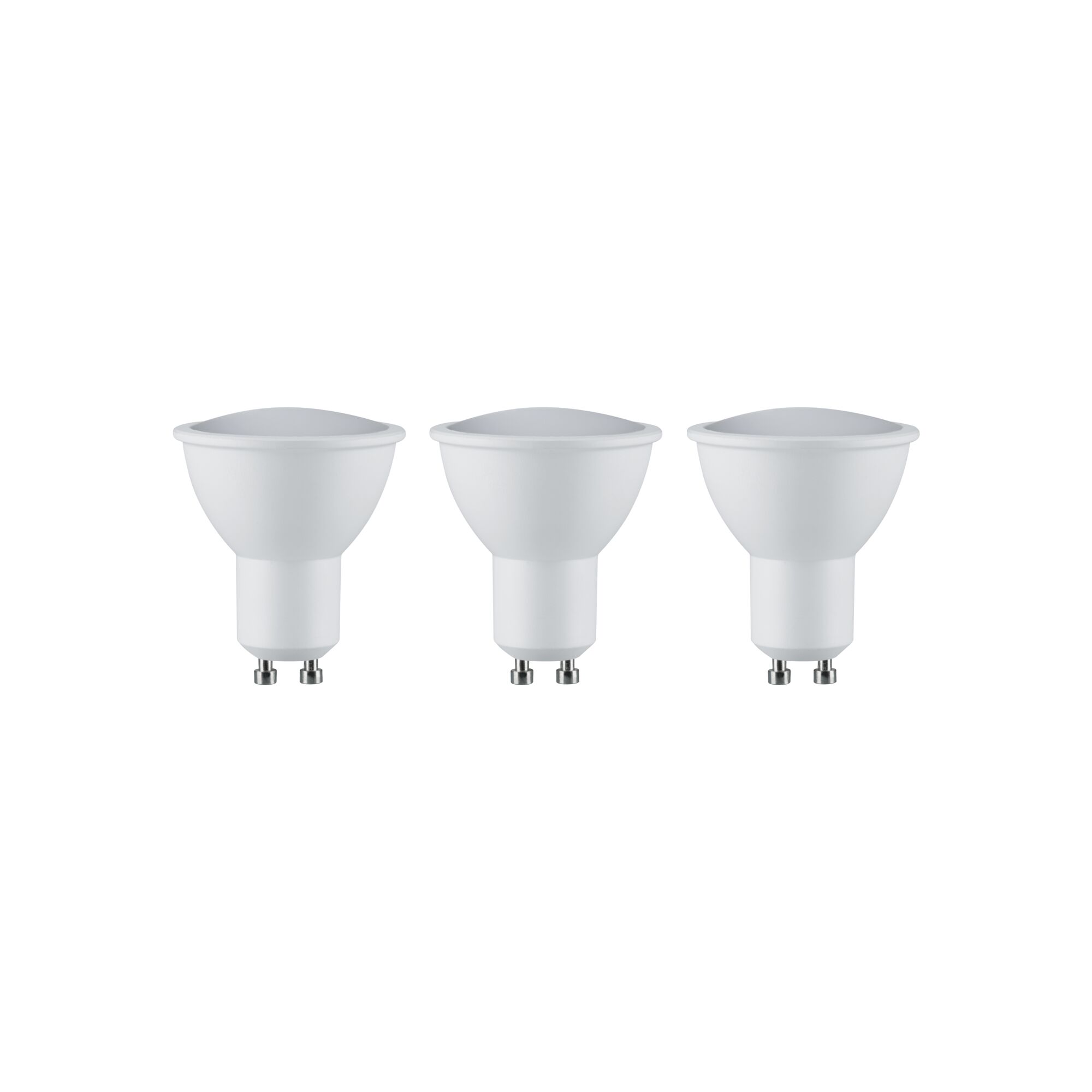

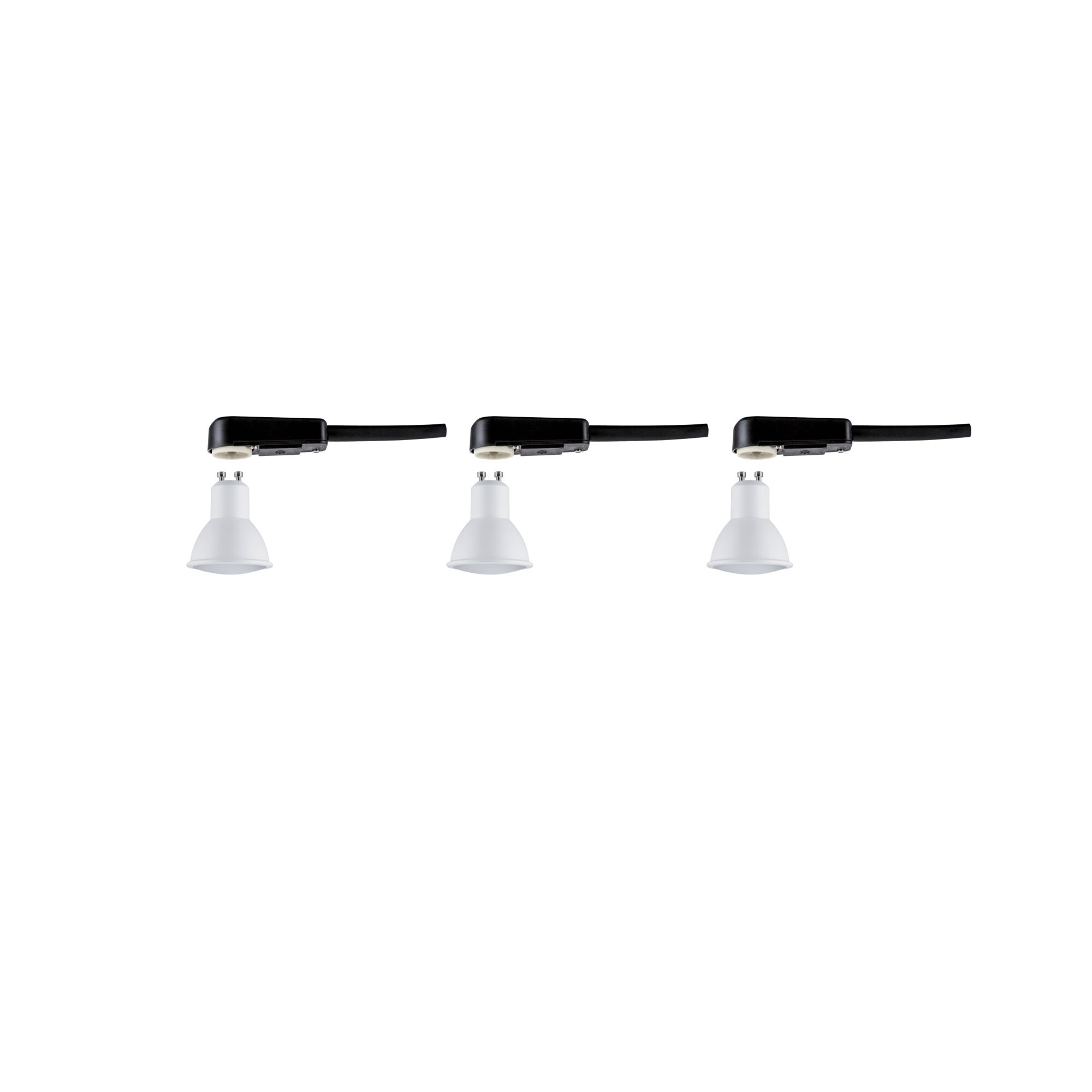

- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white
230 V Standard LED Reflector GU10 Choose EasyDim GU10 230V 3x460lm 3x5,5W 2700K dimmable White
The GU10 modules with EasyDim are compatible with all mounting rings in the Choose series. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 LED modules and junction box with double terminal
- For combination with Choose! spot sets
- Color temperatur: 2700K - Warm white

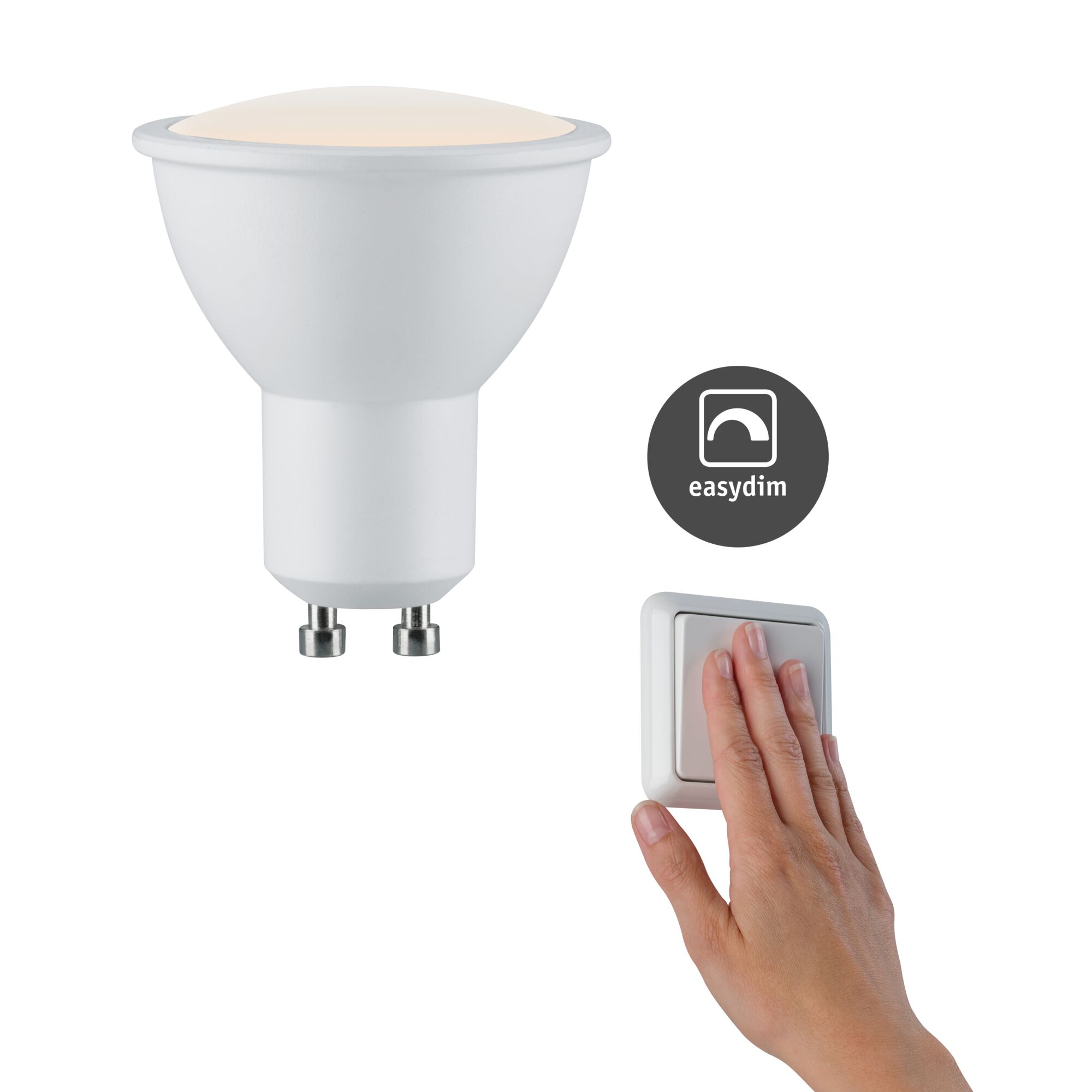

- EasyDim – continuous dimming via an existing wall switch
- Incl. replaceable LED lamp
| Dimension | |
|---|---|

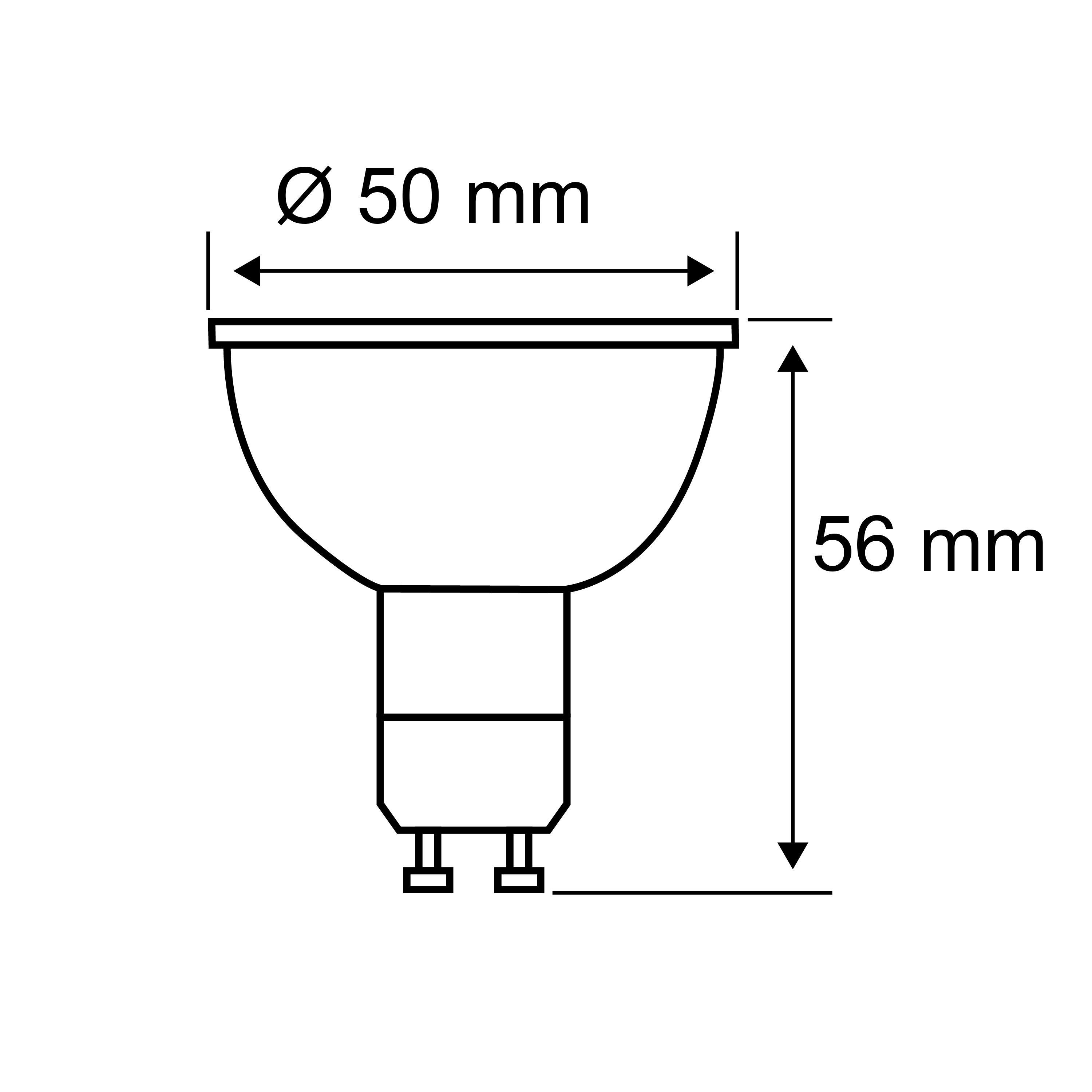

| Dimensions (Height x Width x Depth) | H: 56 mm |
| Ø | 50 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Energy consumption | |
|---|---|

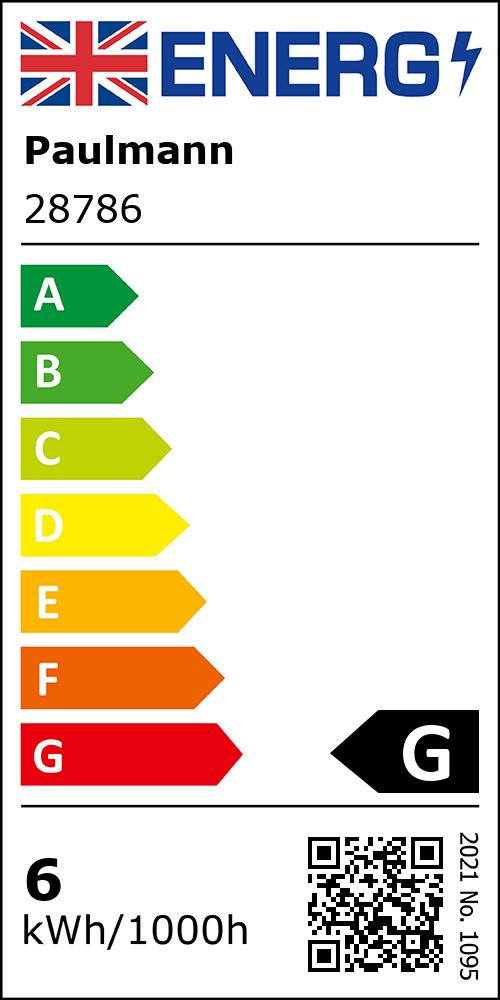

| energy efficiency (A to G) | G |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lamp lumen maintenance factor 6000h | 85 % |
| luminous flux at the end of lamplife | 75 % |
| Number of switching cycles >= | 50000 |
| lifetime | 15.000 h |
| Rated life time | 15000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 2700 K |
| Useful luminous flux | 460 lm |
| color temp | 2.700 K |
| colour consistency | <= 6 Step of the MacAdam ellipse |
| Color rendering index | > 80 Ra |
| Rated peak intensity | 173 cd |
| Rated luminous flux (Lumen) | 460 lm |
| Lamp Features | |
|---|---|
| Component parts | 5,5 W |
| Technique | LED |
| Socket | GU10 |
| Type | Reflector |
| Dim | EasyDim mit Wandschalter |
| Dimmable | Yes |
| Inclusive lamp | ✓ |
| Number of component parts | 3x |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageZubehoer

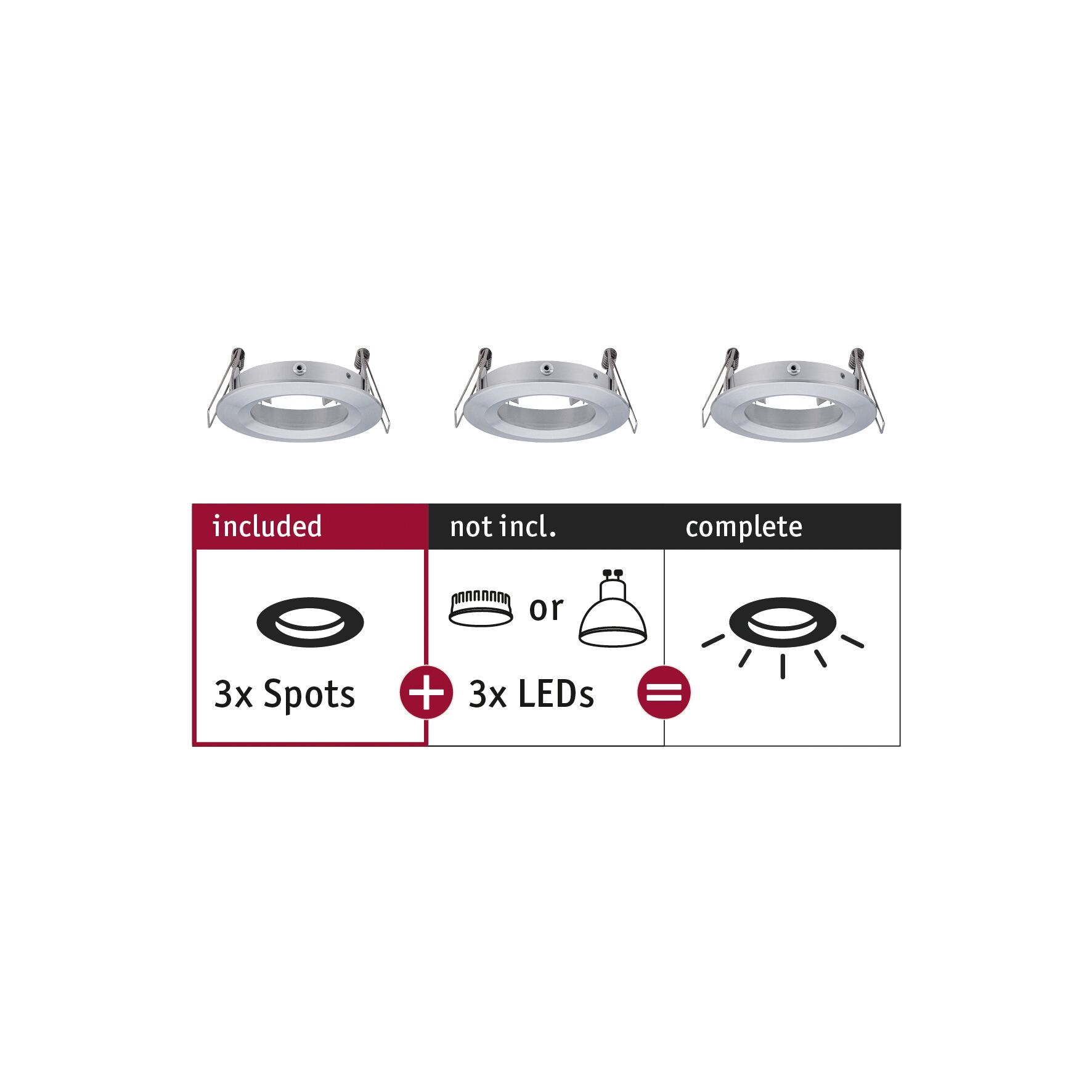

- Recessed luminaire
IP44 round 78mm max. 3x10W dimmable Turned aluminium
£32.95*

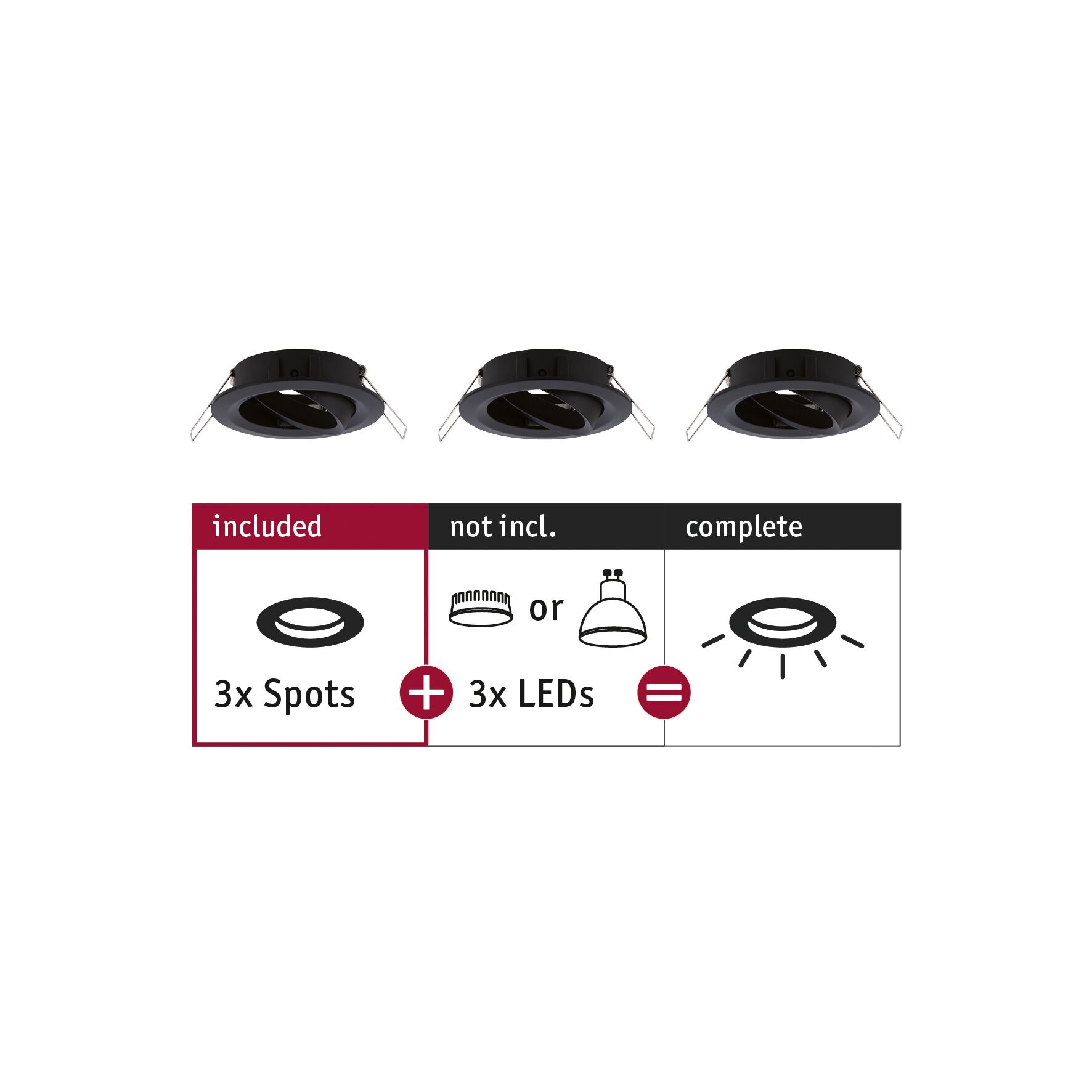

- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Black matt
£30.95*

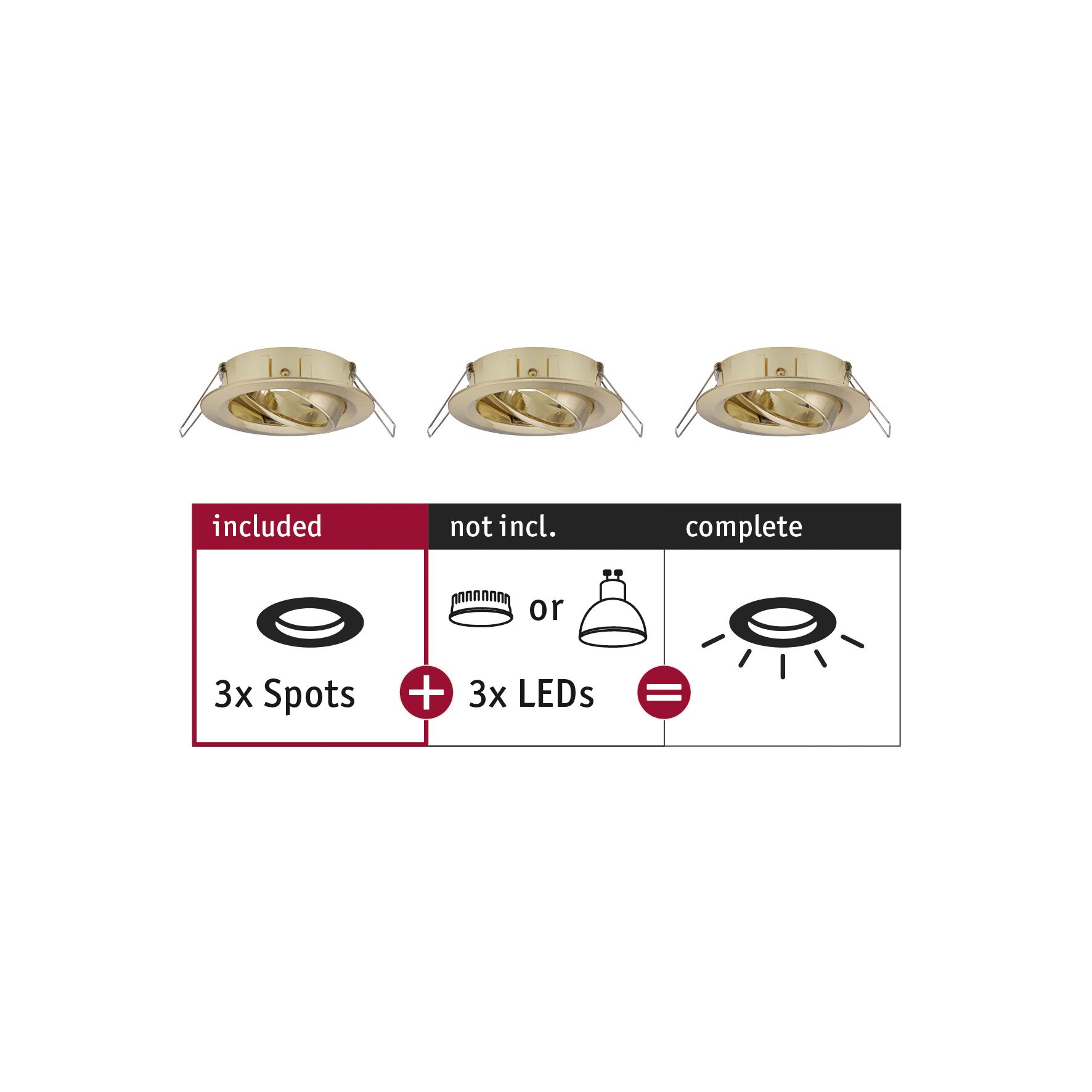

- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Brushed brass
£30.95*
- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Brushed iron
£30.95*
- Recessed luminaire
round 84mm 50° max. 3x10W dimmable Matt white
£30.95*

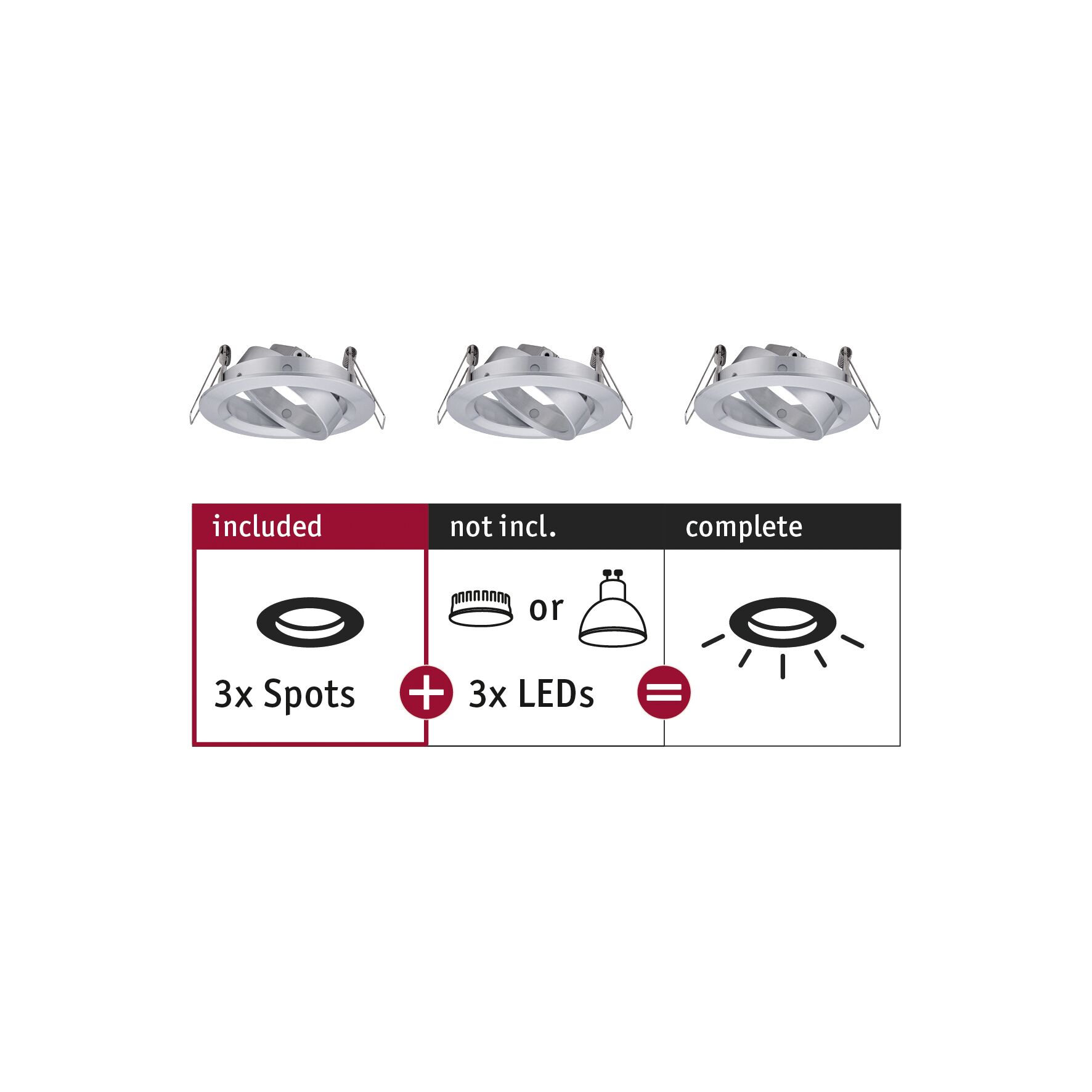

- Recessed luminaire
