Article-No.:
92484
Recessed luminaire
Choose Basic Set Rigid
IP44 round 78mm max. 3x10W 230V dimmable Turned aluminium
IP44 round 78mm max. 3x10W 230V dimmable Turned aluminium

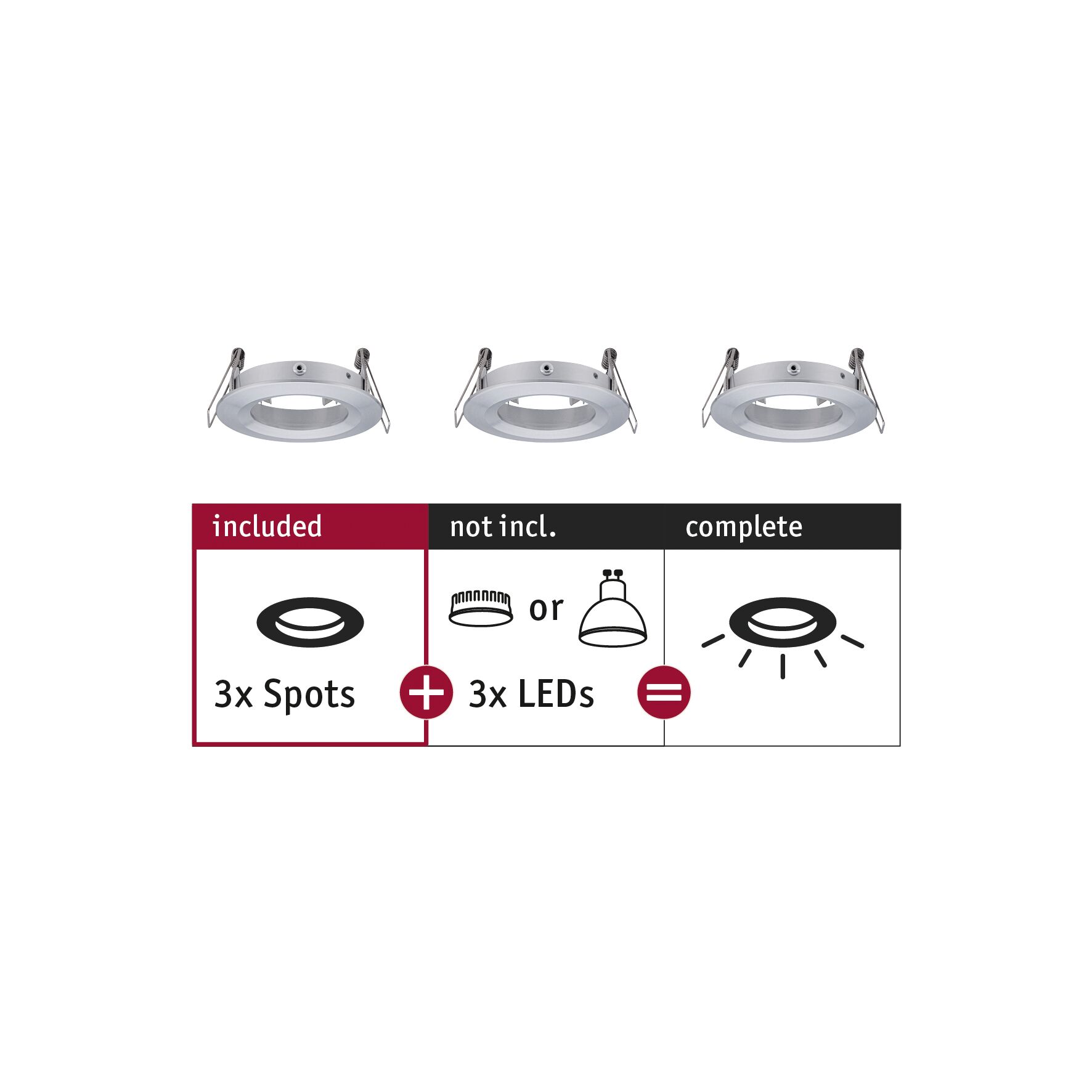

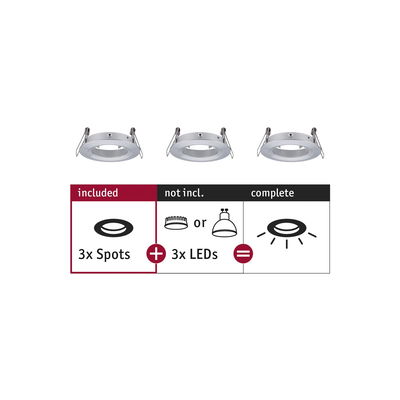

- Set of 3 mounting rings
- For combination with Choose! coin sets
- Don’t forget: Include a suitable lamp in your order!
Recessed luminaire Choose Basic Set Rigid IP44 round 78mm max. 3x10W 230V dimmable Turned aluminium

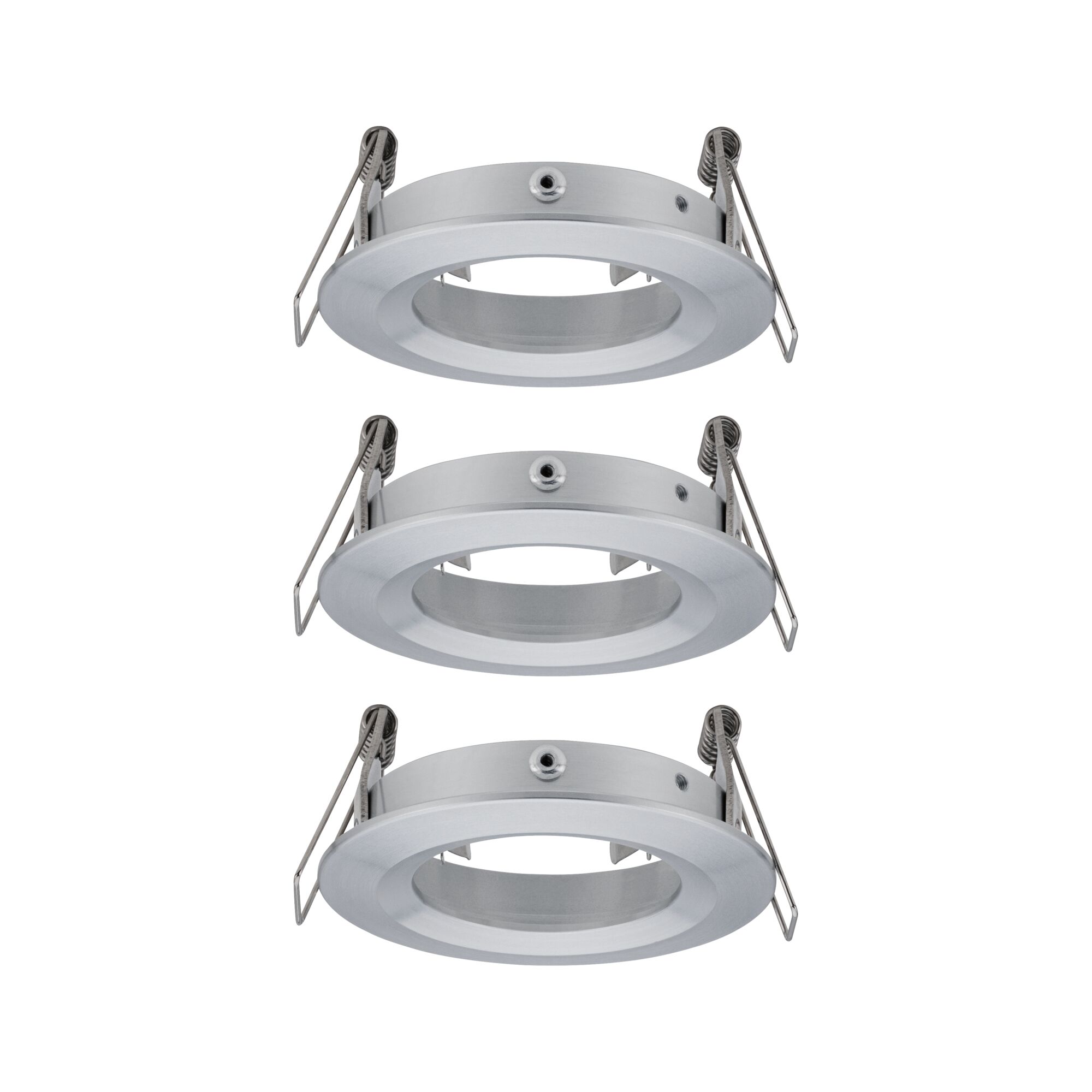

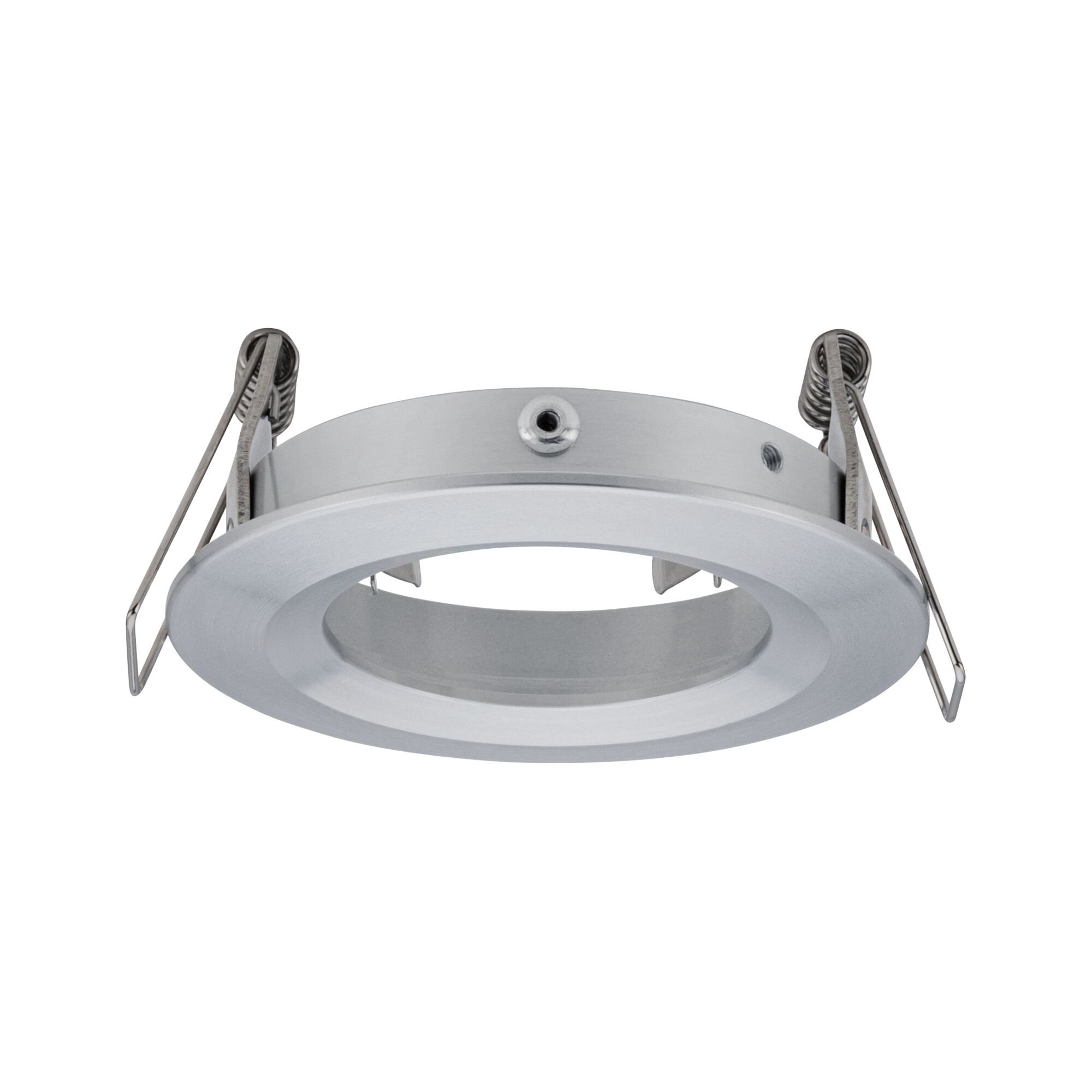

The rigid mounting rings in the colour Turned aluminium are compatible with all lamps from the Choose series. Thanks IP44 splash protection, they are also suitable for wet rooms. Choose lets you combine the recessed luminaires you want. The recessed luminaires can be linked unlimited times, no transformer is needed and all lamps are replaceable.
- Set of 3 mounting rings
- For combination with Choose! coin sets
- Don’t forget: Include a suitable lamp in your order!
| Dimension | |
|---|---|
| Depth of hollow wall | 15-45 mm, 15 mm |
| Total Mounting depth | 30-60 mm |
| Ø | 78 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium |
| Lamp Features | |
|---|---|
| Technique | Lamp without bulb |
| IP protection | IP44 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp and ballast used. |
| Inclusive lamp | no |
| Maximum wattage range | max. 3x10 W |
| Number of component parts | 3x |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageFlyer and Safety instructions
Safety instructionsEmpfohlene Leuchtmittel
