Article-No.:
93640

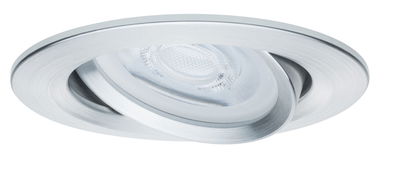

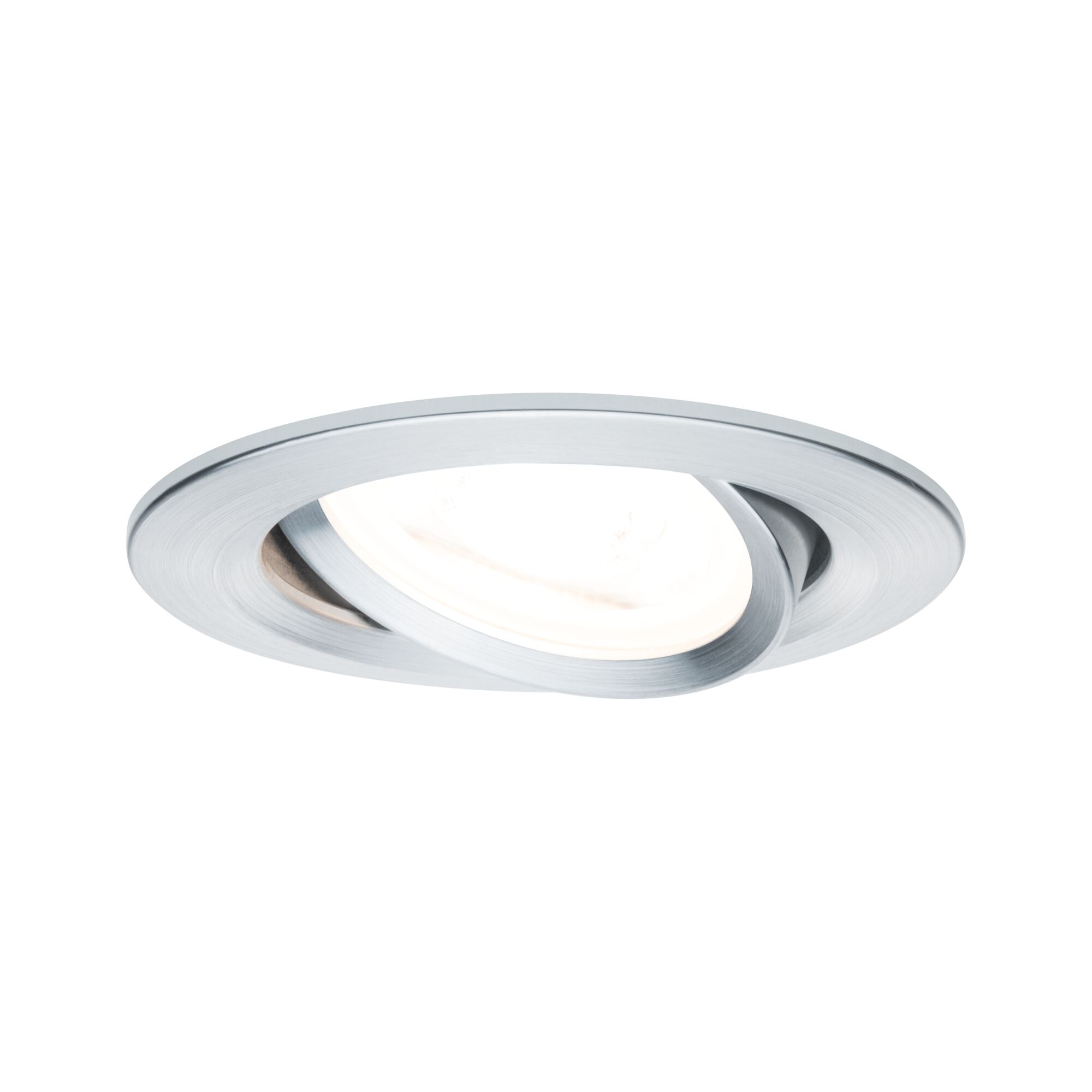

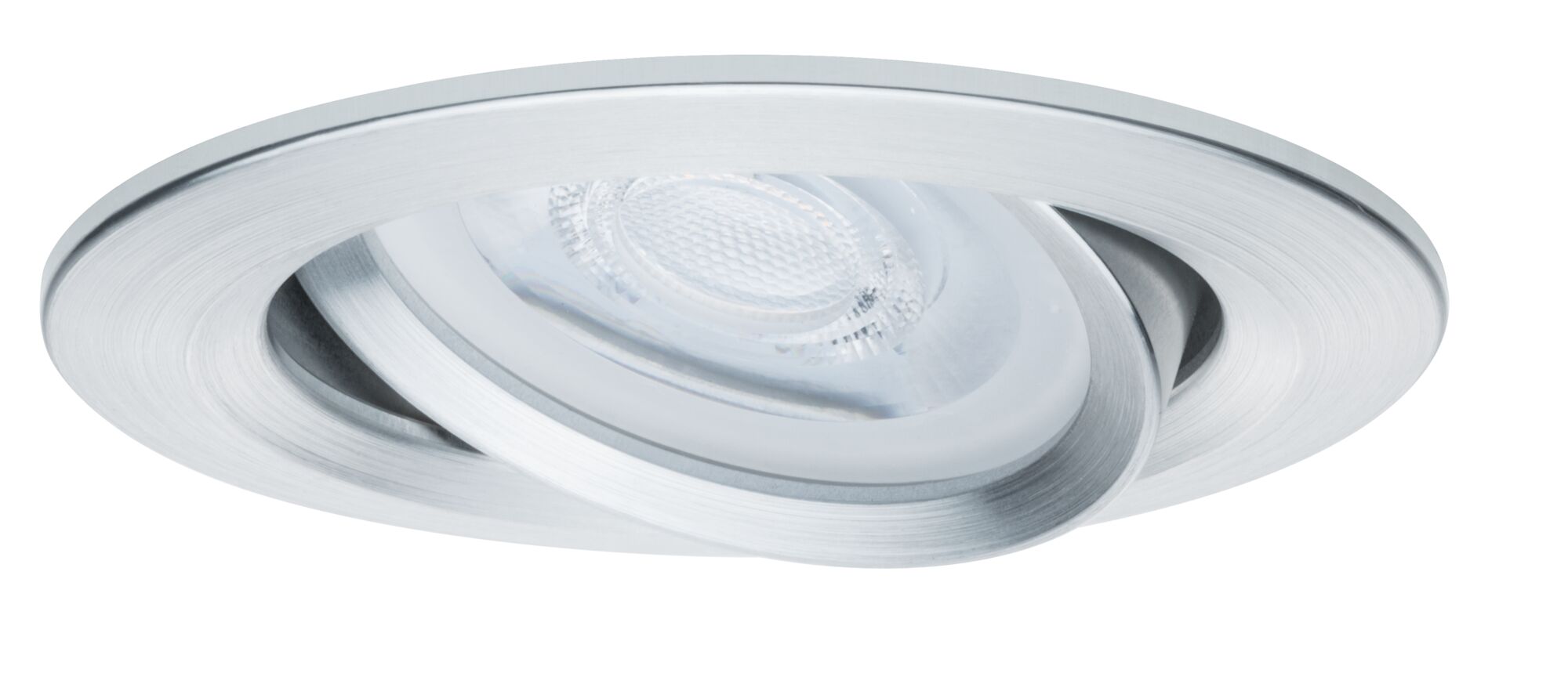

Recessed luminaire
Nova Swivelling
round 84mm 50° GU10 max. 35W 230V dimmable Turned aluminium
round 84mm 50° GU10 max. 35W 230V dimmable Turned aluminium
- Single luminaire
- Freely selectable lamps
- Don't forget: Order compatible bulbs as well!
Recessed luminaire Nova Swivelling round 84mm 50° GU10 max. 35W 230V dimmable Turned aluminium

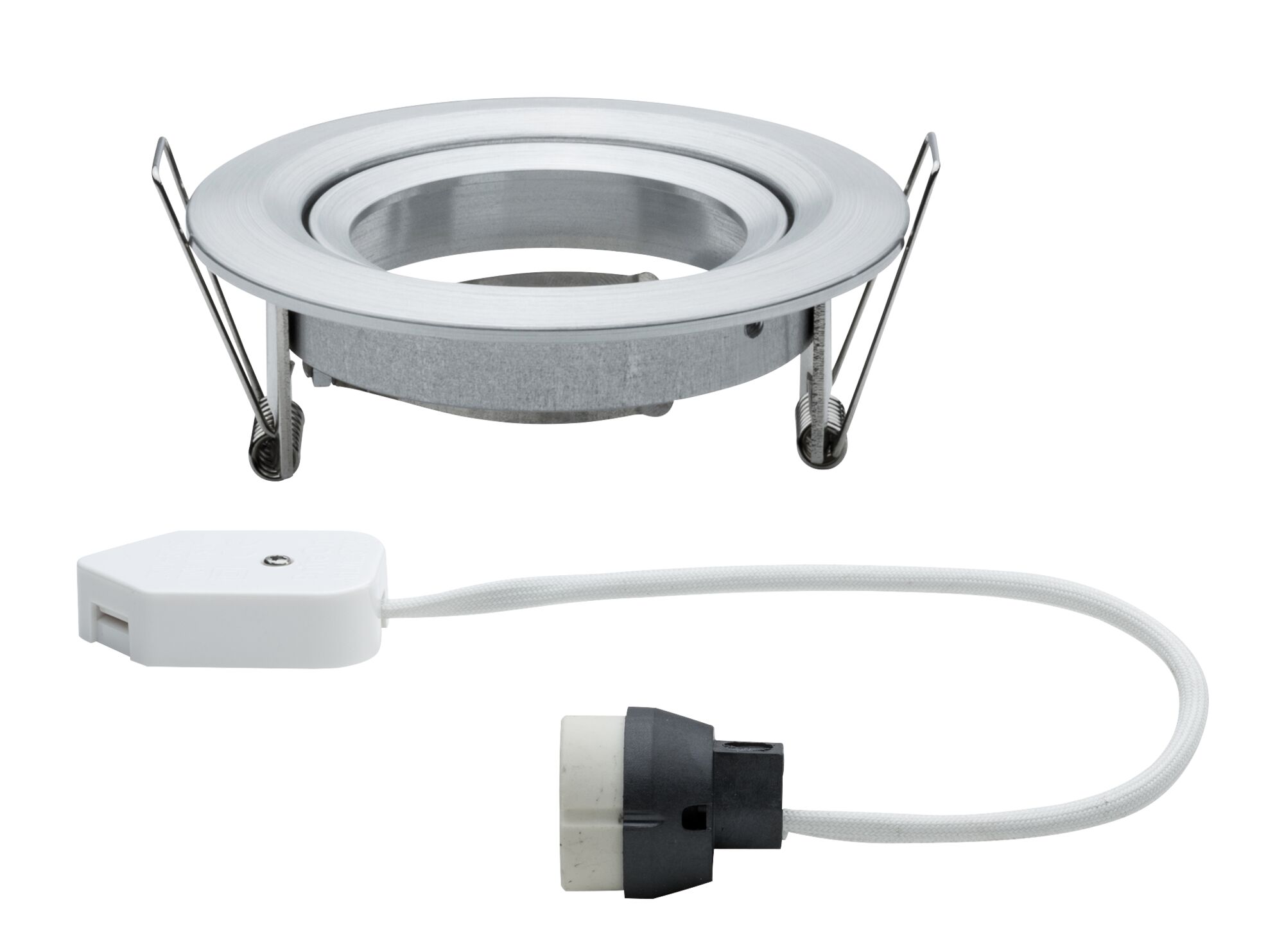

With their modern design, Nova recessed spotlights blend in with all styles of furnishing. Choose the lamp yourself - matching reflector lamps with a GU10 base and an output of 35 watts maximum. They can easily be fixed using a clamp in the inside of the mounting ring - snap rings are thus not required.
- Single luminaire
- Freely selectable lamps
- Don't forget: Order compatible bulbs as well!
- The lamp can easily be fitted without a snap ring
- IP protection: IP23 - spray-protected
- With swivelling spots for ideal illumination
- For 230 V direct connection

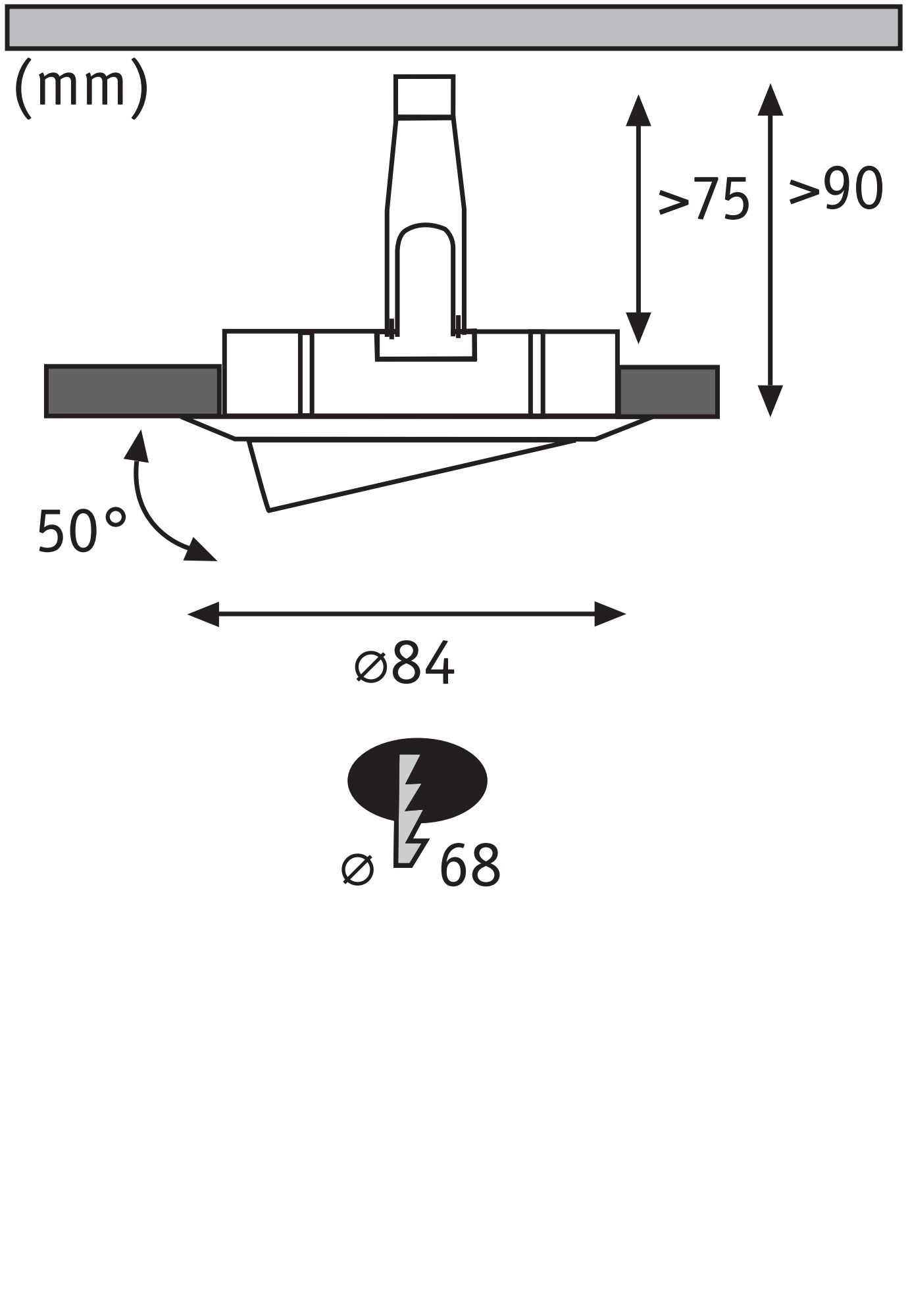

| Dimension | |
|---|---|
| depth of hollow wall | 75 mm |
| Mounting depth | 90 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Depth of hollow wall | 75 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Swivel range | 50 ° |
| Technique | Lamp without bulb |
| Socket | GU10 |
| Dimmable | The luminaire is dimmable, and the dimming capability depends on the type of lamp used. |
| Maximum wattage | max. 35 W |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
