Article-No.:
95136
URail
Connector
Line connector
70x11mm max. 1000W Silver
70x11mm max. 1000W Silver
£17.95*
Prices incl. Standard rate VAT
- URail line connector incl. assembly instructions
- Internal, therefore not visible
- Suited for all rail colours

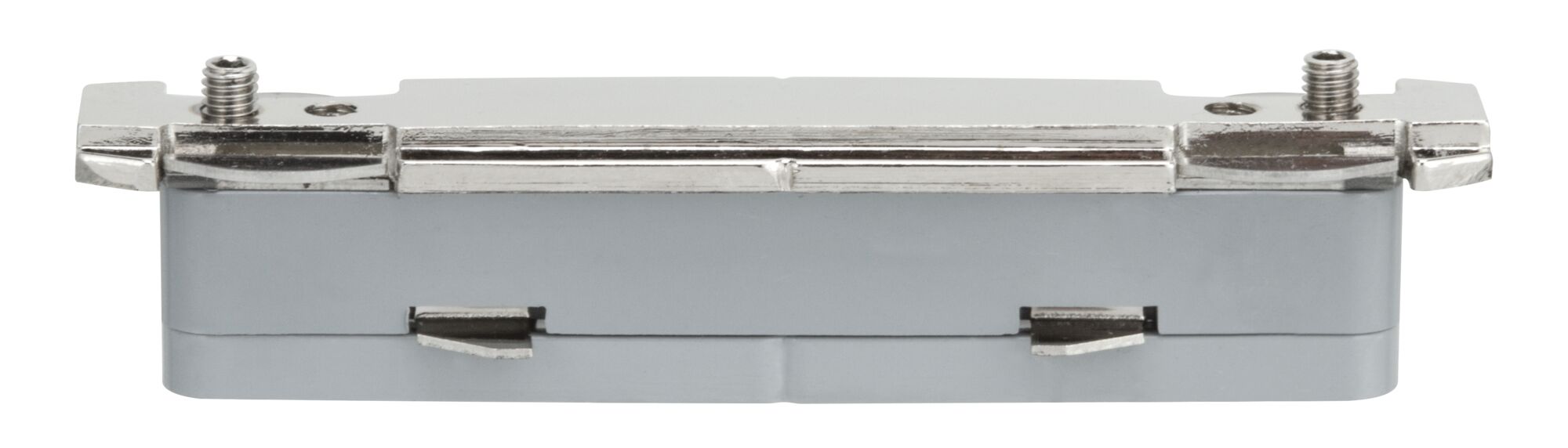

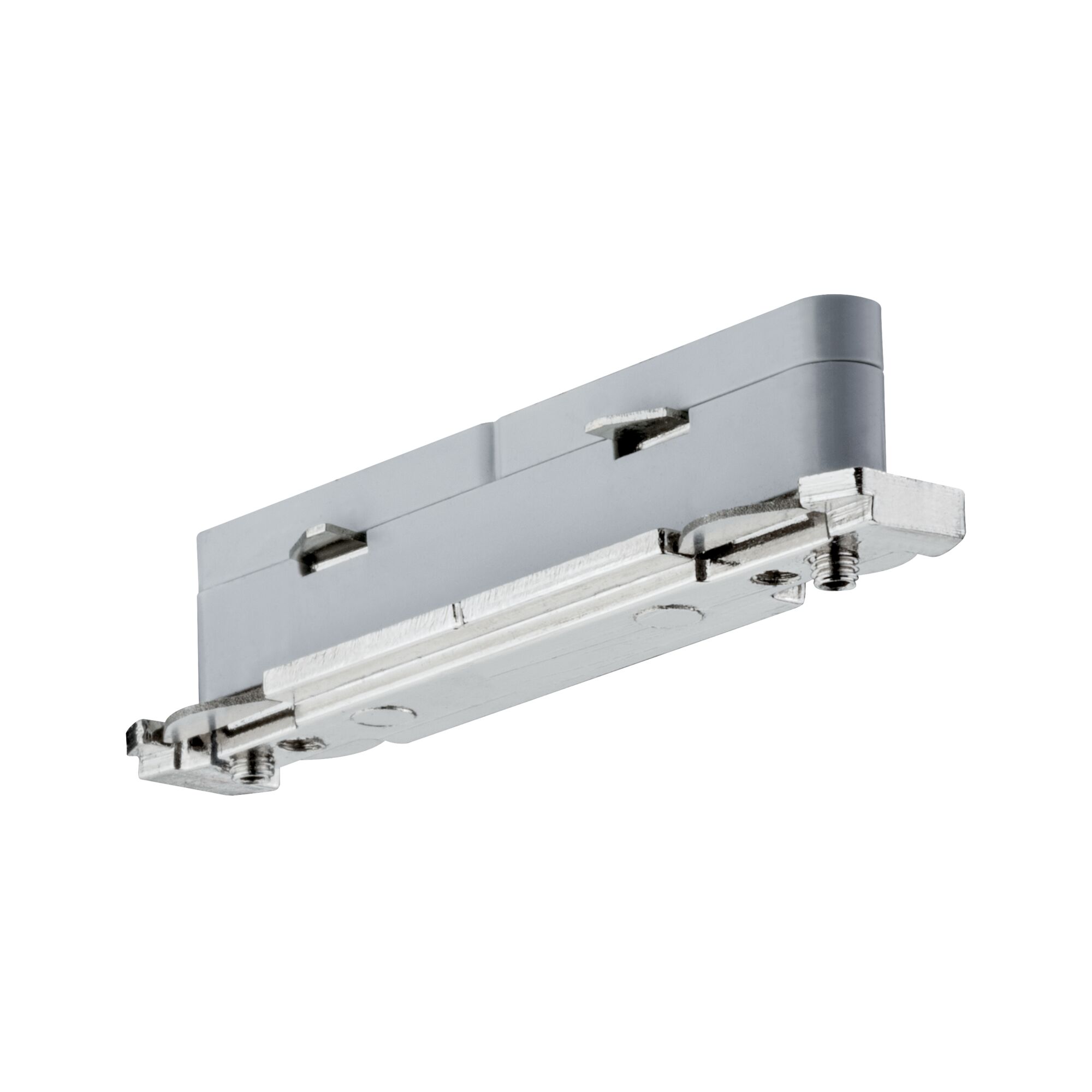

URail Connector Line connector 70x11mm max. 1000W Silver

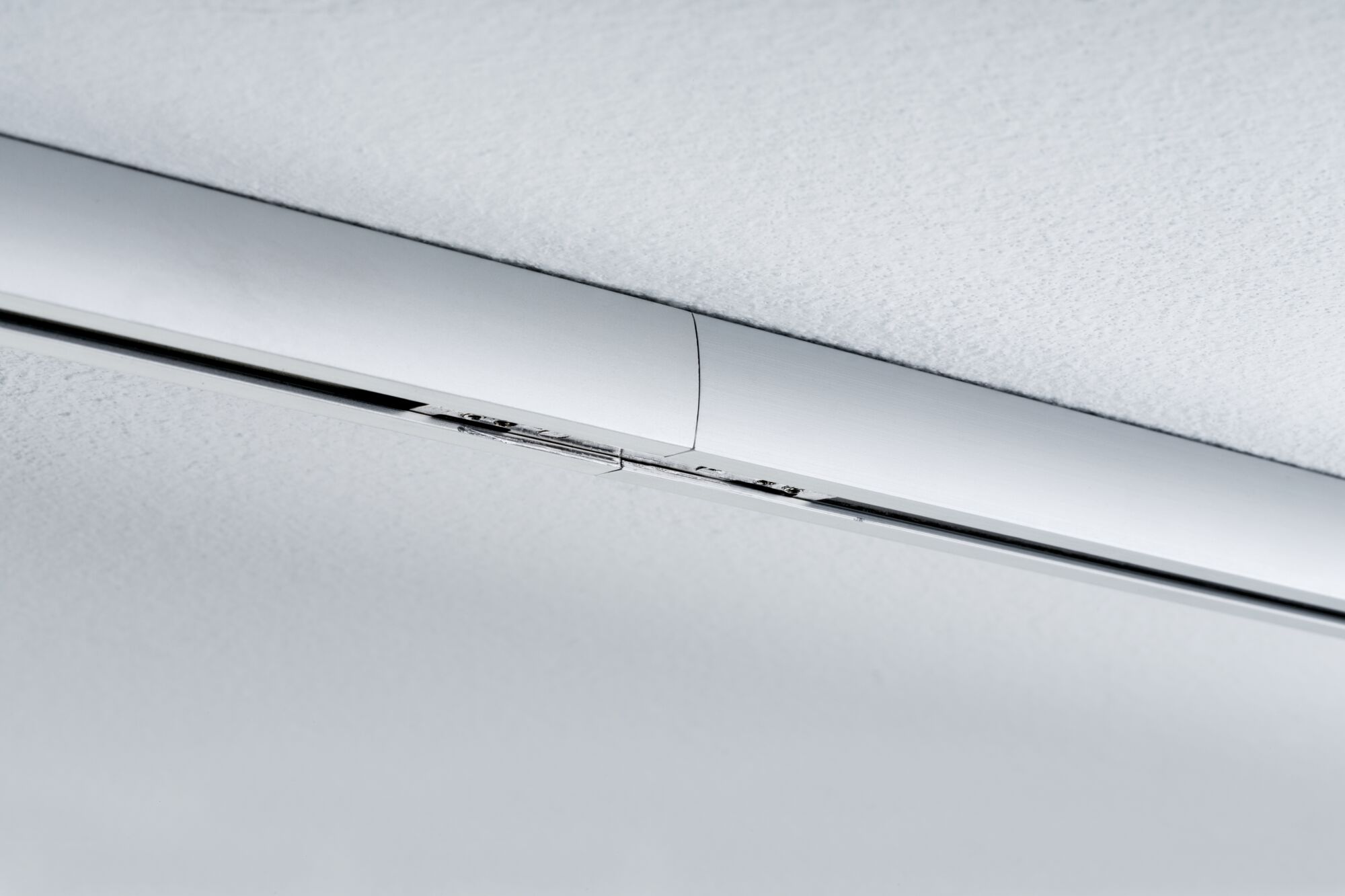

This internal line connector is one of many system parts from the URail series. After installation it is concealed from sight in the rails so that it is suitable for all colour variants. Used together with additional components, it allows you to design your own ideal personal 230 volt URail rail system. The system is designed for a total output of 1,000 W and for the operation of LED luminaires, luminaires with energy-saving lamps (Energy Saver) and halogen luminaires.
- URail line connector incl. assembly instructions
- Internal, therefore not visible
- Suited for all rail colours
| Dimension | |
|---|---|

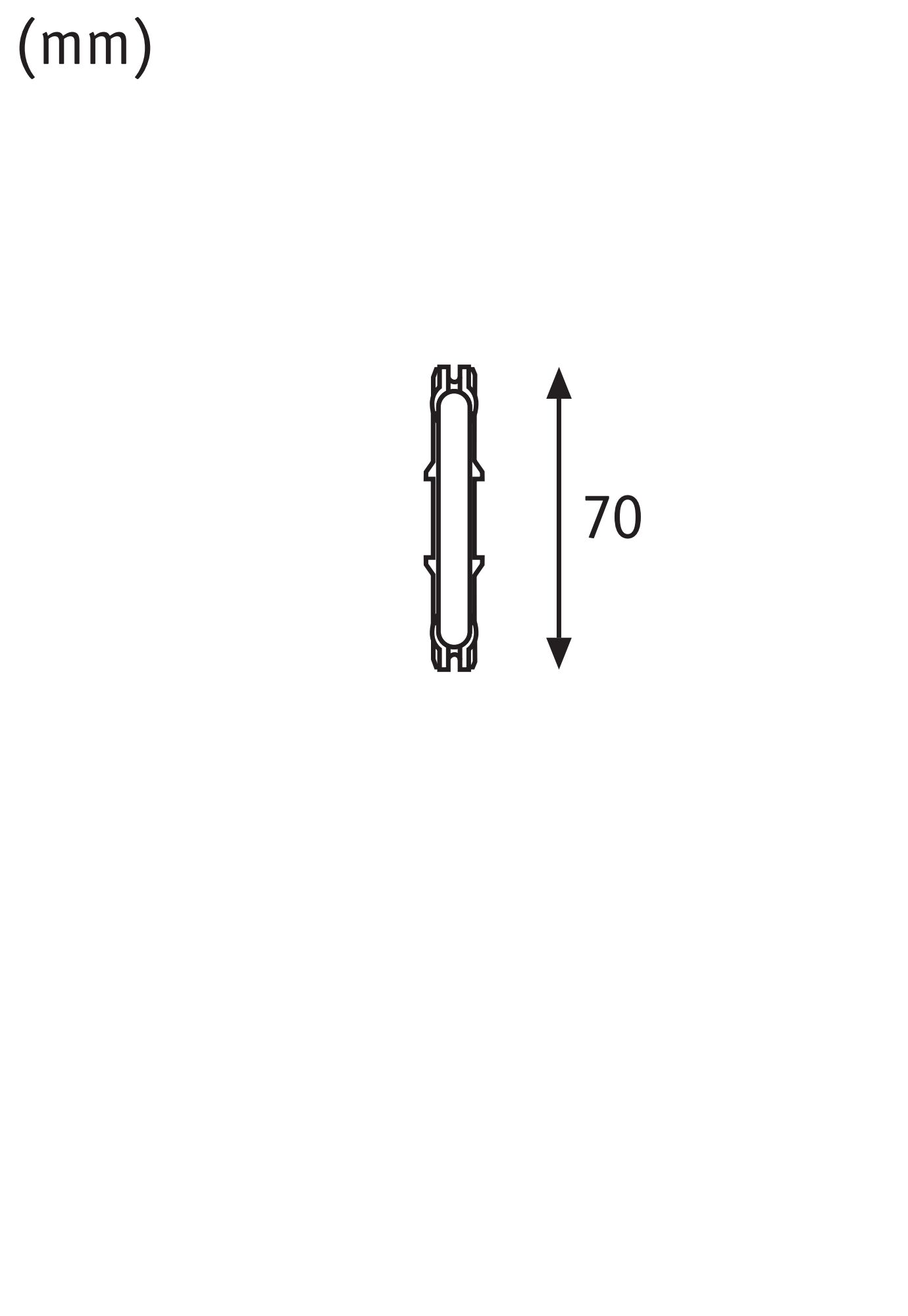

| Dimensions (Height x Width x Depth) | H: 15 x B: 70 x T: 11 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 70 mm |
| Maximum wattage range | max. 1000 W |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
