Article-No.:
97686
URail
Connector
T-piece
104x62mm max. 1000W White
104x62mm max. 1000W White
- Surface/color: White

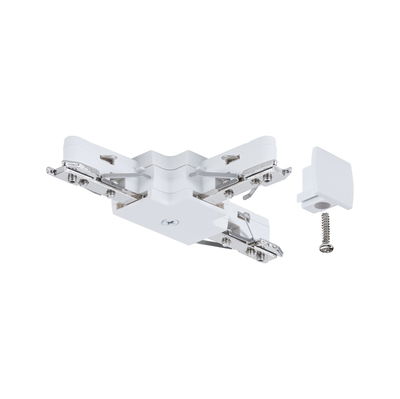

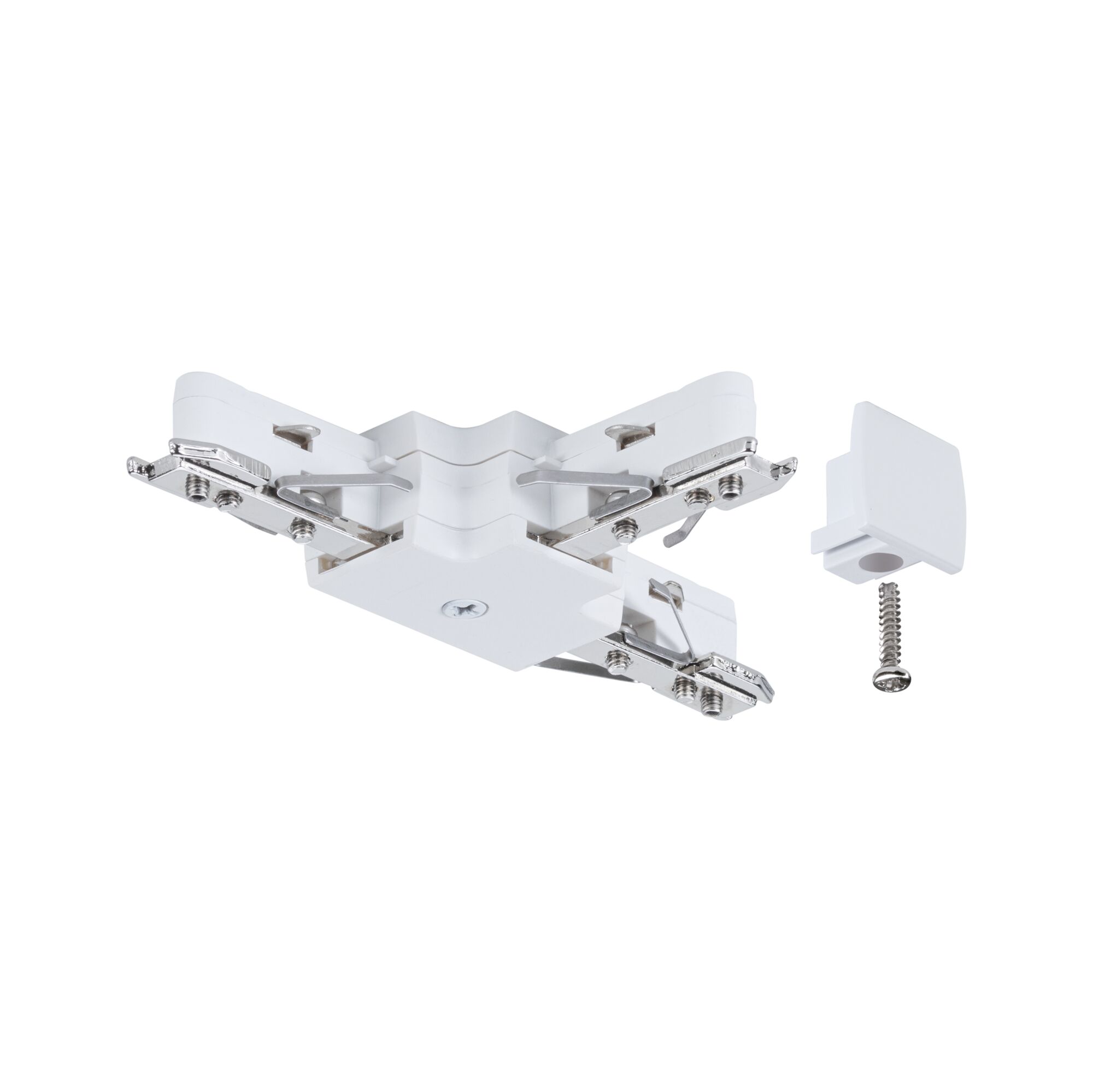

- URail T-cover incl. assembly instructions
- One end cap to close off the rail ends is included in the scope of delivery

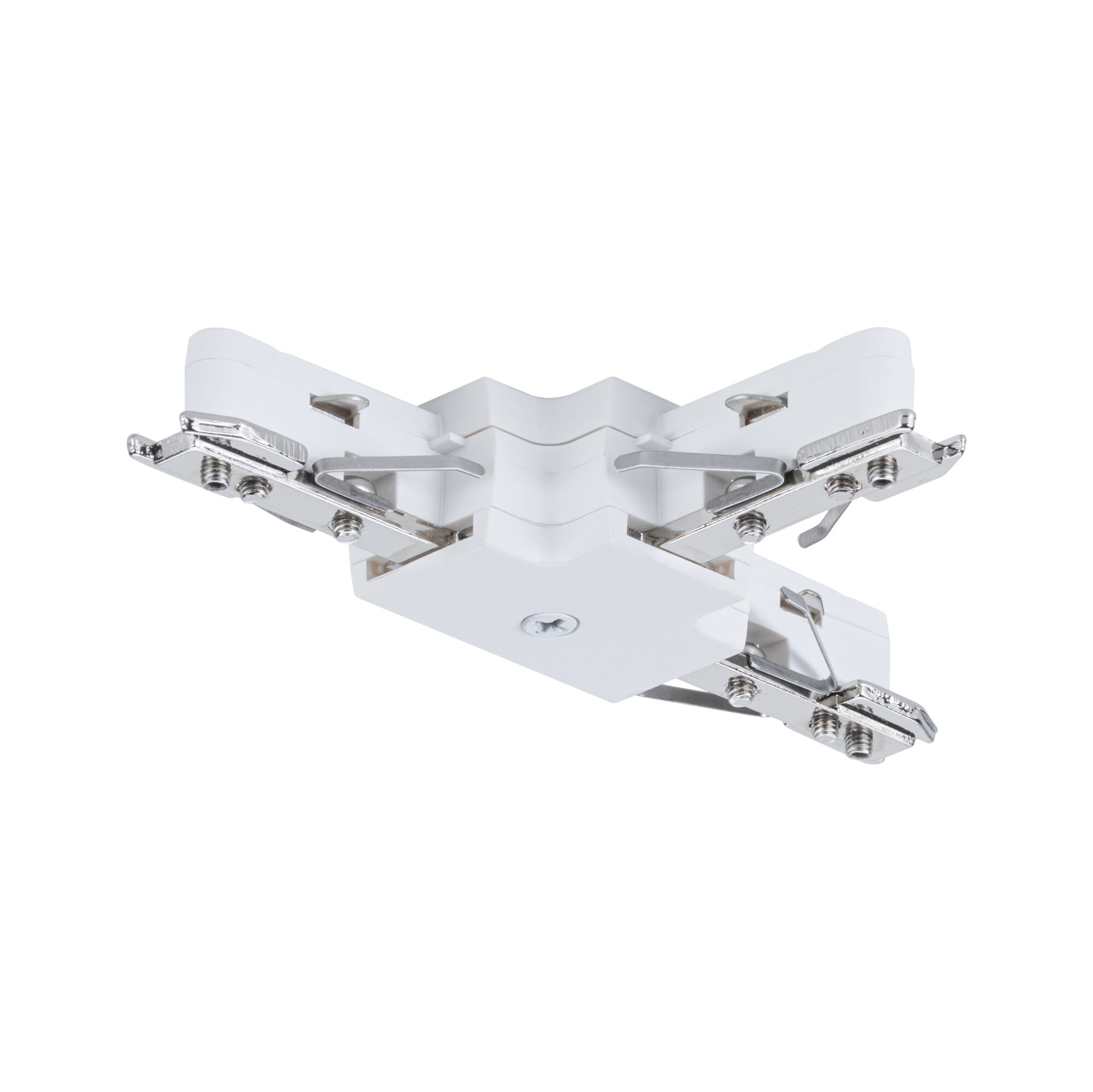

URail Connector T-piece 104x62mm max. 1000W White
You can design T-shaped installations with this connector. It is one of many modular parts from the URail series. Used together with additional components, it allows you to design your own ideal personal 230 volt URail rail system. The system is designed for a total output of 1,000 W and for the operation of LED luminaires, luminaires with energy-saving lamps and halogen luminaires.
- Surface/color: White
- URail T-cover incl. assembly instructions
- One end cap to close off the rail ends is included in the scope of delivery
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 104 x T: 62 mm |
| Usable length | 36/29 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Total Width | 104 mm |
| Maximum wattage range | max. 1000 W |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| 850°C test | 850°C test |
| WEEE-Reg.-No | DE 39236390 |
