Article-No.:
95371
URail
Panel
Deck
1407,5lm 13,5W 3000K dimmable 230V White
1407,5lm 13,5W 3000K dimmable 230V White
£152.00*
Prices incl. Standard rate VAT

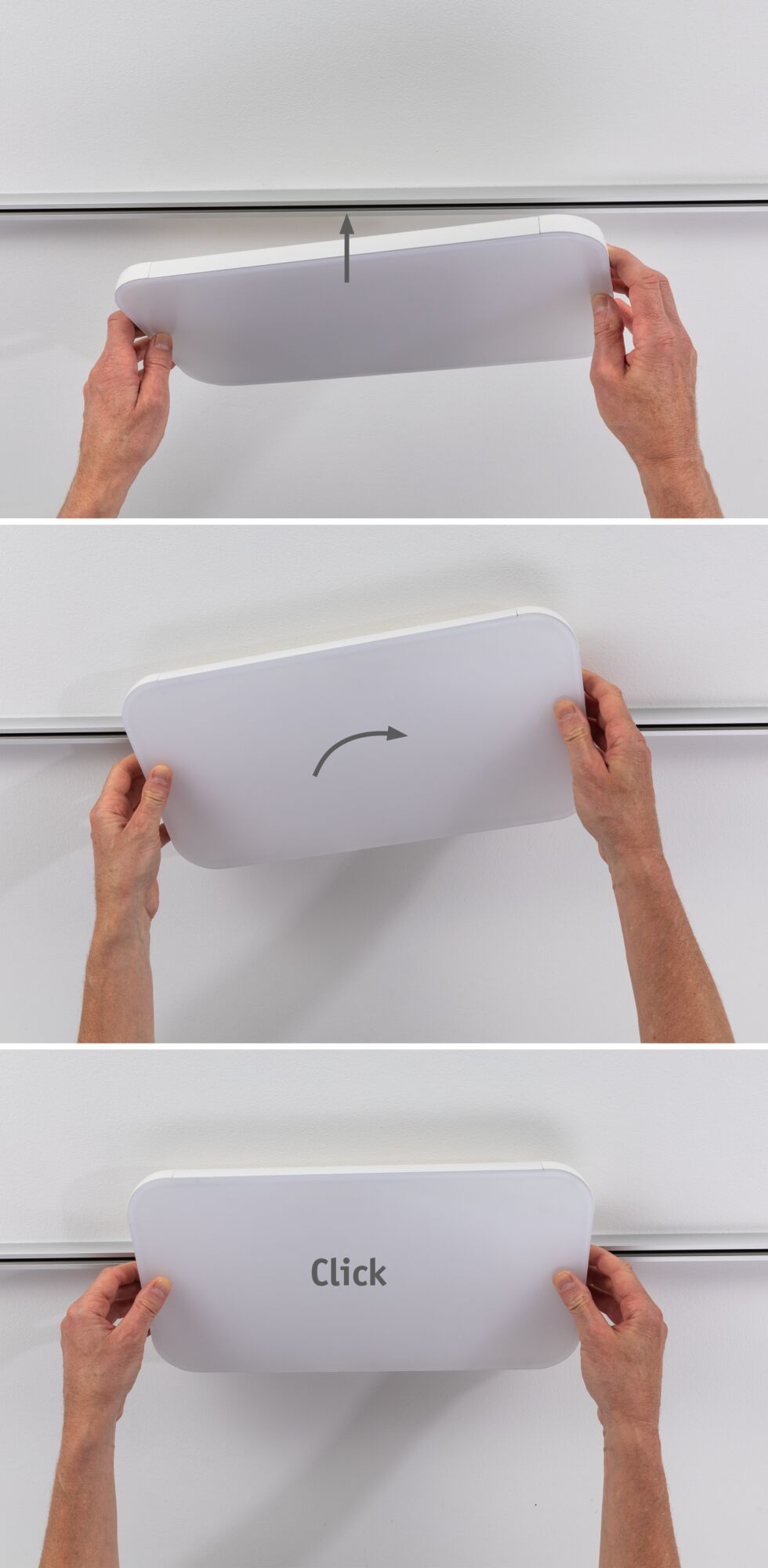

- URail system lamp incl. assembly instructions
- Area lighting
- For wall and ceiling mounting

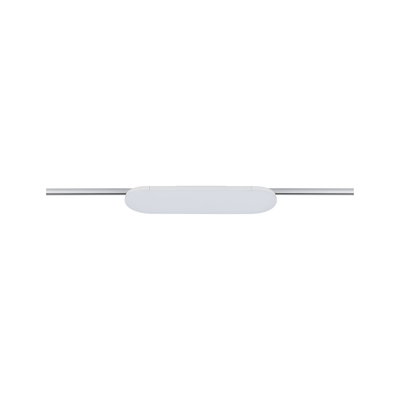

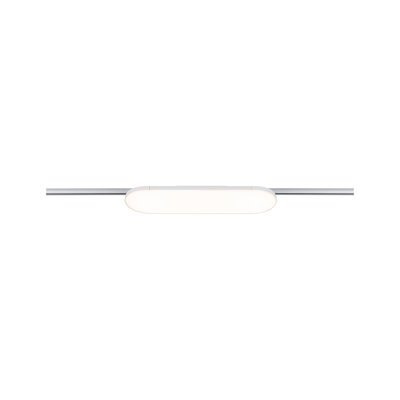

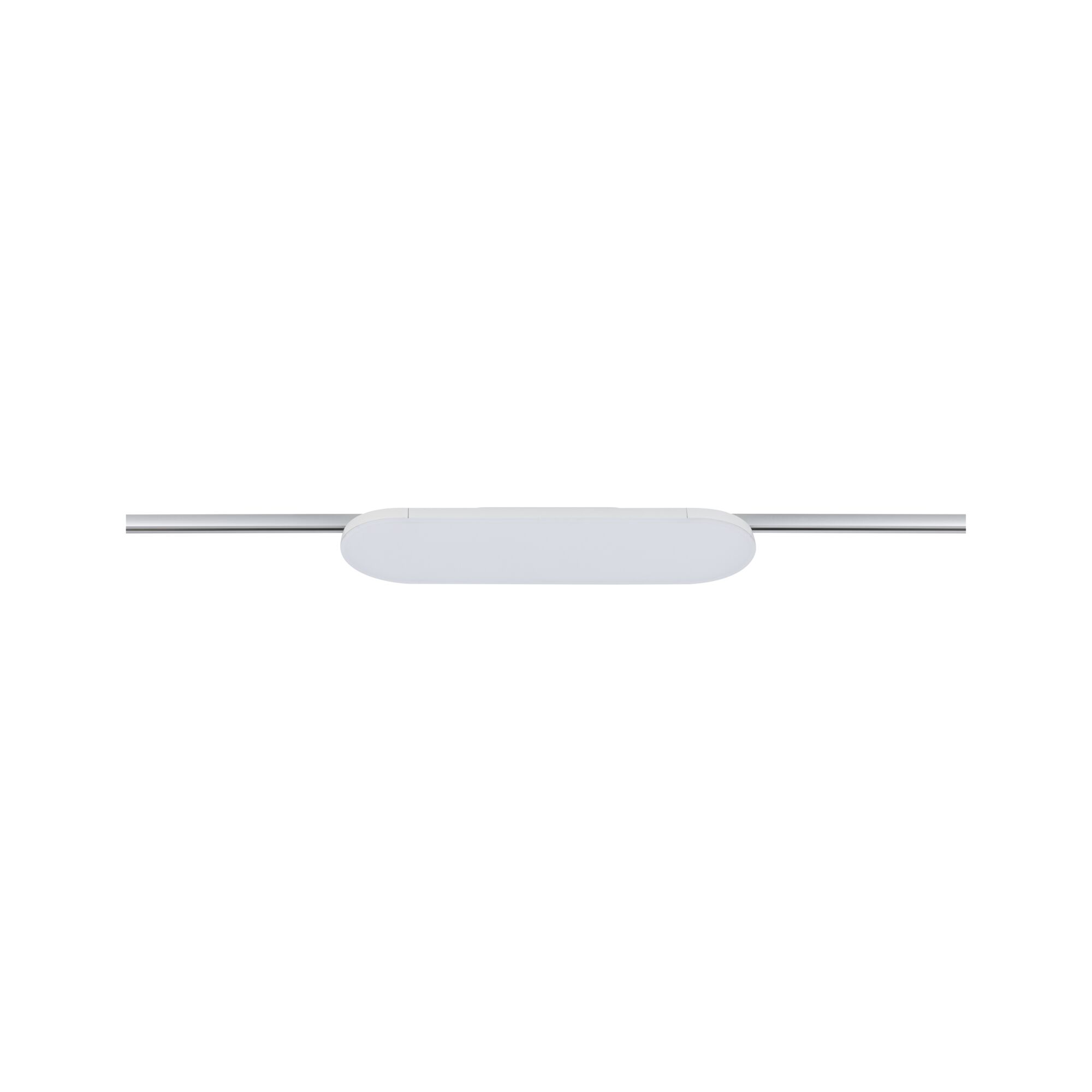

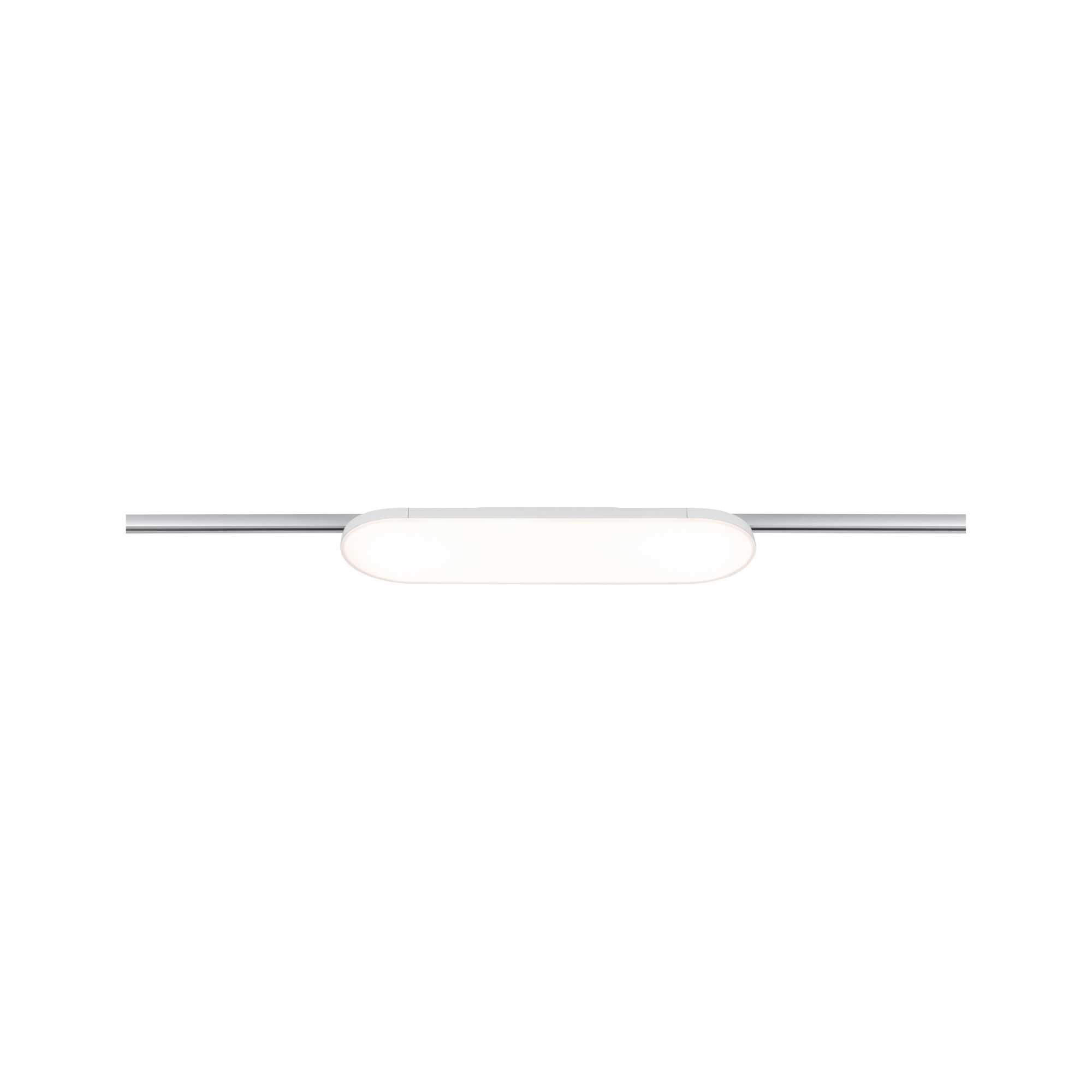

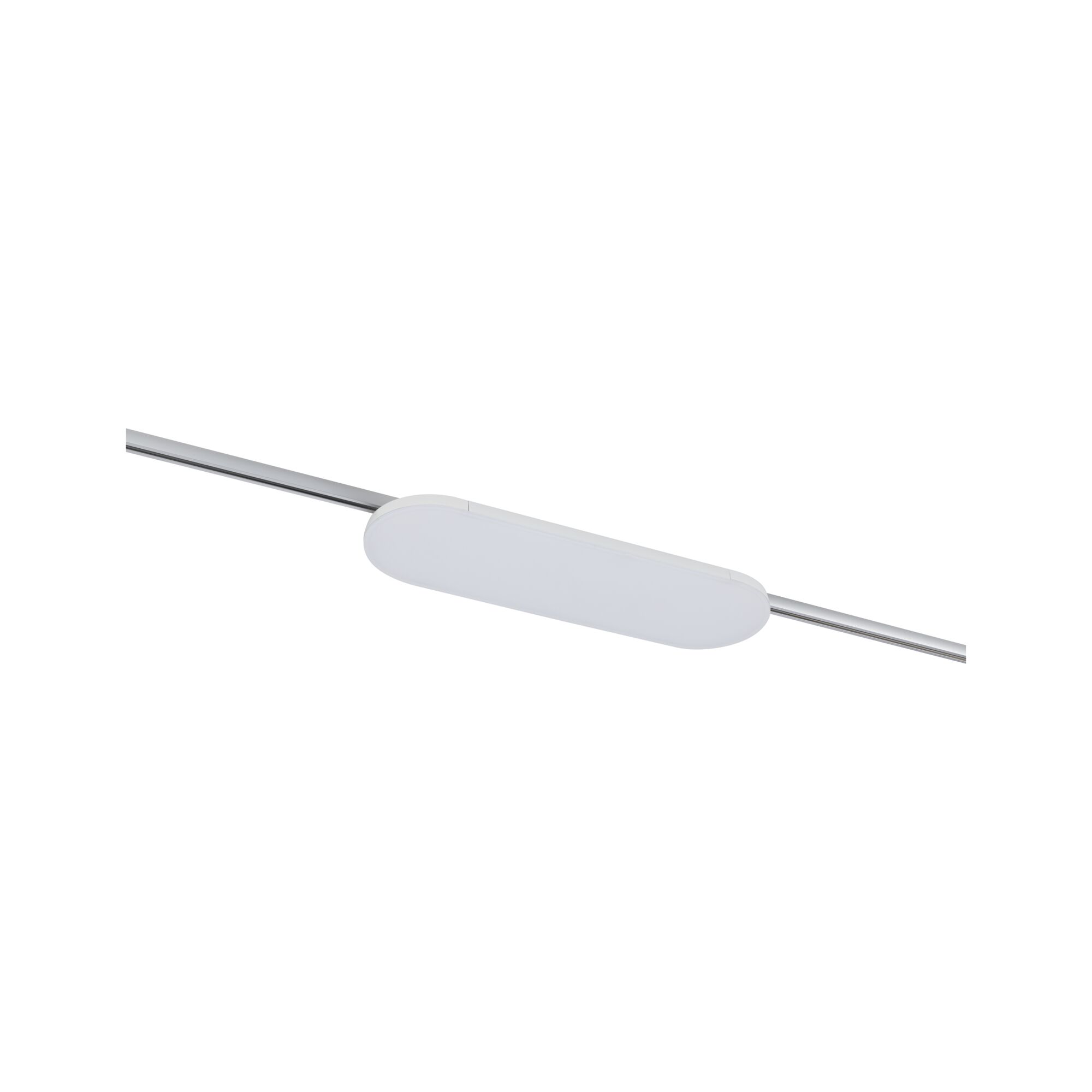

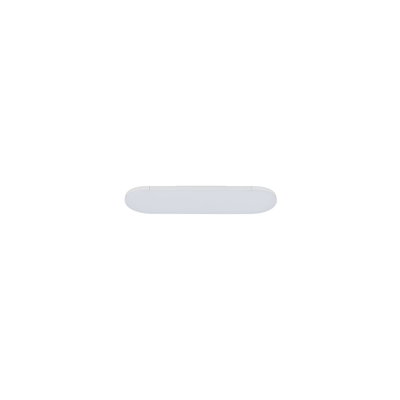

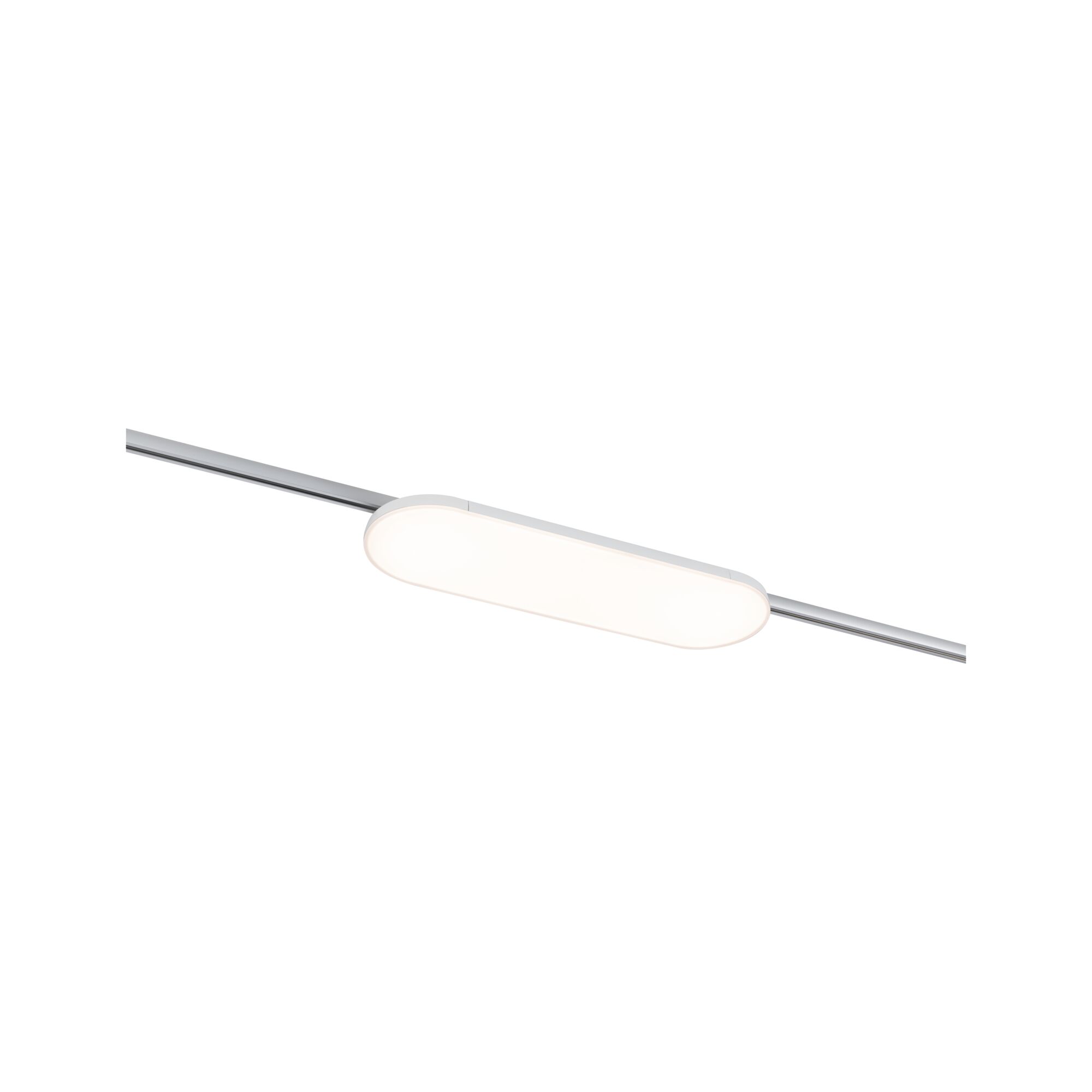

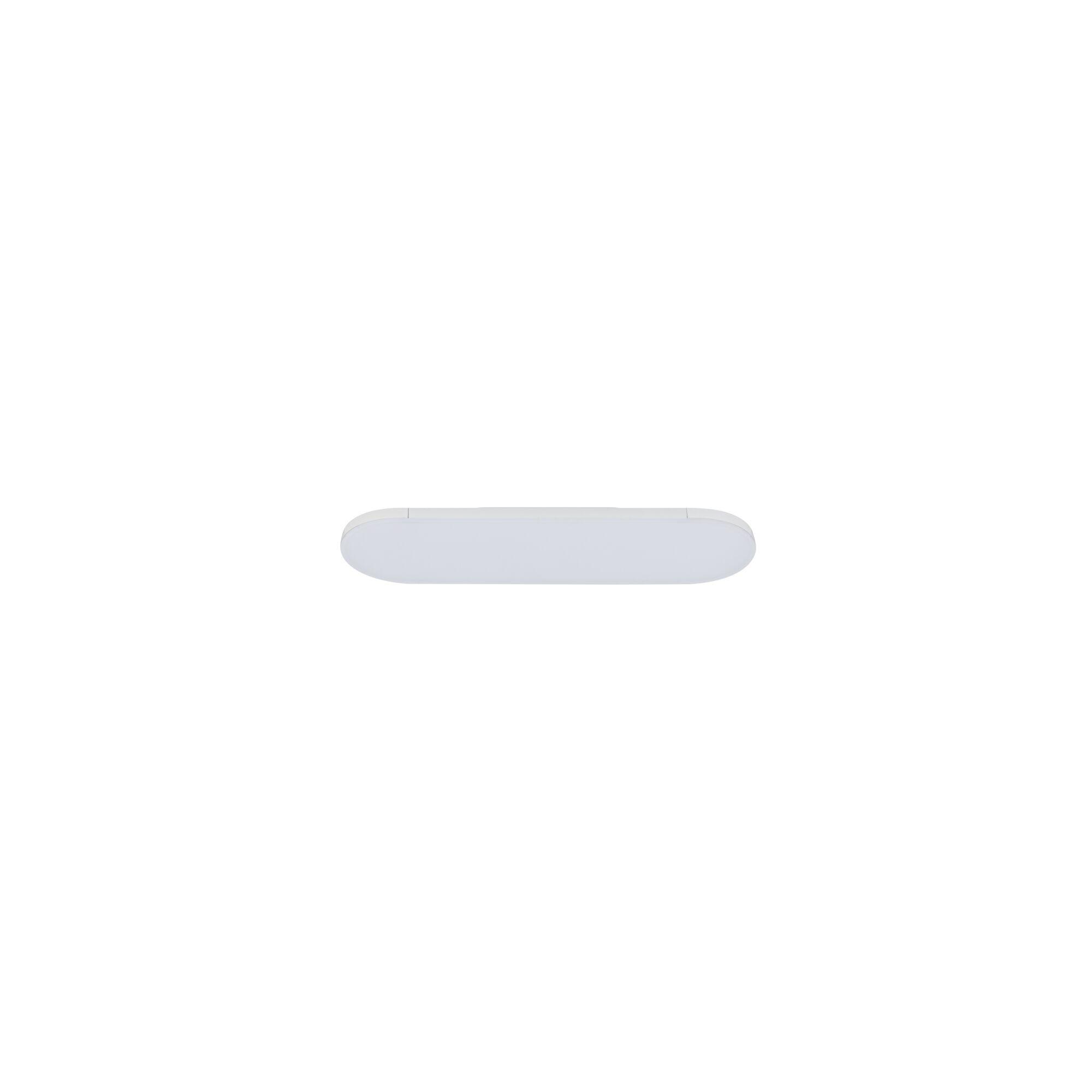

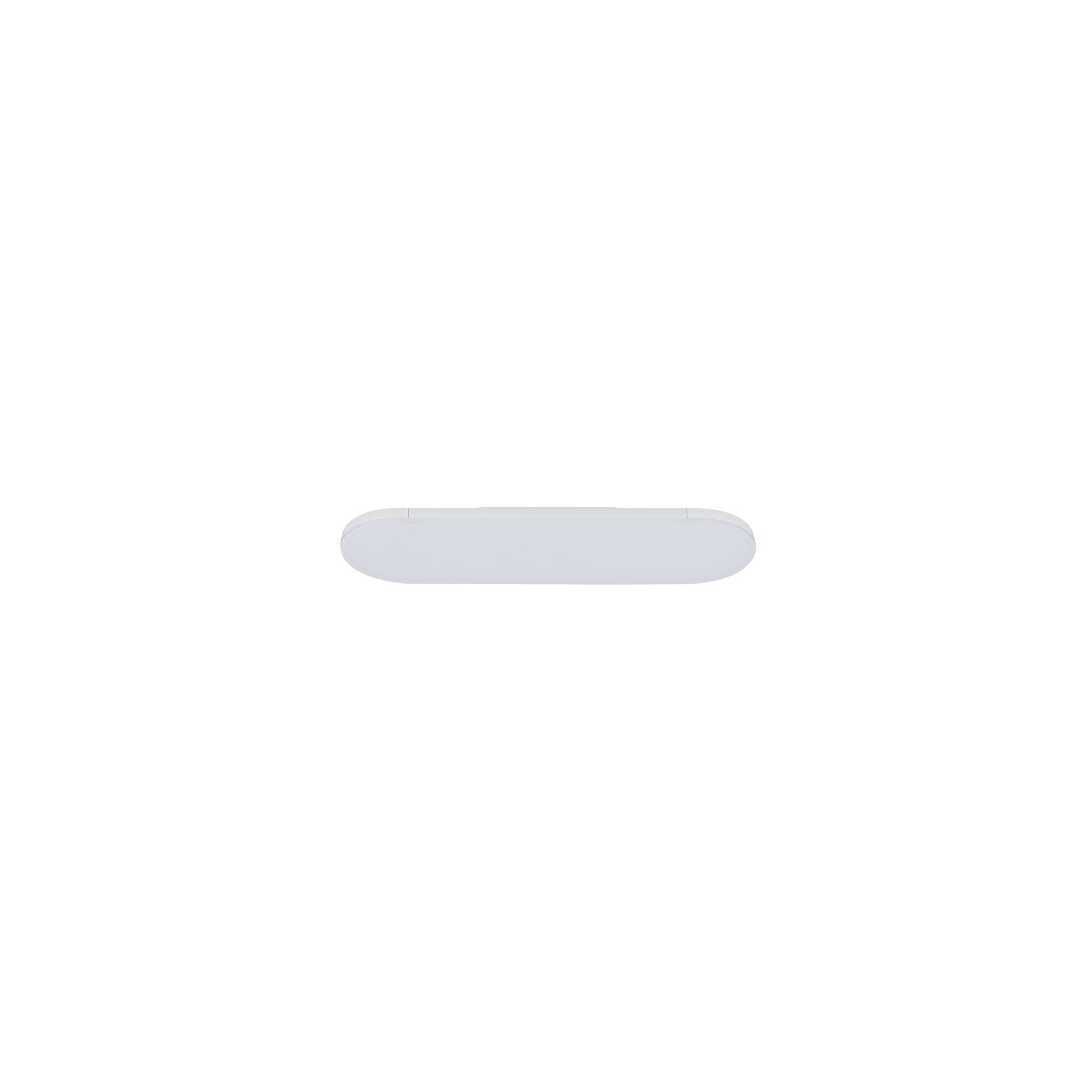

URail Panel Deck 1407,5lm 13,5W 3000K dimmable 230V White

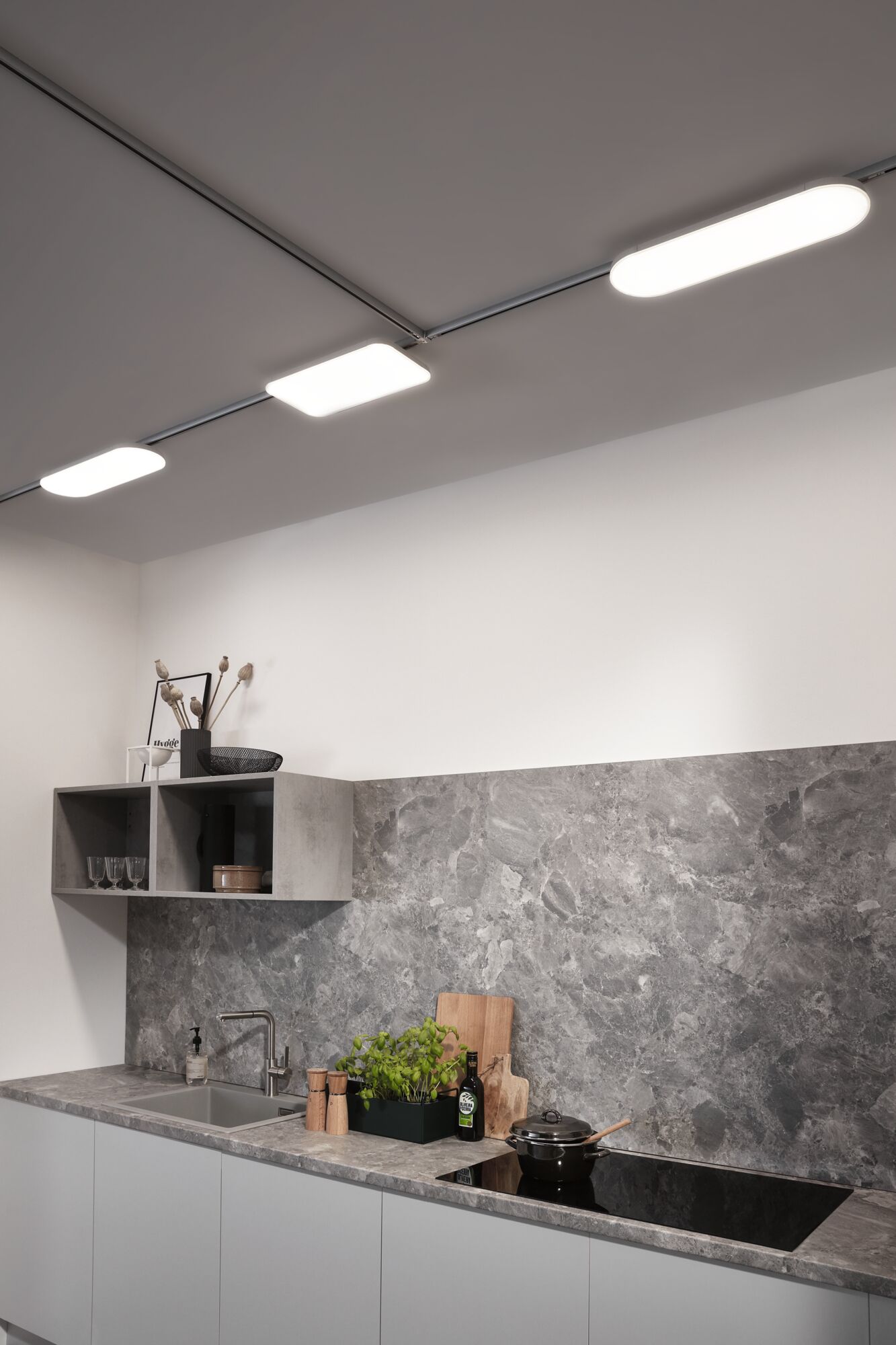

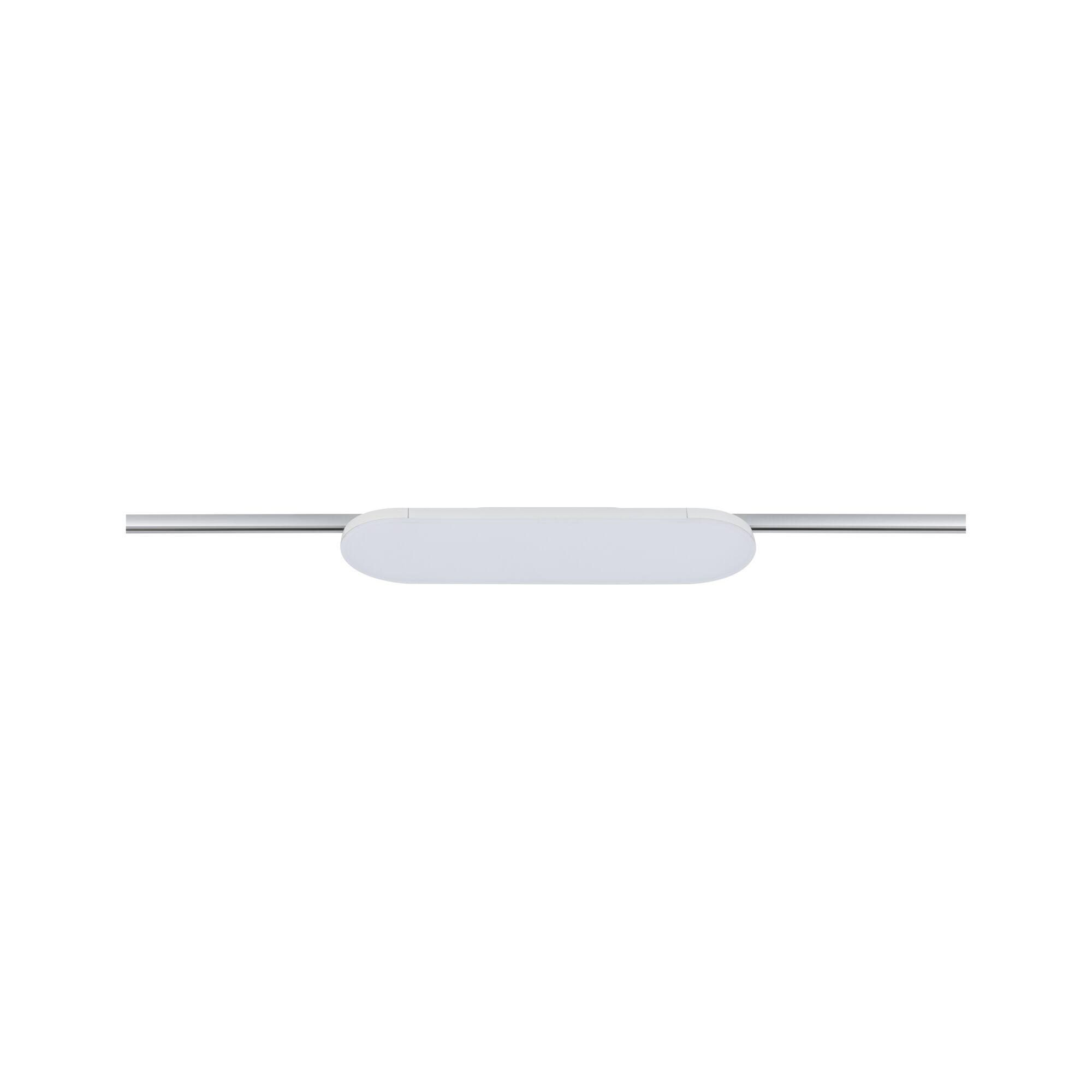

The innovative white URail LED panel Deck with the dimensions 52 cm x 12 cm casts a broad, glare-free light and is right on trend. With the versatile URail 230 V rail system, different areas of the room can be very easily illuminated. The panels can be install either on the wall or the ceiling, and provide attractive basic lighting.
- URail system lamp incl. assembly instructions
- Area lighting
- For wall and ceiling mounting
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
| Dimension | |
|---|---|

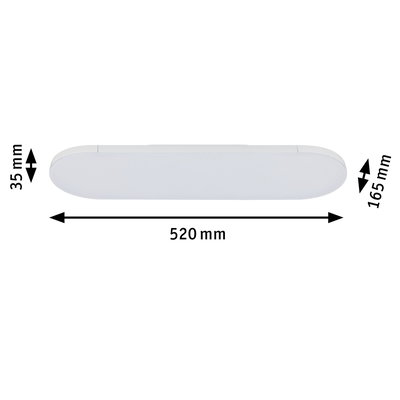

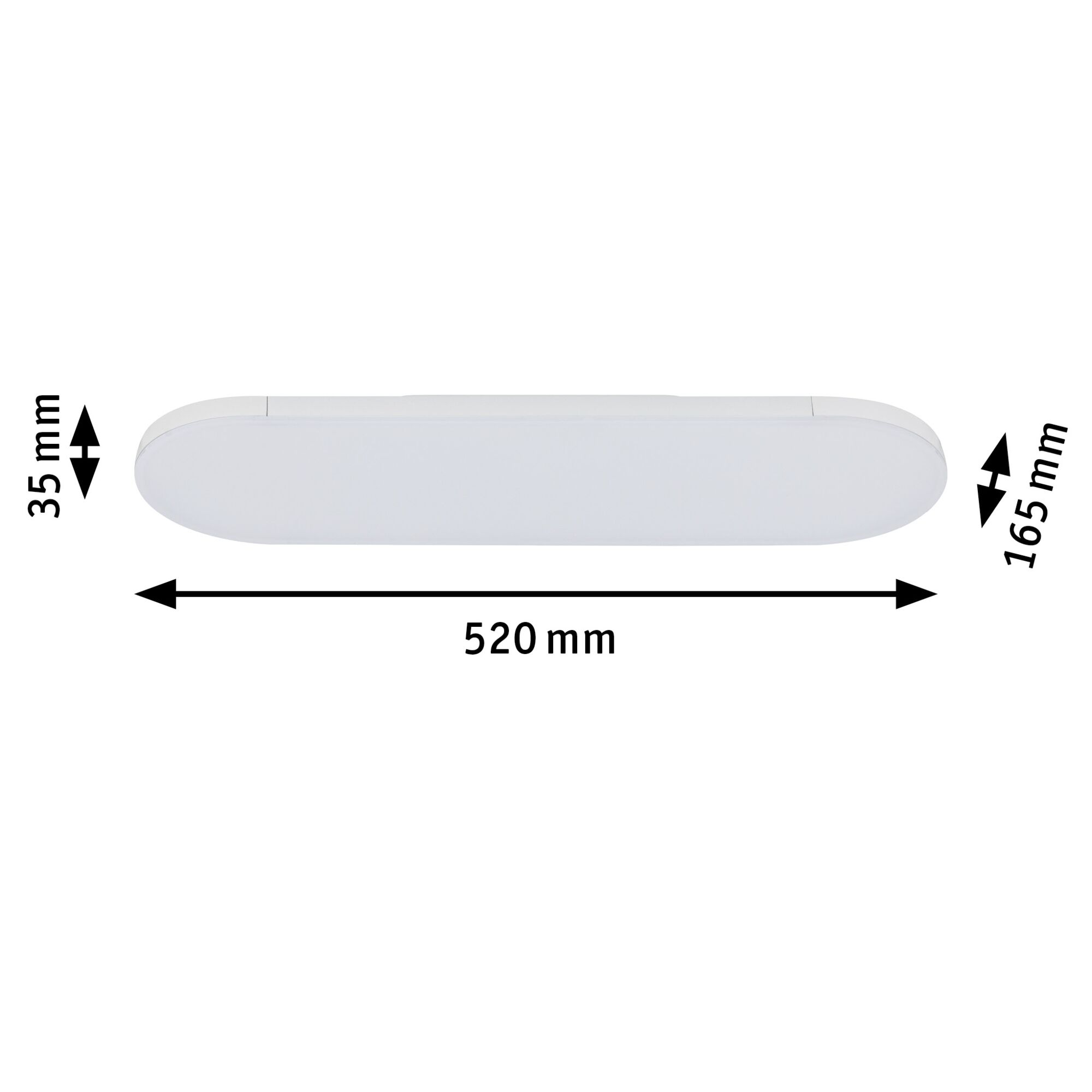

| Dimensions (Height x Width x Depth) | H: 51 x B: 520 x T: 165 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Kopp 8035.0208.0 /8078, RC REV Ritter 501448551, RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, Paul, Paulmann URail 500.50/-51/968.15, RC Gira 0307 00/I02, RLC Busch-Jäger 6523-U-102, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 1407,5 lm |
| Luminous flux LED module | 1800 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 13,5 W |
| Technique | LED |
| Dim | with dimmer |
| Dimmable | with dimmer R, L, C (universal compatibility) |
| Inclusive lamp | yes |
| Total Width | 520 mm |
| Incandescent Equivalent | 125.7 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 16 W |
| Transformer | |
|---|---|
| apparent power | 15.41 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
