Article-No.:
95552
URailPendant adapters
Universal
max. 50W 230V White
max. 50W 230V White
£28.95*
Prices incl. Standard rate VAT
- URail pendant adapter incl. assembly instructions
- For cables with a diameter of up to 7 mm
- Maximum load 3 kg

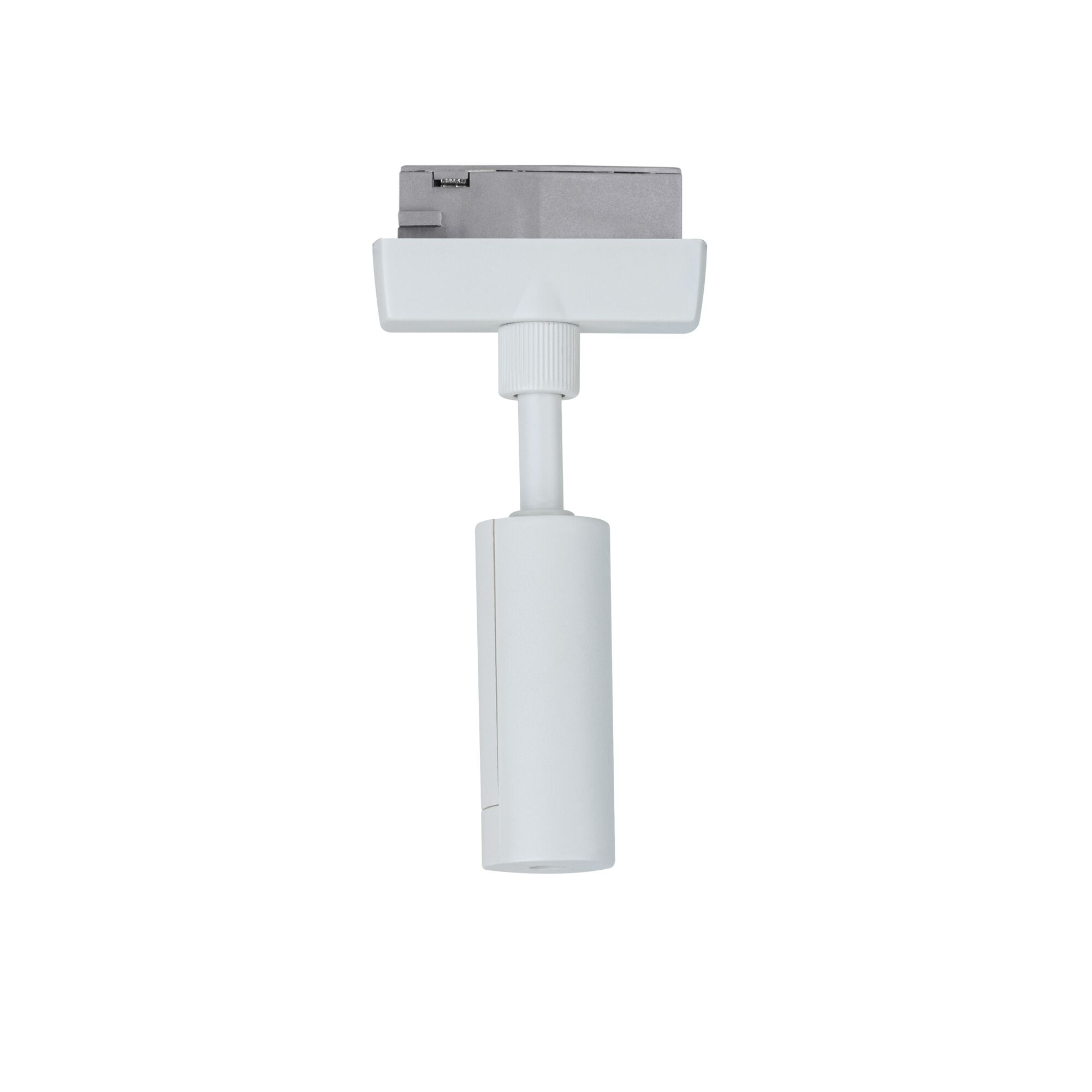

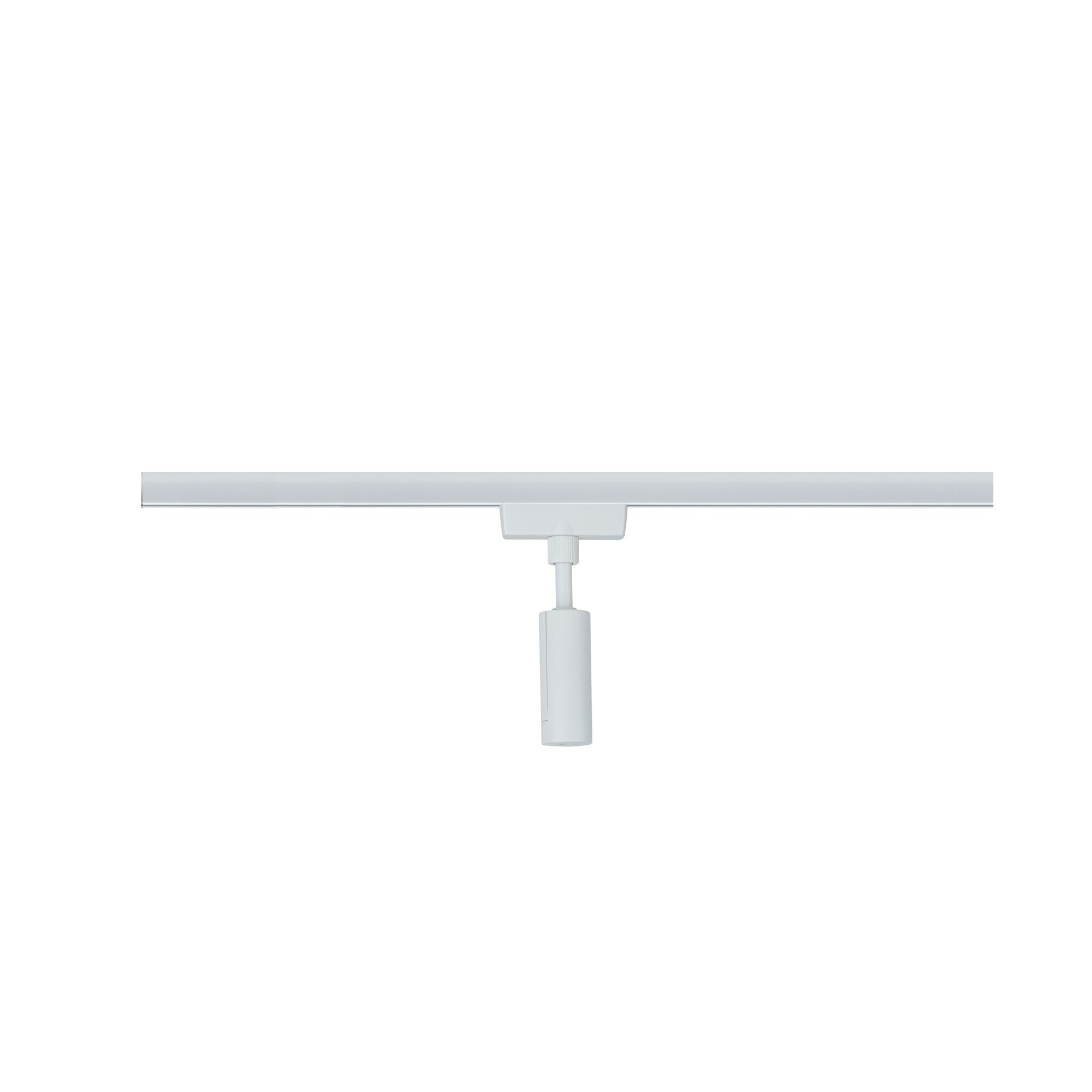

URail Pendant adapters Universal max. 50W 230V White

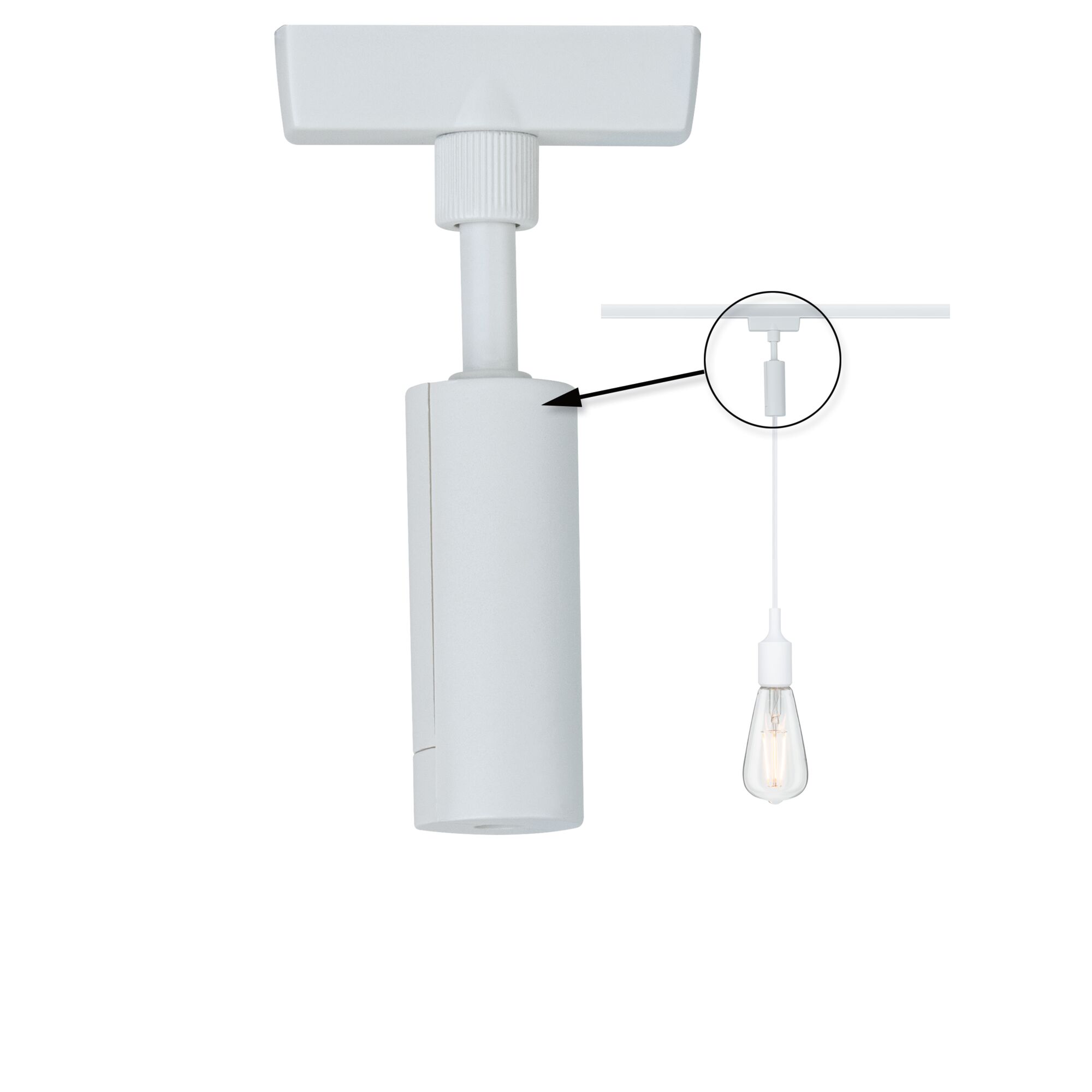

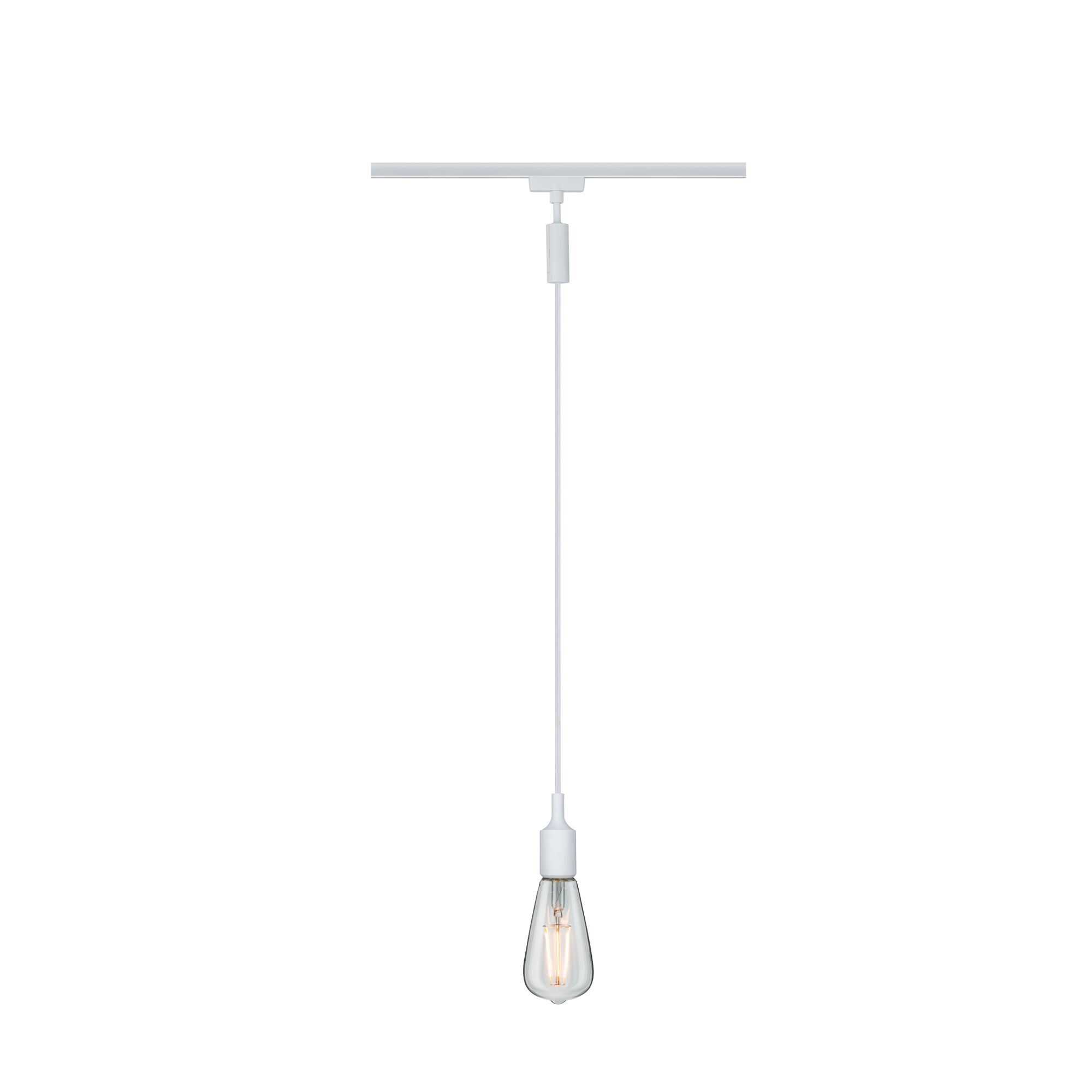

The URail universal pendant adapter in White enables integration of our living room luminaires or pendant luminaires in the URail system. Pendant luminaires with multiple cables leading to the ceiling are not a problem either. For this, we recommend simply using the corresponding number of adapters. Shortening is very easy: open the box with a screwdriver, unscrew the luster terminal inside, loosen the cables and cut them. Continue to remove insulation from the cable (there are 2 cables indoors, i.e. conductor L and neutral conductor N). Crimp a wire end sleeve onto L and N using crimping pliers, then reinsert both cables into the lustre terminal and tighten. Press the cover box back together and screw it shut. You're done!
- URail pendant adapter incl. assembly instructions
- For cables with a diameter of up to 7 mm
- Maximum load 3 kg
- delivery without pendant or lamp
| Dimension | |
|---|---|

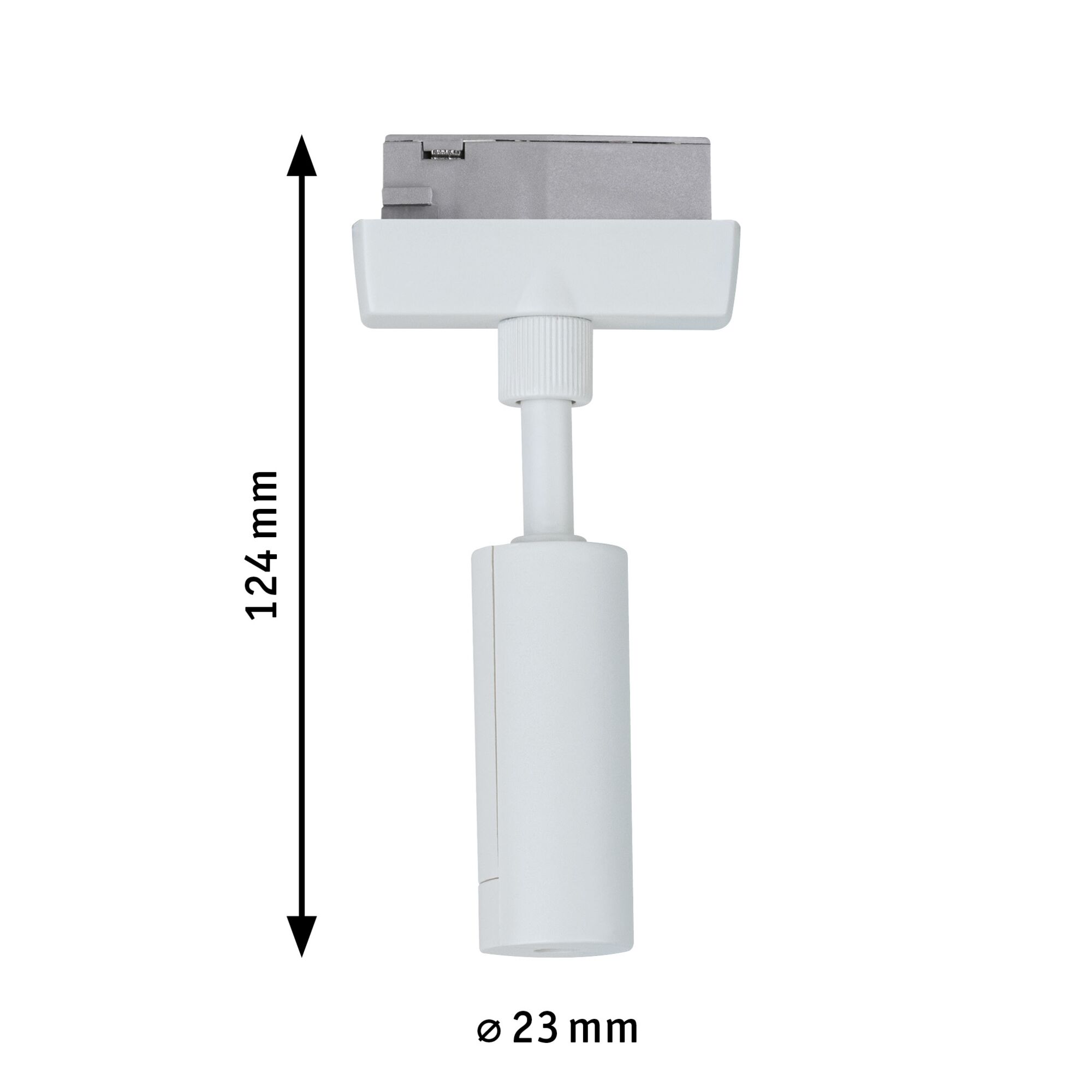

| Dimensions (Height x Width x Depth) | H: 124 x B: 57,5 x mm |
| Ø | 23 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Lamp Features | |
|---|---|
| Technique | Accessories without bulbs |
| Inclusive lamp | no |
| Adjustability | fixed |
| Maximum wattage range | max. 50 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
