Article-No.:
50121
URailPower SupplySmart Home Zigbee 3.0
Middle
227x196mm max. 300W White
227x196mm max. 300W White
£109.00*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together

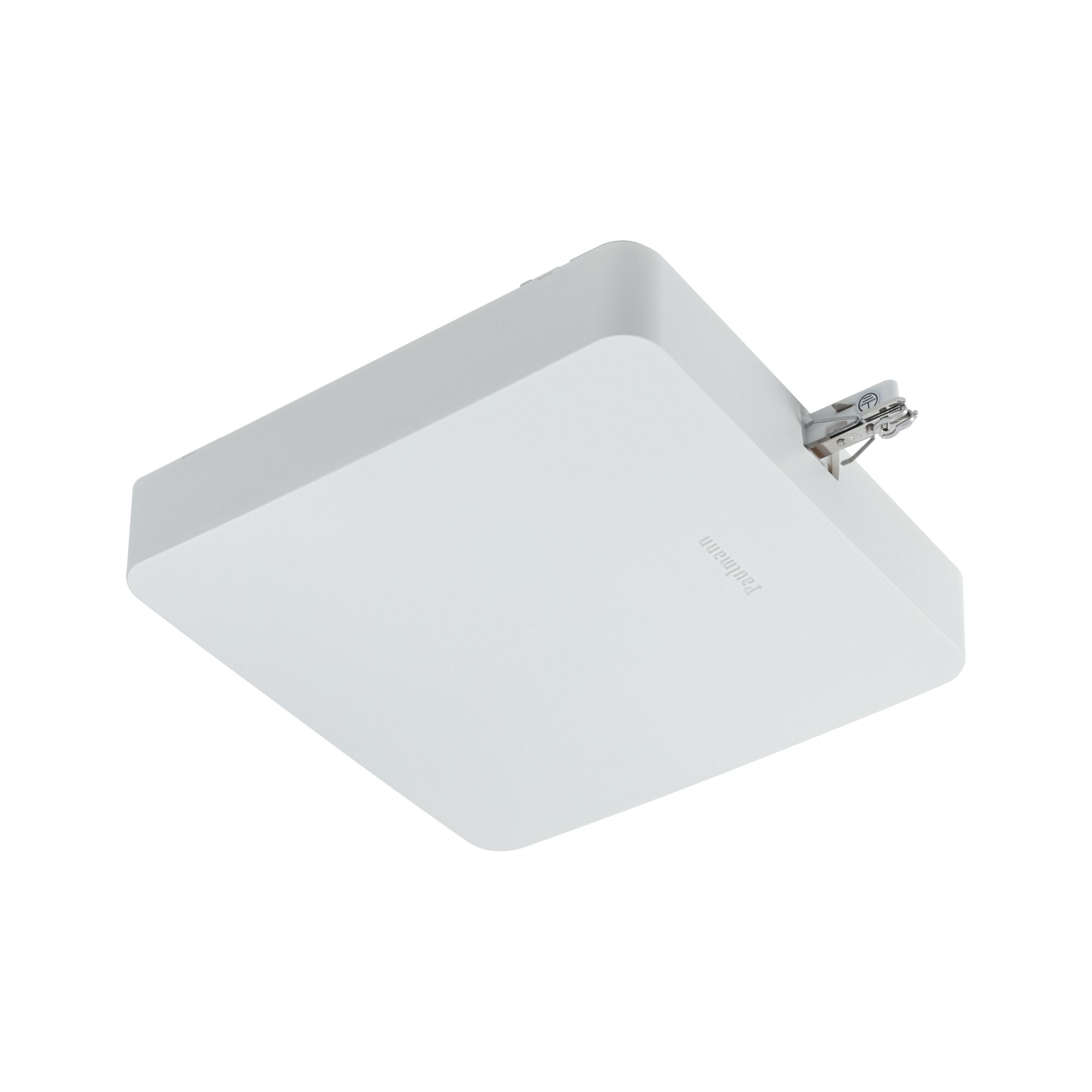

URail Power Supply Smart Home Zigbee 3.0 Middle 227x196mm max. 300W White

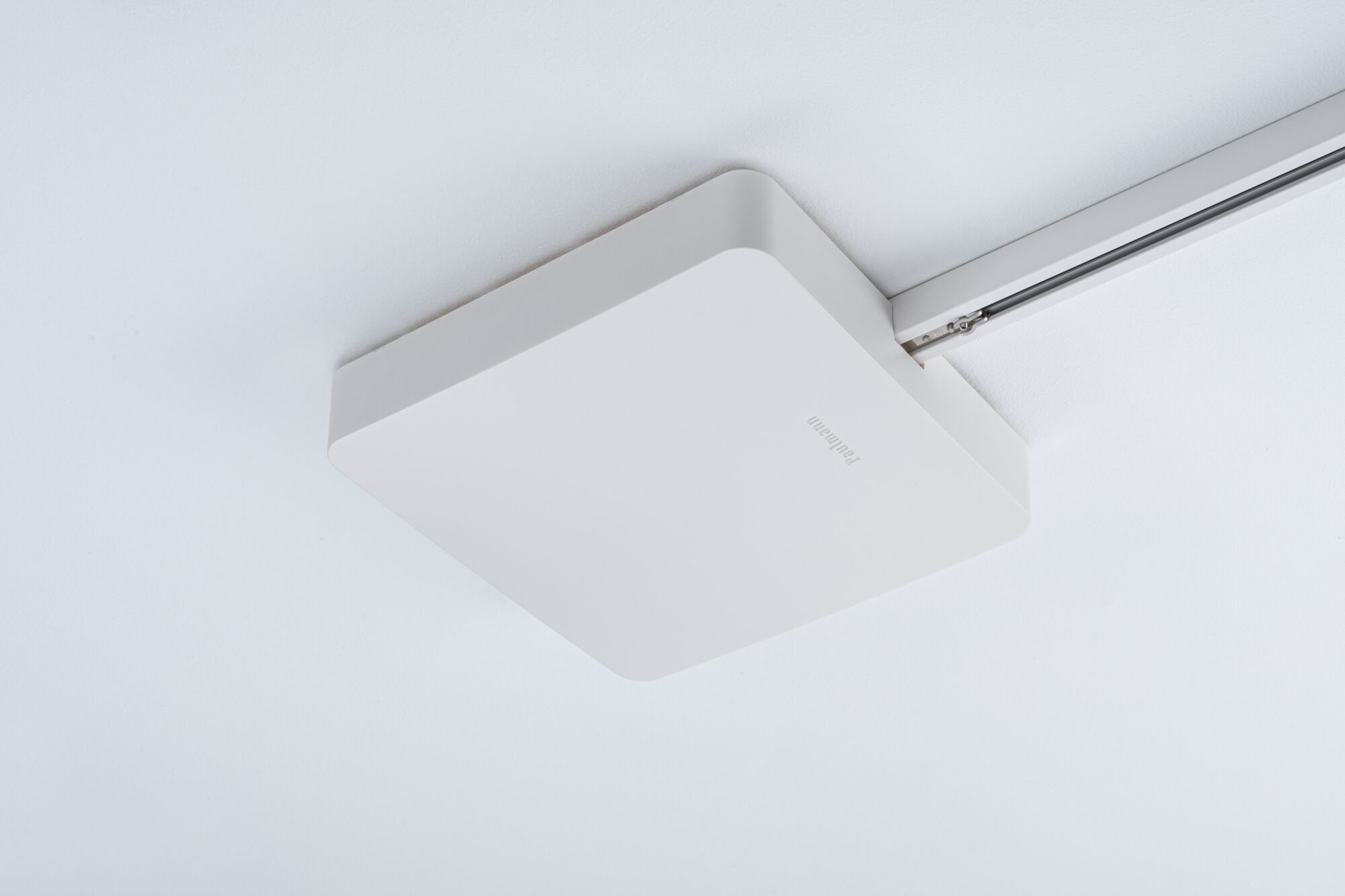

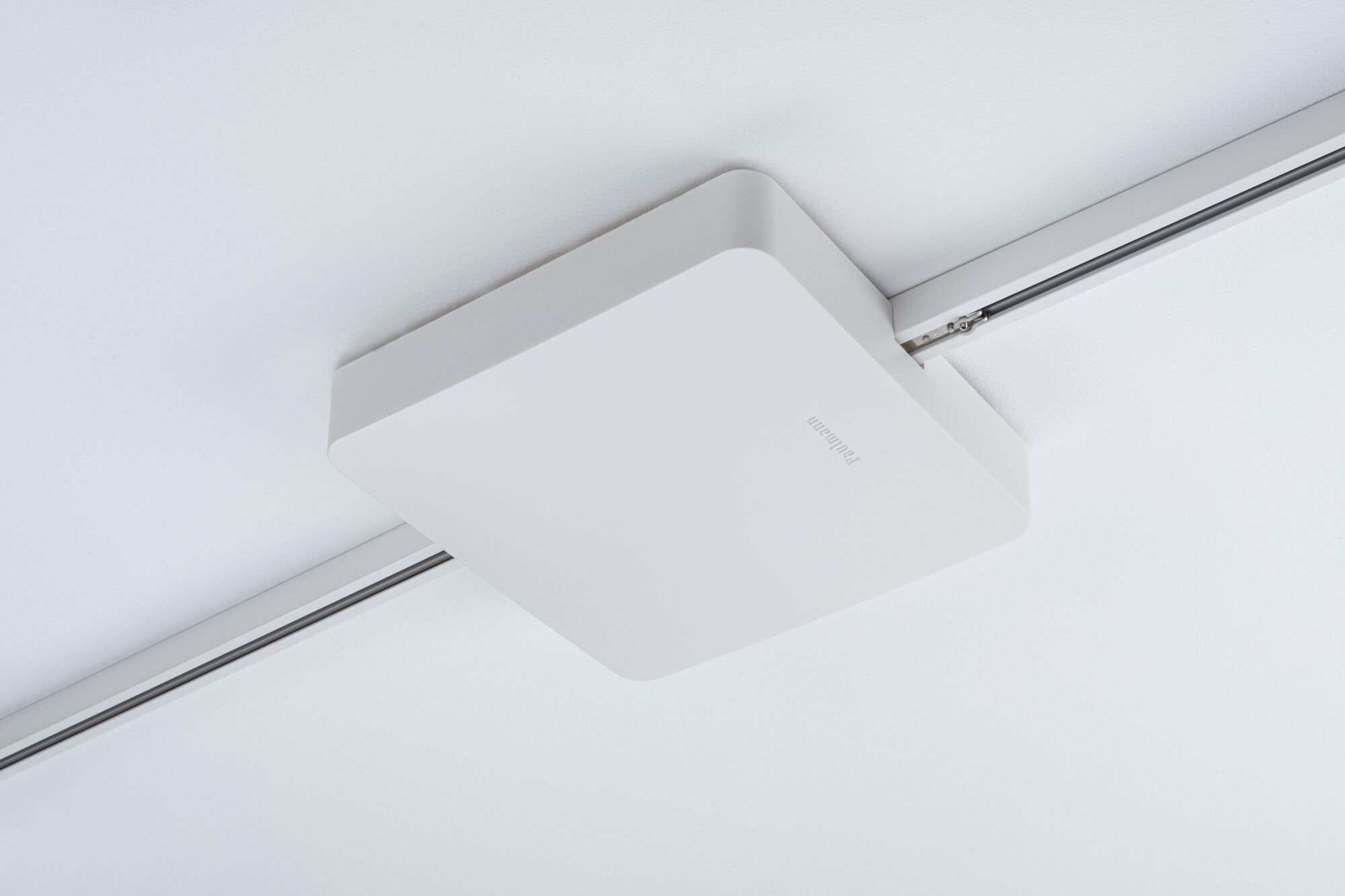

The URail Smart Home middle feed in White is mounted directly above the power connection and is Zigbee 3.0-compatible. It can be used to dim and switch the entire URail system on/off. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000 watt. Note: This article only works in connection with infinitely dimmable luminaires.
- URail middle feeder incl. assembly instructions
- Can be used as middle or end power feed
- Both outputs are controlled together
- 1-rail connector is fixed
- Convenient combination of power supply and Zigbee controller
- End caps to close off the rail ends are included in the scope of delivery
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- For 230 V direct connection
- Remember: Order the connectors at the same time!
- If used as midpoint infeed, an additional direct connector is required
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|

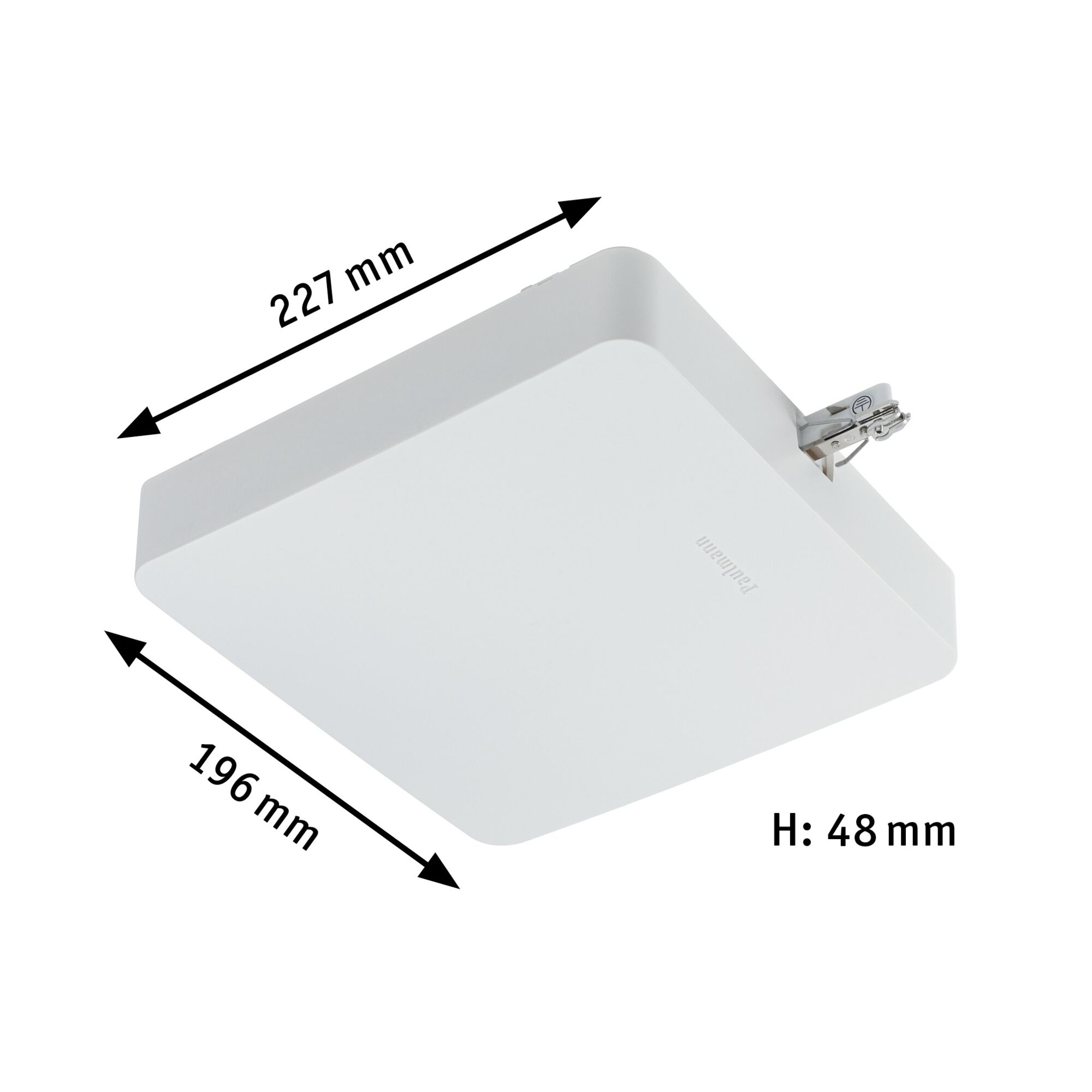

| Dimensions (Height x Width x Depth) | H: 48 x B: 227 x T: 196 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 300 W |
| Protection class | Protection class I |
| Technique | Accessories without bulbs |

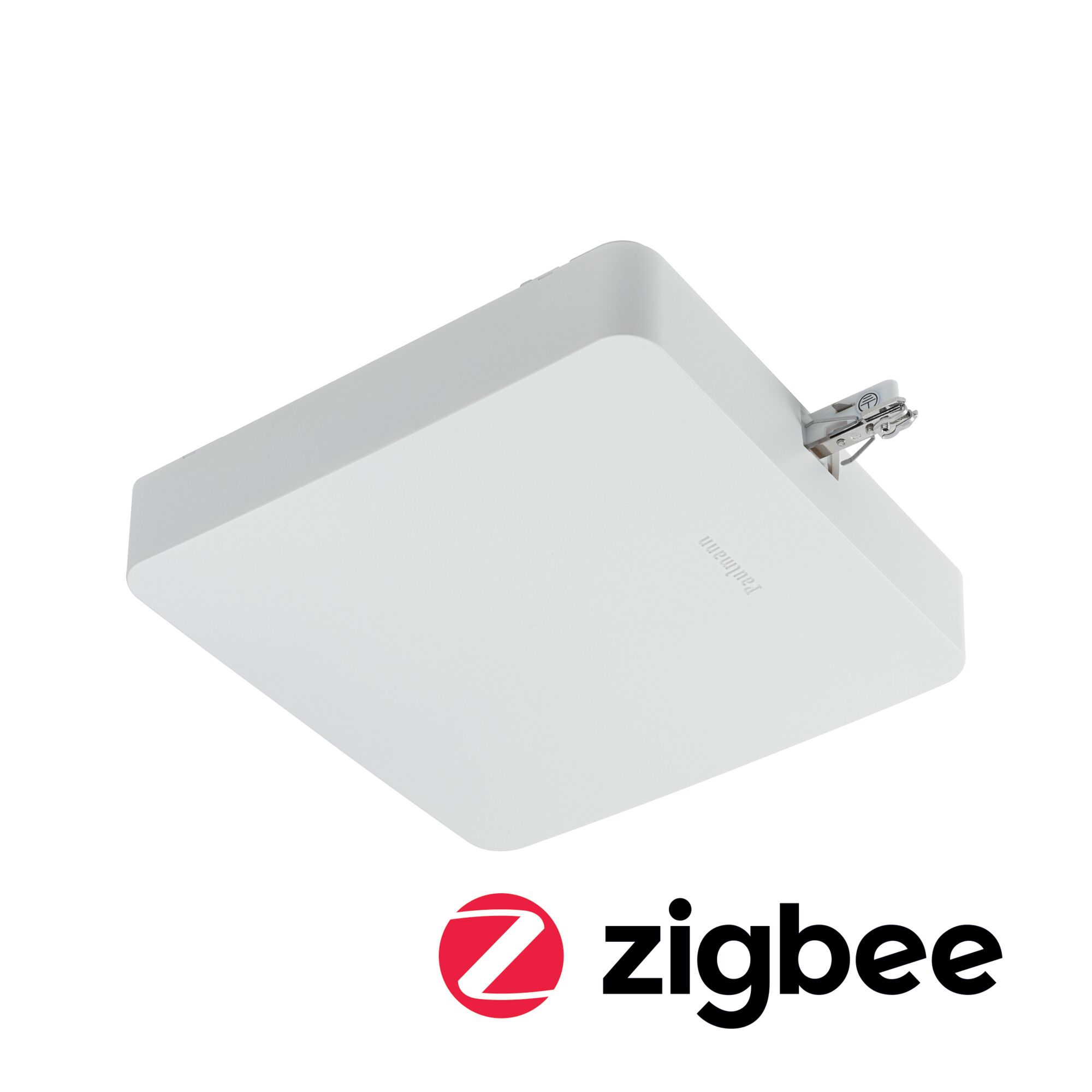

| Compatible Smart Home technology | Zigbee |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
Downloads
Product data & safety information
Safety instructionsPlanungsunterlage URailPlanning document URail504100332_fr_Paulmann_URail504200332_nl_Paulmann_URail
