Article-No.:
96815
URailRail adapterSmart Home Zigbee 3.0
Dimm/Switch
155x56mm Black matt
155x56mm Black matt
£67.95*
Prices incl. Standard rate VAT
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

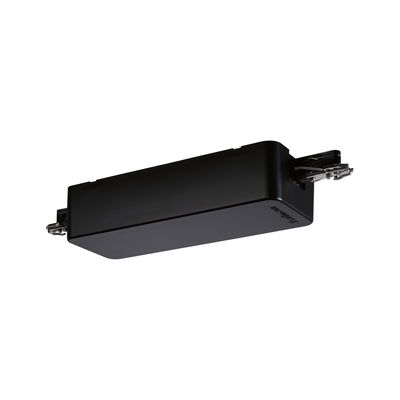

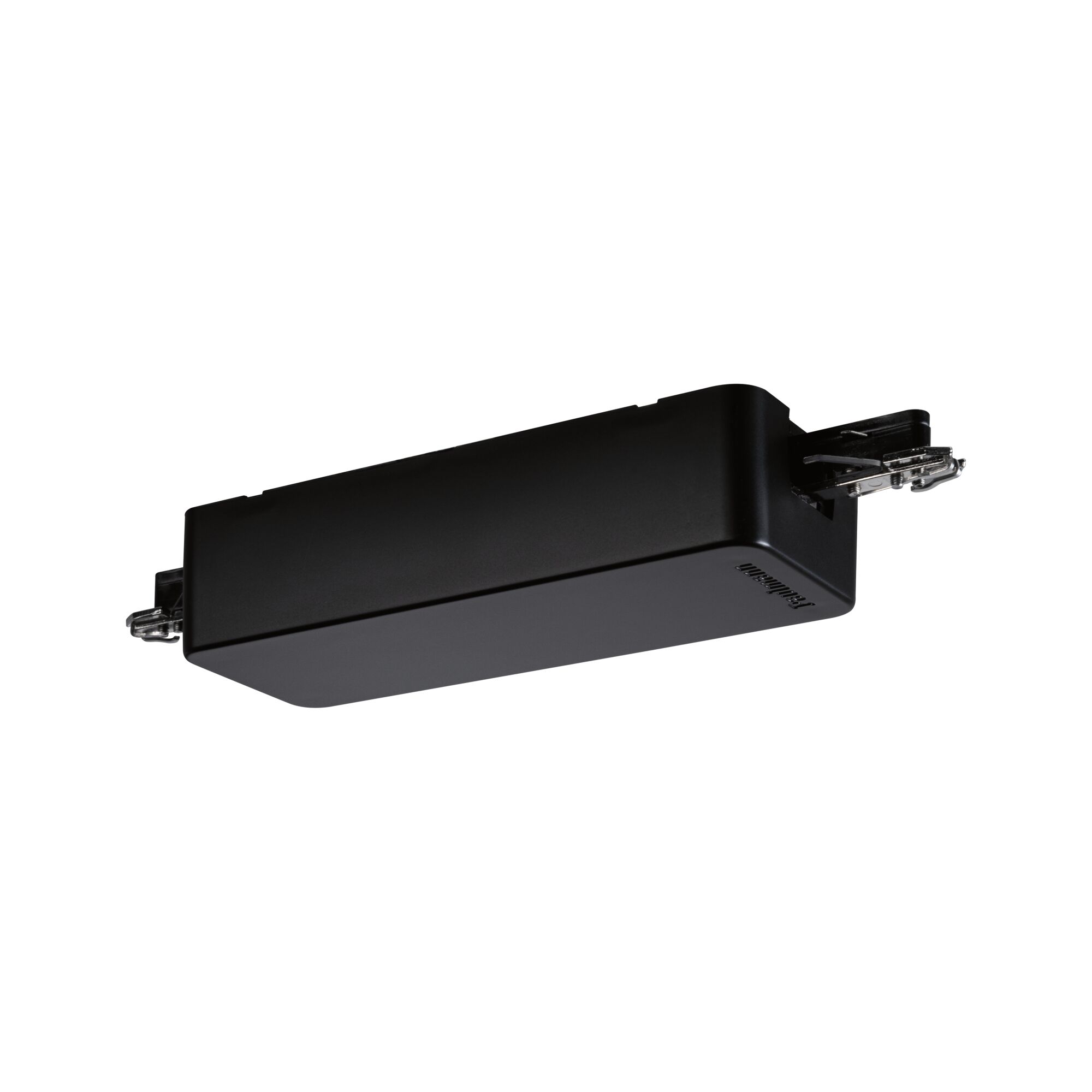

URail Rail adapter Smart Home Zigbee 3.0 Dimm/Switch 155x56mm Black matt

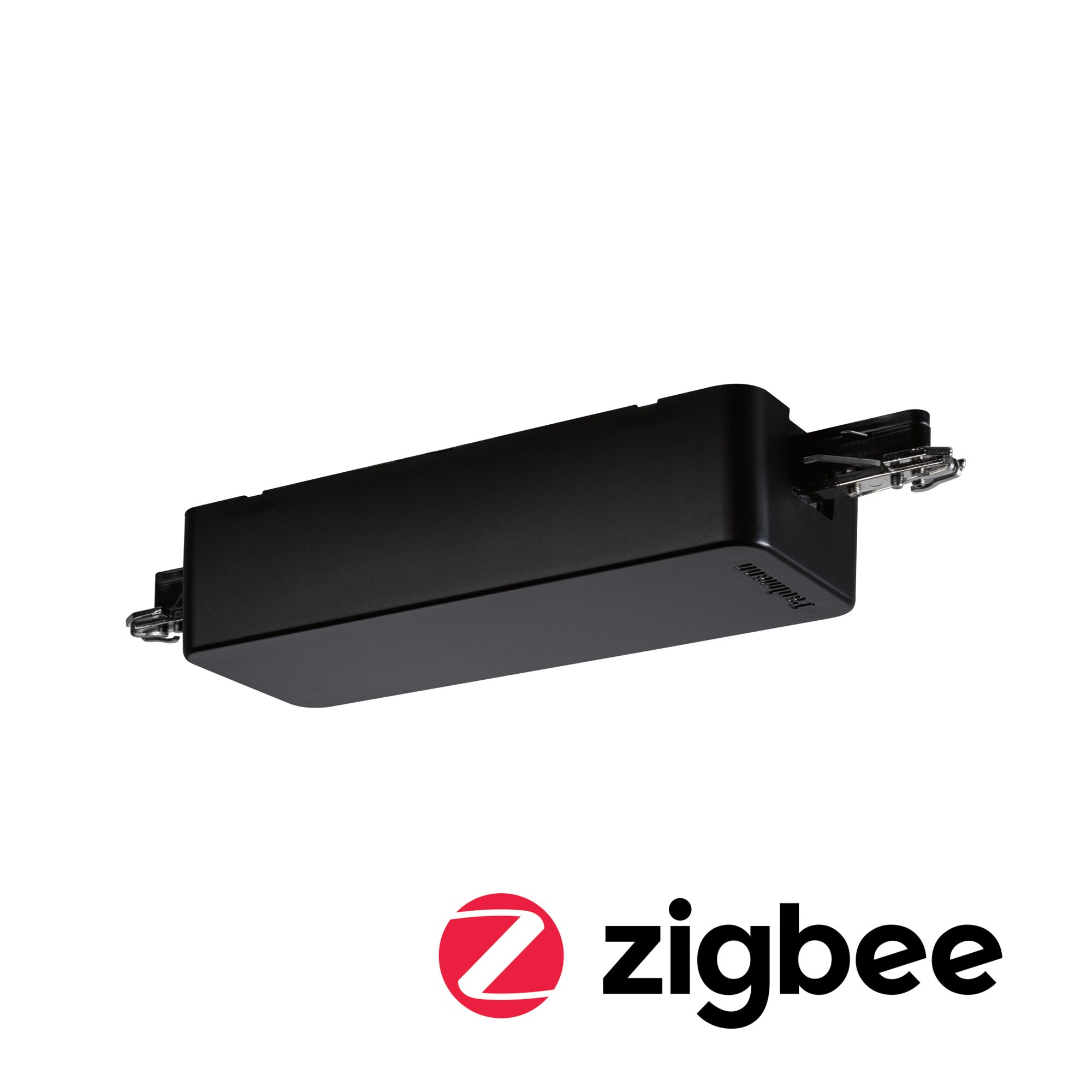

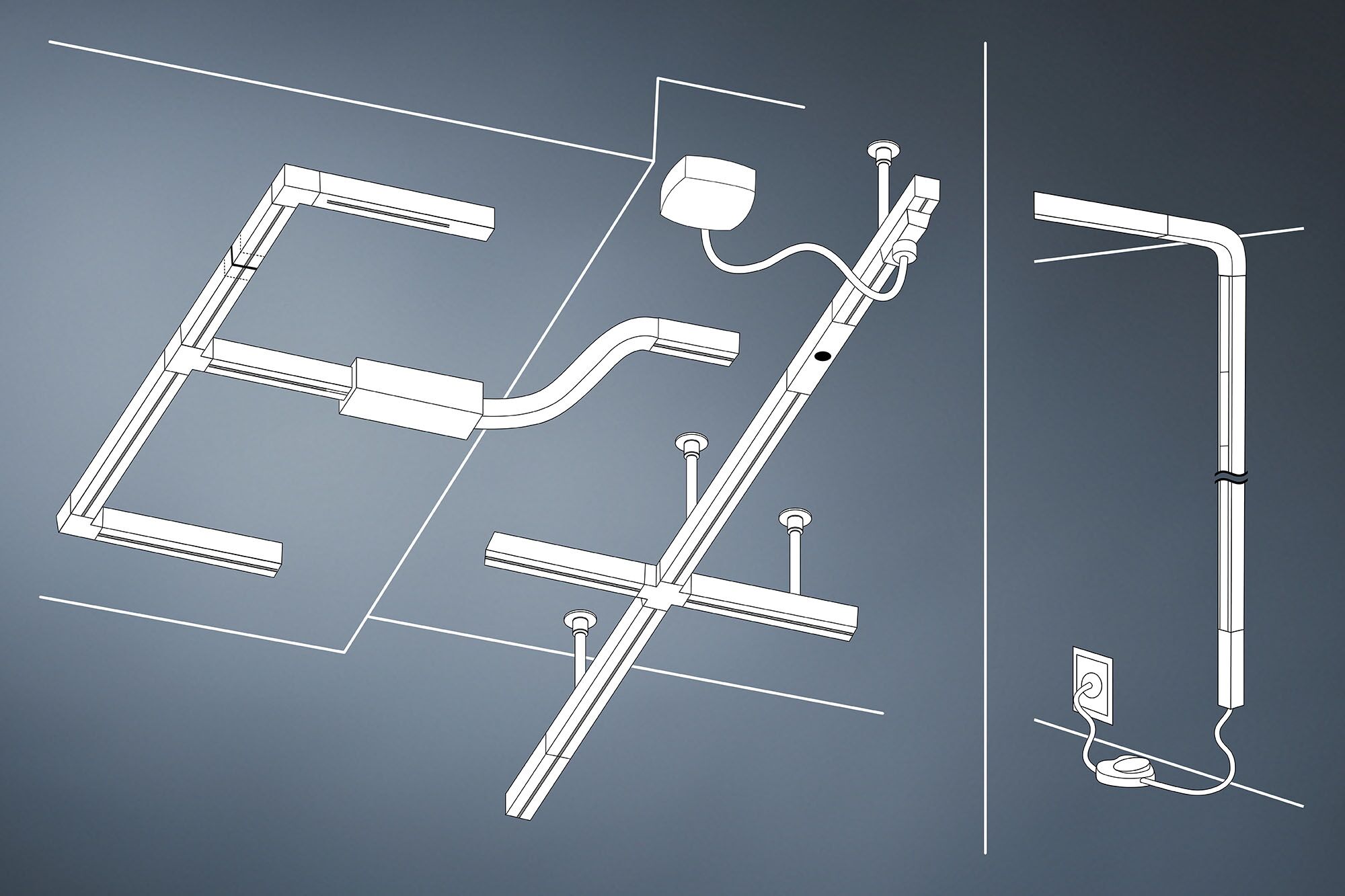

The black URail dim/switch adapter from the Smart Home Zigbee 3.0 series can be used to switch and dim the following rail sections of your URail system. The adapter enables easy integration of smart control into the URail system without any changes to the electrical wiring in your home. The adapter and the rail are simply connected together. This allows the URail dim/switch adapter to function as a rail connector.The dim/switch is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. PLEASE NOTE: This product is not compatible with all fixed LEDs and LED lamps and only works in connection with infinitely dimmable luminaires. Please refer to the dimmer compatibility in the technical data for the luminaires/lamps
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Switchable and dimmable URail connectors
- Simple plug-in installation
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|

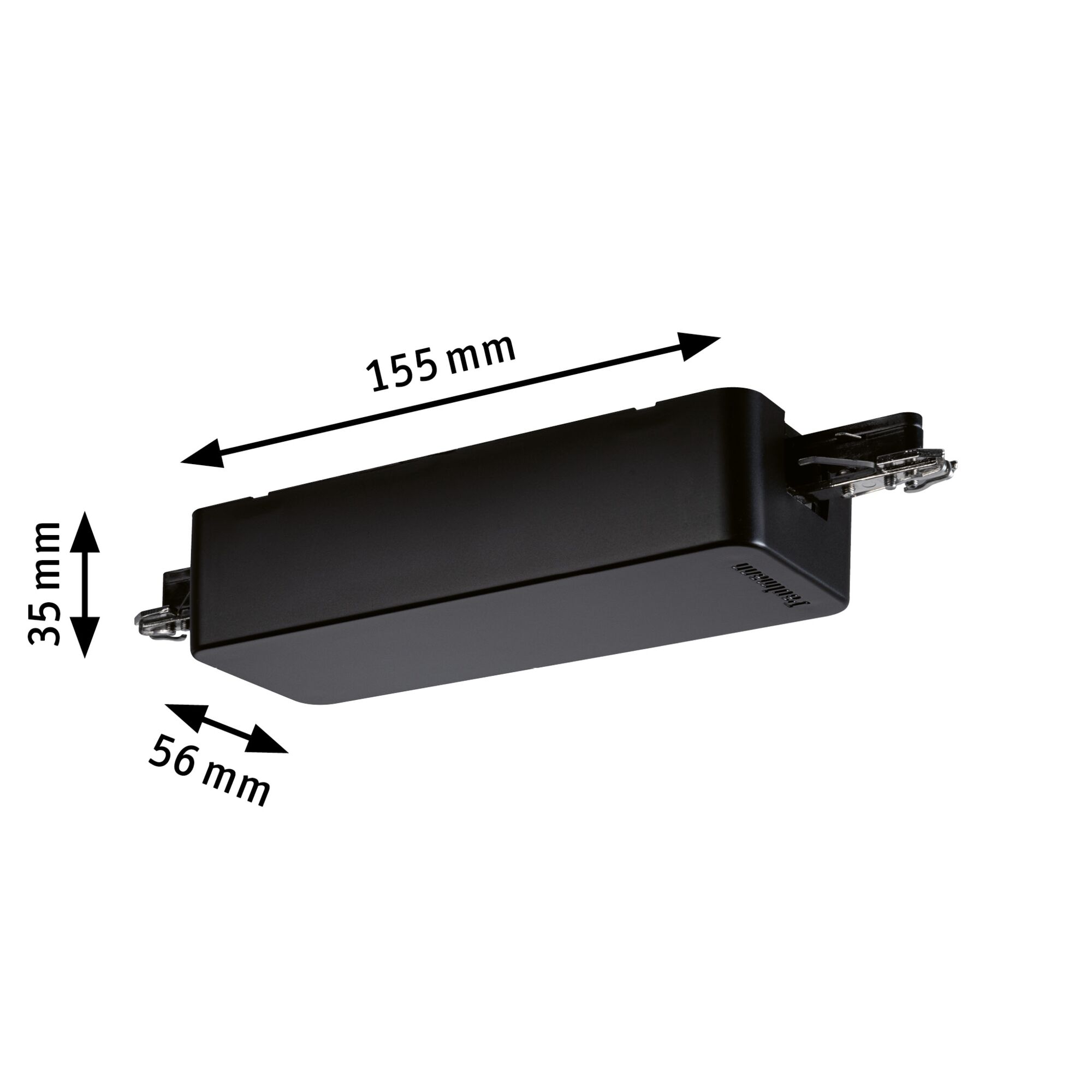

| Dimensions (Height x Width x Depth) | H: 35 x B: 155 x T: 56 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Adjustability | fixed |
| Maximum wattage range | max. 400 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Capacitive load | 150 W |
| Resistive load | 400 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
