Article-No.:
50050
URailRail adapterSmart Home Zigbee 3.0
Dimm/Switch
155x56mm Chrome matt
155x56mm Chrome matt
£67.95*
Prices incl. Standard rate VAT
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

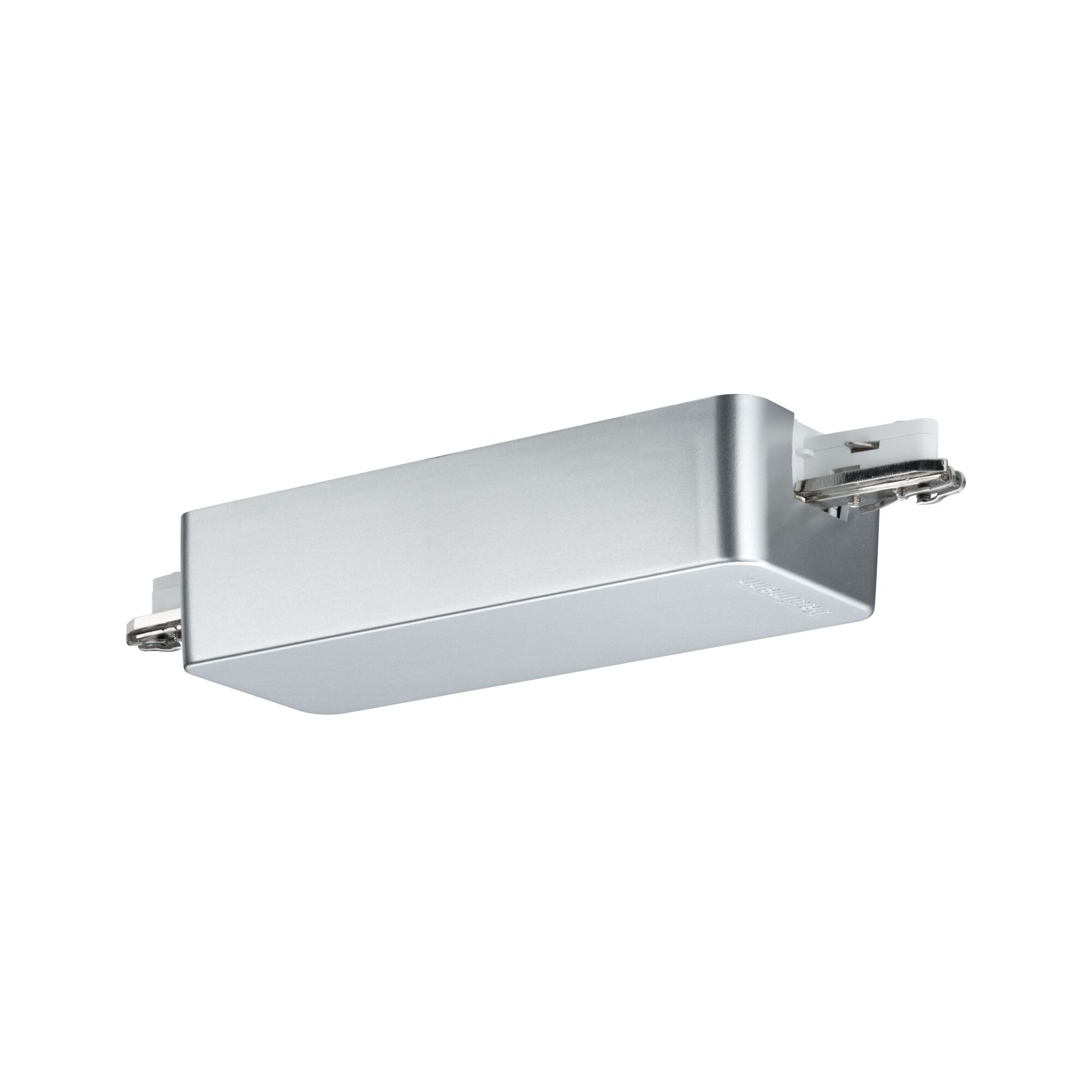

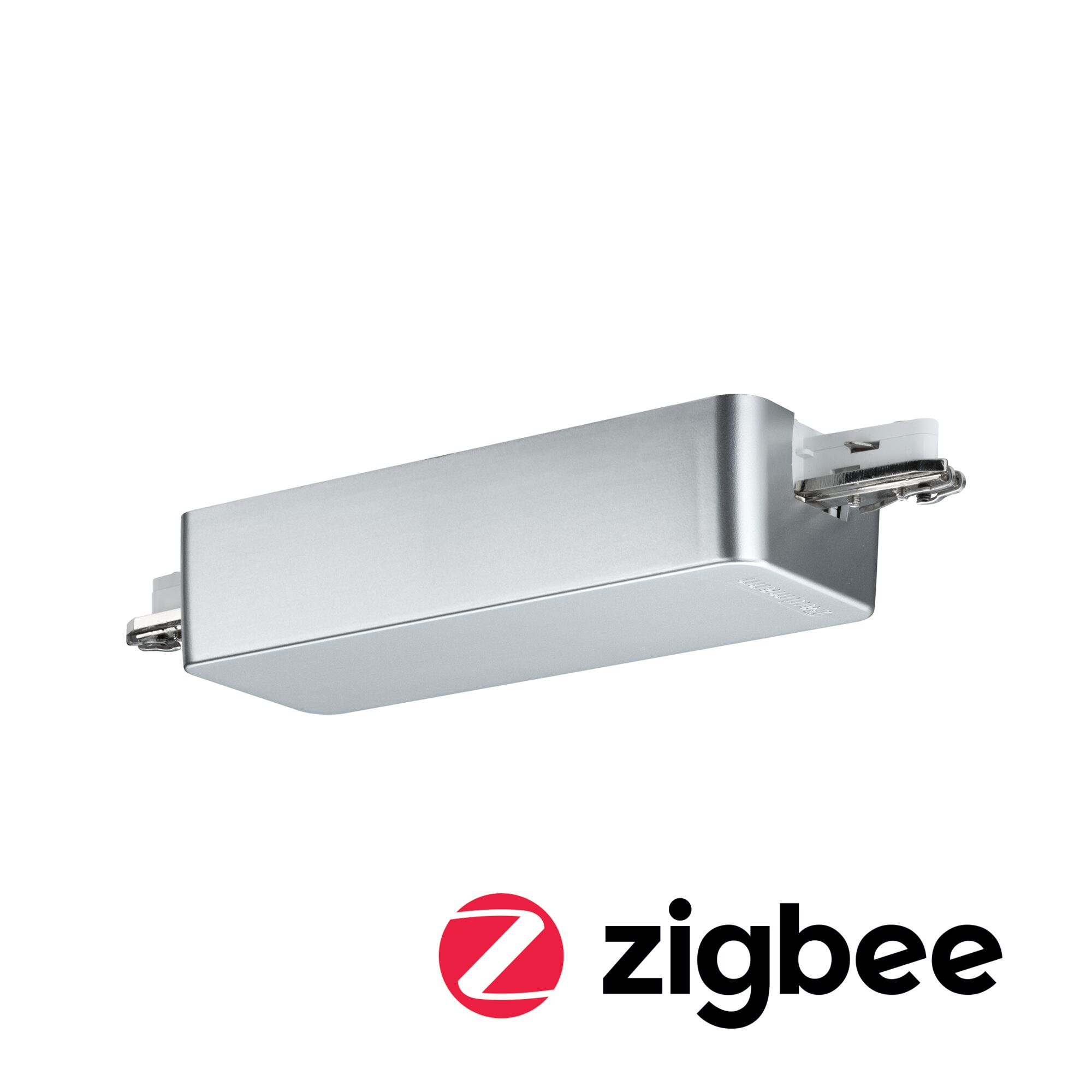

URail Rail adapter Smart Home Zigbee 3.0 Dimm/Switch 155x56mm Chrome matt
With the URail dim/switch adapter from the Smart Home Zigbee 3.0 series, you can switch and dim the following rail sections of your URail system. The dim/switch is Zigbee 3.0 compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios. This item is not compatible with all fixed LEDs and LED light sources and only works in conjunction with continuously dimmable luminaires. Please refer to the dimmer compatibility in the technical data of the luminaires/lamps.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Switchable and dimmable URail connectors
- Simple plug-in installation
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|

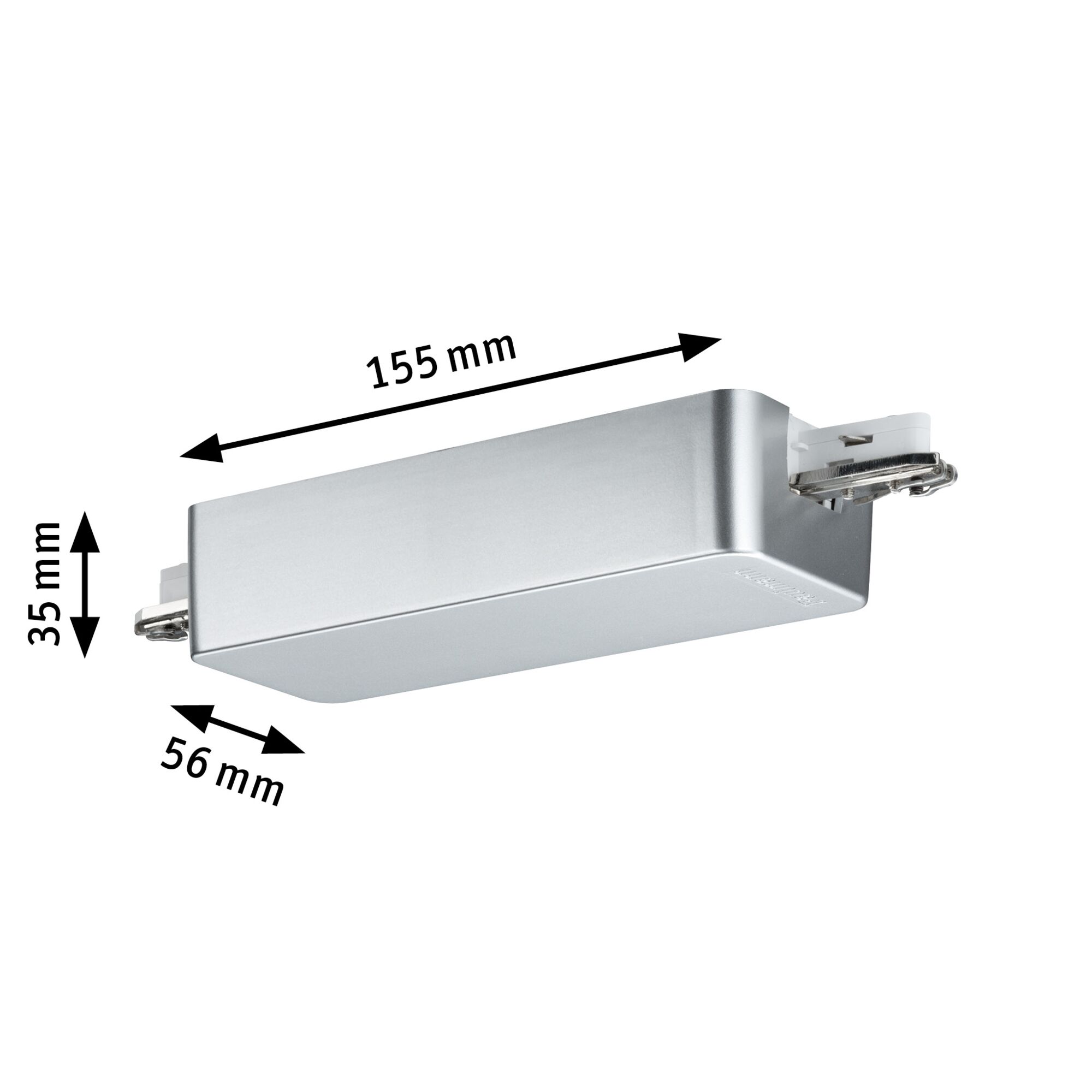

| Dimensions (Height x Width x Depth) | H: 35 x B: 155 x T: 56 mm |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Adjustability | fixed |
| Maximum wattage range | max. 400 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Capacitive load | 150 W |
| Resistive load | 400 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
