Article-No.:
50051
URailRail adapterSmart Home Zigbee 3.0
Dimm/Switch
155x56mm White
155x56mm White
£67.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

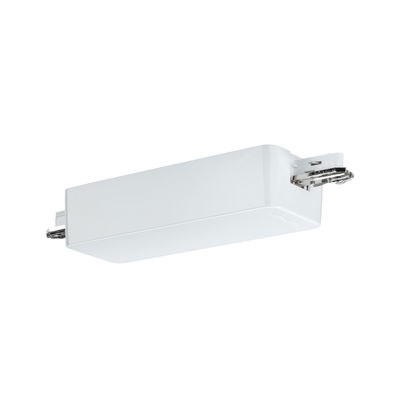

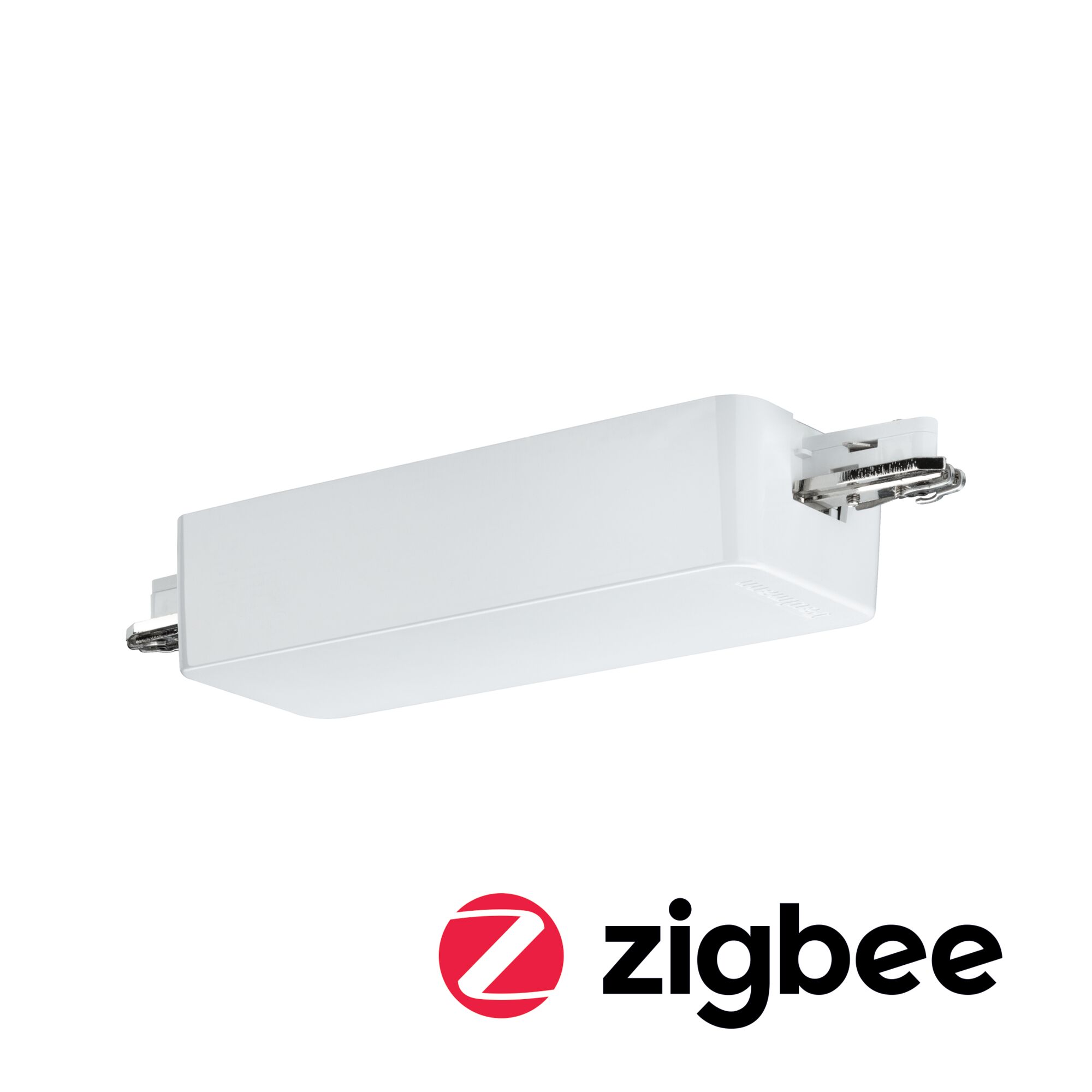

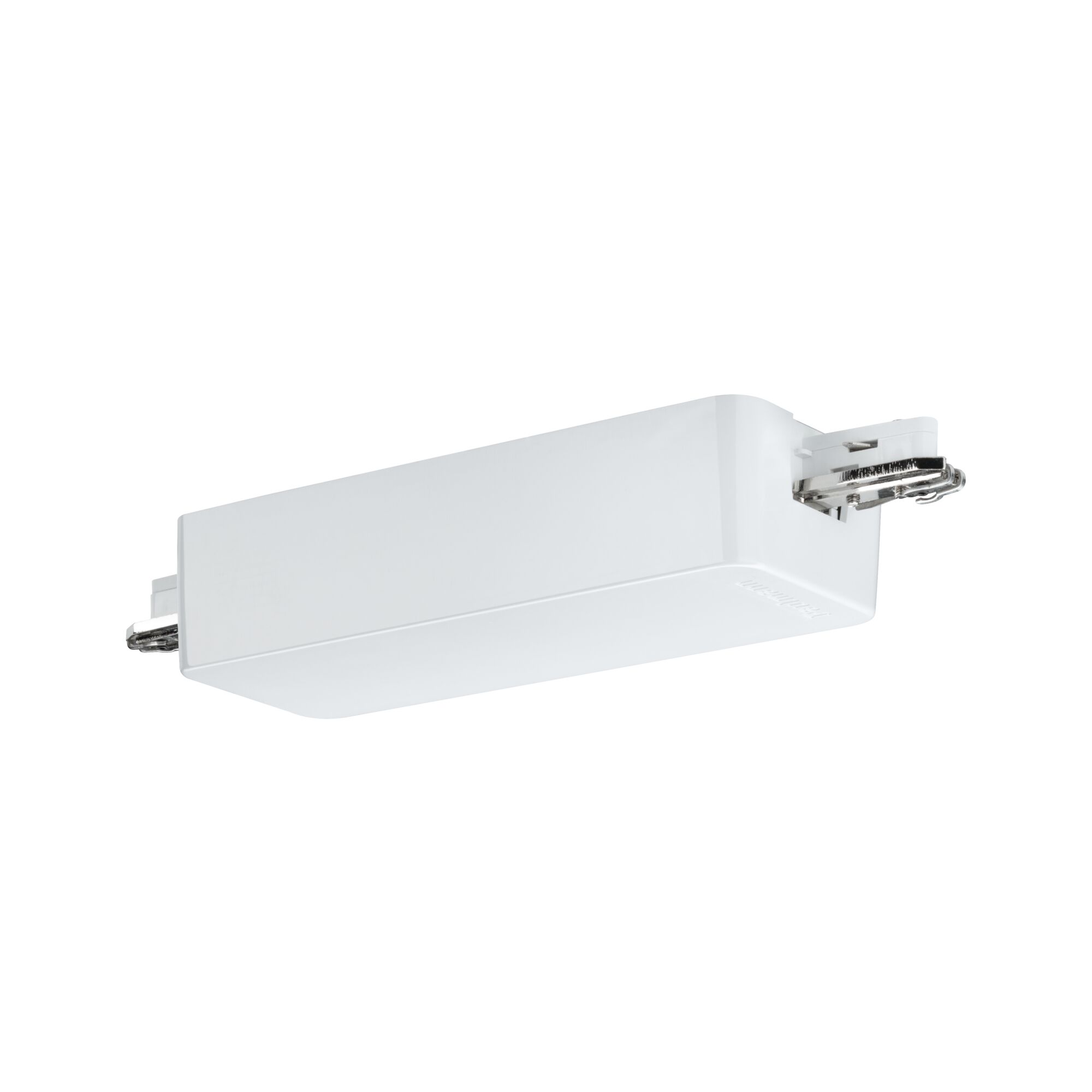

URail Rail adapter Smart Home Zigbee 3.0 Dimm/Switch 155x56mm White
With the URail dim/switch from the Smart Home Zigbee 3.0 series, you can switch and dim the following rail sections of your URail system. The dim/switch is Zigbee 3.0 compatible. Zigbee 3.0 is a radio transmission protocol which links up the devices of several manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated. To operate the control, you can choose between the Smart Friends Box, a gateway for the same standard by a different manufacturer, or a Smart Home Zigbee 3.0 hand-held transmitter. Specific individual components can be addressed, or switched in groups as lighting scenarios. NOTE: This article is not compatible with all built-in LEDs and LED light sources and only works in conjunction with continuously dimmable luminaires.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- Mesh-capable: range increases from product to product
- Switchable and dimmable URail connectors
- Simple plug-in installation
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|

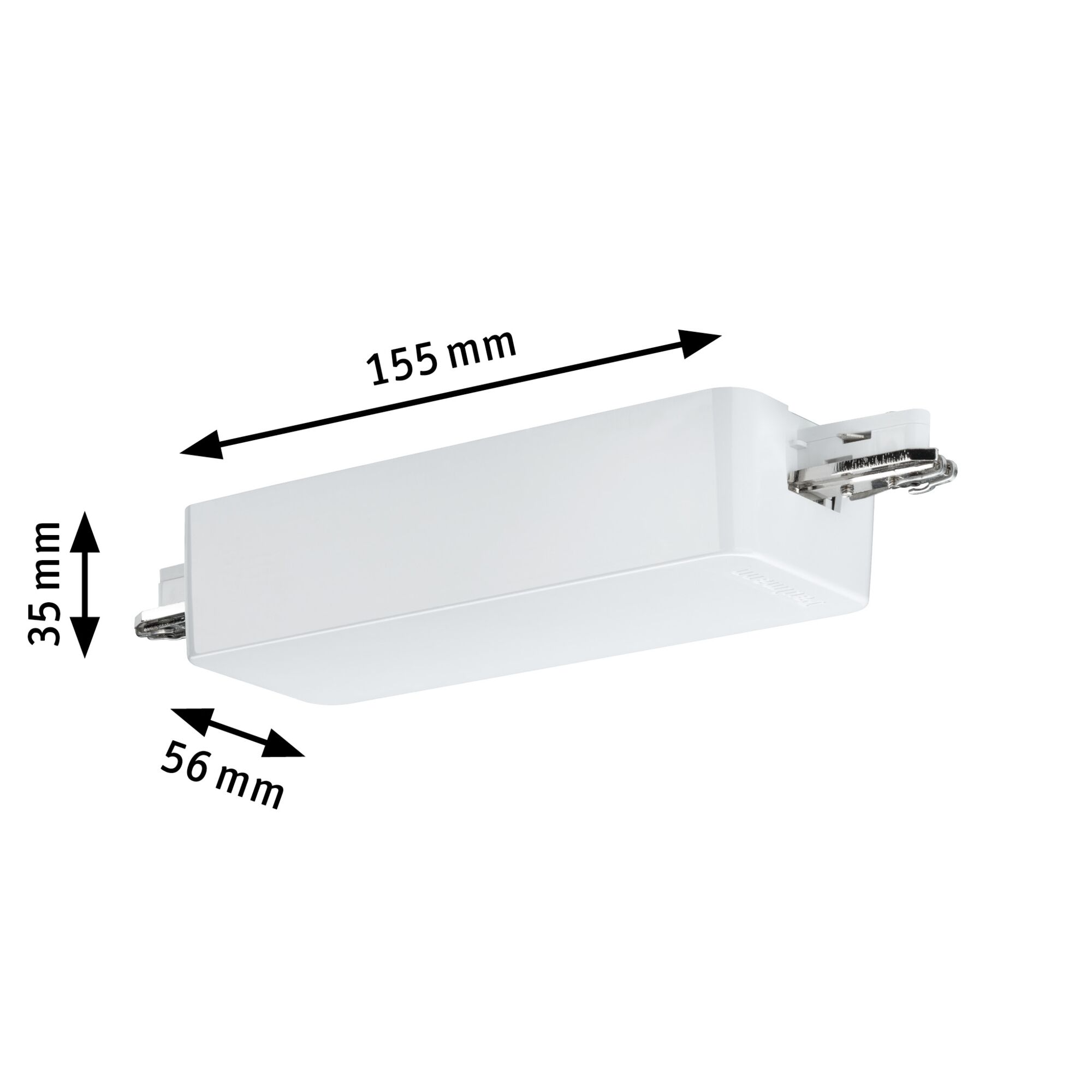

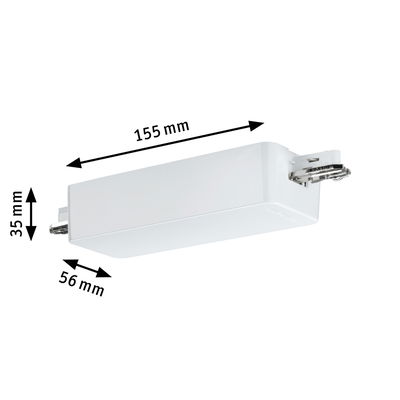

| Dimensions (Height x Width x Depth) | H: 35 x B: 155 x T: 56 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | no |
| Lamp property | Ohne Leuchtmittel |
| Maximum wattage range | max. 400 W |
| Protection class | Protection class II |
| Technique | Accessories without bulbs |
| Compatible Smart Home technology | Zigbee |
| Replacable | 7 not concerned. |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Capacitive load | 150 W |
| Resistive load | 400 W |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_inside (not certified) |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
