Article-No.:
95675
URailRail adapterZigbee 3.0
Dimm/Switch
240x21mm max. 50W Black matt
240x21mm max. 50W Black matt
£52.95*
Prices incl. Standard rate VAT
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Switchable and dimmable URail connectors

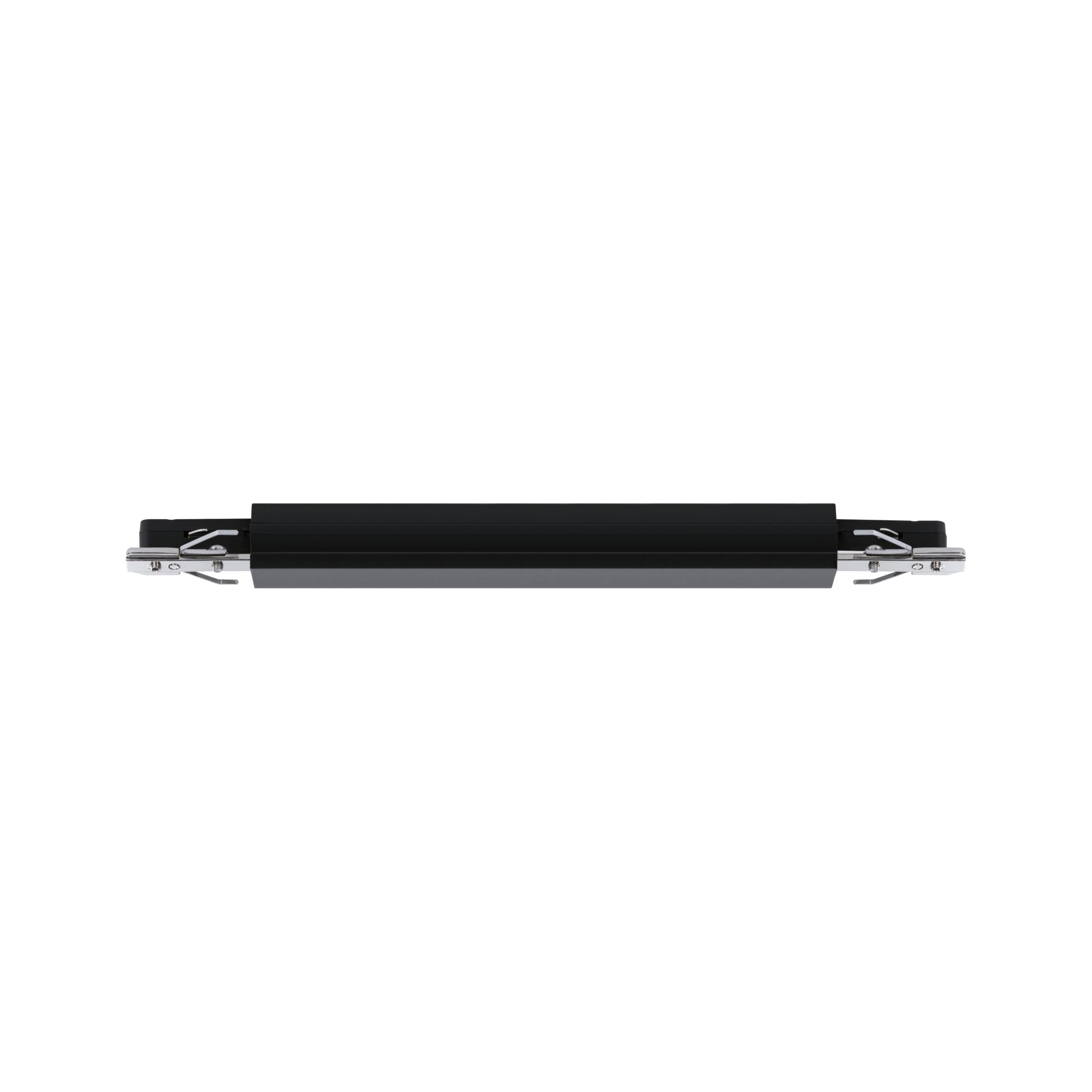

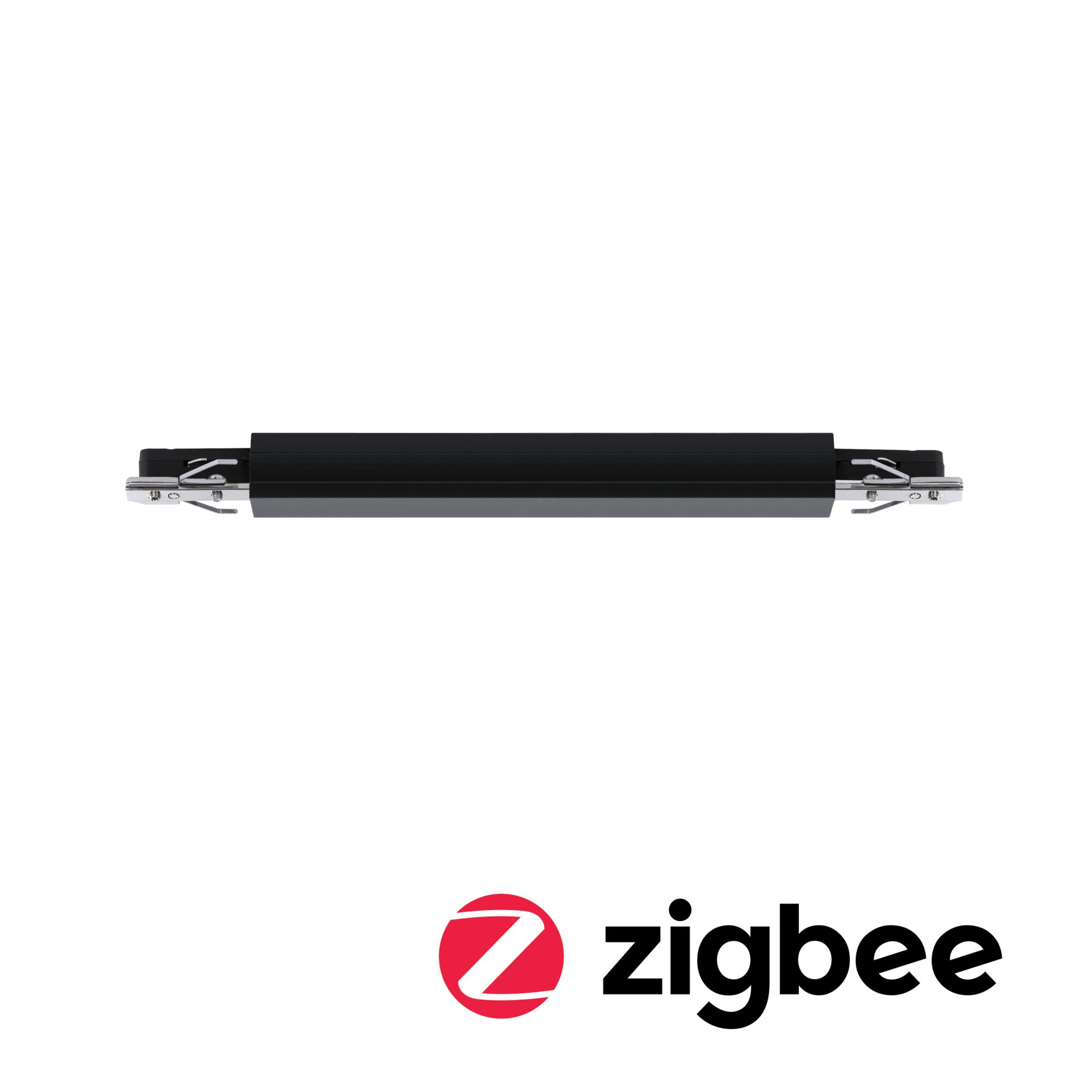

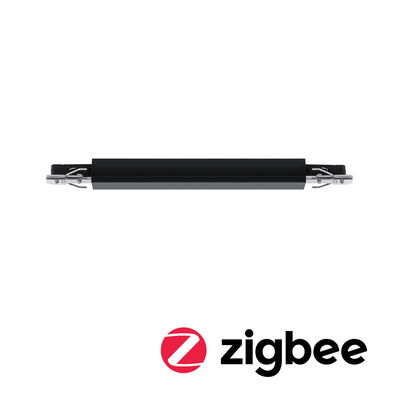

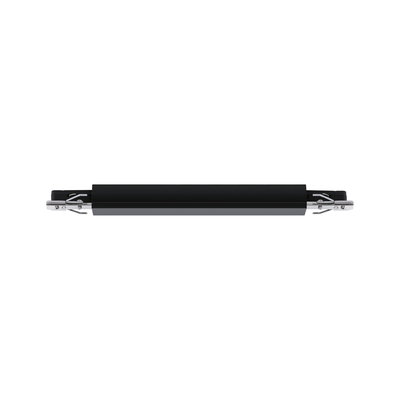

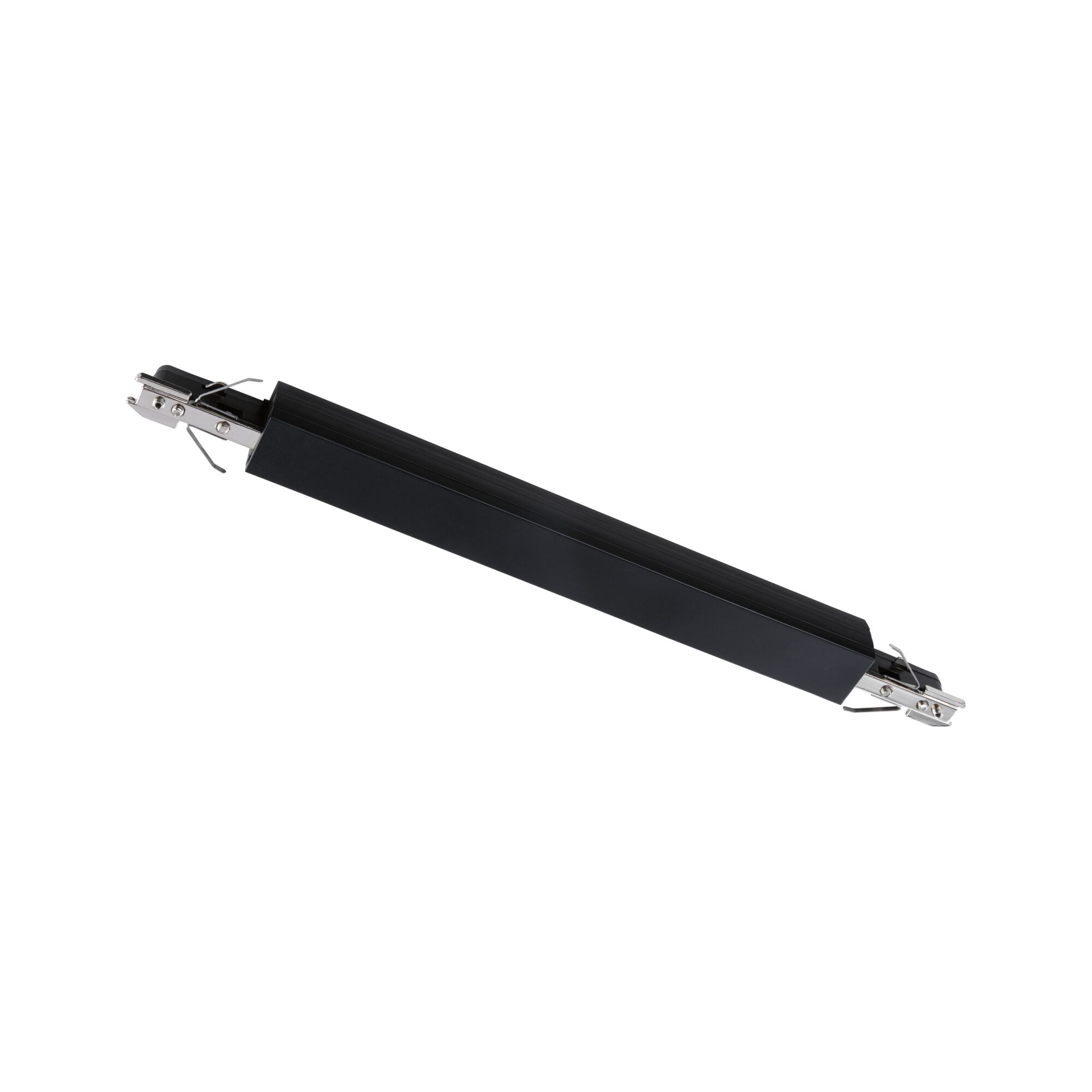

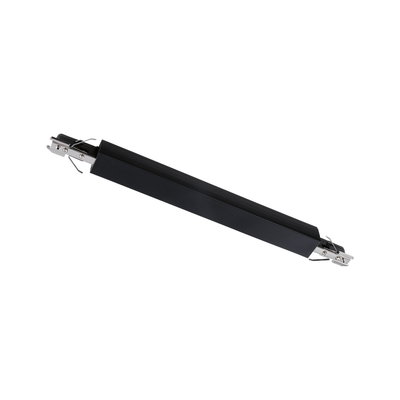

URail Rail adapter Zigbee 3.0 Dimm/Switch 240x21mm max. 50W Black matt

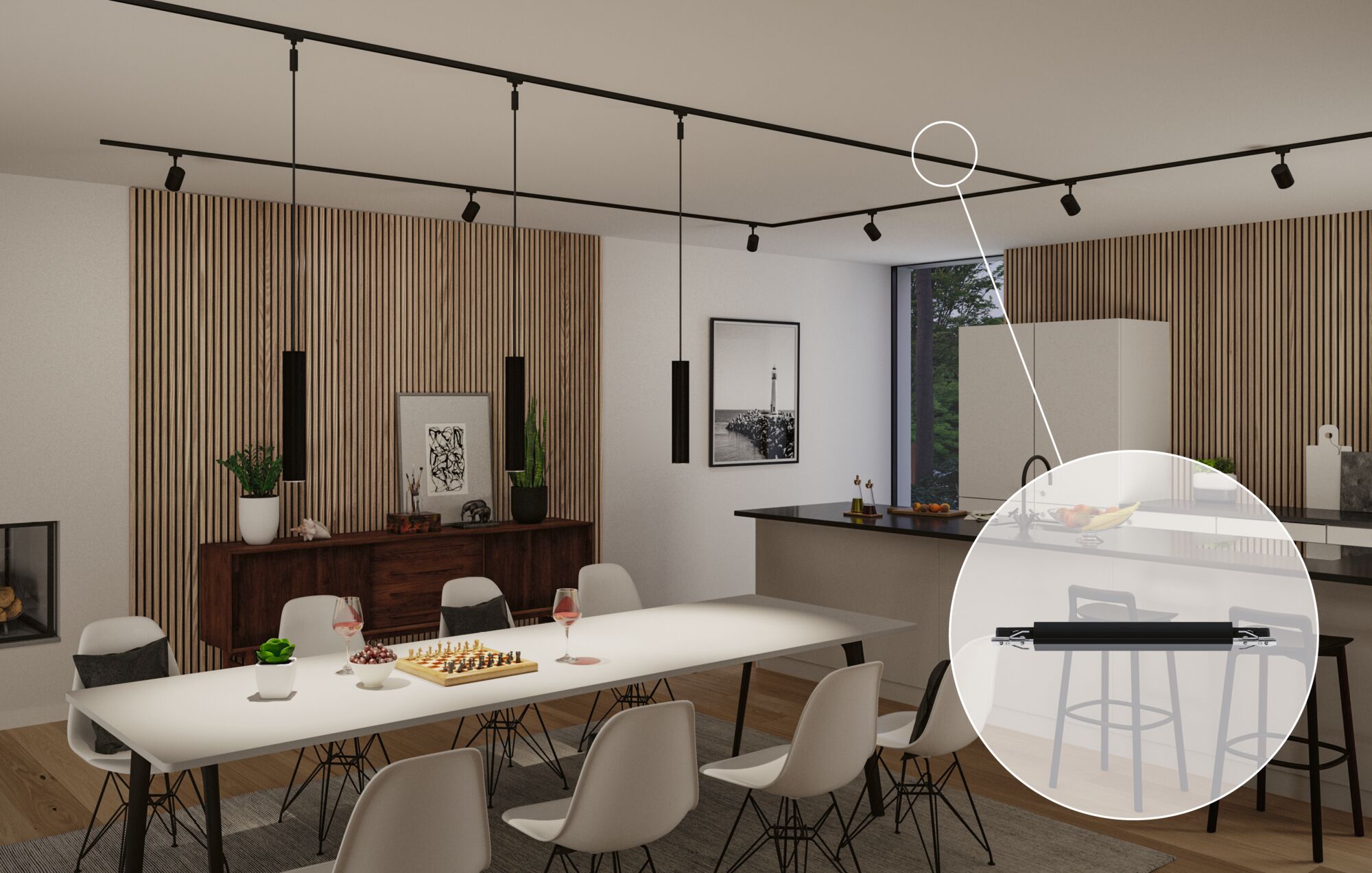

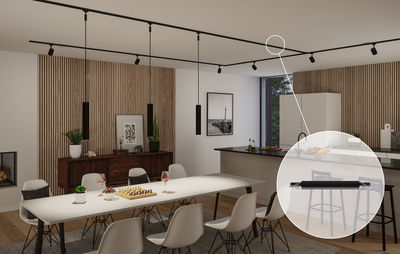

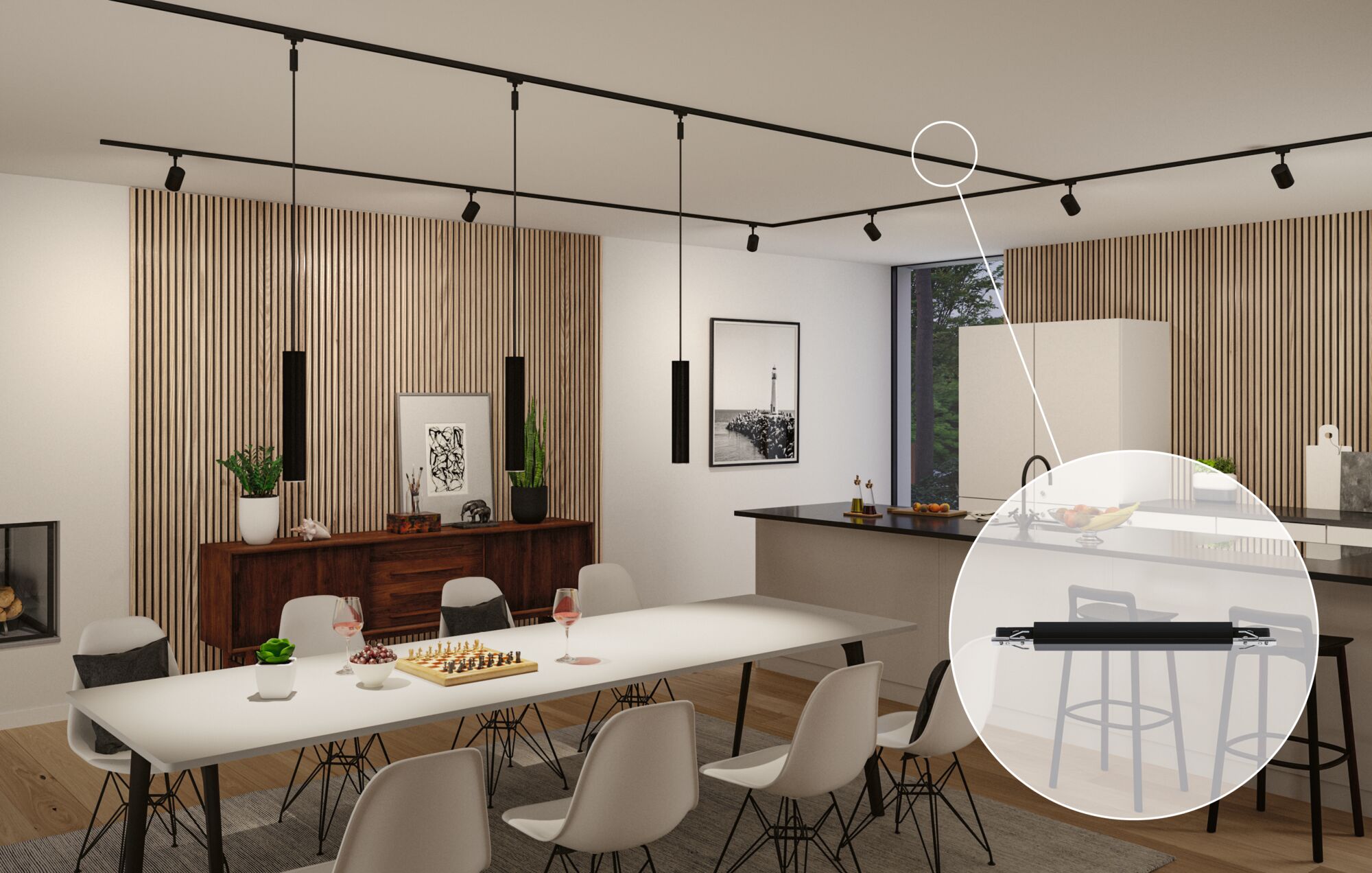

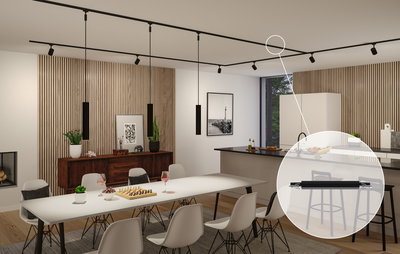

The URail dim/switch adapter in ${colour} from the Smart Home Zigbee 3.0 series can be used to switch and dim the following rail sections of your URail system. The adapter and the rail are simply connected together. This means that a smart control system can be easily integrated into the URail system any need for modifications to the building's electrical system. Every URail system has the potential to be smartly controlled. PLEASE NOTE: This product is not compatible with all fixed LEDs and LED lamps and only works in connection with infinitely dimmable luminaires. Please refer to the technical data for the dimmer compatibility of the luminaires/lamps.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Switchable and dimmable URail connectors
- Can still be switched on and off with the light switch
- Mesh-capable: range increases from product to product
- Simple plug-in installation
- Note: This article only works in connection with continuously dimmable luminaires
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 18 x B: 240 x T: 21 mm |
| Usable length | 180 mm |
| Design and Material | |
|---|---|
| Colour | Black matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome ZB Basic Remote Control 501.41, Paulmann SmartHome Zigbee Gent2 501.40, Paulmann SmartHome ZB Smart Switch 501.34 |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Lamp Features | |
|---|---|
| Compatible Smart Home technology | Zigbee |
| Technique | Accessories without bulbs |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | no |
| Maximum wattage range | max. 50 W |
| protection class | protection class I |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
