Article-No.:
93068
VariFitLED Recessed panel3-Step-Dim
Veluna
IP44 round 215mm 22W 1700lm 4000K Satin dimmable
IP44 round 215mm 22W 1700lm 4000K Satin dimmable
£58.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 3-4 working days

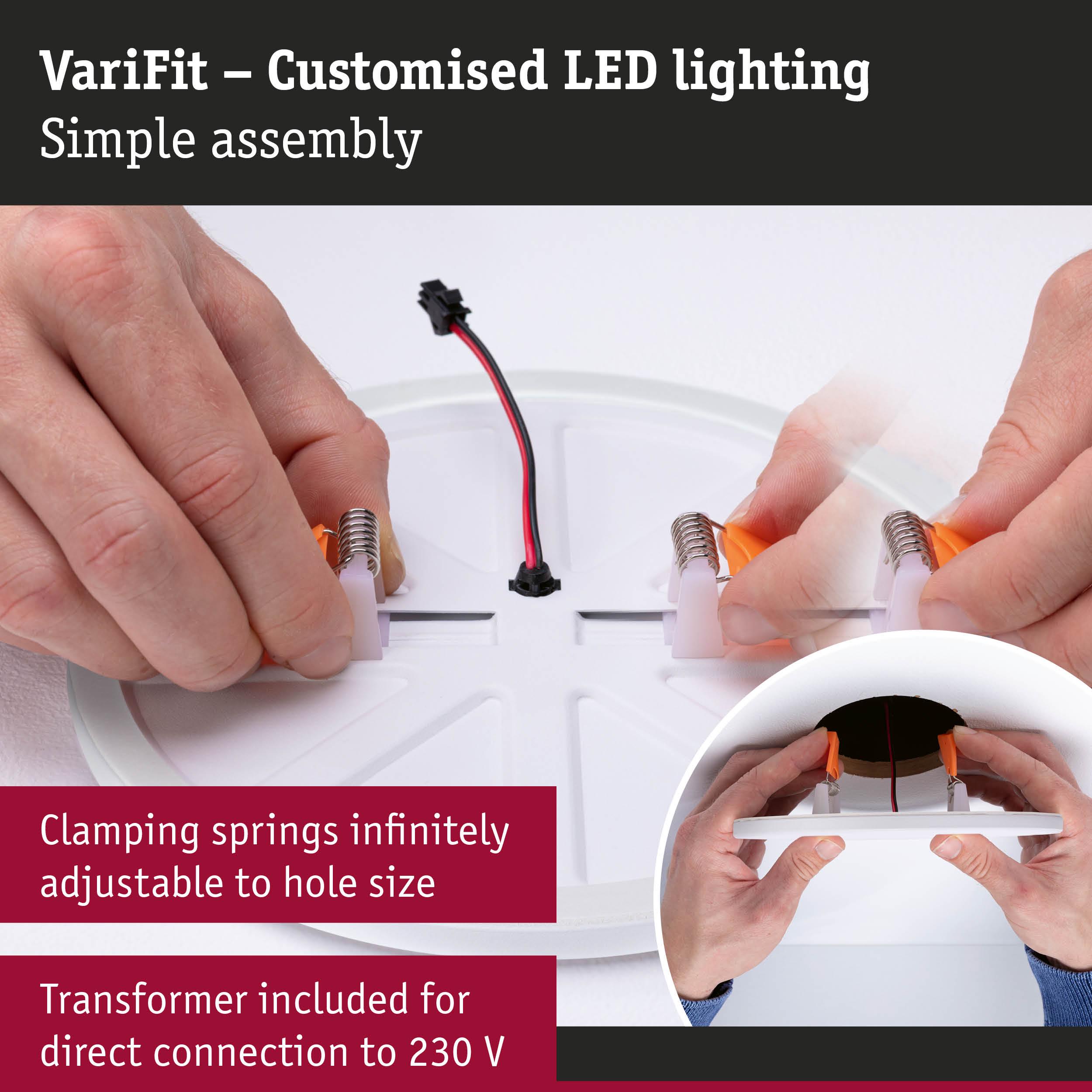

- VariFit – flexible installation with infinitely adjustable clamping springs

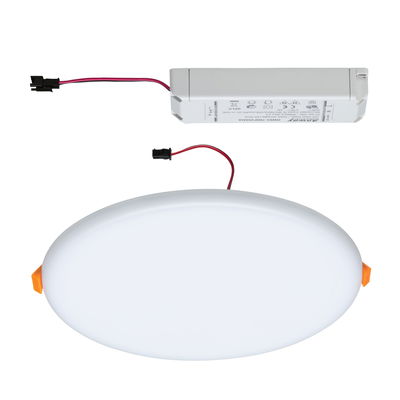

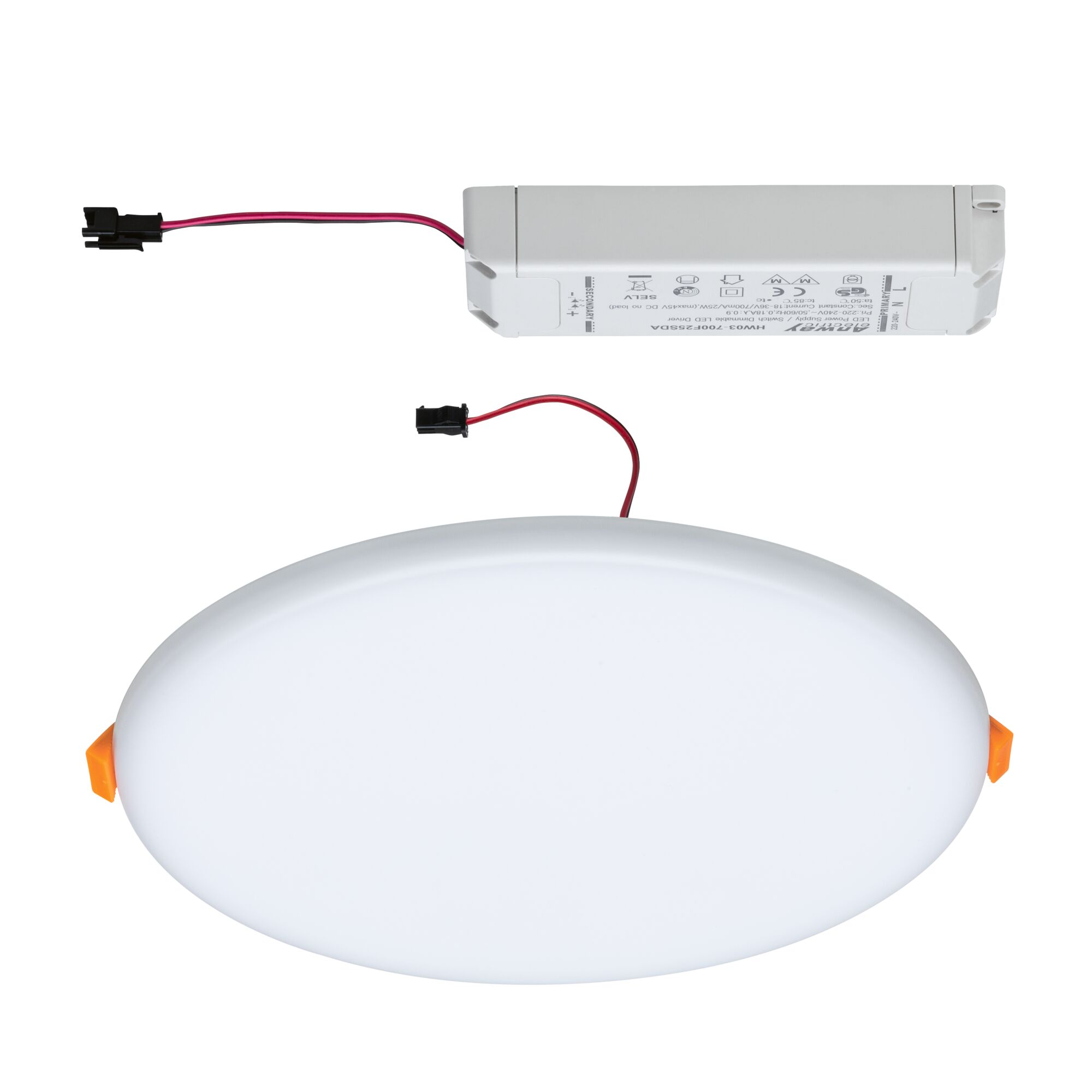

- With integrated LED bulb
- Color temperatur: 4000K - Neutral white

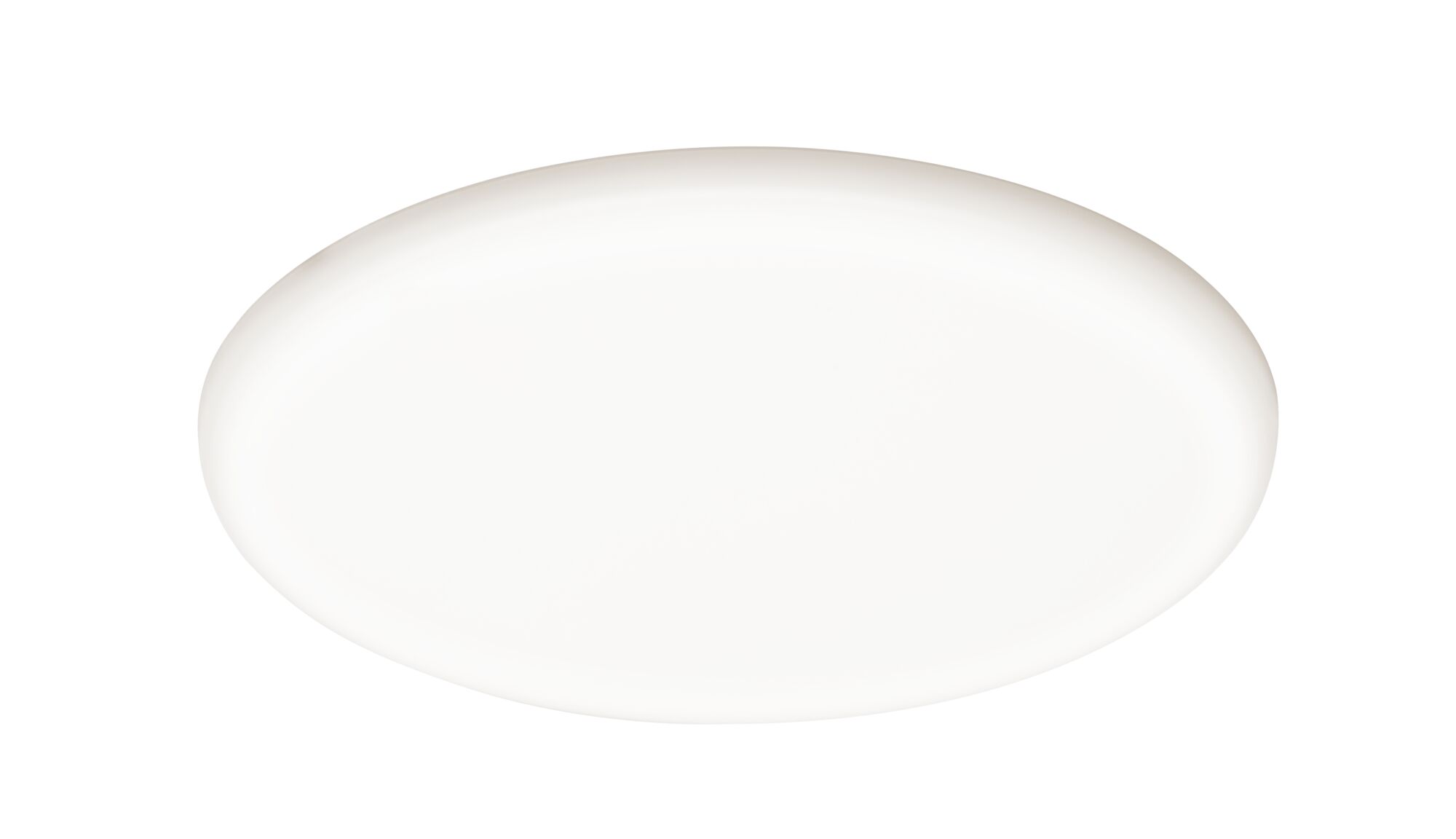

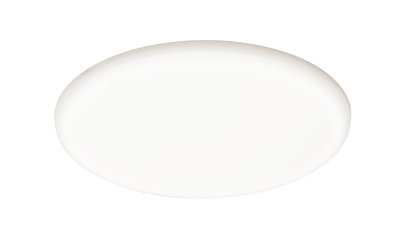

VariFit LED Recessed panel 3-Step-Dim Veluna IP44 round 215mm 22W 1700lm 4000K Satin dimmable

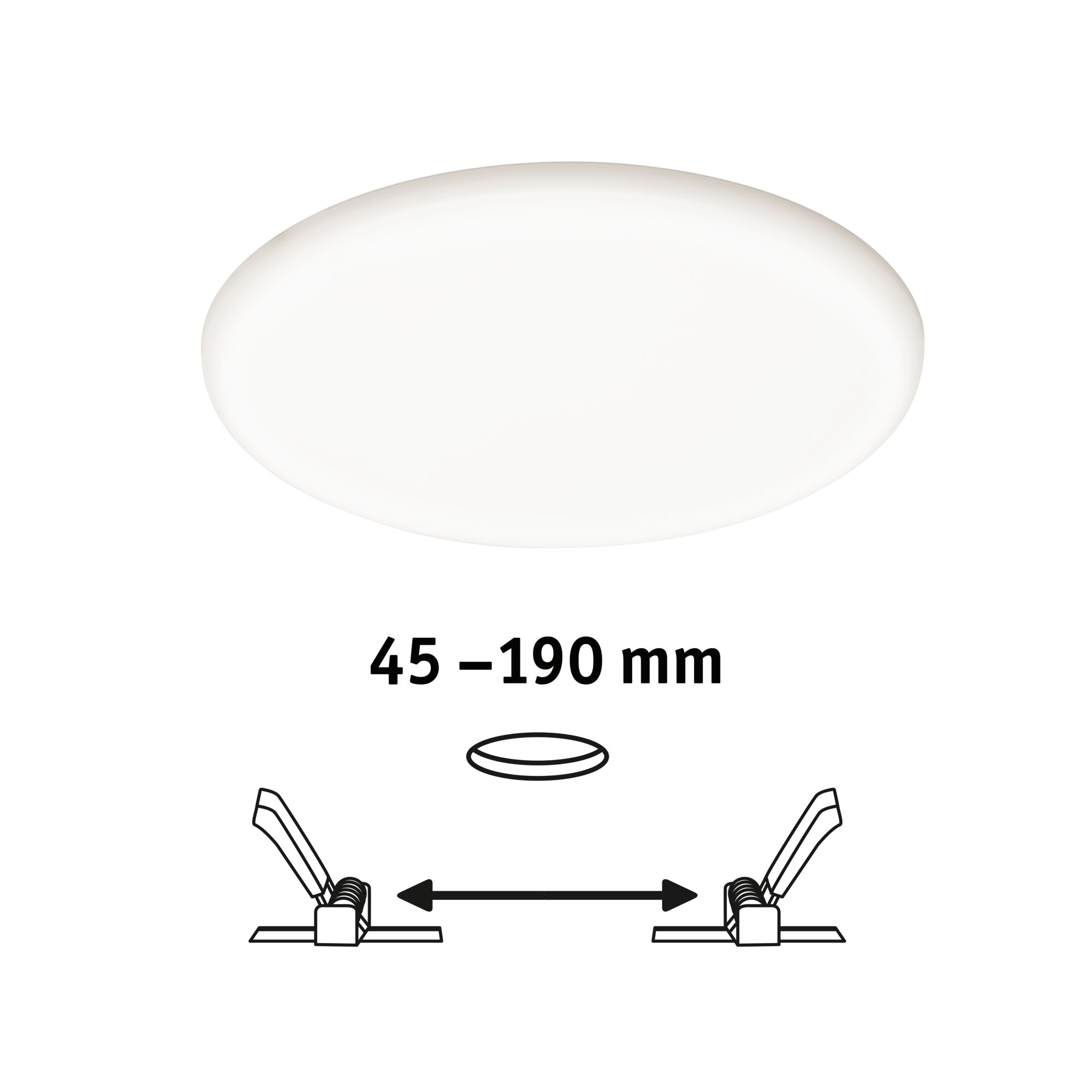

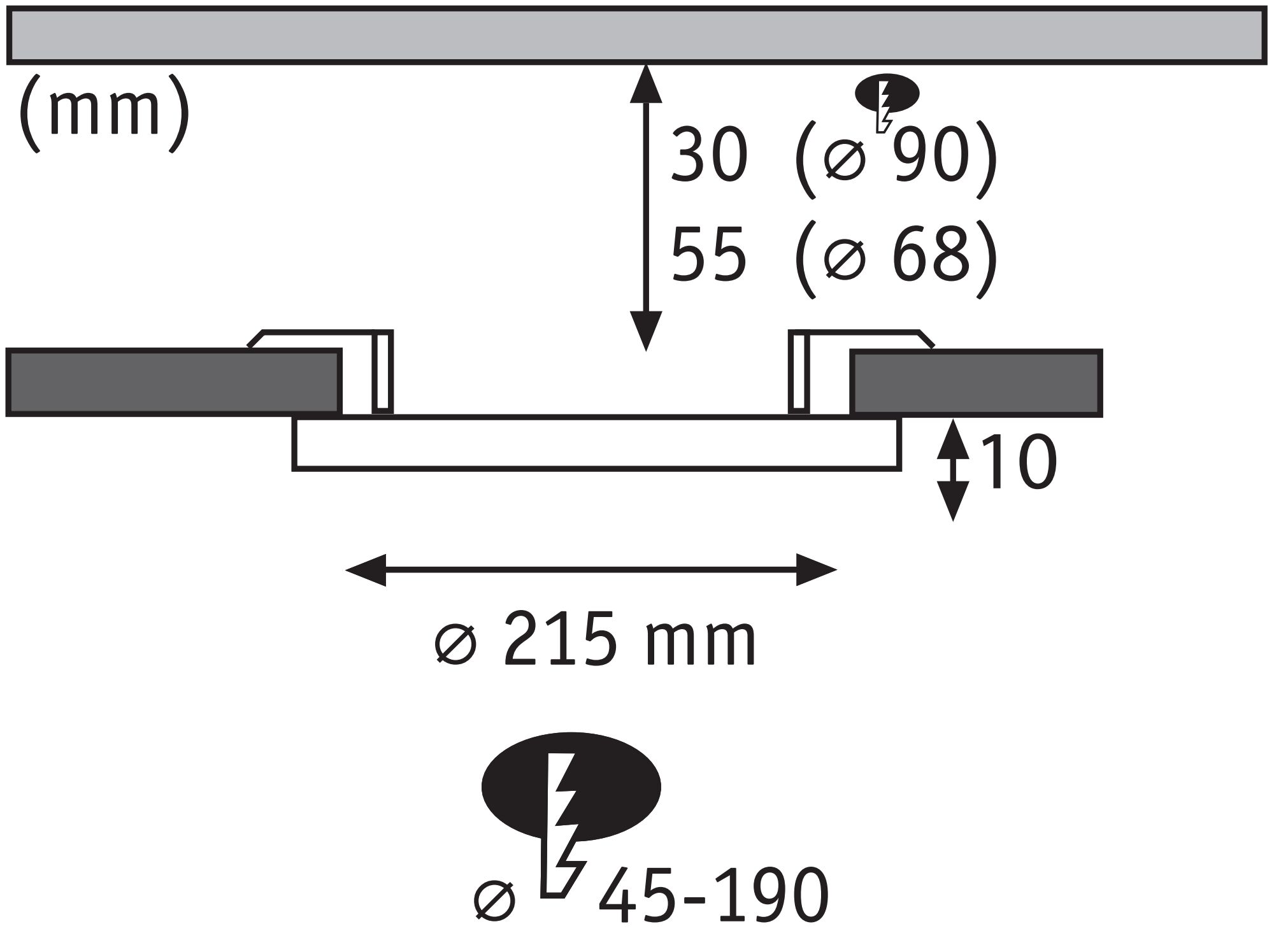

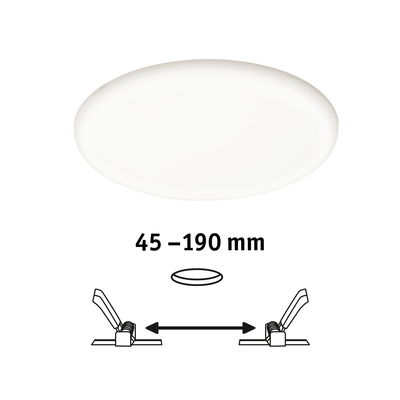

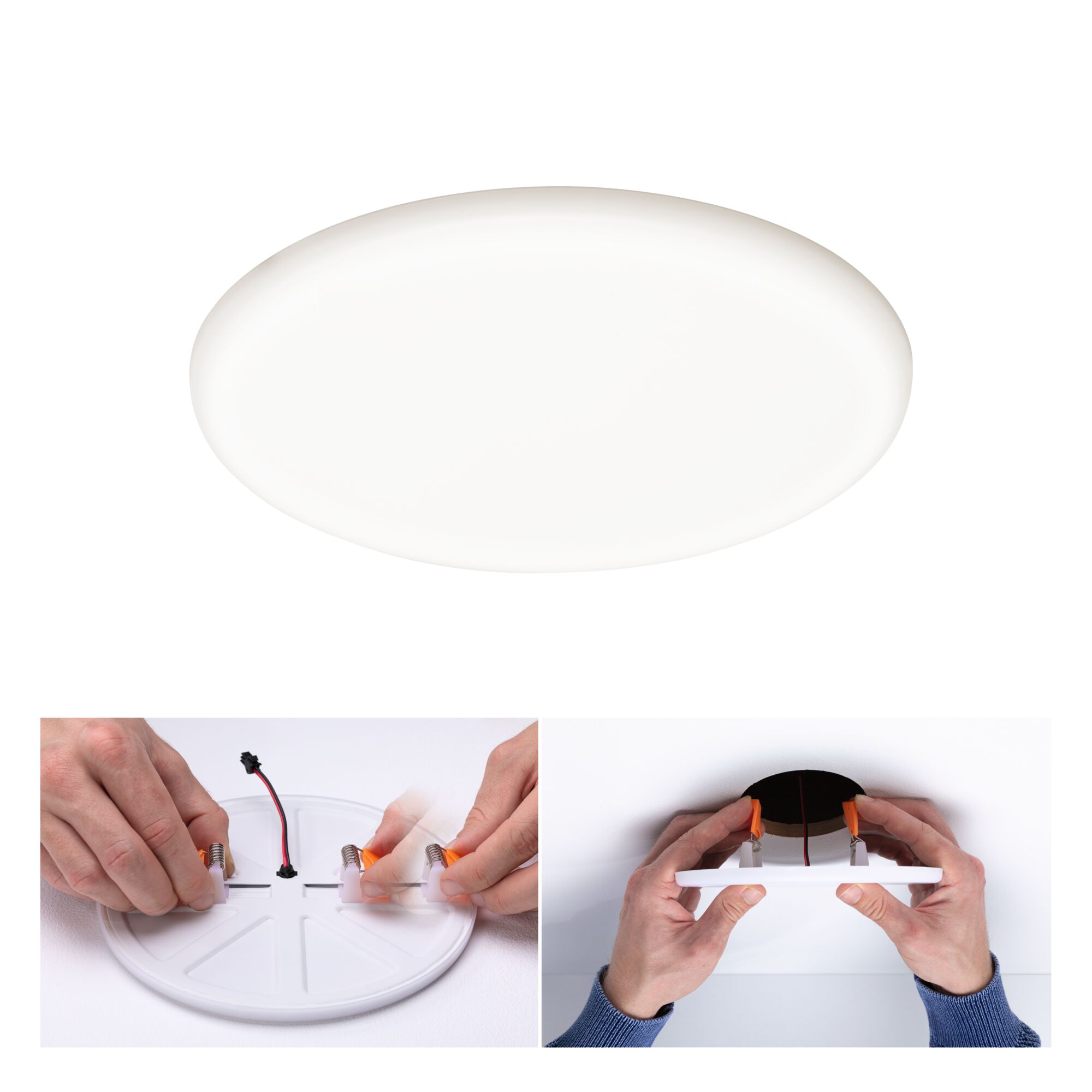

The frameless Veluna panel with an output of 22 watts provides extensive neutral white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 190 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The integrated 3-step dimming function offers three dimming levels in combination with a regular commercial light switch. The memory function stores the most recently used level until next activation.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white

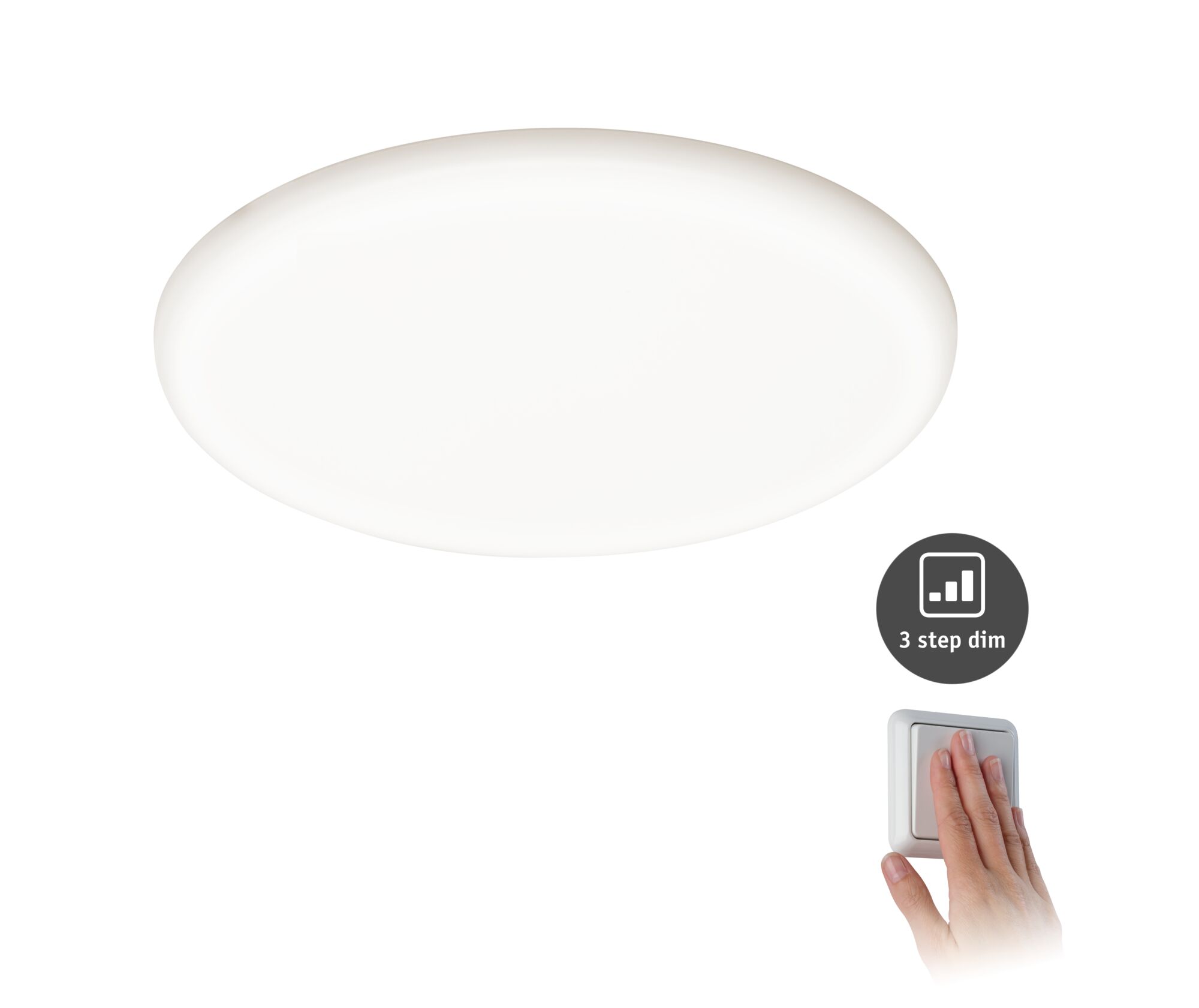

- Can be dimmed with a standard light switch, with 3 dimming levels
- For 230 V direct connection
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Diameter | 215 mm |
| Built-in diameter | 50 - 190 mm |
| Mounting depth | 45 mm |
| installation depth to | 70 mm |
| Depth of hollow wall | 30-55 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Satin |
| Material | Plastic |
| Recycled material included | no |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Neutral white, 4000 K |
| Nominal luminous flux | 1700 lm |
| Luminous flux LED module | 2450 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 150 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 22 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 25 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 26 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
