Article-No.:
92991
VariFit
LED Recessed panel
Dim to Warm
Areo
IP44 round 175mm 13W 1200lm 3 Step Dim to warm Chrome matt dimmable
IP44 round 175mm 13W 1200lm 3 Step Dim to warm Chrome matt dimmable
- VariFit – flexible installation with infinitely adjustable clamping springs

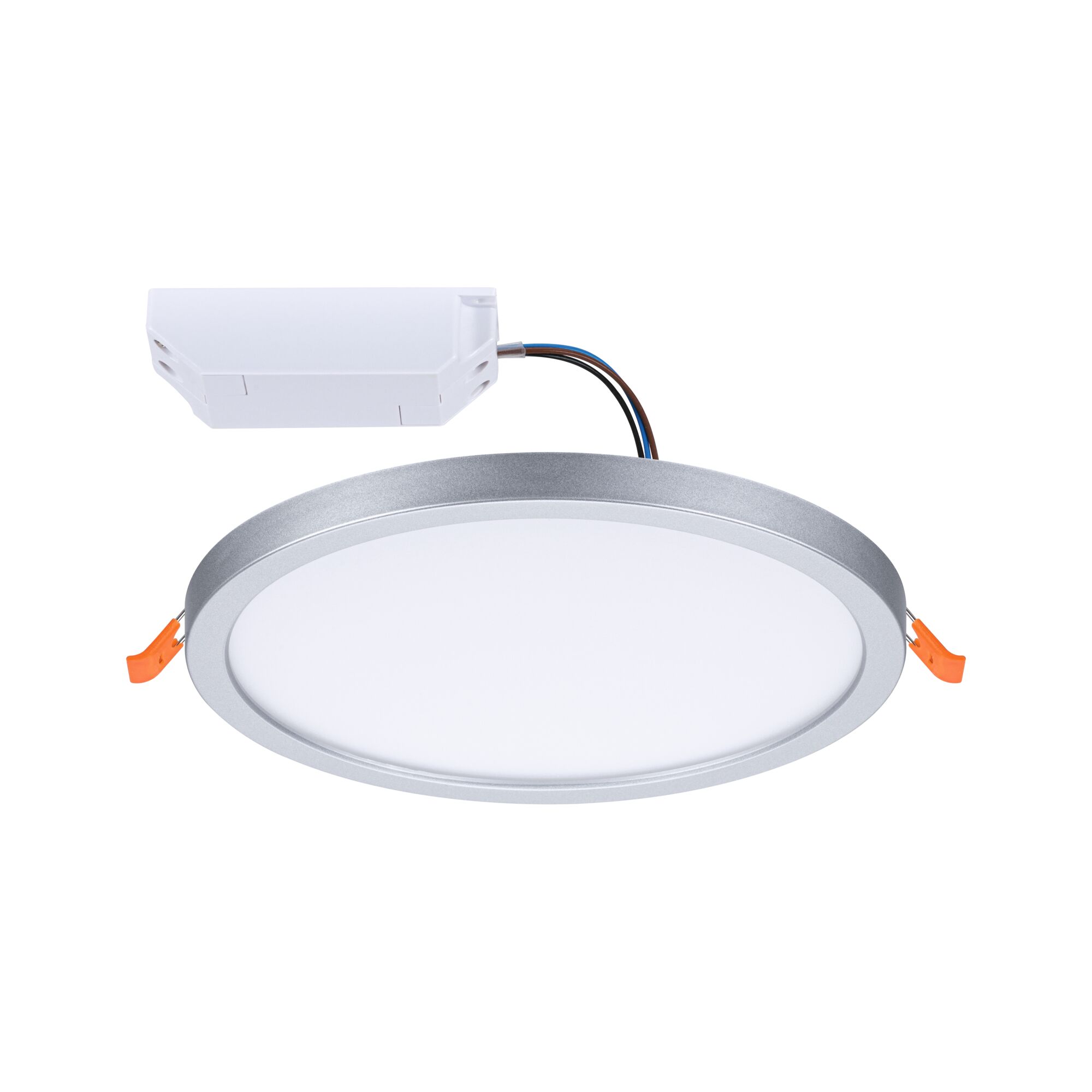

- With integrated LED bulb
- Made of easy-care plastic
VariFit LED Recessed panel Dim to Warm Areo IP44 round 175mm 13W 1200lm 3 Step Dim to warm Chrome matt dimmable

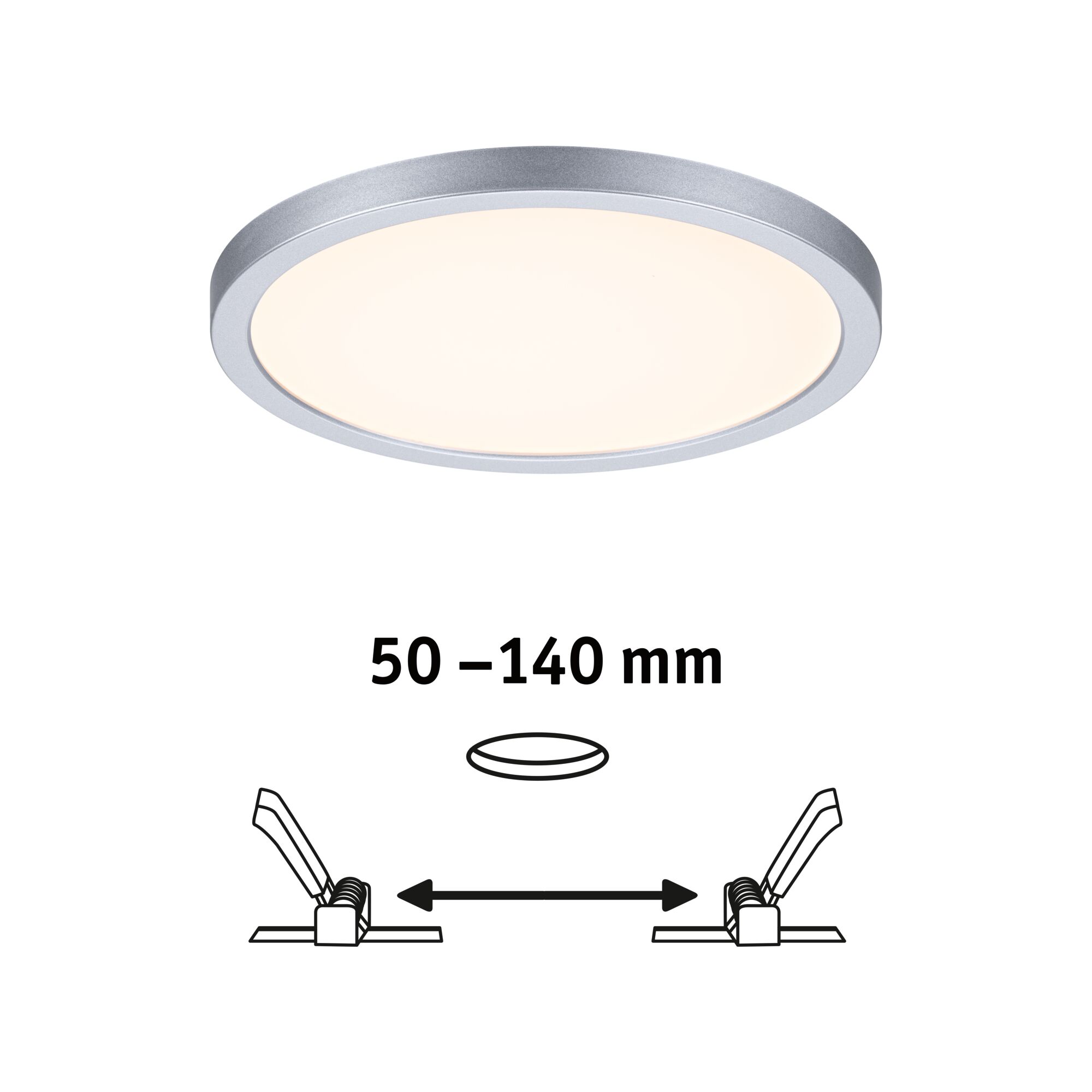

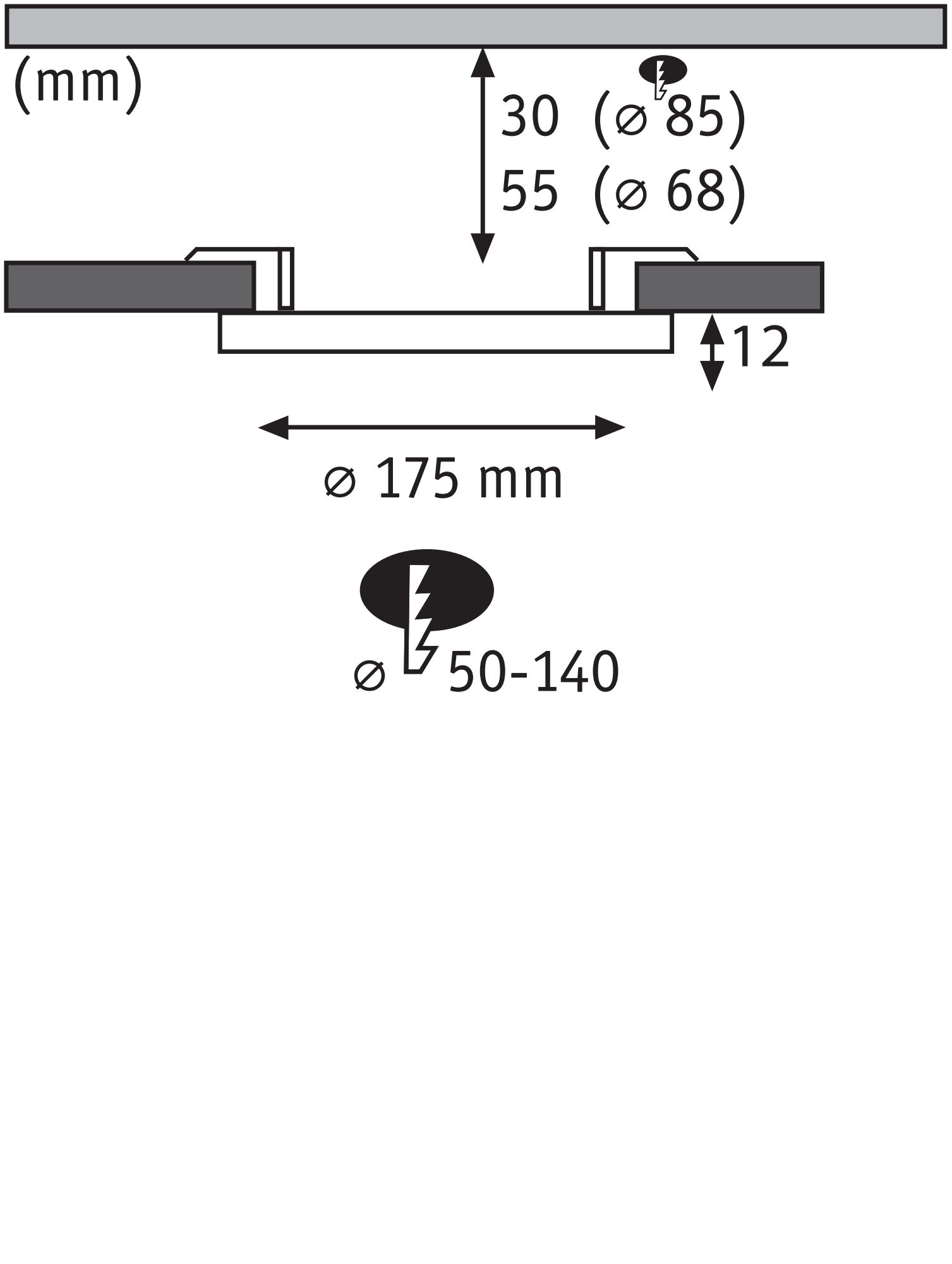

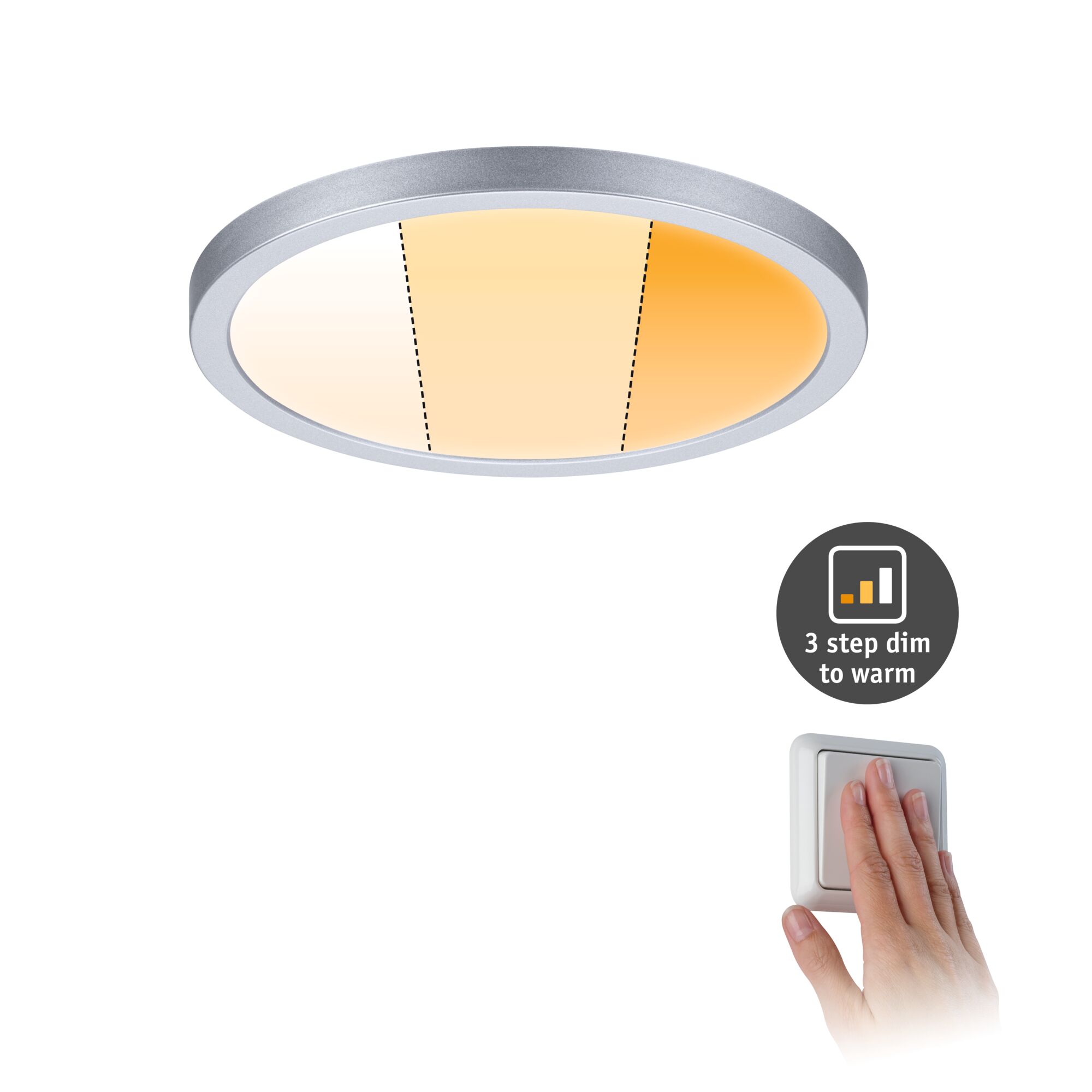

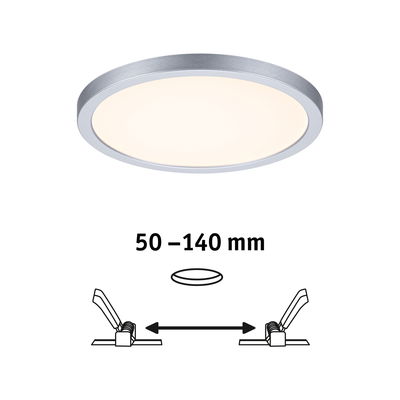

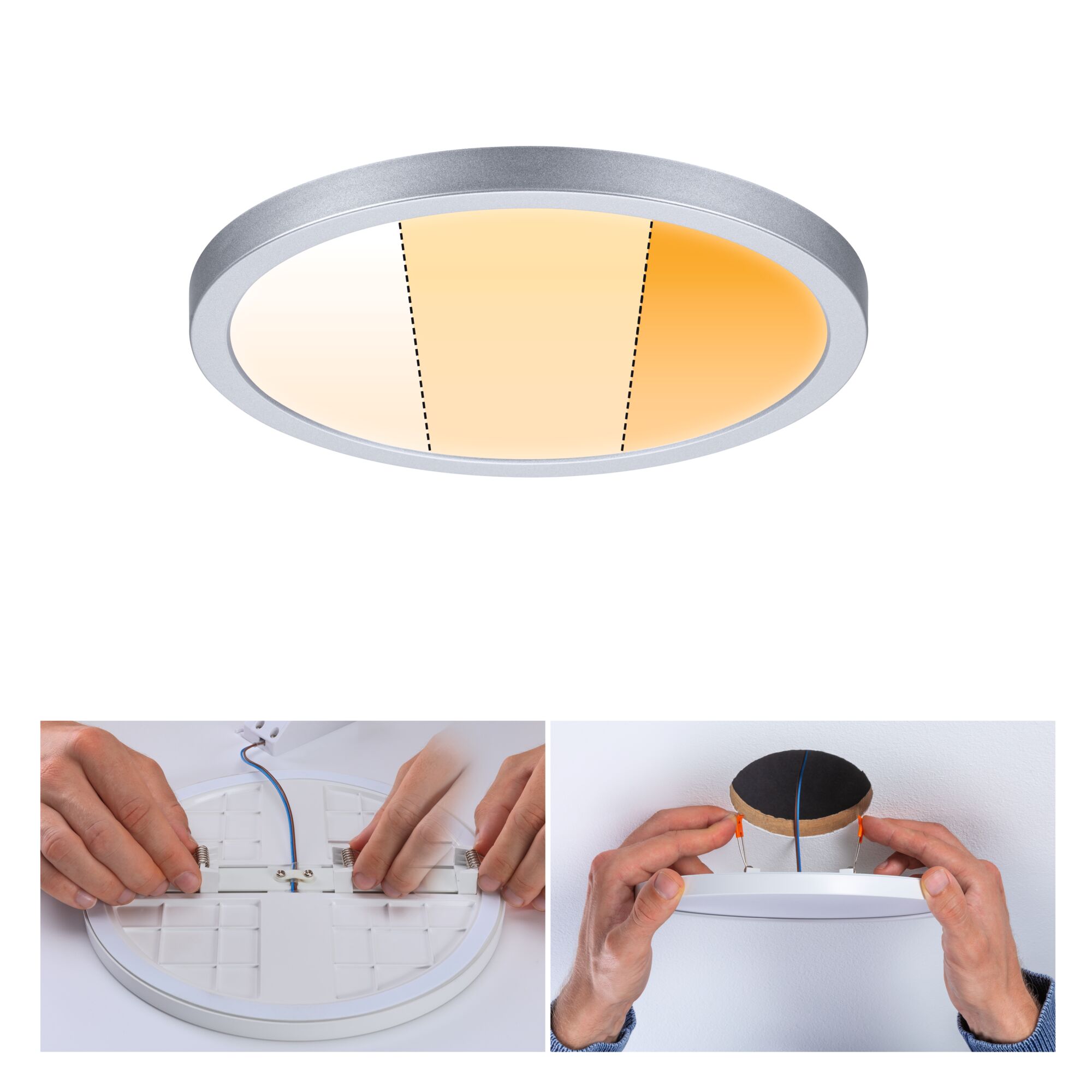

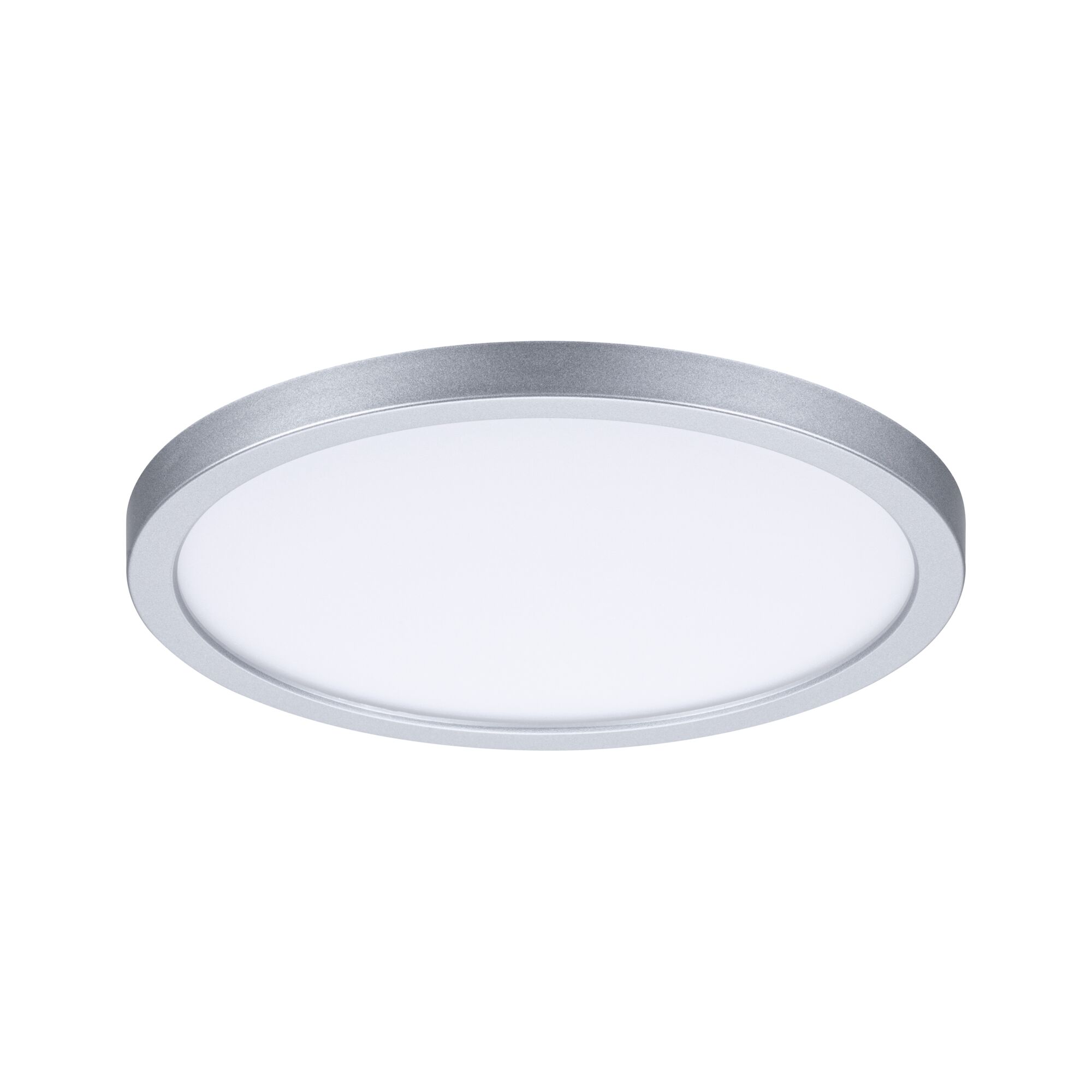

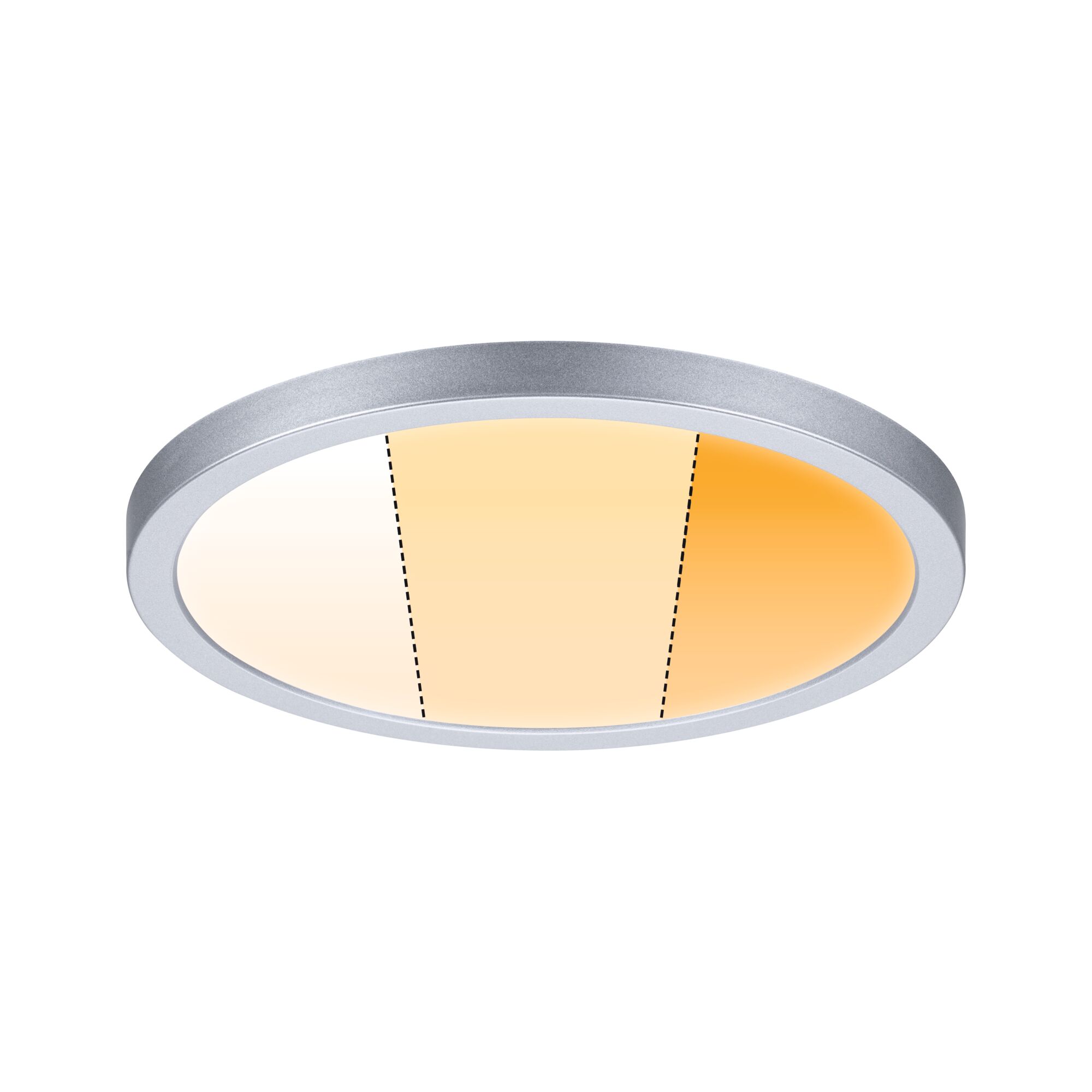

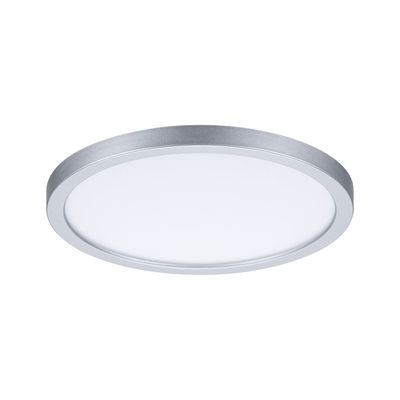

The light colour of the round WarmDim Areo recessed panel in Chrome matt with a diameter of 175 mm can be individually adjusted. Pressing the light switch cycles through three colour temperatures between 2,000 Kelvin (gold light) and 4,000 Kelvin (neutral white light). The lighting mood can therefore be changed according to individual requirements. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- Warmdimm function
Dimension | |
---|---|
mounting hole 2 | 140 mm |
Depth of hollow wall | 30-55 mm, 30 mm |
Total Mounting depth | 45-70 mm |
Dimensions (Height x Width x Depth) | H: 12/26 mm |
Ø | 175 mm |
Mounting hole | 50 mm |
Form | round |
Design and Material | |
---|---|
Colour | Chrome matt |
Material | Plastic |
Energy consumption | |
---|---|
Energy efficiency (A to G) | E |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2000 K |
Colour change | 3 Step Dim to warm |
Usable luminous flux | 1200 lm |
Luminous flux LED module | 1700 lm |
color temp | 2000 - 4000 K |
Color rendering index | > 80 Ra |
Lamp Features | |
---|---|
Component parts | 13 W |
Technique | LED |
IP protection | IP44 |
Dim | dimmable in 3 steps with normal light switch |
Dimmable | Yes |
Inclusive lamp | yes |
Incandescent Equivalent | 106 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
Power consumption | 15 W |
Transformer | |
---|---|
apparent power | 30 VA |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
