Article-No.:
93045
VariFit
LED Recessed panel
Smart Home Zigbee 3.0
Areo
IP44 round 175mm 13W 1200lm Tunable White Chrome matt dimmable
IP44 round 175mm 13W 1200lm Tunable White Chrome matt dimmable
£88.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days

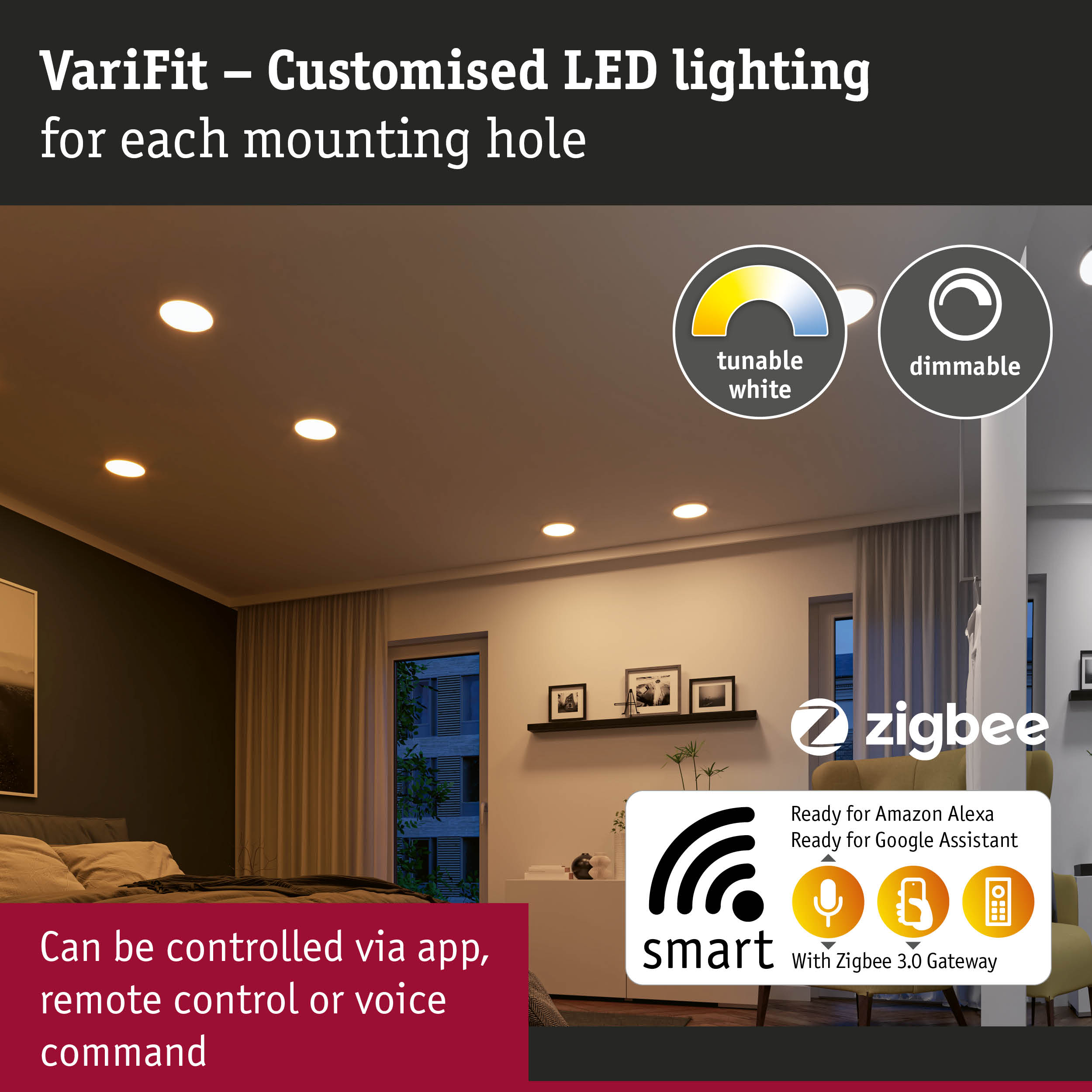

- Usable with smart home gateways that have a Zigbee interface

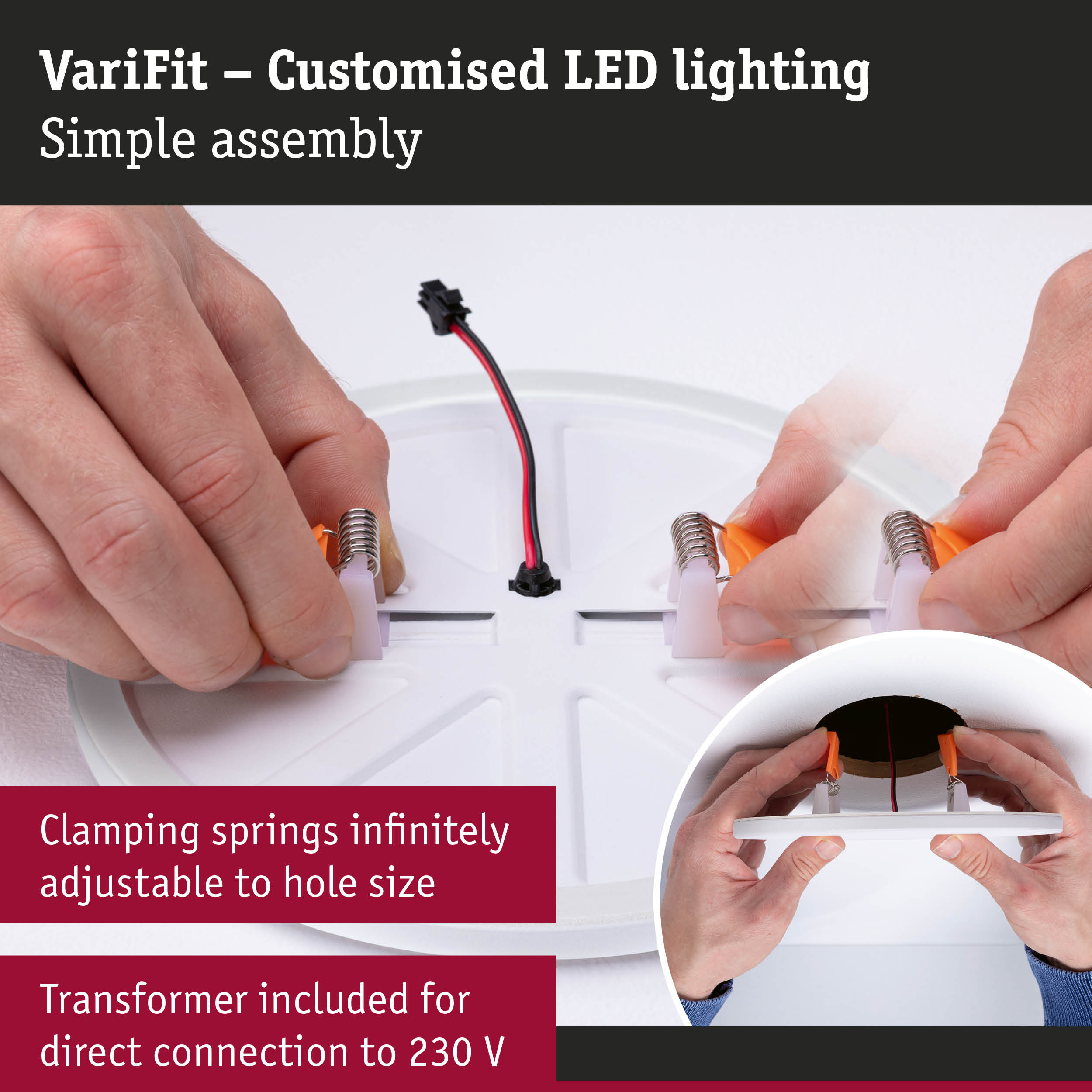

- VariFit – flexible installation with infinitely adjustable clamping springs

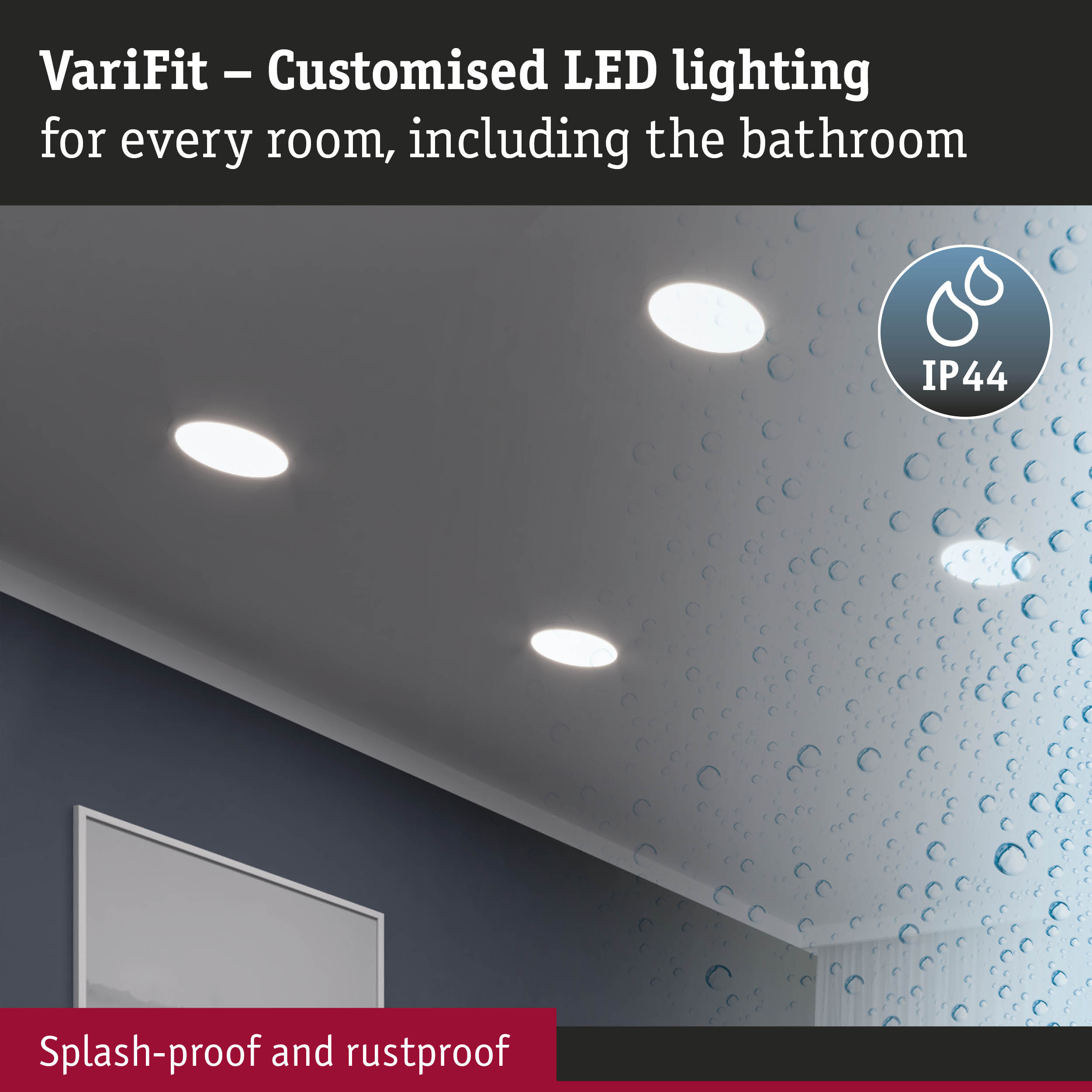

- IP protection: IP44 splash-protected
VariFit LED Recessed panel Smart Home Zigbee 3.0 Areo IP44 round 175mm 13W 1200lm Tunable White Chrome matt dimmable
The round Areo recessed panel with a diameter of 175 mm and an output of 13 watts in Chrome matt provides extensive, glare-free light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The lamp is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- Usable with smart home gateways that have a Zigbee interface
- VariFit – flexible installation with infinitely adjustable clamping springs
- IP protection: IP44 splash-protected
- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white
- With white-light control (Tunable White)
- Made of easy-care plastic
- For 230 V direct connection
- With integrated LED bulb
| Dimension | |
|---|---|
| Diameter | 175 mm |
| Dimensions (Height x Width x Depth) | H: 12/26 mm |
| Built-in diameter | 50 - 140 mm |
| Mounting depth | 45 mm |
| installation depth to | 85 mm |
| Depth of hollow wall | 30-70 mm |
| net weight | 330 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Chrome matt |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1200 lm |
| Colour change | Tunable White |
| Color rendering index | > 80 Ra |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 1700 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 13 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 106 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 15 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 30 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
