Article-No.:
79959
VariFit
LED Recessed panel
Smart Home Zigbee 3.0
Veluna Edge
IP44 angular 200x200mm 18W 1400lm Tunable White White dimmable
IP44 angular 200x200mm 18W 1400lm Tunable White White dimmable
£89.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- Especially flat construction

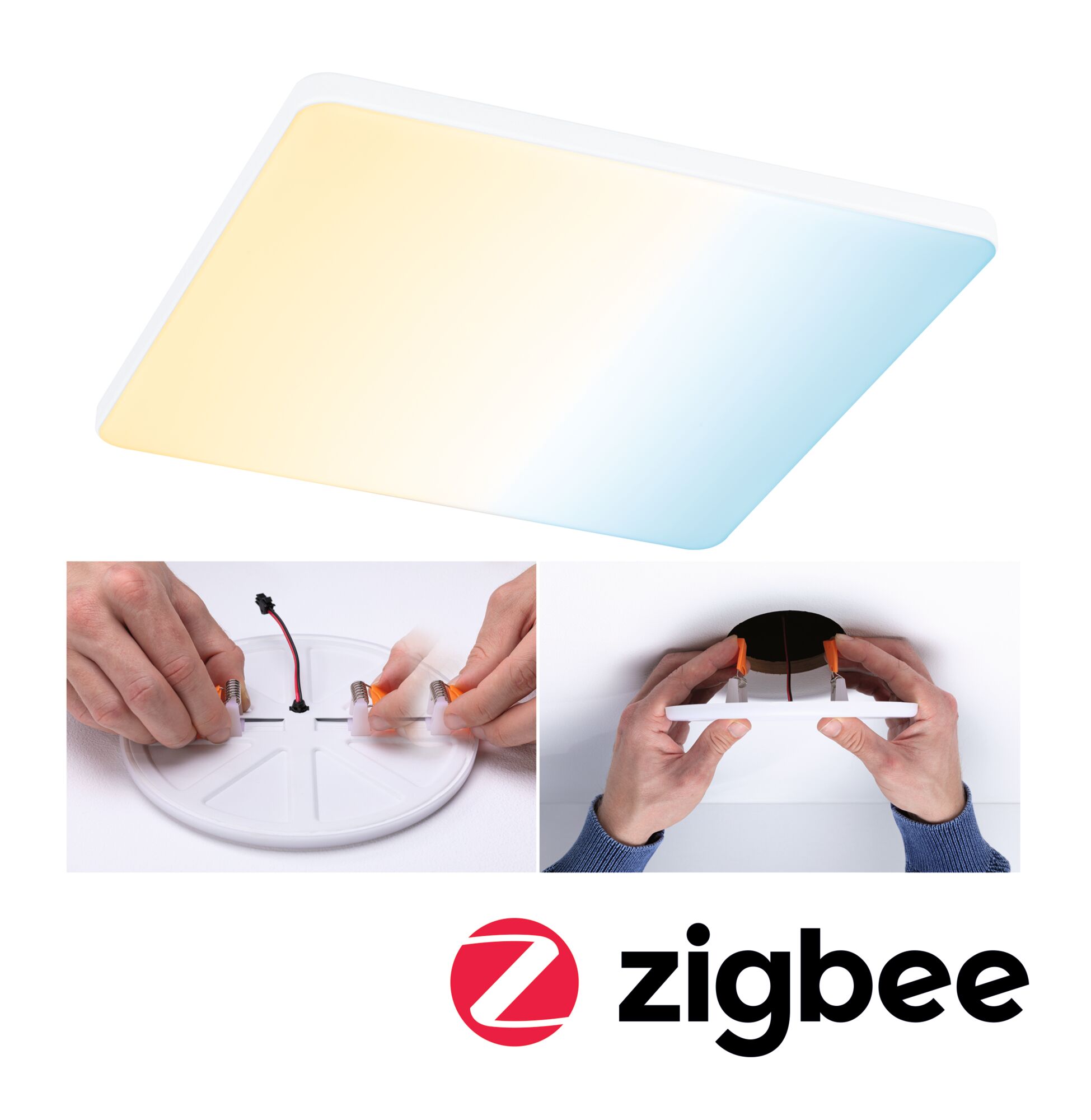

- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology
VariFit LED Recessed panel Smart Home Zigbee 3.0 Veluna Edge IP44 angular 200x200mm 18W 1400lm Tunable White White dimmable

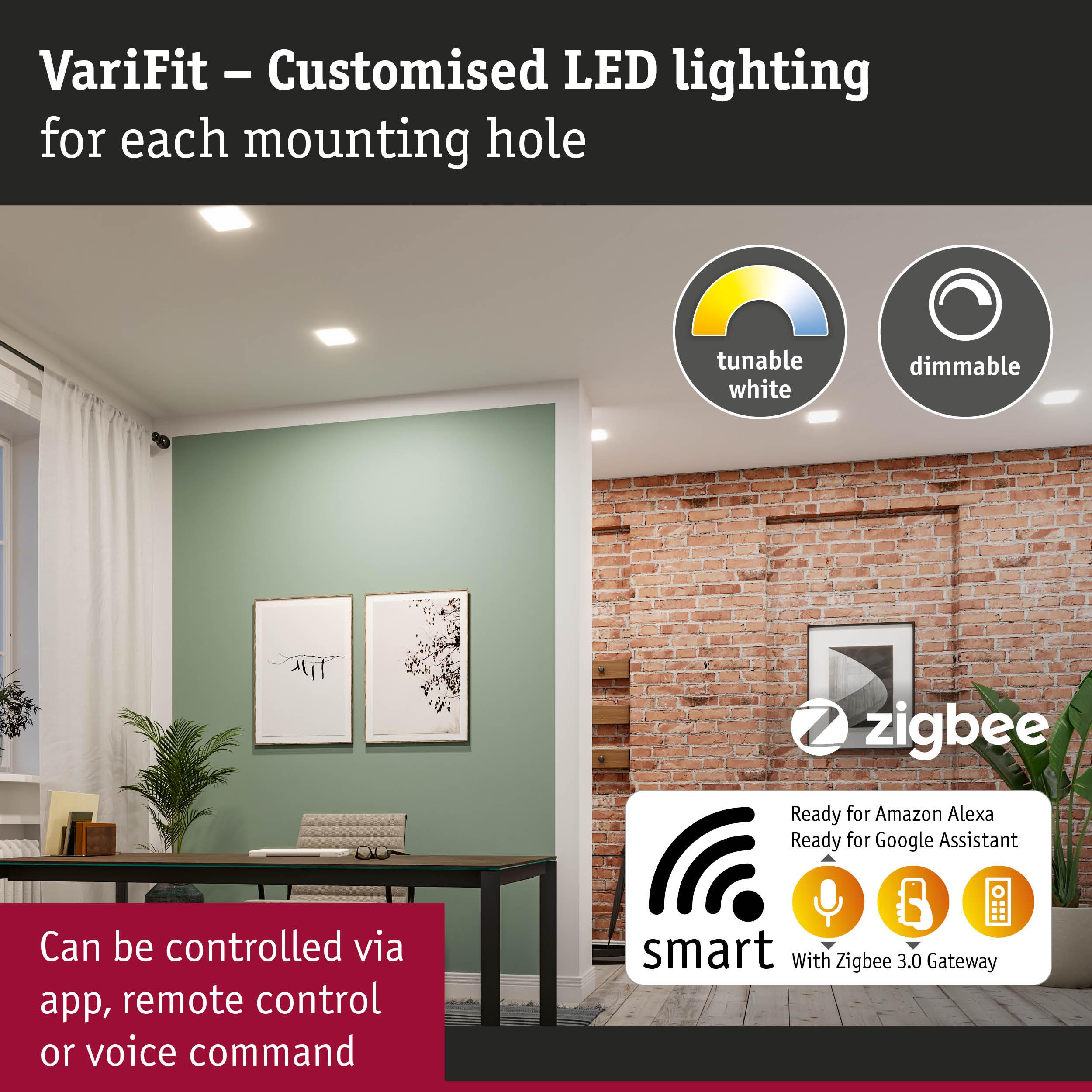

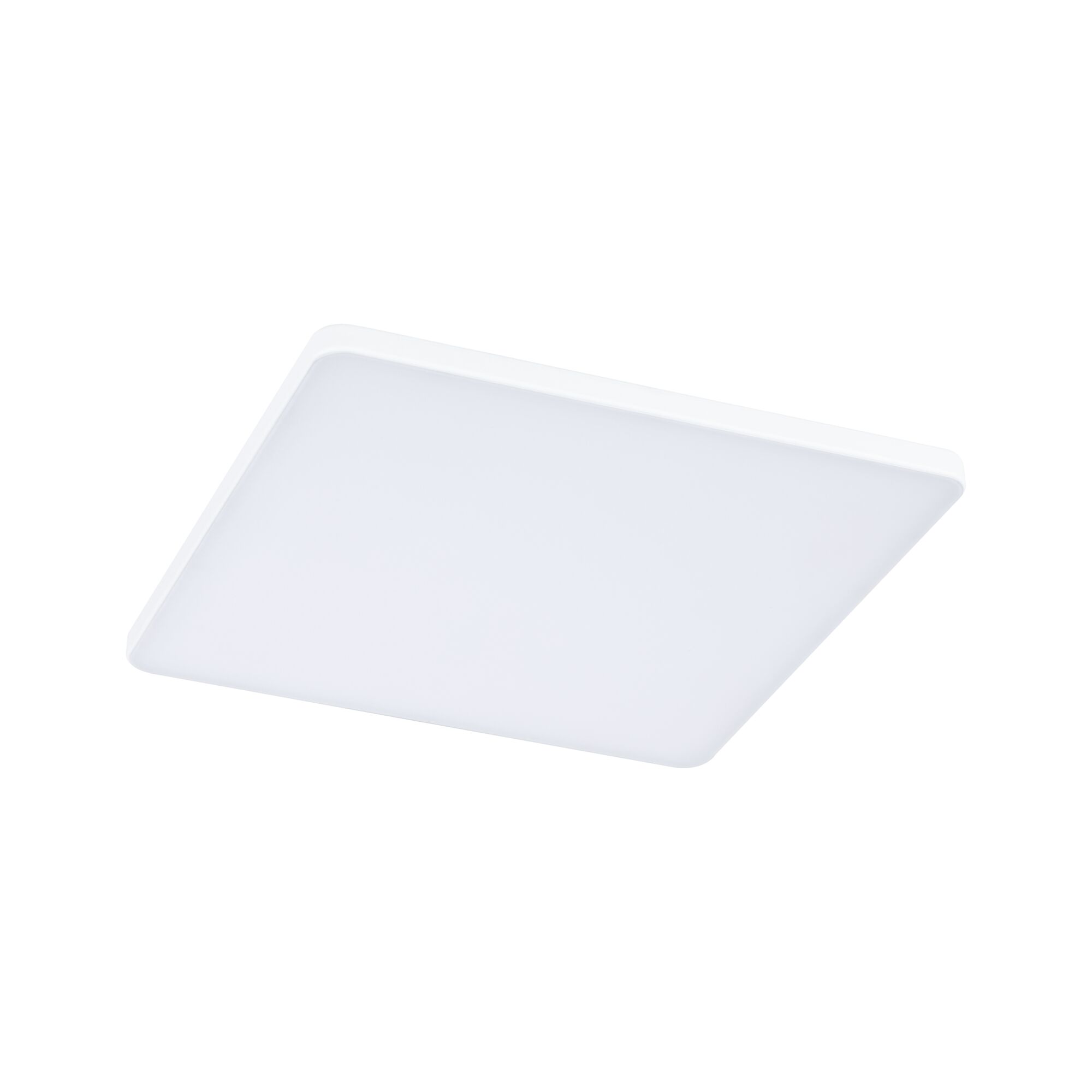

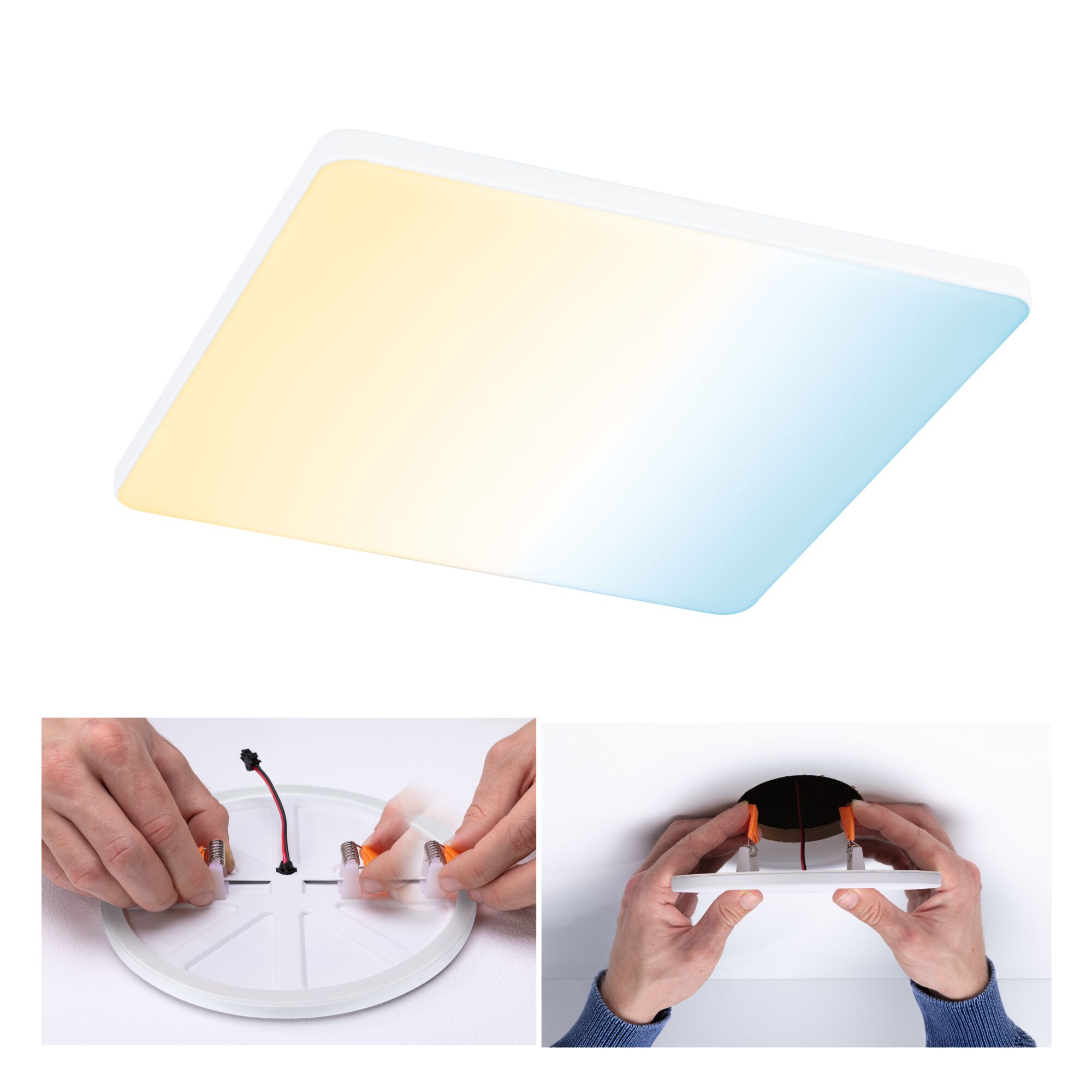

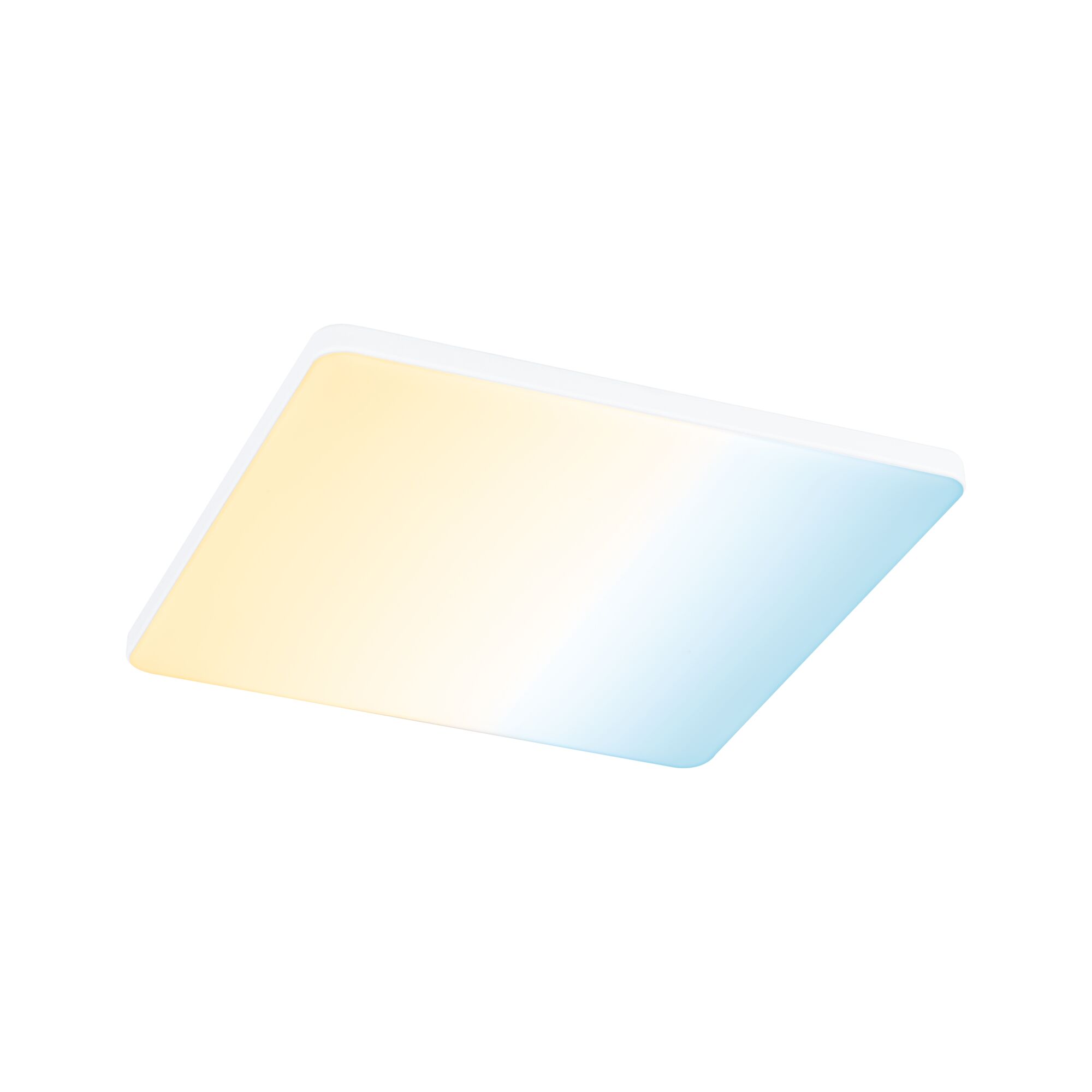

The Veluna VariFit Edge rectangular recessed panel impresses with a modern, frameless design. The panel with a size of 200x200 mm provides a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 180 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 30 mm is needed. The satined plastic cover creates a delicately diffuse light. The Tunable White light control allows a custom, continuous selection of the light colour – anything from daylight white work light to warm white relaxation light. The light is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Especially flat construction
- White light control from warm white to daylight white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting

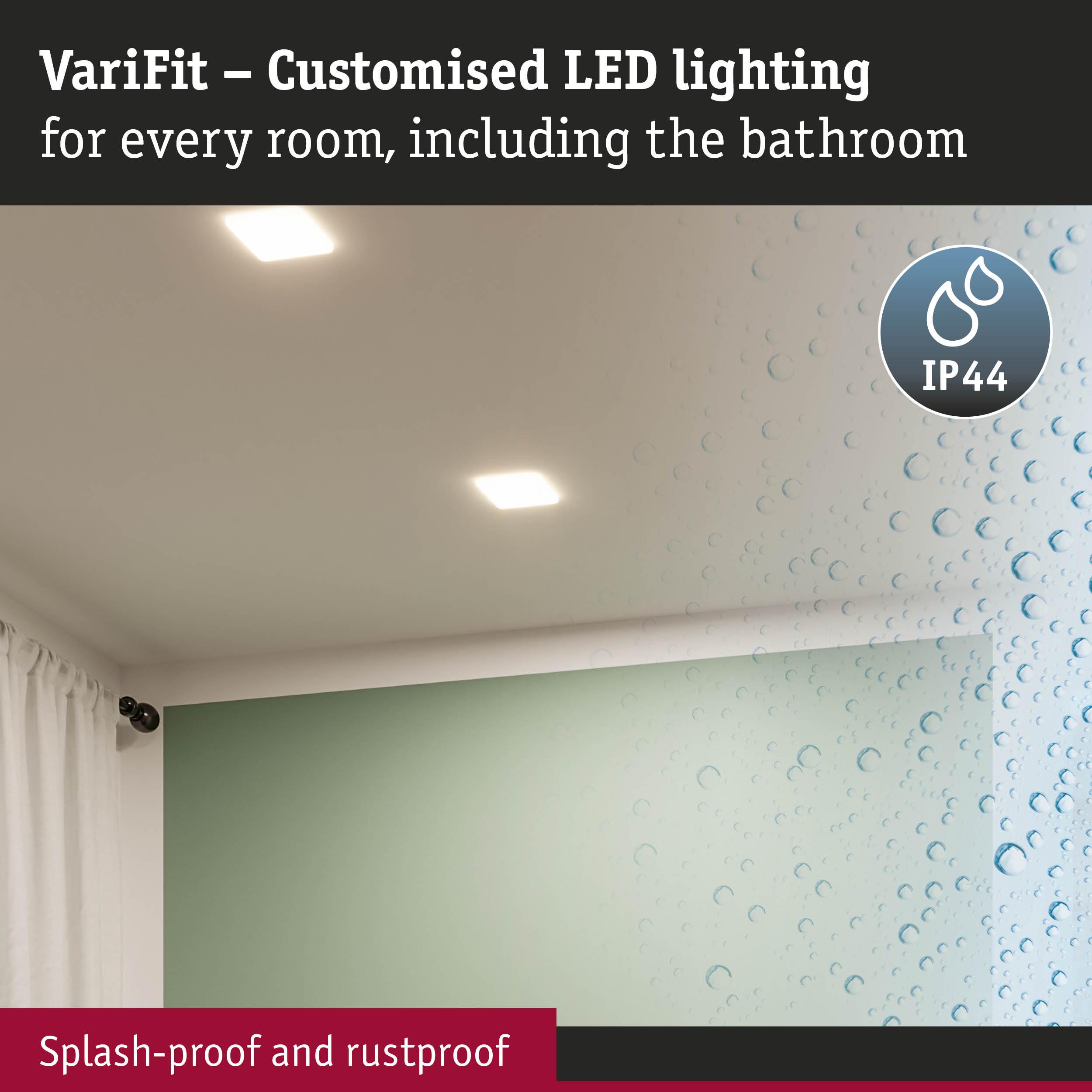

- IP44 splash-protected for bathrooms and similar rooms
- Satined plastic cover for fine diffusion of light

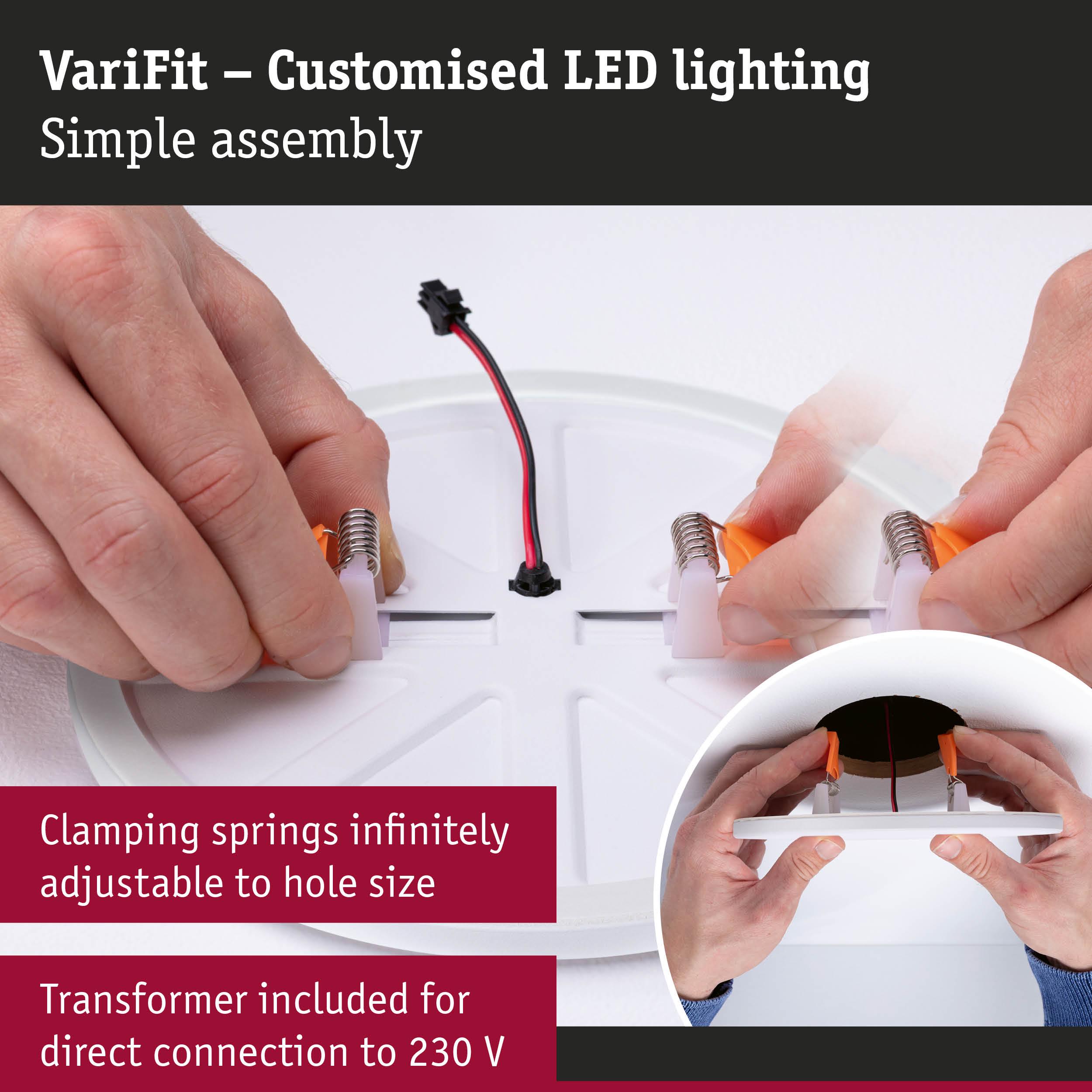

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|

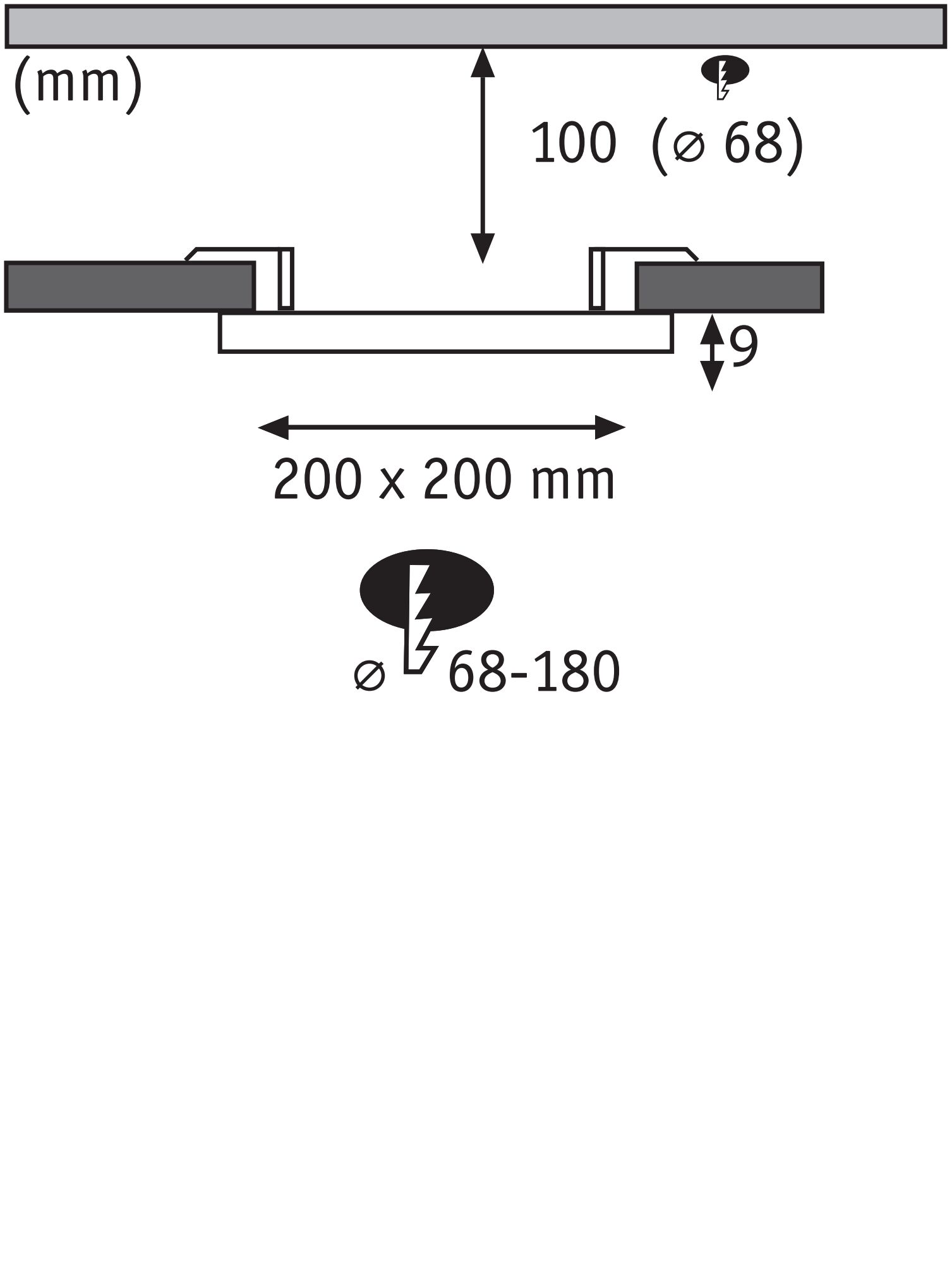

| Dimensions (Height x Width x Depth) | H: 9 x B: 200 x T: 200 mm |

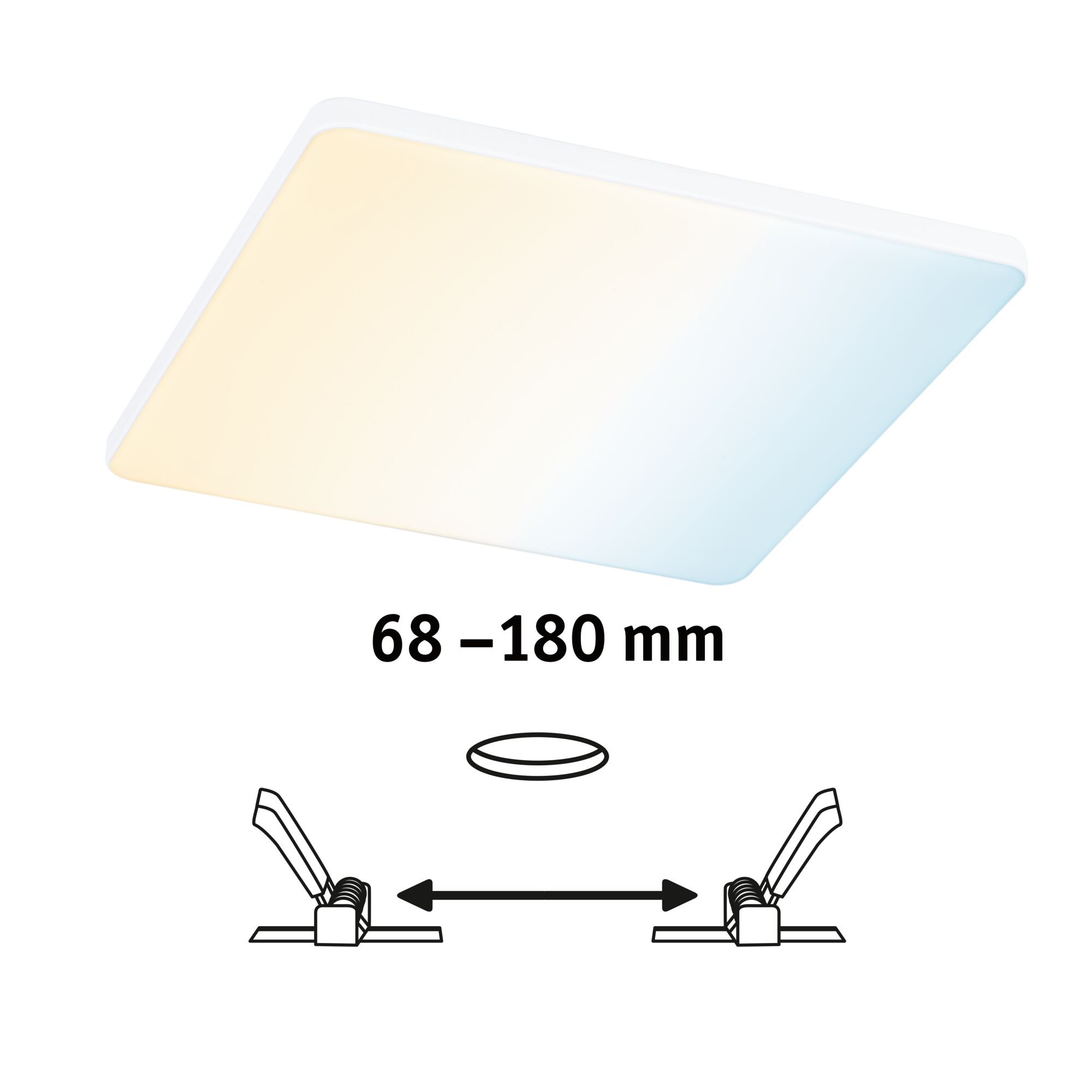

| Built-in diameter | 68 - 180 mm |
| Mounting depth | 30 mm |
| Depth of hollow wall | 15 mm |
| net weight | 467 g |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 1400 lm |
| Colour change | Tunable White |
| Color rendering index | > 80 Ra |
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Luminous flux LED module | 2000 lm |
| Lamp Features | |
|---|---|
| Dimming Control | with Smart Home |
| Inclusive lamp | yes |
| Component parts | 18 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 125.7 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 20 W |
| Voltage | 230 V |

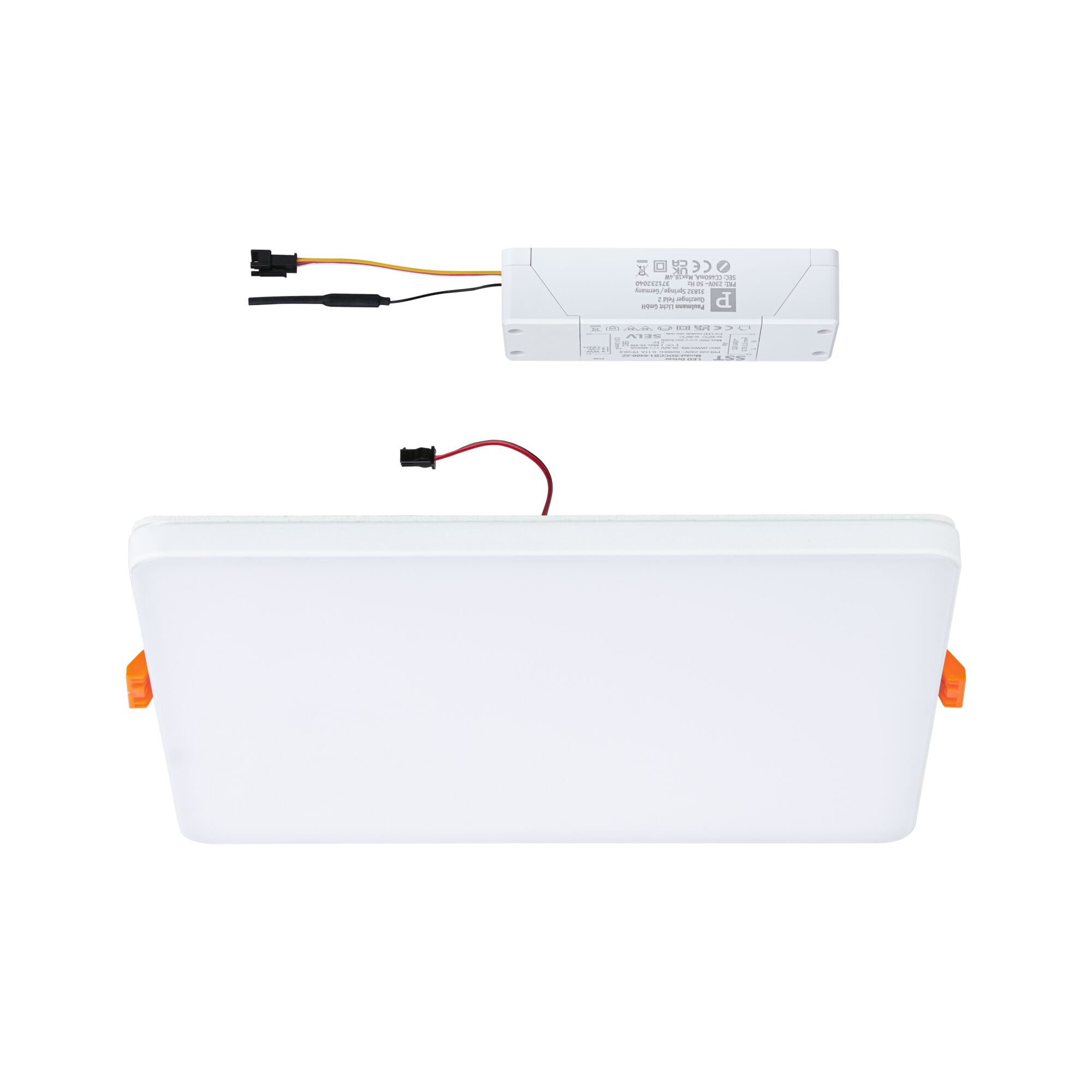

| Transformer | |
|---|---|
| apparent power | 22 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee_certified |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
| Compatible smart home systems | Amazon Echo Smart Speaker with Zigbee 3.0 interface|Philips Hue Bridge 2 and Pro (excluded Hue Entertainment) |
