Article-No.:
95386
VariFit
LED Recessed panel
Smart Home Zigbee 3.0
Veluna
IP44 round 185mm 15W 1000lm Tunable White Satin dimmable
IP44 round 185mm 15W 1000lm Tunable White Satin dimmable
- Usable with smart home gateways that have a Zigbee interface
- IP protection: IP44 splash-protected
- Can be controlled with the Smart Home Zigbee remote control
VariFit LED Recessed panel Smart Home Zigbee 3.0 Veluna IP44 round 185mm 15W 1000lm Tunable White Satin dimmable

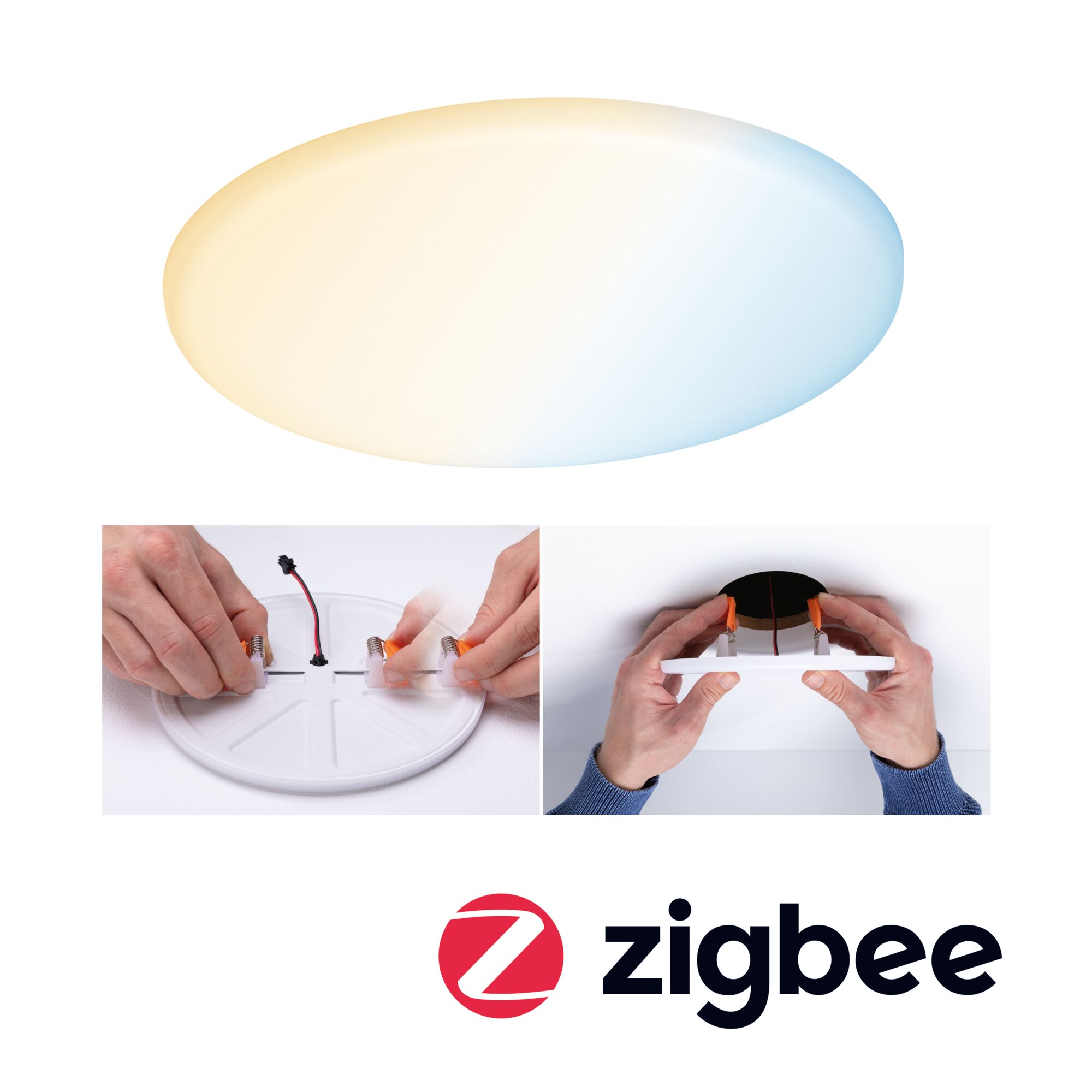

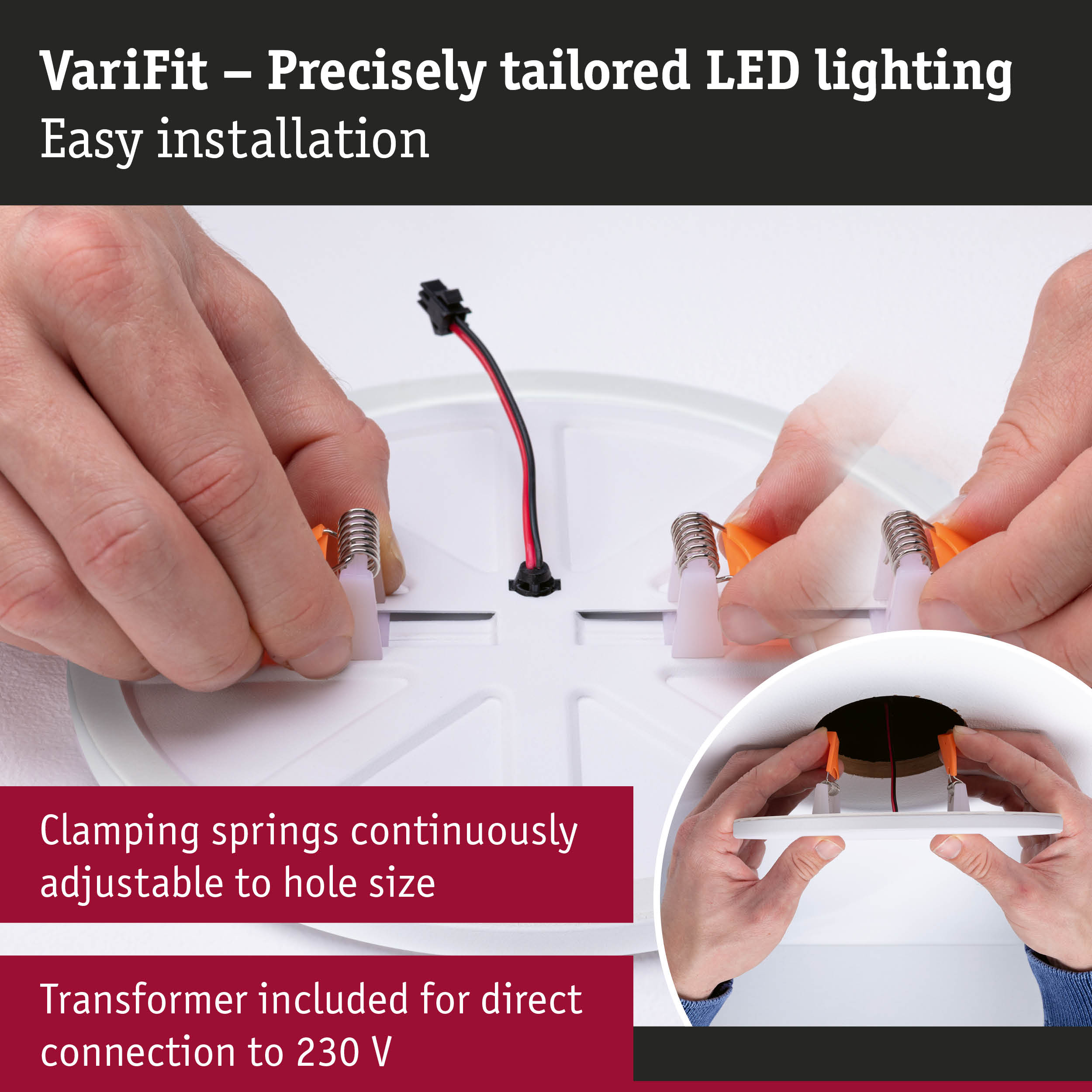

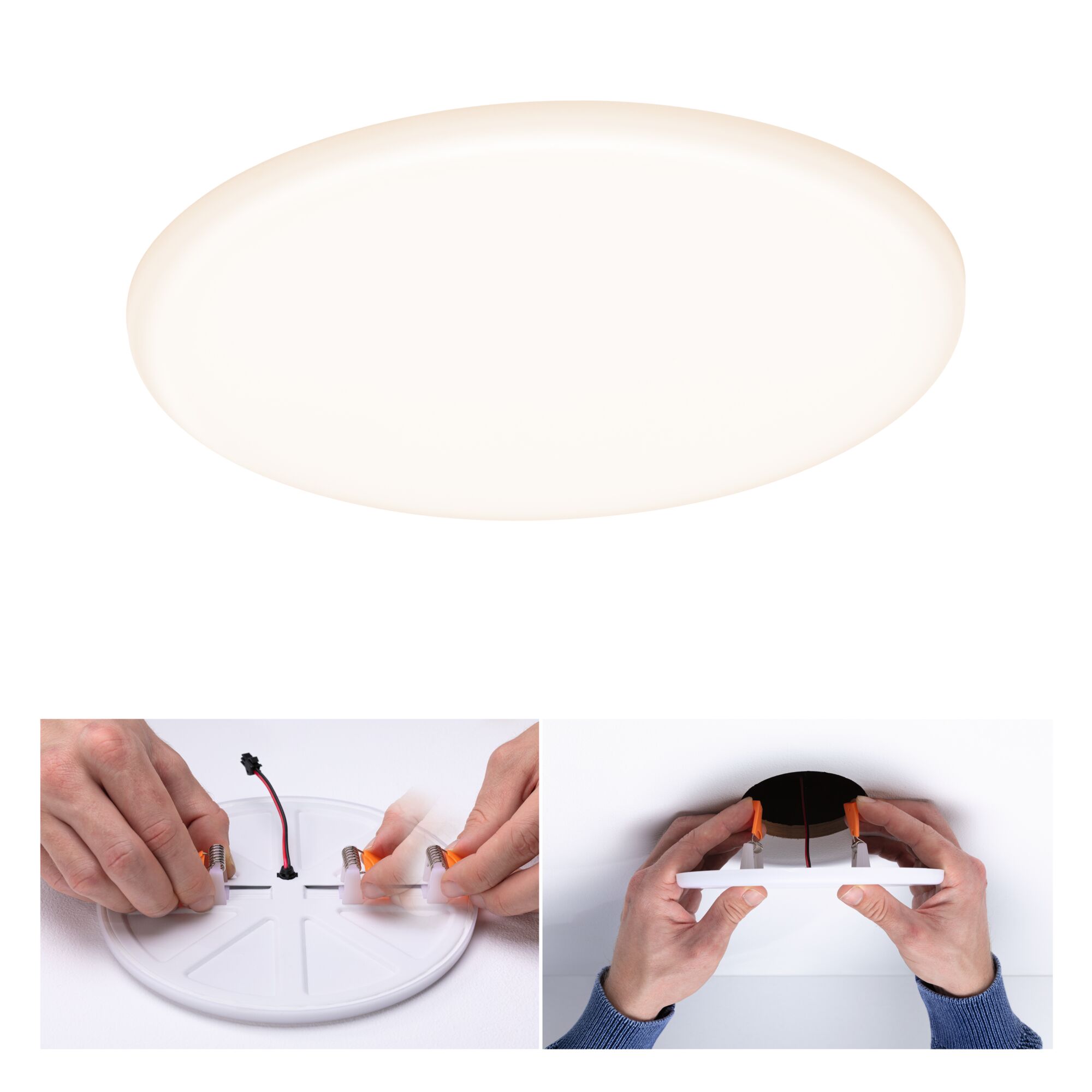

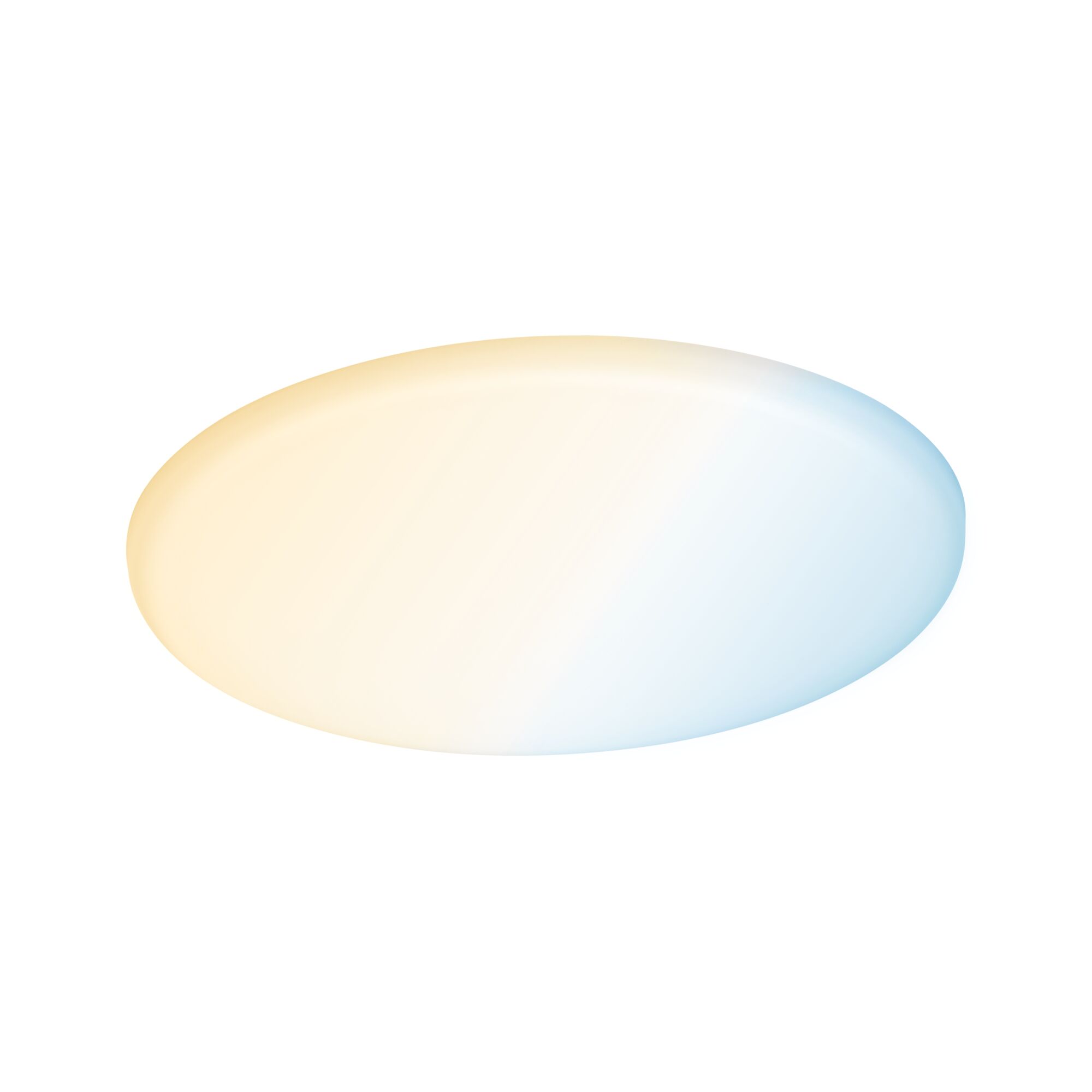

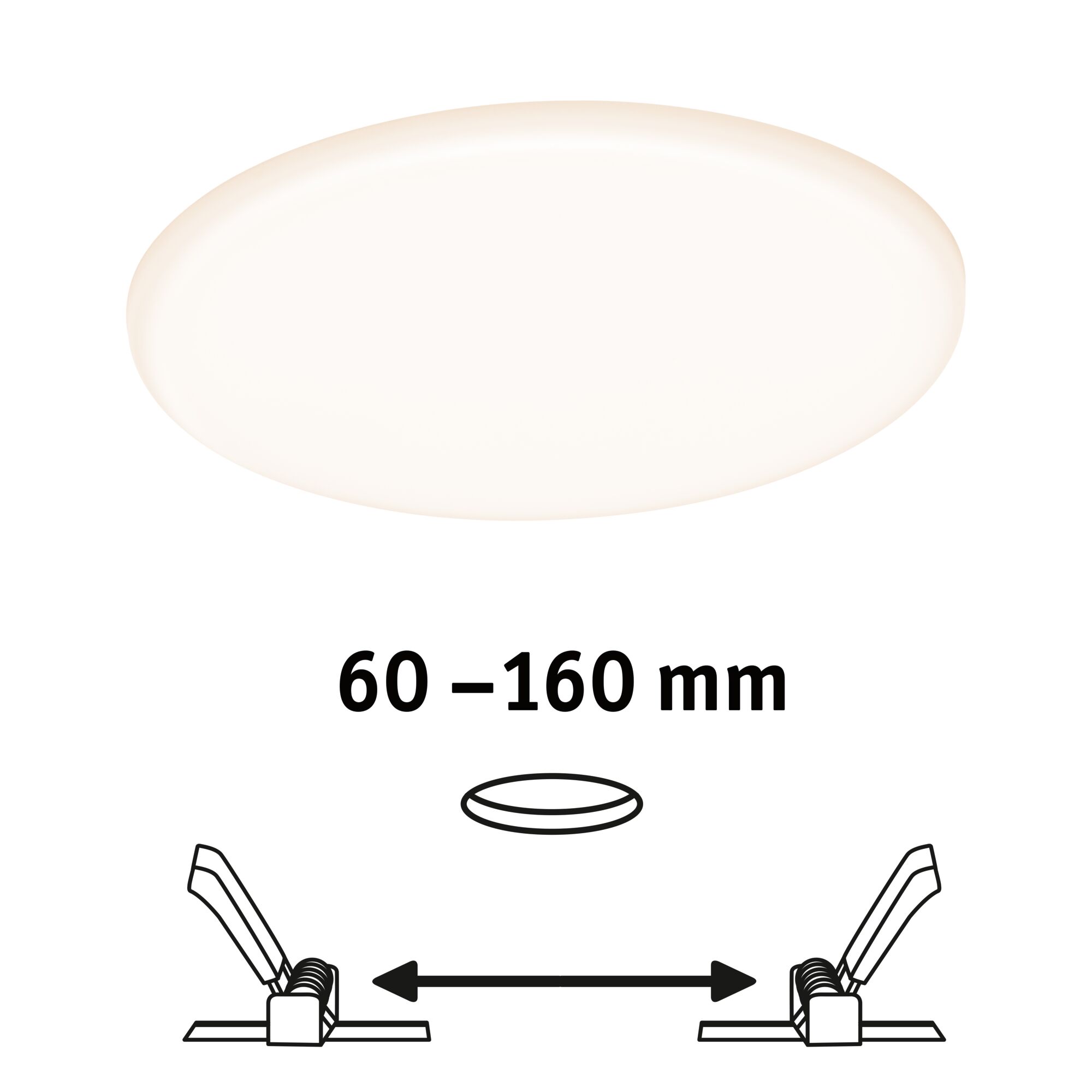

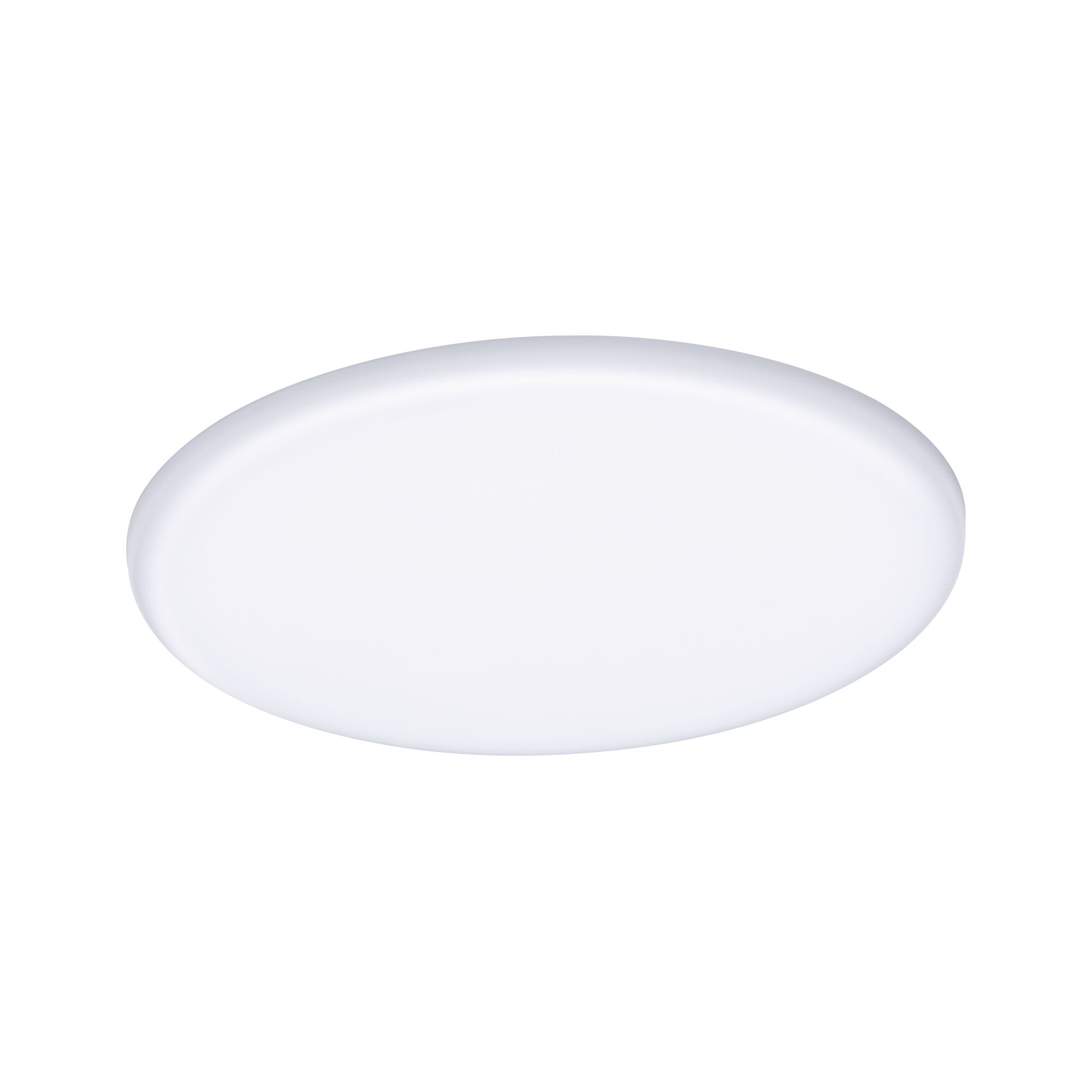

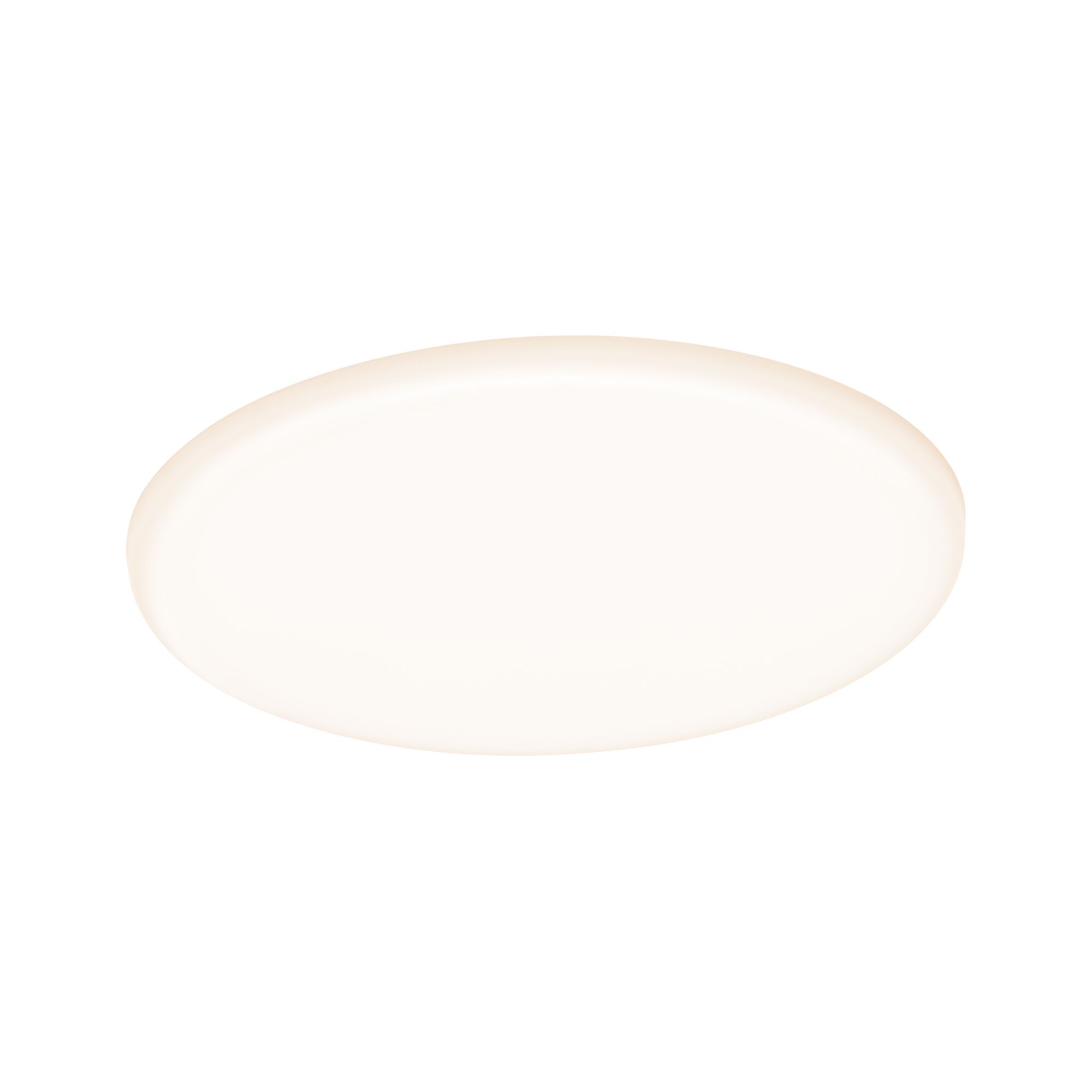

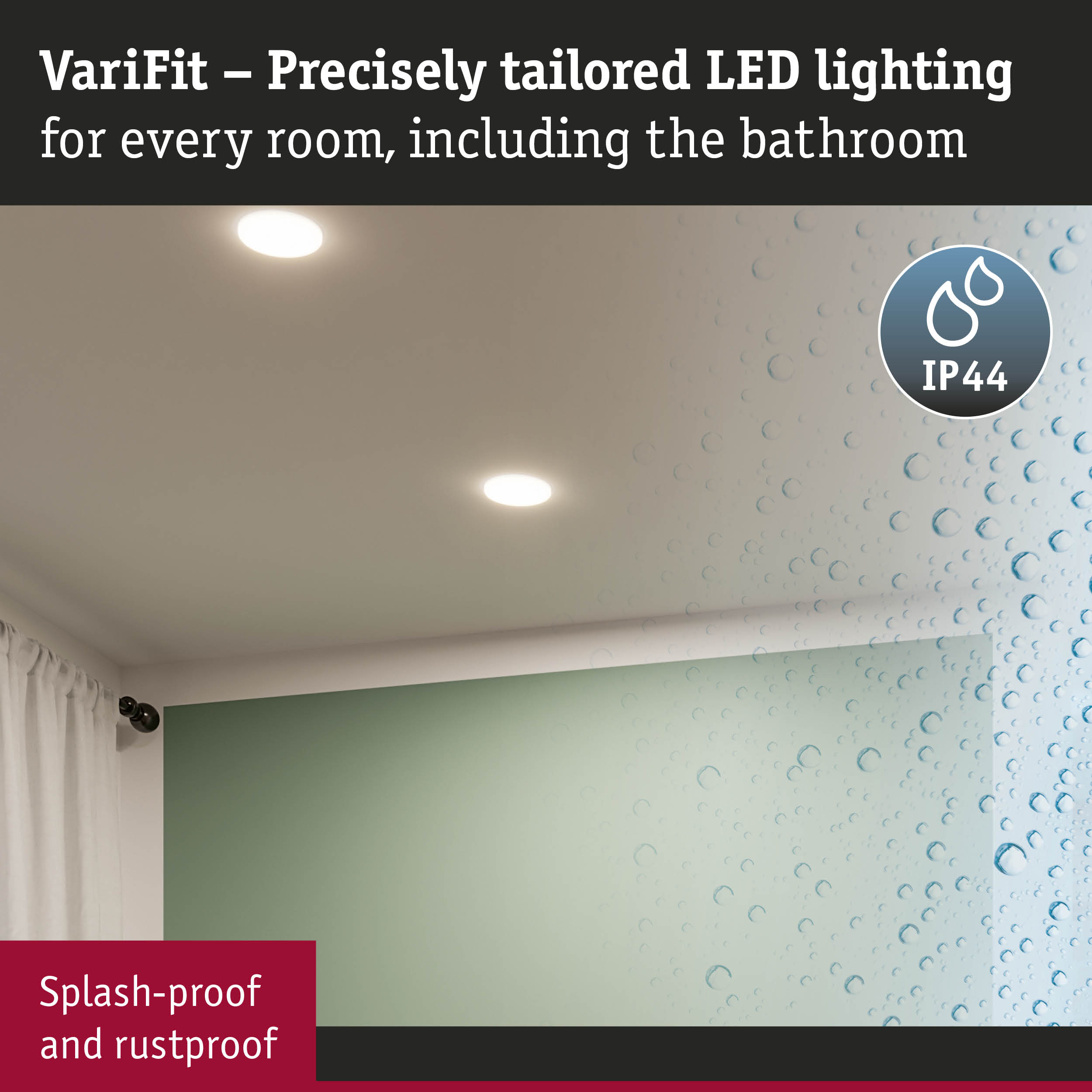

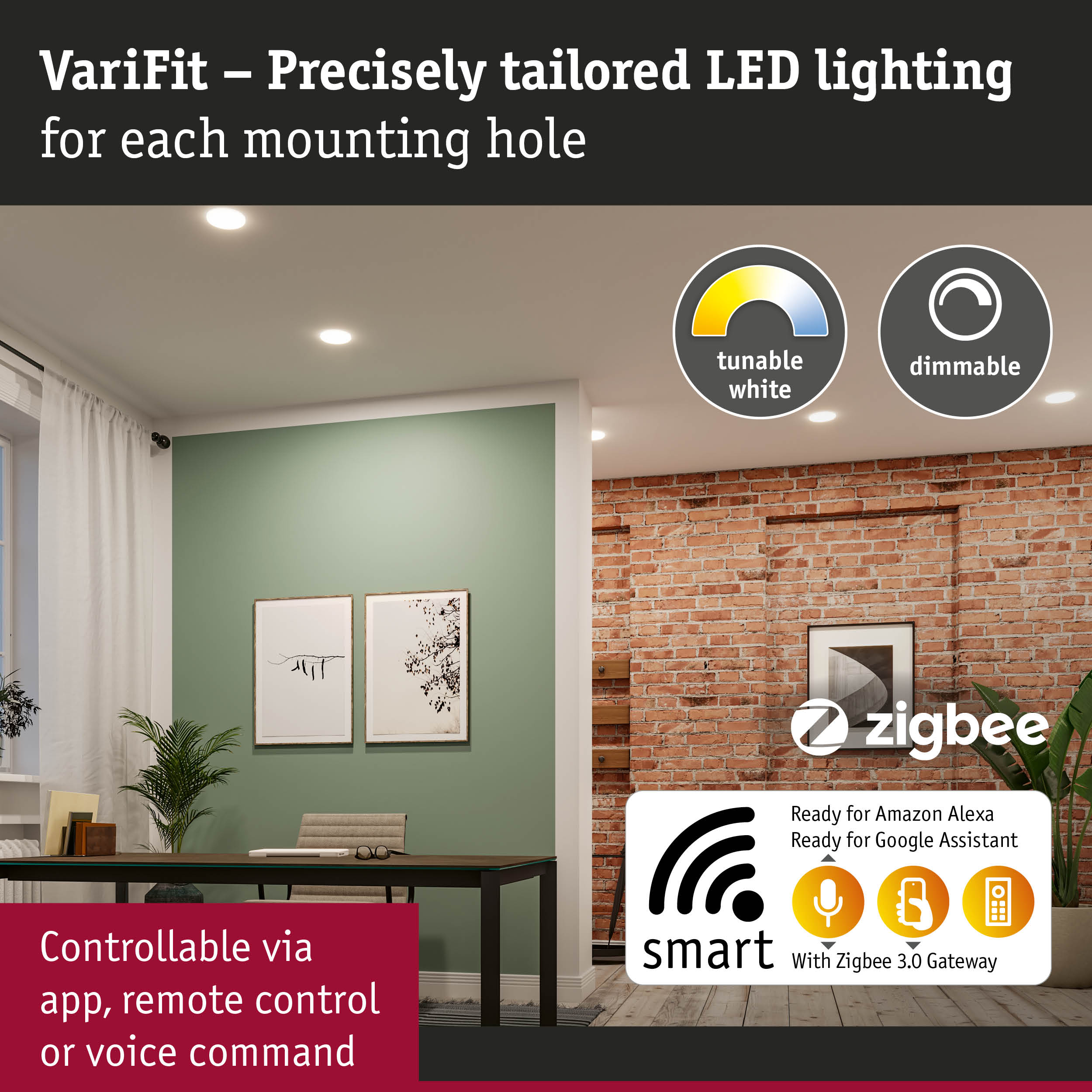

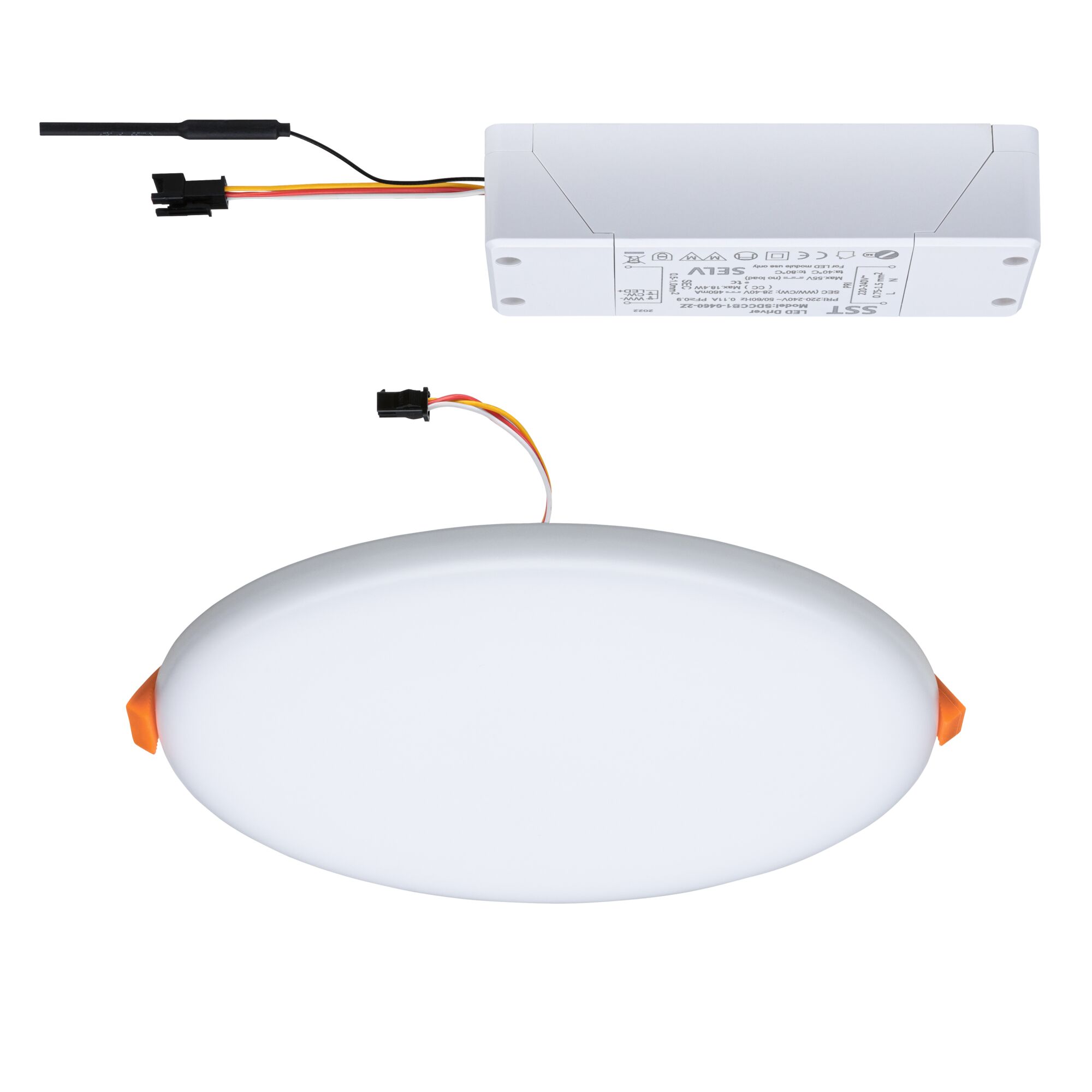

More flexibility than ever before! The Veluna VariFit recessed panel with a diameter of 185 mm features a completely edgeless and homogeneous light surface. With a super slim installation height of only 10 mm, the panel blends almost seamlessly into the ceiling or wall. Suitable for use in bathrooms or other wet rooms thanks to splash protection. The satined surface of the diffuser plate casts a pleasant light across a wide area. The spring clamps for installation are infinitely adjustable to any standard recess opening between 60 and 160 mm, so old systems can be replaced with ease. The TW white light control allows a custom, continuous selection of the light colour – anything from daylight white work light to warm white relaxation light. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Usable with smart home gateways that have a Zigbee interface
- IP protection: IP44 splash-protected
- Can be controlled with the Smart Home Zigbee remote control
- With white-light control (Tunable White)
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb

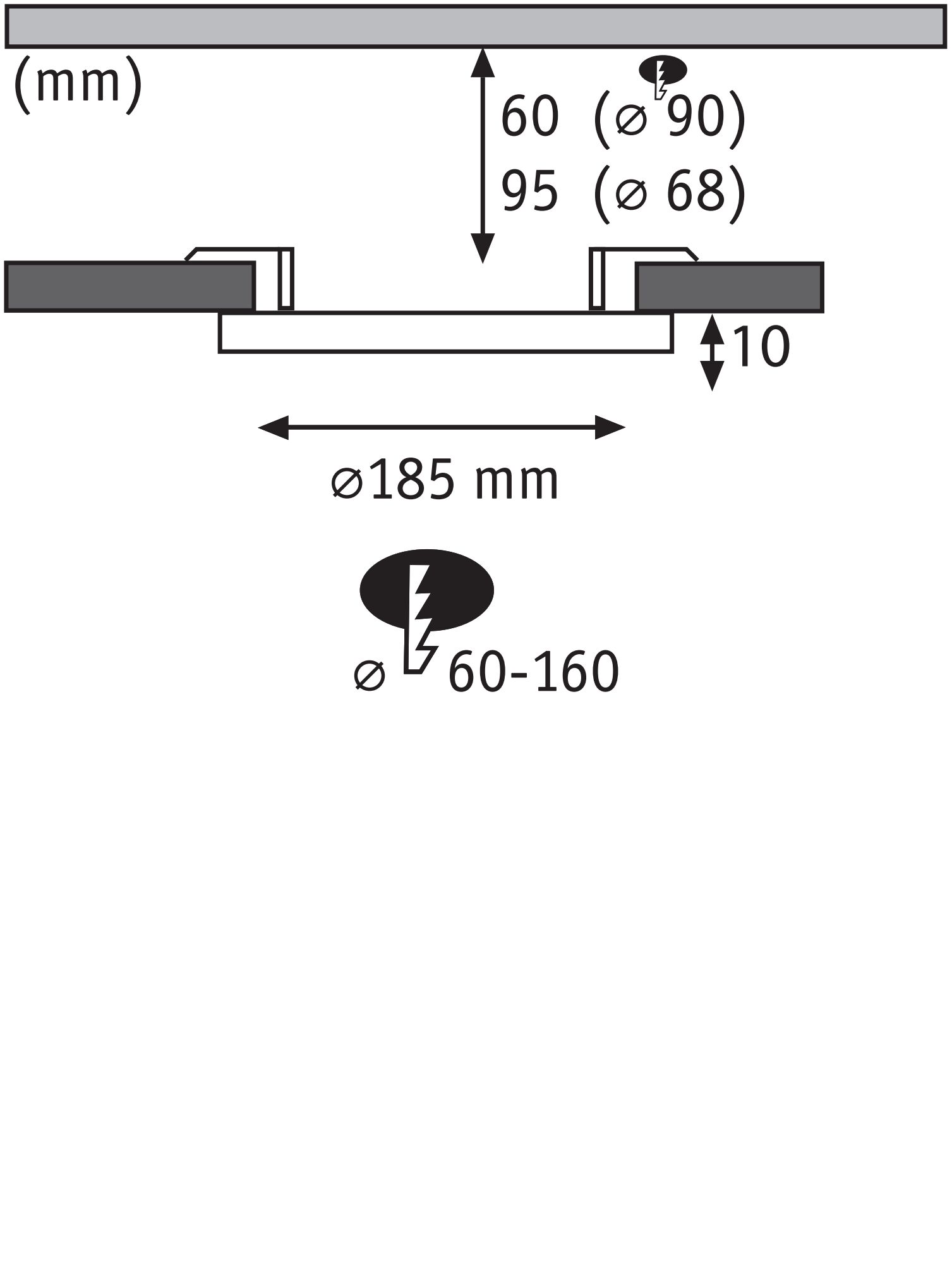

| Dimension | |
|---|---|
| mounting hole 2 | 160 mm |
| Depth of hollow wall | 60-95 mm, 60 mm |
| Total Mounting depth | 75-110 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Ø | 185 mm |
| Mounting hole | 60 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann 501.34 Smart Switch, Paulmann SmartHome Zigbee Gent2 501.40 |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Tunable White |
| Usable luminous flux | 1000 lm |
| Luminous flux LED module | 1600 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 15 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 104 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 18 W |
| Transformer | |
|---|---|
| apparent power | 19.1 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
