Article-No.:
93043
VariFitLED Recessed panelSmart Home Zigbee 3.0
Areo
IP44 round 175mm 13W 1200lm Tunable White White dimmable
IP44 round 175mm 13W 1200lm Tunable White White dimmable
£88.95*
Prices incl. Standard rate VAT
- Usable with smart home gateways that have a Zigbee interface

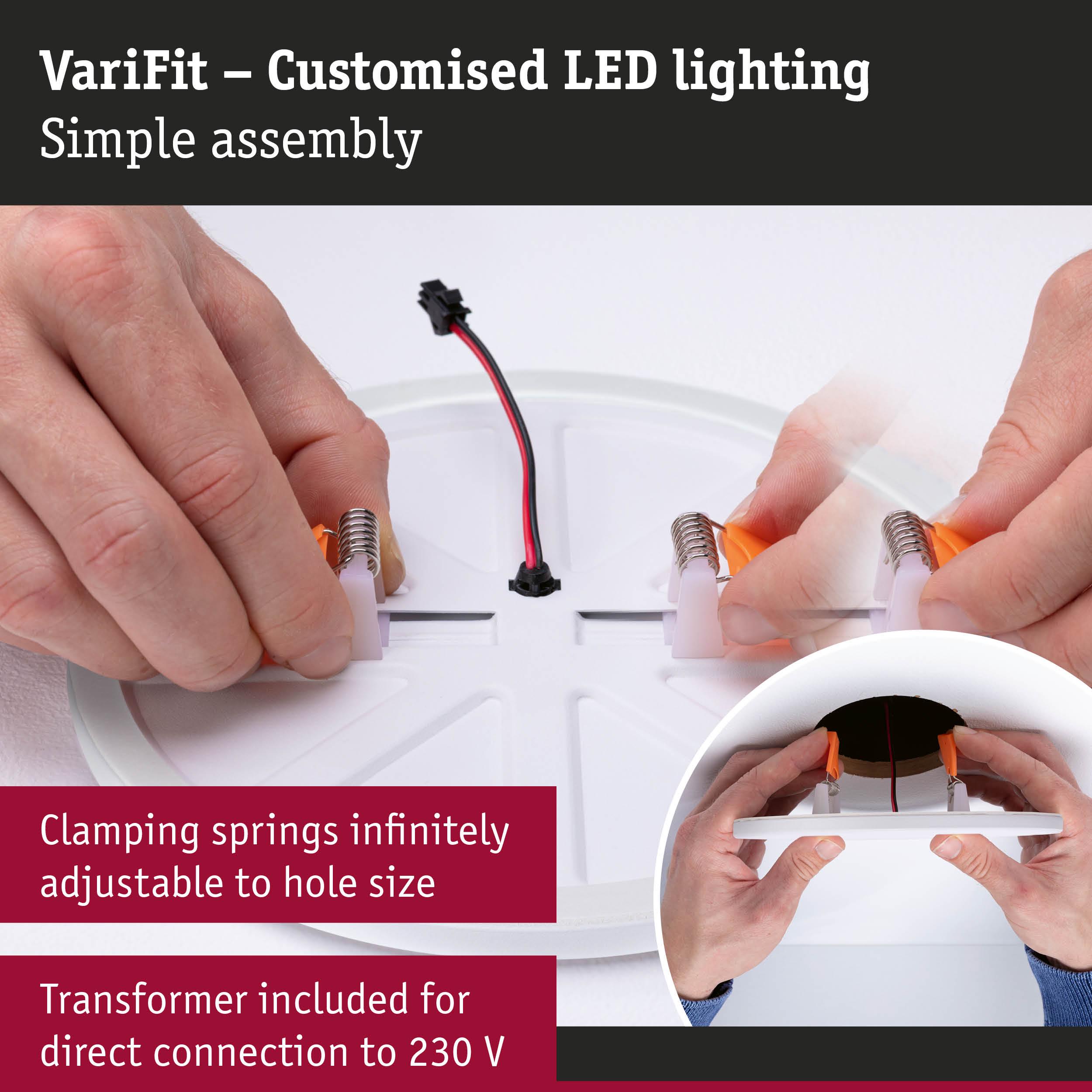

- VariFit – flexible installation with infinitely adjustable clamping springs

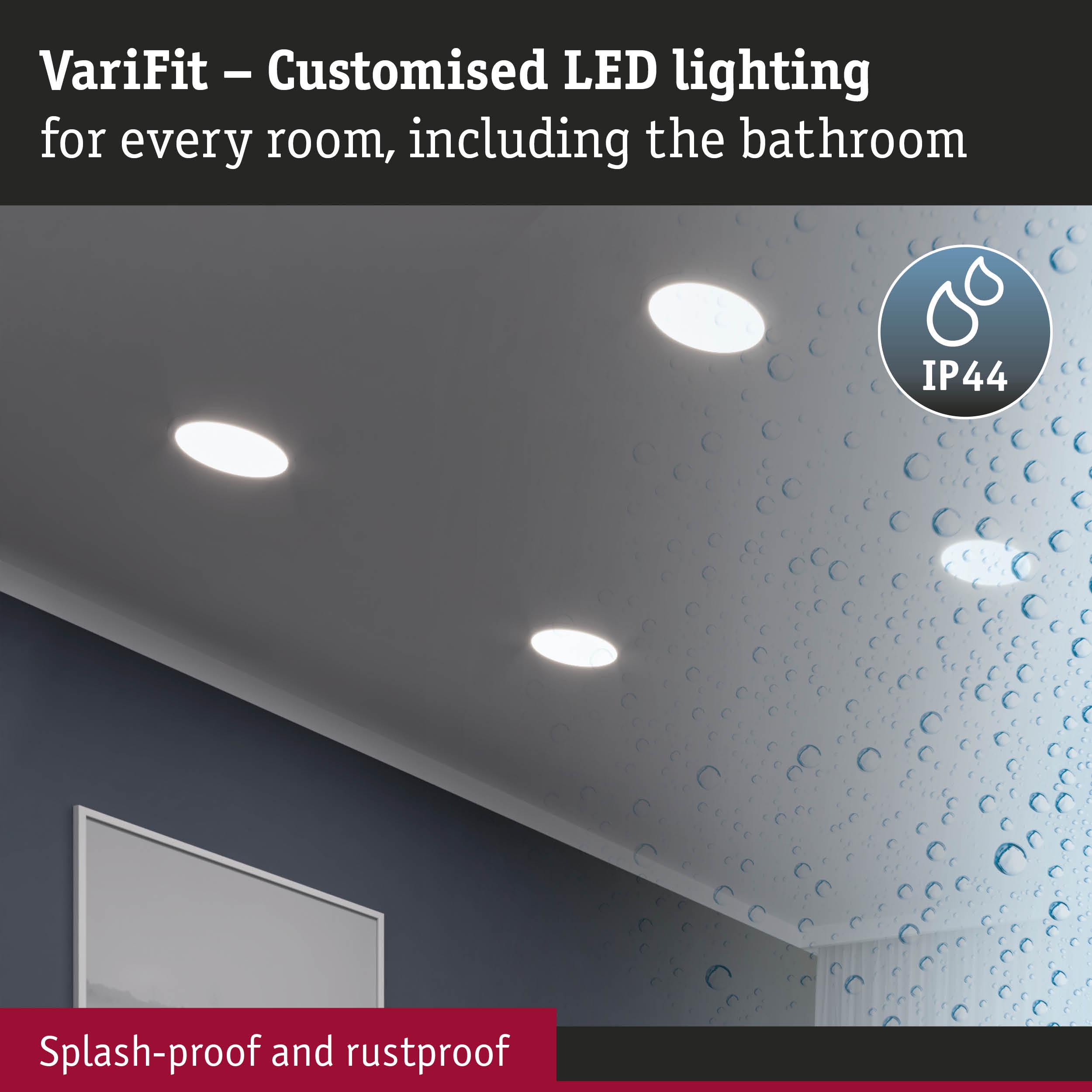

- IP protection: IP44 splash-protected
VariFit LED Recessed panel Smart Home Zigbee 3.0 Areo IP44 round 175mm 13W 1200lm Tunable White White dimmable
The round Areo recessed panel with a diameter of 175 mm and an output of 13 watts in White provides extensive, glare-free light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 50 and 140 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits. The tunable white function allows the light colour to be adjusted as required: from daylight-white working light to relaxing, warm white light. The lamp is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. This allows not only the centralised control of lighting; shutters, heating and alarm systems, for example, can also be integrated.For hole diameters larger than 85 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- Usable with smart home gateways that have a Zigbee interface
- VariFit – flexible installation with infinitely adjustable clamping springs
- IP protection: IP44 splash-protected

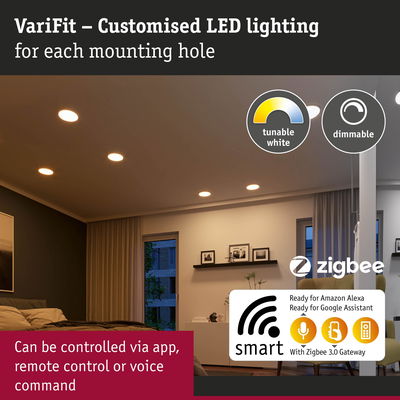

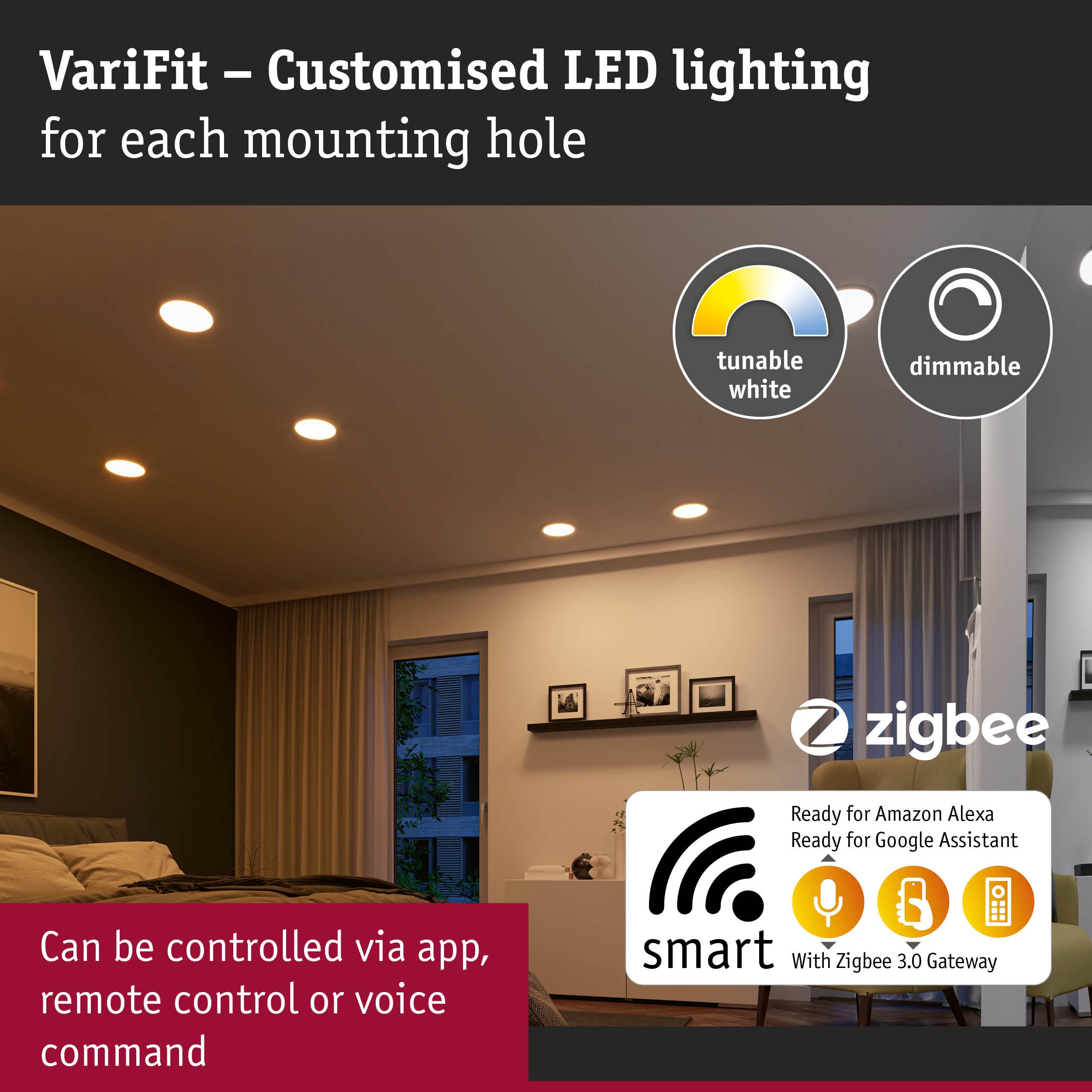

- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white
- With white-light control (Tunable White)
- Made of easy-care plastic
- For 230 V direct connection
- With integrated LED bulb
| Dimension | |
|---|---|
| mounting hole 2 | 140 mm |
| Total Mounting depth | 45-85 mm |
| Dimensions (Height x Width x Depth) | H: 12/26 mm |
| Ø | 175 mm |
| Mounting hole | 50 mm |
| Form | round |
| Depth of hollow wall | 30 mm, 30-70 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| colour temperature to | 6500 K |
| color temp | Warm white to Daylight white |
| Colour change | Tunable White |
| Usable luminous flux | 1200 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 1700 lm |
| Lamp Features | |
|---|---|
| Component parts | 13 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Incandescent Equivalent | 106 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 15 W |
| Transformer | |
|---|---|
| apparent power | 30 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
