Article-No.:
79949
VariFitLED Recessed panel
Veluna Edge
IP44 angular 200x200mm 17W 1500lm 3000K White dimmable
IP44 angular 200x200mm 17W 1500lm 3000K White dimmable
£59.95*
Prices incl. Standard rate VAT
- Dimmable
- Especially flat construction
- Color temperatur: 3000K - Warm white

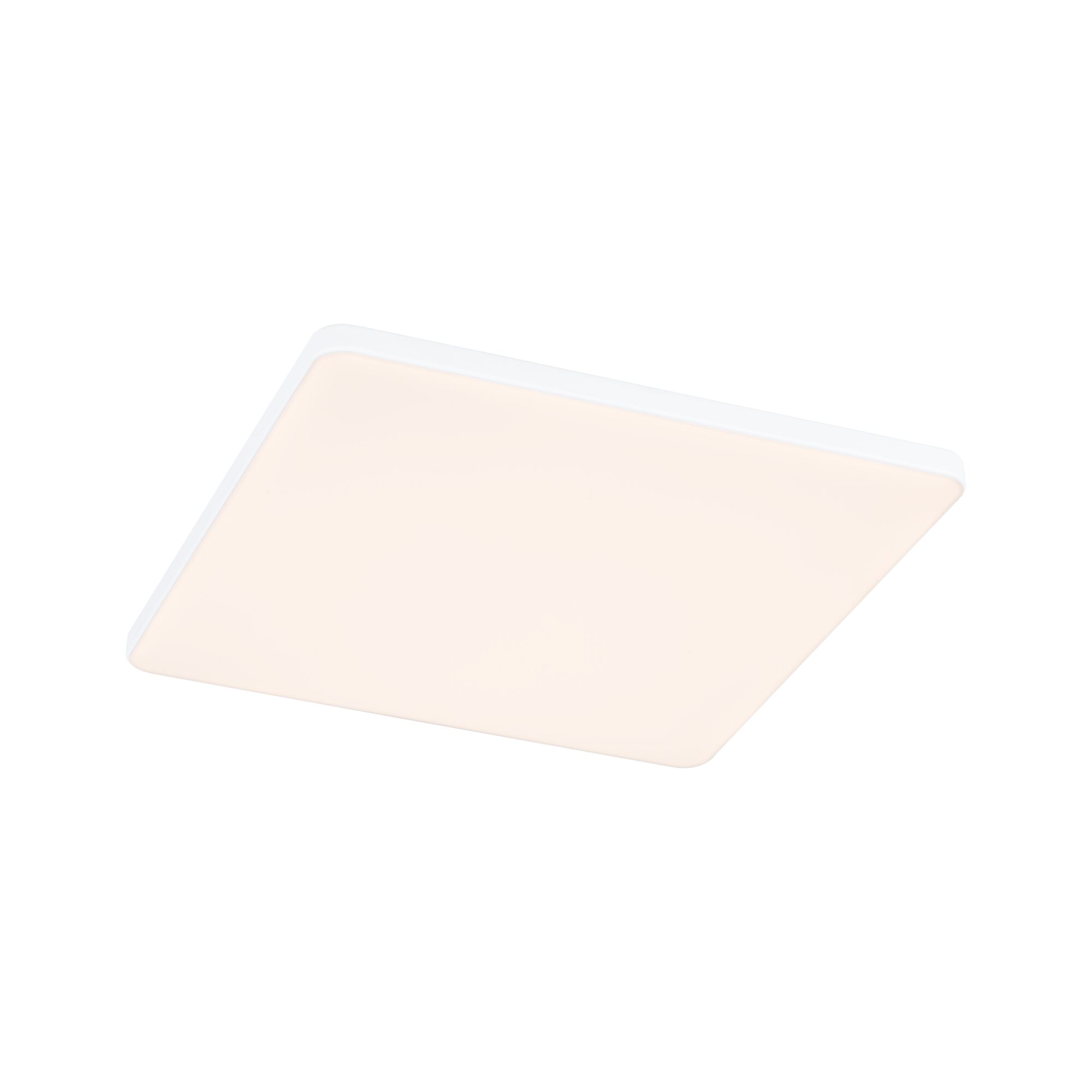

VariFit LED Recessed panel Veluna Edge IP44 angular 200x200mm 17W 1500lm 3000K White dimmable

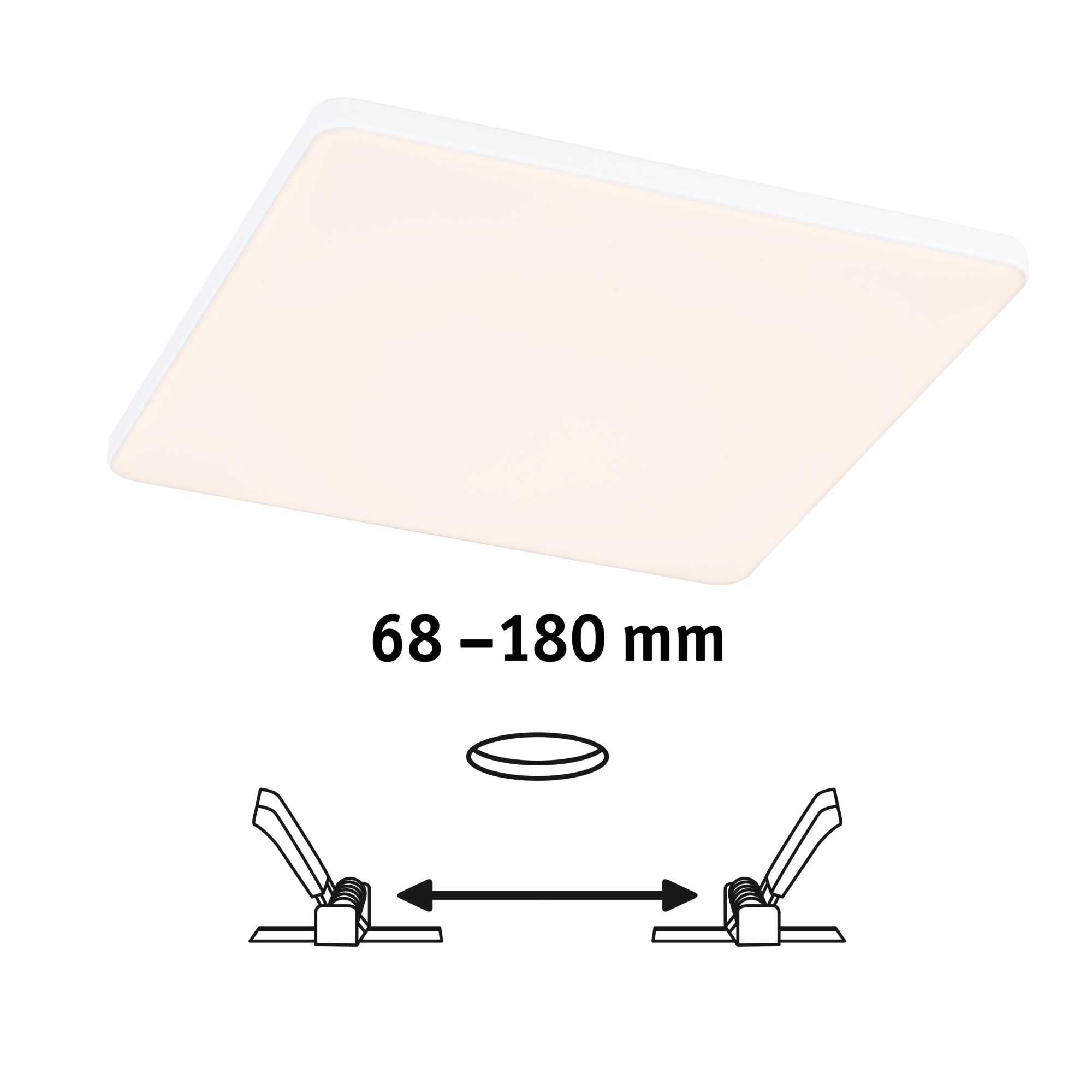

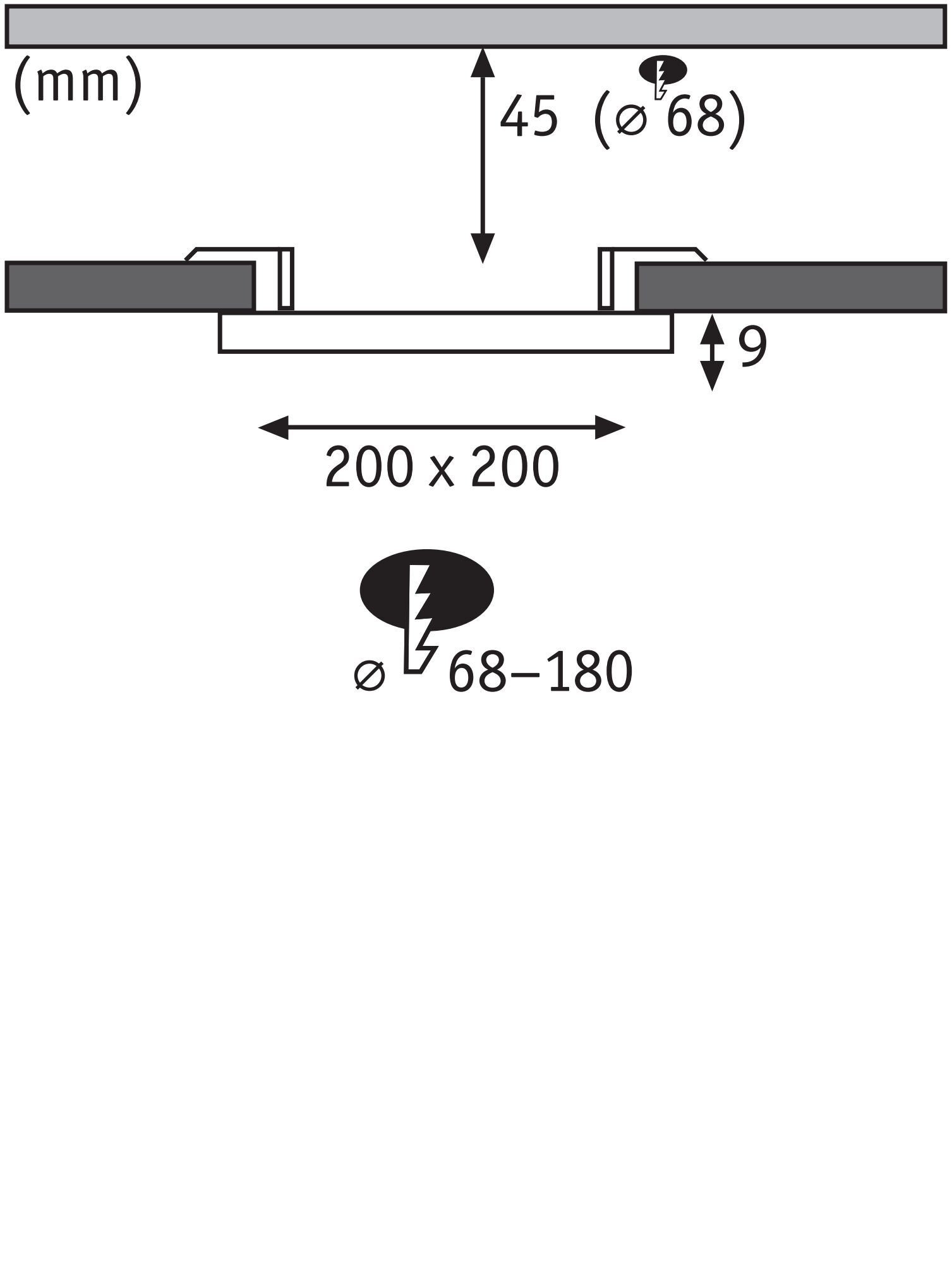

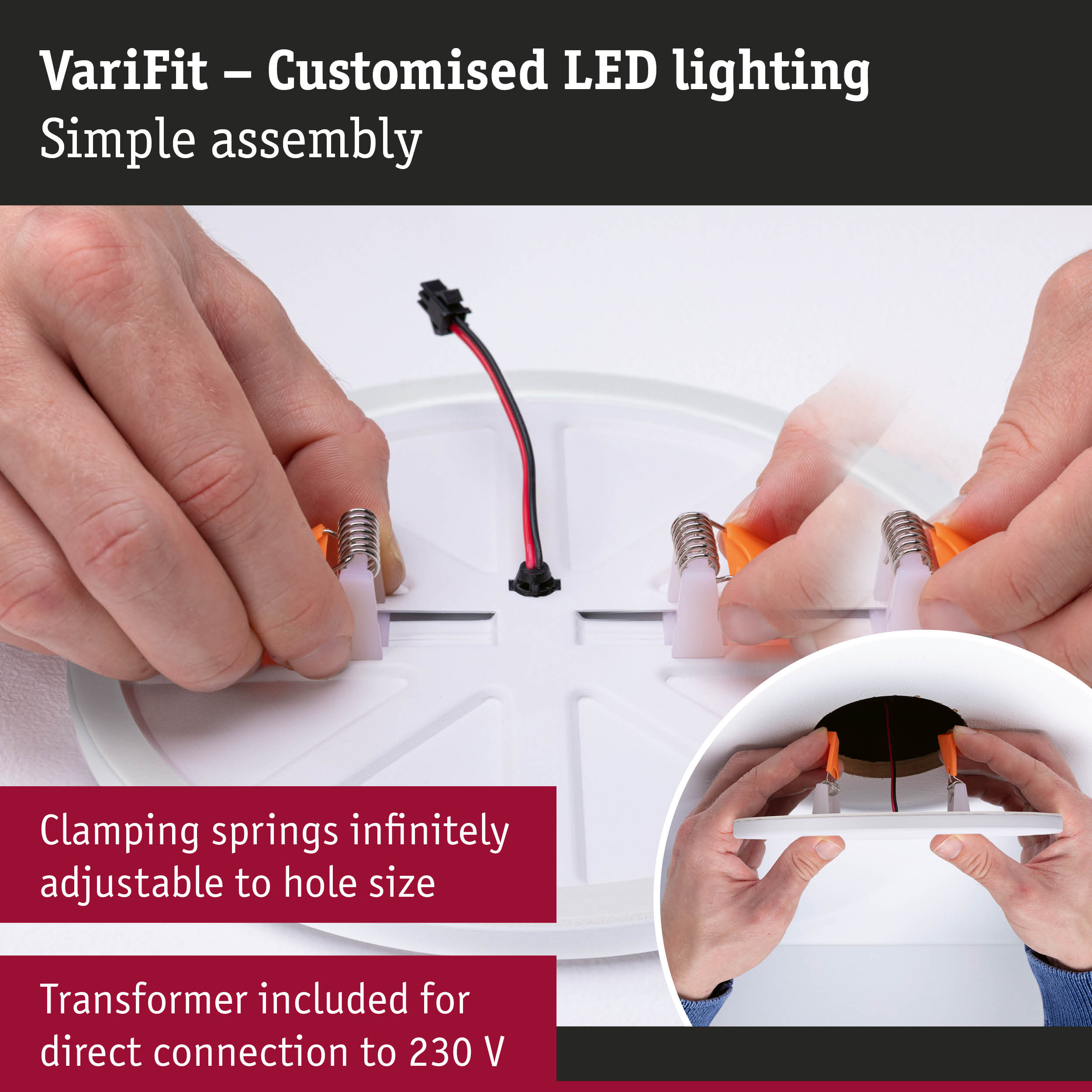

The dimmable squaree Veluna VariFit Edge recessed panel features a modern, frameless design in subtle White. With a size of 200x200 mm and a colour temperature of 3000 K, the panel has a high, uniform light yield. Thanks to flexible VariFit technology, the clamping springs can be continuously adjusted between 68 and 180 mm for installation. The panel can therefore be installed both in existing boreholes and in new ones. For hole diameters larger than 68 mm, a cavity depth of at least 45 mm is needed. The satined plastic cover provides finely diffused light and bright, cosy light in warm white, which is individually adjustable via the dimming function.
- Dimmable
- Especially flat construction
- Color temperatur: 3000K - Warm white
- Even room light based on cutting-edge LED technology
- High light yield for area lighting
- IP44 splash-protected for bathrooms and similar rooms

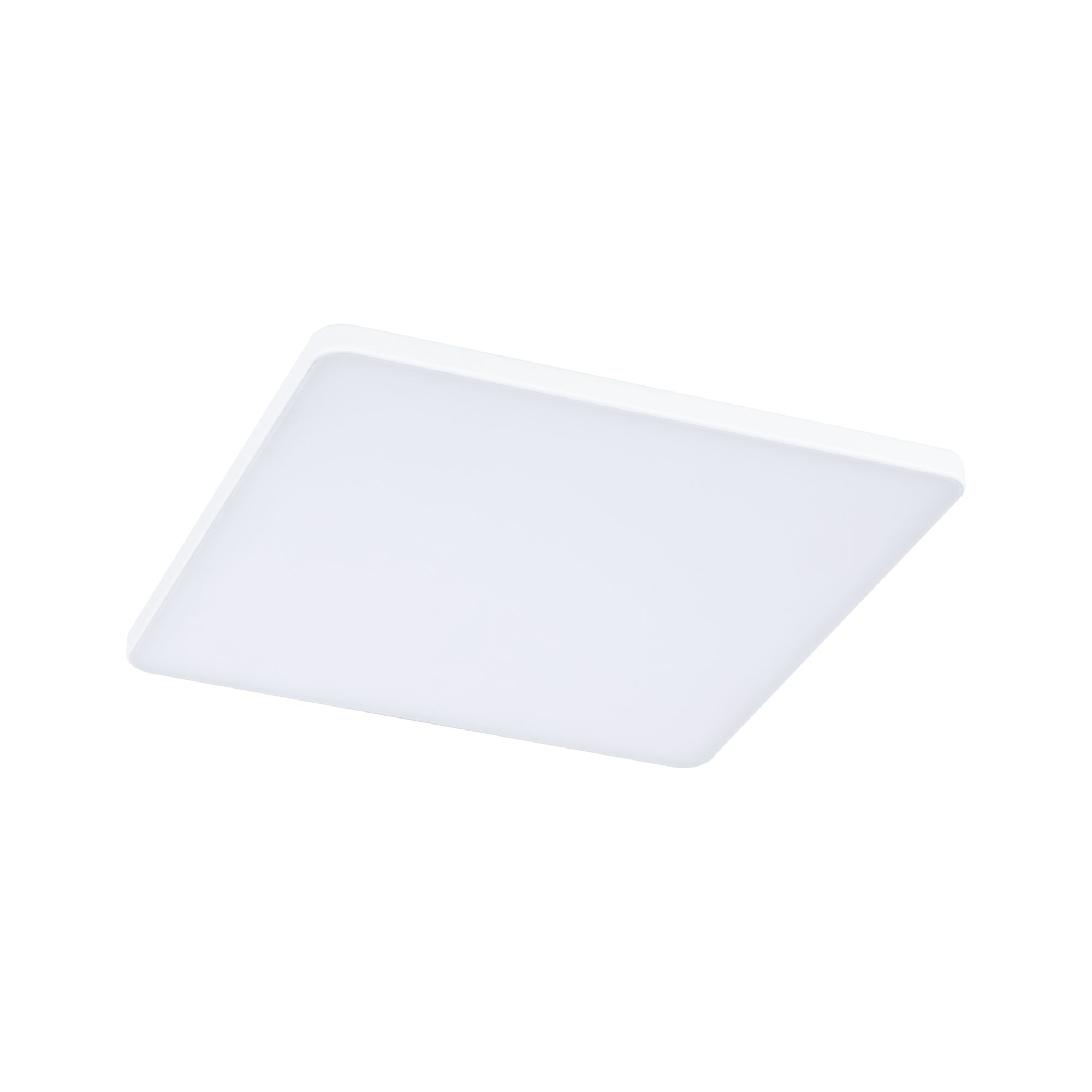

- Satined plastic cover for fine diffusion of light

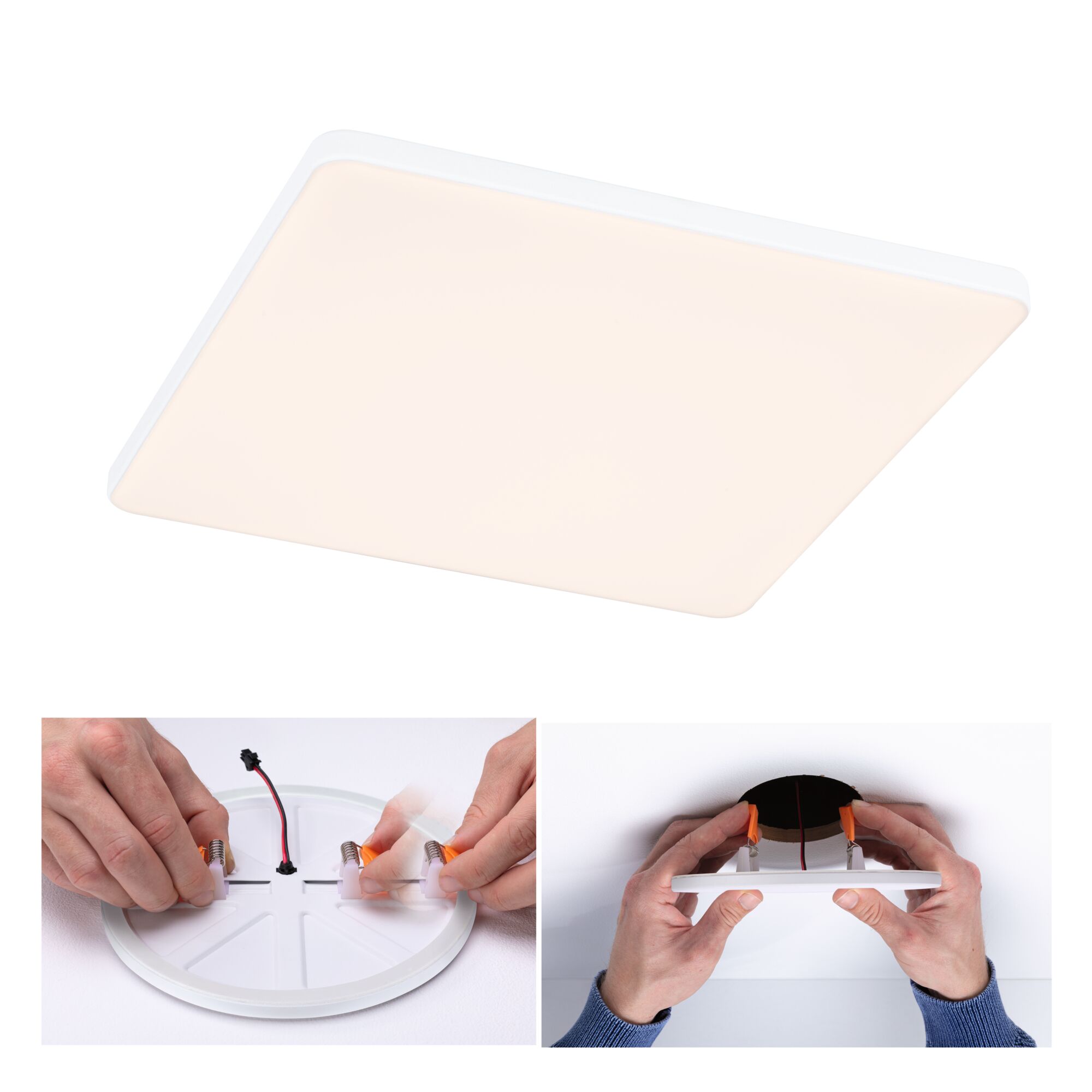

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Service life 50,000 hours
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 9 x B: 200 x T: 200 mm |
| Mounting hole | 68 mm |
| Form | angular |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RLC Müller Paladin 873 030 LED |
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 50000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 1500 lm |
| Luminous flux LED module | 2000 lm |
| color temp | 3000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 17 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dim | with dimmer |
| Dimmable | with dimmer C for electron. transformers |
| Inclusive lamp | yes |
| Incandescent Equivalent | 126 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 19 W |

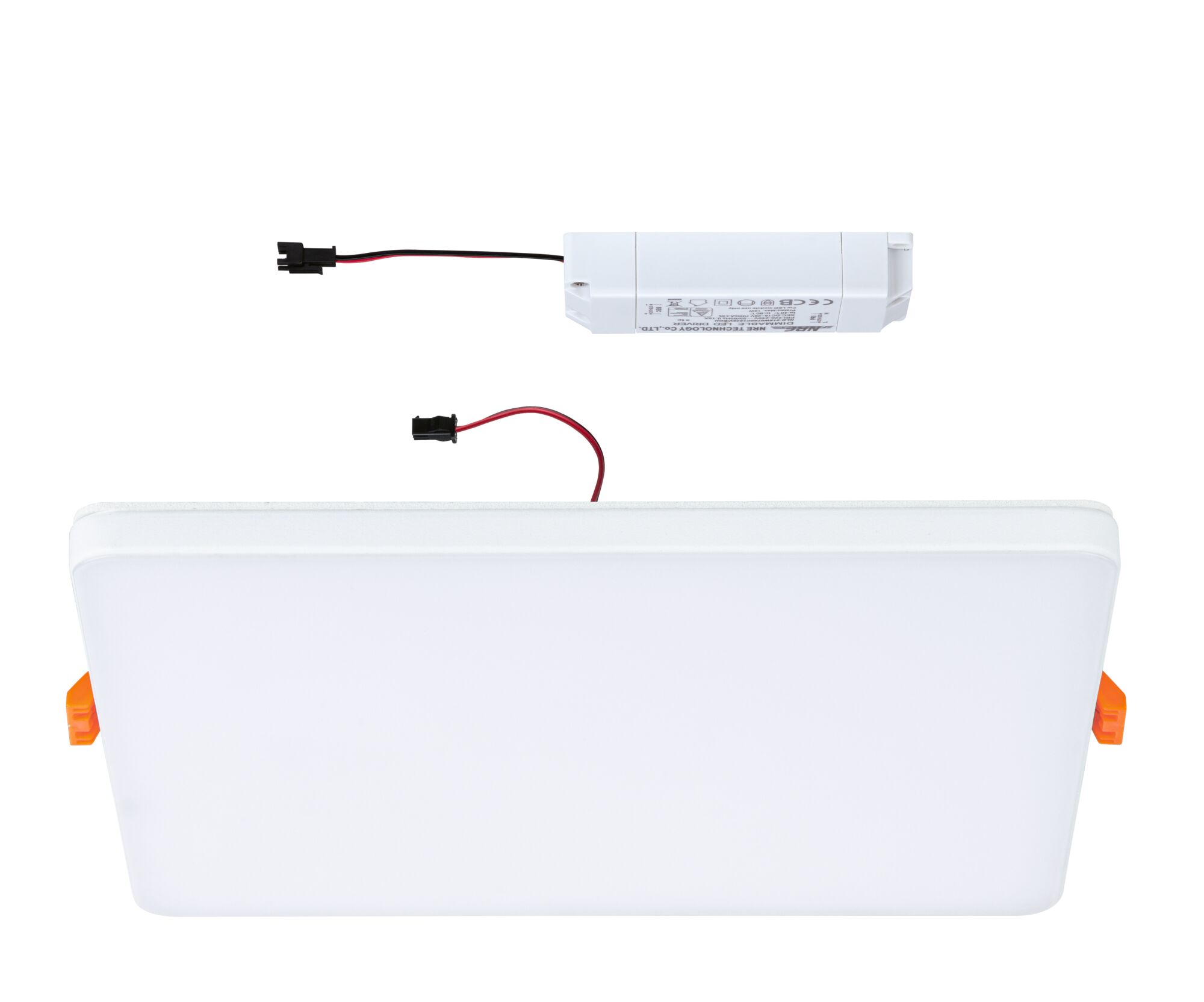

| Transformer | |
|---|---|
| apparent power | 20 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
