Article-No.:
95381
VariFit
LED Recessed panel
Veluna
IP44 round 185mm 14W 1000lm White Switch Transparent
IP44 round 185mm 14W 1000lm White Switch Transparent

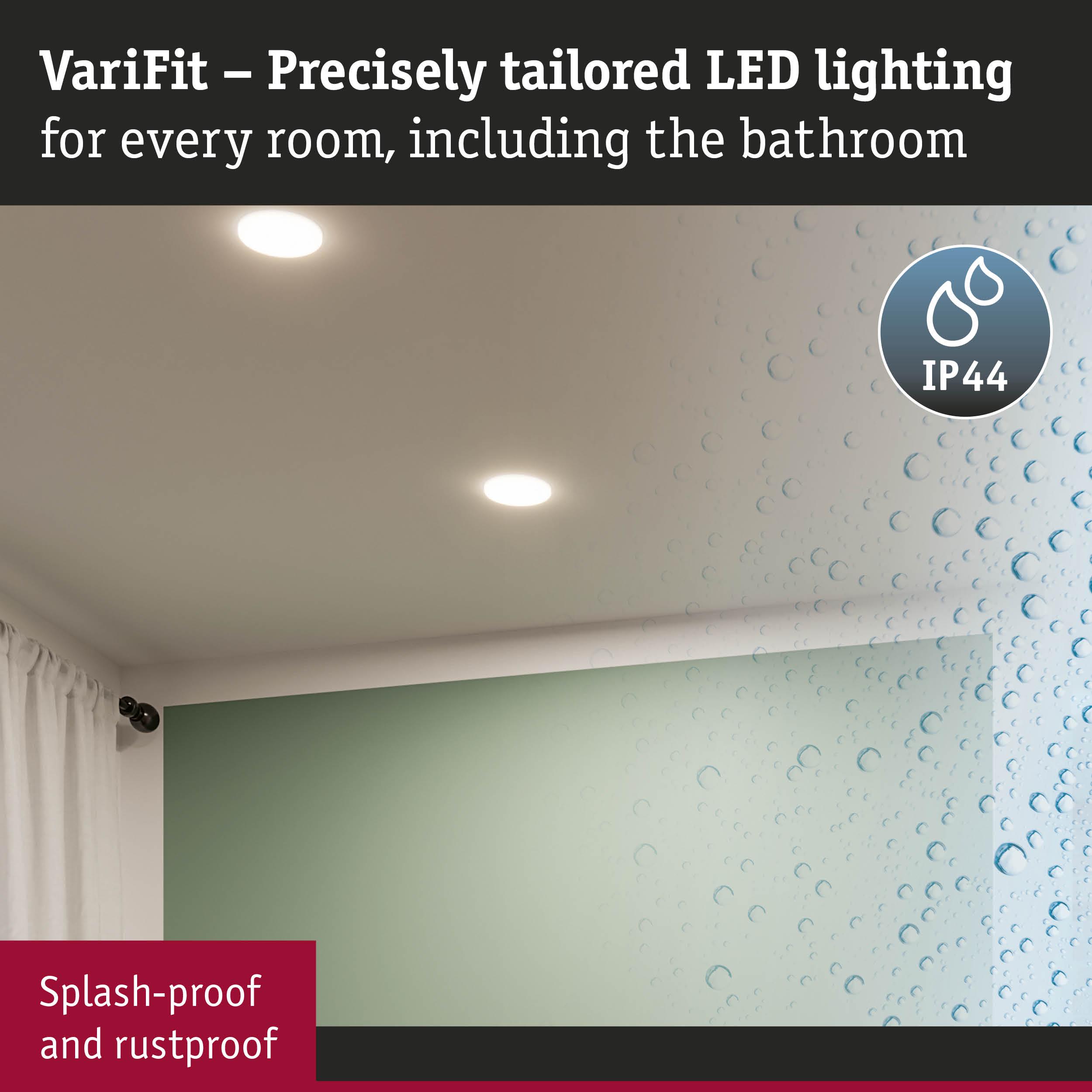

- IP protection: IP44 splash-protected

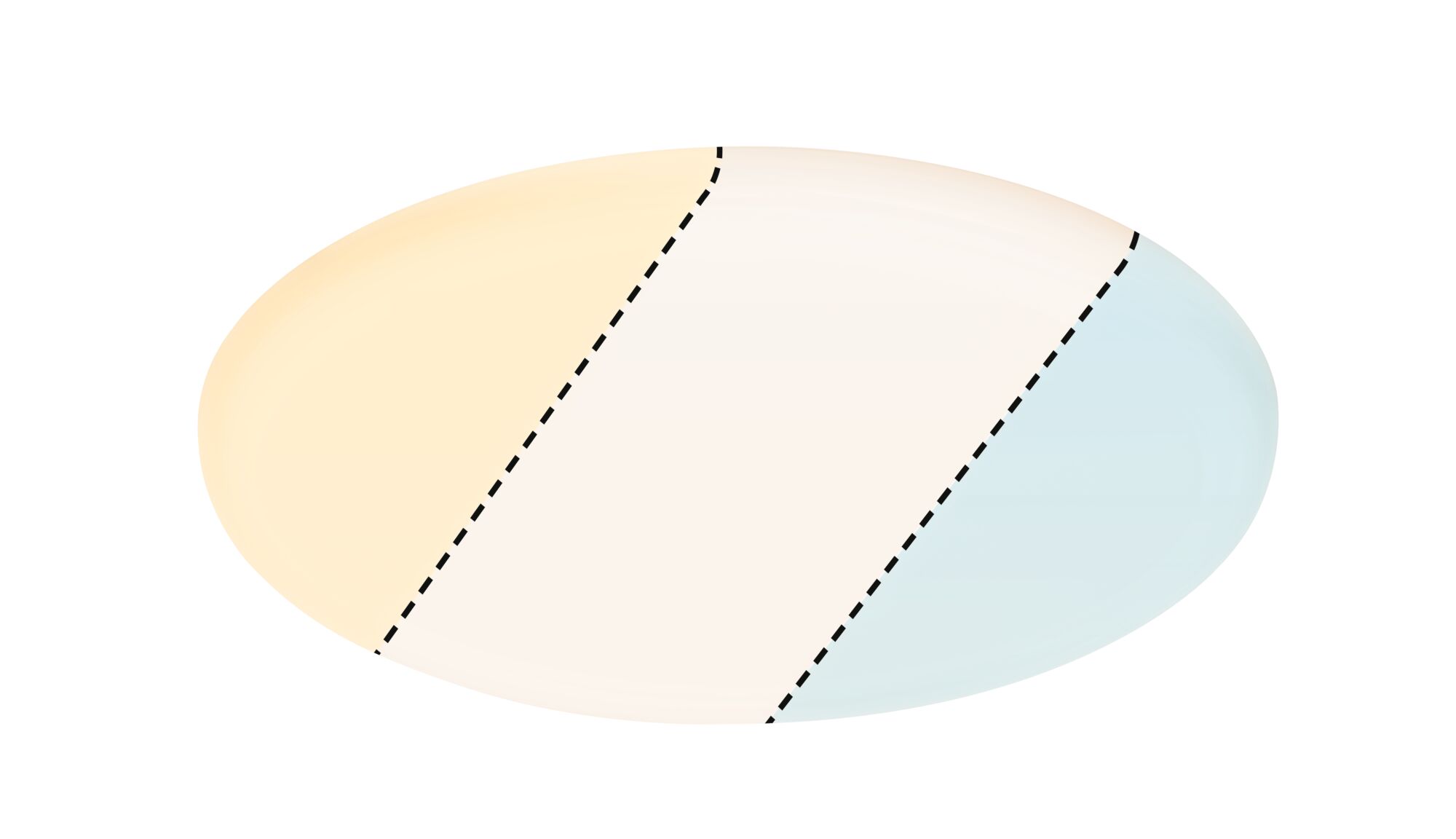

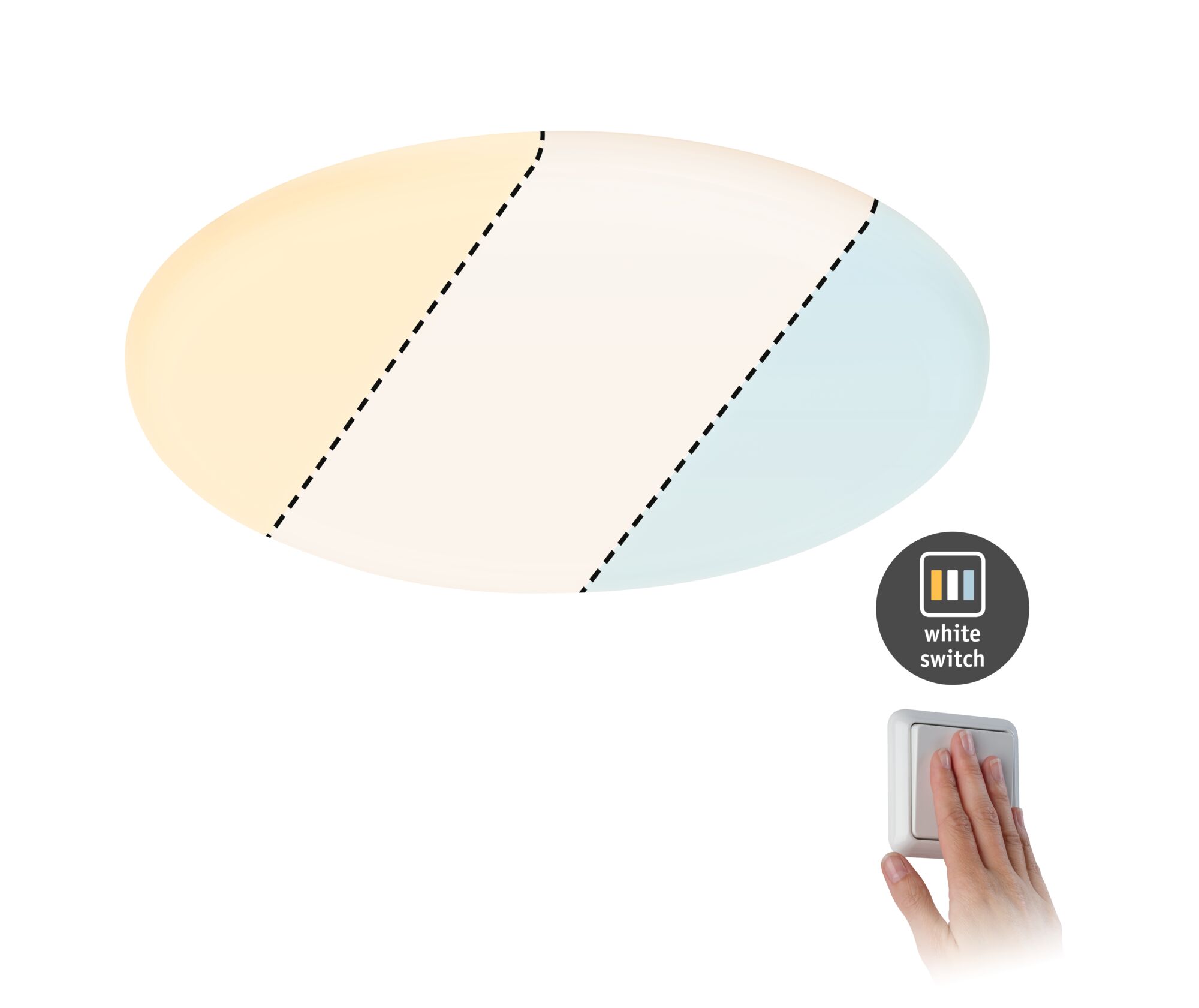

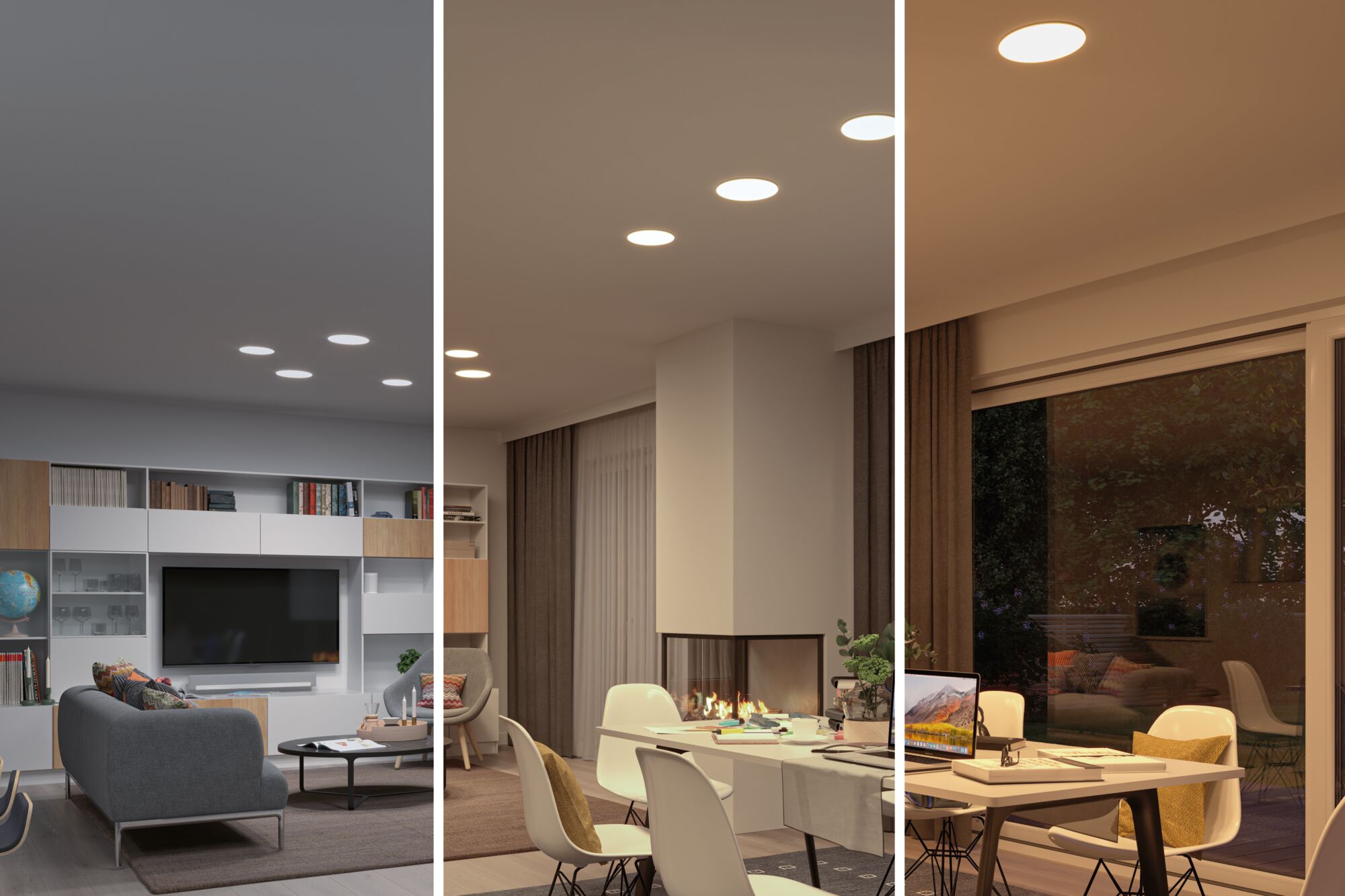

- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- Even room light based on cutting-edge LED technology
VariFit LED Recessed panel Veluna IP44 round 185mm 14W 1000lm White Switch Transparent

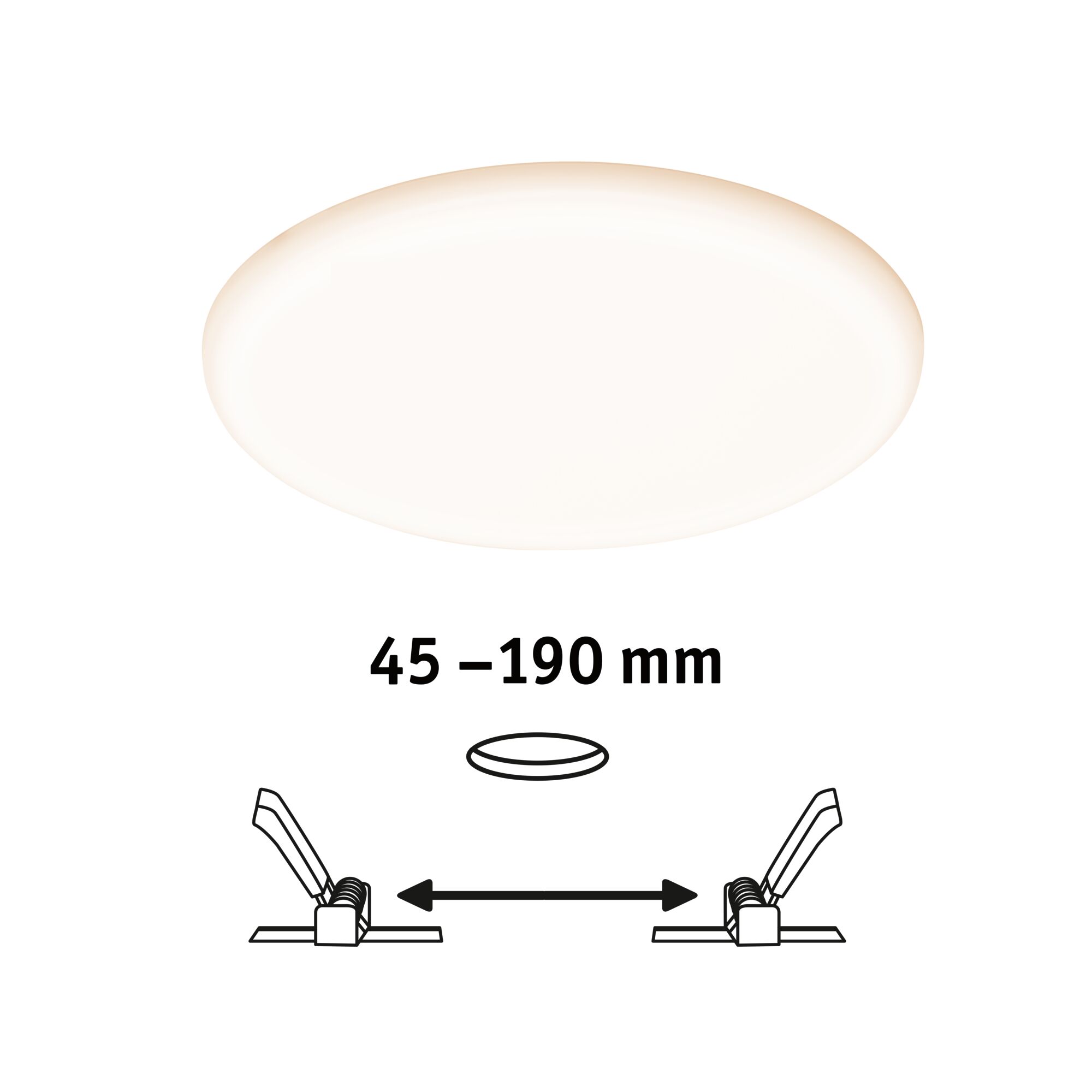

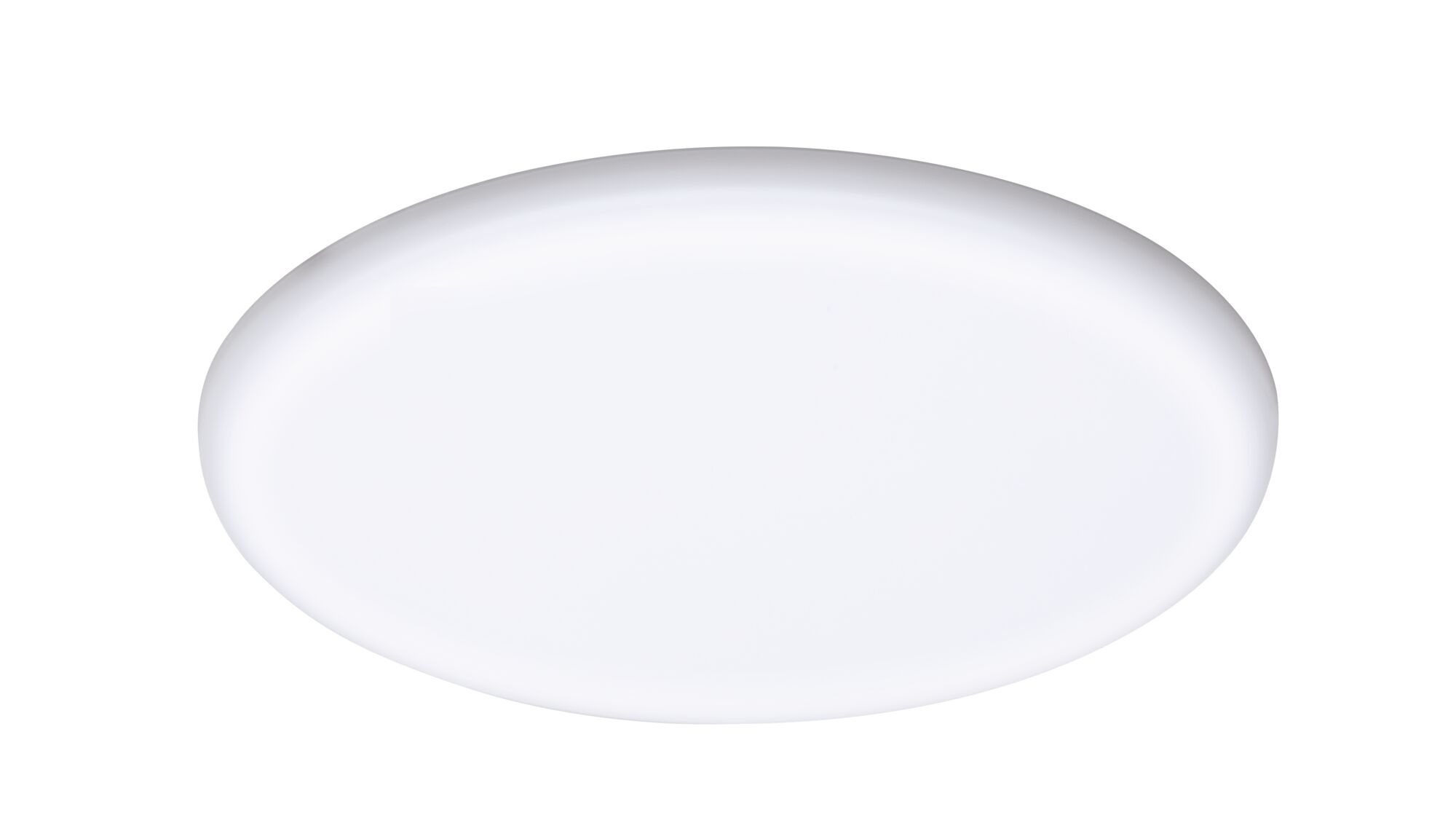

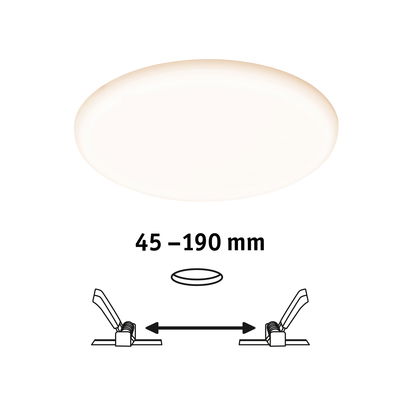

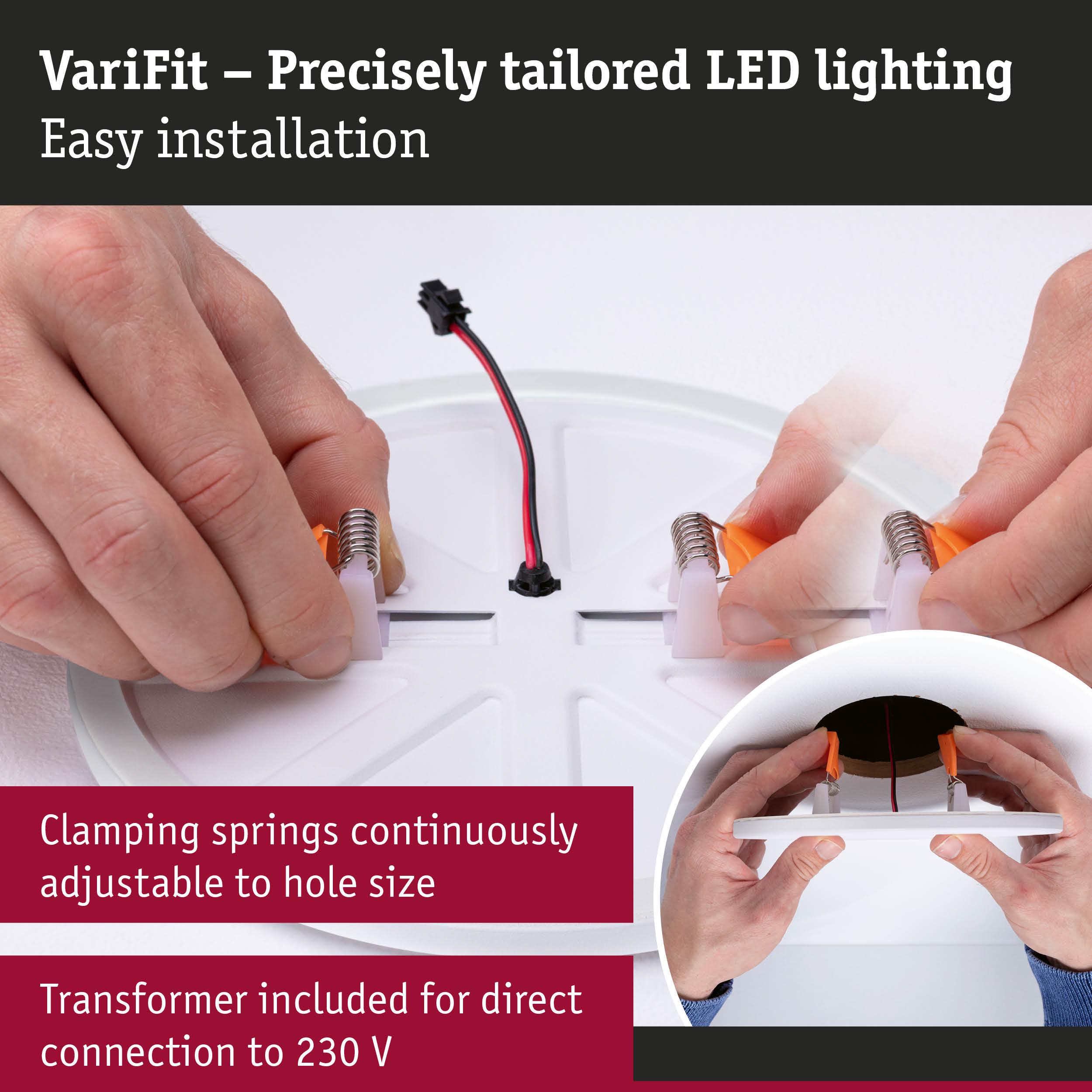

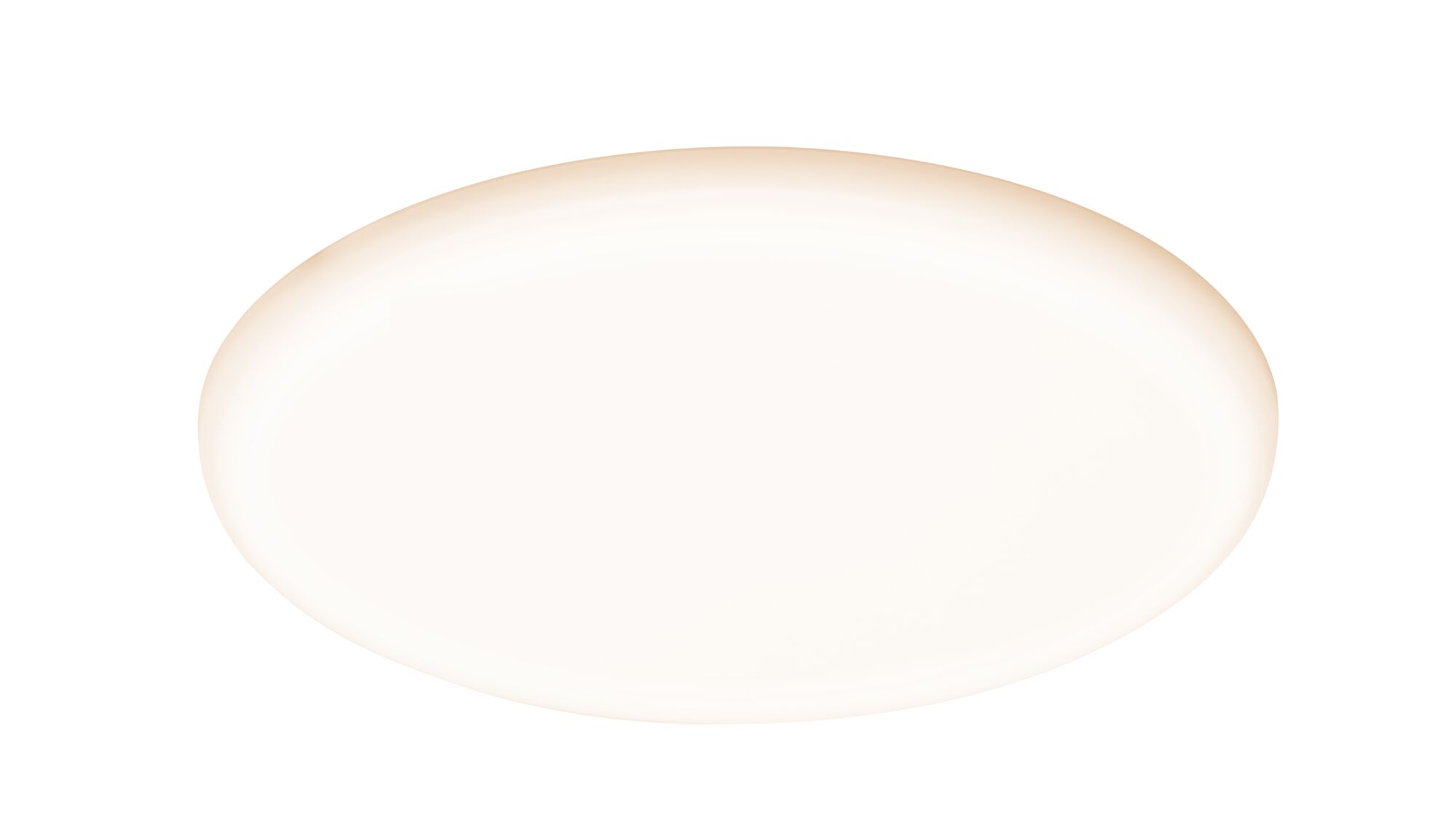

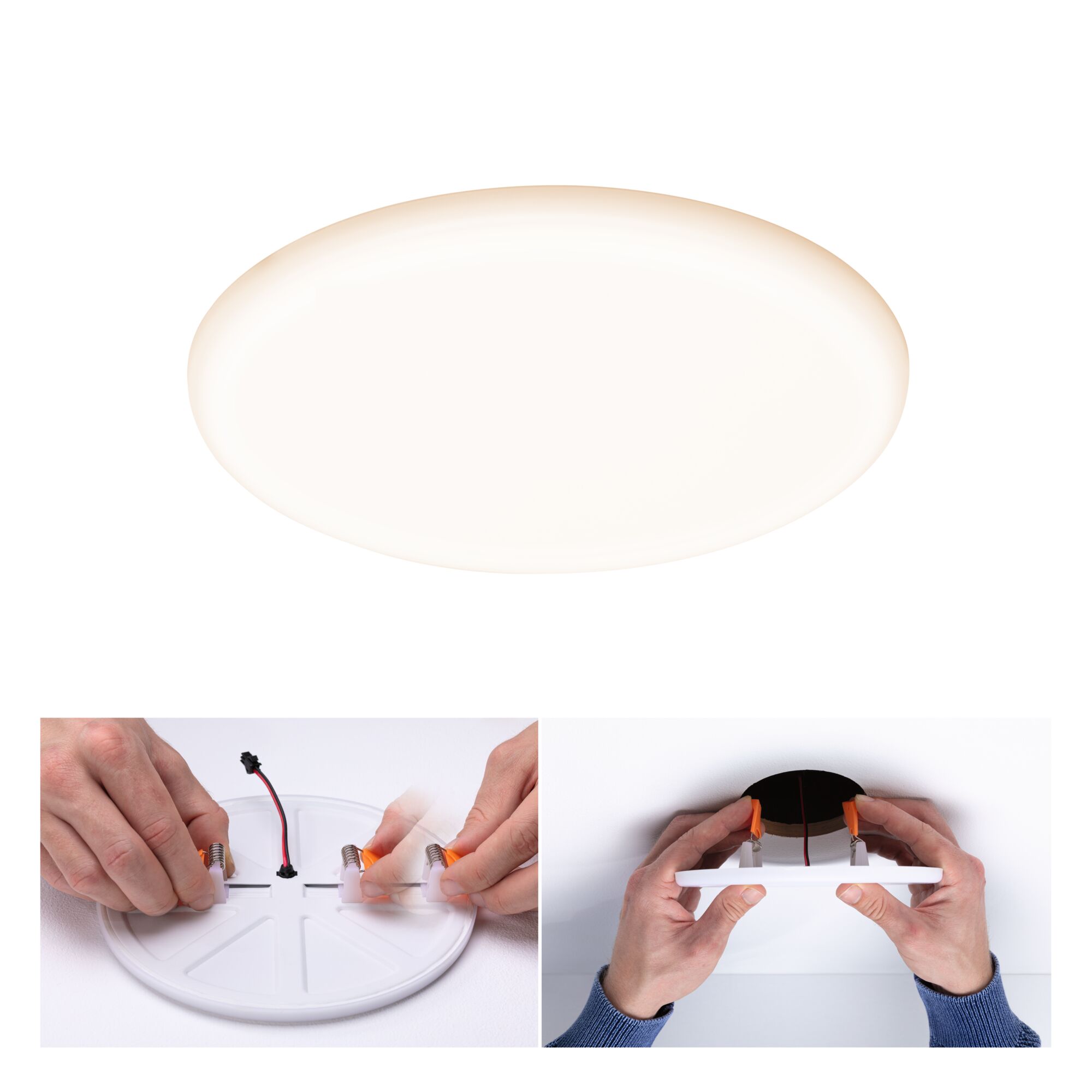

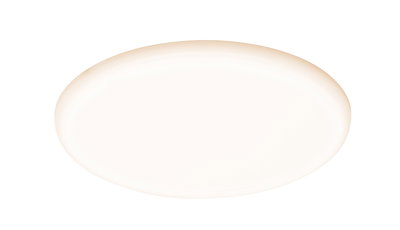

More flexibility than ever before! The Veluna VariFit recessed panel with a diameter of 185 mm features a completely edgeless and homogeneous light surface. With a super slim installation height of only 10 mm, the panel blends almost seamlessly into the ceiling or wall. Suitable for use in bathrooms or other wet rooms thanks to splash protection. The satined surface of the diffuser plate casts a pleasant light across a wide area. The spring clamps for installation are infinitely adjustable to any standard recess opening between 45 and 160 mm, so old systems can be replaced with ease. The panel is equipped with the WhiteSwitch function, so the colour temperature can be set in three stages by pressing the wall switch several times.
- IP protection: IP44 splash-protected
- Whiteswitch - the colour temperature can be set by pressing the wall switch several times
- Even room light based on cutting-edge LED technology
- Especially flat construction
- With integrated LED bulb

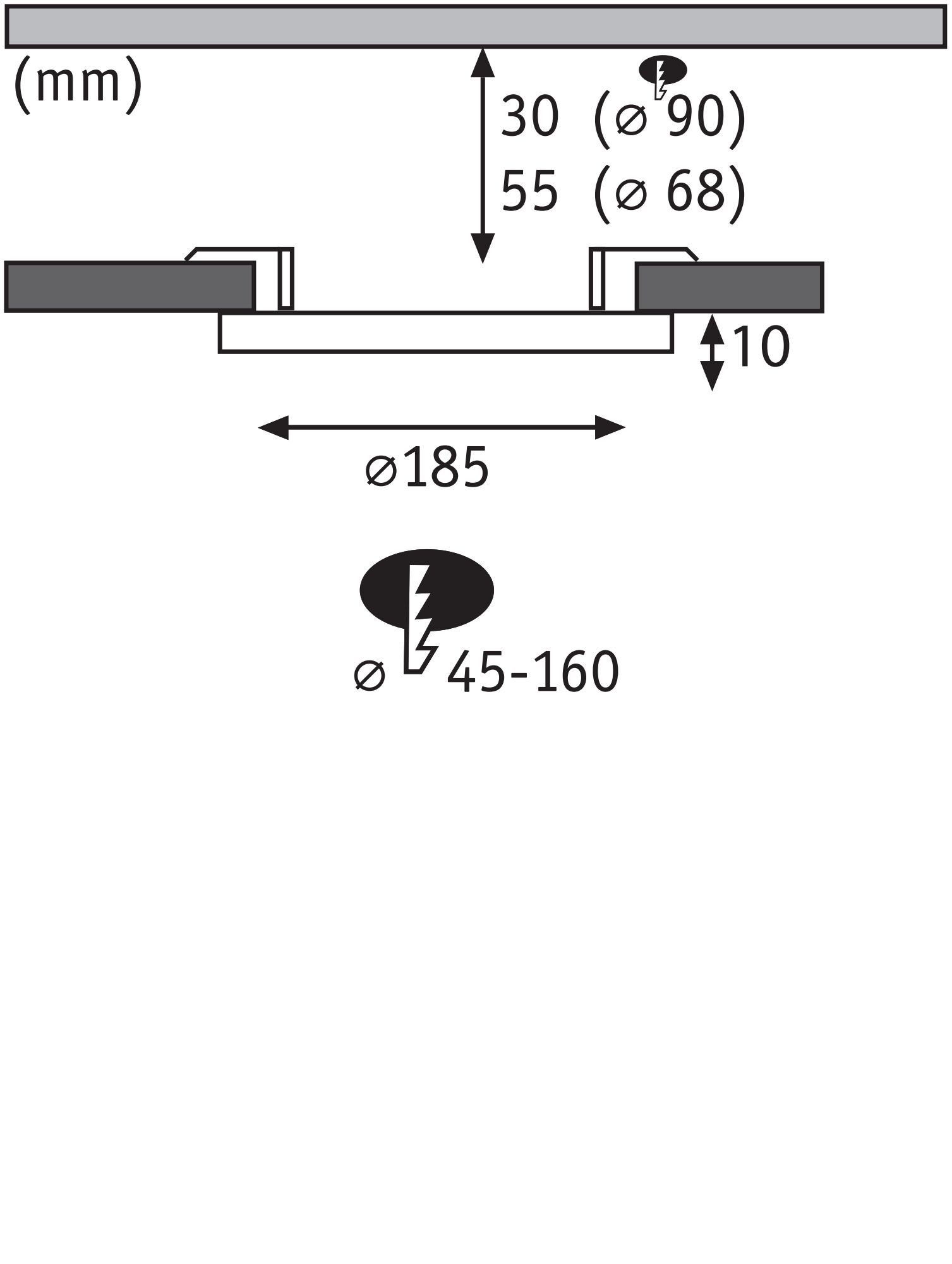

| Dimension | |
|---|---|
| mounting hole 2 | 160 mm |
| Depth of hollow wall | 30-55 mm, 30 mm |
| Total Mounting depth | 45-70 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Ø | 185 mm |
| Mounting hole | 60 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Transparent |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | White Switch |
| Usable luminous flux | 1000 lm |
| Luminous flux LED module | 1500 lm |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 14 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 99 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 17 W |

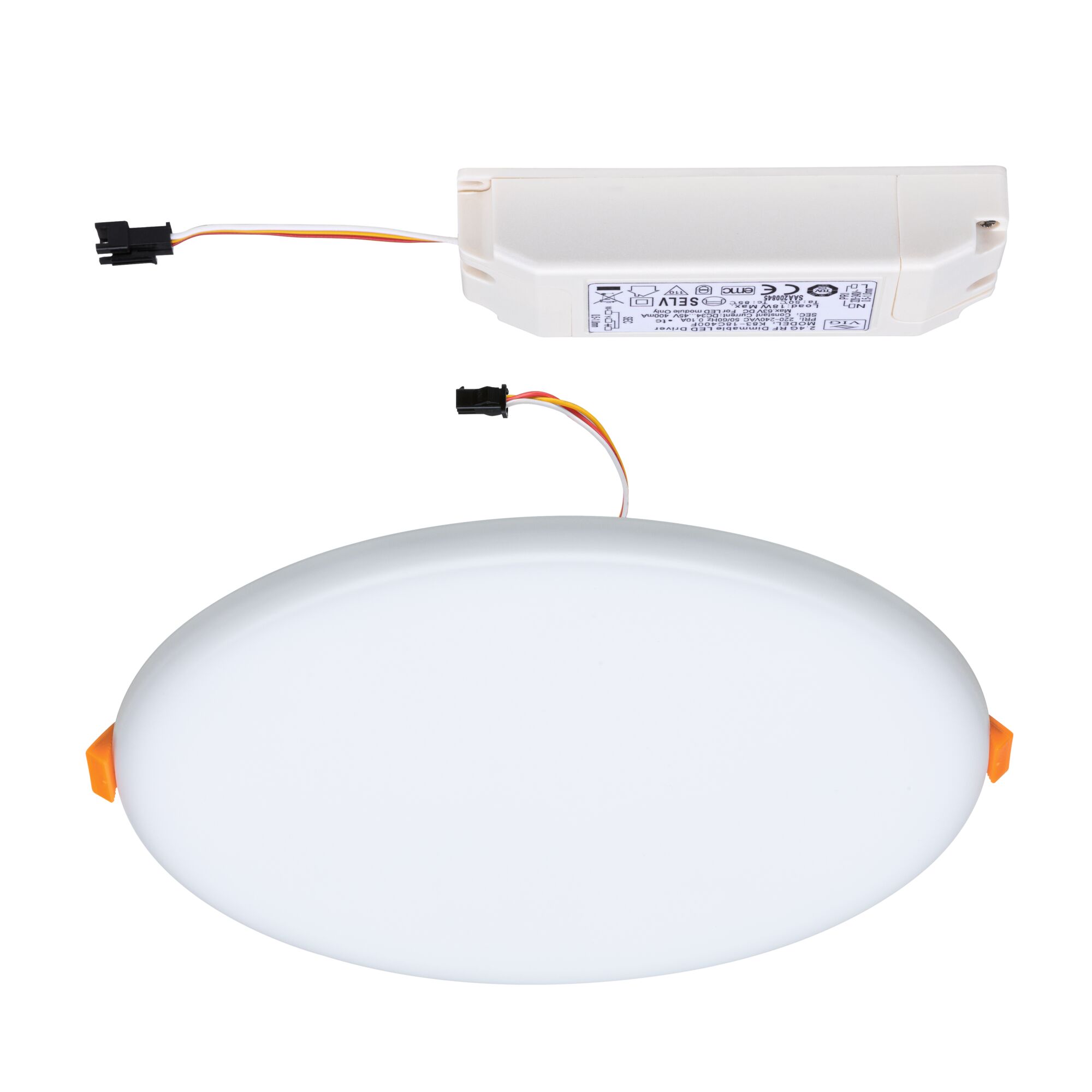

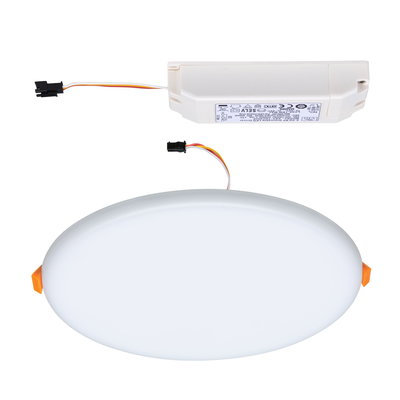

| Transformer | |
|---|---|
| apparent power | 26 VA |
| Transformer height | 27 mm |
| Transformer width | 45 mm |
| Transformer depth | 133 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
