Article-No.:
92392
VariFitLED Recessed panel
Veluna
IP44 round 185mm 17,5W 1500lm 4000K Satin
IP44 round 185mm 17,5W 1500lm 4000K Satin
£41.95*
Prices incl. Standard rate VAT
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white
VariFit LED Recessed panel Veluna IP44 round 185mm 17,5W 1500lm 4000K Satin

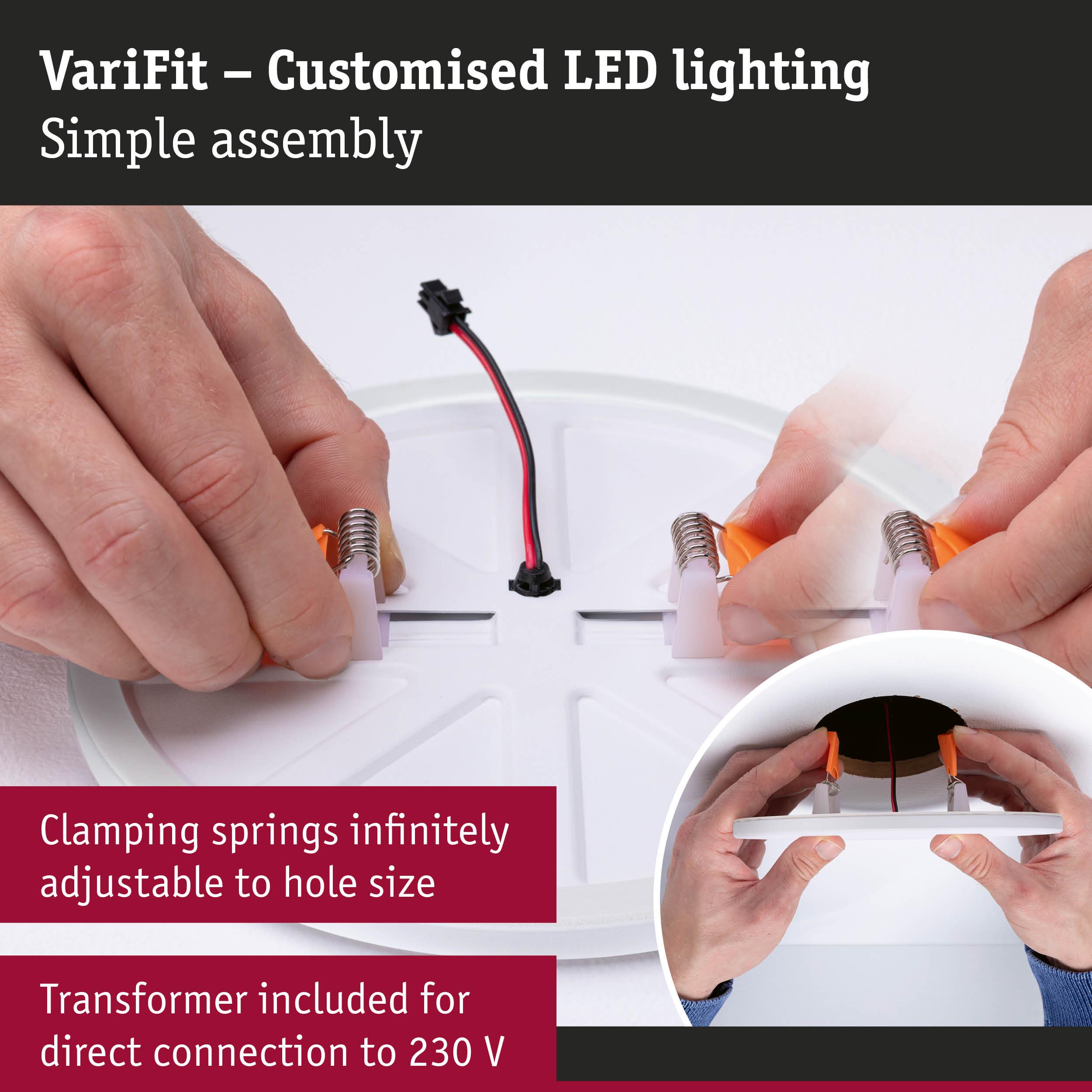

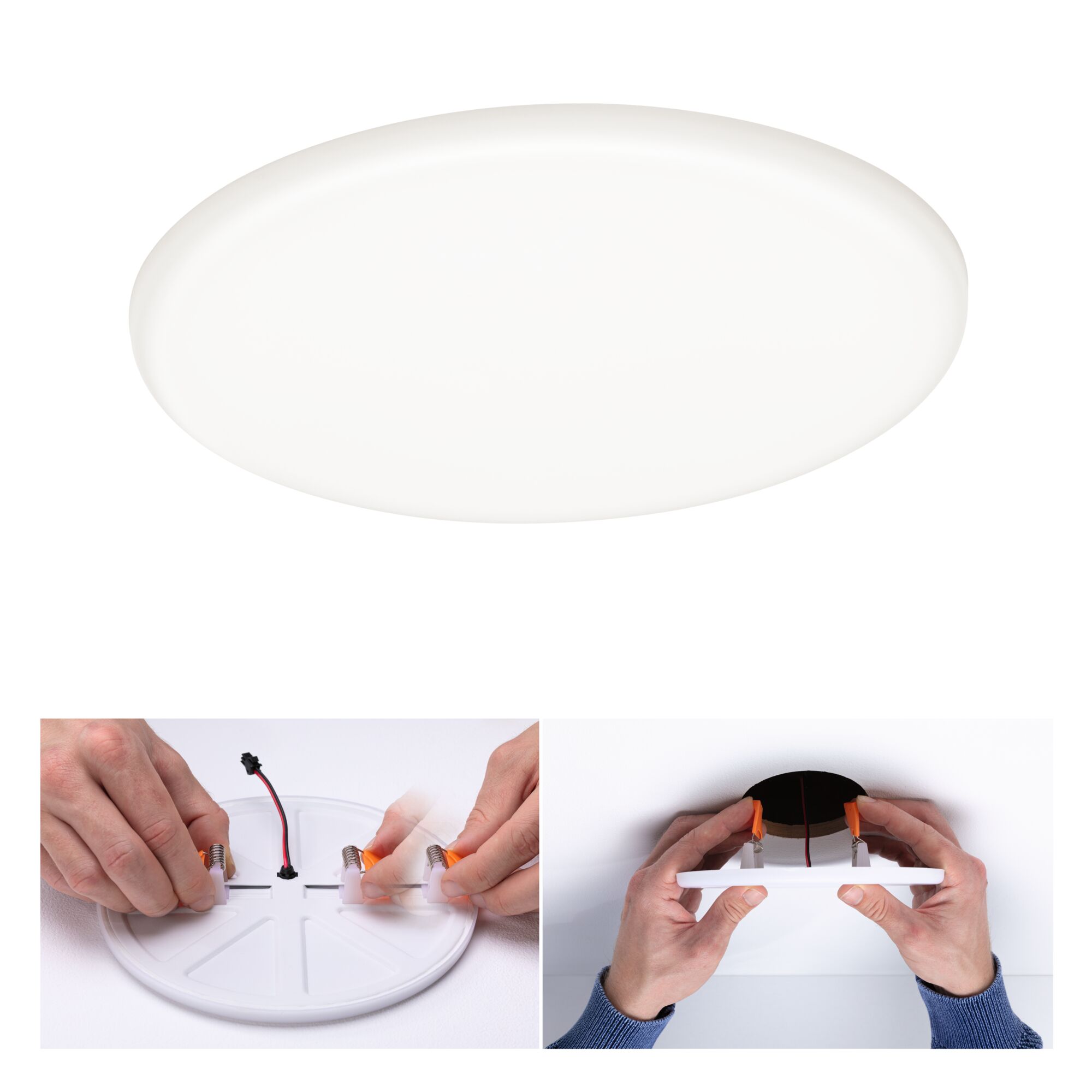

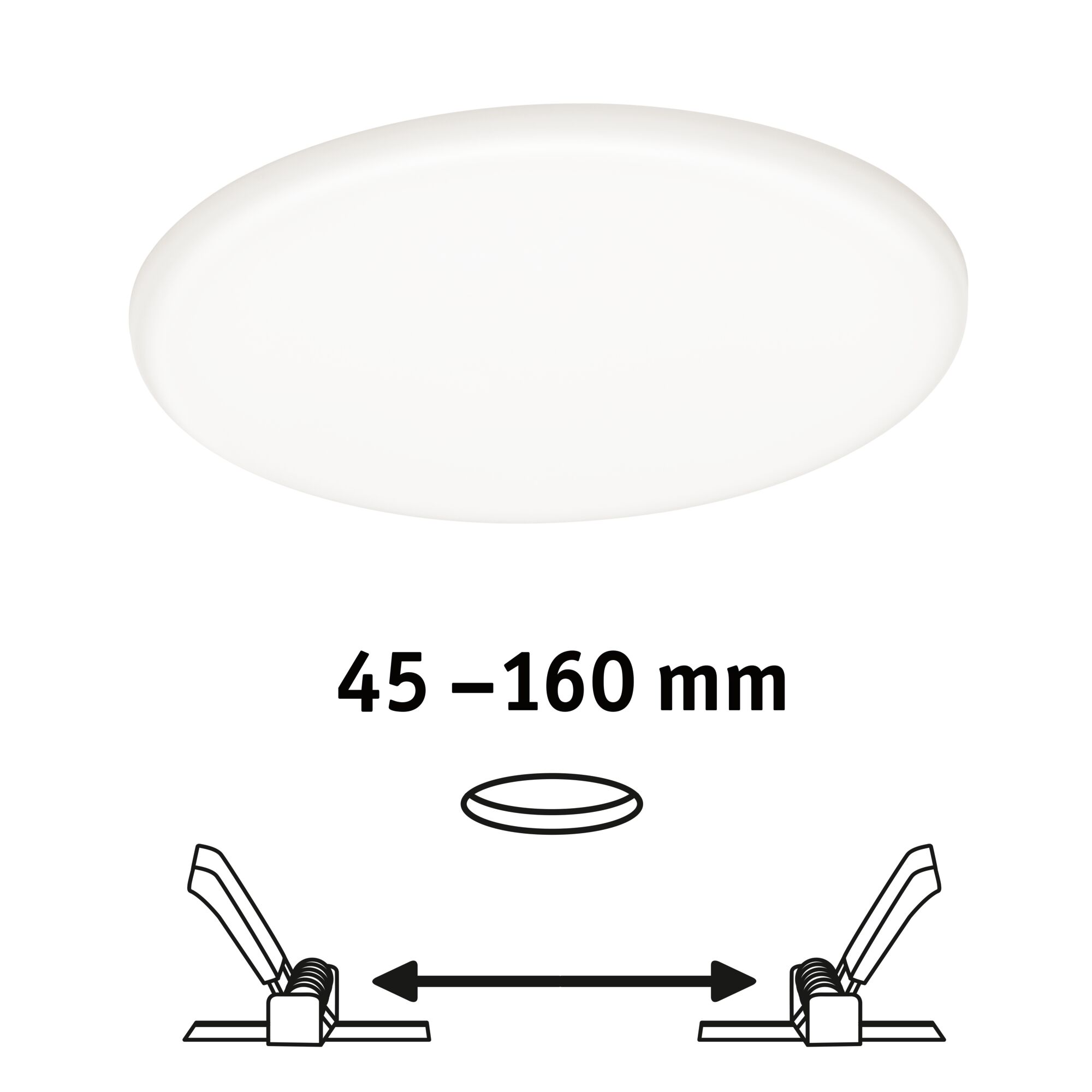

The frameless Veluna panel with an output of 17,5 watts provides extensive neutral white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 160 mm for installation. The panel can therefore be installed both in existing boreholes and new ones created with standard drill bits.For hole diameters larger than 90 mm, a cavity depth of at least 30 mm is needed. For hole diameters larger than 68 mm, a depth of at least 55 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology
- For 230 V direct connection
| Dimension | |
|---|---|
| mounting hole 2 | 160 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Ø | 185 mm |
| Mounting hole | 45 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| color temp | 4000 K |
| Farbtemperatur_Text | Neutralweiß |
| Usable luminous flux | 1500 lm |
| Luminous flux LED module | 1900 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 17,5 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 120 W |
| Adjustability | fixed |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 20 W |

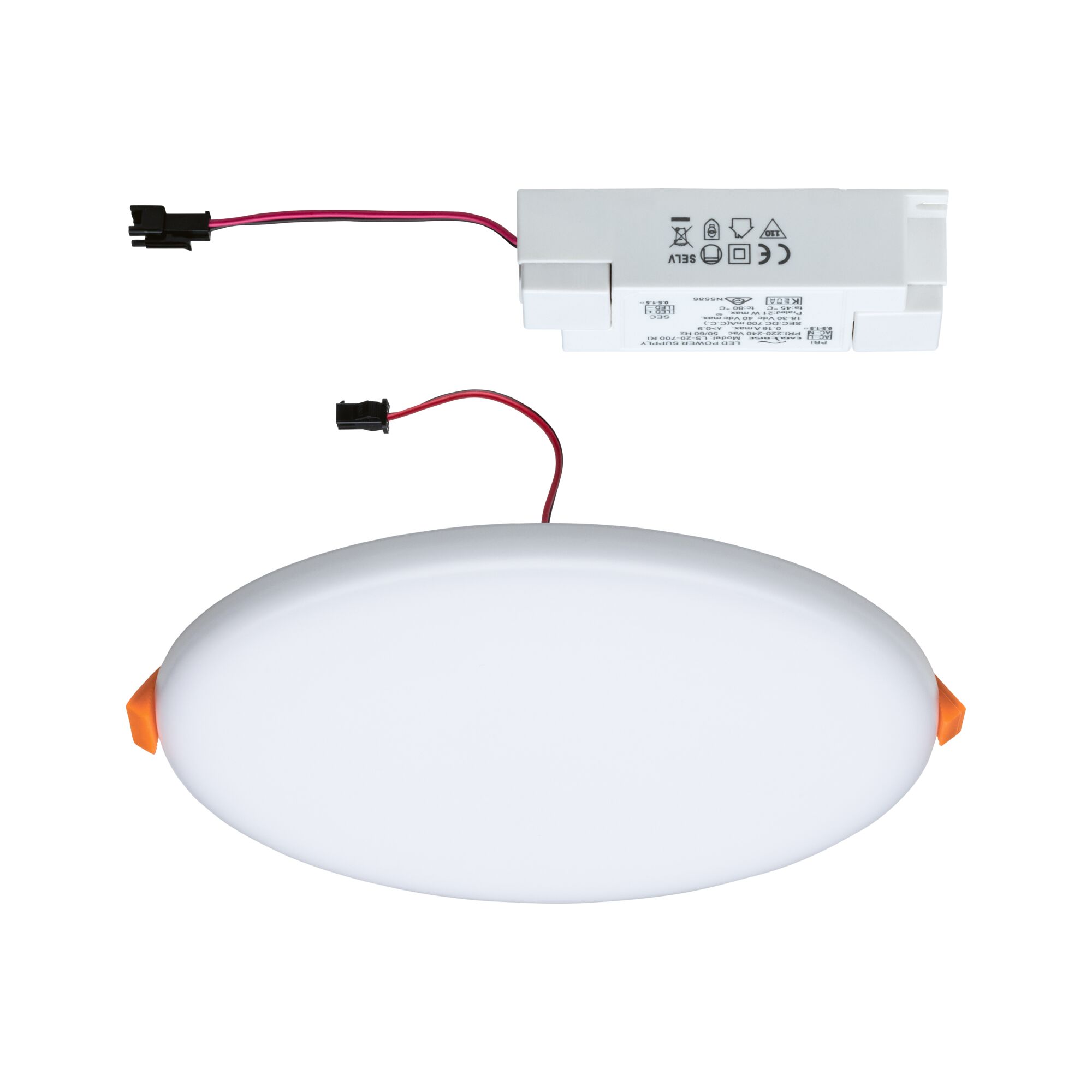

| Transformer | |
|---|---|
| apparent power | 21 VA |
| Transformer height | 25 mm |
| Transformer width | 37 mm |
| Transformer depth | 93 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
