Article-No.:
92390
VariFit
LED Recessed panel
Veluna
IP44 round 75mm 4,5W 400lm 4000K Satin
IP44 round 75mm 4,5W 400lm 4000K Satin

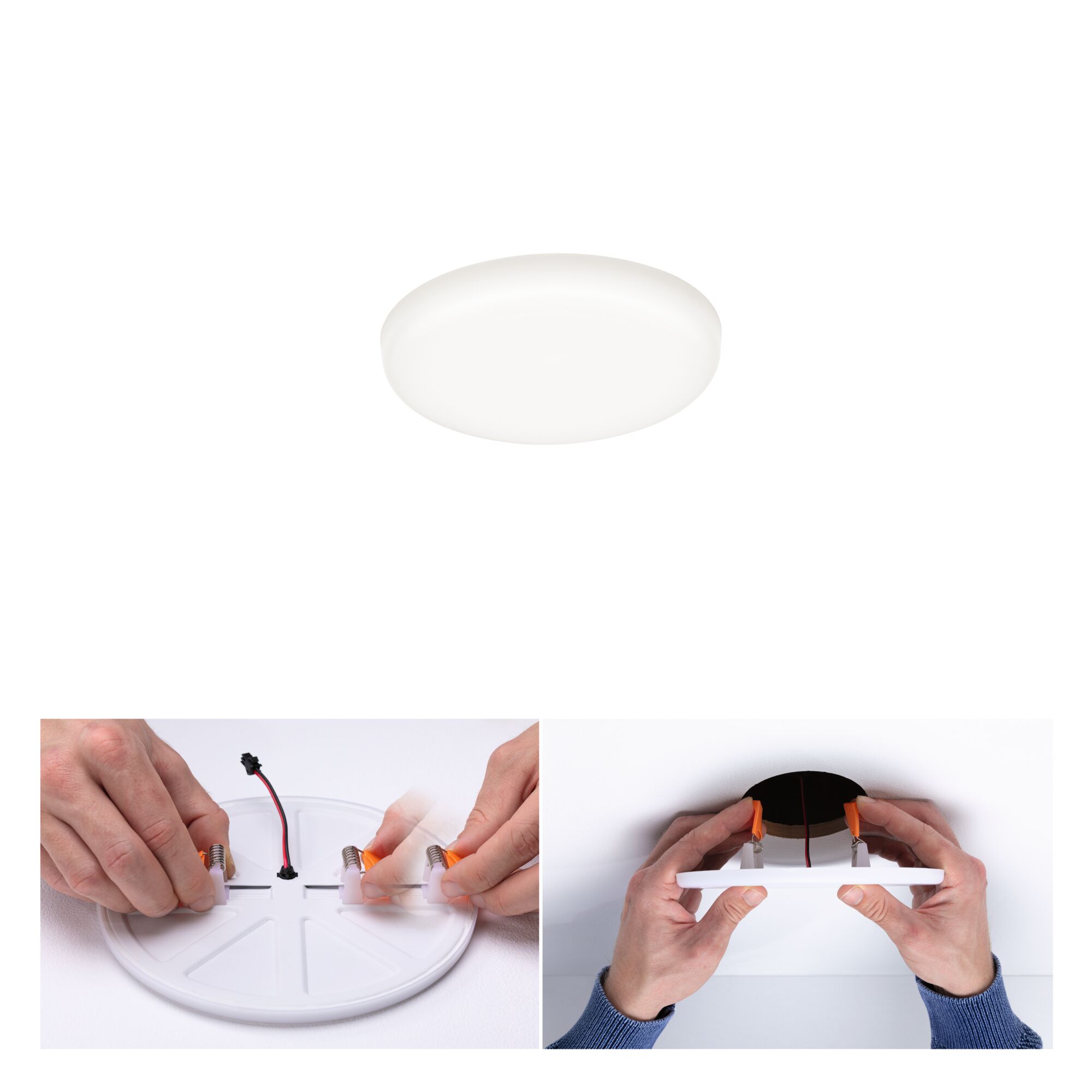

- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white

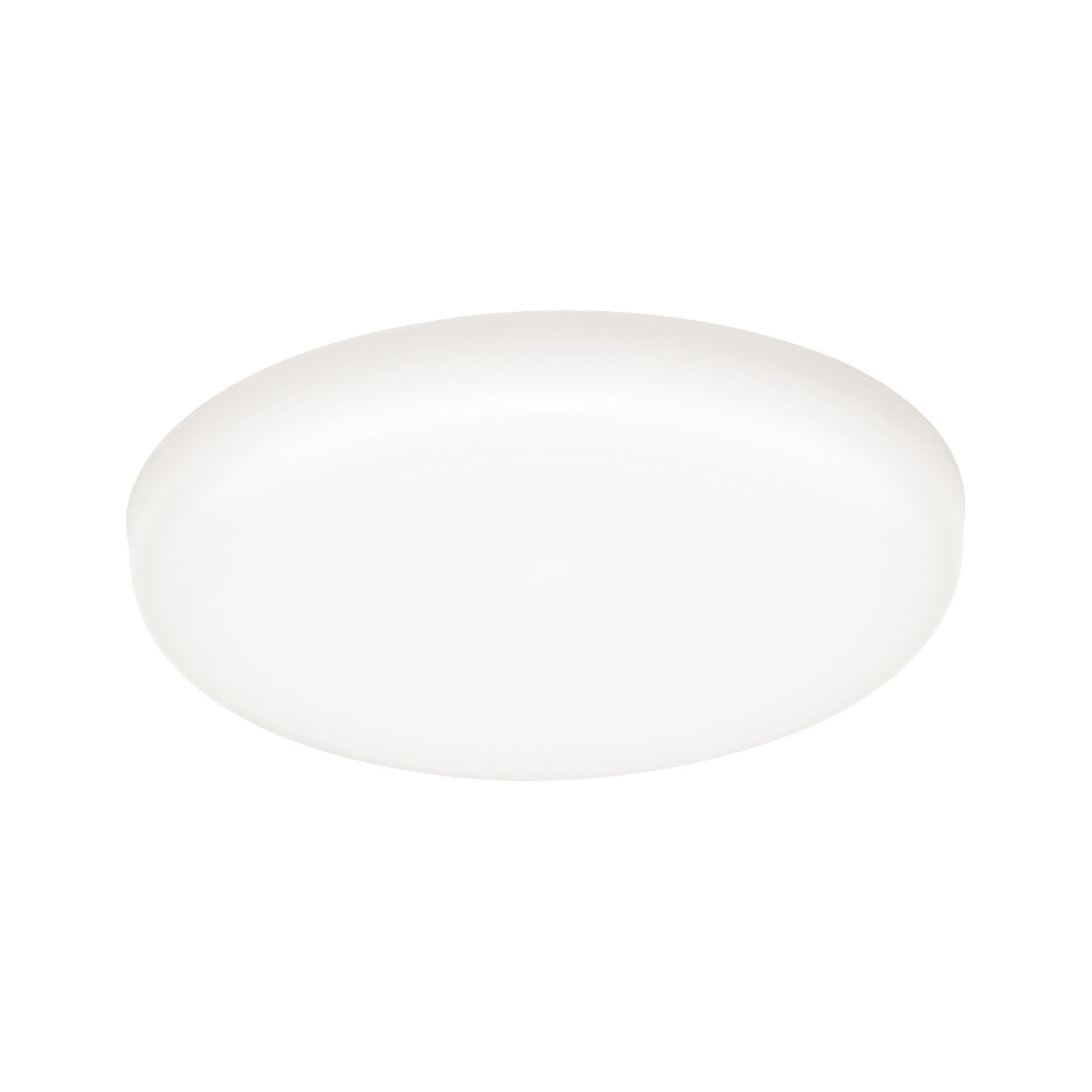

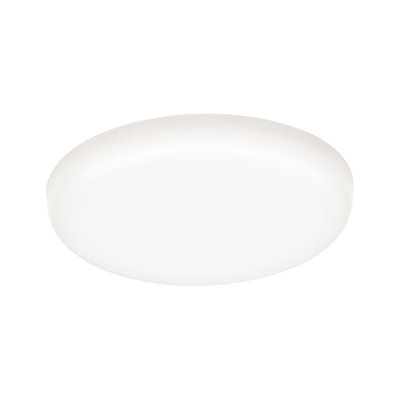

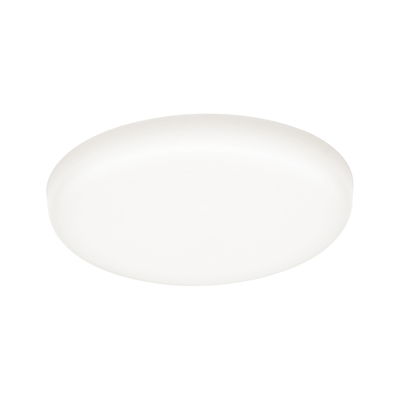

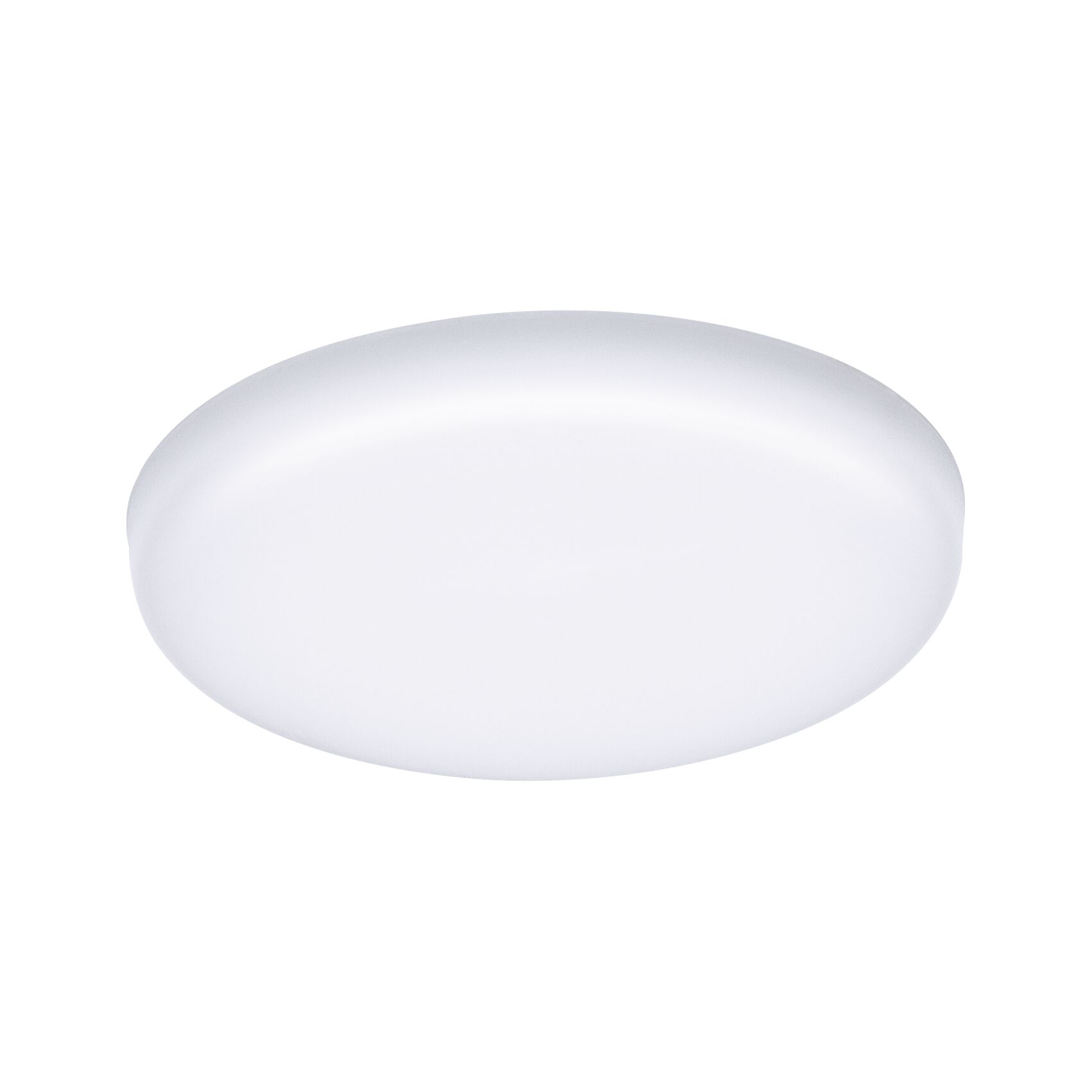

VariFit LED Recessed panel Veluna IP44 round 75mm 4,5W 400lm 4000K Satin

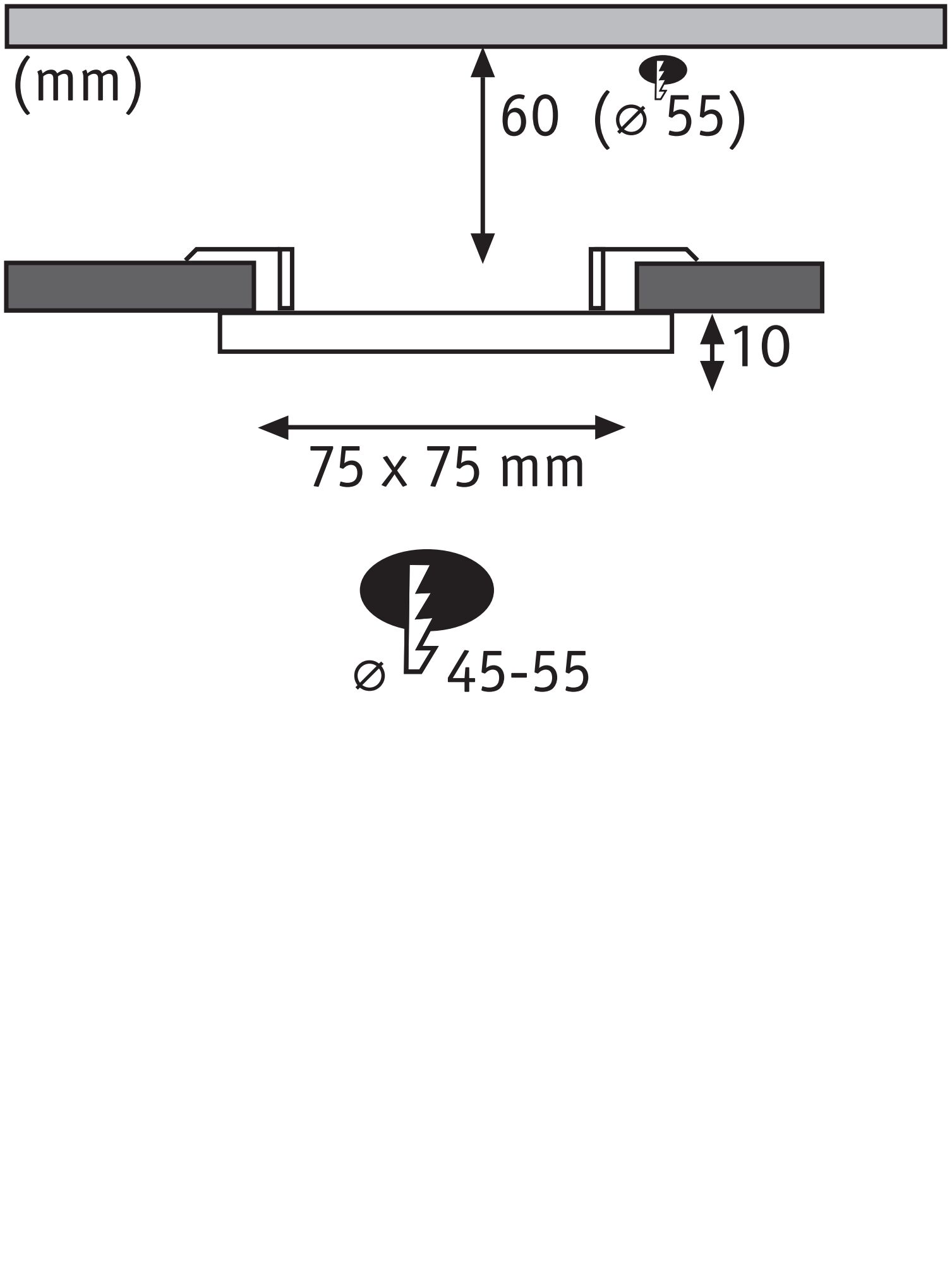

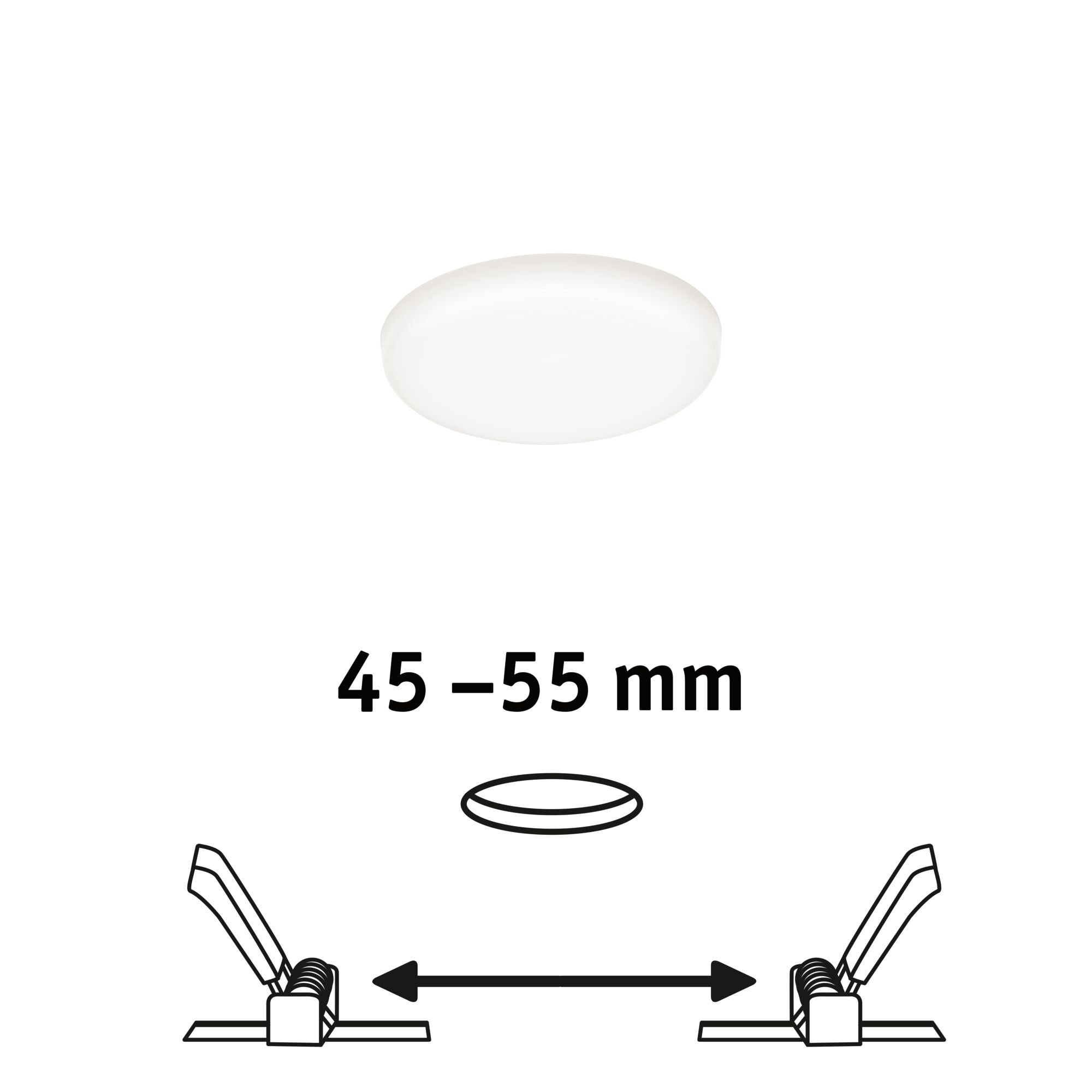

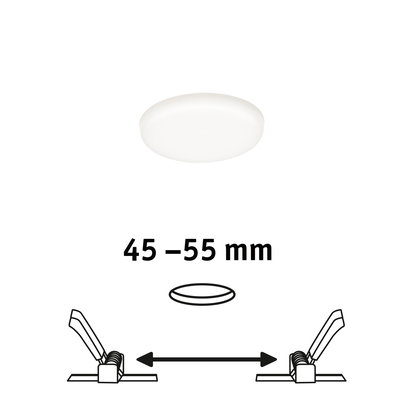

The frameless Veluna panel with an output of 4,5 watts provides extensive neutral white light. Thanks to flexible VariFit technology, the clamping springs can be freely adjusted between 45 and 55 mm for installation. The panel can therefore be installed both in existing boreholes and new ones.For hole diameters larger than 55 mm, a cavity depth of at least 60 mm is needed.
- VariFit – flexible installation with infinitely adjustable clamping springs
- With integrated LED bulb
- Color temperatur: 4000K - Neutral white
- Even room light based on cutting-edge LED technology

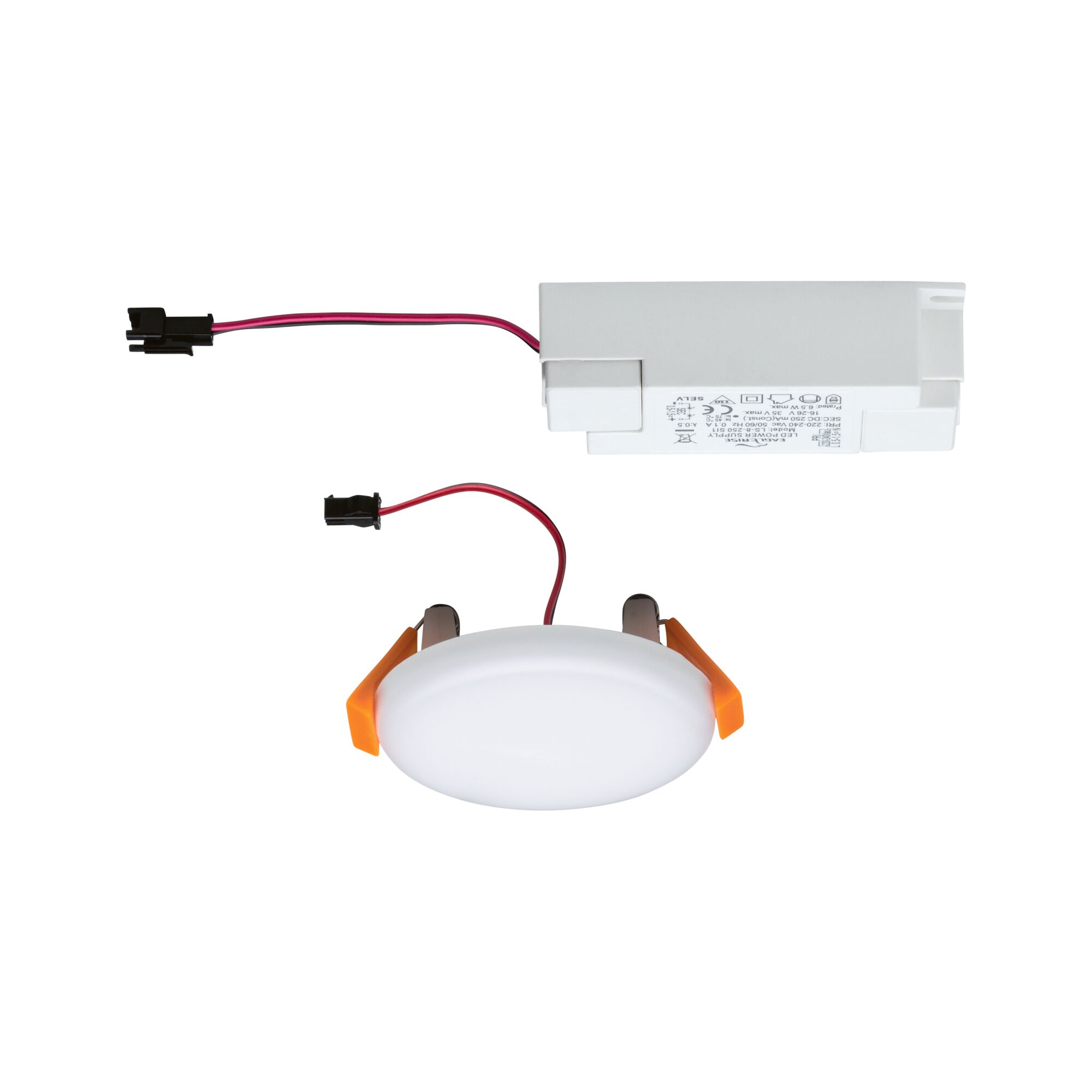

- For 230 V direct connection
| Dimension | |
|---|---|
| mounting hole 2 | 55 mm |
| Dimensions (Height x Width x Depth) | H: 10/31 mm |
| Ø | 75 mm |
| Mounting hole | 45 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Usable luminous flux | 400 lm |
| Luminous flux LED module | 550 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Technique | LED |

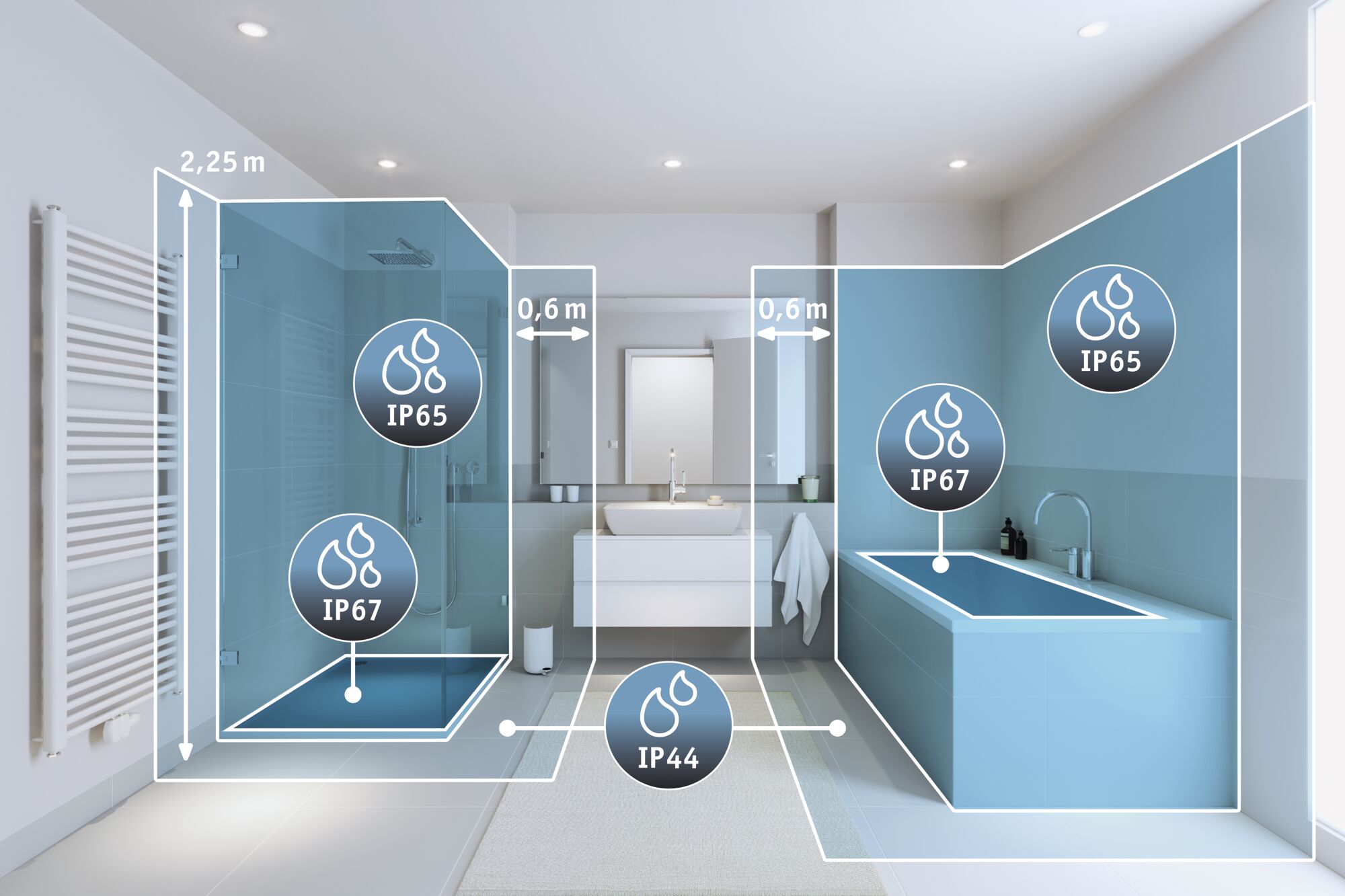

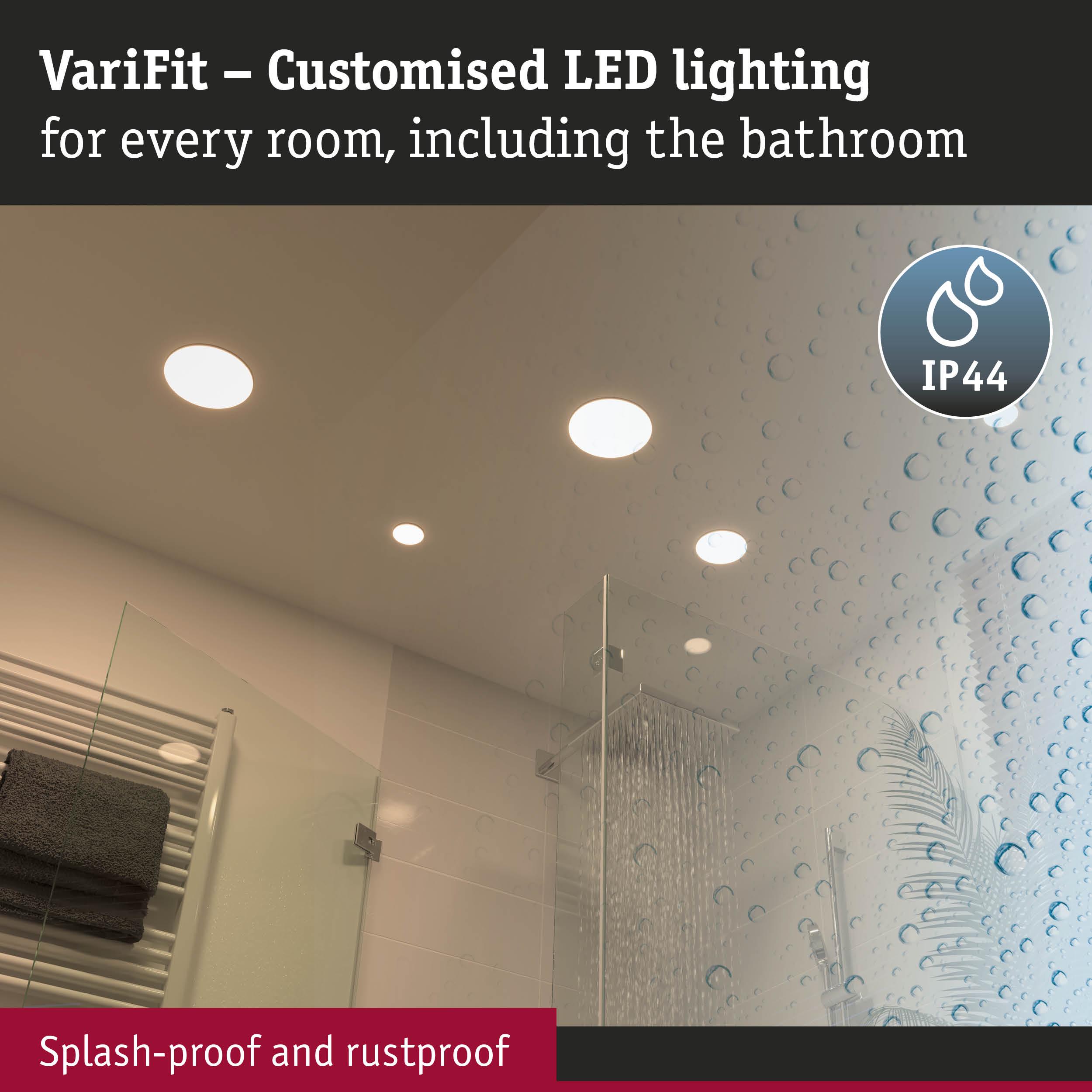

| IP protection | IP44 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 45 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6 W |
| Transformer | |
|---|---|
| apparent power | 12 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
