Article-No.: 97781

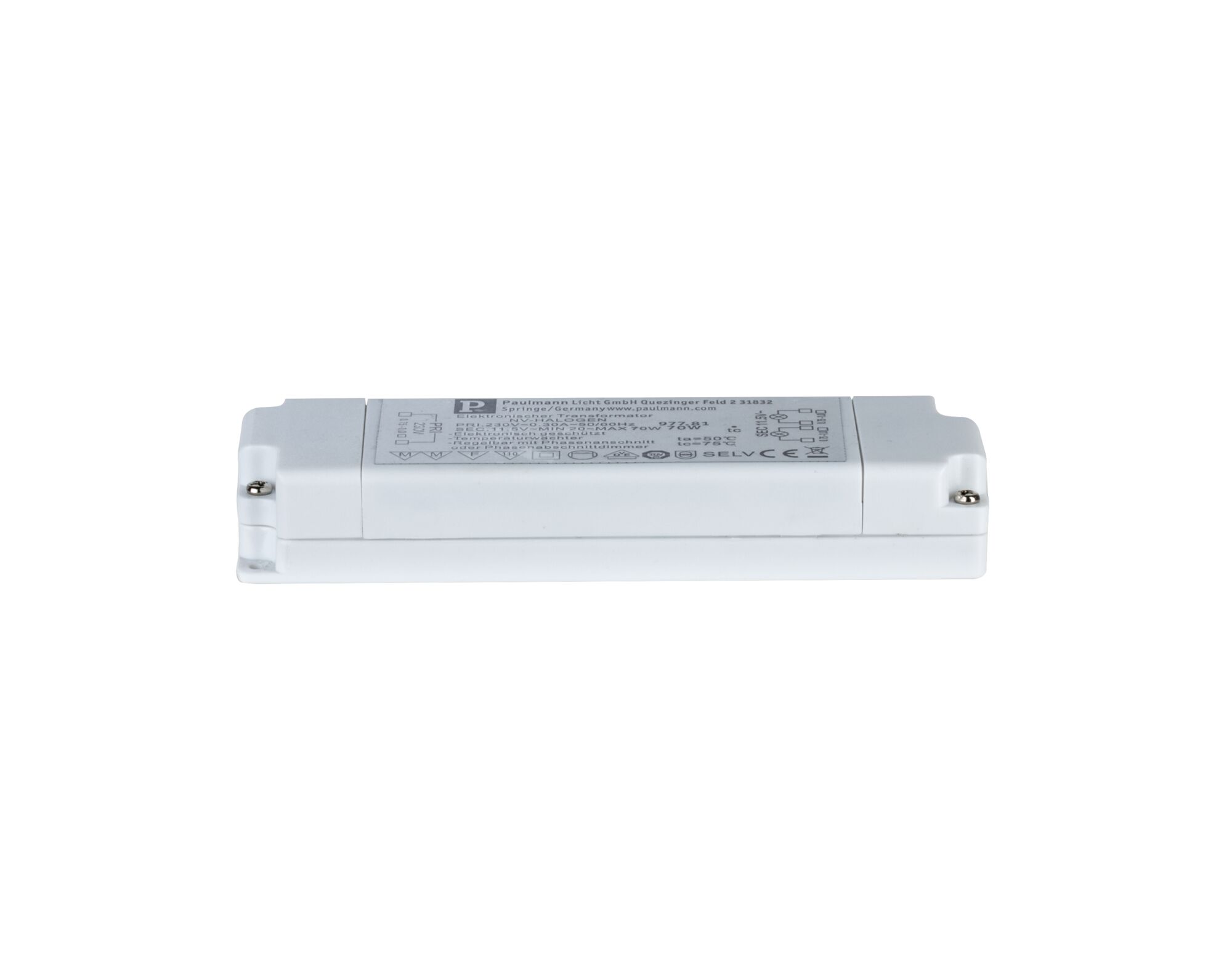

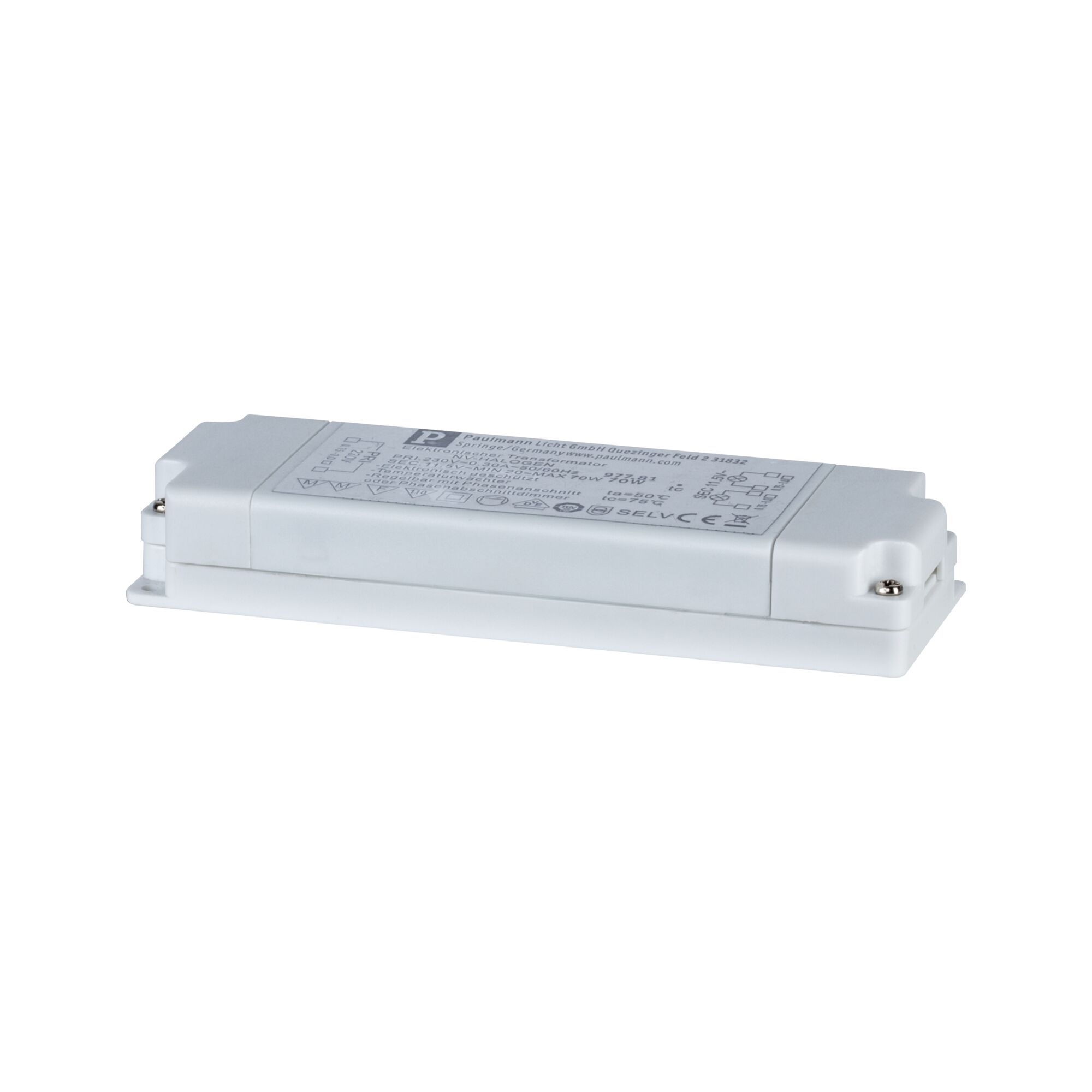

VDEElectronic Transformer Flat Halogen AC

max. 20-70W 230/12V 70VA White

Transformer power: 70VA
£26.95* Prices incl. Standard rate VAT

Ready to ship, delivery within 2-3 working days

Free shipping from £ 150 - all duties & taxes are covered Free returns
  • VDE certificated
  • protection class II
  • Dimmable with universal dimmer for all transformers (R,L,C)
Questions about the product

VDE Electronic Transformer Flat Halogen AC max. 20-70W 230/12V 70VA White

Living up to their name, our Flat transformers are particularly flat. Their height of only 24 mm makes them ideal for use with suspended ceilings.
  • VDE certificated
  • protection class II
  • Dimmable with universal dimmer for all transformers (R,L,C)
  • Integrated fire protection
  • Temperature monitor and electronic fuse

Dimension
Dimensions (Height x Width x Depth)H: 24 x B: 50 x T: 147 mm
Built-in diameter55 mm
Design and Material
ColourWhite
MaterialPlastic
Features
SoftstartSoftstart
Integrated thermal protectionintegrated thermal protection
Integrated temperature monitor and electronic fuseIntegrated temperature monitor and electronic fuse
Service life
Service life, electronic ballast50000 h
Lifetime50000 h
Lamp Features
Dimmablewith dimmer R, L, C (universal compatibility)
Inclusive lampno
Lamp propertyOhne Leuchtmittel
Maximum wattage rangemax. 20-70 W
Protection classProtection class II
TechniqueAccessories without bulbs
Replacable7 not concerned.
Adjustabilityfixed
Voltage230/12 V
Transformer
Integrated fire protectionIntegrated fire protection
elevated spike protectionelevated spike protection
Integrated spark protectionIntegrated spark protection
integrated overload protectionintegrated overload protection
Transformer power range70 VA
Accessories
Radio control includedno
Labelling
VDEVDE certificated
MM symbolMM symbol
WEEE-Reg.-NoDE 39236390
