Article-No.:
70201
YourLED
Power Supply
Power Supply
IP65 230/12V 60VA Grey/Black
IP65 230/12V 60VA Grey/Black
- Easy plug-in system for hassle-free assembly
- IP protection: IP65 – water jet-protected
- For use in interior area only

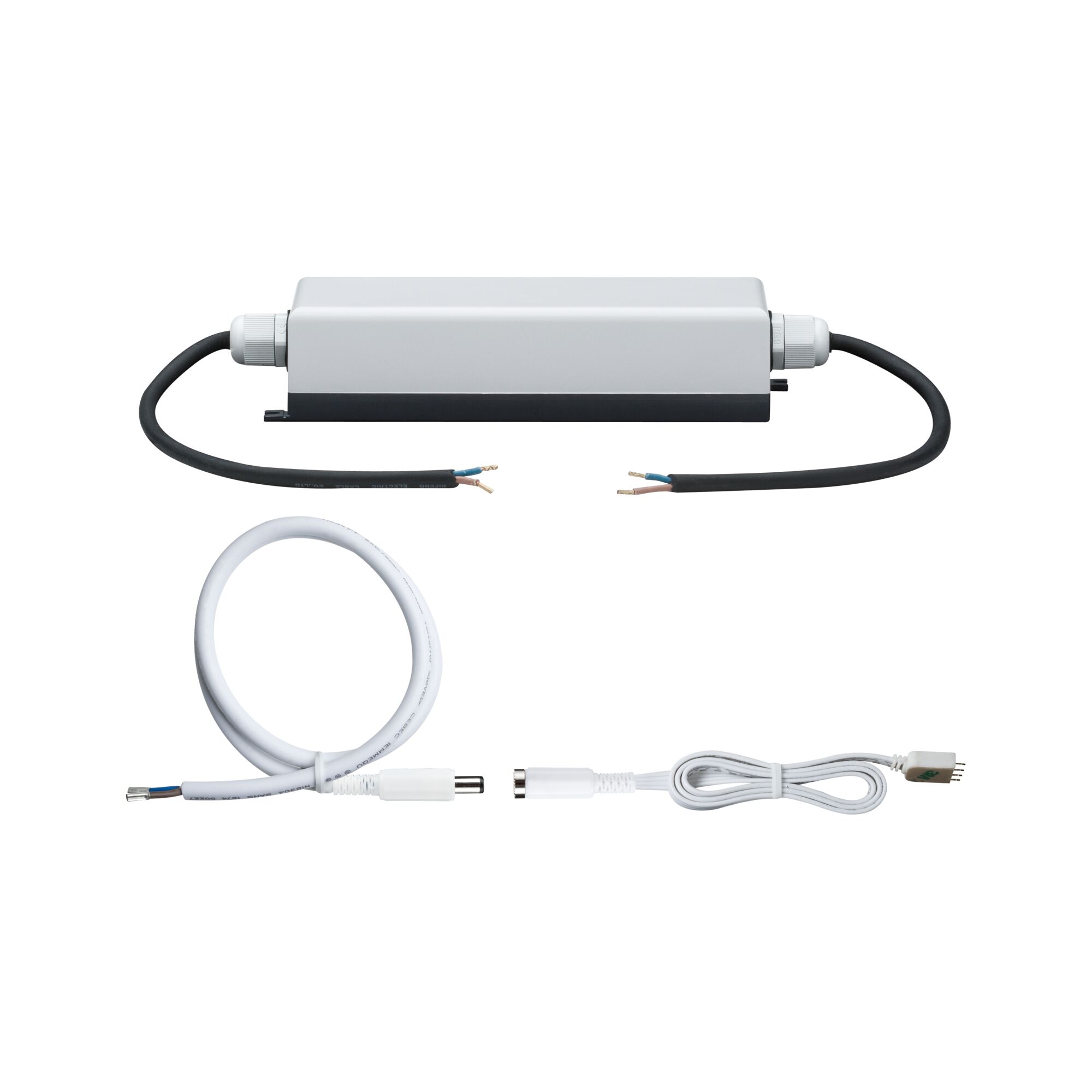

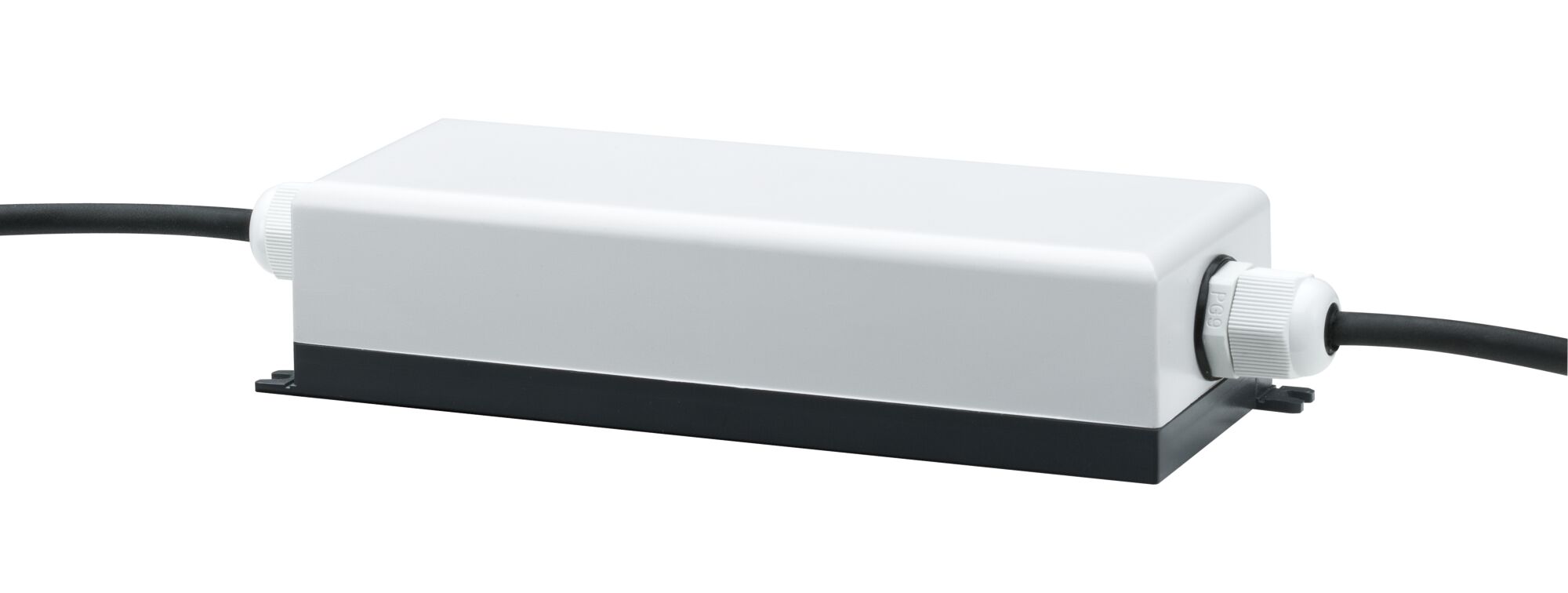

YourLED Power Supply IP65 230/12V 60VA Grey/Black
YourLED power supply for extensive systems up to 60 W, also for mounting in bathroom and wet locations. Plug-in connections are prepared for direct connection of YourLED LED strips or a wide range of accessories.
- Easy plug-in system for hassle-free assembly
- IP protection: IP65 – water jet-protected
- For use in interior area only
- The items 232 and 70247 are recommended for layout in rooms exposed to moisture (exclusive)
- Energy-efficient electronic ballast with long lifetime

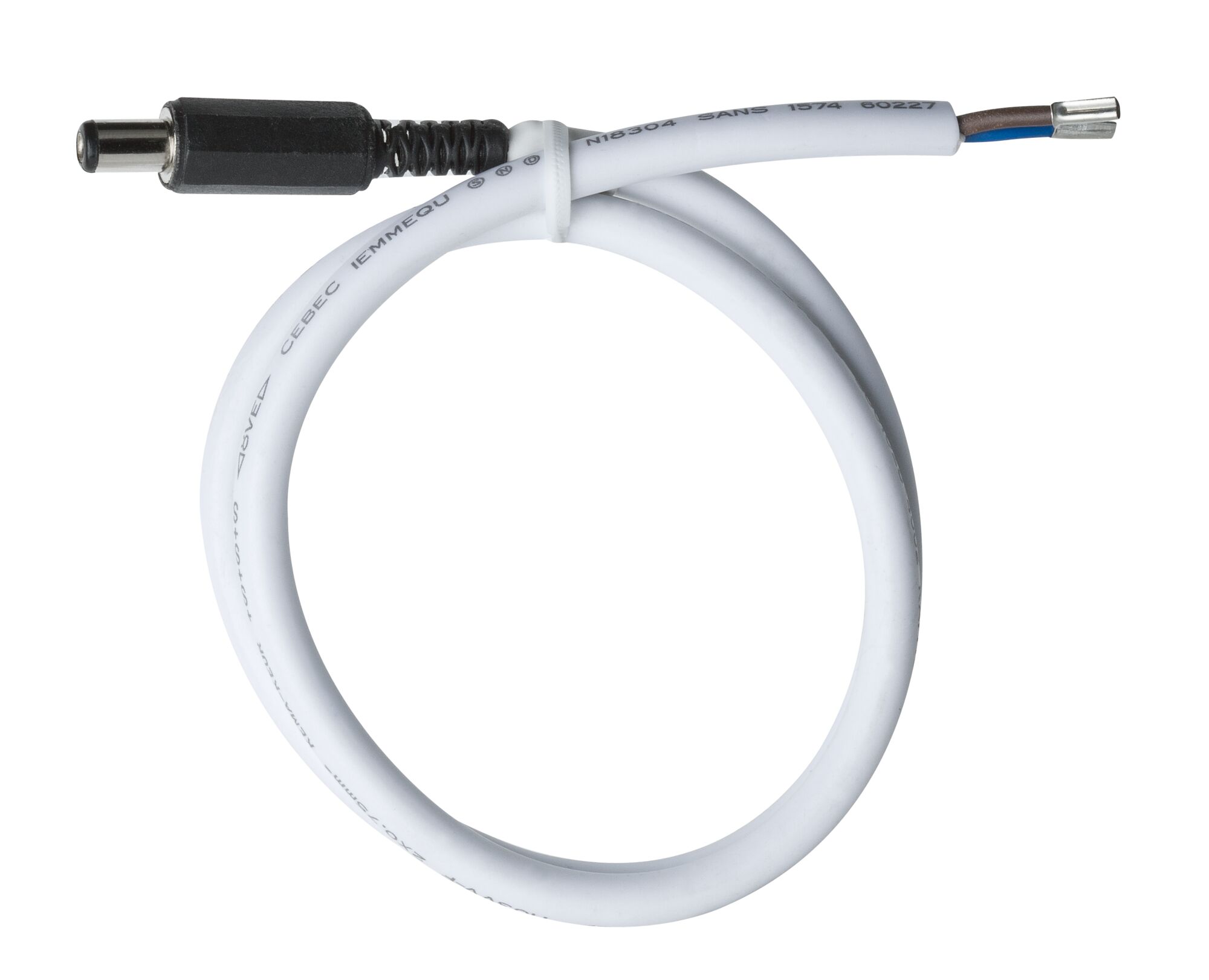

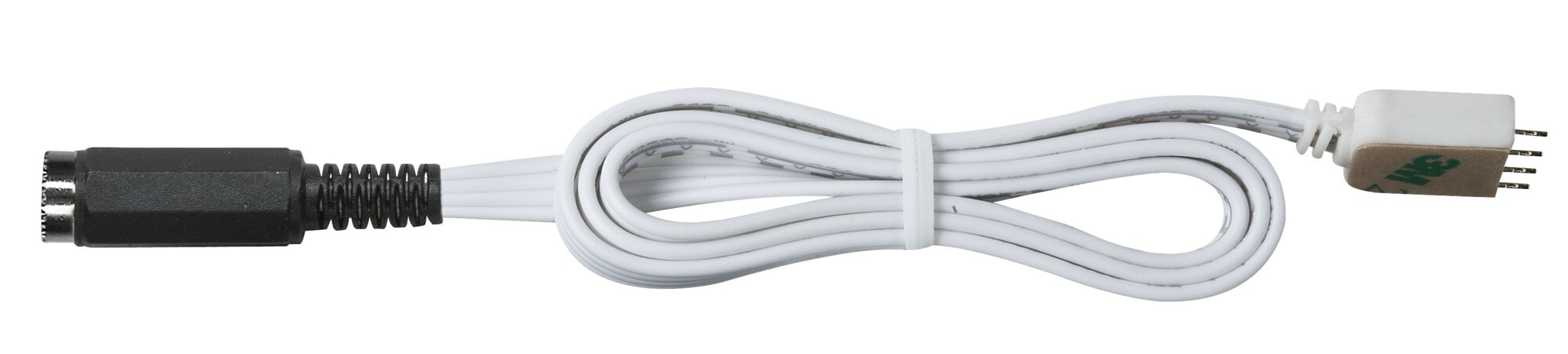

- Incl. 4-pin plug for easy connection of the strips
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 40 x B: 60 x T: 225 mm |
| Design and Material | |
|---|---|
| Colour | Black, Grey |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Features | |
|---|---|
| Integrated temperature monitor and electronic fuse | Integrated temperature monitor and electronic fuse |
| Lamp Features | |
|---|---|
| Technique | LED |
| IP protection | IP65 |
| Inclusive lamp | no |
| Total Width | 60 mm |
| Maximum wattage range | max. 60 W |
| protection class | protection class II |
| Replacable | 7 not concerned. |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Integrated short circuit protection | Integrated short circuit protection |
| integrated overload protection | integrated overload protection |
| Transformer height | 40 mm |
| Transformer width | 60 mm |
| Transformer depth | 225 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
