Article-No.:
954550
Capsule
80x210mm 2700K 6W 315lm 230V Chrome matt/Chrome
80x210mm 2700K 6W 315lm 230V Chrome matt/Chrome
£59.95*
£49.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- URail system lamp
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- Modern LED technology

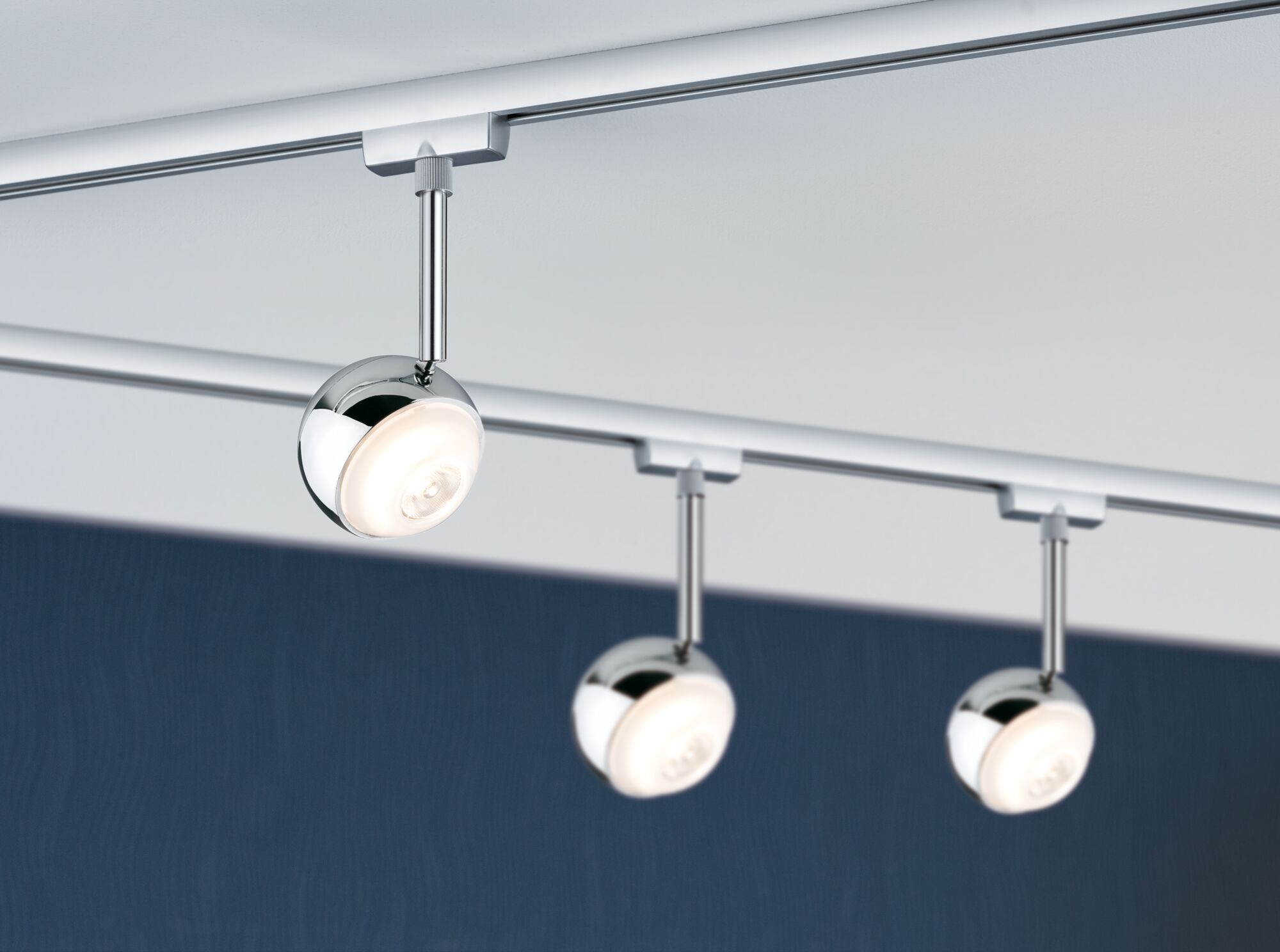

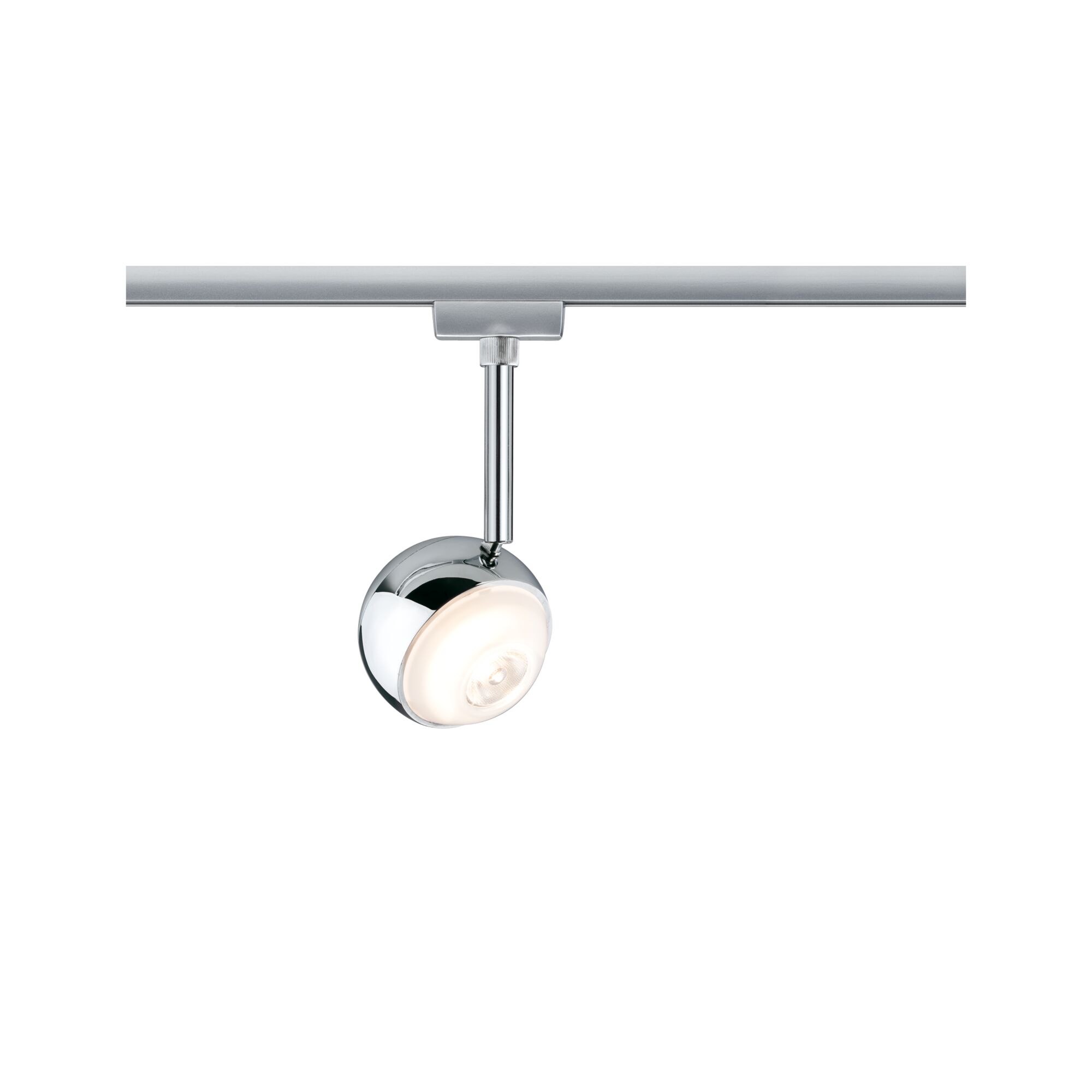

Capsule 80x210mm 2700K 6W 315lm 230V Chrome matt/Chrome

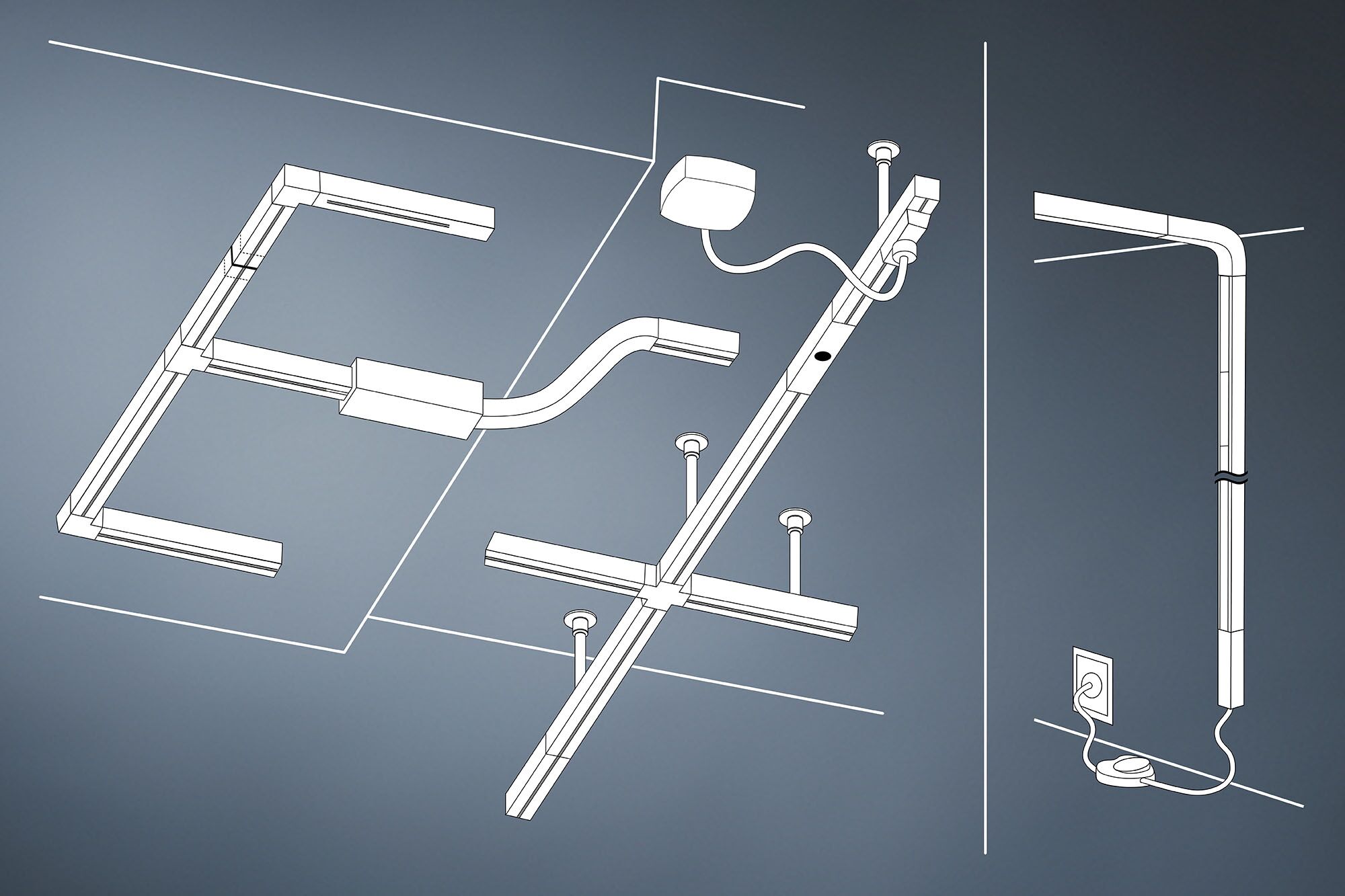

With the versatile URail 230 V rail system, various application areas with a room can be very easily illuminated. Capsule II spots provide slightly directed light and are supplied with a non-replaceable, efficient LED lamp. Bayonet mounts are used to connect them to the separately available high-voltage rail.
- URail system lamp
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- Modern LED technology
- Including bulb (built-into lamp)
- Dimmable
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 210 x B: 80 x T: 80 mm |
| net weight | 336 g |
| Design and Material | |
|---|---|
| Form | spherical |
| Colour | Chrome, Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 315 lm |
| Beam angle | 30 ° |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 420 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 37 W |
| Technique | LED |
| Adjustability | rotating and tilting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| power supply efficiency factor | 0,99 |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageProduct data, leaflets & safety instructions
Safety instructions Flyer URail 230V Schienensystem Flyer URail 230V rail system 504110332_it_Paulmann_URail
