Article-No.:
954550
URail LED spot Capsule II 6 W chrome matt dimmable
£56.95*
£49.95*
Prices incl. Standard rate VAT
- URail system lamp incl. assembly instructions
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- Modern LED technology

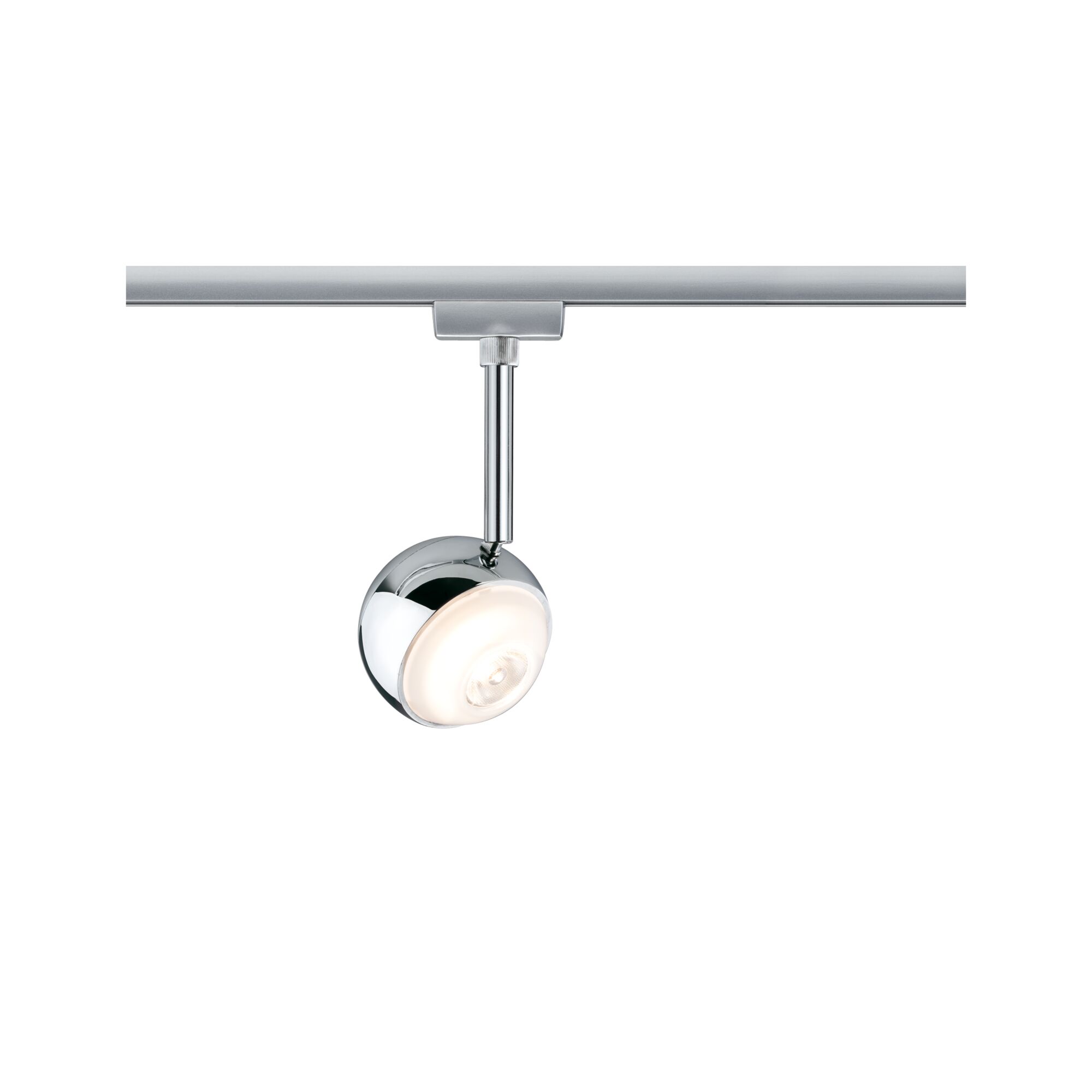

URail LED spot Capsule II 6 W chrome matt dimmable
With the versatile URail 230 V rail system, various application areas with a room can be very easily illuminated. Capsule II spots provide slightly directed light and are supplied with a non-replaceable, efficient LED lamp. Bayonet mounts are used to connect them to the separately available high-voltage rail.
- URail system lamp incl. assembly instructions
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- Modern LED technology
- Including bulb (built-into lamp)
- Dimmable
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 210 x B: 80 x T: 80 mm |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RL Busch-Jäger 2247 U, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RL Merten MEG5133-0000, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 30 ° |
| Usable luminous flux | 315 lm |
| Luminous flux LED module | 420 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 315 lm |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 80 mm |
| Incandescent Equivalent | 37 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 6 W |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| power supply efficiency factor | 0,99 |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
