Article-No.:
95319
URail
Panel
Loop
480lm 7W 2700K 230V Chrome matt/Chrome
480lm 7W 2700K 230V Chrome matt/Chrome
£88.95*
Prices incl. Standard rate VAT
Ready to ship, delivery within 2-3 working days
- URail system lamp
- Area lighting
- For wall and ceiling mounting

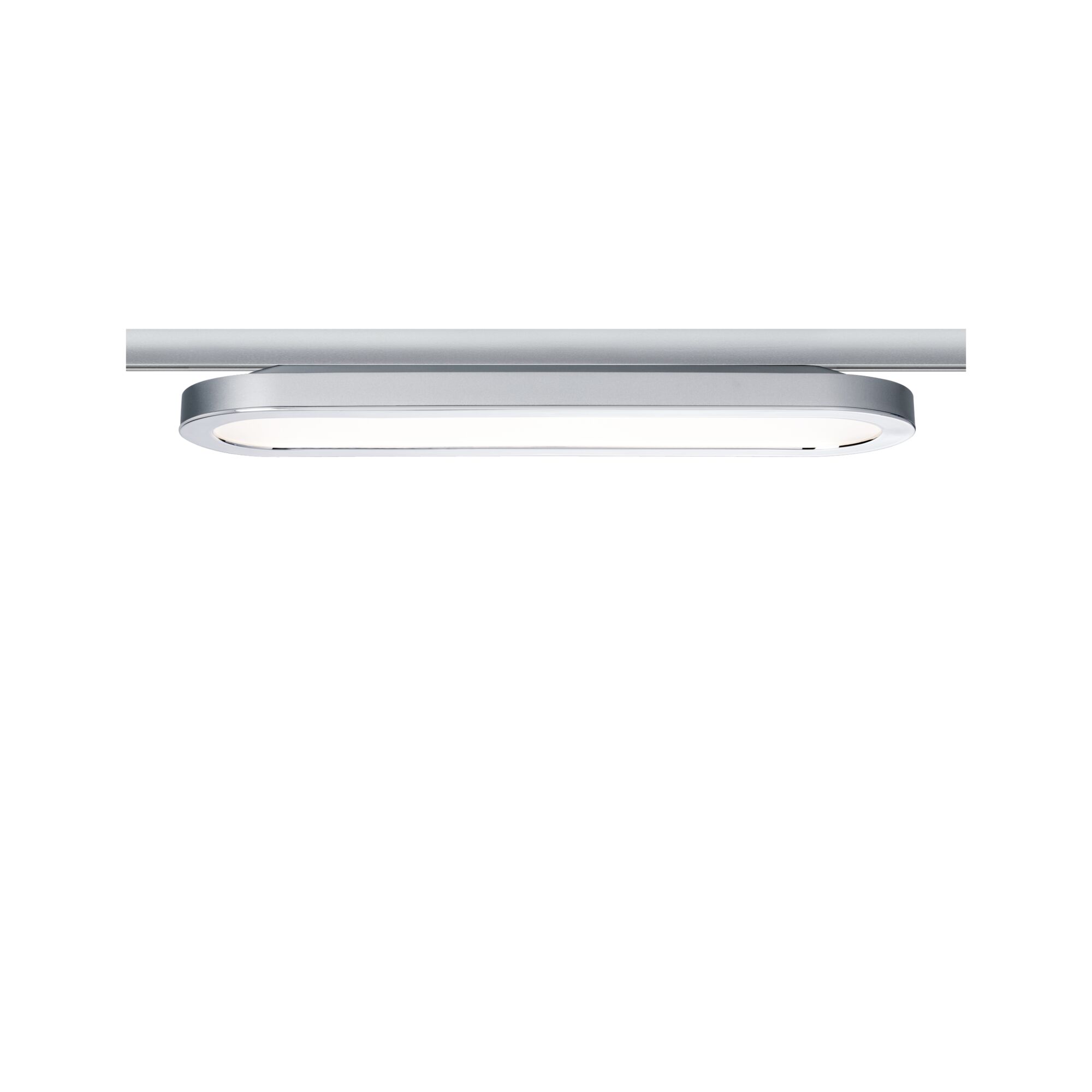

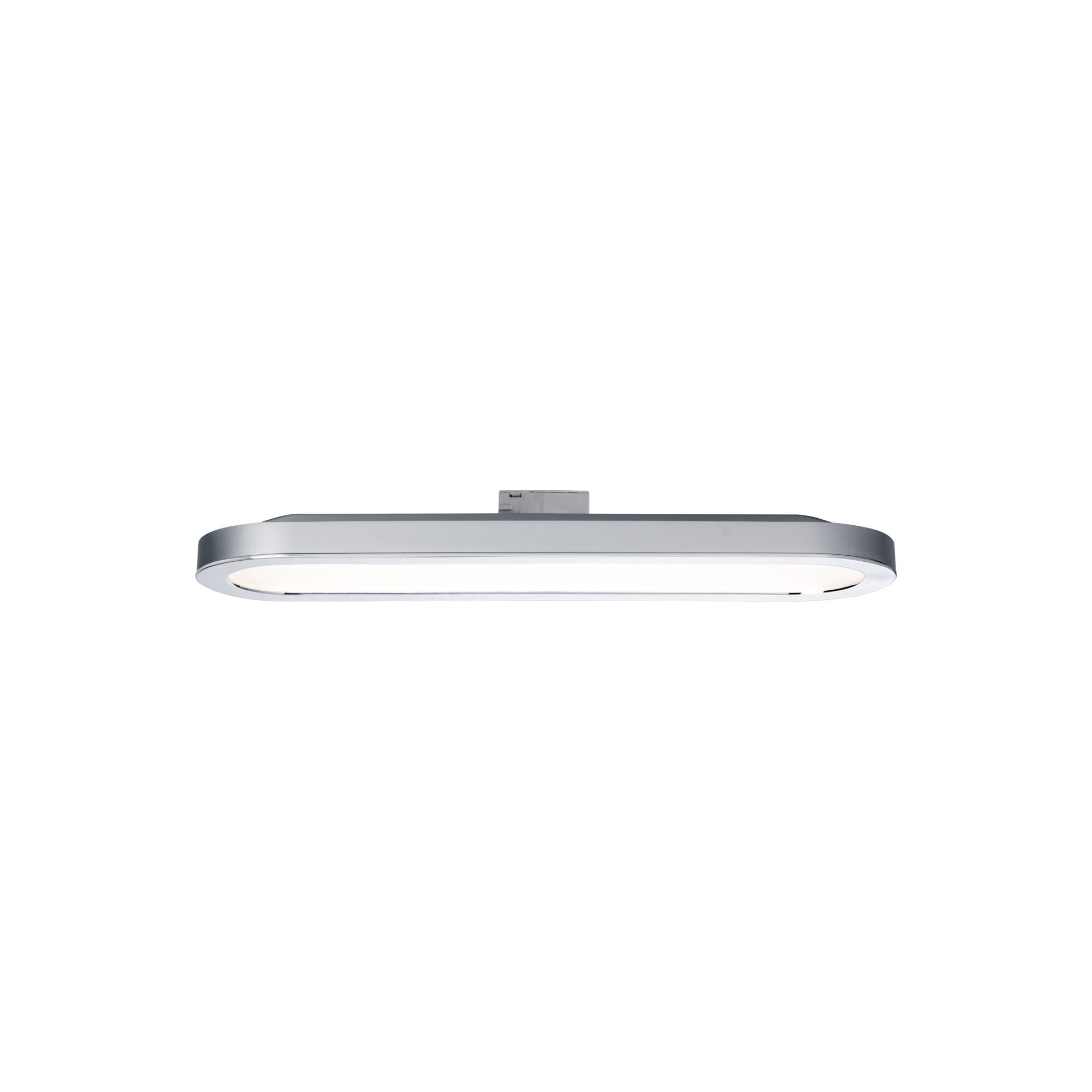

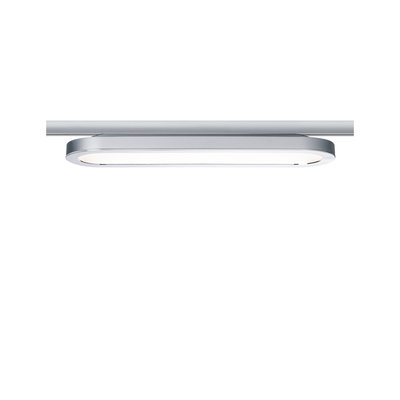

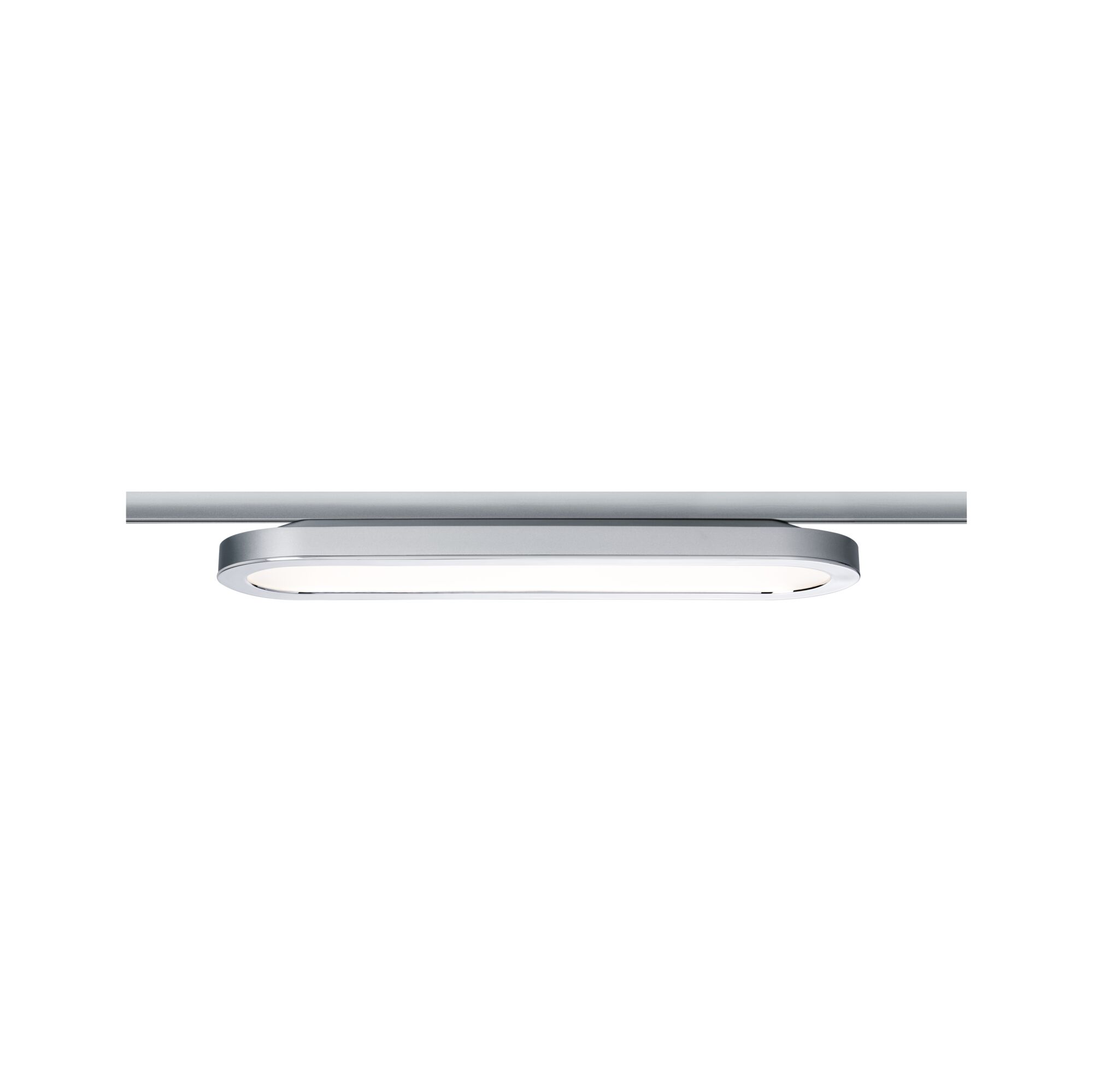

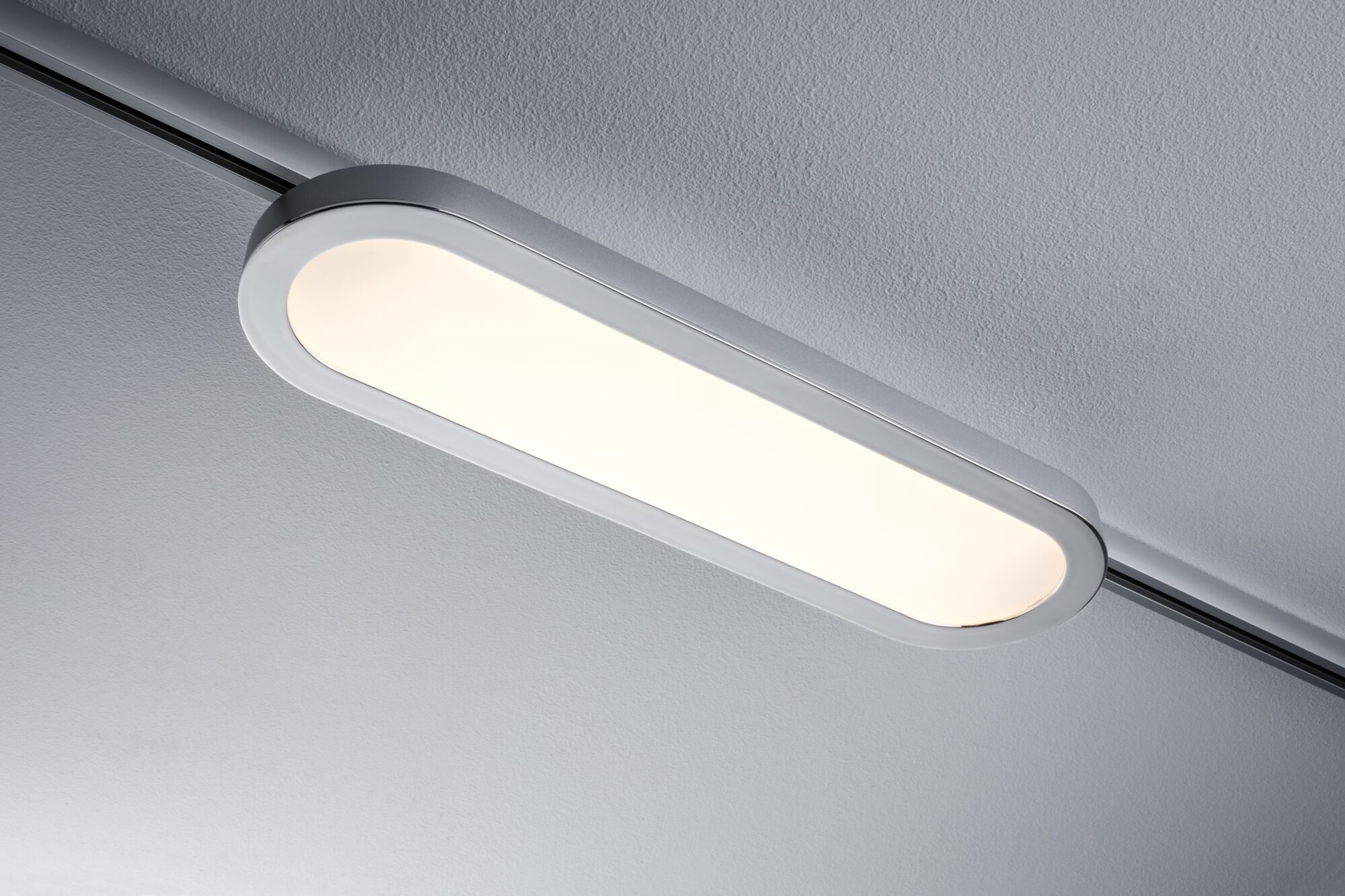

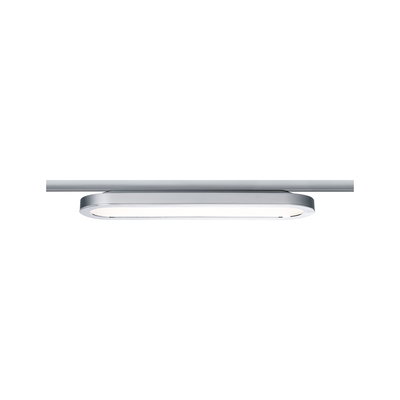

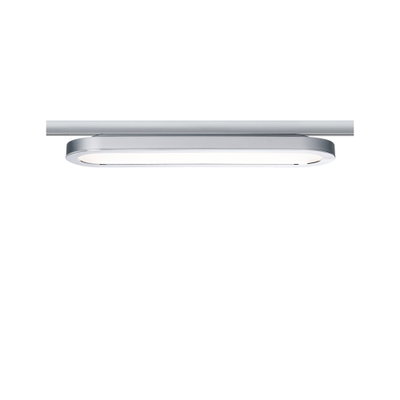

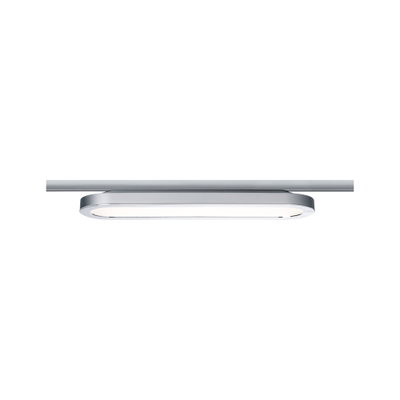

URail Panel Loop 480lm 7W 2700K 230V Chrome matt/Chrome

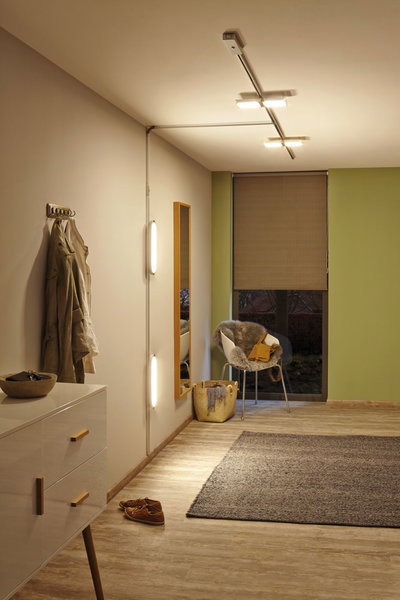

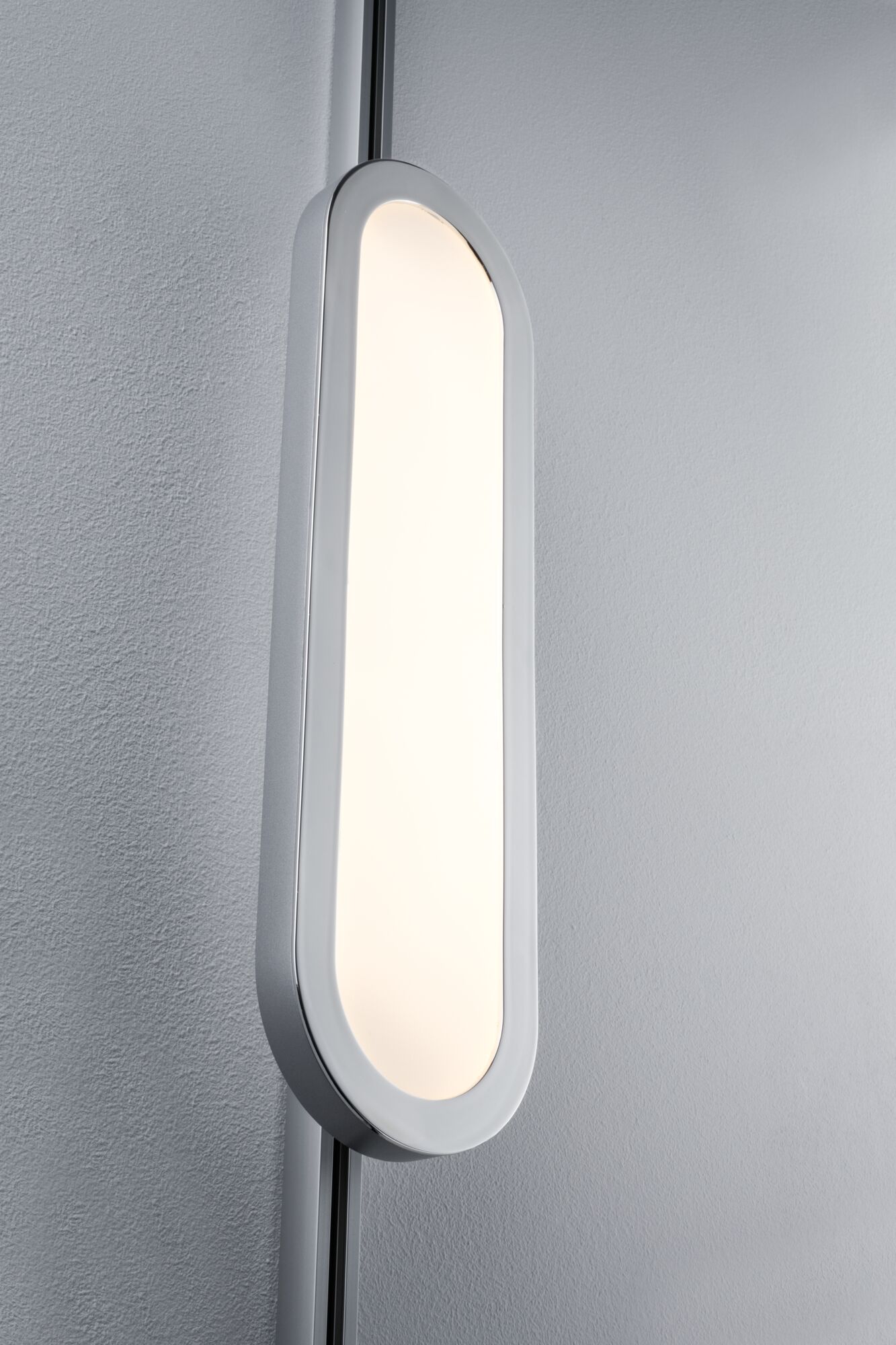

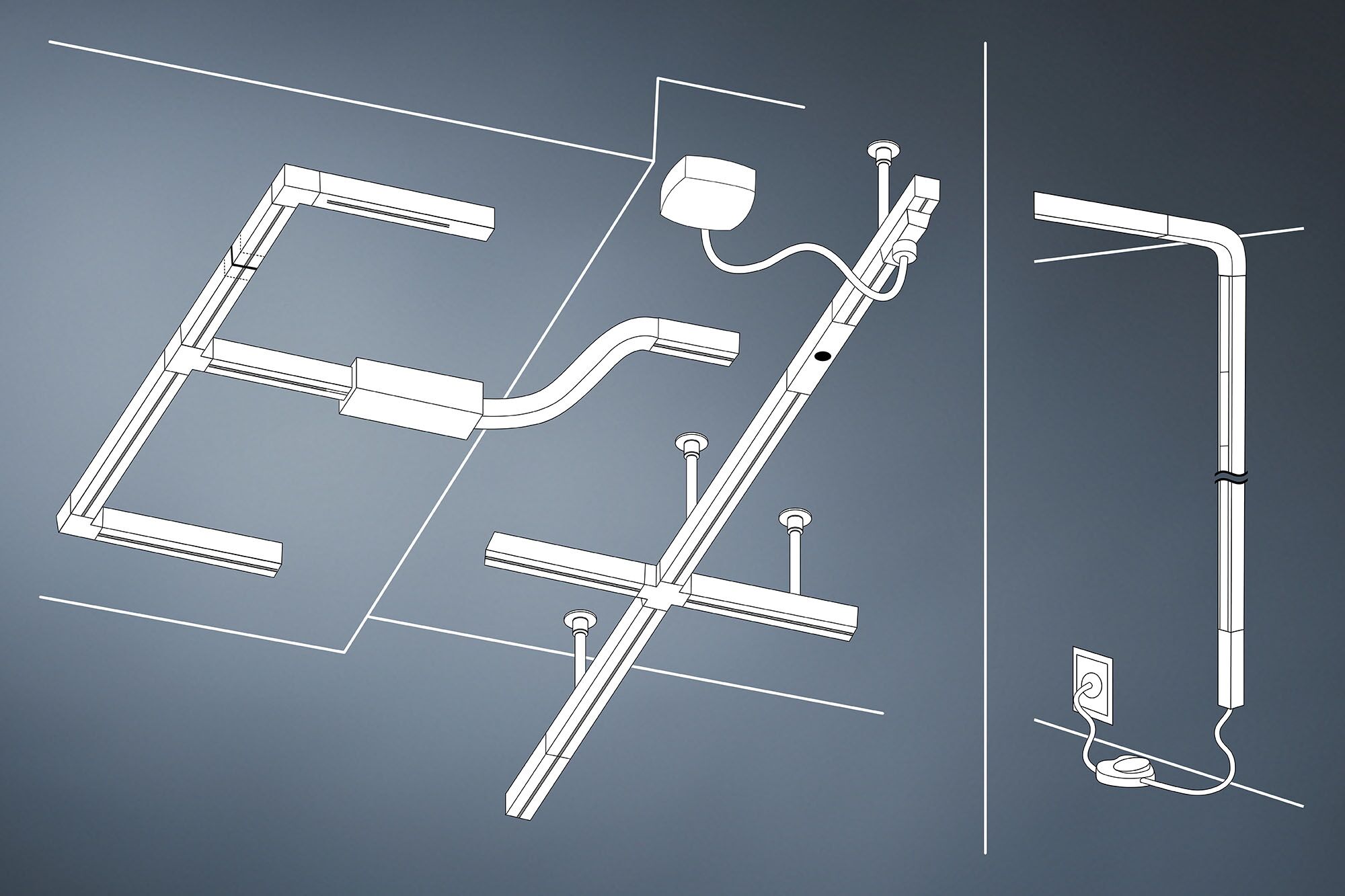

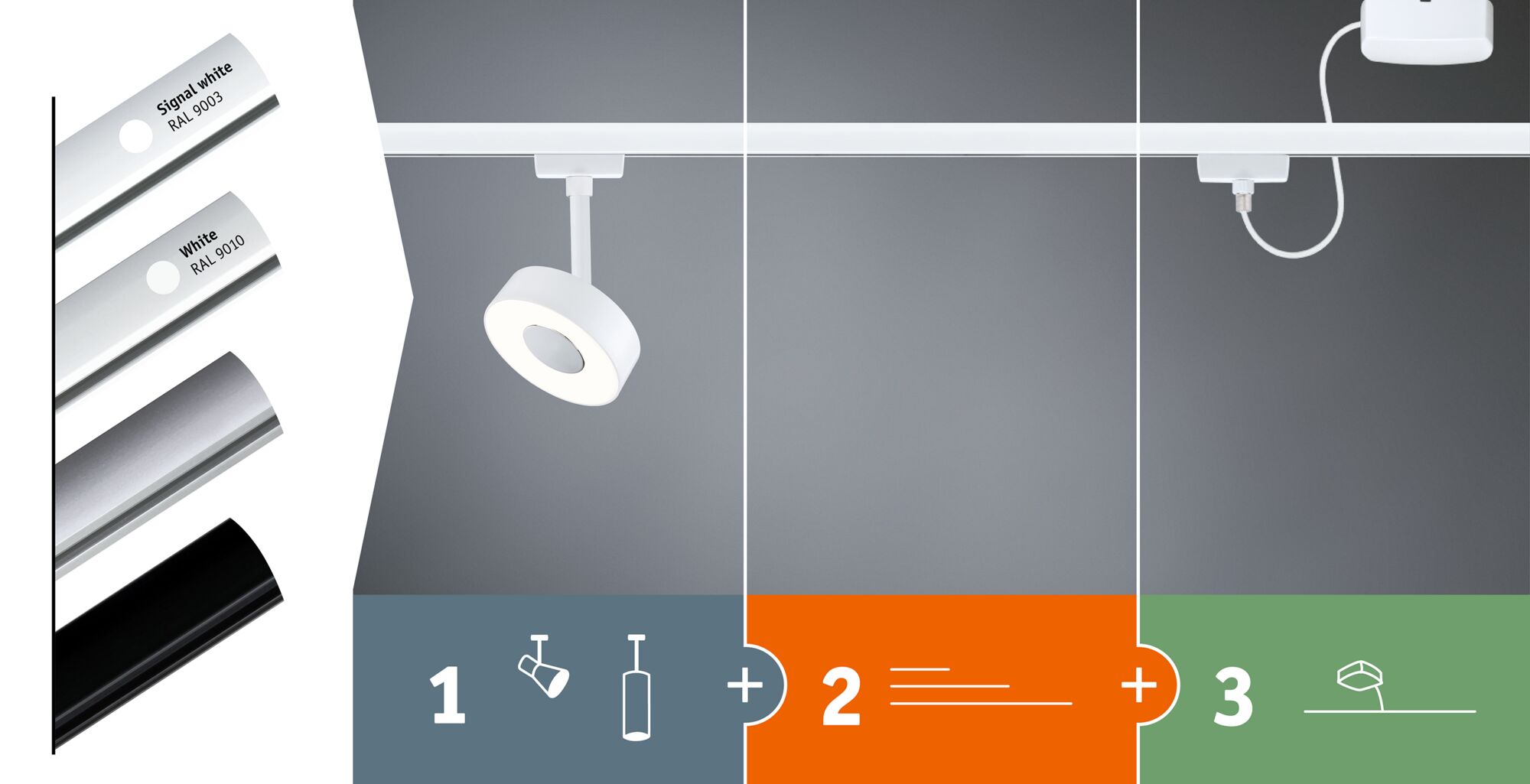

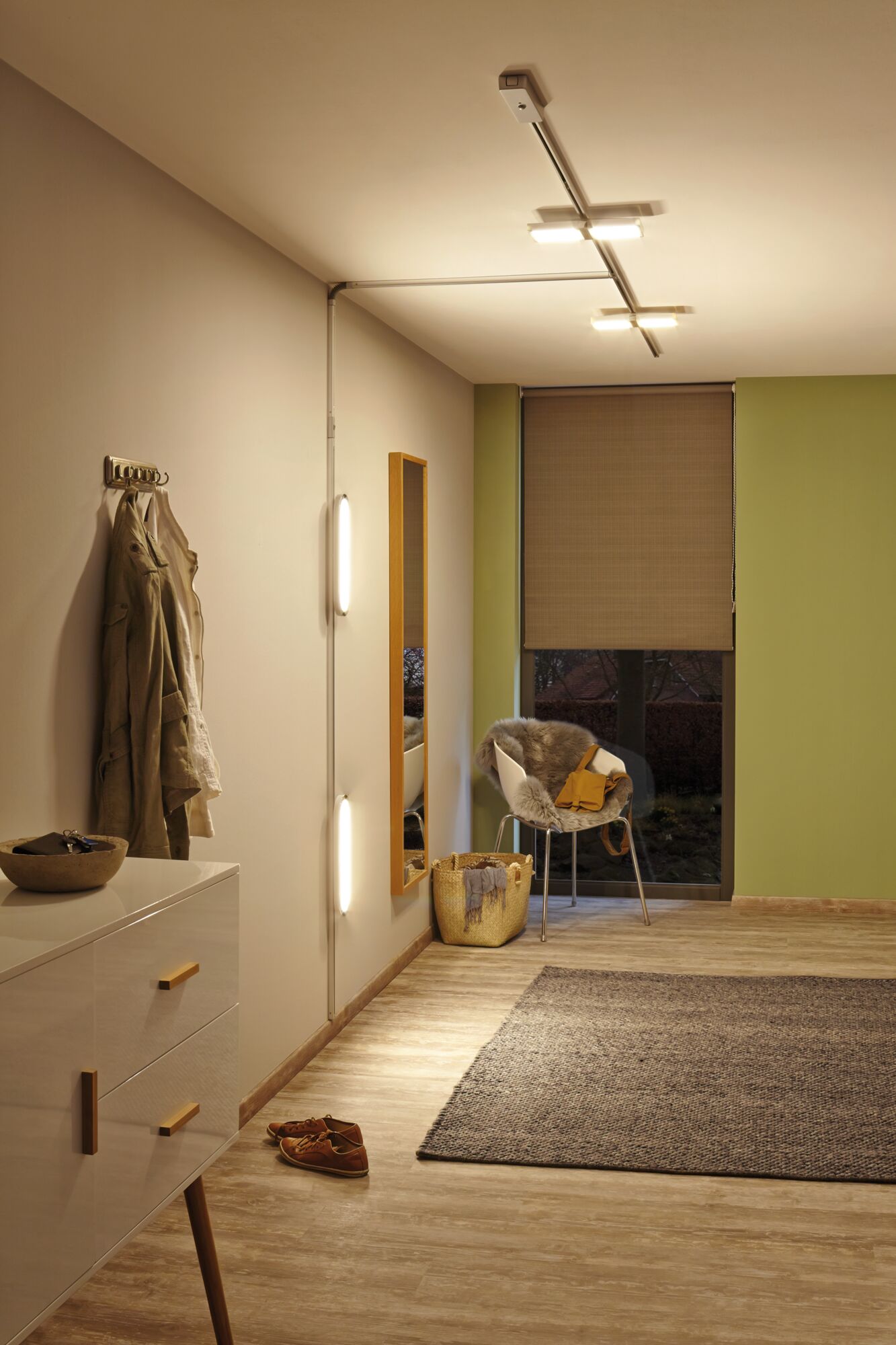

With the versatile URail 230 V rail system, various application areas with a room can be very easily illuminated.. The innovative URail LED panels cast a generous and low-glare light and are thus absolutely the trend. They can be mounted both on the wall and ceiling and are comparable to small windows that provide basic illumination. Select between round, rectangular and oval shapes and set your creativity no bounds.
- URail system lamp
- Area lighting
- For wall and ceiling mounting
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|

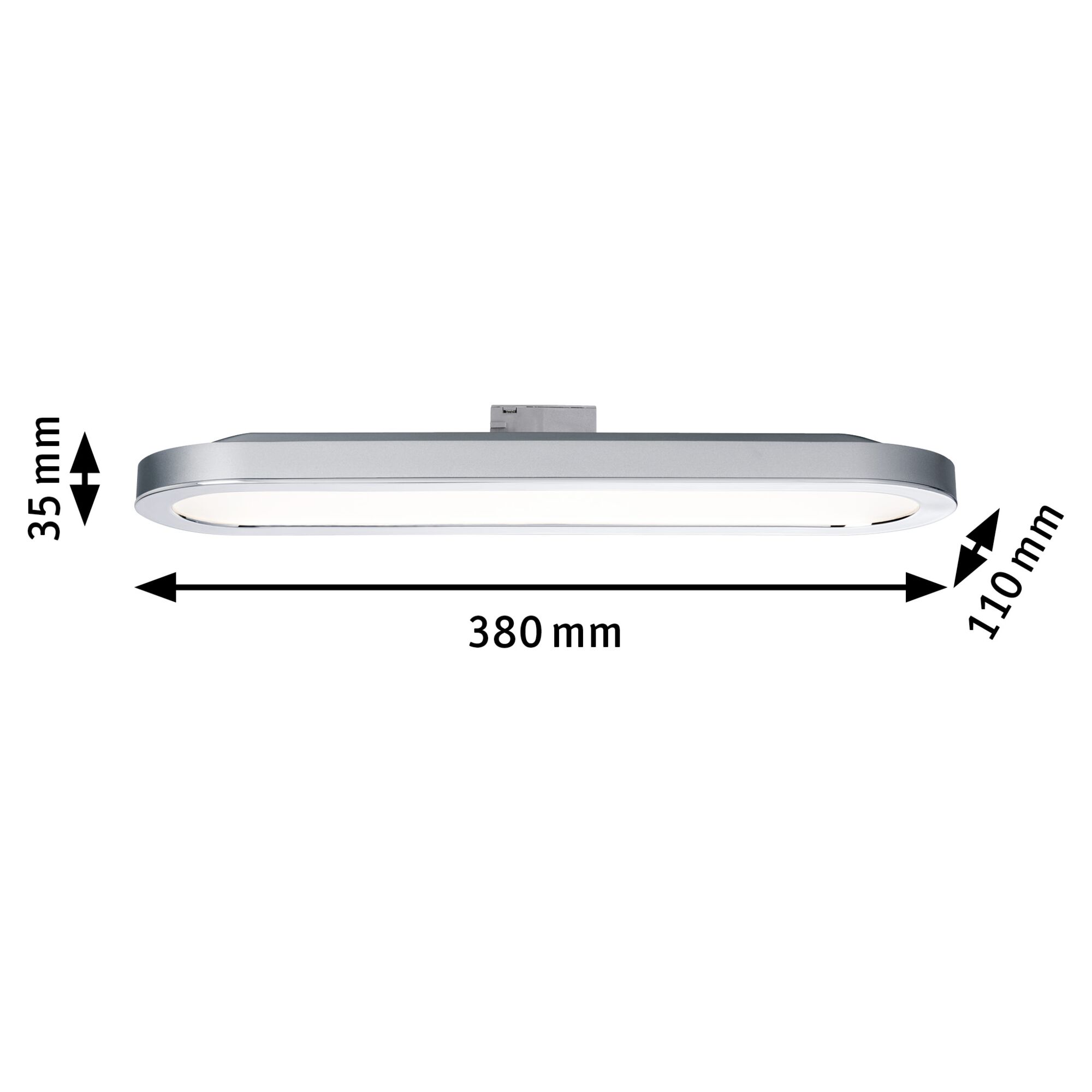

| Dimensions (Height x Width x Depth) | H: 35 x B: 380 x T: 110 mm |
| net weight | 520 g |
| Design and Material | |
|---|---|
| Colour | Chrome, Chrome matt |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall and ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 480 lm |
| Colour temperature | Warm white, 2700 K |
| Luminous flux LED module | 812 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 7 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 60 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| Protection class | Protection class II |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 8 W |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 15 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
Manuals
Download Installation/MontageProduct data, leaflets & safety instructions
Safety instructions Flyer URail 230V Schienensystem Flyer URail 230V rail system 504110332_it_Paulmann_URail
- URail
- Accessories

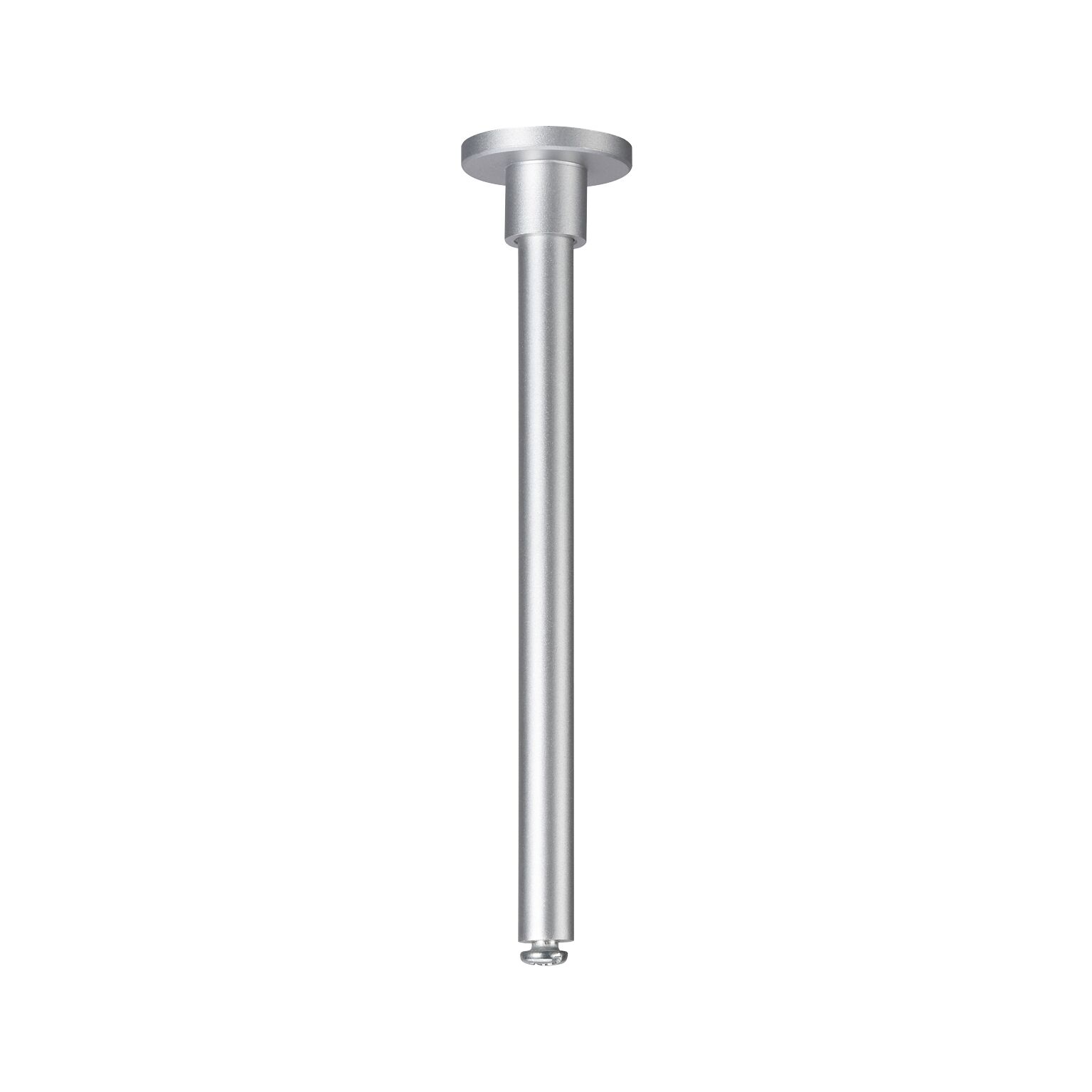

105mm Chrome matt
