Article-No.:
95283
URail
Rail spot
Shine Individual Spot
225lm 4,9W 2700K 230V White
225lm 4,9W 2700K 230V White
- Surface/color: White
- URail system lamp incl. assembly instructions
- Including bulb (built-into lamp)

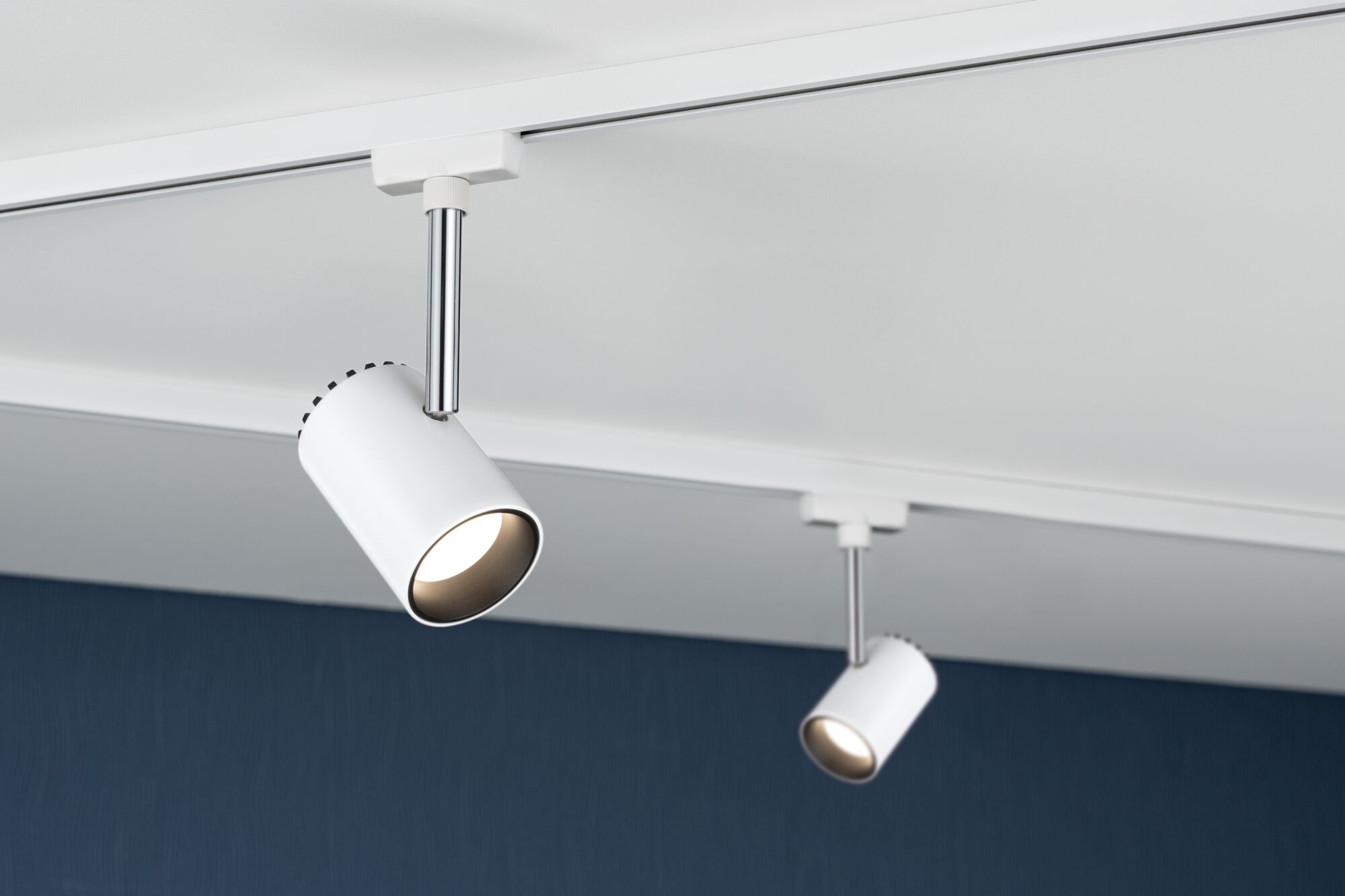

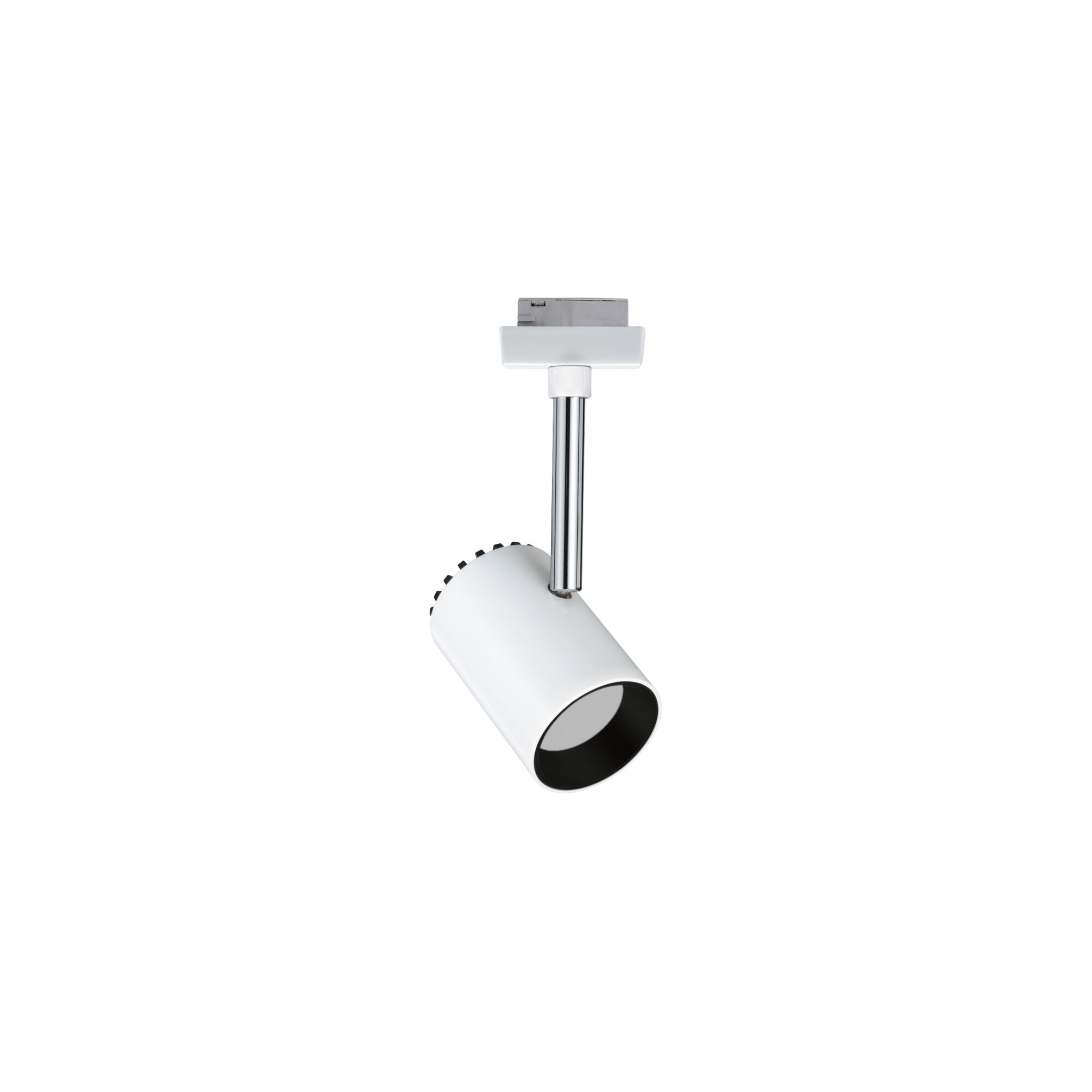

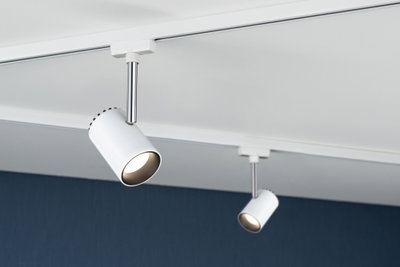

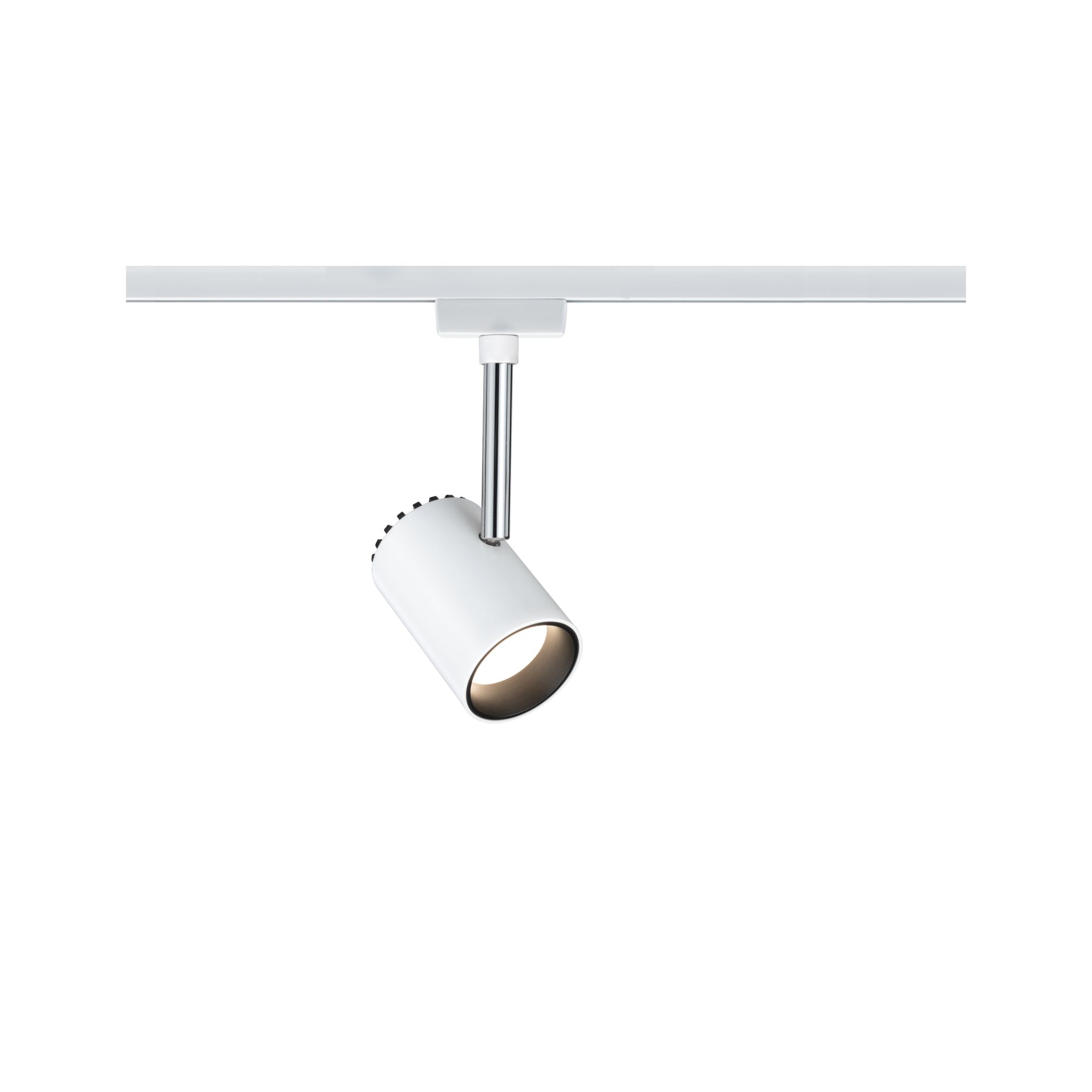

URail Rail spot Shine Individual Spot 225lm 4,9W 2700K 230V White

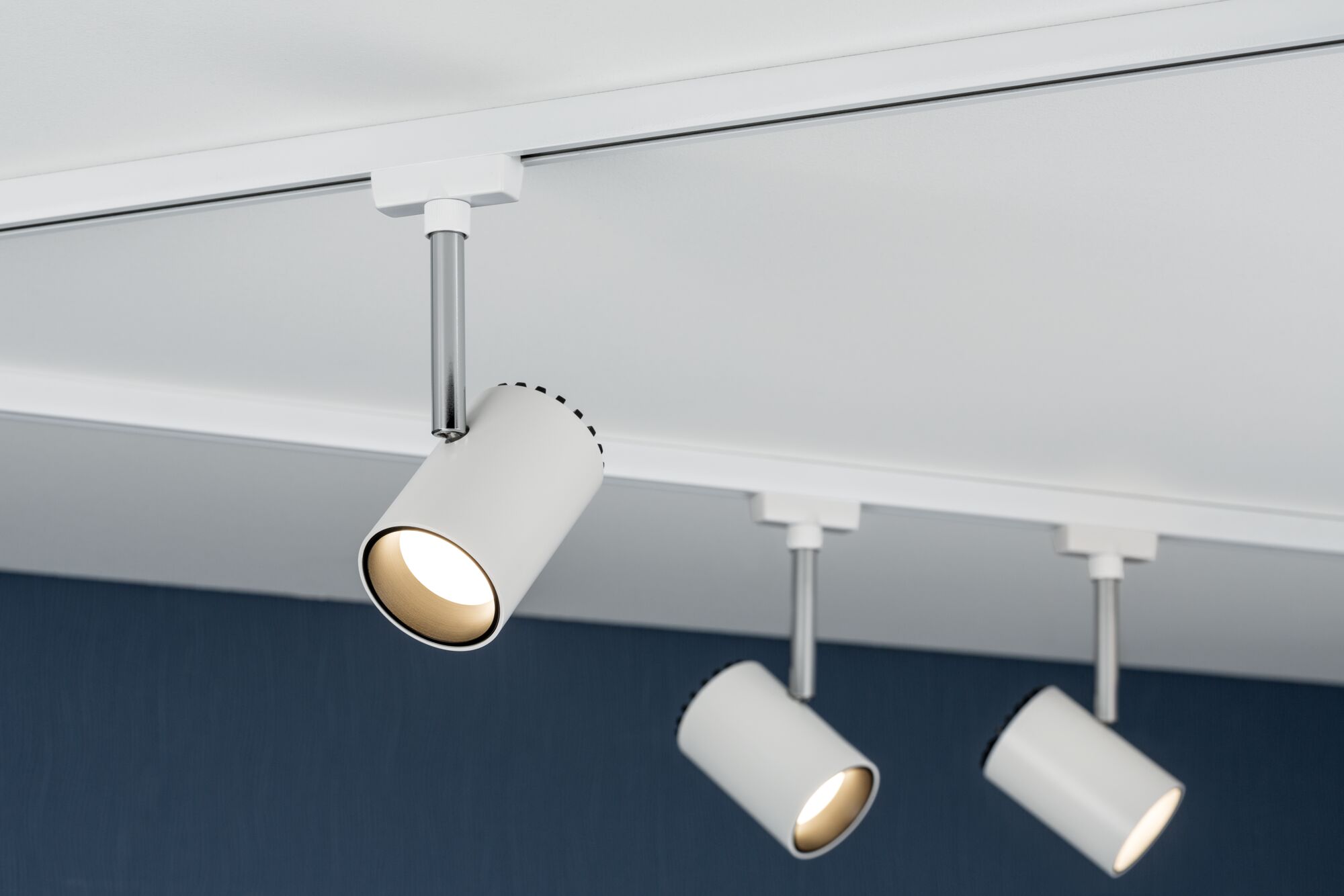

The URail rail luminaire -Shine- is equipped with LED technology and is compatible with all URail items. In combination with the corresponding URail components, you can create your own individual lighting system with a total output of up to 1,000 watt.
- Surface/color: White
- URail system lamp incl. assembly instructions
- Including bulb (built-into lamp)
- The slightly directed diffusion of light makes it possible to provide good room lighting and adds light accents.
- LED equipment conserves up to 80% in comparison to conventional light bulbs
| Dimension | |
|---|---|

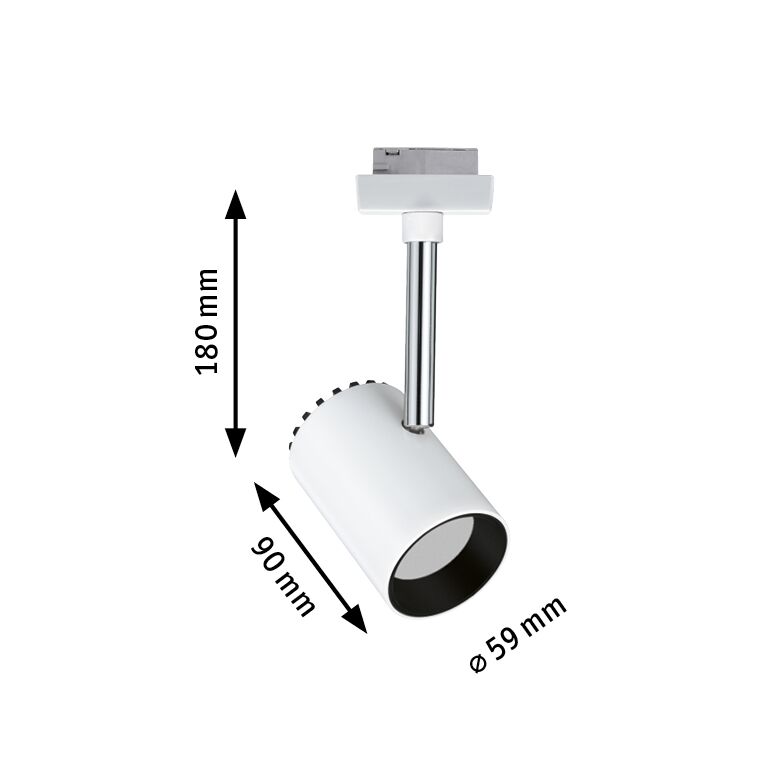

| Dimensions (Height x Width x Depth) | H: 180 x B: 59 x T: 90 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 75 ° |
| Usable luminous flux | 225 lm |
| Luminous flux LED module | 368 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 225 lm |
| Lamp Features | |
|---|---|
| Component parts | 4,9 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 59 mm |
| Incandescent Equivalent | 33 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 4,9 W |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| power supply efficiency factor | 0,5 |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
