Article-No.:
92933
LED Recessed panel
Areo
IP44 round 180mm 11W 770lm 3000K Matt white dimmable
IP44 round 180mm 11W 770lm 3000K Matt white dimmable
- Made of easy-care plastic

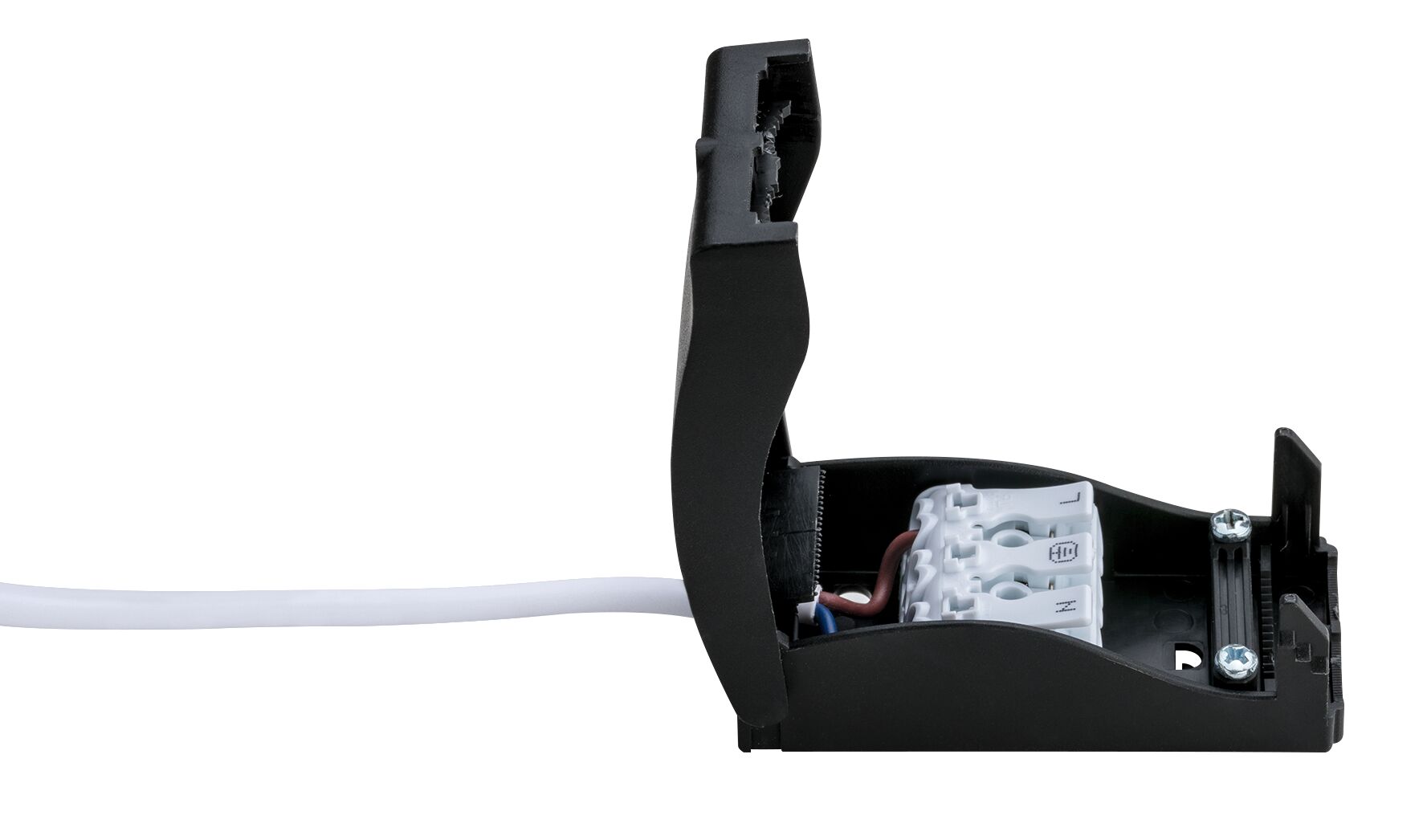

- For 230 V direct connection
- IP protection: IP44 splash-protected

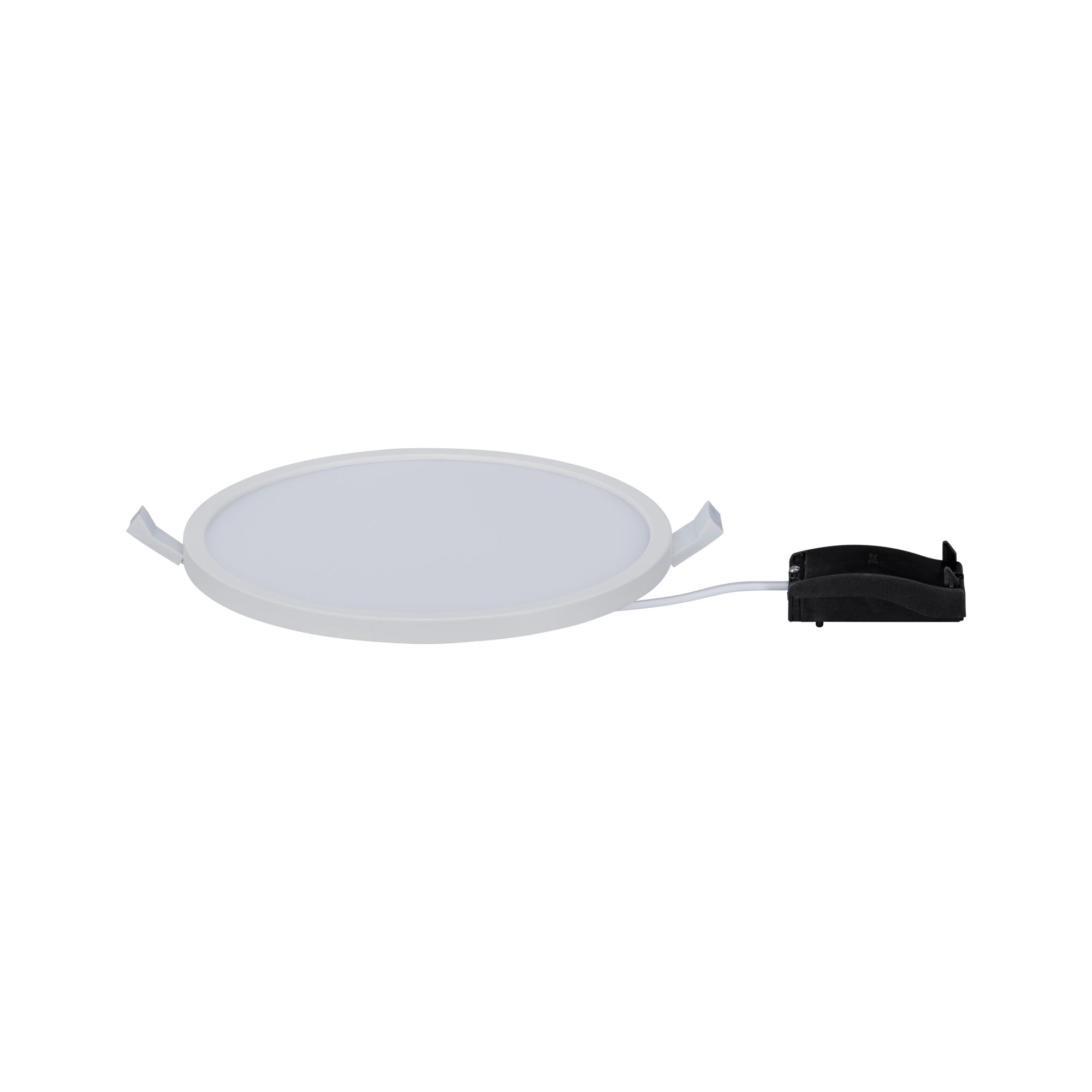

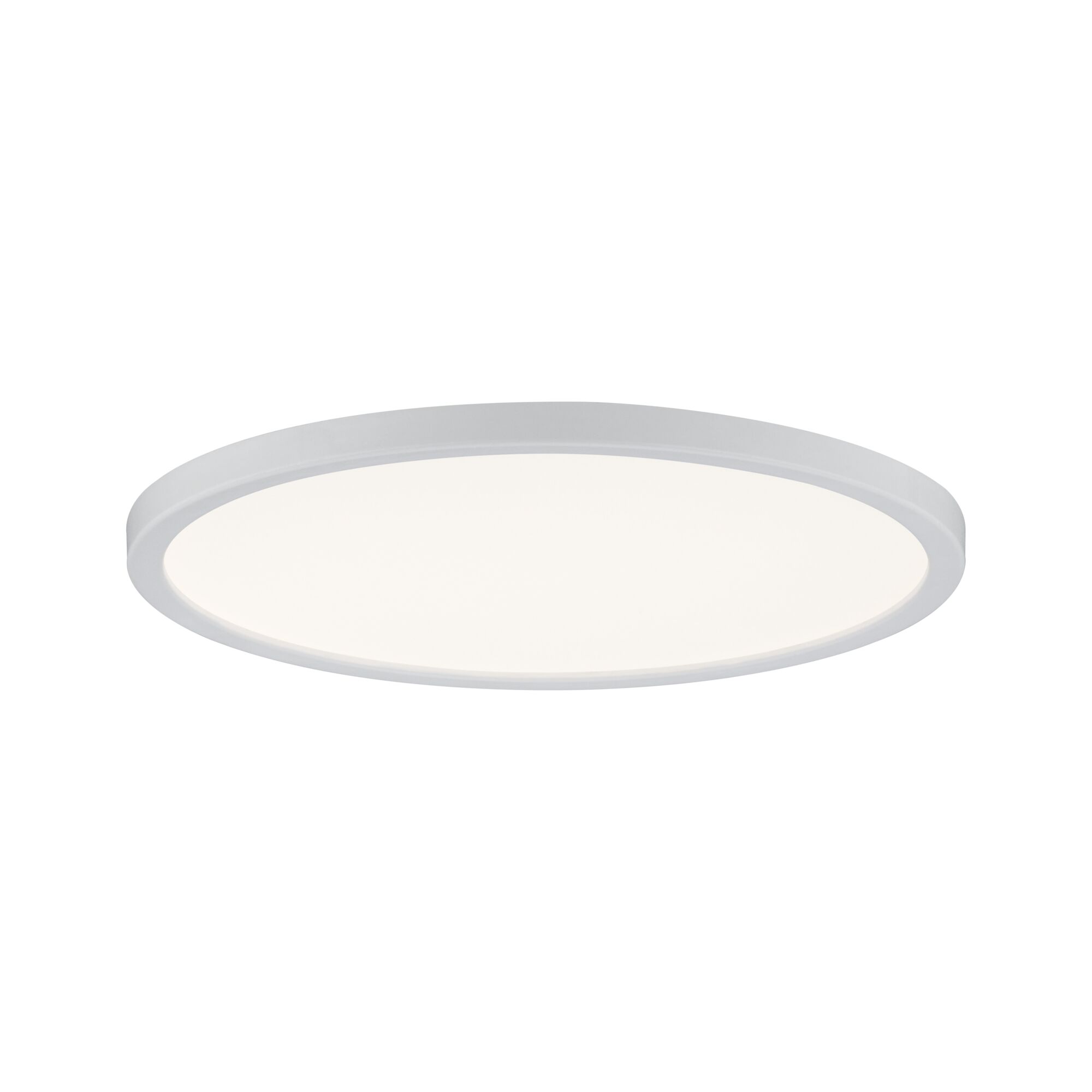

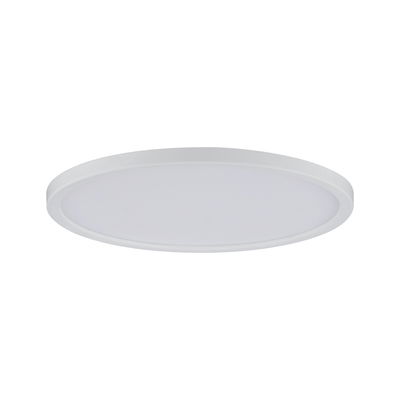

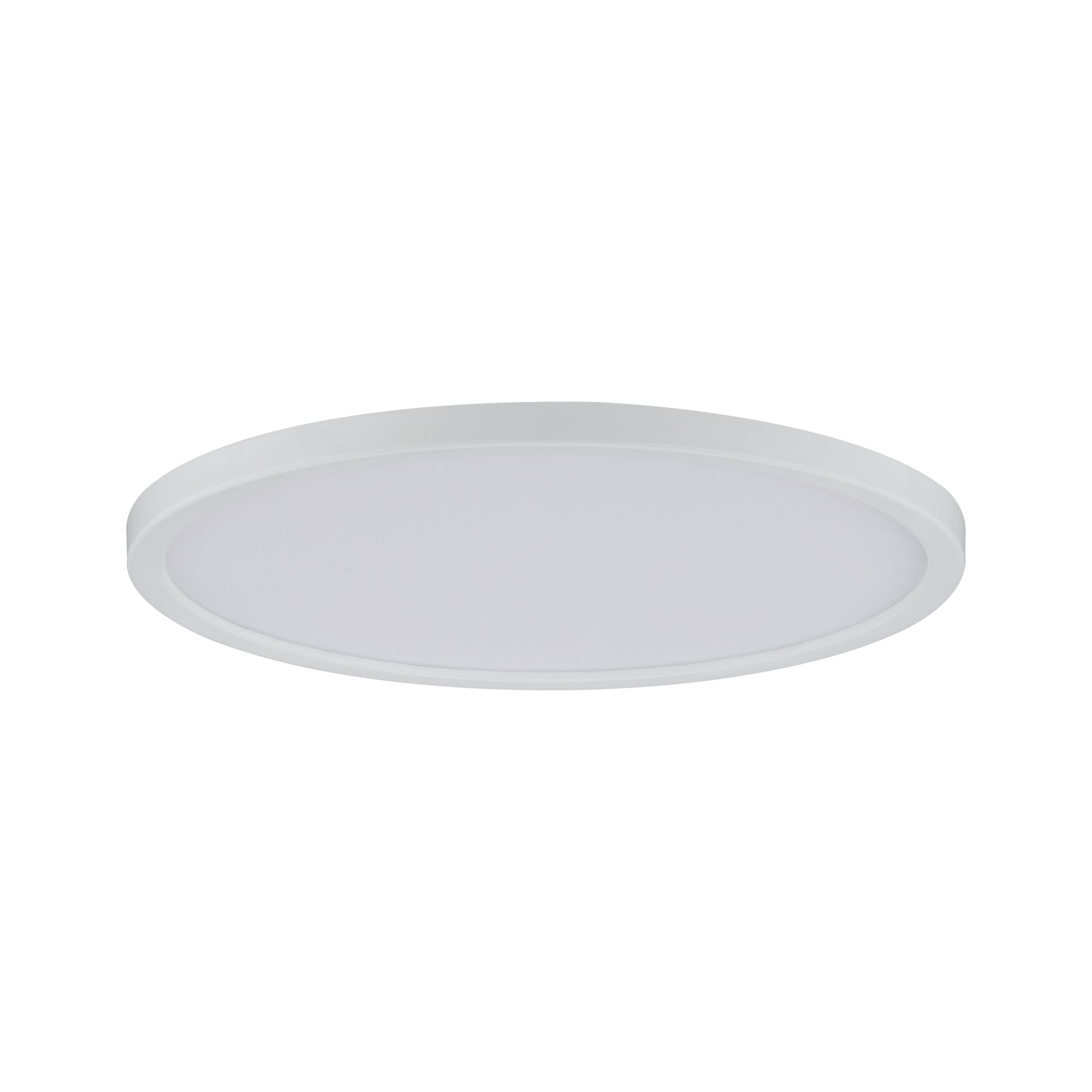

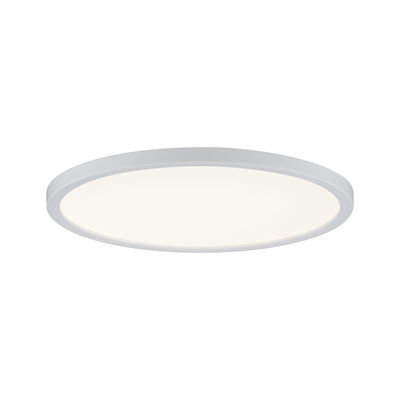

LED Recessed panel Areo IP44 round 180mm 11W 770lm 3000K Matt white dimmable
The round Areo LED recessed panel with a diameter of 18 centimetres and 12W power features an extra-narrow edge and dimming function. The matt white plastic housing is particularly easy to install and keep clean thanks to its low weight.
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Dimmable

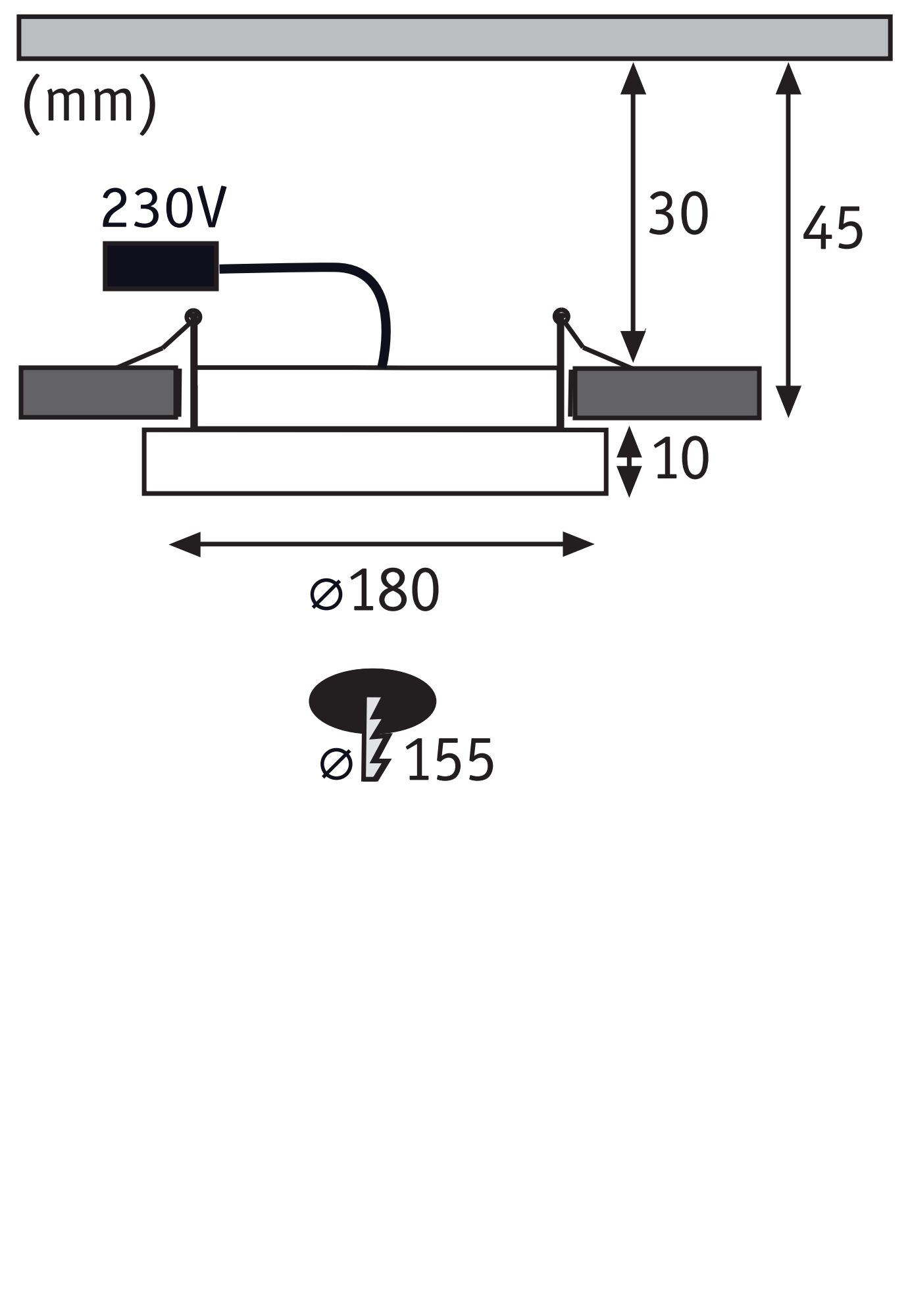

| Dimension | |
|---|---|
| Total Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Ø | 180 mm |
| Mounting hole | 155 mm |
| Form | round |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Matt white |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 770 lm |
| Luminous flux LED module | 1200 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 11 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 83 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
