Article-No.:
92936

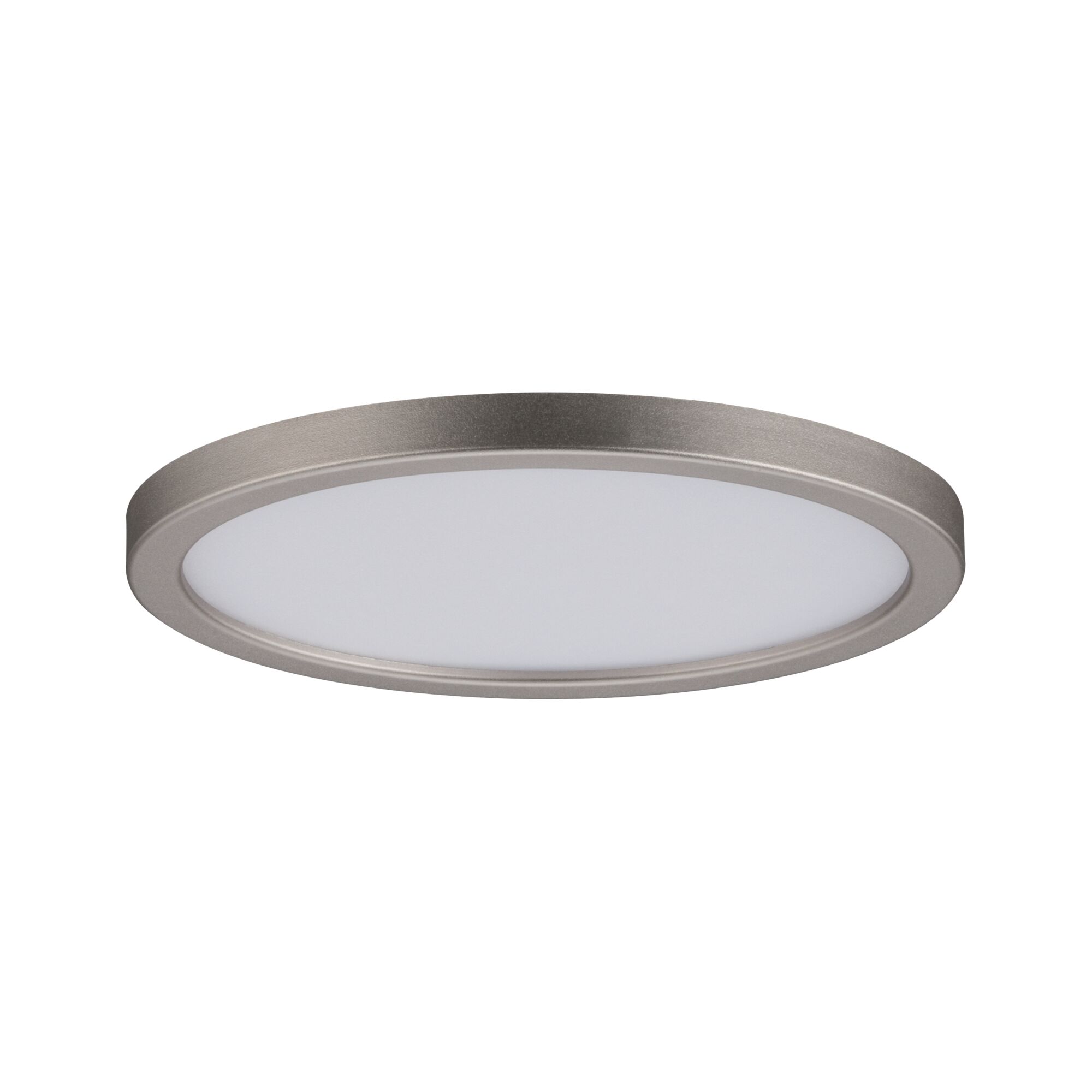

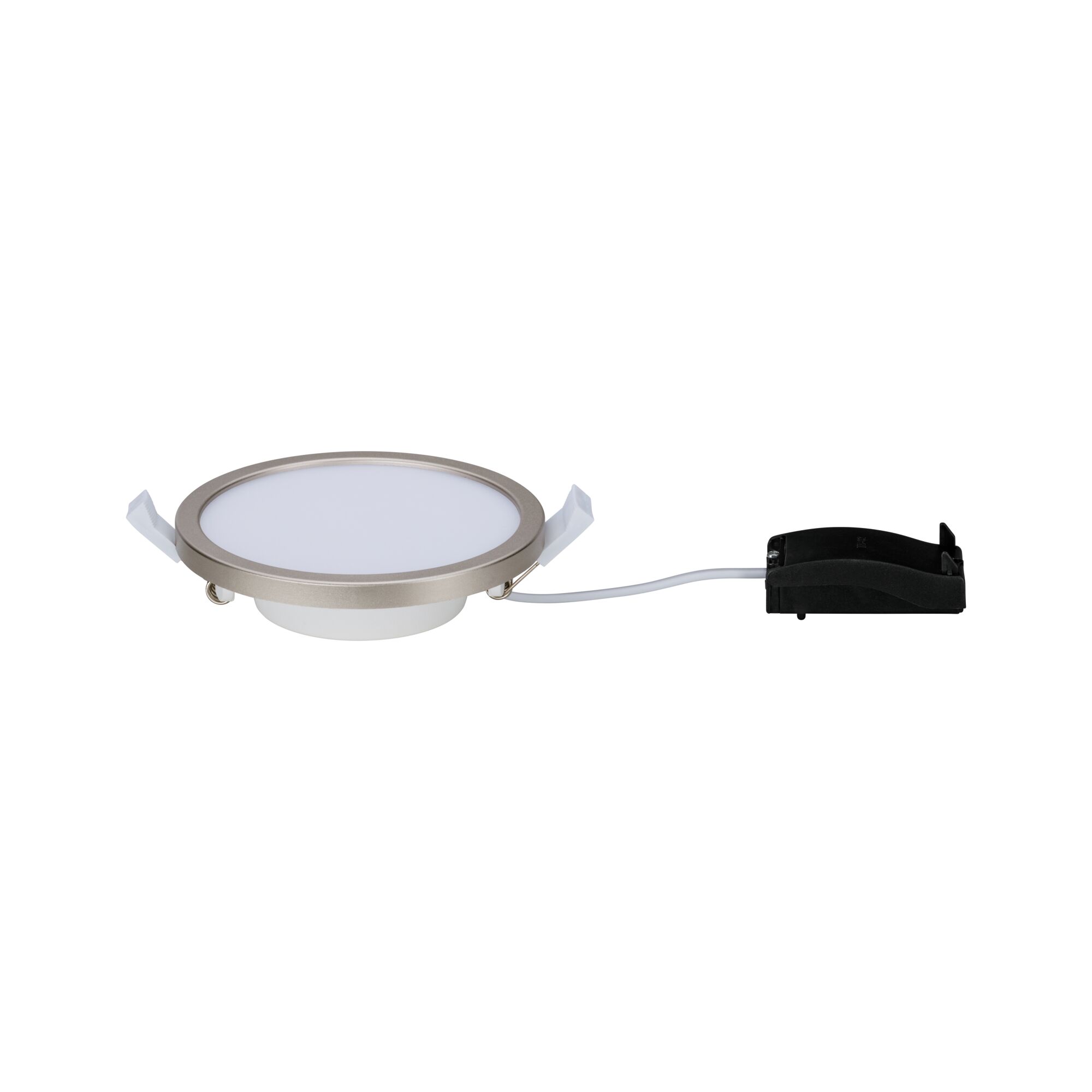

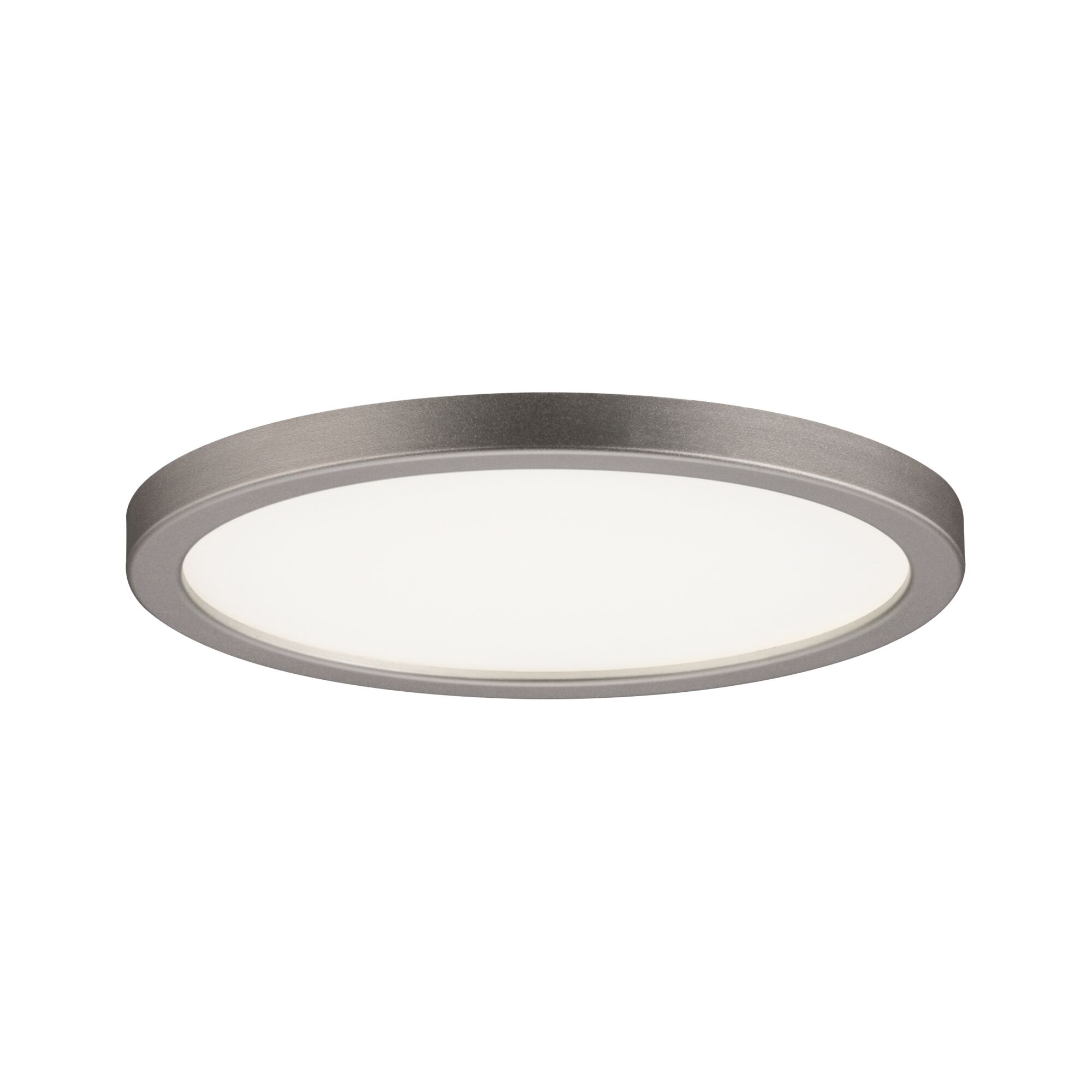

LED Recessed panel
Areo
IP44 round 120mm 6,5W 418lm 3000K Nickel matt dimmable
IP44 round 120mm 6,5W 418lm 3000K Nickel matt dimmable
- Made of easy-care plastic

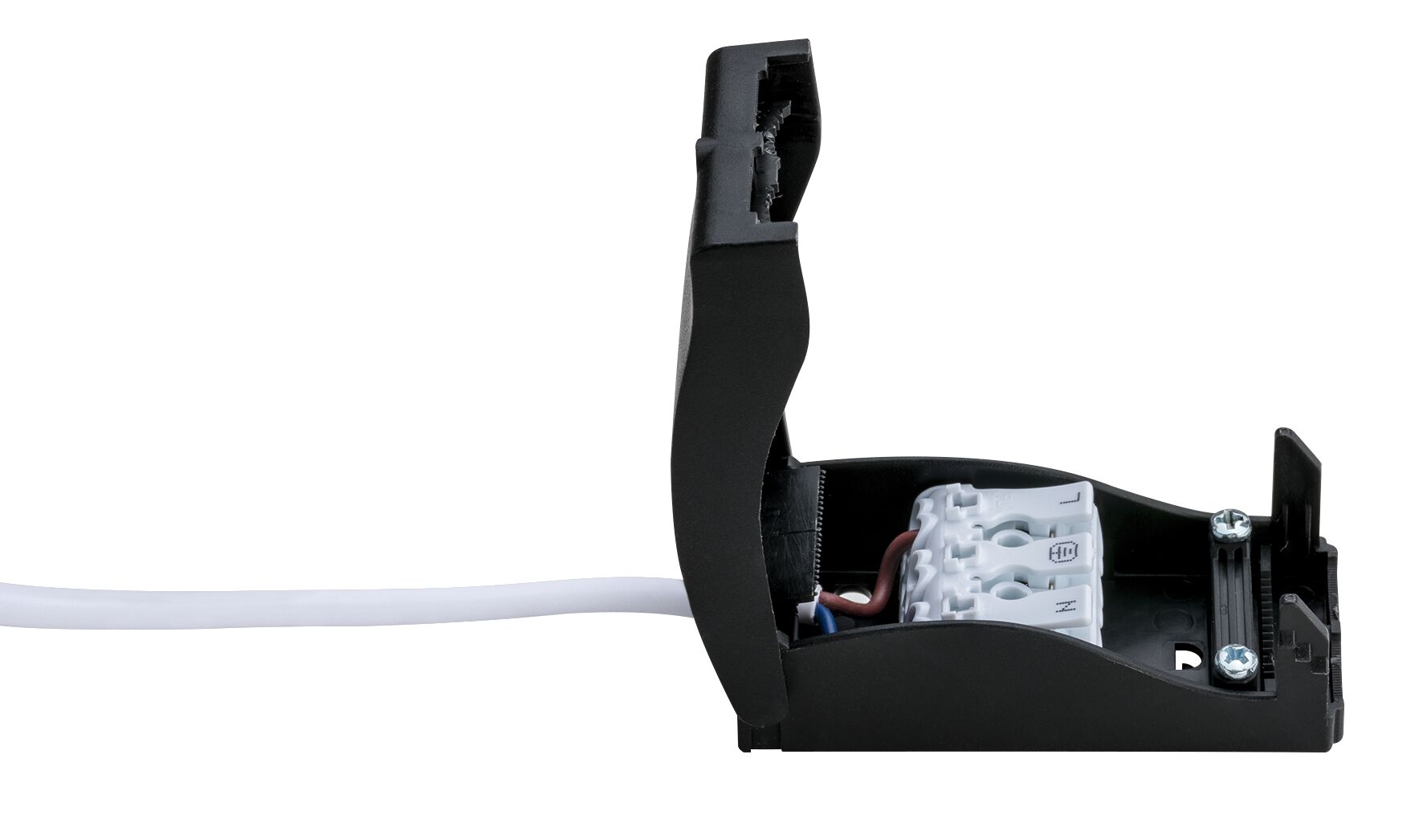

- For 230 V direct connection
- IP protection: IP44 splash-protected
LED Recessed panel Areo IP44 round 120mm 6,5W 418lm 3000K Nickel matt dimmable
The round Areo LED recessed panel with a diameter of 12 centimetres and 8W power features an extra-narrow edge and dimming function. The matt nickel-coloured plastic housing is particularly easy to install and keep clean thanks to its low weight.
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Dimmable

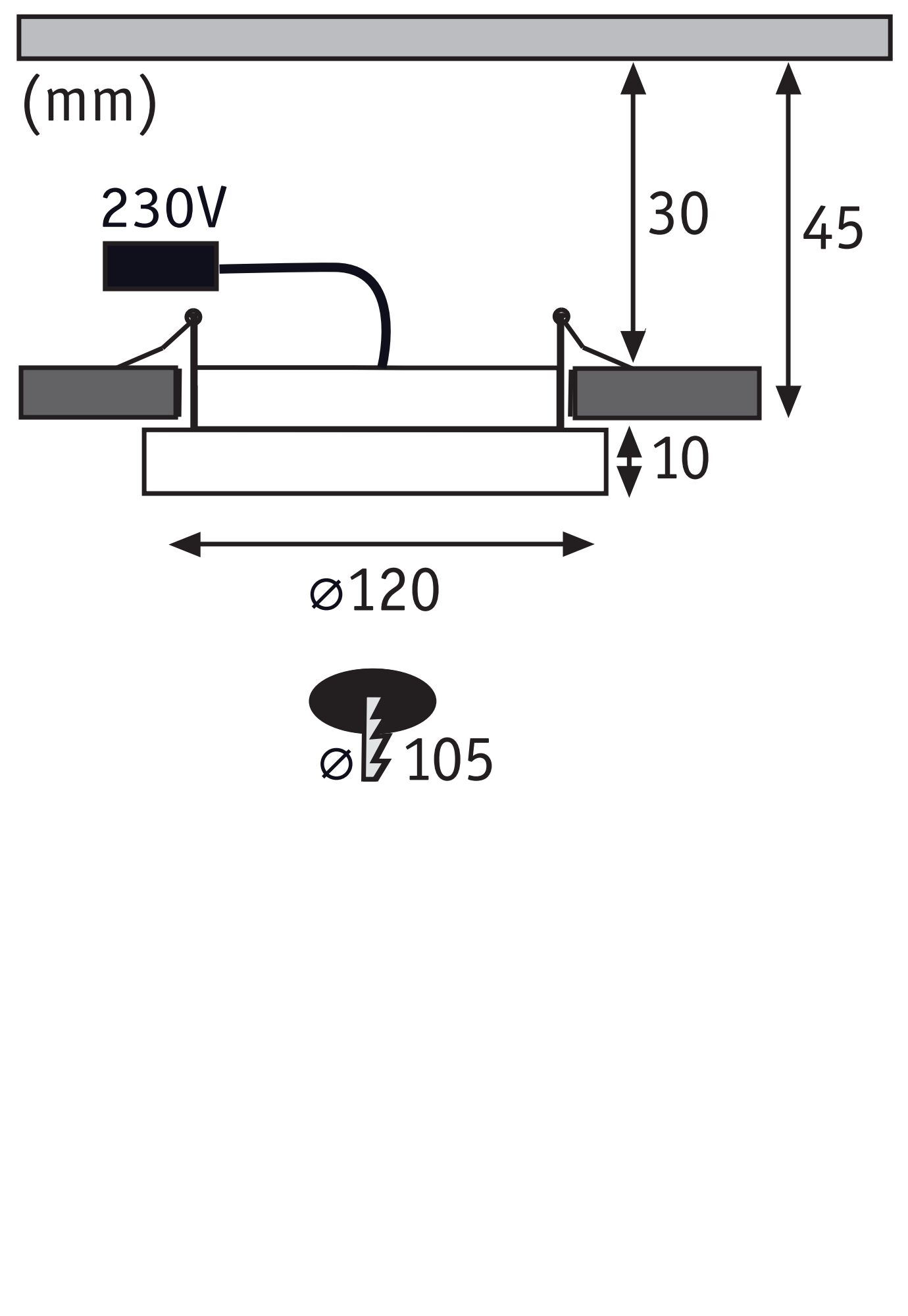

| Dimension | |
|---|---|
| depth of hollow wall | 20 mm |
| Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Ø | 120 mm |
| Mounting hole | 105 mm |
| Form | round |
| Depth of hollow wall | 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Nickel matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED\n, RC Gira 0307 00/I02 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| energy efficiency (A to G) | F |
| Service life | |
|---|---|
| lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Color temp. | 3000 K |
| Useful luminous flux | 418 lm |
| Luminous flux LED module | 630 lm |
| color temp | 3.000 K |
| Lamp Features | |
|---|---|
| Component parts | 6,5 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Incandescent Equivalent | 50 W |
| Inclusive lamp | ✓ |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 8 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
