Article-No.:
94369
Plug & Shine

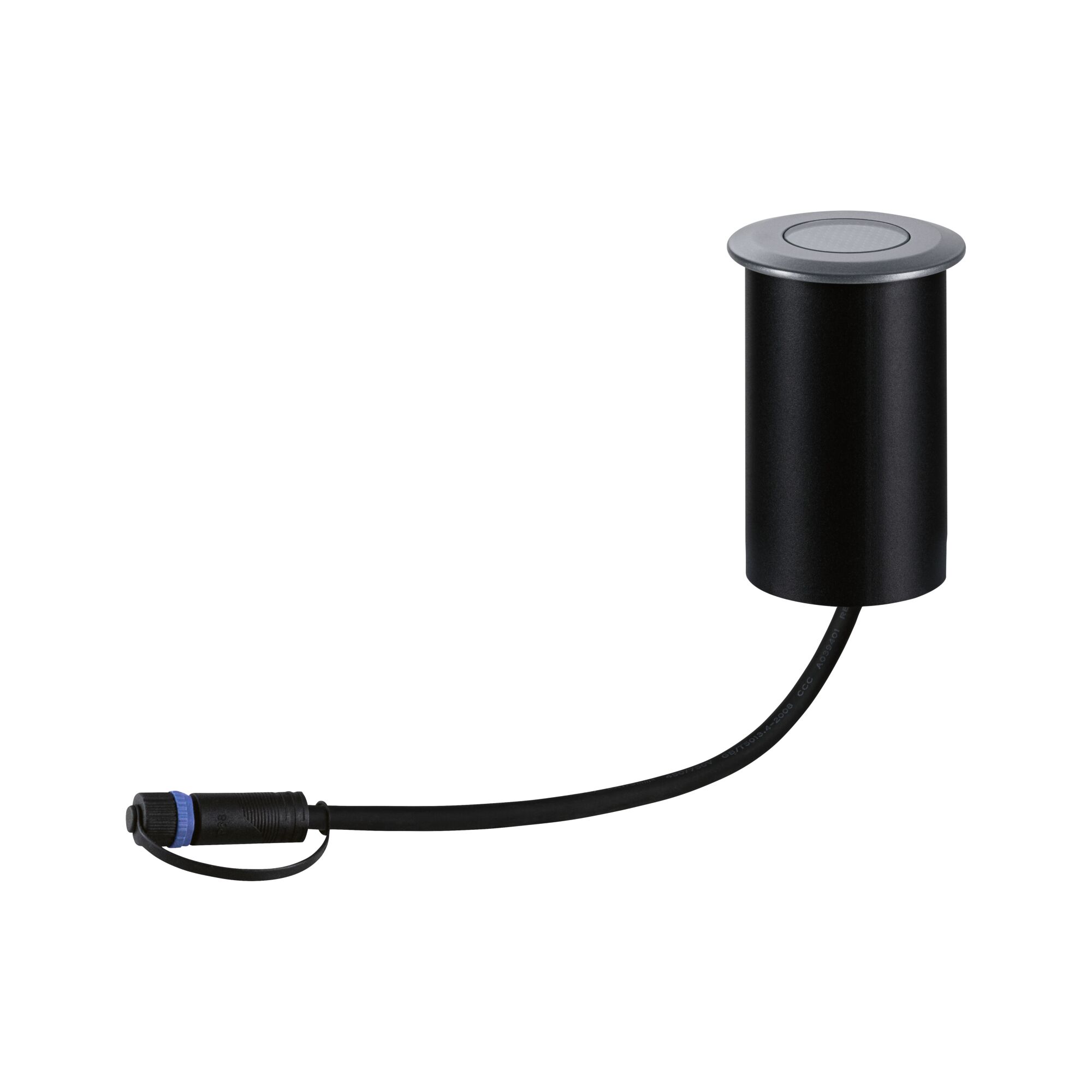

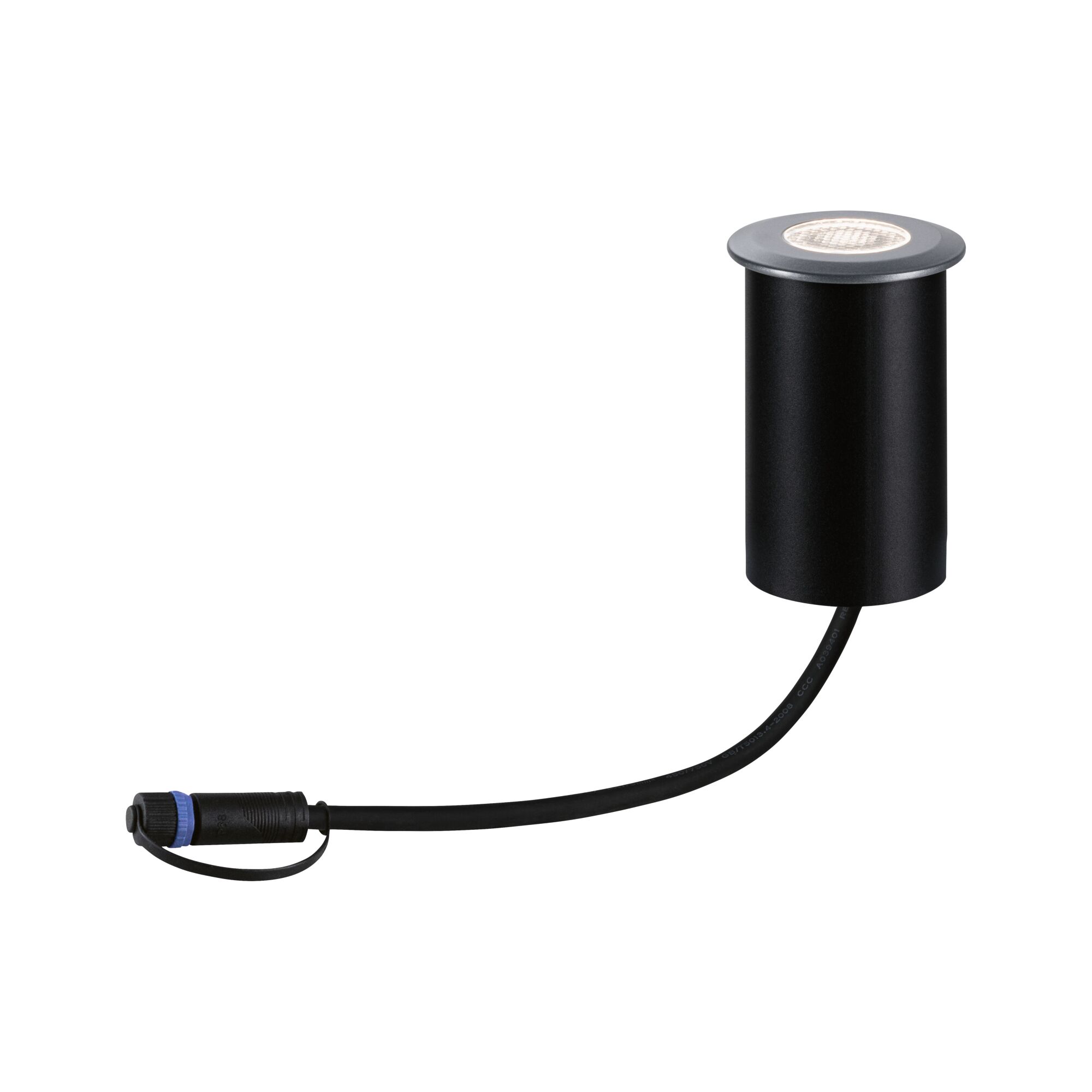

LED Recessed floor luminaire
Floor Individual Spot
IP67 3000K 11W Grey
IP67 3000K 11W Grey
- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
Plug & Shine LED Recessed floor luminaire Floor Individual Spot IP67 3000K 11W Grey

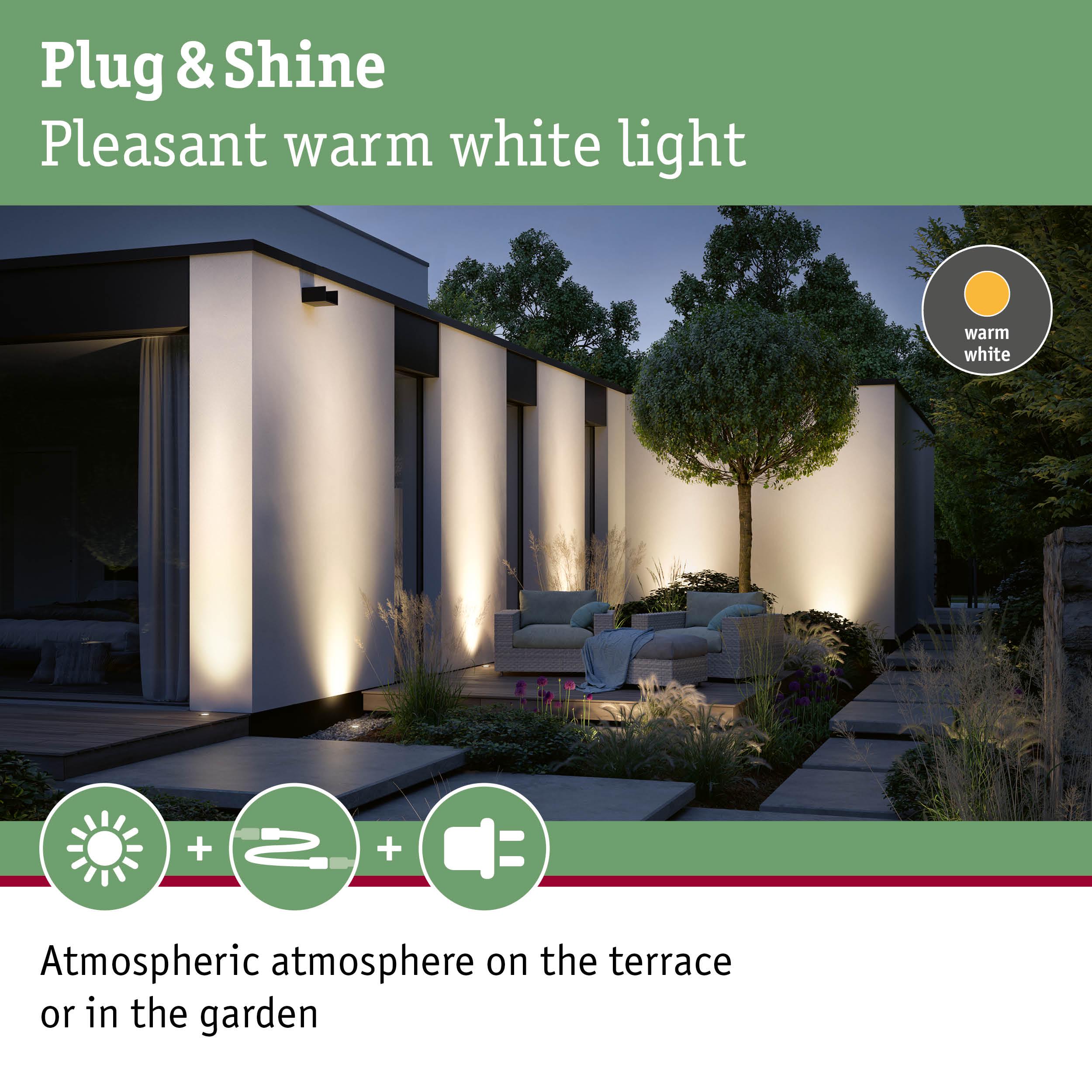

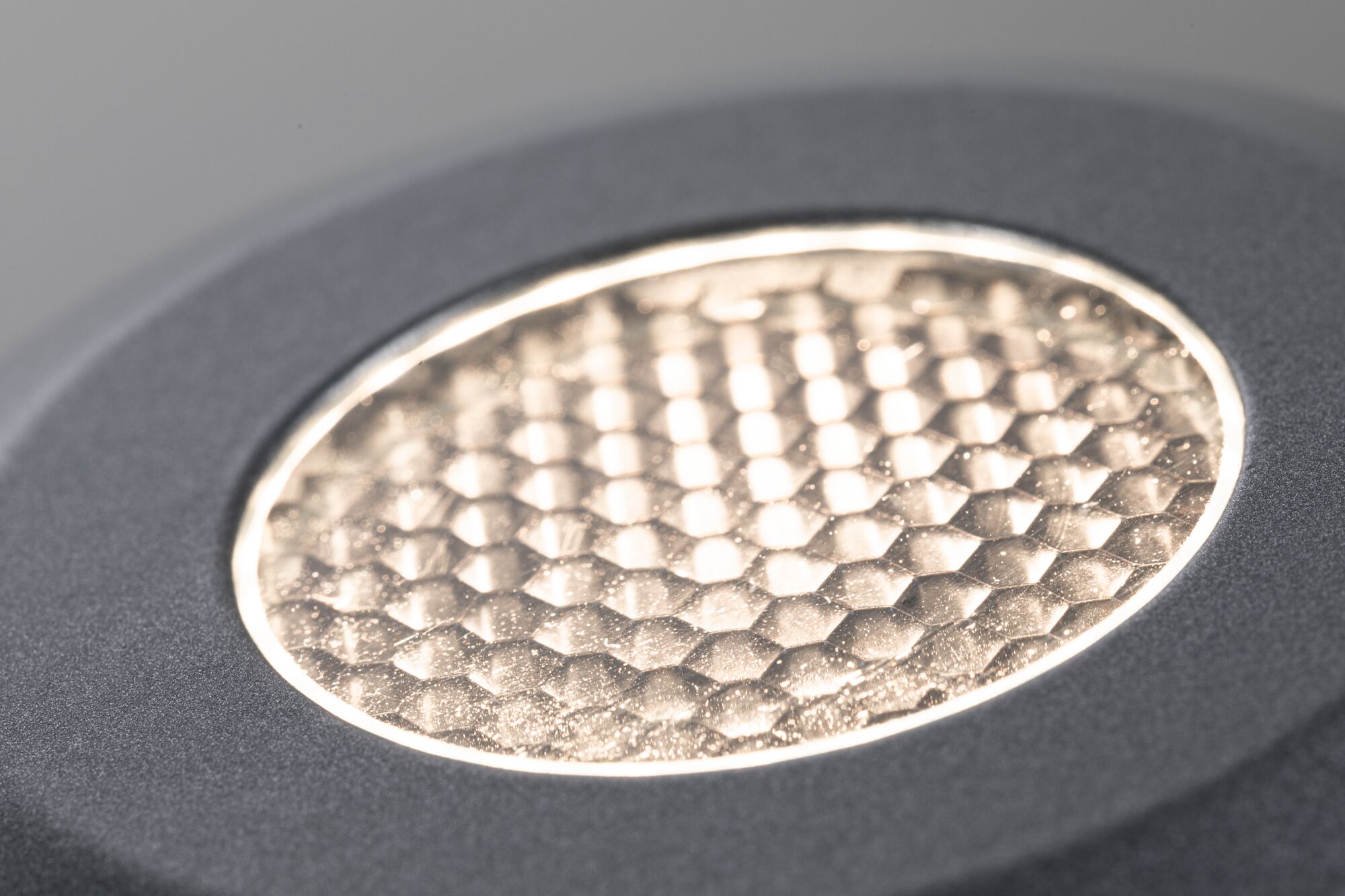

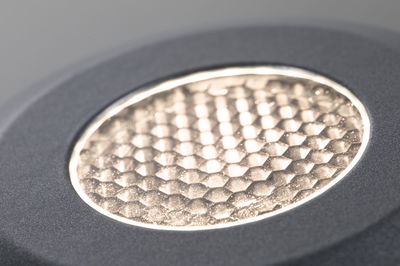

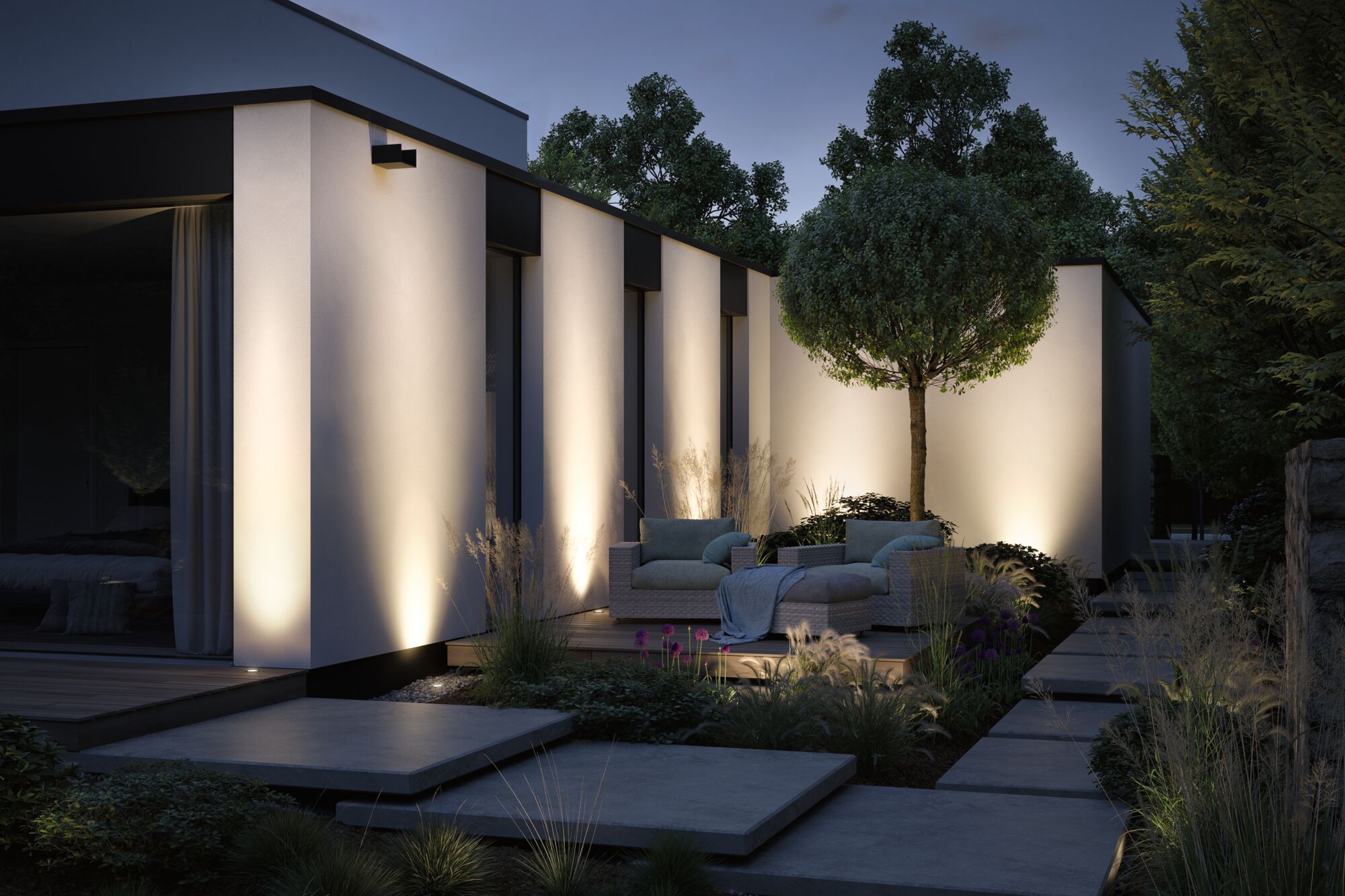

The powerful Plug & Shine recessed floor luminaires, with an output of §{Leistung_Naming}, illuminate facades or trees from the ground and are fully weather-resistant. The honeycomb structure ensures optimum light distribution and is glare-free. A suitable lamp is included in the delivery. The 24-volt LED DC system is safe and easy to lay – ideal for realising your own lighting ideas. The system can be expanded with additional Plug & Shine components, if required.

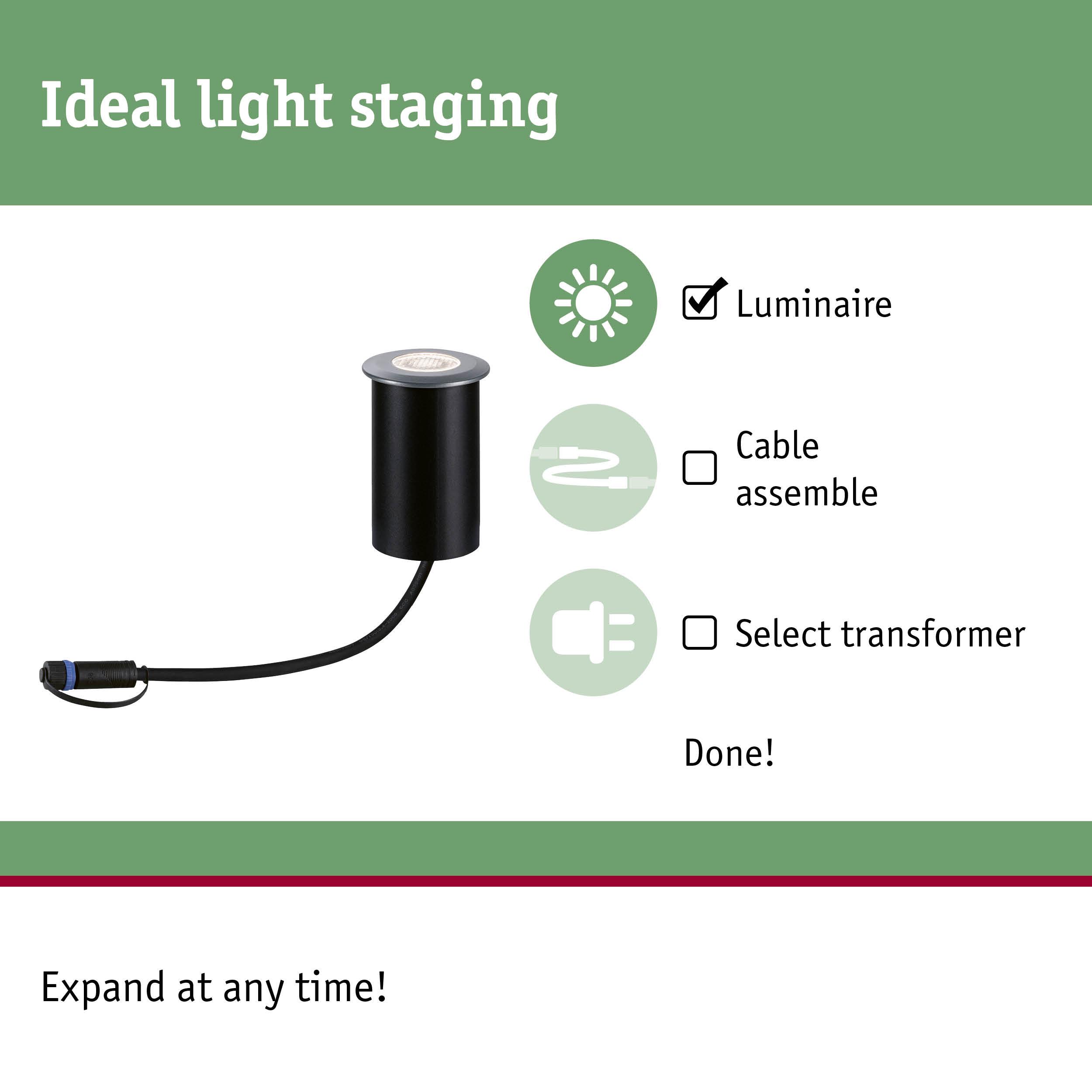

- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
- Can be switched and dimmed via the plug & shine controller (Accessories) using the remote control.
| Dimension | |
|---|---|
| Depth of hollow wall | 100 mm, 100 mm |
| Total Mounting depth | 115 mm |
| Dimensions (Height x Width x Depth) | H: 120 mm |
| Ø | 82 mm |
| Mounting hole | 72 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Grey |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 680 lm |
| Luminous flux LED module | 1200 lm |
| color temp | 3.000 K |
| Color rendering index | > 90 Ra |
| Lamp Features | |
|---|---|
| Component parts | 11 W |
| Technique | LED |
| IP protection | IP67 |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 83 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 12,5 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
